x-travel:2000 mmy-travel:1600 mmz-travel:1140 mmb-axis:0.0001° x 360° °number of pallets:4 table surface area:1000 x 1450 mmmax. table load:6.000 kgturning speed range:4 - 10000 U/minpower capacity at 100 % load:40 kW kWtool taper:HSK100 DIN69893A machine weight ab.:63.000 kgspace required L x W X H:12320 x 11000 x 4700 mmincl. 50 x HSK100 tool tapers
x-travel:760 mmy-travel:760 mmz-travel:760 mmtotal power requirement:43 kWweight of the machine ca.:11,5 tdimensions of the machine ca.:2,7 x 4,73 x 2,87 mmax. table loading capacity:500 kg
table length:2200 mmtable width:2500 mmtable load:16 ttotal power requirement:6,5 kWfeed speeds:1,25 - 160 mm/minrapid traverse speed:2000 mm/minlongitudinal adjustment:1500 mmweight of the machine ca.:12 tdimensions of the machine ca.:4,1 x 2,65 x 0,95 mTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
x-travel:450 mmy-travel:450 mmz-travel:450 mmb-axis:360.000 x 0.001 °main spindle speeds::45-10000 1/minweight of the machine ca.:14 tdimensions of the machine ca.:7 x 2.45 x 3.4 msize of pallet:320 x 320 mmnumber of spindles:2 tool taper:HSK63 tool numbers:2 x 40 spindle drive motor:25/36 (100% / 40% ED) kWDouble spindle 4-axis machining center Horizontal4 machine platesRenishaw probeControl Siemens Sinumerik 840DWorking space (X / Y / Z): 450x450x450 mmLoad pallet / table max .: 300 kgAcceleration: 10 m / s²Rapid traverse: 60 m / minPallet size: 320 x 320 mmChip-to-chip time: 2.6 sWorkpiece height max .: 700 mmTool holder: HSK 63Tool places: 2x 60Tool spindle: 10,000 rpm, 95 NmSpeed increase to 18,000 rpmInfrared receiver for probe,Make Renishaw Vaf72a0pTool magazine with 60 placesControl panel on the workstationControl panel on the tool installation siteWorkpiece positioning station ...
x-travel:700 mmy-travel:550 mmz-travel:500 mmtool taper:SK40 spindle speed max.:12.000 U/minTool changer:30 fach electronic handwheel chip conveyor
x-travel:2500 mmy-travel:1000 mmz-travel:750 mmtable surface area:3220 x 1000 mmWorkpiece weight approx.:3000 kgspindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/minfeed speeds:1- 30000 mm/minrapid traverse:30 m/mintotal power requirement:40 kWdimensions of the machine ca.:6,9 x 4,1 x 3,7 mweight of the machine ca.:21 twith CNC HEIDENHAIN TNC 42630-pockets autom. toolchangerRENISHAW measuring probecoolant attachment with TSC and chip conveyordiverse toolholders
spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmram stroke:700 dimension of the ram:340 x 340 mmspindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min.feed speeds infinitely variable:1 - 5000 mm/minrapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mwith CNC SIEMENS 840 Dsl complete retrofit in 2010FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity,longitudinal movement 2500 mm,angular milling head 4 x 90°universal milling headfloor plate area ca. 12000 x 6000 mm ( 72 m²)chip conveyor and coolant attachmentaerostatic guideways
x-travel:600 mmy-travel:580 mmz-travel:580 mmnumbers of pallets:2 pallet size::400 x 400 mmmax. workpiece weight:400 kgspindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/minrapid speed:50 m/mintotal power requirement:25 kWweight of the machine ca.:12 tdimensions of the machine ca.:3,6 x 3,6 x 2,9 mwith CNC SEICOS 16 M ( FANUC base )autom. toolchanger 61-pocketspallet indexing 1°chip conveyor and coolant attachmentexhausterclamping cube and diverse toolholders
x-travel:1250 mmy-travel:880 mmz-travel:800 mmspindle turning speed range:1 - 10.000 U/minspindle taper ISO:50 table-size:1250 x 1000 mmmax. workpiece weight:2000 kgfeed speeds infinitely variable:1 - 30.000 mm/minrapid speed:40 m/minweight of the machine ca.:16 tdimensions of the machine ca.:7,2 4,4 x 2,9 m5-axes Machining Centerwith CNC SIEMENS 840 DA-axis 0,001°, C-axis 0,001°autom. toolchanger30-pocketsNC tablethrough spindle coolant 40 Bar , chip conveyor

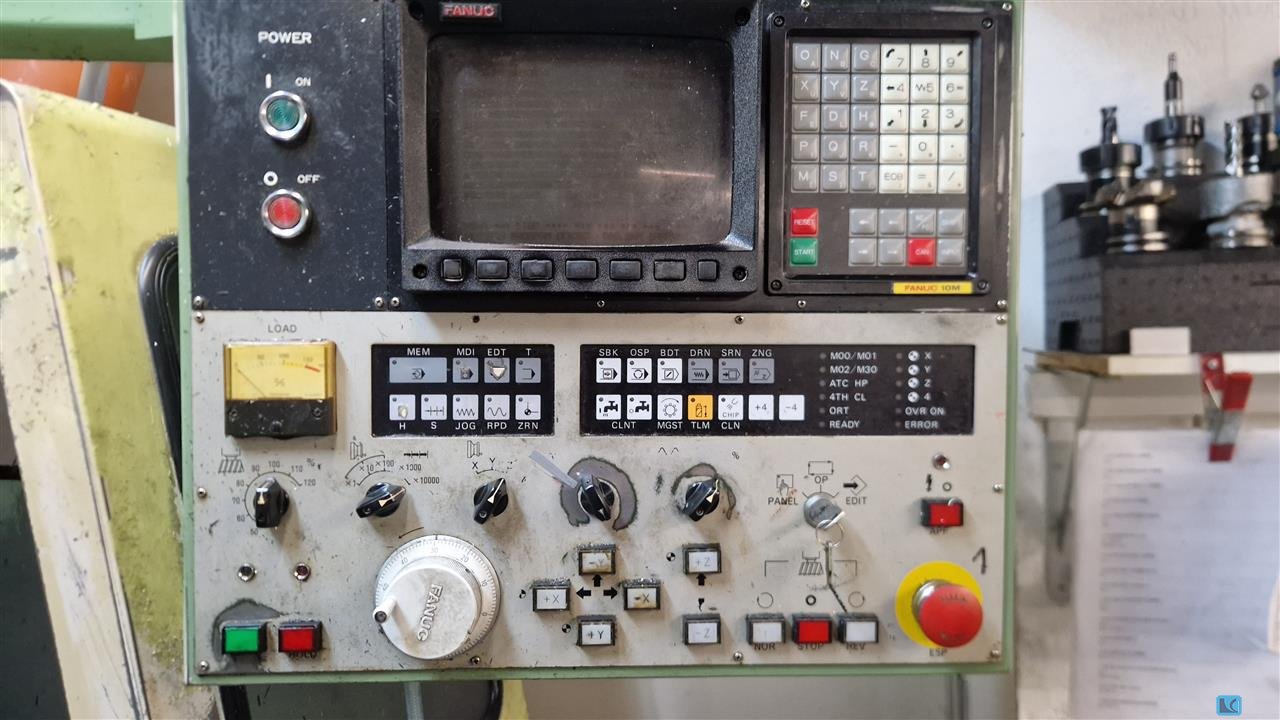

x-travel:800 mmy-travel:410 mmz-travel:510 mmcontrol:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/mintable surface area:1100 x 450 mmtool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mmmax. tool weight:8 kgpower requirement:7,5/5,5 kWturning speed range:6000 1/minweight of the machine ca.:6,3 tUnder offer is a complete CNC tool shop, which will be given up due to old age of owner.The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine.All measuring devices also come with the machine.Upon request orders for parts to be made can be passed on to new owner.This is a low cost all inclusive opportunity for a "Startup"

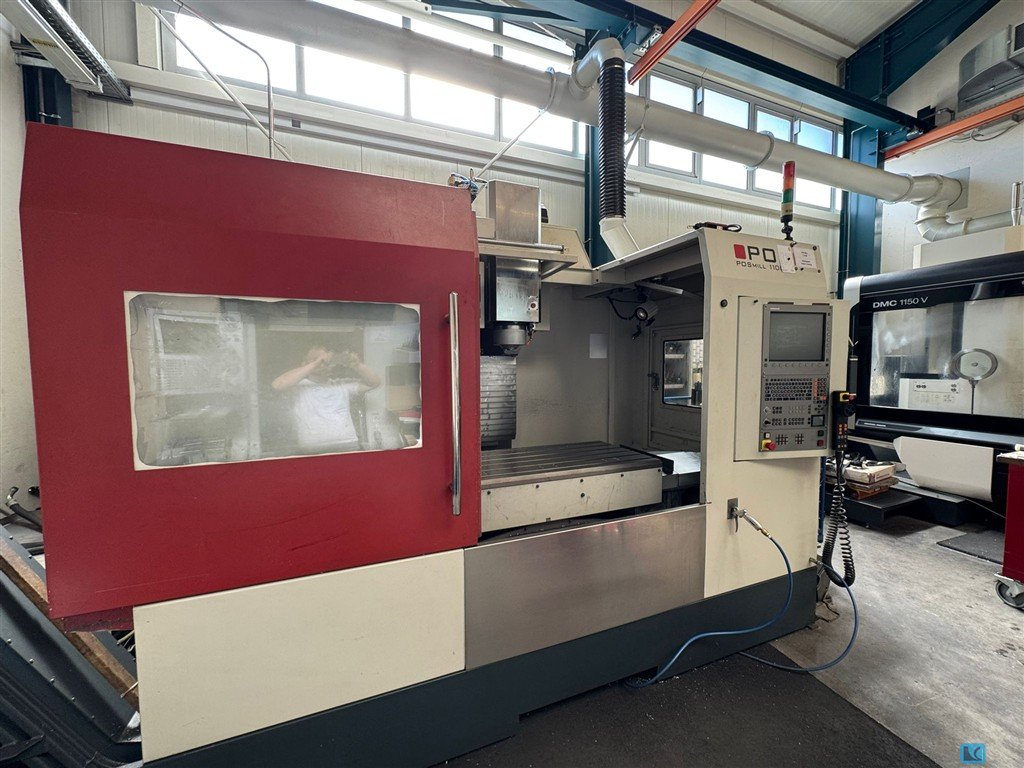

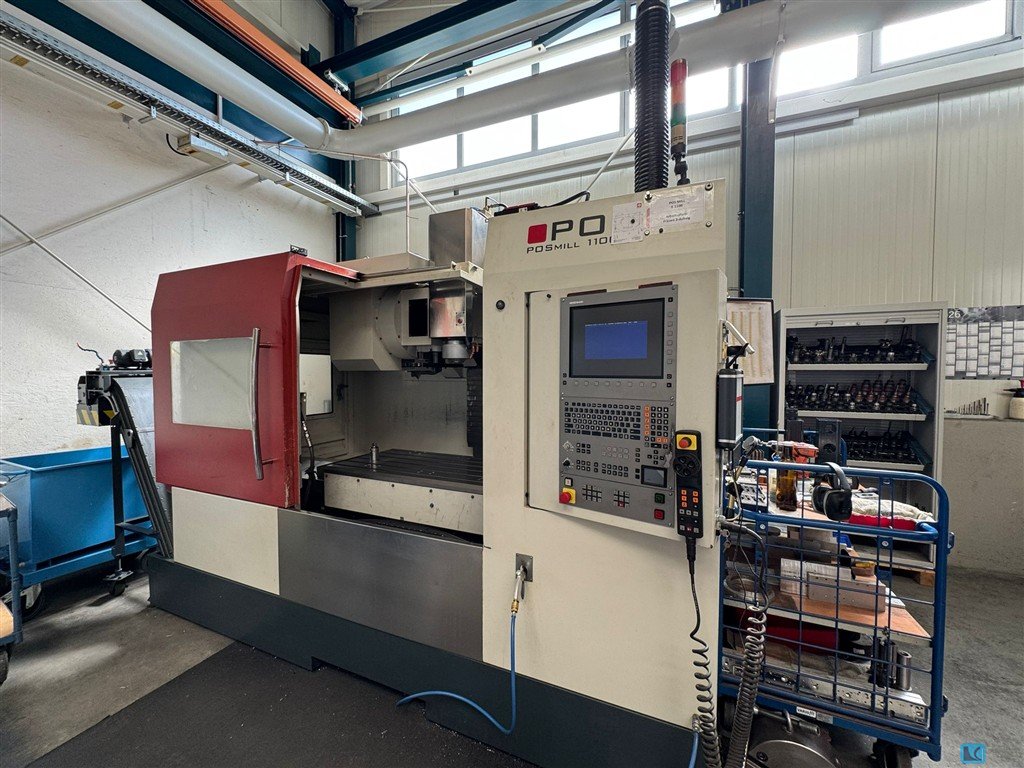

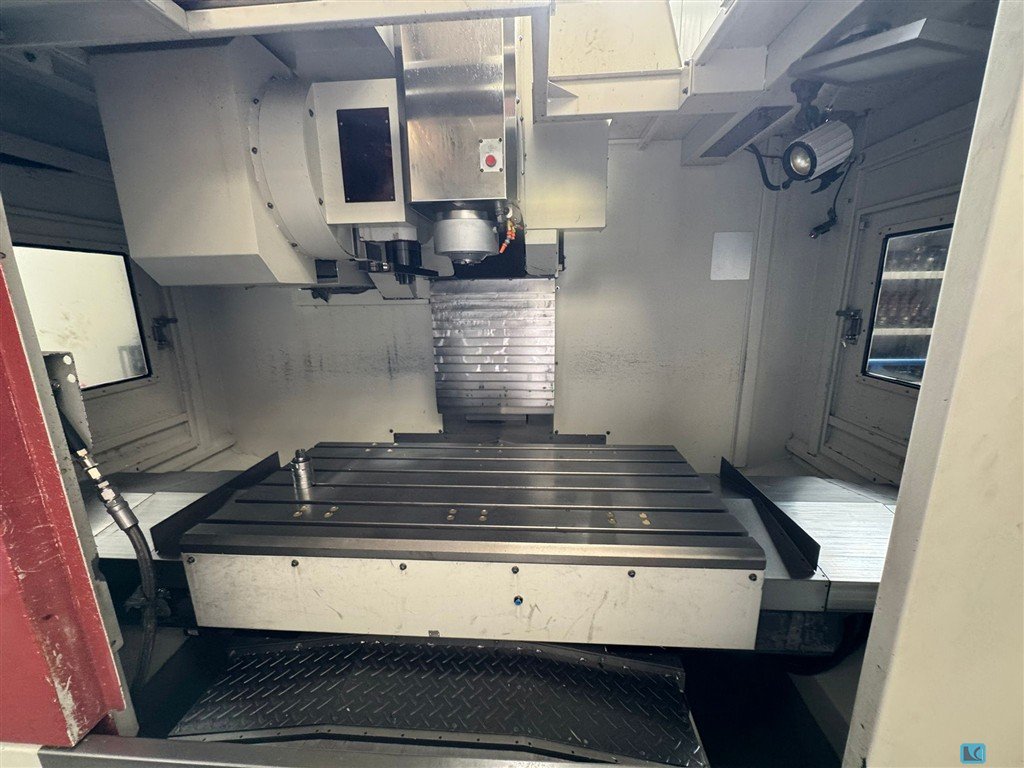

x-travel:1100 mmy-travel:600 mmz-travel:510 mmcontrol:Heidenhain iTNC 530 table-size:1050 x 600 mmtable load:500 kgspindle taper:SK 40 turning speeds:10000 1/minpower capacity at 100 % load:9 kWrapid travel x/y/z:24 m/minfeed:24 m/minTool changer:40 SK 40dimensions of the machine ca.:4,3 x 2,6 x 2,25 mweight of the machine ca.:8,8 tPOS mill 1100 vertical machining center in very good condition from 2009Options:- parts measuring M&H receiver without probe- external hand wheel Heidenhain HR 410- Air supply through spindle- air gun- paperfilter system with coolant through spindle 40 bar-
spindle diameter:150 mmx-travel:3000 mmy-travel:2000 mmspindle stroke:700 mmdimension of the ram:340 x 340 mmram stroke:700 column travel:1500 mmspindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/mintable surface area:2000 x 2500 mmmax. table load:25000 kgrapid speed:5 / 10 m/minfeed speeds:1 - 5000 mm/mintotal power requirement:100 kWweight of the machine ca.:57 tdimensions of the machine ca.:8,4 x 6,8 x 5,9 mwith CNC SIEMENS 840 Dfull B-axisaerostatic guidewaysfacing head ( 3,2 - 140 rpm )angular milling head 1000 Nmcoolant attahcmnet with internal cooling supply
x-travel:711 mmy-travel:406 mmz-travel:394 mmdistance spindle nose and table:546 - 152 mmtable-size:864 x 381 mmtable load:226 kgturning speeds:15000 1/minpower capacity:11,2 kWmax. torque on the spindle:62 Nmspindle taper:SK 40 Tool changer:18+1 rapid travel x/y/z:61 m/minfeed:30,5 m/minmax. tool weight:5,4 kgmax. tool length:178 mmdiameter of tools max.:64 mmTool change time tool/tool, milling spindle:1,75 sinternal coolant system feed:21 barweight of the machine ca.:2427 kgdimensions of the machine ca.:2,8 x 2,4 mVertical 3-axis machining center POS mill 1100, from year 2009 in good condition.Accessories:- Chip conveyor Knoll- additional coolant filtersystem- Programmable coolan jet- automatic Coolant refillsystem- Airpressure through tool- Measuring probe system WIPS- Synchronized treading- Haas Connect remote control- Media Display- Cooling of electrical cabinet- fixtures and tools ...

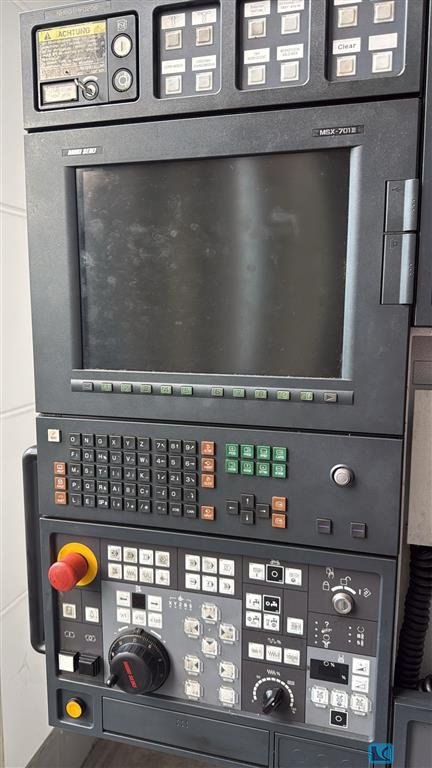

x-travel:1400 mmy-travel:1200 mmz-travel:1350 mmcontrol:MSX- 701 Mapps III table surface area:800 x 800 mmrapid traverse:50 m/mintable rotating:360.000 x 0,001 B-Achse °table load:2,0 tnumbers of pallets:2 turning speed range:8000 1/minpower capacity - milling spindle:37 kWno. of tools in the magazine:60 Stücktool taper:HSK-A 100 weight:31 tdimensions:5,9 x 3,48 x 3,68 mEquipment:- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping- Parts program memory 1 MB - Knoll 70 bar high pressure and filter system- Electrostatic oil dust collector LTA- elect. hand wheel- renishaw probe- abso- scale i X/Y/Z- axis- 5 free m- funktions- 48 extra off sets- dual ballscrews on X/Y/Z- axis

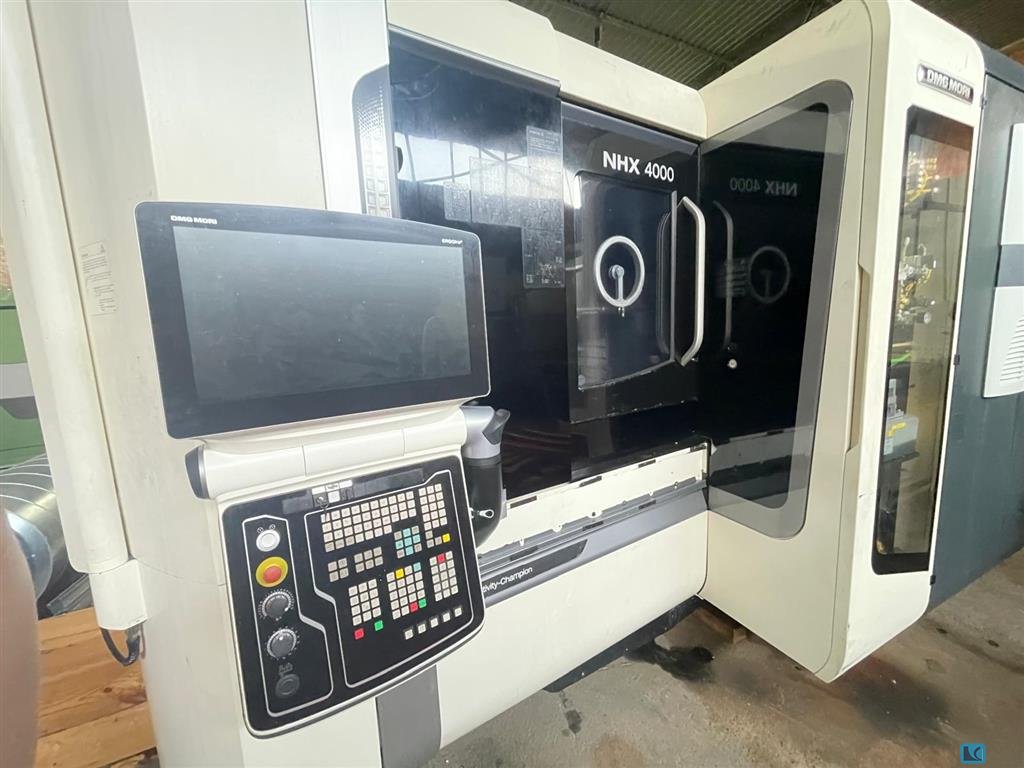

x-travel:560 mmy-travel:560 mmz-travel:660 mmcontrol:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/minspindle drive:25/ 35 kWmax. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mmTool diameter with no neighbouring tools:170 mmtool length - max.:450 mmweight of tools max.:12 kgnumbers of pallets:2 Pallet dimension:400 x 400 mmmax. workpiece diameter:630 mmworkpiece height max.:900 mmtable load:400 kgrapid travel x/y/z:60 m/minFeed x/y/z:60 m/mininternal coolant system feed:70 barweight of the machine ca.:8,5 tdimensions:3200 x 4800 x 2900 mmRenishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar.The machine has just received a new milling spindle.

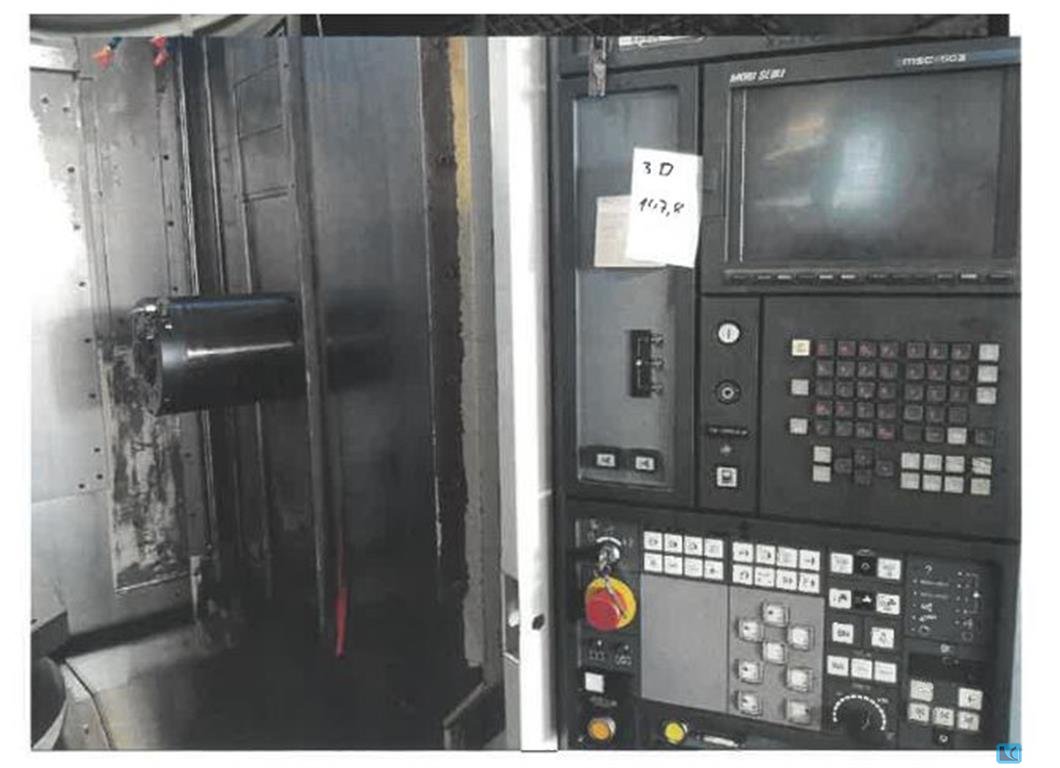

x-travel:630 mmy-travel:600 mmz-travel:650 mmcontrol:MSC 502 (Fanuc 16) Spindle RPM:12000 1/minspindle drive:22 / 18,5 kWrapid travel x/y/z:32 m/minPallet dimension:500x500 mmnumbers of pallets:2 table load:0,5 tworking diameter:max. 610 mmNumber of tool station:60 BT40max. tool length:360 mmmax. tool weight:12 kgtool changing time:1,3 secB-axis positioning (non continuous):1 total power requirement:50 kVAweight of the machine ca.:14 tdimensions of the machine ca.:3,3 x 5,8 x 3,2 mspindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:ATC 60 tool stations, High pressure coolant trough spindle interface,
x-travel:630 mmy-travel:630 mmz-travel:630 mmcontrol:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mmmax. clampable workpiece diameter:720 - 850 mmspindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/minSpindle power:20 / 30 kWSpindle Torque:95/143 Nmtool magazin::80 SK 40total power requirement:55 kWweight of the machine ca.:11 tMachine with Unipro 90 control for 5 axis- twin palette changer- tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels- full A & B-axis- chip conveyor
bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device
x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor
x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping
x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.
spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster
spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment
x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing
spindle diameter:160 mmx-travel:6500 mmy-travel:3000 mmW-axis (spindle longitudinal):1000 mmdimension of the ram:400 x 420 mmram stroke:1000 mmbore spindle turning speed range:1 - 2000 U/minspindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/minrapid speed:8/10 m/mintotal power requirement:100 kWweight of the machine ca.:76 tdimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) mwith CNC Steuerung HEIDENHAIN iTNC 530autom. toolchanger 40-pocketsautom. Pickup Station for universal milling head, and facing headrotary table 2500 x 2500 mm , max load 25 to.1500 mm longitudinal movementfloor plate 4000 x 2000 mmmeasuring probe, chip conveyor and coolant attachment
spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling
x-travel:1300 mmy-travel:1100 mmz-travel:1000 mmspindle turning speed range:10 - 10000 U/minnumbers of positions in the tool changer:80 spindle taper::MAS BT 50 size of pallet:800 x 800 mmnumber of pallets:2 total power requirement:65 kVAweight of the machine ca.:24 tThe MAZAK FH8800 is a robust horizontal CNC machining centre designed for the precise and productive machining of large workpieces. The machine features travel ranges of 1,300 × 1,100 × 1,000 mm, two 800 × 800 mm pallets and a high-performance spindle running at 10,000 rpm. Technical specifications·Travel ranges (X/Y/Z): 1,300 / 1,100 / 1,000 mm ·Pallet size: 800 × 800 mm ·Number of pallets: 2 ·Spindle speed: 10,000 rpm ·Control system: Mazatrol 640 M CNC ·Tool holder: BT50 ·Tool magazine: Chain magazine ·High-pressure pump for cooling lubricant (centralised supply at the production site, Figure 13)·Machine weig ...
distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg
x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

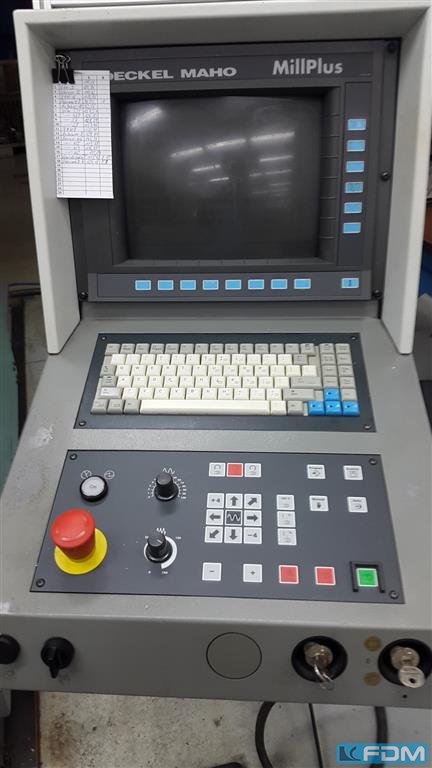

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden
