sheet metal working used for sale (3,356)

weight of the machine ca.:620 kgdimensions of the machine ca.:1000 x 920 x 1550 mm

sheet width: 1.250 mmplate thickness: 1,0 mmcutting speed: 10 m/minblade shaft - diameter: 70 mmWorking width: 1,250 mmSheet thickness, steel: max. 0.8 mm with 3 pairs of knivesSheet thickness, copper: max. 1.0 mm with 3 pairs of knivesKnife shaft: Ø 70 mmNumber of knife pairs: 3Cutting / feed speed: approx. 10 m/minPower supply: 380 VEquipment:Manual longitudinal and cross-cutting line for sheet metal strips with rubber transport rollers.Knife shaft Ø 70 mm3 pairs of knivesLength measuring device with measuring scaleAutomatic and manual operationBrake motorManual rotary shear for cross-cuttingThe RULI 120 / SBVA is a longitudinal and cross-cutting line designed for processing sheet metal strips. The machine enables longitudinal slitting and cutting to length and is particularly suitable for processing thin sheet metal.The sheet material is fed to the knife shaft via rubber transport r ...

tube: 6000 mmtube diameter: 42 x 3,0 mmwall strength: 3,0 mmbending radius min.: 150 mmtotal power requirement: 5,5 kWweight of the machine ca.: 1,2 tdimensions of the machine ca.: 7500 x 1.400 x 1.300 mRound steel tube: up to Ø 42 × 3.0 mmRound stainless steel tube: up to Ø 42 × 2.0 mmSquare tube: 25 × 2.5 mmMax. section modulus: 4.1 cm³Bending angle: up to 180° + 10° overbendingBending time at 90°: 2.7 sec. (forward stroke)Longitudinal feed speed: 450 mm / 1.5 sec.Rotary positioning speed at 90°: 1.0 sec.Repeatability of bending axis: ± 0.2°Controlled length tolerance: ± 0.3 mmControlled rotation tolerance: ± 0.2°Tube loading length / usable length for mandrel bending: 4,100 mmMax. radius range: 150 mmBending height: 850 mmFree-standing bending head: 850 mm longBending axis drive: electro-hydraulicRotation and length positioning: automatic via geared motorsBending direct ...

Standard Configuration? Closed machine frame with integrated laser unit? Laser unit: CO2 laser TLF 5000, radio-frequency excited, chiller, logbook function Laser? Automatic pallet changer and longitudinal conveyor for small parts / slag? Drives: Gantry drive in combination with linear direct drives? Laser power control? HI-LAS high pressure cutting? Plasma sensor system PSS? PCS Process Control System? DIAS capacitive height regulation? High-speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Automatic nozzle cleaning? Laser cutting head with 5? lens and laser cutting head with 7.5? lens? Cutting head quick-change device? Automatic sheet edge detection? Positioning laser diode? Programmable power cycles? Microweld? Automatic focus adjustment AutoLas Plus? Oil spray device for reliable thick plate machining? Automatic shutdown ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Gantry drive in combination with direct linear drives? Automatic pallet changer? Longitudinal conveyor? Enclosed beam delivery system? One cutting head strategy? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 6000 with optimized stand-by mode? Maintenance-free radial turbine blowers? Radio-frequency excitation? Laser control TASC 3? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device UTI ? LensLine with condition checking? ControlLine: Height regulation and sheet edge sensingControl? SIEMENS Sinumerik 840D? Technology data is integrated? Colour screen? Automatic shutdown? Programmable cutting gas pres ...

Standard ConfigurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? Chiller? Automatic pallet changer lengthwise installation? Longitudinal conveyor? 17 touch screen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 3200 including NitroLine, with optimized Standby Modus? beam tube purge with nitrogen? Maintenance-free radial turbine blower? Radio-frequency excitation? Laser control TASC 3? Laser power control? Logbook function Laser? Laser cutting head? One cutting head strategy? LensLine with status check? Laser cutting head with 250 mm lens? Universal quick-change device (UTI)? ControlLine: Height regulation and sheet edge detectionControl? Sinumerik 840D SL ? Integrated ...

Standard ConfigurationMachine ? Closed machine frame? Integrated cabinet? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Chiller? Automatic pallet changer lengthwise installation? Enclosed beam delivery via laser light cable? Integrated electrical cabinets with inside light? Wide longitudinal conveyor? Ergonomic control panel with Touchscreen? Work area lighting? Positioning laser diode? Spray device? PierceLine ? FocusLine? NitroLine? PlasmaLine? Automatic nozzle cleaningTRUMPF laser? External solid state laser TruDisk 4001 with 1 fiber optic cable laser output? Stimulation via pump diodes? Laser power controlCutting head ? Universal cutting unit? One cutting head strategy? Protection glass to avoid lens contamination? Online protection glass monitoring? ControlLineControl ? Easy shop floor programming? Fast post production? Control Sin ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? One cutting head strategy? Chiller? Automatic pallet changer, lengthwise installation? Longitudinal conveyor? Ergonomic control panel with Touchscreen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 3200 with optimized standby ? Maintenance-free radial turbine blower? Radio-frequency excitation? Gas mixer (integrated)? Laser control TASC ? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device (UTI) incl. bus connection? LensLine ? ControlLine: Height regulation and sheet edge detectionControl? Sinumerik 840D SL contro ...

Standard Configuration? Stable C-frame? Coordinate guide with integrated linear magazine, 19 tool stations,2 clamps? Drives: Maintenance-free, three-phase servo motors? Programmable presser foot for repositioning with preselectable pressing force? Sensor-monitored part chutes 500 x 500 mm for punching and laser station, ejection cylinder on the laser chute? 2 good parts containers? Laser unit: CO2 laser TLF2700, radio-frequency excited, insulated against vibrations, integrated in machine frame, incl. chiller, and laser control DIAS 3? High speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Punch stroke / thread counter? Laser cutting head: 5? lens, quick-change device, height regulation APC? Additional laser cutting head with 7.5? lens? Punching head: Hydraulic single tool adapter, 360? rotation of all tools, automatic tool l ...

AutomationLiftMaster CompactLoading max. sheet format 3000 x 1500 mmmin. sheet format 1000 x 1000 mmmax. sheet thickness 25 mmmax. sheet weight 900 kgUnloading min. parts size 150 x 150 mmmax. sheet thickness 25 mmmax. sheet weight 900 kgBasic system incl. synchronous loader, peeling device, measuring device for thick sheets, movable unloading rake, incl. loading / unpacking stationBasic configuration:? synchronous loader? peeling device? measuring device for thick sheets? movable unloading rake? raw material unpacking station? maximal stack height on loading side is 90 mm? maximal stack height on unloading side is 250 mmLiftMaster Compact options? Additional pallet for finished parts? Separation of thin sheets (s=1-2 mm)? Scraper for slats (cleaning brush)? Storage interface

Standard configuration? Closed machine frame with integrated laser unit ? Laser unit: CO2 laser TLF 6000, radio-frequency excited, maintenance-free turbo radial blowers, chiller, logbook function? Automatic pallet changer and longitudinal conveyor for small parts / slag? Drives: Gantry drive in combination with linear direct drives ? HI-LAS high pressure cutting? Plasma sensor system PSS? Automatic sheet edge detection? APC Advanced Process Control? PCS Process Control System? Programmable power cycles? Microweld? Automatic nozzle cleaning? High-speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Laser cutting head with 5? lens and laser cutting head with 7,5? lens (for TLF 6000)? Cutting head quick-change device? Positioning laser diode ? Automatic focus setting AutoLas Plus? Laser power control? Oil spray device for reliable ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? One cutting head strategy? Chiller? Automatic pallet changer, lengthwise installation? Longitudinal conveyor? Ergonomic control panel with Touchscreen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 5000 with optimized standby, purged with nitrogen and LensLine? Maintenance-free radial turbine blower? Radio-frequency excitation? Gas mixer (integrated)? Laser control TASC ? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device (UTI) incl. bus connection? ControlLine: Height regulation and sheet edge detectionControl? Si ...

Machine including Liftmaster.

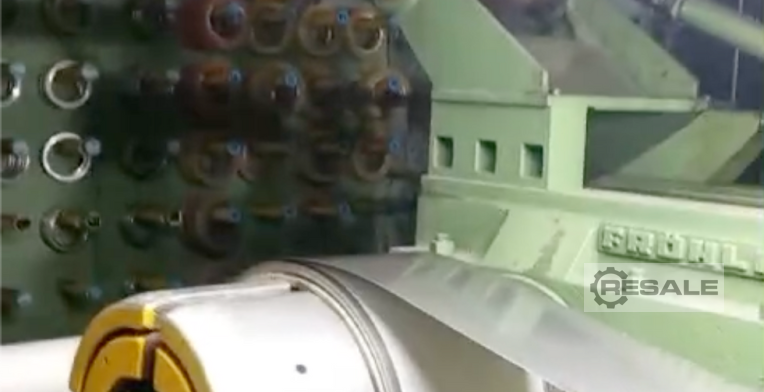

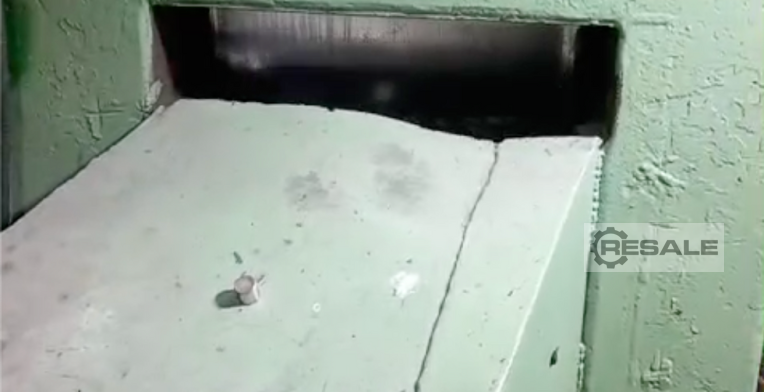

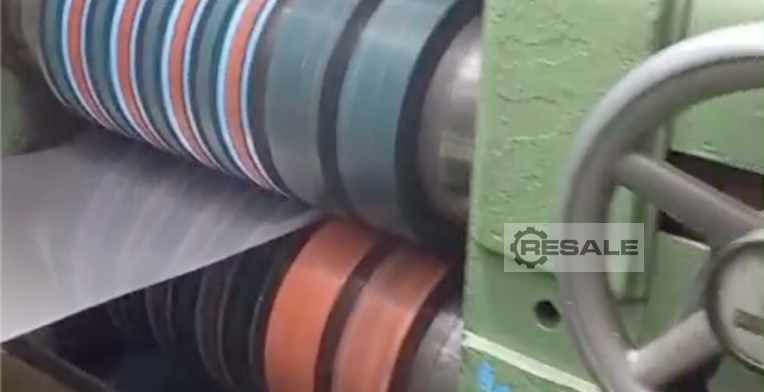

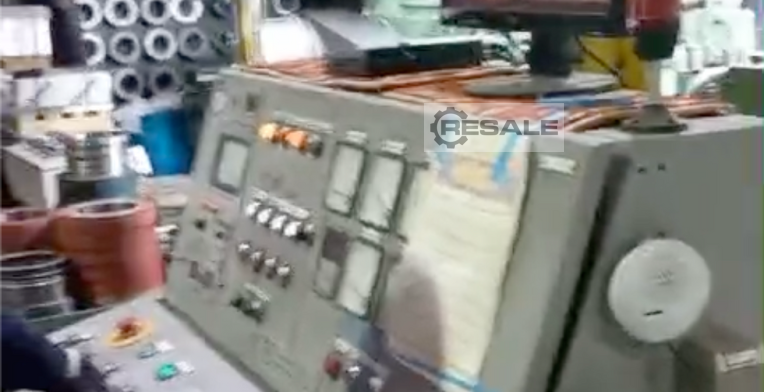

Slitting line Stainless Steel Strip width.. 500 mm Belt thickness... .02-3.0 mm Coil weight. 5 to. Speed 150 m/min. Minimum belt width.. 13 mm Strip number 10 Coil I Dia. 400 / 500 mm Shaft diameter.. 145 mm Control... Siemens S 5 Facility consists of: -Coil car -Uncoiler + Snubber roll - Pieler table -Paper Wrapper -Edge controll system -Pinch roll -Scrap shear - PVC coating unit -Side guide 2+2 rolls -Slitting head -Roll table -Scrap winder -Tension unit -Recoiler, separator shaft -Paper wrapper -Turnstile 2 arms -Electrical & Automation system -Camera system

Strip width... 650 mm Band thickness 0.2-3.0 mm Coil weight.. 5 tons. Coil I Diam. . 400/500/600 mm Coil A Dia. 1,500 mm Yield strength... 700 N/mm2 Strip width.. 10 - 250 mm Speed 150 m/min. Working direction.. right/ left Facility consists of: -Decoiler -Belt removal wedge -Scissor breasts 2 pcs. -Scrap wrapper -Band brake -Brake rollers 2 pcs. -Reel -Separation arm -2 control panels -Electrical control cabinets -Central hydraulics -Tools Plant dismantled in workshop

used Herburger roll forming machine, infinitely variable adjustment via Quickset system from sheet width 280 – 840 mm, : latest technology, hardened and with Drive elements in the rollers (rubber inserts) Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is carried out. Sheet width 280 - 840 mm Sheet thickness steel 0.8 mm Sheet thickness aluminium 1.0 mm Sheet thickness stainless steel 0.6 mm Machine weight 290 kg Dimensions 1100 x 1100 x 950 mm Total power requirement 230 V Colour: grey/anthracite Profile height 25 mm Machine number A 24 15 34

Used complete line for crown cork clusures manufacturing. Including press PTC027/1996 year/ and lining machine PMC250/2001 year/. Liners profile 916. In 2015 original SACMI CVS system installed.

Key data: 2 mm

Slitting and cut-to-length line Sheet width. 1,500 mm Sheet thickness.. 0.4 - 4.0 mm Belch width 4 mm 700 mm Slitting 2.0 mm 4 pcs. Straightening rollers... 8 pcs. Coil weight 7,000 kg Facility consists of: - Bundle pallet truck -Decoiler -Loop control -Straightening machine -Strip scissors -Cross shears 1,500 x 4.0 mm - Electrical control. Line complete overhauled, new control, all defective parts replaced, part painted RA 60 11

Longitudinal cut-to-length line Strip width 1,500 mm Band thickness. 0.5 - 3.0 mm Number of cuts . 5 pcs. Straightening rollers. 7 pcs. Coil weight.. 7,000 kg Rewinder ... 7,000 kg Facility consists of: -Pressing arm -Unwinder -Belt removal wedge - Straightening machine -Strip scissors -Cross shears -Band brake -Reel -Control panel -Electrical control

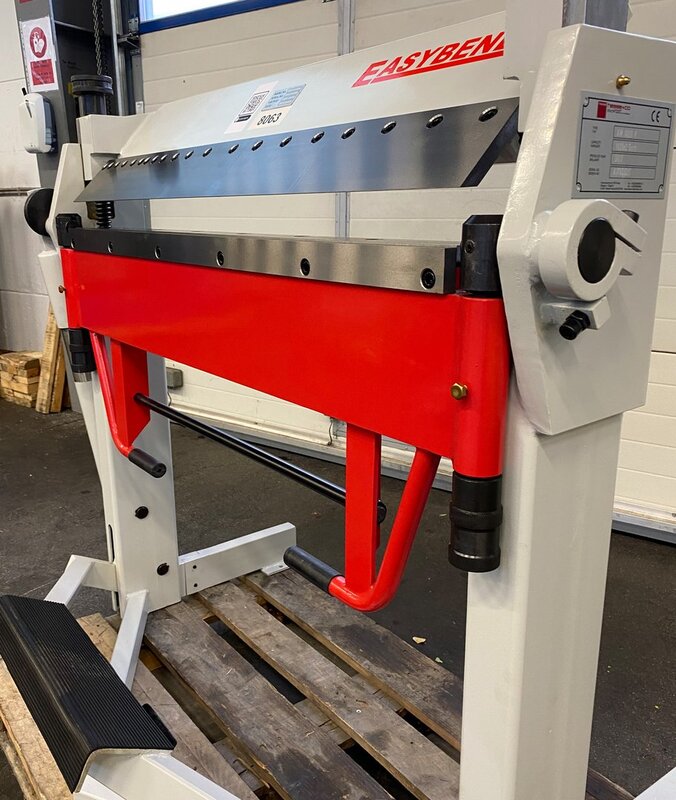

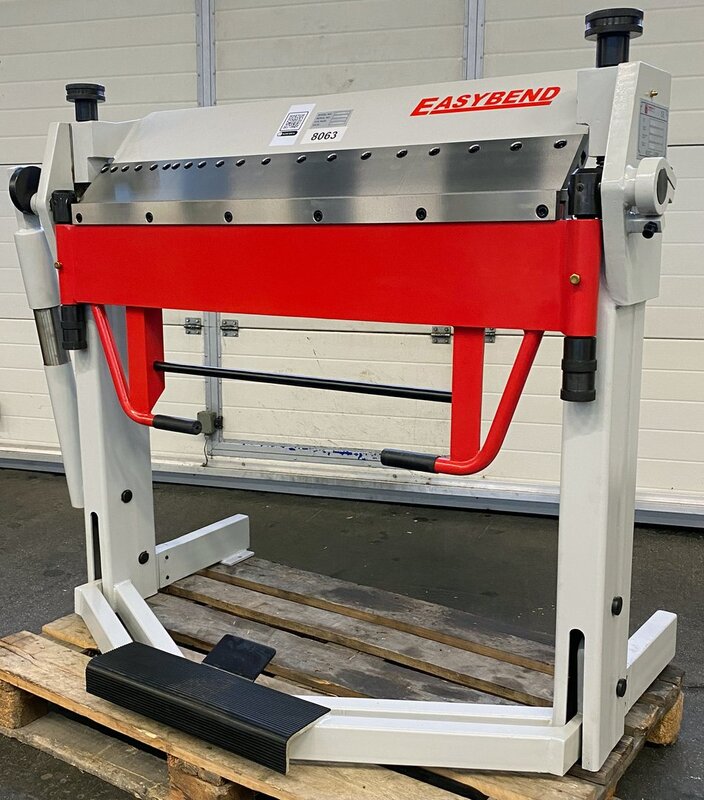

Lg.Nr. 21275 Hand Folding Machine Technical data: - Max. working width 1030 mm - Max. material thickness 2 mm - Bending angle approx. 0 - 135 ° - lockable with end stop - Upper beam is operated with side hand crank - Max. stroke upper beam 120 mm - Max. adjustment bending beam 45 mm - Bending process is supported by eccentric weight - Space requirement approx. W 1750 x H 1120 x D 450 mm - Weight approx. 620 kg

Slitting and cut-to-length line Strip width... 1,500 mm Strip thickness 0.5 - 2.0 mm Cutting number... 7 strips Straightening rollers 8 pcs. Coil weight.. 7,000 kg Rewinder .. 7,000 kg

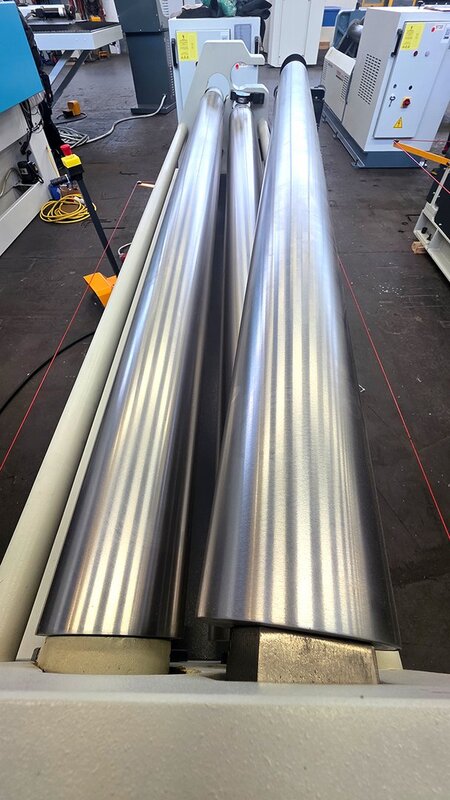

4-roll 2000x6 mm plate bending machine Davi model MAX2017 year 2004 used plate roll in working condition, Planetary dual pre-pinch Performance Capacity: Plate width 2000 mm plate thickness 6 mm pre-bend 5 mm minimum rolling diameter ID 350 mm rollers length 2050 mm Upper roll 165 mm Pinch roll 155 mm Side rolls 120 mm Power electric motor 3 kw on hydraulic unit Vac 400/50 mm Installed configuration Rollers surface hardened high strength Conical plate rolling, cone bending Hydraulic commands via leverage distributors Infinitely variable speed control Digital position readout --- Hydraulic driven motorized the central rolls Pre-pinch pressure adjustable for pre-bend Drop-end front open to unload closed shells Re-rolling system for calibration of welded shell Safety and emergency stop machine dimension 3400x1150xH 1100 mm -weight 220 ...

Key data: 2000 mm, 8 mm, 6 mm

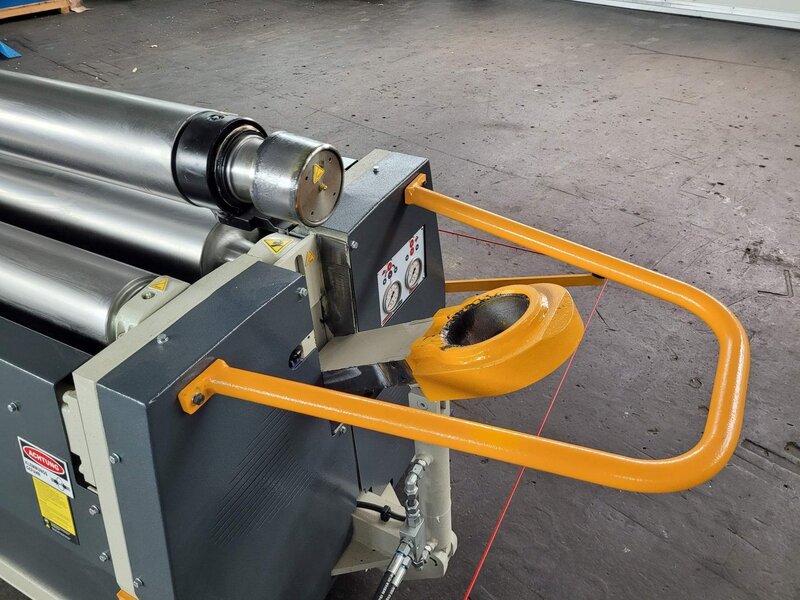

PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 2000 X 8 MM MODEL 2020B4 year 2020 capacity 2000x8 mm Plate roll hydraulic linear guideways Machine in excellent working condition Bending capacity -Plate width : 2000 mm -Rolling plate thickness 8 mm - Prebend thickness 6 mm Rolls dimensions: -Useful length 2050 mm -Upper roll 200 mm -Lower roll 180 mm -Side rolls 160 mm Electric motor 5,5Kw Vac 400/50 • Hardening of the 4 rolls high strength surface • Central rolls driven with hydraulic motors and gear units • Conical bending attachment side rolls tiltable to form cones • Opening front hydraulic drop-end to unload the closed shell. • Varia ...

band width:1050 mmplate thickness:8 mmnumber of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mmFEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mmLEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/minELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 HzTechnical description :Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of:- LAWECO COIL LO ...

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Working height: variable from 0,5mm ? 150mm adjustableWorking width: 1150 mmMaximum part weight: 300 kgWide belts with abrasive belt unwinding: 2200 mmAs standard with vacuum hold system, optional with magnetic hold systemDue to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an additional external machining unit.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1350 mmMaximum part weight: 400 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an addition ...

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1150 - 1350 mmMaximum part weight: 500 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 5 internal machining units and 2 ad ...

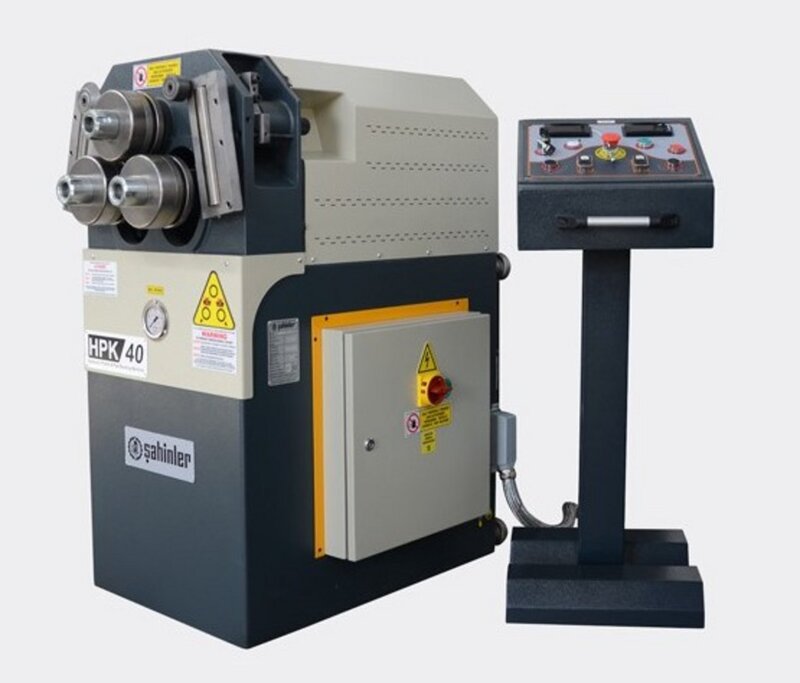

: neu : ca. 4 Wochen ab Auftragse : Italien : 10900 €: 209.28 €: 60 mm: 595 mm: 363 mm: 900 mm: 130 kg: 10.5 cm³: 60 x 3 mm: 2Gas x 3,91 mm: 60 x 4 mm: 60 x 2 mm: 60 x 4 mm: 60 x 4 mm: 64 x 4 mm: 64 x 4 mm: 60 x 4 mm: 50 x 4 mm: 35 mm: 60x30x4 stehend, 60x40x5 mm: 300 mm: 10 mm: 10 mm: 1,25 / 2,50 U/min: 1.5 kWdigital read out for bending anglemanual clampingmaterial spring back compensationdigital read out and zero setting for clamping point2 speedsoverload protectionmobile by rolls and handletools not includedThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Machine is suitable for heavy-duty use.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 650 - 1650 mmMaximum part weight: 2000 kgWide belts with abrasive belt unwinding: 3250 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 3250 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up ...

: neu : ca. 8 Wochen ab Auftragse : Italien : 12460 €: 239.23 €: 60 mm: 500 mm: 760 mm: 1000 mm: 186 kg: 10 cm³: 60 x 4 mm: 2 x 3,91 mm: 60 x 4 mm: 60 x 2 mm: 60 x 3 mm: 60 x 6 mm: 64 x 6 mm: 64 x 6 mm: 63 x 4 mm: 50 x 4 mm: 35 mm: 35 x 35 mm: 60 x 20 stehend, 60 x 35 mm: 380 mm: 10 mm: 10 mm: 1,5 / 3 U/min: 1.5 kWquick-change tooling systemdigital display of bending anglematerial spring back compensationfoot pedal for hands-free operationaccurate counterbending die positioningusers manualtools not included, priced on requestThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
