TOS VARNSDORFWHN 13.4C cnc Heidenhain Boring Mills TOS VARNSDORF WHN 13.4 C cnc Heidenhain
Year 1987
CNC Heidenhain TNC 426
X 2000 mm
Y 2000 mm
W 1250 mm
Z 800 mm
130 mm spindle
8 mechanical transmissions
Spindle speed 125, 250, 500, 1000 rpm
Rotary table 1800 ...
used machine
TOS VARNSDORF WHN 13.4 C cnc Heidenhain
Year 1987
CNC Heidenhain TNC 426
X 2000 mm
Y 2000 mm
W 1250 mm
Z 800 mm
130 mm spindle
8 mechanical transmissions
Spindle speed 125, 250, 500, 1000 rpm
Rotary table 1800 x 1600 mm
Max. table load 12.000 kN
Telescopic covers
Weight 35000 kg
SAN ROCCO Floor Type Boring and Milling M/C - Hor. spindle diameter: mmx travel: mmy travel: mm--------------------------------------------------: WORKING RANGE -CUBIC-: - X-axis travel: 1500 mm- Y-axis travel: 1000 mm- Z-axis travel: 1000 mmTABLE: - workpiec ...
used machine
spindle diameter: mm x travel: mm y travel: mm --------------------------------------------------: WORKING RANGE -CUBIC-: - X-axis travel: 1500 mm - Y-axis travel: 1000 mm - Z-axis travel: 1000 mm TABLE: - workpiece load (max): 1500 kg DIMENSIONS / WEIGHTS: - space requirements -left/right-: 3700 mm - space requirements -front/back-: 2750 mm - total height: 2550 mm - total weight approx.: 8000 kg 3 axes visualized trapeziodal screw for X axes replaced new Spare parts availbale: trapeziodal screw for axes Y and Z Brake type EK5D
This ad was created with MODUL MWS - the software solution of LogoTech.
VEB MIKROMAT DRESDENBKoE 315x500 Boring Mills Single column coordinates drill; Manufacturer VEB Mikromat Dresden, model: BKoE 315 x 500; Specifications: table size 315 x 500 mm, maximum load 100 kg, adjustment speed 52/160/400/1000 mm / min; Drill feeds up / down 0. ...
Single column coordinates drill; Manufacturer VEB Mikromat Dresden, model: BKoE 315 x 500; Specifications: table size 315 x 500 mm, maximum load 100 kg, adjustment speed 52/160/400/1000 mm / min; Drill feeds up / down 0.006/0.025/0.055/0.22 mm / Rev; Friction feed up / down 0.5 mm/Rev; Spindle stroke 100 mm core diameter 80 mm tool holder MK 3. Speed range with 19 steps (45-2,800 RPM); Workspace table: longitudinal adjustment 400 mm, lateral adjustment 250 mm; height adjustment spindle stock 360 mm, distance between table and spindle head 40-500 mm, horizontal projection headstock 350; measuring device: Division of glass scales 1 mm; The reading capability on the screen 0. 001 mm; Positioning accuracy +/-0.002 mm; maximum torque spindle 15.69 nm; Max power spindle 0.9 KW; maximum axial force drill bit 200 kp; maximum boring diameter 70 mm; maximum cutting diameter 80 mm; output motor 1,5 kw; Dimensions 2,000 x 2,000 x 2,400 mm, weight approx. 2,200 kg
DOOSANDNM 400 II Machining Center - Vertical x-travel: 762 mmy-travel: 435 mmz-travel: 510 mmControl: Fanuc i-Series distance spindle nose and table: 150 - 660 mmdistance spindle center to column: 512 mmMain spindle:: turning speed range - main spindle: 80 - 12.00 ...
used machine
x-travel: 762 mm y-travel: 435 mm z-travel: 510 mm Control: Fanuc i-Series distance spindle nose and table: 150 - 660 mm distance spindle center to column: 512 mm Main spindle:: turning speed range - main spindle: 80 - 12.000 min/-1 power capacity - main spindel: 18,5 / 15 kW max. Torque: 117 Nm tool taper: BT 40 work table:: table surface area: 920 x 435 mm max. table load: 600 kg number of T-slots: 4 T-slot - distance: 125 mm T-slot - width: 18H8 mm Tool-Presetter:: number of toolpositions: 30 pos. tool taper: BT 40 max. tool diameter: 80 / 125 mm max. tool length: 300 mm max. tool weight: 8,0 kg change-time tool to tool: 1,3 sec change-time chip to chip: 3,7 sec feeds:: rapid traverse ( X / Y / Z ): 36 / 36 / 30 m/min feed speeds: max. 15.000 mm/min total power requirement: 30 kVA weight of the machine ca.: 5,0 t dimensions of the machine ca.: 3,5 x 3,0 x 2,8 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 15 bar through spindle coolant: elektr. hand wheel: Automatic Tool Changer: spindle oil cooler: Airblow through center of spindle: autom. Frontdoor: Robot connection: Interface CNC - Machiningcenter Vertical DOOSAN - DNM 400 II
- Starting-Up in 2017 - TOP-Condition !
This ad was created with MODUL MWS - the software solution of LogoTech.
IXION MEWAGTL500 SVA Deep Hole Drilling Machines Gun drilling machine
Deep hole drilling machine Ixion Mewag TL500 SVA
Drilling depth 500mm max
Cap.3-16mm
Spindlenose MT2 MK2
340-600-980-1600 RPM
Spindel can tilt 15°up and down
Hightadjustment 235mm
Tabledime ...
Gun drilling machine
Deep hole drilling machine Ixion Mewag TL500 SVA
Drilling depth 500mm max
Cap.3-16mm
Spindlenose MT2 MK2
340-600-980-1600 RPM
Spindel can tilt 15°up and down
Hightadjustment 235mm
Tabledimensions 650×410
Table can turn 360°
Coolant pump
DRO on 1 axe
Tableadjustment 400mm
Automatic powerfeed with peckcycle
Manual in German language
x-travel: 7.200 mm y-travel: 1.000 mm z-travel: 370 mm Max. workpiece - length: 6.200 mm Max. workpiece - width: 300 mm Max. workpiece - hight: 200 mm Spindlespeed: max. 24.000 min/-1 power capacity - main spindel: 7 kW tool taper: SK 30 number of toolpositions: 12 pos. max. tool diameter: 35 (1x 150) mm max. tool length: 150 mm rapid traverse ( X / Y / Z ): 35 / 26 / 18 m/min total power requirement: 18 kVA weight of the machine ca.: 6,0 t dimensions of the machine ca.: 10,0 x 3,0 x 3,0 m Documents: Coolantsystem: Automatic Tool Changer: 12 pos. Angle-Boring- and Milling-Head: 090W Benz miscellaneous clamping elements: Vertical Machining Center FMB Fischer - EBZ 72/80
- Control: DOS-based
This ad was created with MODUL MWS - the software solution of LogoTech.
TOS VARNSDORFH 63 A Boring Mills Boring machine TOS VARNSDORF H 63 A manufactured in 1986.
Technical data :
- table dimensions (length x width): 800 x 890 mm
- spindle diameter: Ø 63 mm
- spindle motor power: 5.5 kW
- machine dimensions (length ...
used machine
Boring machine TOS VARNSDORF H 63 A manufactured in 1986.
Technical data :
- table dimensions (length x width): 800 x 890 mm
- spindle diameter: Ø 63 mm
- spindle motor power: 5.5 kW
- machine dimensions (length x width): 2100 x 3900 mm
- weight: 4500 kg
- board included
- dimensions of the machine (height x width x length): 220 x 183 x 370 cm

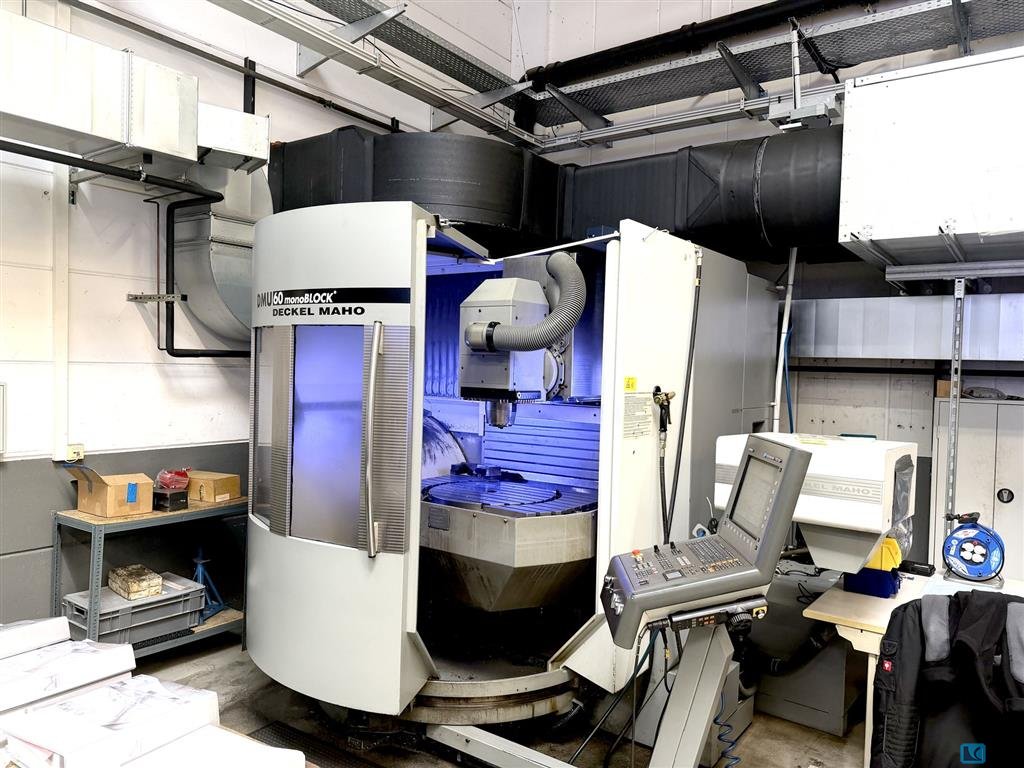

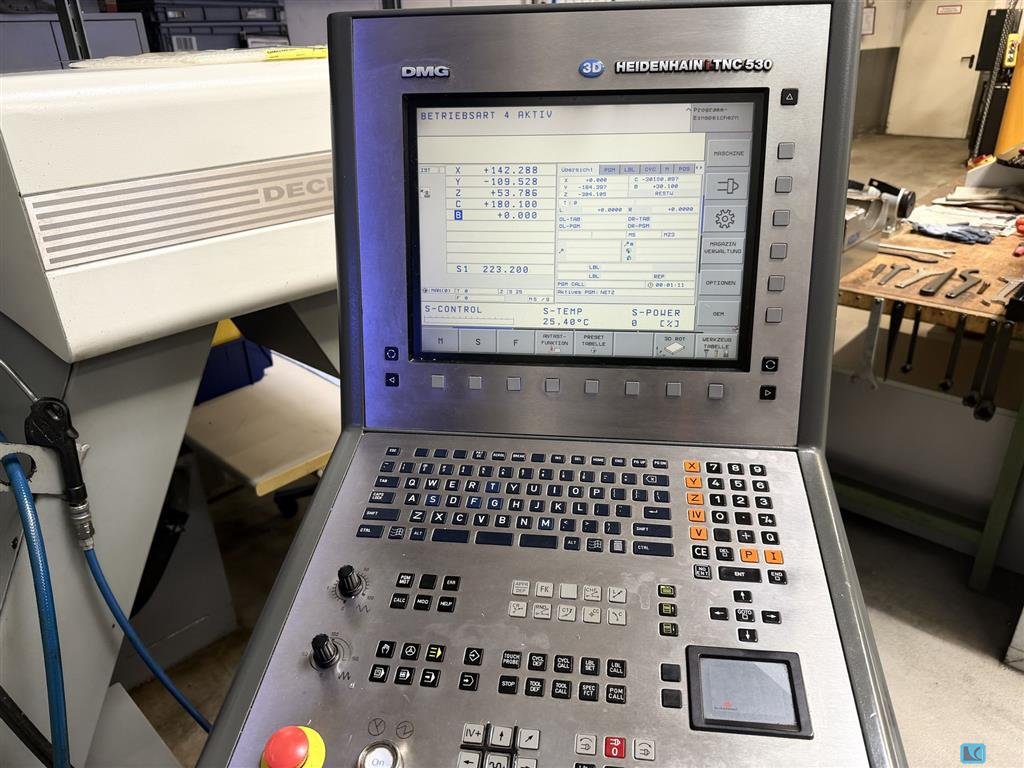

DECKEL MAHODMU 80 monoBLOCK Machining Center - Universal x-travel: 880 mmy-travel: 630 mmz-travel: 630 mmcontrol: iTNC 530 HeidenhainMain spindle:: turning speed range - main spindle: max. 12.000 min/-1power capacity - main spindel: 15 / 10 kWmax. Torque: 130 Nmtool taper: C ...
used machine

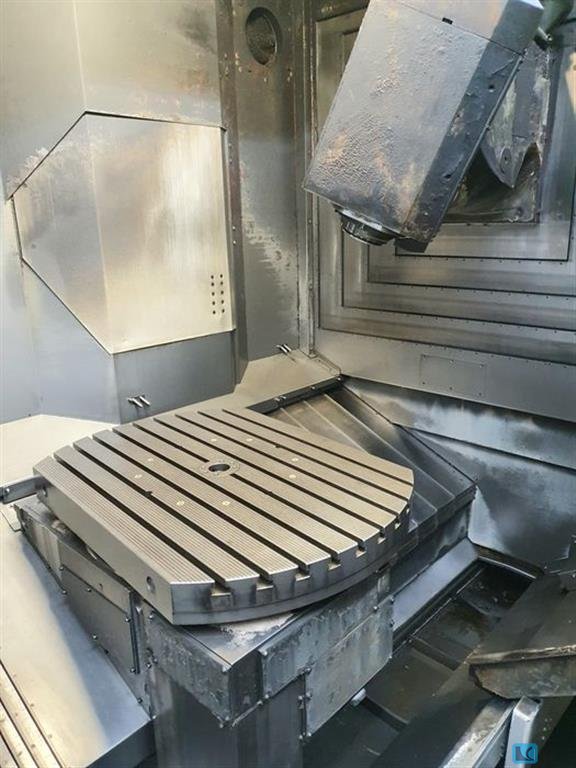

x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 130 Nm tool taper: CAT 40 / SK 40 swivellable: B: +30° / -120 ° NC-Rotary table:: table surface area: Ø 700 / 1.250 x 700 mm max. table load: 800 kg rotatable: C: 360 ° max. workpiecediameter: 850 mm max. workpiece height: 550 mm tool magazin:: number of toolpositions: 32 pos. tool taper: CAT 40 / SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool weight: 8,0 kg change-time chip to chip: ca. 4,9 sec feeds:: feed speeds: max. 30.000 mm/min rapid traverse: 30 m/min Accelaration: 5 m/s² total power requirement: 48 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 4,5 x 4,0 x 2,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 20/40 bar through spindle coolant: paper band filter: elektr. hand wheel: Rotary screen: test probe: Heidenhain TS 649 tool setting: Laser oil mist extraction: 3D quickSET: Tool Kit Signal lamp - 4 colour: 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK
- NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)
This ad was created with MODUL MWS - the software solution of LogoTech.
DOOSANMynx 6500/50 Vertical Processing Centers travel x-axis: 1270 mm, travel y-axis: 670 mm, travel z-axis: 625 mm, taper ISO: 50, T-slot fixture table size L: 1400 mm, T-slot fixture table size W: 670 mm, CNC control, brand, type: Fanuc, total dimension L: 3200 mm, ...
used machine
travel x-axis: 1270 mm, travel y-axis: 670 mm, travel z-axis: 625 mm, taper ISO: 50, T-slot fixture table size L: 1400 mm, T-slot fixture table size W: 670 mm, CNC control, brand, type: Fanuc, total dimension L: 3200 mm, total dimension W:
2700 mm, total dimension H: 3000 mm, machine weight: 9000 kg, 24-fold tool magazine; handheld control unit
x-travel: 1.150 mm y-travel: 710 mm z-travel: 710 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 10.000 min/-1 power capacity - main spindel: 30 / 20 kW max. Torque: 285 Nm tool taper: HSK A63 swivellable: B: +30° / -120 ° NC-Rotary table:: table surface area: Ø 800 / 1.500 x 800 mm max. table load: 800 kg rotatable: C: 360 x 0,001 ° max. workpiecediameter: ca. 950 mm max. workpiece height: ca. 650 mm T-slots: 11x 14 x 63 mm tool magazin:: number of toolpositions: 60 pos. tool taper: HSK A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool weight: 10,0 kg change-time chip to chip: ca. 4,9 sec feeds:: feed speeds: max. 30.000 mm/min rapid traverse: 30 m/min total power requirement: 58 kVA weight of the machine ca.: 18,0 t dimensions of the machine ca.: 8,5 x 6,0 x 3,2 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 20/40 bar through spindle coolant: paper band filter: Rotary screen: test probe: Heidenhain TS 649 elektr. hand wheel: tool setting: Laser Signal-Light: oil mist extraction: 3D quickSET: Tool Kit 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 100 monoBLOCK
- NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)
This ad was created with MODUL MWS - the software solution of LogoTech.
MAZAKVTC 200 B Machining Center - Vertical x-travel: 1.120 mmy-travel: 510 mmz-travel: 510 mmControl: Mazatrol 640 M Main spindle:: turning speed range - main spindle: 40 - 10.000 min/-1power capacity - main spindel: 15 / 11 kWmax. Torque: 98 Nmdistance spindle ...
used machine
x-travel: 1.120 mm y-travel: 510 mm z-travel: 510 mm Control: Mazatrol 640 M Main spindle:: turning speed range - main spindle: 40 - 10.000 min/-1 power capacity - main spindel: 15 / 11 kW max. Torque: 98 Nm distance spindle /table: 180 - 690 mm distance spindle center to column: 530 mm tool taper: ((( HSK A63 / SK 40 ))) work table:: table surface area: 1.460 x 510 mm T-slots: 5x 18 x 100 work height max.: 750 mm max. table load: ca. 800 kg tool magazin:: number of toolpositions: 24 pos. tool taper: ((( HSK A63 / SK 40 ))) max. tool diameter: 80 mm max. tool-dia with free toolbox: 110 mm max. tool weight: 8 kg max. tool length: 350 mm feeds:: feed speeds: 1 - 8.000 mm/min rapid traverse: 30 m/min total power requirement: 22,7 kVA weight of the machine ca.: 6,0 t dimensions of the machine ca.: 4,5 x 4,5 x 2,8 m Documents: Coolantsystem: Chip conveyor: CNC - Machining Center Vertical MAZAK - VTC 200 B
This ad was created with MODUL MWS - the software solution of LogoTech.
IXIONBS 23 Pillar-Type Drilling Machines
-Made in Germany - drilling capacity in steel ST 60, 28 mm - spindle mount MT 3 - spindle hub 120 mm - 10 spindle speeds of 160 - 2800 revs/min - extension 280 mm - max distance table - spindle 760 mm - table with 2 T ...
used machine
-Made in Germany - drilling capacity in steel ST 60, 28 mm - spindle mount MT 3 - spindle hub 120 mm - 10 spindle speeds of 160 - 2800 revs/min - extension 280 mm - max distance table - spindle 760 mm - table with 2 T-slots 550 x 400 mm (no wear)
-Height adjustment via rack and pinion with hand crank - 380 V drive / 0.7 / 1.3 kW - motor pole switchable - space requirement approx. B 550 x H 1950 x T 850 mm - weight approx. 320 kg - accessories - Praezionsschnellspannfuter, clamping range 0.2 16 mm - connection cable with CEE plug

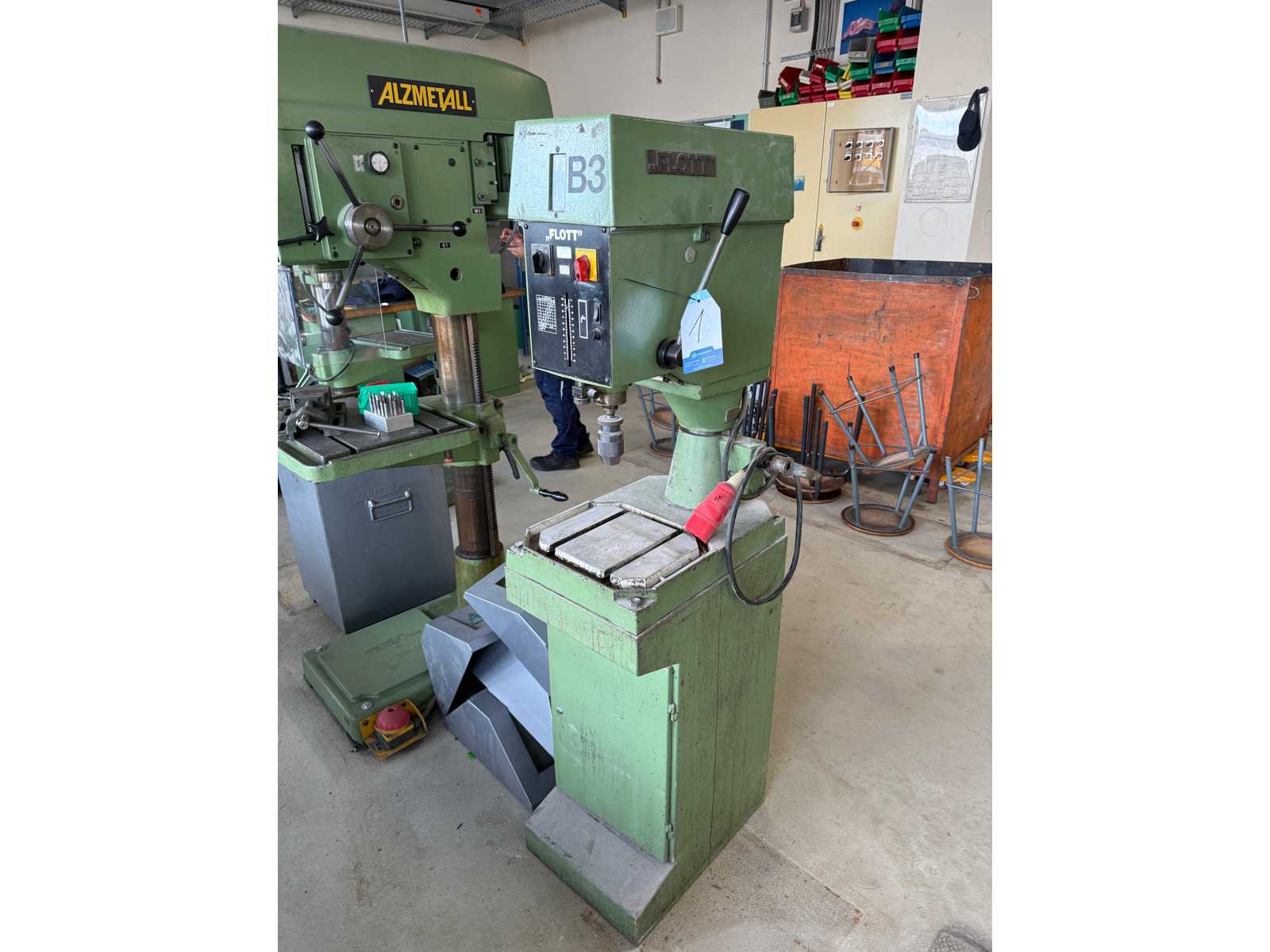

ALZMETALLAB 4 HST Pillar-Type Drilling Machines Bohrlstg. in St.: 40 mm
Stroke: 190 mm
Chuck: MK 4
Speed range: 50 - 1280 RPM - infinitely variable
Throat depth: 325 mm
Total power consumption: 2.4 / 3.0 KW / 380 V
Machine weight: 850 kg
Accessories / others: ...
used machine
Bohrlstg. in St.: 40 mm
Stroke: 190 mm
Chuck: MK 4
Speed range: 50 - 1280 RPM - infinitely variable
Throat depth: 325 mm
Total power consumption: 2.4 / 3.0 KW / 380 V
Machine weight: 850 kg
Accessories / others:
Automatic drill feeds
stepless speed control
Speed display
Foot switch
Coolant system
All technical data are created according to our best knowledge and existing documents; Expressly reserved by mistake.
Each party has the opportunity to test the machine before making a purchase in our factory under power.

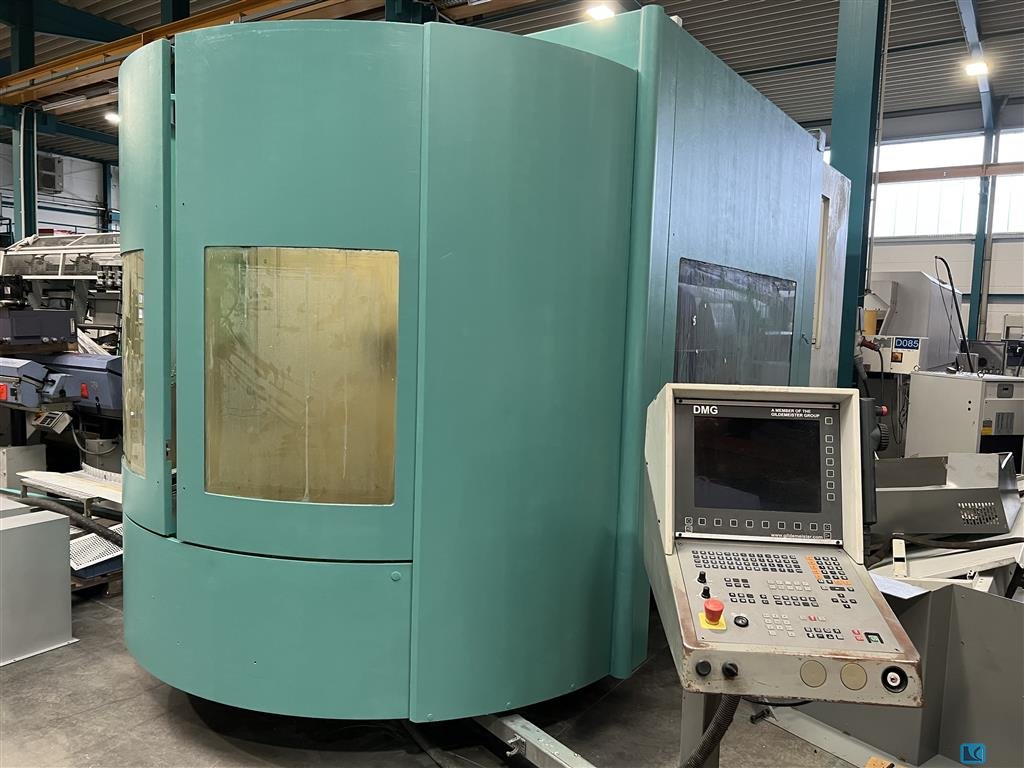

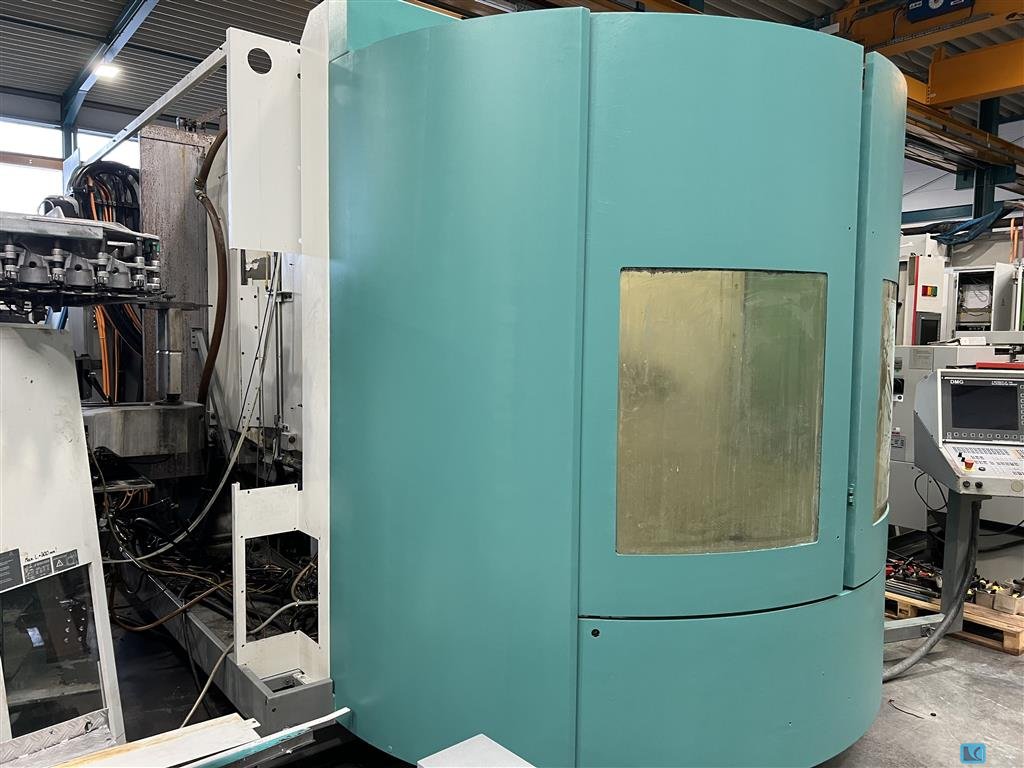

DMGDMU 60 T /TNC 430 Machining Center - Universal x-travel:630 mmy-travel:560 mmz-travel:560 mmspindle turning speed - stepless:12 000 U/minspindle drive:10 / 15 kWtool taper:SK 40numbers of positions in the tool changer:24 control:HEIDENHAIN TNC 430table-size:1000 x 60 ...
used machine
x-travel:630 mm y-travel:560 mm z-travel:560 mm spindle turning speed - stepless:12 000 U/min spindle drive:10 / 15 kW tool taper:SK 40 numbers of positions in the tool changer:24 control:HEIDENHAIN TNC 430 table-size:1000 x 600 mm total power requirement:26 kVA dimensions of the machine ca.:2,1 x 3.6 x 2,4 m weight of the machine ca.:6200 kg
STANKO2622 B Horizontal boring machine The horizontal boring machine STANKO 2622 B was manufactured in 1977.
Technical data :
- spindle diameter: 110 mm
- length of the built-in turntable: 1250 mm
- width of the built-in turntable: 1120 mm
- number of ...
used machine
The horizontal boring machine STANKO 2622 B was manufactured in 1977.
Technical data :
- spindle diameter: 110 mm
- length of the built-in turntable: 1250 mm
- width of the built-in turntable: 1120 mm
- number of T-slots: 7
- distance between grooves: 140 mm
- groove width: 22 mm
- limit travels of the extendable spindle: 710 mm
- vertical travel of the headstock: 1000 mm
- longitudinal travel of the built-in rotary table: 1120 mm
- transverse travel of the built-in turntable: 1000 mm
- number of spindle speeds: 21
- number of spindle feeds: 30
- number of headstock feeds: 30
- number of table feeds: 30
- power supply type: three-phase
- number of electric motors: 5
- maximum absorbed power: 16 kW
- dimensions of the machine (length x width x height): 5700 x 3000 x 3000 mm
- the weight of the machine with electrical equipment: 12500 kg
