Portal machining centres HNK HPM

HNK HPM Double Column 5-Face Machining Center
Year: 2011

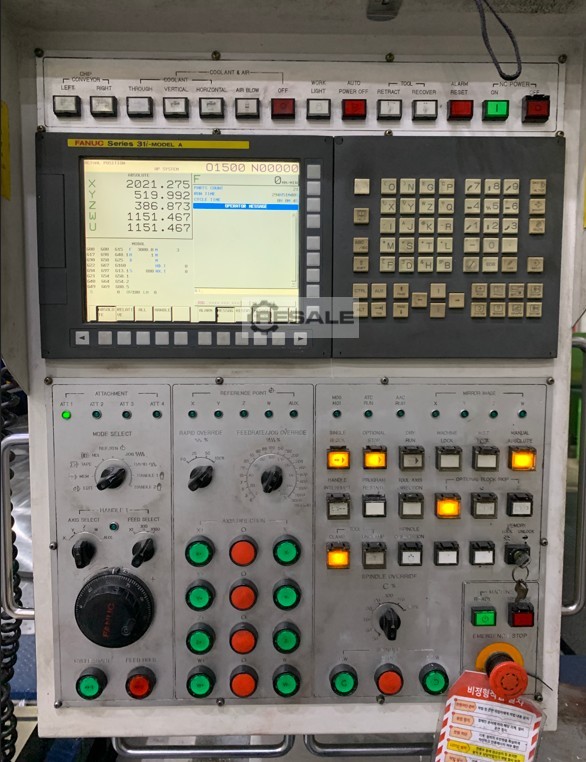

CNC: Fanuc 31i-MA
Status: Under power

Main specifications:

X travel: 10,250 mm
Y travel: 6,400 mm
Z travel: 800 mm
W travel: 2,000 mm
Table: 4,000 × 10,300 mm
Work area: 4,000 × 10,000 mm
Maximum load: 50,000 kg
Between columns: 5,300 mm
Height clearance: 2,600 mm
Spindle: 5–6,000 rpm
Spindle power: 22/25 kW
Maximum torque: 600 Nm

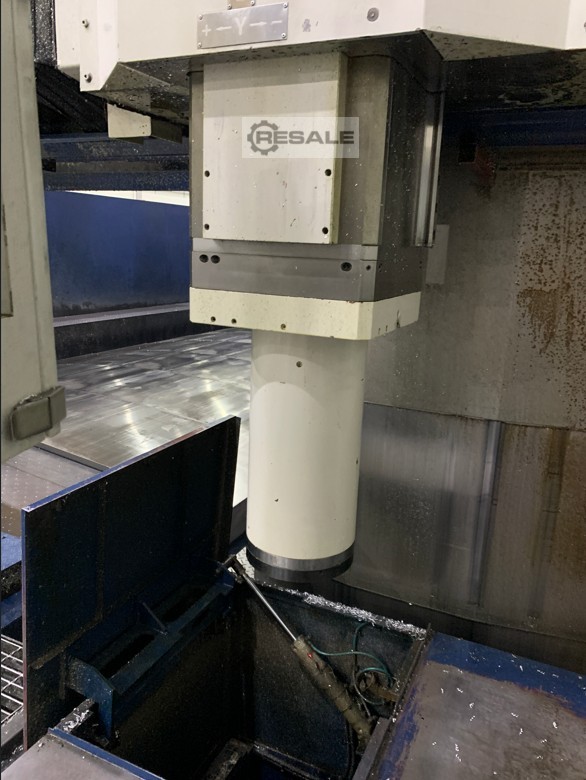

Ram: 380 × 380 mm
Tool shank: BT50
ATC: 60 tools
Scales on X/Y/Z/W
CTS
Rigid tapping
Right-angle head
Extension head

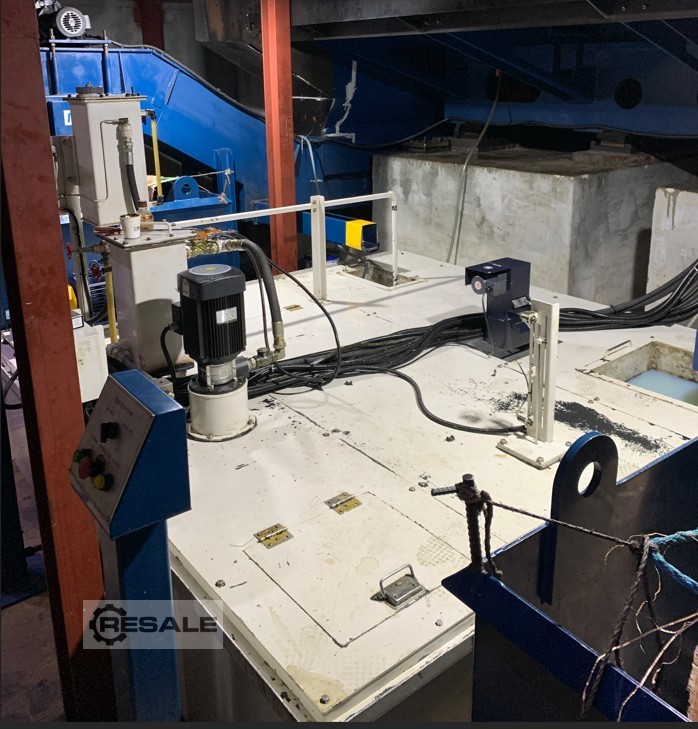

2 chip conveyors + chip bucket

This is a very large-capacity HNK machine designed for heavy and oversized workpieces, with 5-face machining capability and a maximum table load of 50 tons.

The machine is currently under power and available for inspection.
