lacquer machines used for sale

Drying chamber MEYER AB / Fanmet OY 17m3 Year of construction 2007 )2009 installed ) Manufacturer MEYER OY Finland length 3600mm width 2150mm height 2200mm approx. 17m3 electric heating total power 30 kw 18 heating units each with 1667W, 400 V ( length 2360mm ) Air flow for this system is: 3m3 /sec or 10.000m3 /hour 2 fan motors ( 3,6kW+0,37kW ) ATEX Thermostat 0-120C Overheating protection 0-210C ATEX compliant 94/9/EC CE marked

Motorised roller table 19.3000mm year 2007 consisting of: 2 x roller tables 1300x6000mm 1x roller table 1300x4000mm 1 x roller table with longitudinal roller guide 1300x 3300mm Working width 1,300 mm Frame: painted steel frame Castors: 30 mm plastic disc castors, white Roller spacing: approx. 50 mm Stopper: spring-loaded disc stopper Legs: adjustable H-legs, height descending 900>800 mm adjustment +100 mm CE documentation ADDITIONAL: Frequency inverter for speed control

Usefull width: 1400 mm.Staining roller out of soft sponge rubberMembrane pump

ROLLER COATER with SINGLE SPREADING-COATING ROLLER- Max working width mm 1300- Lenght of the machine mm 1000 approx- Thickness of the panels (working height): mm 0 - 100- Adjustable feeding speed: m/min 4 - 23- Separate (from the machine s body) electric and command cabinet- Total installed power KW 2.4- Equipped with:- 1°) Dosing unit (Chromium plated Doctor roller diam. mm 174), KW 0.37- 2°) Coating unit (Rubbered spreading roller diam. mm 248) KW 0.75, with a rubbered bottomroller, counter-placed to the top one

Curtain coater for flat pieces2 coating heads, each with a pumpUsefull coating width: 1300 mmWorking heigth: 850 mm.Workpiece transport by interrupted belt 3xlength 3000 mmFeed speed 20 - 120 m/minpower 3,9 kW

Usefull width: 1350 mm.Max. pass: 6-80 mm.Working height 880-920 mmApplication rollers foam rubber 30° ShoreMembrane pump 4 kWincluding 2 spare rollers ( 1 is new )

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55° Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55° Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Automatic painting machine Cefla Falcioni Profispray Working width 150mm Working height 120mm Shortest element 700mm Feed speed adjustable via inverter up to 71m/min CE Certified A new, unused machine Year of production 2001

Paint mist extraction with supply air system Make Spänex Built in 1995 Paint mist extraction wall Spänex TAW 220 Air volume 6,000 m³/h, motor power 1.35 kW Exhaust pipe diameter 400mm Baffle wall area 2000 mm x 2000 mm Extraction wall depth 800 mm Supply air unit with heating coil Spänex WK 61 for paint room ventilation in cassette design Air flow rate 6,000 m³/h, motor power 2.5 kW Heating medium PWW 90/70 Heat output 77 kW Supply air duct parts Filter Discharge Blanket 1900 mm x 1900 mm x 300 mm Connecting bends, sewer bends Control and regulation cabinet For supply air unit and paint mist extraction

A complete paint shop is available. 1) Sergiani S.p.A. Monomatic S, year of construction: 2001. 2) Finnrose FLT 6, year of construction: 1993. 3,4,5) Three identical Bürkle DAL1-1300 presses, year of construction: 1993. 6) Karl Heesemann FGA 6 EX, year of construction: 1993. 7) Finnrose FLT-4.5, year of construction: 1993. 8) Bürkle DAL2-1300, year of construction: 1985. Hackemack KTR 2040, year of construction: 1996. All machines are part of a paint shop. On-site inspection is possible.

A roller coating machine specially designed for UV coating in the wood industry is available. Working width: 1350mm, max. workpiece thickness: 80mm, working height: approx. 980mm, application roller: 1350mm, feed speed: 5m-25m/min, machine dimensions X/Y/Z: approx. 2700mm/1200mm/1800mm, weight: approx. 1500kg. Documentation available. On-site inspection is possible.

Working width: 1300mm, workpiece thickness min./max.: 3mm/80mm, workpiece width min./max.: 10mm/1300mm, max. workpiece length: 100mm, workpiece height min./max.: 3mm/120mm, roller application speed: 5m-30m/min, feed: 6m-30m/min. Documentation available. On-site inspection is possible.

Glue spreader with 4 roller Brand: Omma Type: GS Technical data: Working width: 1.360 mm Max throughfeed height 80 mm Speed: 16,5 m/min. Working height: 905 mm Diameter of application rolls: 200 mm Diameter of metering rolls: 185 mm Connected value 1,3 kW Colour RAL 7035 Operation side left Electric 400/50/3 Technical equipment: - Each 1 drive motor for the upper and lower spreading unit for highest precision and to get a low-noise vibrational free run. - Rubber coated application roller with sanded surface - Hard rubber coated dosing rollers with sanded surface - Display for height adjustment of application rollers, precision: 1/10 mm - Manual adjustment of dosing rollers depends on the application rollers for an even glue application - Special tighted bearing to prevent sluggishness, blockages and overheating. - Safety grid as a safety device at mach ...

Glue application machine Make: OMMA Type: FSC-1.300 for water-based glues working width: 1.260 mm maximum working thickness: 90 mm working speed: 19 m/min. height of working level: 905 mm application rolls Ø: 185 mm standard grooving lines: 14 inch installed power: 0,5 kW colour: RAL 7035 command side (compared to working direction) right standard voltage: 400 V/50 cycles /3 ph. technical equipment: - rubbered application rolls, coated with grinded surface - thickness graduate indicator - top & bottom glue dosing tanks in grinded steel with ground profile and micrometric glue regulation - parallelism regulation between application rollers - rollers protection with security plate and foot control in front of the machine that stops immediately the machine if activate - security front foot barrier - steel zinc collecting tank of the cleaning water - electr ...

Venjakob Perfect paint shop: - Manufacturer: Venjakob - Year of construction: 2013 - Working width: 1,300mm - Max. part length 6,500mm - In U-shape with angle transfer Composed of: 1. Covering tape, length 3,050mm 2. Free space for a grinding machine (option) 3. Automatic sprayer VEN SPRAY PERFECT, length 5,510mm 4. Evaporation dryer OIR, length 6,000mm 5. VEN DRY AIR JET nozzle dryer, length 4,160mm 6. 180 degree angle transfer, with nozzle dryer 7. Supply air system for angle transfer, 25,000m³/h 8. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 9. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 10. VEN DRY AIR JET nozzle dryer, length 5,160mm 4 Pieces IR Illuminators 11. 3D-UV Dryer, VEN DRY UV, GA + HG 12. Removal area, tape of UV dryer 13. Supply air system hall, 30,000m³/h Further informatio ...

UV dryer Superfici Type TU166-25+2UVM55 Serial No. 4548 Year of construction 1998 Passage width 1500 mm 2 UV lamps Material thickness maximum 110 mm Maximum width of the workpiece 1400 mm Height-adjustable feet Dimensions 2500 mm x 2300 mm x H 1650 Control cabinet dimensions 1000 mm x 850 mm x H 2180 mm

- Manufacturer: Elmag Superfici - Type ETC3/2-24-5500 - Year of construction 2001 - Working width 1,300 mm - Number of pallets 24 pcs. - Max. part height ~70 mm - Clear height between pallets 100 mm - Dimensions: Center Pallet - Center Pallet 3,800 mm - Max. part length 5,200 mm - Number of controllable temperature zones 2 pcs. - Supply air capacity 9,000 m³/h - Heat output max. 2 x 40,000 kcal/46 kW - Max. drying temperature ~ 55 - 60 degrees - with heat exchanger, heating water - Flow direction in U-shape - Inlet side left - Feed infinitely variable 2 - 10 m/min - Suitable for water-based paints - Suitable for solvent coatings - Length 7,400 mm - Width 6,510 mm - Height 5,745 mm - Location, not in stock - Volts, Hz 400 / 50 - Voltage fluctuations max. +/- 5 % - Without control valves and water pumps - Available from March  ...

UV dryer, Cefla UV 2000 - Manufacturer: Cefla/Sorbini - Type UV 2000 M2 / TTE2500 - Year of construction 2007 - Working width 1,300 mm (1,445) mm - Working height 900 + - 40 mm - Operating side on the right - Max. part height 70 mm - Number of tubes from the top 2 pcs. - Tubes straightened 2 pcs. - Suitable for mercury tubes - Suitable for gallium tubes - Tube power max. 120 W/cm - Tube power infinitely adjustable - Bar transport - Rod pitch ~ 115 mm - Length 2,500 mm - Width 2,300 mm - Height 1,500 mm - Volt,Hz 400 /50 - Total electrical connection 86 A / 36.4 kW - Voltage fluctuations max. +/- 5 %

- Manufacturer: Bürkle - Type DAL 1-1300 R - Year of construction approx. 1990 - 1993 - Working width 1300 mm - Machine is overhauled, then very good condition - Working height 870 mm - Part height 3 - 80 mm - Operating side on the right - Paint application roller 50 Shore - Dosing roller hard chrome-plated approx. 174 mm - Rubberized counterpressure cylinder - Belt transport - Length 1050 mm - Feed adjustable via handwheel 6 - 30 m/min - Total connection approx. 2 kW - Weight 3250 kg - With control cabinet - Volts, Hz 400 / 50 - Machine number 4610.17 - Commodity code 8479 8997 - Voltage fluctuations max. +/- 5 % - Images only sample images

Images only example - Manufacturer: Cefa -Type. KLEENSPRAY - Year of construction 2008 - Working width 1,200 mm - Working height 900 mm + - 20 mm - Operating side on the right - Price for overhauled machine - Actual condition, machine overhauled - Pistol drive single version - Dry suction - Diameter suction nozzle 490 x 350 mm - Exhaust air capacity 6,500 m³/h - Paper tape transport system - Feed speed infinitely variable 1.5 - 7 m/min - PLC control with touch screen - Number of sprayers installed 4 pcs. - Height-adjustable sprayers - Number of paint pumps 1 pc. - Suitable for solvent coatings - Suitable for water-based paints - Length 4,450 mm - Width 3,360 mm + 1000 mm - Height 2,600 mm - Total connection ~ 7.1 kW / 28.6 A - Volts, Hz 400 / 50 - Location, in stock - Voltage fluctuations max. +/- 5 %

- Manufacturer Venjakob -Type. VEN SPRAY DUO/C CNC 6000 - Year of construction 2004 - Working width 1300 mm - Left side of the operation - Price for overhauled machine - Actual condition, machine unoverhauled (1st picture) - Pistol drive in duo version - Dry suction - Diameter of suction nozzle 500 mm - Exhaust air capacity 7,000 m³/h - Webbing transport system - Feed speed infinitely variable ~ 2 - 7.5 m/min - With belt cleaning system - With paint recovery via V-band system - Gun control, touch screen CNC 6000 - Installed color circles 1 pc. - 4 sprayers, Krautzberger KAA1300 - 1 hp pump Wagner, Kremlin or IBK - Supply air filter ceiling - Suitable for water-based paints - Suitable for solvent coatings - Control cabinet integrated into the machine - Total connection ~ 29kW - Volts, Hz 400 / 50 - Colour RAL 7035 light grey/RAL 9005 black - Location, in stock  ...

Roll Coater Bürkle Paint Roller Coating Machine Type SLC 1300 Machine No. 8540 Year of construction 1998 Working width 1300 mm Passage height 3 mm – 120 mm Workpiece length min. 350 mm Feed speed 6 – 30 m/min. Rubberized Paint Application Roller 55 Shore Paint application roller diameter approx. 238 mm Dosing roller chrome-plated Dosing roller diameter approx. 174 mm Counter roller diameter 186 mm Required pressure 6 bar Motorized height adjustment of the application roller Machine weight approx. 1500 kg Dimensions 800 mm x 2800 mm Instruction manual available Declaration of Conformity available With driven roller conveyor 13 rolls, wheels diameter 80 mm Roll width 1300 mm Dimensions 2500 mm x 1550 mm

Manufacturer: Purete, Type: PRT-I3613, Year: 2020 neu, Work piece width min-max mm: 1300, Min.-max. workpiece length in mm: 100, Channel length in mm: 6.000, Revisionsklappen: yes, Min.-max. workpiece height in mm: 2 - 80, Working widht max mm: 1.320, Conveyor lenght mm: 6.000, Feedin speed m/min: 0 - 20, Rod transportation: yes - 38,7 mm, 1st Damper register kW: 36, Electrical power consumption kW: 44, FREE TEXT: Heizung über Elektro - auf Anfrage über Wasser und Öl möglich, Year :NEU

Manufacturer: Purete, Type: PRT-L1106, Year: 2020 neu, Control: HMI, Work piece width min-max mm: 620, Min.-max. workpiece length in mm: 500, Min.-max. workpiece height in mm: 2 - 100, Working widht max mm: 620, Operating side: rechts / links, Working height: 880, Feeding speed min/max: 2 - 80, Required space L x W x H mm: 2.800 x 2.200 x 1130, FREE TEXT: höherer Vorschub optional, Year :2020 neu

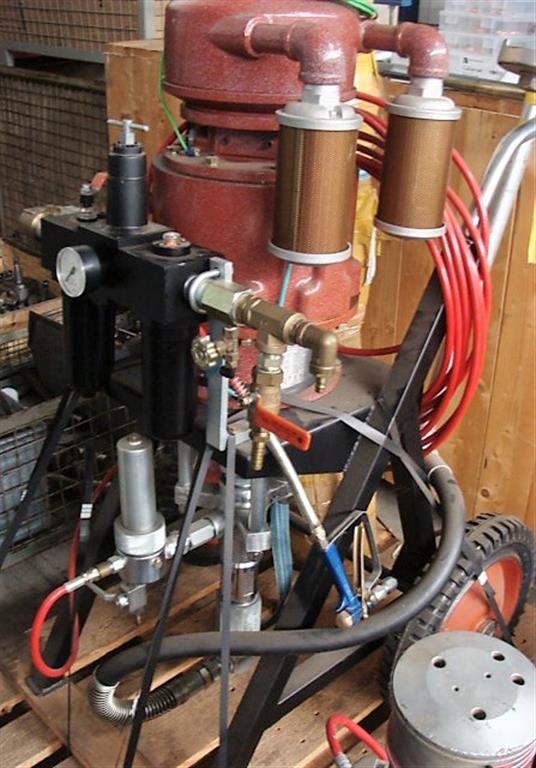

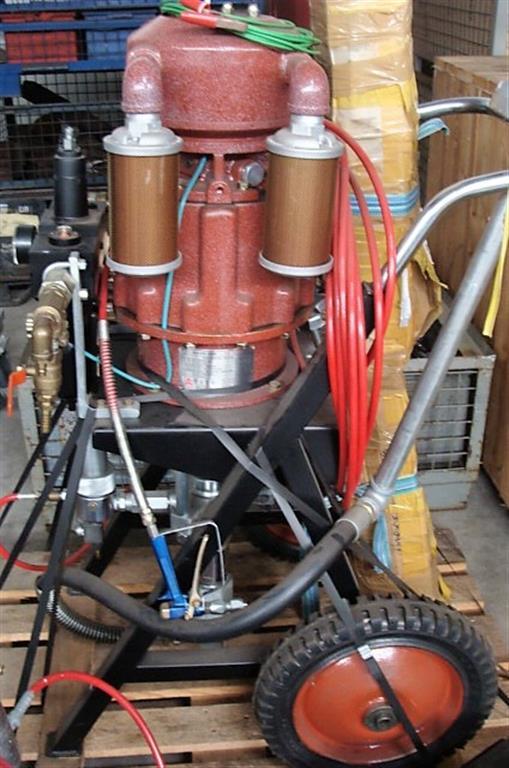

Manufacturer: Hübner Airlessgerät, Type: HP 4/32 RF, Transmission ratio: 30:1, Volumenstrom Doppelhub ccm 2: 27, Volumenstrom Doppelhub ccm 2: 27, Fördermenge: 27 m³, Luftverbrauch bei 6 bar: 8, Compressed air bar max: 256,

Manufacturer: Cefla Rotorstain, Type: Rotor, Year: 2005, Control: Cefla, Work piece width min-max mm: 10-1350, Min.-max. workpiece length in mm: 150-3500, Min.-max. workpiece height in mm: 10-60, work piece detection: yes, Conveyour system: Band, Spraying stations: 16, Schnellwechselsystem : yes, Gun carrier: 16, Pumps: 2, Laquer system - airless: yes, Laquer recharging: yes, by rollers: yes, by scraper: yes, Water cleaning: no, Dry exhauster: yes, Feeding speed m/min: 2,5-10, Year :2005
