Model
(Manufacturer: HERMLE)
CNC machining centre HERMLE U 1000 T – universal milling machine For sale is a high-quality CNC universal machining center from the renowned manufacturer Hermle, model U 1000 T. The machine impresses with its stable design, high precision and versatile applications. Ideally suited for toolmaking, single part production and demanding milling work. General information: Machine Type: CNC Machining Center / Universal Milling Machine Manufacturer: Hermle Model: U 1000 T Year of Make: 1999 Control: Heidenhain TNC 426 Condition: Used, good general condition, functional Shipping time: Immediately available Technical data: Travel (X / Y / Z): approx. 1000 / 630 / 550 mm Table size: approx. 1200 × 630 mm Tool holder: SK 40 Spindle speed: up to approx. 7000 rpm Tool magazine: approx. 16 places Quill stroke: approx. 75 mm Milling head: swivel 0 – 90° (unive ...
Milling machine Manufacturer: Hermle Type: C600U Year of Make: 2002 CNC control: Heidenhain iTNC 530 Travels: X/Y/Z: 600 x 450 x 450 mm NC swivel rotary table Rotation range: C-axis 360° Spindle speed: 30,000 rpm Tool holder: HSK40 Tool changer: 30-fold Operating hours: approx. 22,000
HERMLE UWF 802 M universal milling machine with HS 401 route control -HS 401- Track control -Travel X / Y / Z 500x430x400mm -Rigid angle table -Speed range 18-3550 rpm -Feed continuously variable in all three axes 0-1600 mm/min -Rapid traverses 0-1.6 m/min in all three axes -Vertical - Horizontal milling device -Tool holder ISO 40 -Hydraulic tool clamping -Central lubrication -Chip tray -Drive power 6 KW -Work light -Spindle protection -Documentation Dimensions LxWxH 1.9x1.8x1.9 meters / Weight: 1800Kg

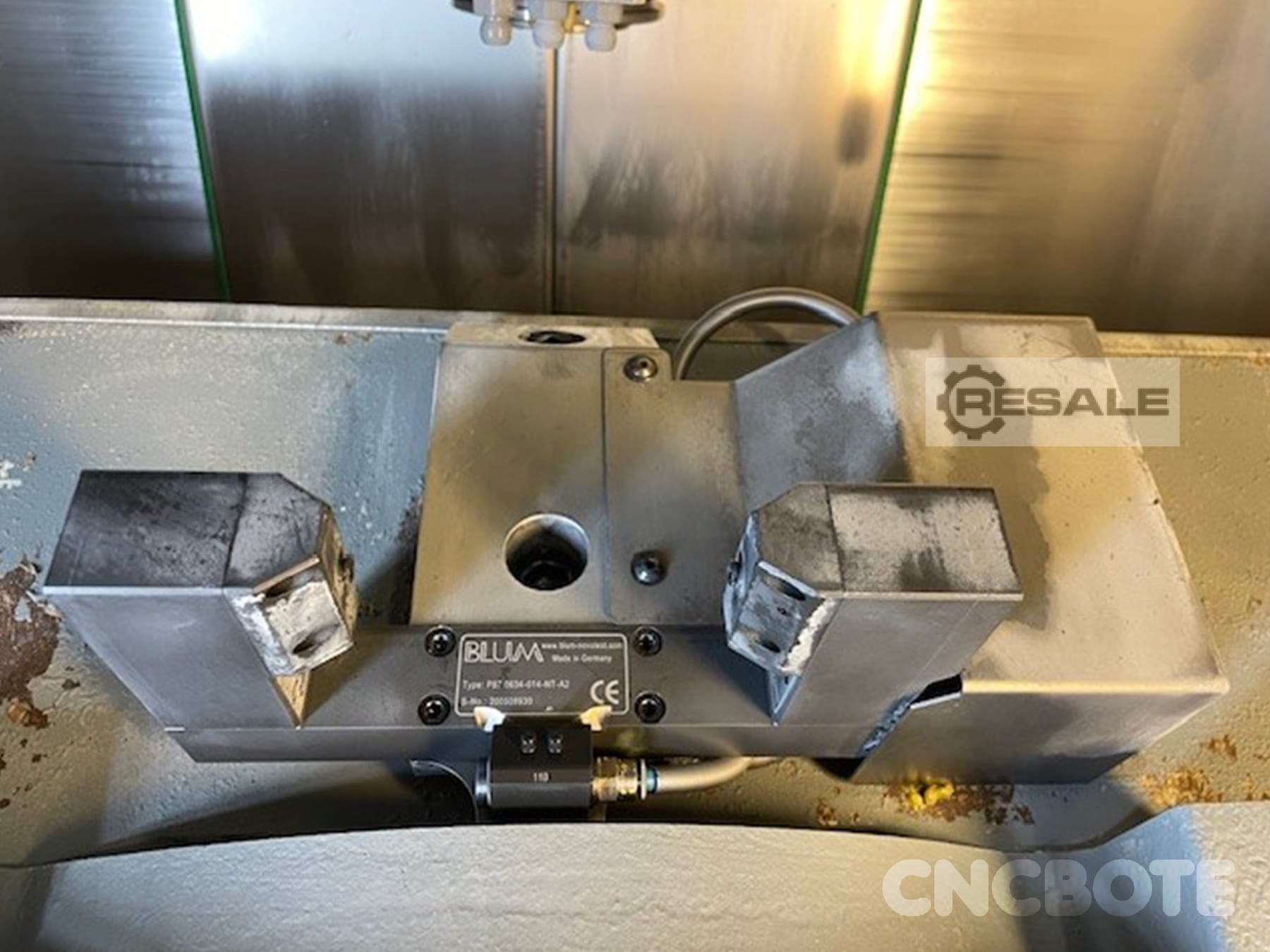

Control Heidenhain iTNC 520 Travel X/Y/Z: 1200 x 900 x 500 mm Spindle speed 16,000 min-1 Tool magazine for 30 Wkz. + additional magazine for 57 Wkz. HSK-A 63 IKZ 40 bar Chip conveyor Measuring Probe Heidenhain Blum Laser System
Key data: 450 mm, 600 mm, 330 mm
Catalog No. : 8975 Type: C 22 U Producer: Hermle Made in: 2018 Characteristic: Control system: Heidenhain TNC 640 Total hours: 23,000 h Number of stack positions: 192 Number of axis: 5 pcs X-Axis travels: 450 mm Y-Axis travels: 600 mm Z-Axis travels: 330 mm Block speed: 18000 1/min Taper: HSK-A63 Internal cooling: 80 bar Rotary table Ø 320 mm A ±135° / C 360° Hermle IH30/60 handling system (active) BLUM tool measuring system (LC50) BLUM workpiece probe (TC52) Dynamic Precision
Key data: 850 mm, 700 mm, 500 mm
Inv. Num. : 8976 Type: C 400 U Producer: Hermle Created: 2015 Parameters: Control system: Heidenhain iTNC 530 Number of stacking positions: 38 Number of axles: 5 pieces X-axis travel: 850 mm Y-axis travel: 700 mm Travel Z axis: 500 mm Cone: SK40 Electric spindle speed: 18000 1/min Spindle cooling: 40 bar Rotary table Ø 650 mm A 91° / -139° C 360° BLUM Tool Measuring System BLUM workpiece probes Direct torque drives in rotary axes Chip conveyor Oil mist extraction Electronic handwheel
CNC - Universal milling machine HERMLE UWF 902-S -Heidenhain 426 -Built in 1997 -Travel X/Y/Z 600-450-500mm -Speed range 20-6300 rpm -Tool holder SK40 -Vertical - Horizontal milling device -Drill quill -Coolant device -Angle table -Machine enclosure -Documentation Dimensions: LxWxH 3,9x2x2Meter / Weight 4000Kg Hobkn Au Sjv Iklus Tol
Key data: 650 mm, 600 mm, 500 mm
Control Heidenhain ... TNC 530 Clamping table surface ... 630mm Axis X ... 650mm Axis Y ... 600mm Axis Z ... 500mm Spindle speed... 0-18000 rpm controlled axes ... 5 IKZ ... 80bar Spindle holder ... HSK-A63. Magazine spaces ... 32 Axis A ... +30/-115° Axis C ... 0,001° Machine weight ... 9500kg The machine is in good condition, possible to test under power.
Used HERMLE UWF 1202 S Universal Tool Barrel and Drilling Machine CNC control HEIDENHAIN TNC 426 Technical data: Travels X-axis 850.0 mm Y-axis 630.0 mm Z-axis 500.0 mm Rapid traverse 10 m/min Table length 1200.0 mm Table width 550.0 mm Max. spindle speeds 20 - 4200 rpm Spindle motor power 7.0 kW Tool holder SK 40 Coolant 120 liters Total connection 16 KW Dimensions 3.3 x 2.4 x 2.4 m Space requirement 5.0 x 4.2 m See still under power
Key data: 850 mm, 700 mm, 500 mm
Hermle C40U Dynamic Details YOC 2007 Spindle hours approx. 14,000 (exchanged 11.2017) Drives approx. 68,500 hours Travel 850x700x500 Rapid traverse 45m/min Speed 18,0001 rpm HSK 63 Tool Changer 38-Way Laser Tool Measurement/Fracture Monitoring NC Swivel Rotary Table D=420 Control Siemens 840D IKZ 80bar Paper Belt Filter Chip conveyor Electr. Hand control module Oil mist extraction Swarf Spray Gun Heat compensation Probe Heidenhain A-axis position off-center Accessories WITHOUT accessories such as tools, mounts and zero-point clamping system
Control Heidenhain iTNC 530 Speed [rpm] 12000 Travel X/Y/Z [mm] 1200/1300/900 Tool pick-up HSK-A100 Spindle: Motor spindle technology Speed 12,000 rpm Power (max.) 56 kW Torque (max.) 356 Nm Tool holder HSK-A100 NC swivel rotary table: Technology Swivel rotary table with torque drive A-axis -/+ 130° C-axis 360° Table load (max.) 2,500 kg General: Tool magazine 50 stations Rapid traverse in X/Y/Z 50 m/min Equipment/accessories: Displacement measuring system Directly in all axes Chip Management Chip Conveyor Coolant management IKZ system with paper belt filter and high pressure, 80 bar Workpiece Measurement Probe, Heidenhain TS 460 Workpiece Loading Automatic Cab Roof Oil Mist Extraction Mechanical Separator, Handte EM.DS 1-0,75 Setup operation Electronic handwheel Other features Visiport
General Manufacturer: Hermle Type: C 40 U Year of Make: 2005 Control: Heidenhain TNC 430 Travels: X 850 mm, Y 700 mm, Z 500 mm B swivel axis Working spindle Speed: 28,000 rpm Tool/movement Tool changer: 38-speed Tool holder: HSK63A Dimensions and weight Weight: 10,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included Spindle coolers IKZ high-pressure system 80 bar Blum Laser Measurement Workpiece probes Electric Handwheel HR410 Chip conveyor Oil mist extraction
Key data: 650 mm, 600 mm, 500 mm
For sale is a Hermle 5-axis machining centre type C30 U (5 simultaneous axes). Equipped with the Heidenhain i TNC 530 controller. The travels of the X, Y and Z axes are 650 x 600 x 500 mm. The table diameter is 280 mm. The machine includes various clamping pallets that can be attached to the table. The maximum speed range is between 20 and 18,000 rpm. The spindle holder is HSK-63. In addition to the standard 32-cavity tool magazine, the machine has an expansion to 157 tool positions, bringing the total number of tool positions to 197. Furthermore, the machine is equipped with a Knoll high-pressure system with a maximum pressure of 40 bar including a fine filter system. A chip conveyor with rear discharge is also available. At the front of the machine is a robotic loading system with a significant number of pallet spaces (depending on the pallet size). This system is connected to the mach ...
CNC Vertical - Machining Center HERMLE C 1200 V With track control Heidenhain iTNC 530 Year of Make: 2009 Travel : X 1200 Y 900 Z 500 Speed range : 20 – 10,000 rpm infinitely variable ( HSK 63 ) With the following accessories: Rigid angle table 1260 mm x 800 mm clamping surface Vertical tool changer with 30 magazine positions ( HSK 63 ) IKZ 40 bar Blow-off device Scraper belt conveyor Rotating transparent window Coolant Setup Electronic Heat Compensation iTNC 530 Electr. Manual control module HR 410 3 D Probe Heidenhain Control cabinet cooling unit ( RITTAL) Oil mist extraction Various HSK 63 tool holders equipped with tools Spindle Oil Cooler Swarf Spray Gun 4 Pieces Height Adjustable Machine Shoes Operating Instructions
CNC Vertical Machining Center HERMLE C 30 U With track control Heidenhain iTNC 530 Year of Make: 2008 Travel distances : X 650 Y 600 Z 500 Speed range : 20 – 18,000 rpm infinitely variable ( HSK 63 ) With the following accessories: NC swivel rotary table Ø 630 mm Vertical tool changer with 32 magazine positions ( HSK 63 ) Linear Axis Standard Version Blowing air d.d. spindle center Blow-off device IKZ 40 bar , Paper belt filter for IKZ Scraper belt conveyor Manual Cab Door , Manual Cab Roof Polycarbonate Safety Lenses Electronic Heat Compensation iTNC 530 Electr. iTNC manual control module 3 D Probe Heidenhain Various HSK 63 tool holders equipped with tools Rotating transparent window Oil mist extraction Swarf Spray Gun 4 Pieces Height Adjustable Machine Shoes Operating instructions
CNC Vertical Machining Center HERMLE C 50 U With track control Heidenhain iTNC 530 Year of Make: 2008 Travel : X 1000 Y 1100 Z 750 Speed range : 20 – 18,000 rpm continuously variable ( HSK 63) With the following accessories: NC swivel rotary table Ø 1150 mm x 900 mm Vertical tool changer with 60 magazine positions ( HSK 63 ) Blowing air through the centre of the spindle Blow-off device IKZ 80 bar with paper belt filter Scraper belt conveyor Coolant Setup Sealing air for scales, bed flushing Oil mist extraction Manual Cab Door , Automatic Cab Roof Electronic Heat Compensation iTNC 530 Electr. Manual control module HR 410 3 D Probe Heidenhain Various HSK 63 tool holders equipped with tools Rotating transparent window Swarf Spray Gun 4 Pieces Height Adjustable Machine Shoes Operating instructions
CNC Vertical Machining Center HERMLE C 650 U With track control Heidenhain TNC 640 Year of manufacture: 2018 Travel : X 1050 Y 900 Z 600 Speed range : 20 – 18,000 rpm infinitely variable ( HSK 63 ) With the following accessories: NC swivel rotary table Ø 900 mm x 750 mm ( T slots for SRT ) Vertical tool changer with 42 magazine positions IKZ 40 bar with paper belt filter Sealing air for scales Scraper belt conveyor Coolant Facility ́ Blow-off device Blowing air d.d. spindle center Manual Cab Door , Manual Cab Roof Polycarbonate Safety Lenses Electronic Heat Compensation Electronic handwheel BLUM Wz-bruch / - Measurement A 2 3 D Probe Heidenhain Chip rinsing gun Oil mist extraction Control cabinet cooling unit ( RITTAL) 4 Pieces Height Adjustable Machine Shoes
Key data: 600 mm, 500 mm, 450 mm

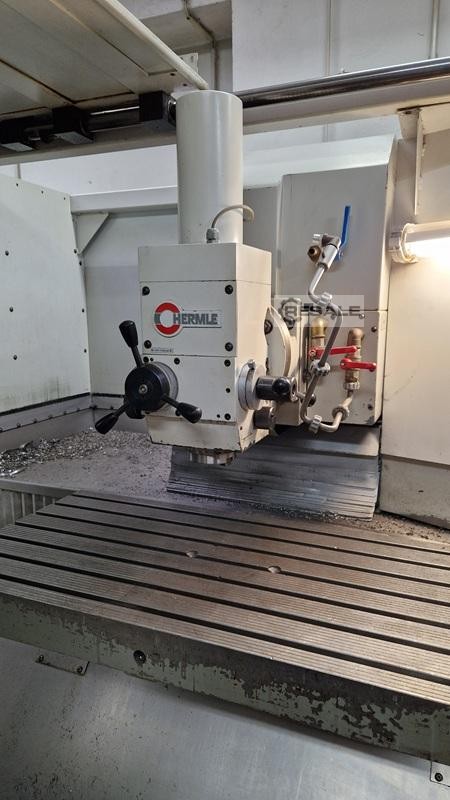

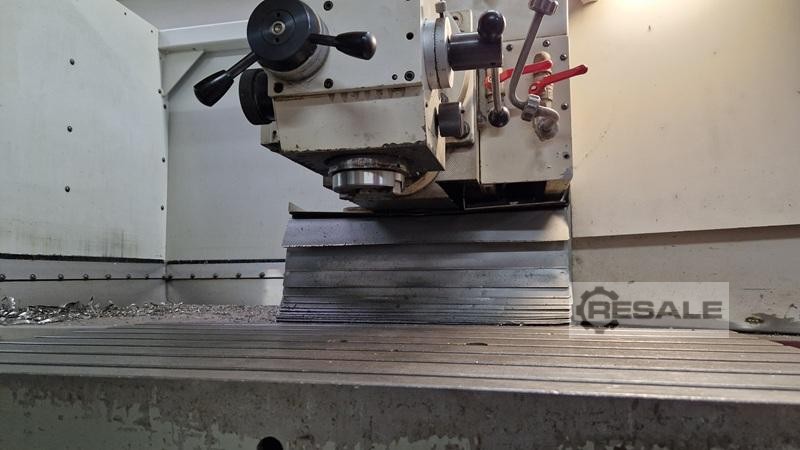

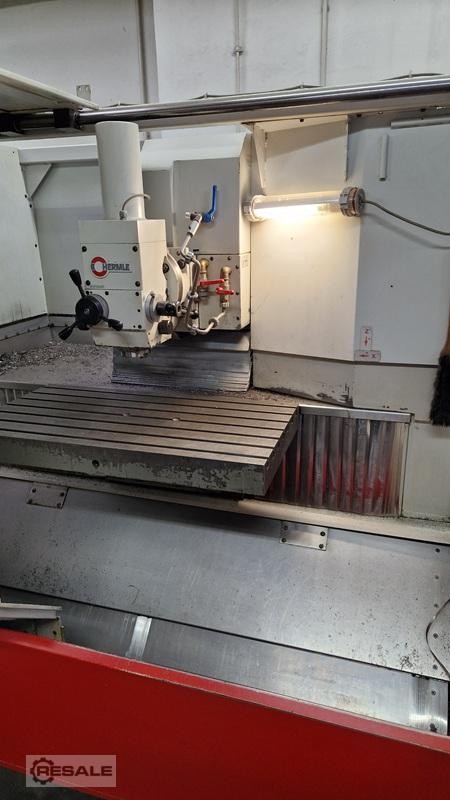

Universal milling machine Hermle UWF 900 E Manufacturer: Hermle Model: UWF 900 E Year of Make: 1990 Factory No.: 1893 Specifications Travel: X-axis (longitudinal movement): 600 mm Y-axis (transverse movement): 500 mm Z-axis (vertical movement): 450 mm Quill: 100 mm, extendable Spindle head swivel range: ±90° Milling spindle front bearing: Ø 55 mm Tool holder: SK40 DIN 2080 or SK40 DIN 69871 or BT40 Table size (universal clamping table): 420 x 650 mm, expandable to 935 mm NC rotary table (4th axis): Ø 380 mm, swivelling ⚙️ Equipment / Accessories: Vertical milling head with quill and fine adjustment Universal face and angle milling head Heidenhain Control Particularly suitable for Individual and small series production Tool and mould making Precision and complex milling work Condition Well-maintained, fully funct ...
Key data: 500 mm, 360 mm, 400 mm

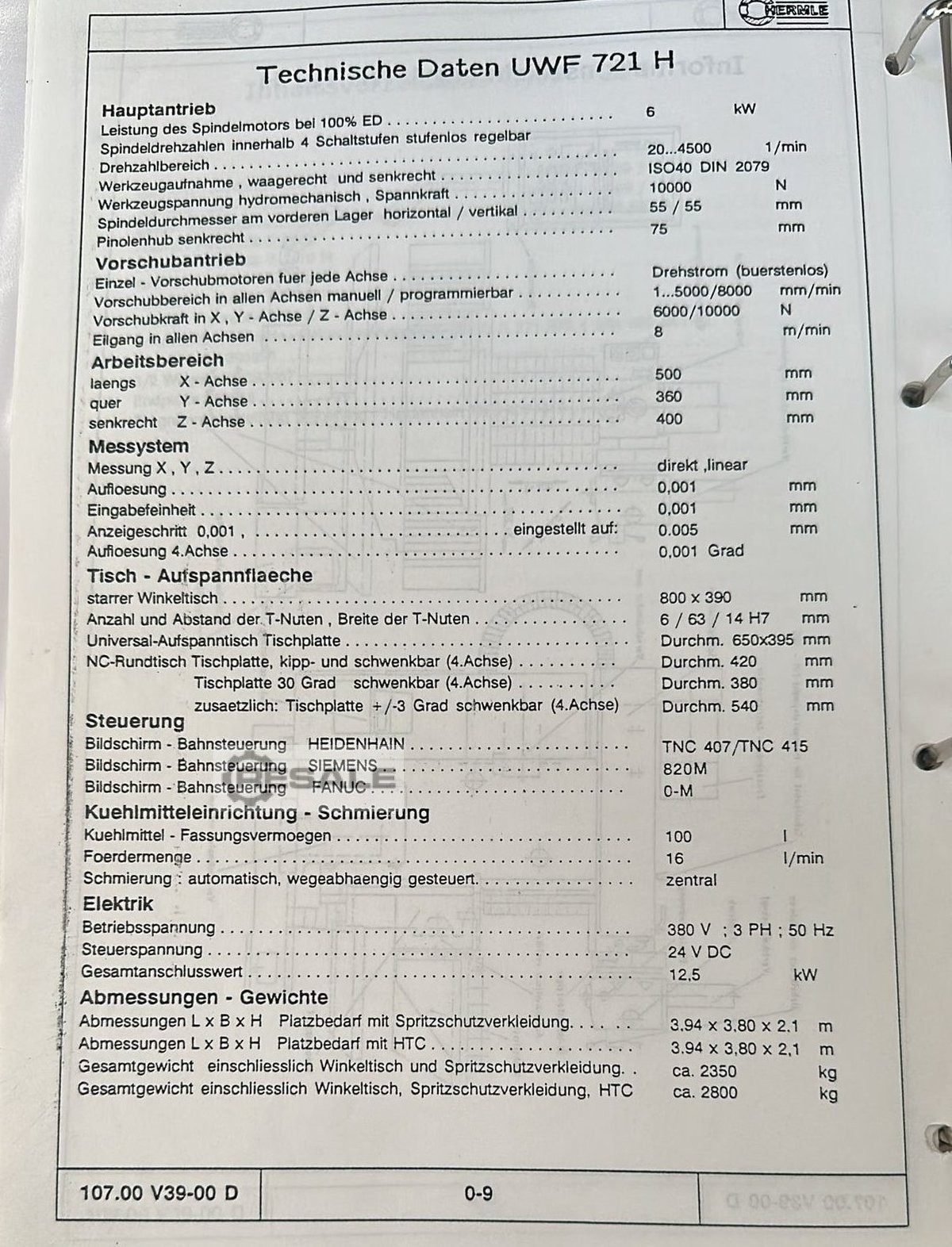

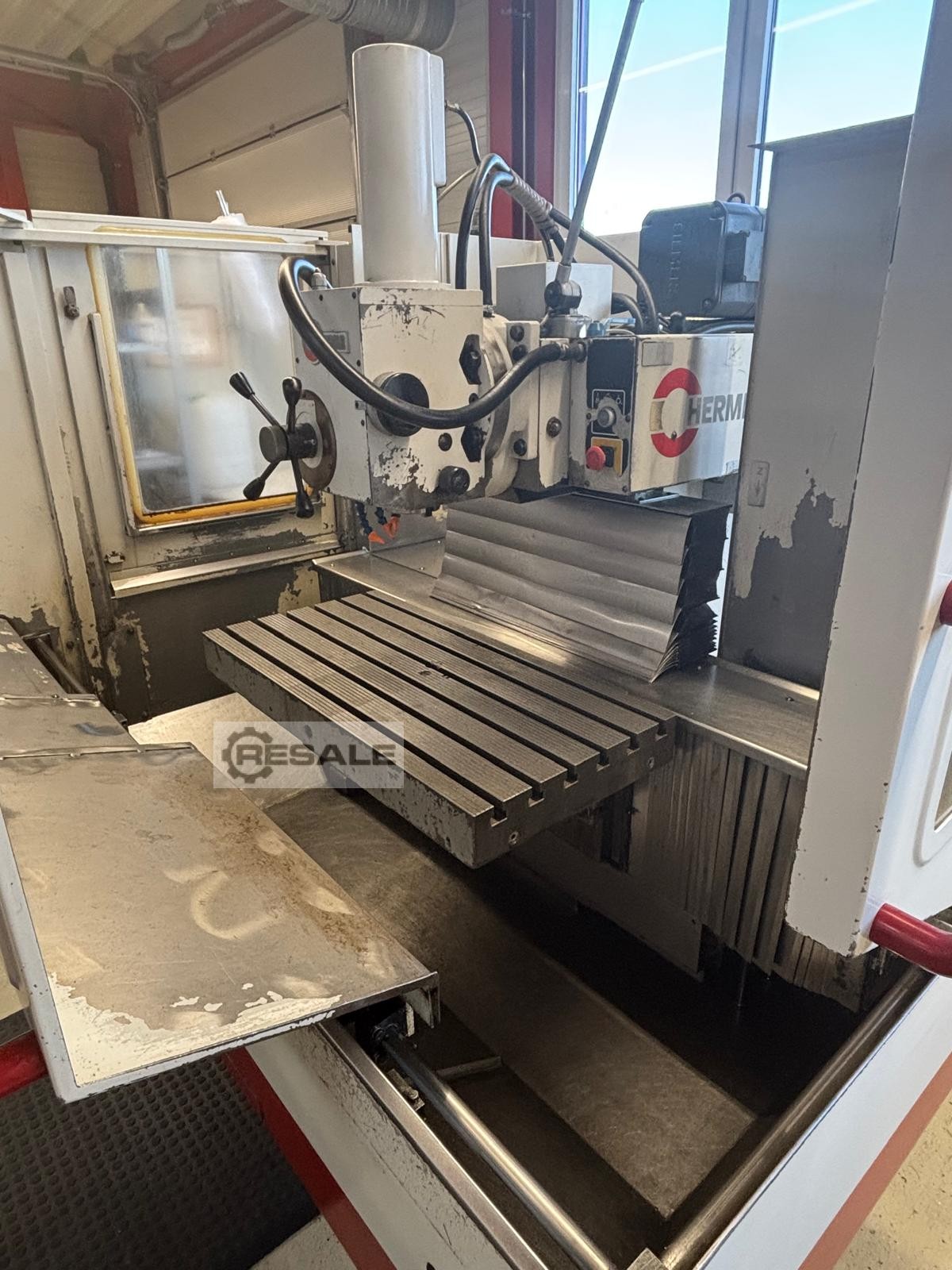

Built in 1993 Heidenhain 415 Tool changer for 32 tools Travel distances 500 x 360 x 400 mm Feed in all axes manual/programmable 5000/8000 mm/min Rapid traverse 8 m Spindle speeds 20 - 4500 rpm Spindle motor 6 kW Tool holder ISO 40 Weight 2800 kg Connected load 12.5 kW
Key data: 850 mm, 700 , 500
Hermle C 400 V 3-axis CNC machining center Year of manufacture: 2018 Control: Heidenhain TNC 640 x-travel: 850 mm y-travel: 700 mm z-travel: 500 mm Spindle: HSK-A63 Speed: 15,000 rpm Rigid clamping table: 1070 x 700 mm Tool changer: 38 x Weight: approx. 9.5 t Switch-on hours: approx. 26,000 h Spindle hours: approx. 11,500 h
Key data: 450 mm, 600 , 330
Hermle C 22 U RS05-2 5-axis CNC machining center with robot system Year of Make: 2022 Control: Heidenhain TNC 640 x-travel: 450 mm Y-travel: 600 mm z-travel: 330 mm Spindle: HSK-A63 Speed: 18,000 rpm Swivel table STP: Ø 320 mm Tool changer: 55 x Weight: approx. 8.7 t
Machine data: Control Heidenhain TNC 355 Year of manufacture 1989 Travel: X 600 mm travel Y 450 mm travel Z 400 mm travel Spindle speed 20 – 4000 min-1 Angle table size 850 x 440 mm Swivel table 650 x 395 mm Electronic handwheel The machine is still energized and in good condition.
Key data: 600 mm, 400 mm, 420 mm
Hermle UWF 900 Universal CNC Milling Machine BAZ Year of Make: 1996 Machine number: 11410 Machine weight: 2,900 kg Availability: By arrangement. Machine is still energized and in perfect condition.
Travel: X= 600, Y= 400, Z= 420 mm Speed range: 20 – 4000 rpm Gear Stages: 3 Mount: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Feed range: 1 – 5000/6000 mm/min (man./program.) Rapid traverse x, y: 7 m/min Rapid traverse z: 6 m/min Clamping area: 900 x 458 mm Weight: approx. 2300 kg Various tools (without cabinet)
The machine is in good technical condition, a test run is possible by prior arrangement. HSK 63 – The current condition of the machine corresponds to its age, there are currently no problems with the machine. On 5.1.2022, the X-axle screw was replaced, and on 25.4.2024, the hydraulics were replaced. Spindle hours: 41,273, machine hours: 89,892. Number of axles: 5. A video of the machine is available on request.
CNC Vertical Machining Center HERMLE C 400 U With track control Heidenhain TNC 640 Year of Make: 2016 Travel distances : X 850 Y 700 Z 500 Speed range : 20 – 18,000 rpm infinitely variable With the following accessories: NC Swivel Rotary Table Ø 650 mm x 540 mm ( T Slots for SRT ) Vertical tool changer with 38 magazine positions Additional Magazine 43 Magazine Slots ( ZM 43) KinematicOpt Hardware IKZ 40 bar with paper belt filter Sealing air for scales Police filter IKZ 40 bar Scraper belt conveyor Chip wagon 450 Ltr. Coolant Facility ́ Blow-off device Manual Cab Door , Manual Cab Roof Polycarbonate Safety Lenses Electronic Heat Compensation iTNC 530 Electronic handwheel Tool Measurement BLUM Laser 3 D Probe Heidenhain Chip rinsing gun Oil mist extraction Control cabinet cooling unit ( RITTAL) 4 Pieces Height Adjustable Machine Shoes Operating ...
CNC controller: HEIDENHAIN TNC 430 Axes X-axis travel mm: 600 Y-axis travel mm: 450 Z-axis travel mm: 500 Distance spindle nose - table surface mm: 573 Rapid traverse m/min: 10 Worktable Number of pallets: 1 Table dimensions mm: 800 x 465 Maximum workpiece size (D x H) mm: 900 x 528 Max. workpiece weight kg: 450 (500 in large workpieces) T-Slot version: 14 H7 Spindle Spindle speed rpm: 6.300 Spindle drive power kW: 8,6 Bearing Inner Diameter mm.: 70 Tool system Tool holder: SK 40 Tool magazine slots: 34 Max. Tool Diameter: 90 With free neighboring places mm: 125 Tool Magazine: UTC 34 Max. Tool Length mm: 250 Max tool weight kg: 8 Equipment Electronic Handwheel Rinsing gun Tool breakage probe Workarea light CE conformity Cooling Tank capacity: 170 L High-pressure bar: 40L / min Machine running times Rated power kVA: 16 ...
CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 H Year of Make: 1995 Hours: 46,680 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill stroke vertical: 75 mm Renishaw 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manually / programmatically: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Universal clamping ...
