Manufacturer:
(Category: 106)
Assembly / press station with TOX power pack, feeding unit and sensorsPneumatic-hydraulic assembly or press station from an industrial plant, consisting of frame, press drive, feed and control/sensor components. Last use for semi-hollow rivets Ø 4.0 mm, length 5.0 mm (stainless steel 1.4016). Conversion to other rivet types/sizes depending on the tool set. Condition Used, from production dismantlingMechanically completeOptical with usual signsof use Untested, no function or process test carried outSale as shownScope of deliveryComplete pressing/assembly stationTOX powerhouseFeeding unit incl. funnel and valvesSensors, pneumatics, electrical components Technical data:Main components Machine frame / systemManufacturer: VTS – Connection Technical ServiceType: 300-4/180.6Serial No.: 300.329.00Year of construction: 2000Stable steel frame, floor-standing, ready for assemblyPress driveManufa ...
pressure: 315 tstroke: 20-150 mmram stroke - adjustable min/max: 20 - 150 mmtable-size: 1780 x 1250 mmram surface: 1500 x 1000 mmtotal power requirement: 75 kWweight of the machine ca.: 46 t- Installation height with max. stroke at bottom adjustment at top 500 mm- Passageway in the table : 1200 x 300 mm- Milling in the table : 1300 x 400 x 80 mm- Infinitely variable stroke rate : 20 120 Hübe minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

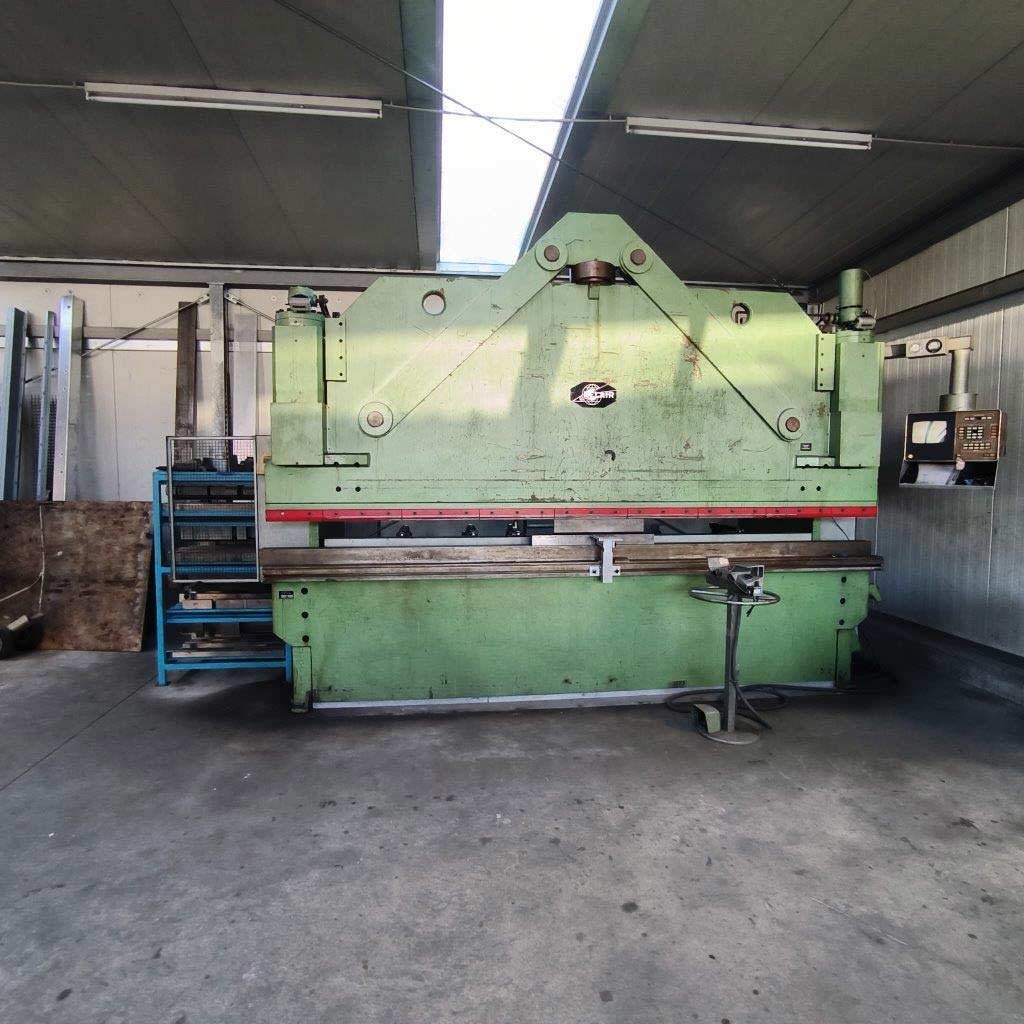

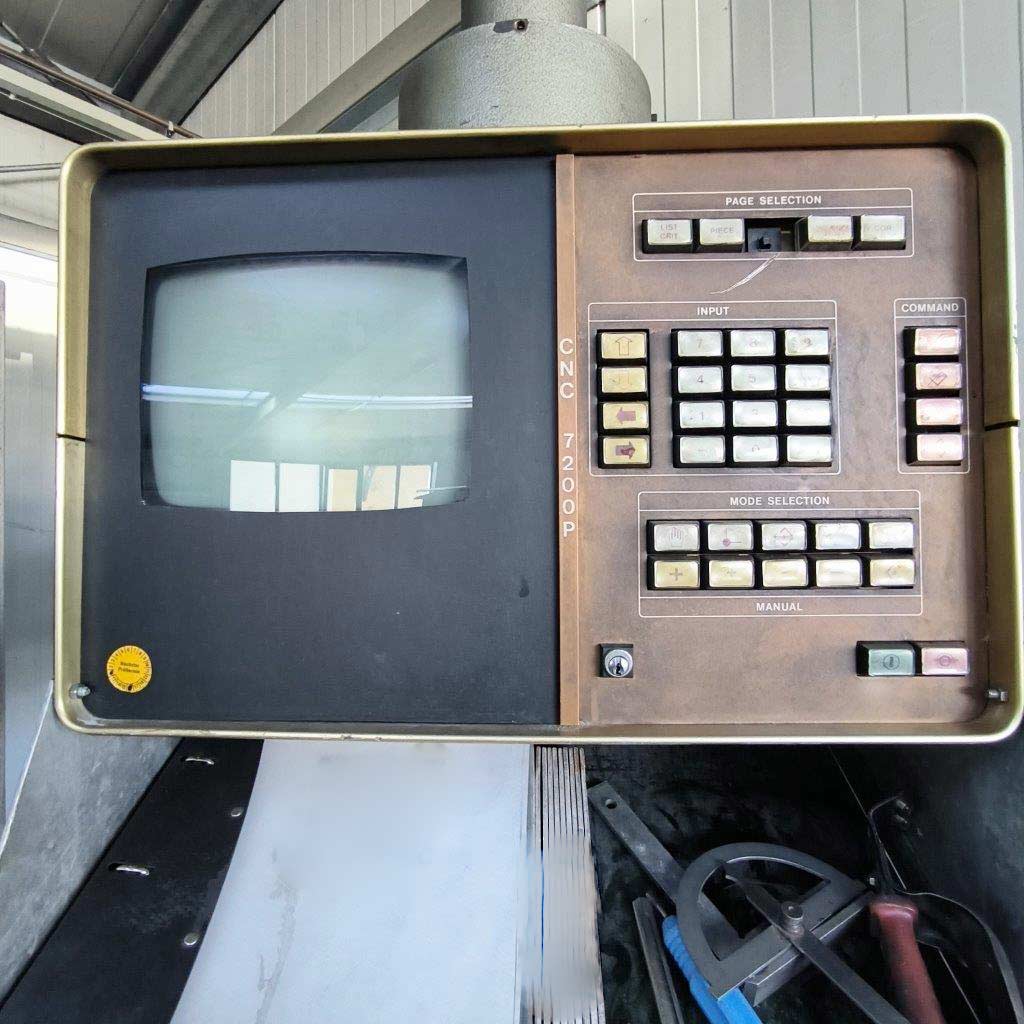

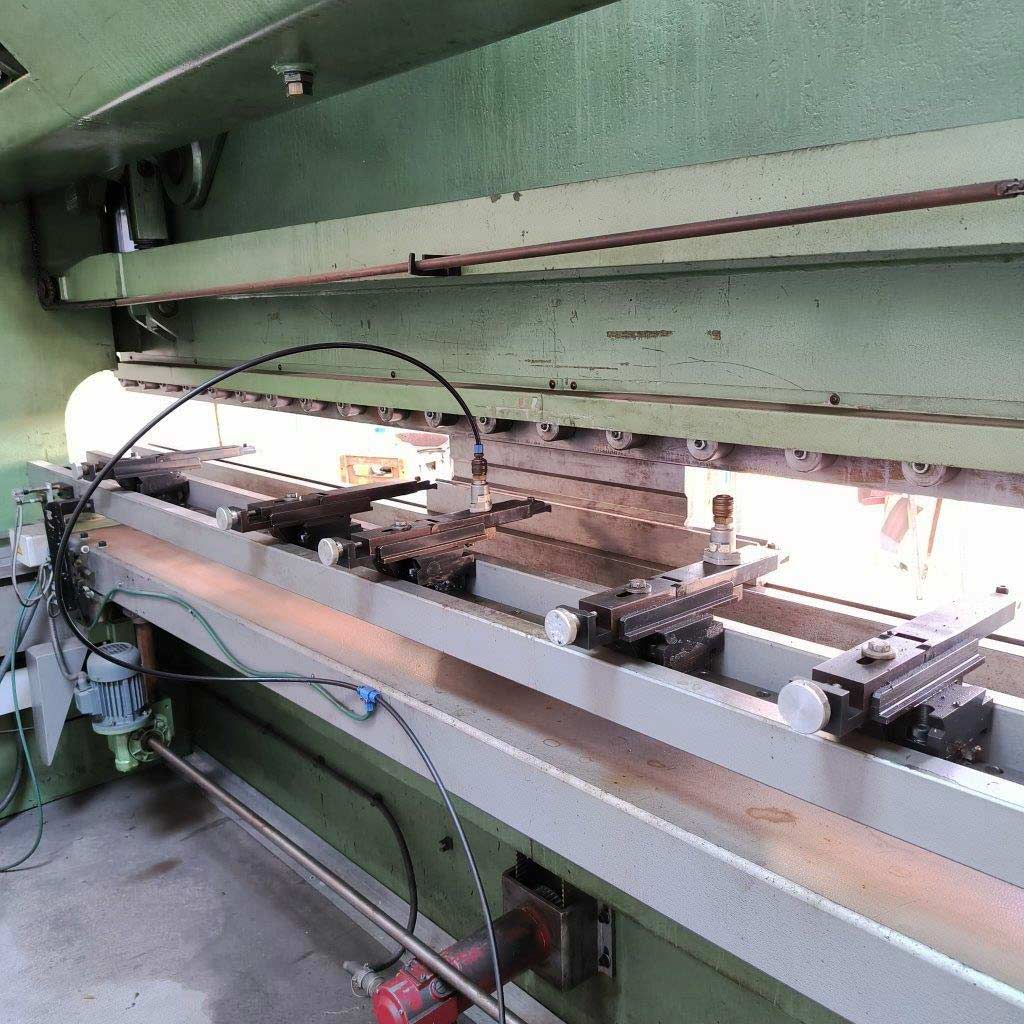

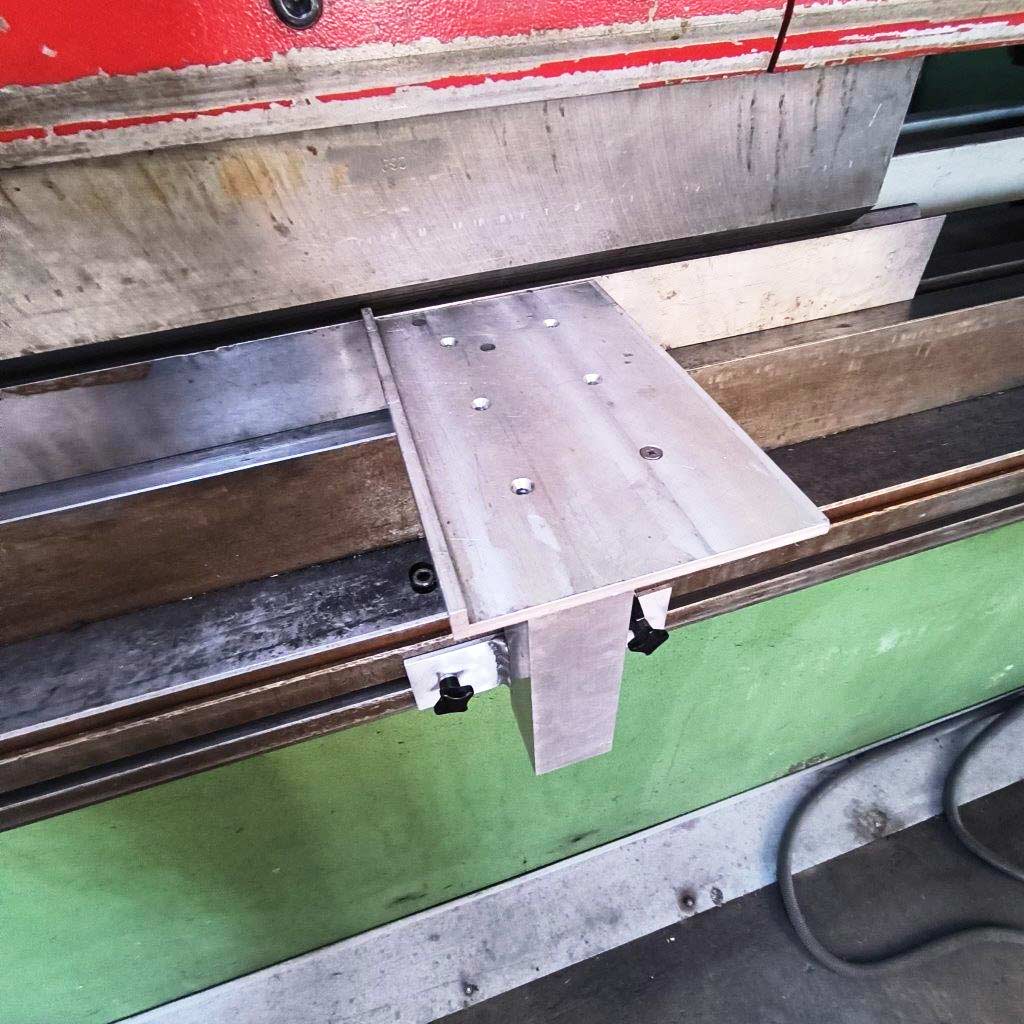

Max. pressing force: 150t, bending length: 4050mm, backgauge: 750mm, control: Cybelec CNC 7200 P, weight: approx. 15t. Equipped with hydraulic tool clamping, crowning system, height-programmable backgauge, two control panels and two pneumatic bending aids. Including stand with various upper tools and dies as well as various special accessories manufactured in-house. Documentation available. An on-site inspection is possible.
Key data: 100 t
Qty. 1 Second-hand dross press machine – already dismantled and in storage Mfc.: Altek Model 100 with 10 x 181S Pan Sets Built: 2021 Dismantled: 2024 Cycle time for pressing: 6 – 8 min./ pan Capacity: 95 metric tonnes of dross/month 21 days/month = 4.523 mt/day 32 skims/day = 141 kg/skim The pan set dimensions are as follows PANSET MODEL Width Depth Stack-up height Stack-up weight Pan Capacity [MM] [MM] [MM] (kgs) m^3) (kgs) 181S 1016 813 543 1032 0.12 181
CONTROLS PLC LAUER SLIDE total force (nominal): 320 to stroke: 200 mmSLIDE (HYDR. PRESS) approximation velocity max.: 200 mm/s working velocity min.: 10 mm/s working velocity max.: 44 mm/sCOUNTER RAM nominal force: 63 to stroke: 30 mmV-RING nominal force: 100 to stroke: 30 mmTOOL DIMENSIONS lower table (left-right): 500 mm lower table (front-back): 500 mm upper table (left-right): 695 mm upper table (front-back): 730 mm shut height max.: 650 mmDECOILER sheet width max.: 250 mm sheet width (min): 40 mm coil weight max.: 1250 to max. diameter of coil: 1300 mmLEVELLER UNIT sheet width max.: 250 mm sheet thickness max.: 5 mm sheet thickness min.: 0.8 mm number of leveller rolls: 11 feed velocity min.: 4 m/min feed velocity max.: 12 m/minSTRIP-FEEDER feeder type: grip feeder sheet width max.: 250 mm sheet th ...
Hydraulic press manufactured in 2014. This WIS ATEVI Druckgeber ATeVi Heidel features a ram stroke of 800 mm and a closing force of 500 kN. It has a machine weight of 19,500 kg and includes a Siemens S7 control system. If you are looking to get high-quality hydraulic pressing capabilities, consider the WIS ATEVI Druckgeber ATeVi Heidel machine we have for sale. Contact us for further details.
pressure:160 tdistance between columns:2050/1900 mmstroke:15 - 170 mmno. of strokes:15 - 40 /mindistance table/ram, max. stroke up, adjustment up:690 mmtable surface area:1600 x 800 mmside window:800 mmram surface:1620 x 700 mmram adjustment:140 mmpower requirement:15,0 kWweight:24,0 tDimensions (WxDxH):3,3 x 2,3 x 5,3 mheight over floor:4,8 mheight beneath floor:0,5 mclutch:pneumatic ram adjustment:motoric ram counterbalance:pneumatic
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmheight beneath floor:0,3 mpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mclutch-/ brake combination:pneumatic; Desch overload protection in ram:mechanical ram counterbalance:pneumatic ram adjustment:motoric drawing cushion in table:pneumatic Mechanical pincer ...
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor:0,3 mpneumatic clutch-brake combination:Desch Mechanical pincers feed:Obru, BVK 3.10.3
pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mpneumatic clutch-brake combination:Desch drawing cushion in table:pneumatic Mechanical pincers feed:Obru, BVK 3.10.3
pressure:6,3 tthroat:300 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:450 x 400 mmhole in the table:80 mmtable height over floor:700 mmram surface:50 mmoil volume:90 lpower requirement:5,5 kWweight:1,35 tdimensions (WxDxH):1,8 x 2,0 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical
pressure:040 tstroke:8 - 50 mmno. of strokes:50 - 300 /mindistance between columns:600 mmdistance table/ram, max. stroke up, adjustment up:285 mmtable surface area:590 x 500 mmhole in the table:590 x 40 - 100 mmtable height over floor:860 mmcolumn travel -side:280 mmram surface:590 x 380 mmram adjustment:80 mmmaterial width of feeder:150 mmpower requirement:7,5 kWclutch:pneumatic ram adjustment:motoric pincer feed:mechanical
pressure:035 tthroat:225 mmstroke:8 - 100 mmno. of strokes:110 /mindistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:580 x 460 mmhole in the table:250 x 150 mmtable height over floor:700 mmtable adjustable:230 mmram surface:355 x 120 mmram adjustment:70 mmpower requirement:2,2 kWweight:1,5 tdimensions (WxDxH):1,0 x 1,5 x 2,05 mclutch:rolling key overload protection in ram:mechanical
pressure:10 tdistance between columns:450 mm:1500 mmtable-size:450 x 400 mmweight of the machine ca.:470 kgdimensions of the machine ca.:1400 x 750 x 1600 mm
pressure:160 tthroat:370 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1000 x 700 mmhole in the table:100 mmtable height over floor:820 mmram surface:600 x 520 mmspeed down:350 mm/sspeed up:350 mm/sworking speed:12 - 36 mm/soil volume:1100 lpower requirement:27,0 kWweight:16,5 tdimensions (WxDxH):1,8 x 2,7 x 3,95 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:motoric adjustable
pressure:40 tthroat:220 mmstroke:8 / 88 mmtable pass:ø- abgesetzt 225/200 mmram head dimension:400 x 250 mmdistance table/ram:228 mmstroke adjustable from - to:30 - 140 mmram adjustment:63 mmthickness of bolster:80 mmno. of strokes:70 Hub/mintotal power requirement:5,5 kWweight of the machine ca.:2600 kgdimensions of the machine ca.:1100 x 1300 x 2300 mmDocuments:vorhanden
material width:450 mmmaterial thickness:0,5 - 1,0 mmno. of straightening rolls:6 straightening roll diameter:53 mmnumber of draw-in rolls:2 diameter of draw-in rolls:96 mmpower requirement:1,0 kWweight:0,65 tdimensions (WxDxH):1,0 x 1,0 x 1,55 m
pressure:10 tstroke:400 mmtotal power requirement:1,6 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:1100 x650 x 2050 mmdayligth:500 mmtable-size:400 x 450 mmDocuments:vorhanden
pressure:100 tthroat:450 mmstroke:170 mmdistance table/ram, max. stroke up, adjustment up:450 mmtable surface area:3220 x 800 mmtable height over floor:850 mmram surface:3220 x 800 mmspeed down:50 mm/sspeed up:150 mm/sworking speed:7 mm/soil volume:600 lpower requirement:20,0 kWweight:16,0 tdimensions (WxDxH):3,7 x 2,5 x 2,6 m
pressure:250 tpassage width:1280 mmstroke:bis 500 mmtotal power requirement:47 kWweight of the machine ca.:23 tdimensions of the machine ca.:2200 x 1850 x 4600 mmtable surface area:1250 x 1000 mmdayligth:800 mmdaylight between the side columns:520 x 750 mmtable height above floor:1000 mmDocuments: vorhanden
pressure:080 tthroat:360 mmstroke:8 - 112 mmno. of strokes:78 /mindistance table/ram, max. stroke up, adjustment up:467 mmtable surface area:900 x 650 mmhole in the table:250 mmtable height over floor:800 mmpassage to the back:330 mmram surface:650 x 400 mmram adjustment:80 mmpower requirement:11,0 kWdimensions (WxDxH):1,2 x 2,2 x 2,9 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanisch
pressure:160 tthroat:360 mmstroke:500 mmtotal power requirement:17 kWweight of the machine ca.:7,2 tdimensions of the machine ca.:2,0 x 0,95 x 3,70 mtable-size:900 x 630 mmDocuments:vorhanden
pressure:160 tstroke:160 fix mmno. of strokes:30 - 120 /mindistance between columns:1190 mmdistance table/ram, max. stroke up, adjustment up:735 mmtable surface area:1200 x 1000 mmhole in the table:500 x 300 mmtable height over floor:900 mmside window:600 mmram surface:1000 x 800 mmram adjustment:125 mmmaterial width of feeder:550 mmmaterial thickness of feeder:0 - 6,0 mmfeed length:350 mmmaterial cross-cut:1100 mm²Feed speed:50 m/minpower requirement:45,0 kWweight:25,0 tdimensions (WxDxH):2,3 x 2,1 x 4,7 minfinitely variable drive:PIV overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic pincer feed:mechanisch, RS 350/550 SL 90
pressure:160 tthroat:360 mmstroke:500 mmDocuments:vorhanden
pressure:315 tdistance between columns:1620 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:1000 mmtable surface area:1600 x 1100 mmpressure of drawing cushion in ram:20 tstroke of drawing cushion in ram:100 mmdrawing cushion area in ram:300 x 300 mmside window:600 x 1100 mmtable height over floor:750 mmram surface:1600 x 1100 mmoil volume:1500 lpower requirement:110,0 kWweight:35,0 tdimensions (WxDxH):4,65 x 2,61 x 5,5 mheight over floor:5,05 mheight beneath floor:0,45 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in ram:hydraulic ram interlocking:pneumatic cutting impact cushioning:hydraulic
pressure:160 tthroat:370 mmstroke:150 mmtotal power requirement:45 kWweight of the machine ca.:22 tdimensions of the machine ca.:2,75 x 1,85 x x 4,80 mrules for accident prevention:Vorhanden work table::1500 x 700 mmDocuments:vorhanden
pressure:60 tdistance between columns:650 mmstroke:220 mmdistance table/ram, max. stroke up, adjustment up:410 mmtable surface area:600 x 525 mmpressure of drawing cushion in table:5 tstroke of drawing cushion in table:80 mmtable height over floor:900 mmside window:200 mmram surface:560 x 490 mmdimensions (WxDxH):1,9 x 1,3 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick FGS 600 drawing cushion in table:hydraulic foundation pit:not necessary
pressure:20 tStroke:230 mmtable surface area:Ø600 mmdistance table - lower edge of ram:770 mmweight:595 kg
pressure:60 tdistance between columns:650 mmstroke:220 mmdistance table/ram, max. stroke up, adjustment up:410 mmtable surface area:600 x 525 mmhole in the table:110 mmtable height over floor:900 mmside window:200 mmram surface:560 x 490 mmpower requirement:15,0 kWdimensions (WxDxH):1,9 x 1,3 x 2,7 mfoundation pit:not necessary
pressure:250 tdistance between columns:1110 mmstroke:250 mmDistance table/ram, max. stroke up, adjustment up:500 mmTable surface area:1100 x 900 mmTable height above floor:950 mmSide window:690 mmRam surface:1100 x 900 mmOil volume:730 lPower capacity:56,0 kWDimensions (WxDxH):2,3 x 1,55 x 3,96 m
500 €
