Manufacturer:
(Category: 101)

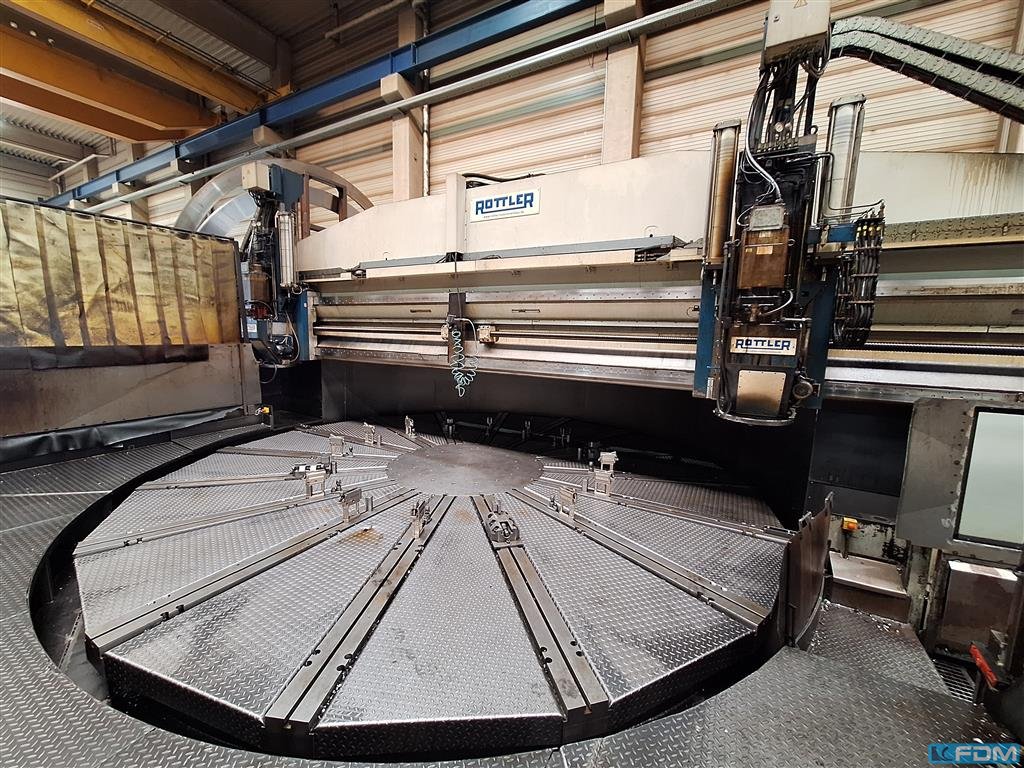

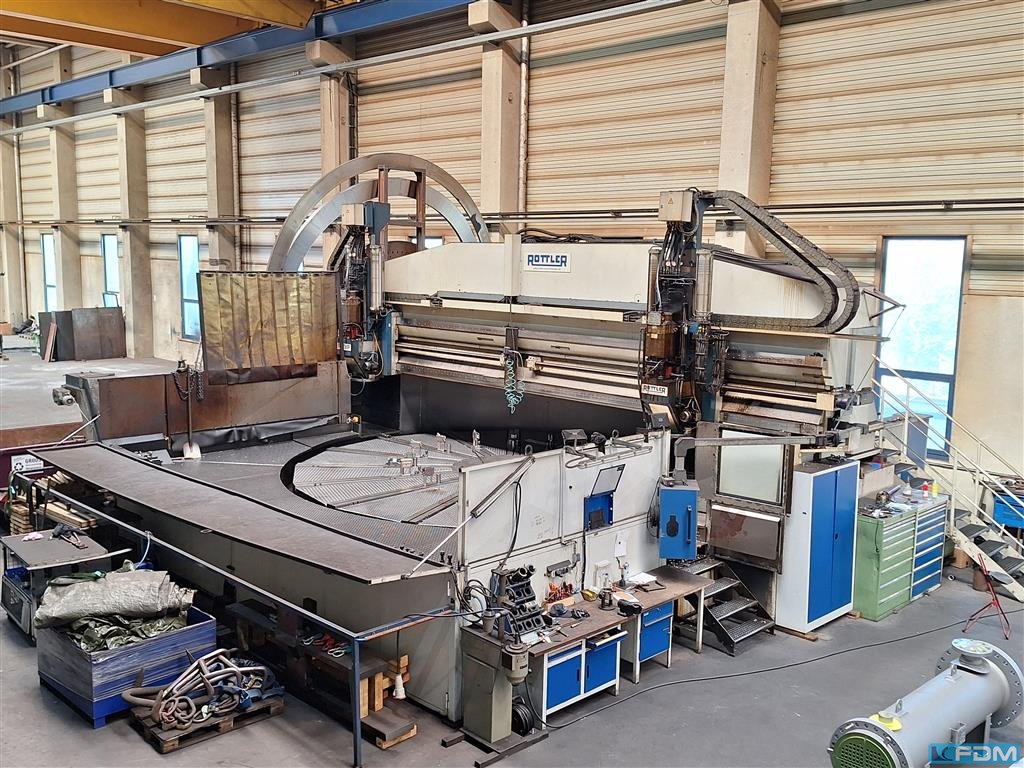

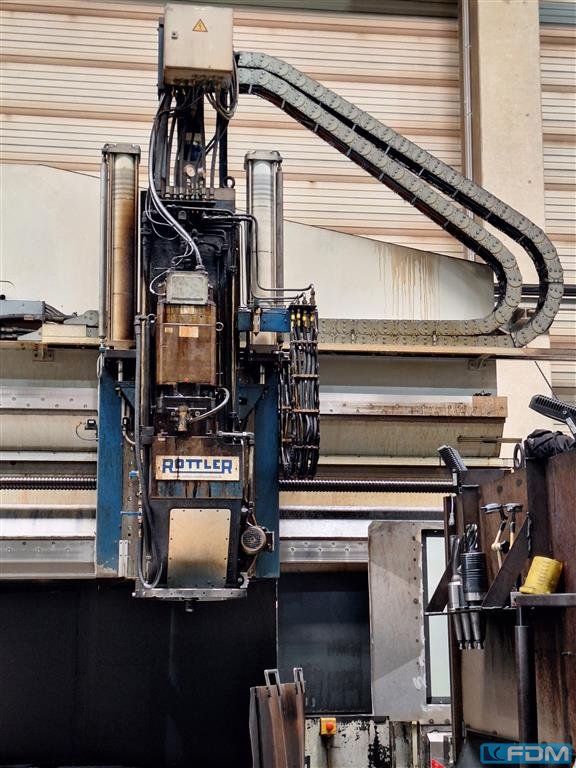

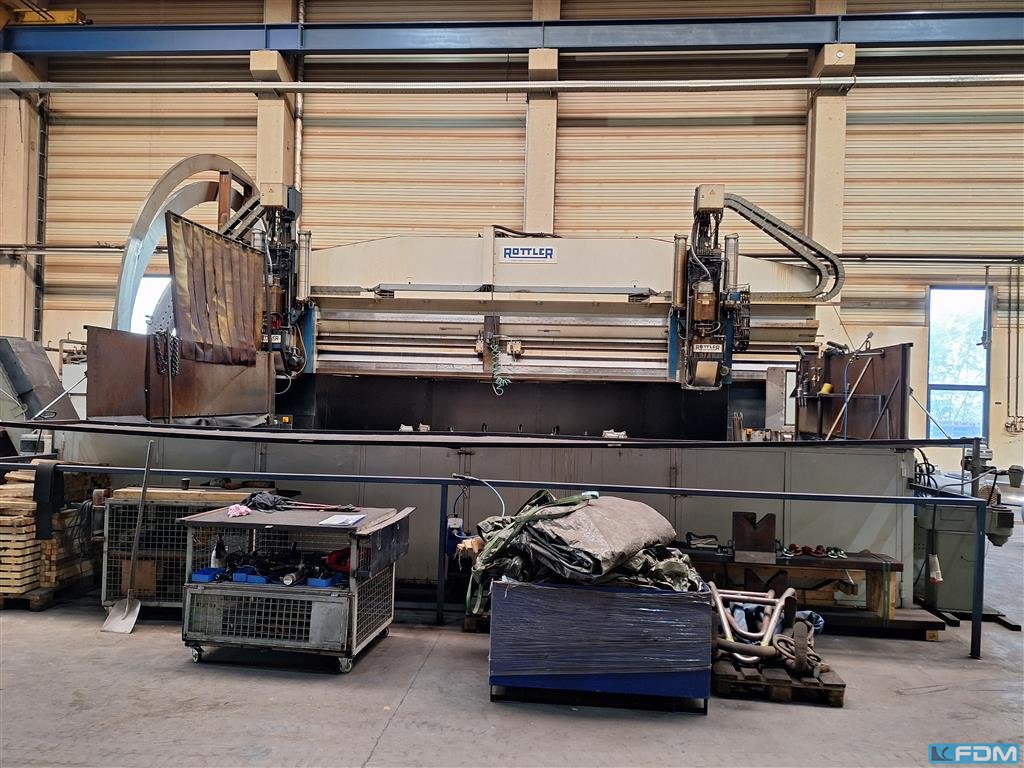

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device
x-travel:2200 mmy-travel:2200 mmz-travel:1400 mmspindle taper ISO:50 spindle diameter in front bearing:110 mmspindle turning speed range:45 - 6000 U/minpallet table size:1000 x 1250 mmpallet worktable capacity:6000 kgfeed range:1 - 60000 rapid traverse:60 m/minspindle drive motor:27 kWdimensions of the machine ca.:15 x 8,5 x 5,7 mtotal power requirement:133 kVAweight of the machine ca.:50 tMachine with SIEMENS 840 D control- full B-axis- palette changer for 3 palettes- tool changer for 244 tools- coolant through spindle- max. workpiece swing 2200 mm
x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor
x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping
spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

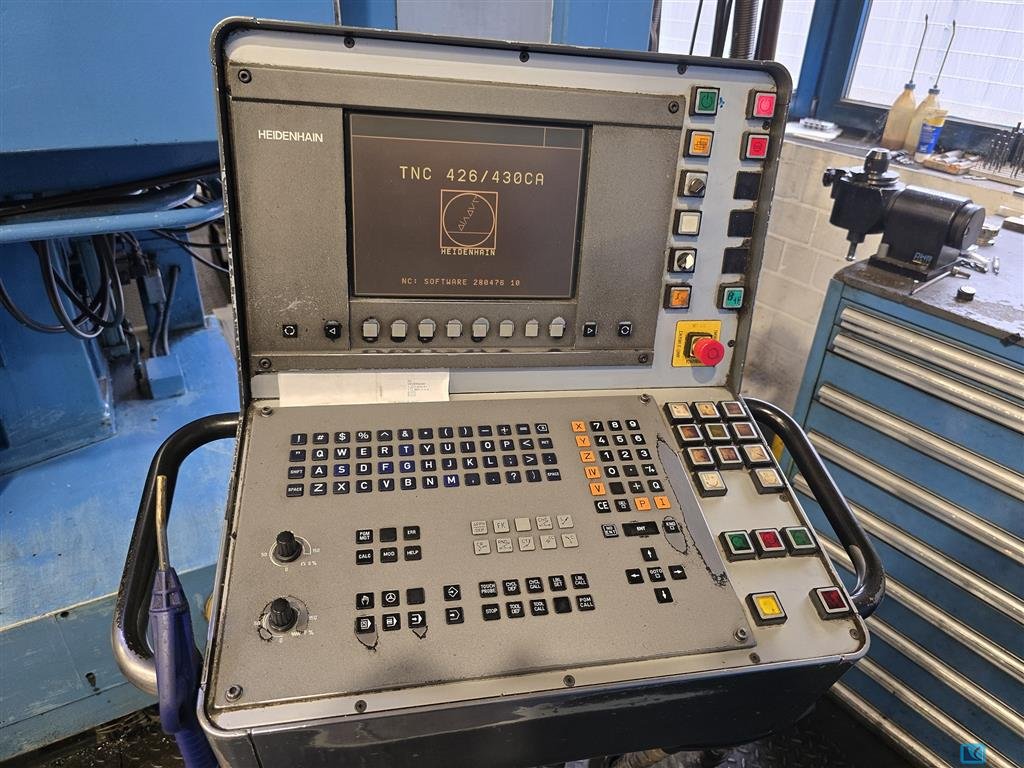

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

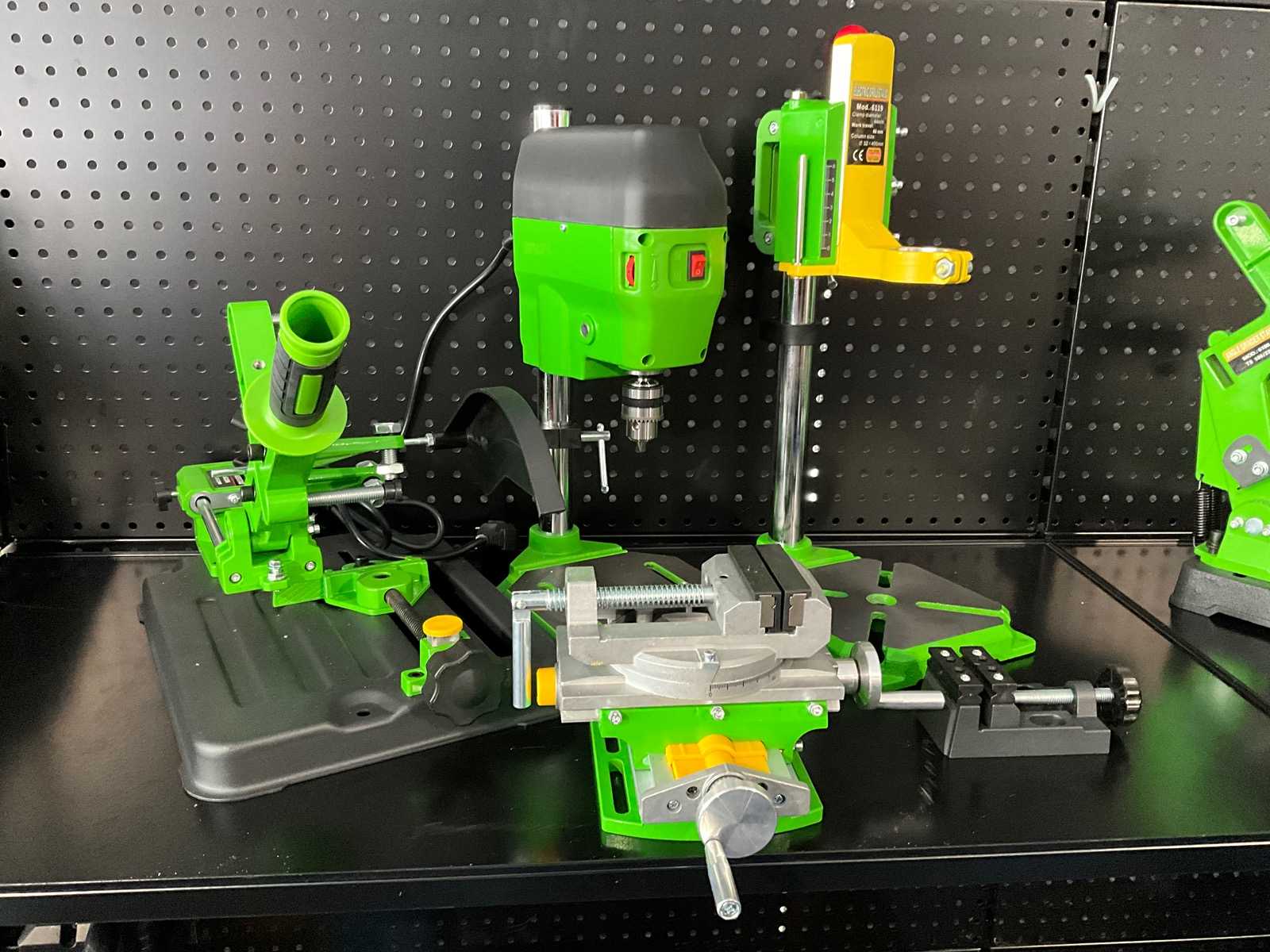

Precision Column drilling machine with additional attachments, for precision metal and wood processing and model making. From the same manufacturer as proxxon. New but without packaging
x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.
mounted on steel bottom table with drawer; including machine vise;

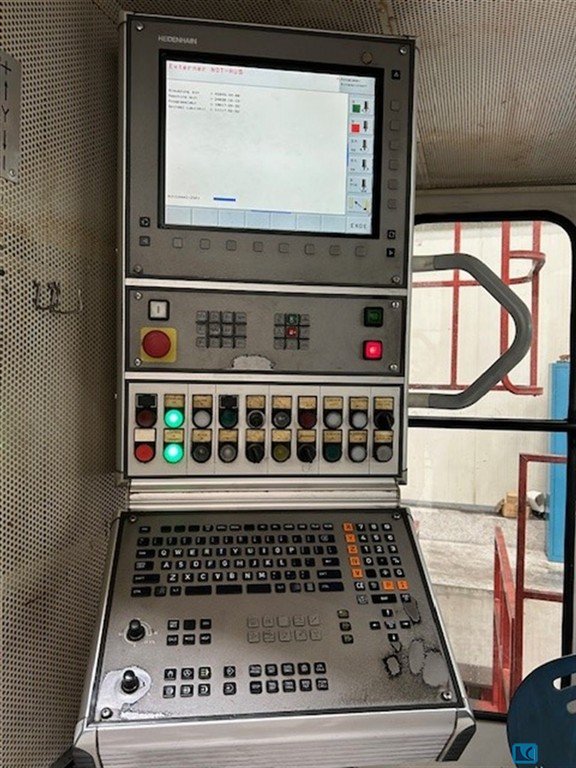

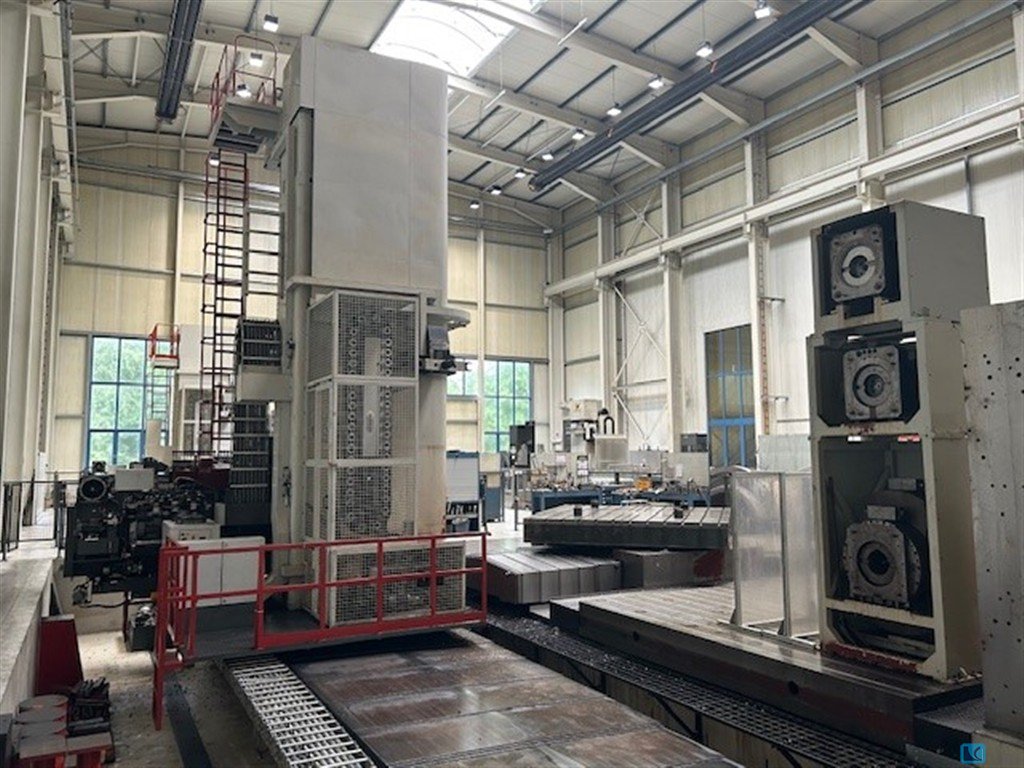

spindle diameter:200 mmx-travel:10000 mmy-travel:4000 mmz-axis:1500 mmW-axis (spindle longitudinal):1000 mmbore spindle turning speed range:1 - 2000 U/mindimension of the ram:600 x 530 mmhigh speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/minrapid motion - y-axis:8000 mm/minrapid traverse Z-axis:5 m/mintotal power requirement:120 kWweight of the machine ca.:135 tdimensions of the machine ca.:16,0 x 5,0 x 10,0 mwith CNC Steuerung HEIDENHAIN iTNC 530hydrostatic guideways x and Y- axisautom. toolchanger 40-pocketsautom. Pickup Station for angular milling head, universal milling head and facing headrotary table 3000 x 3000 mm , max load 60 to.v-axis 2500 mmchip conveyor and coolant attachment
x-travel:1100 mmy-travel:900 mmz-travel:1250 mmb-axis:360 000 x 0,001 °milling head speed:1 - 10000 U/minspindle taper: ISO:50 rapid traverse:60 m/minpallet size::630 x 630 total power requirement:37 kWweight of the machine ca.:25 twith CNC control SIEMENS 840 Dautom. toolchanger 165 pockets twin pallets 630 x 630 mm max. pallet load 1500 kgthrough spindle coolantchip conveyor and coolant attachment make KNOLL
x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

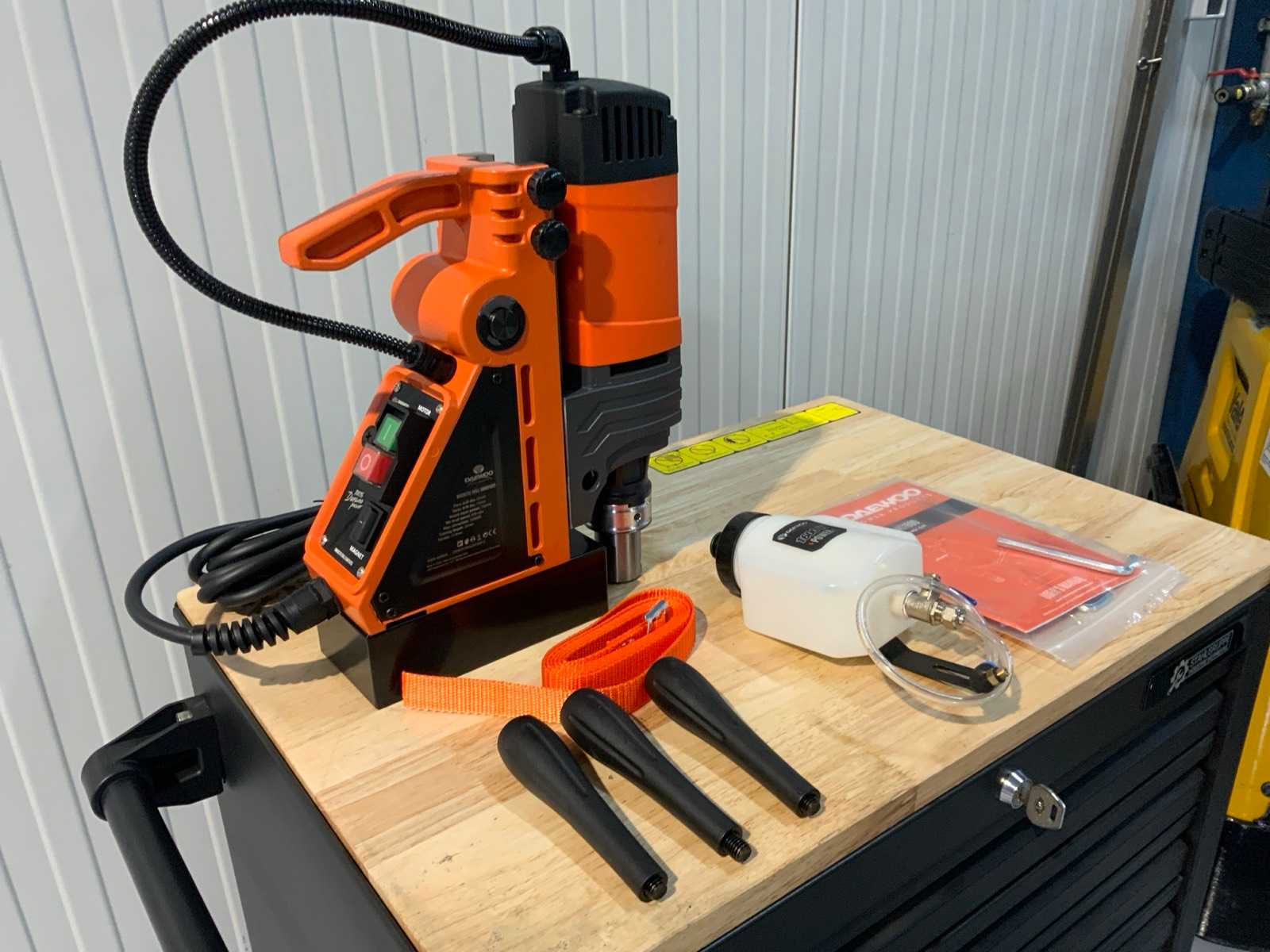

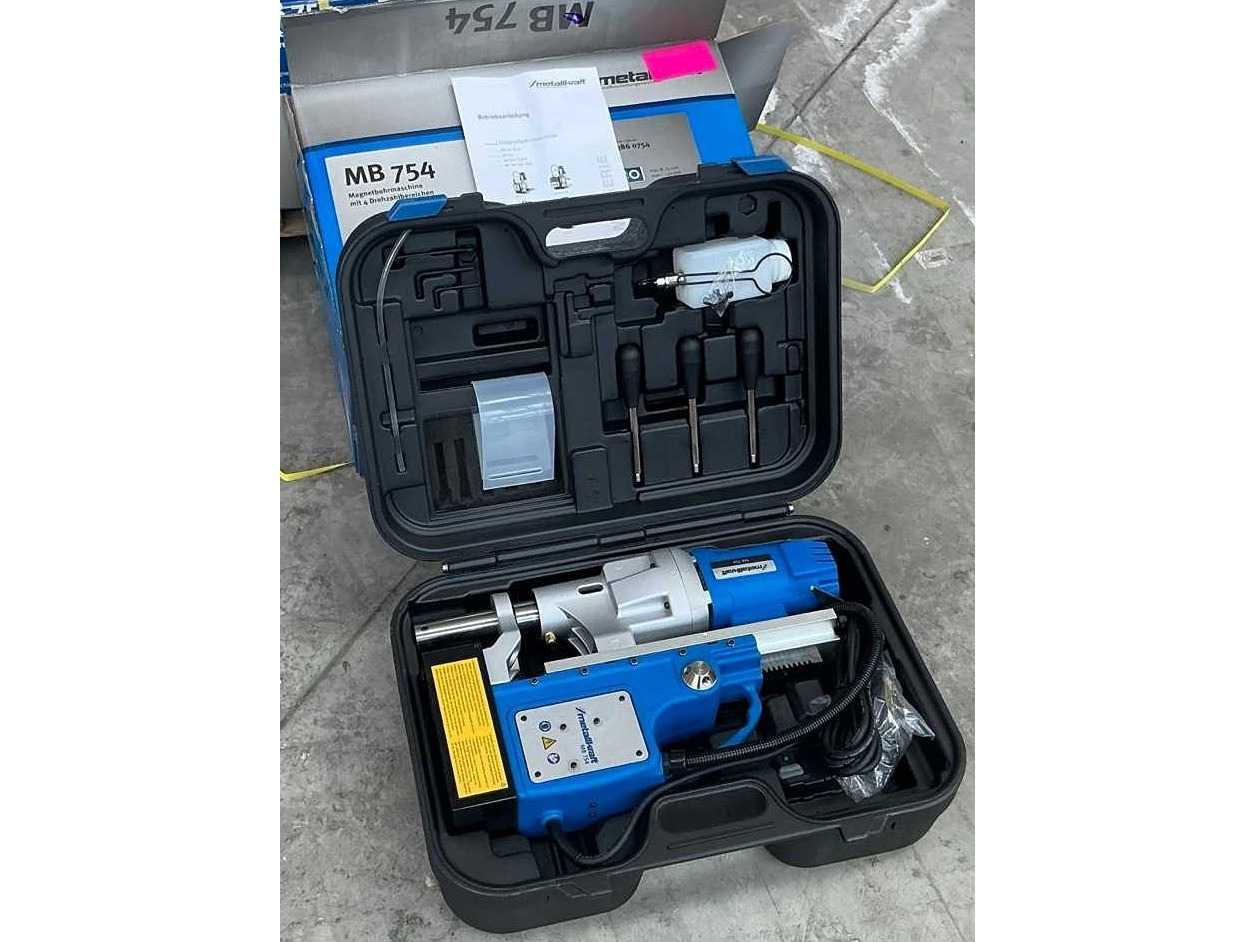

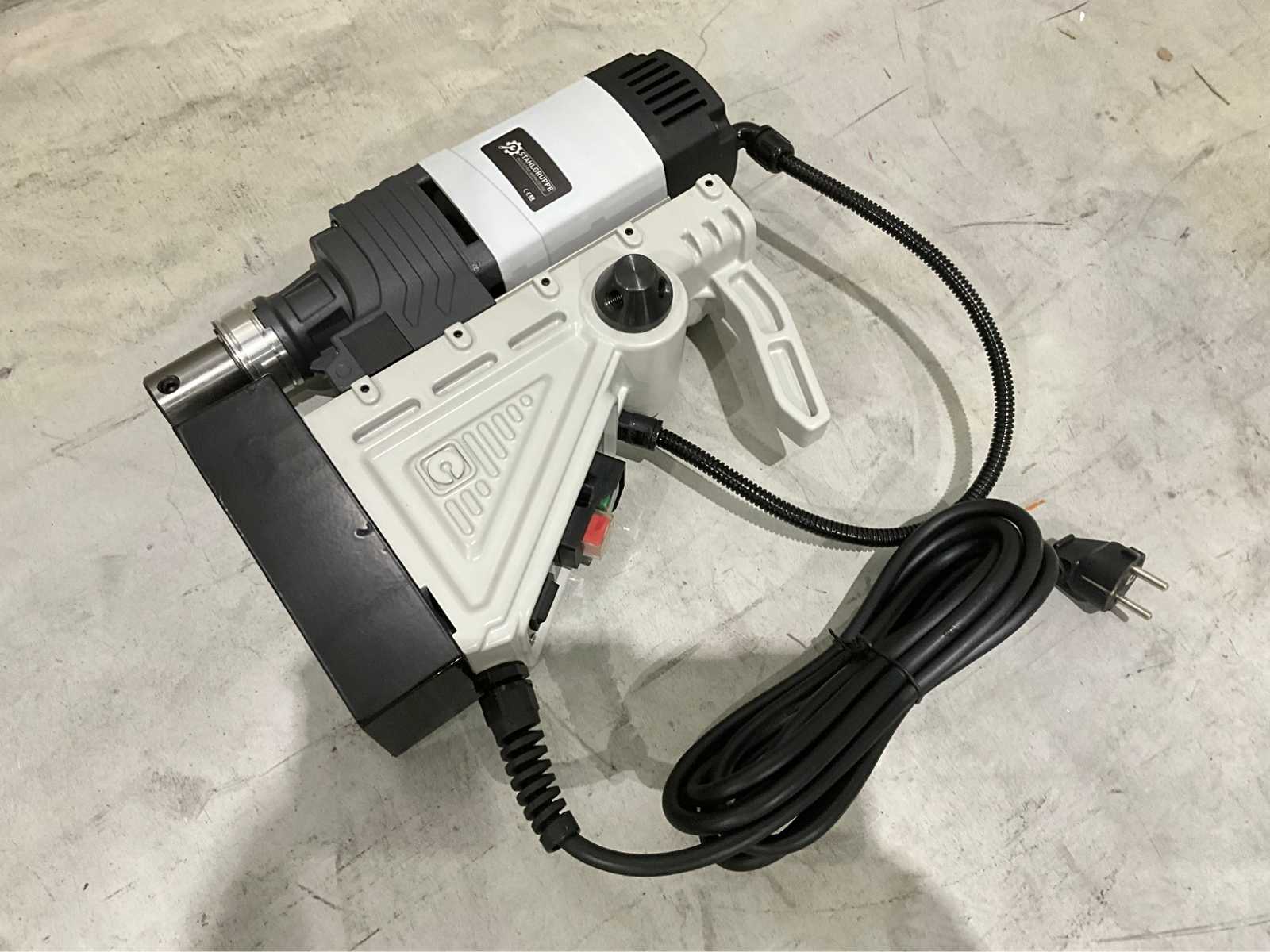

With a drilling capacity of 35 mm, a power of 1600 kW and an adhesive force of 16000 N, you can drill with precision in steel workpieces. Drilling depth 210 mm - speed up to 830 rpm - automatic cooling system, without overheating. A magnetic drilling machine works by activating an electromagnet that clamps the machine firmly to the metal workpiece. This provides additional stability during drilling, allowing for precision drilling without the machine shifting. In a decent case and unused in a box.
spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

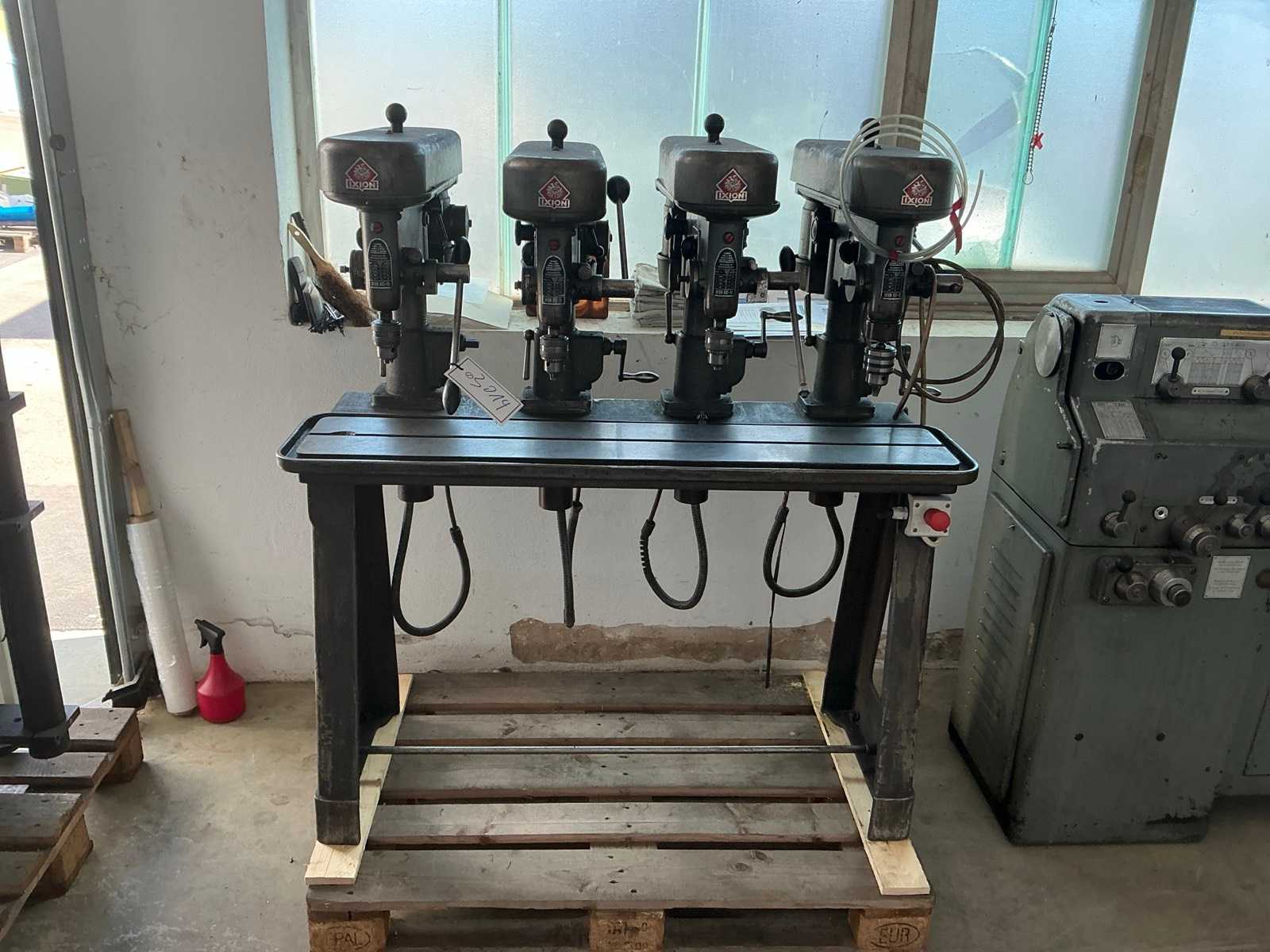

Technical data Manufacturer: IXION Type: BST-13 4-fold in-line drilling machine / multiple drilling machine Drilling capacity: 13 mm 4 speed levels Speed range: 475 - 2400 rpm Drilling depth approx. 90 mm Table size approx. 1270 x 290 mm Electrical connection: 380 V Motor power per unit: 0.4 kW Machine dimensions approx. 1270 x 750 x 1400 mm Configuration 4 individual drilling spindles Common work table Belt drive with step pulleys Drill chuck mounted Emergency stop available Suitable for series and row drilling
In its original box. Never used. Carton size: 61 x 27 x 47

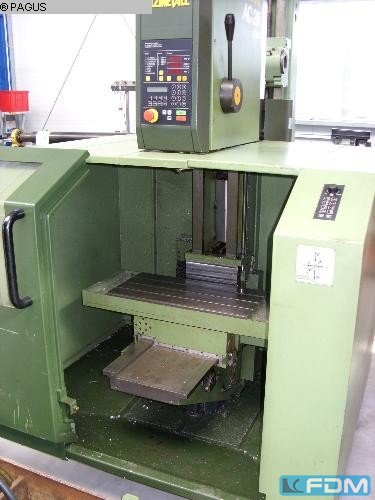

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg
x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

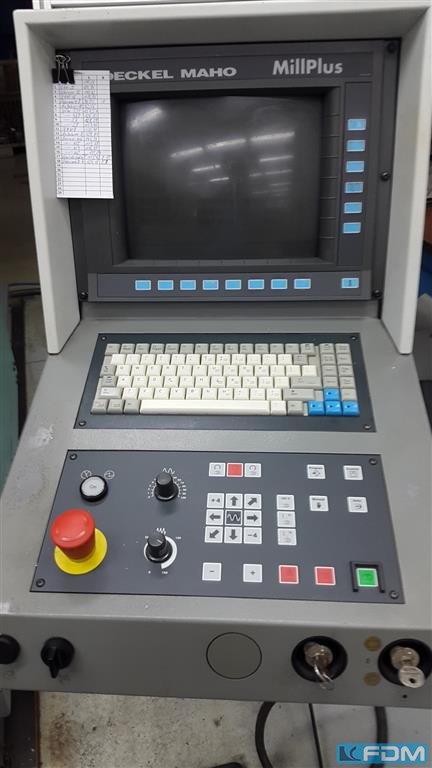

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

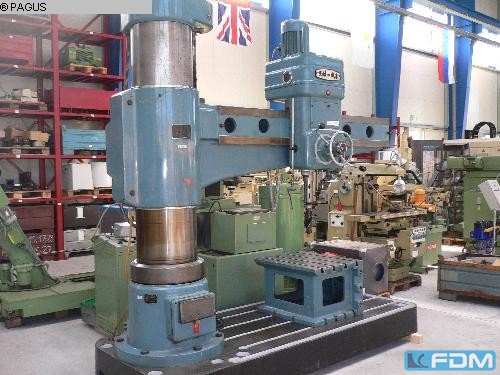

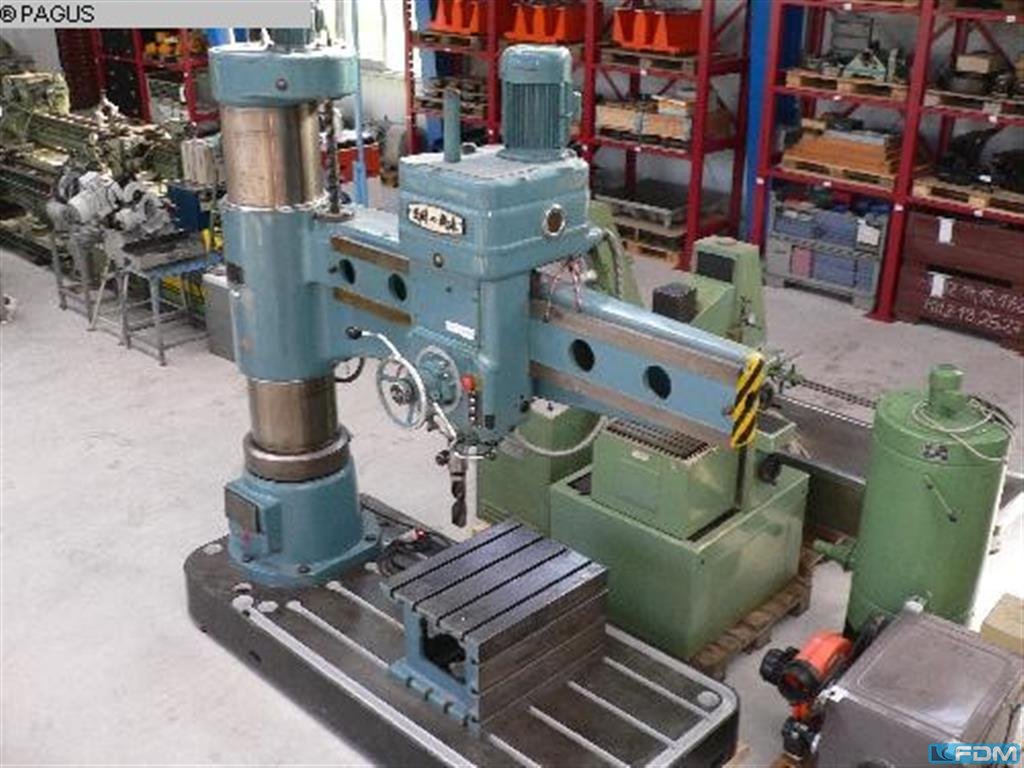

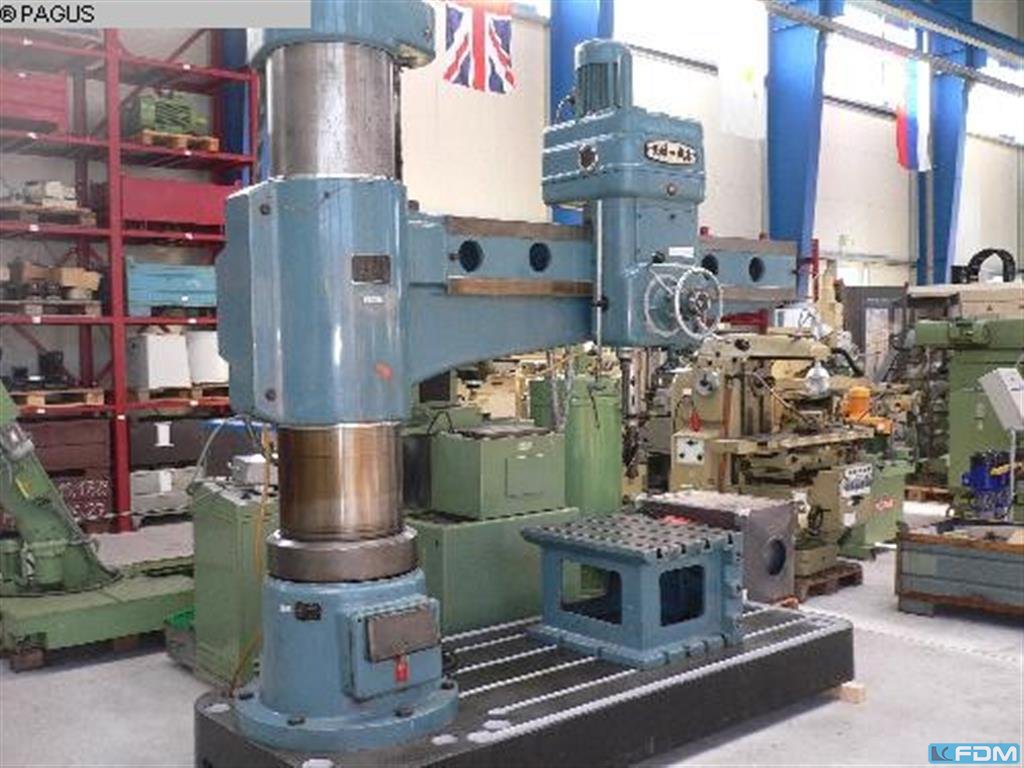

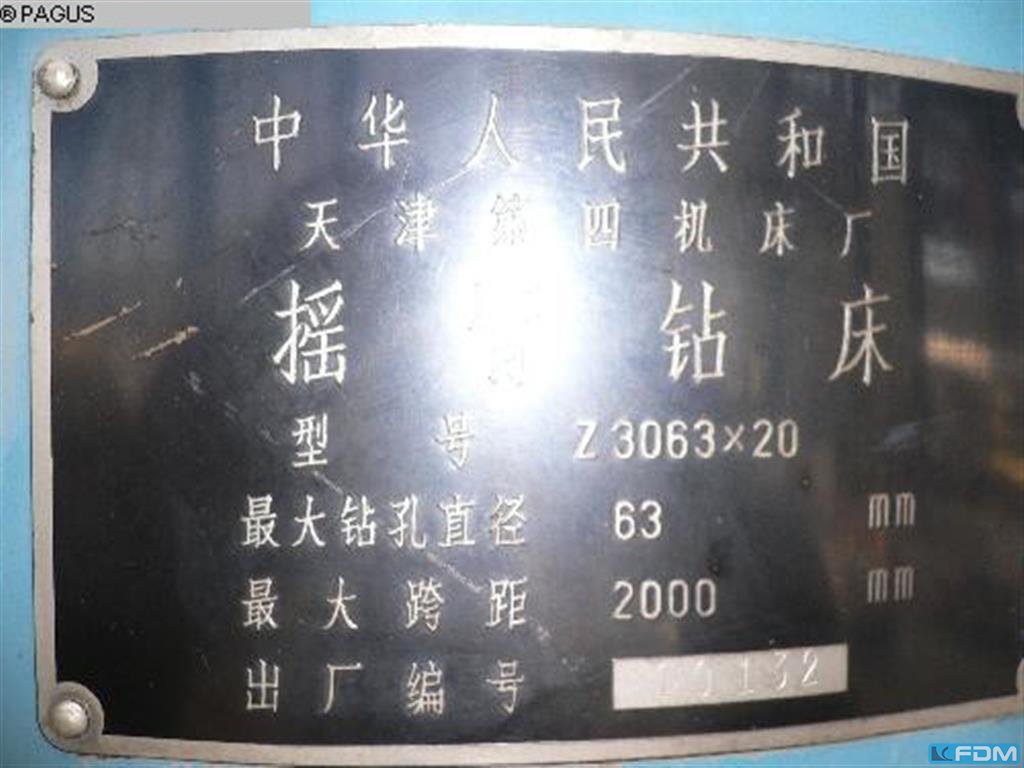

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
