x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden
x-travel:600 mm y-travel:770 mm z-travel:675 mm A-Axis travel:-180 ... +45 ° b-axis:360,000 ° spindle drive:40 / 52 (100% / 40% ED) kW spindle turning speed range:10000 U/min Tool bore:HSK-A63 numbers of tools in magazin:40 total power requirement:47 kW weight of the machine ca.:13 t including additional tool magazine ZM 182 1 spindle , 5 axes
x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Single-Spindle Mechanical processing cylinder head VR6
spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

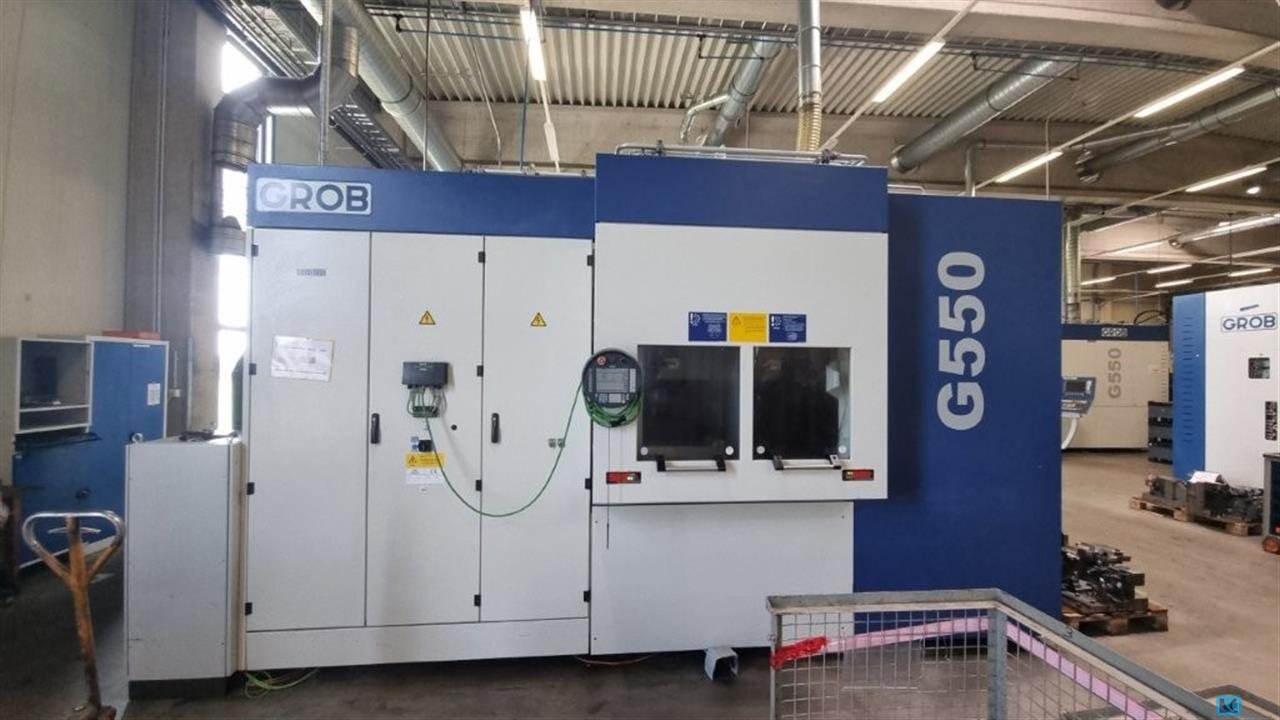

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle
GROB C6-A – Cold Rolling Machine Technical Data: Gear Module: up to approx. 2.3 Gear Diameter: approx. 8–80 mm Max. Clamping Diameter: approx. 315 mm Power: 25 kW
x-travel: 800 mm y-travel: 950 mm z-travel: 1020 mm Control: SIN840D sl B - axis: 360 x 0,001 ° A - axis: -180 / +45 x 0,001 ° feed x-axis: 1 - 65.000 mm/min feed y- axis: 1 - 50.000 mm/min Feed z- axis: 1 - 80.000 mm / min. rapid traverse X/Y/Z: 60 / 50 / 80 m/min spindle turning speed - stepless: 1 - 16.000 U/min power capacity at 100 % load: 25,00 kW power capacity at 40 % load: 35,00 KW max. torque at 40% / 100% load: 223 / 160 Nm spindle diameter in front bearing: 80 mm tool taper: HSK-A63 tool magazin:: 50 tool length - max.: 400 / 465 mm tool diameter: 72 mm tool diameter with 2 vacant positions: 160 mm tool total weight: 8,00 kg size of pallet: 630x630 mm workpiece weight: 700 kg interference diameter: 900 mm total power requirement: 50,00 kW weight of the machine ca.: 26,00 t dimensions of the machine ca.: 7,00 x 4,50 x H3,50 m 5-axis machining center with SIEMENS Sinumerik 84 ...
x-travel: 800 mm y-travel: 1020 mm z-travel: 1020 mm Control: SIN840D sl B - axis: 360 x 0,001 ° A - axis: -185 / +45 x 0,001 ° feed x-axis: 1 - 65.000 mm/min feed y- axis: 1 - 50.000 mm/min Feed z- axis: 1 - 80.000 mm / min. rapid traverse X/Y/Z: 60 / 50 / 80 m/min spindle turning speed - stepless: 1 - 16.000 U/min power capacity at 100 % load: 25,00 kW power capacity at 40 % load: 32,00 KW max. torque at 40% / 100% load: 206 / 159 Nm spindle diameter in front bearing: 70 mm tool taper: HSK-A63 tool magazin:: 272 tool length - max.: 400 / 465 mm tool diameter: 68 mm tool diameter with 2 vacant positions: 160 mm tool total weight: 8,00 kg Chip to chip time: 4,2 sec. size of pallet: 630x630 mm workpiece weight: 700 kg interference diameter: 900 mm total power requirement: 50,00 kW weight of the machine ca.: 32,00 t dimensions of the machine ca.: 10,00 x 6,00 x H3,50 m 5-axis machining c ...
used
rolling capacity max.: t workpiece diameter: 470 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
