Manufacturer:
(Category: 101)
Travel X/Y/Z: 600mm/400mm/460mm, spindle-to-table distance: 200mm-660mm, table size X/Y: 700mm/410mm, max. table load: 250kg, rapid traverse X/Y: 72m/min, rapid traverse Z: 60m/min, max. spindle speed: 12000rpm, spindle power: 7.5kW, tool taper: BT40, tool magazine: 24+1, max. tool diameter: 80mm, max. tool length: 250mm, tool change time: 1.6s, control: Mitsubishi M64S, through-spindle coolant: 20bar, probing system: Renishaw, machine weight: approx. 4300kg. Including a tool cabinet with approx. 100 tool holders. Inspection possible by arrangement.
x-travel: 508 mmy-travel: 406 mmz-travel: 356 mmControl: HAAS spindle turning speed range: 6000 U/minspindle taper: 40 table-size: 1016 x 356 mmtable load: 227 KgWorking speed: 1,8 m/mintool piece magazine with: 20 total power requirement: 13,0 kVAweight of the machine ca.: 6,3 tdimensions of the machine ca.: TBH 2,0 x 2,0 x2,49 mWell-maintained machine with only 78 operating hours- Incl. 4th-axis preparation- Incl. 20 tool holders (some with tools)- Incl. machine vice- Incl. chip conveyor- Incl. coolant system- Incl. minimum quantity lubrication- Incl. USB interface- Incl. interfacePower-on hours: 925 hCycle time: 94 hCutting feed time: 78 hMachine data time: 2,644 hThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

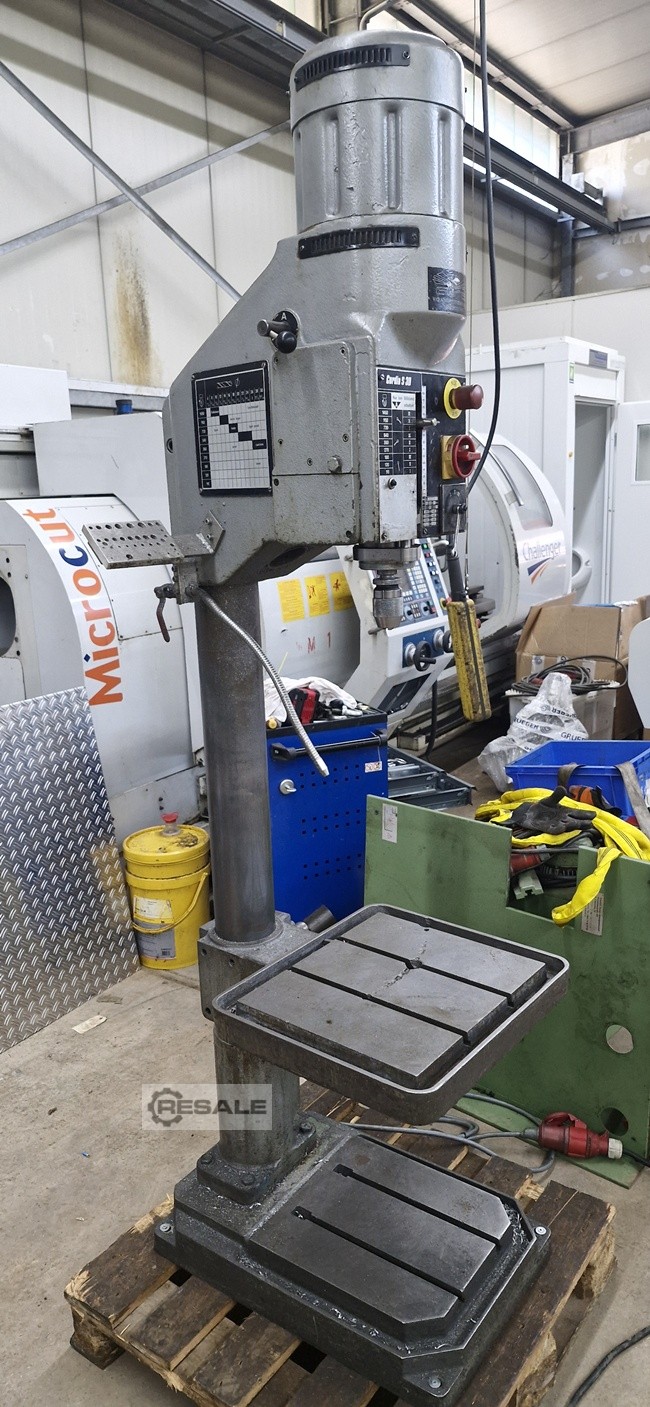

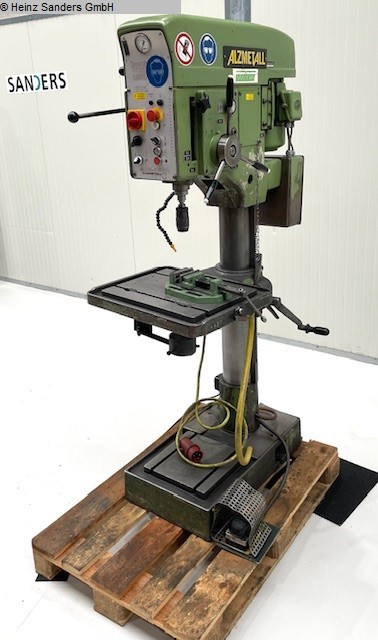

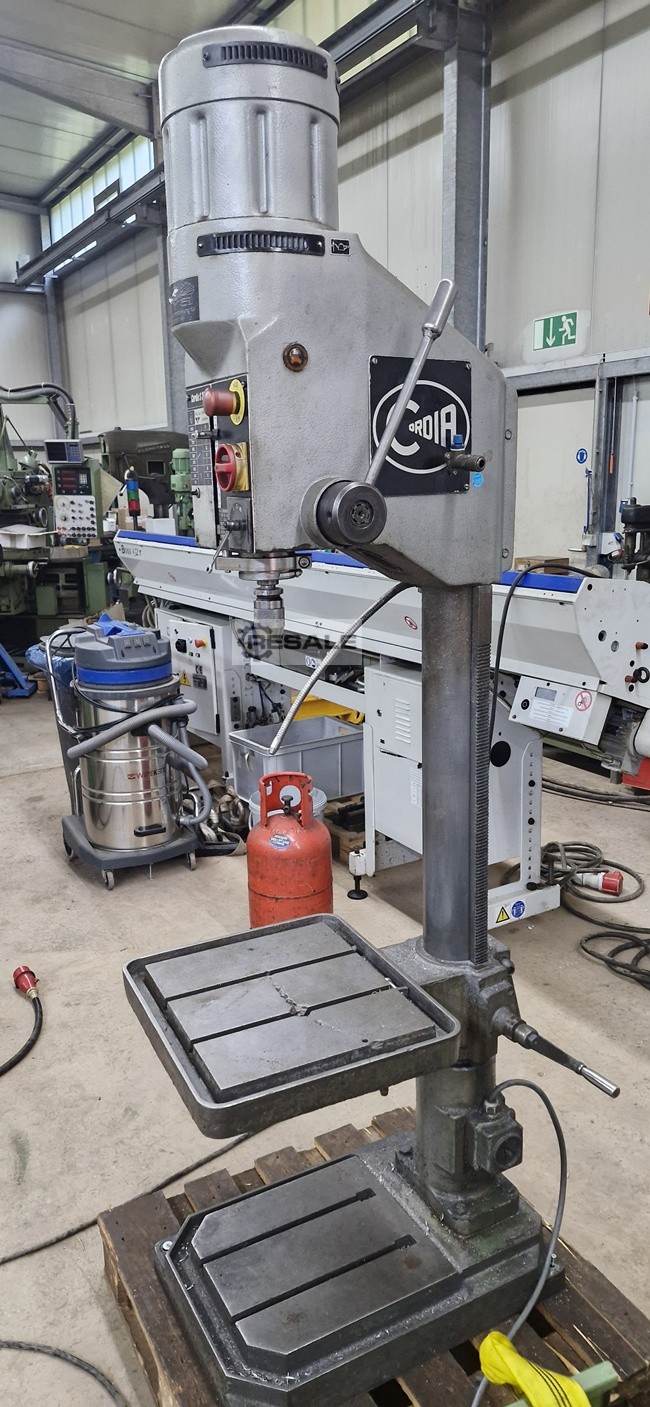

bore capacity in steel (diameter): 35 mmthroat: 300 mmbore stroke: 180 mmturning speeds: 55 - 1450 U/mintaper MK: 4 column diameter: 145 mmtotal power requirement: 2,2 kWweight: 500 kgdimensions: 800 x 1000 x 2000 mmFeatures:- Heavy-duty pillar drill - Infinitely variable speed control (V-belt)- Automatic spindle feed with electromagnetic engagement - Pole-changing motor- Right/left rotation of the drill spindle - Fixed drilling depth stop- Machine table with 2 T-slots height-adjustable via hand crank- Coolant system- Machine vise- Drill chuck- Emergency stopThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 90 mm, 1250 mm, 900 mm

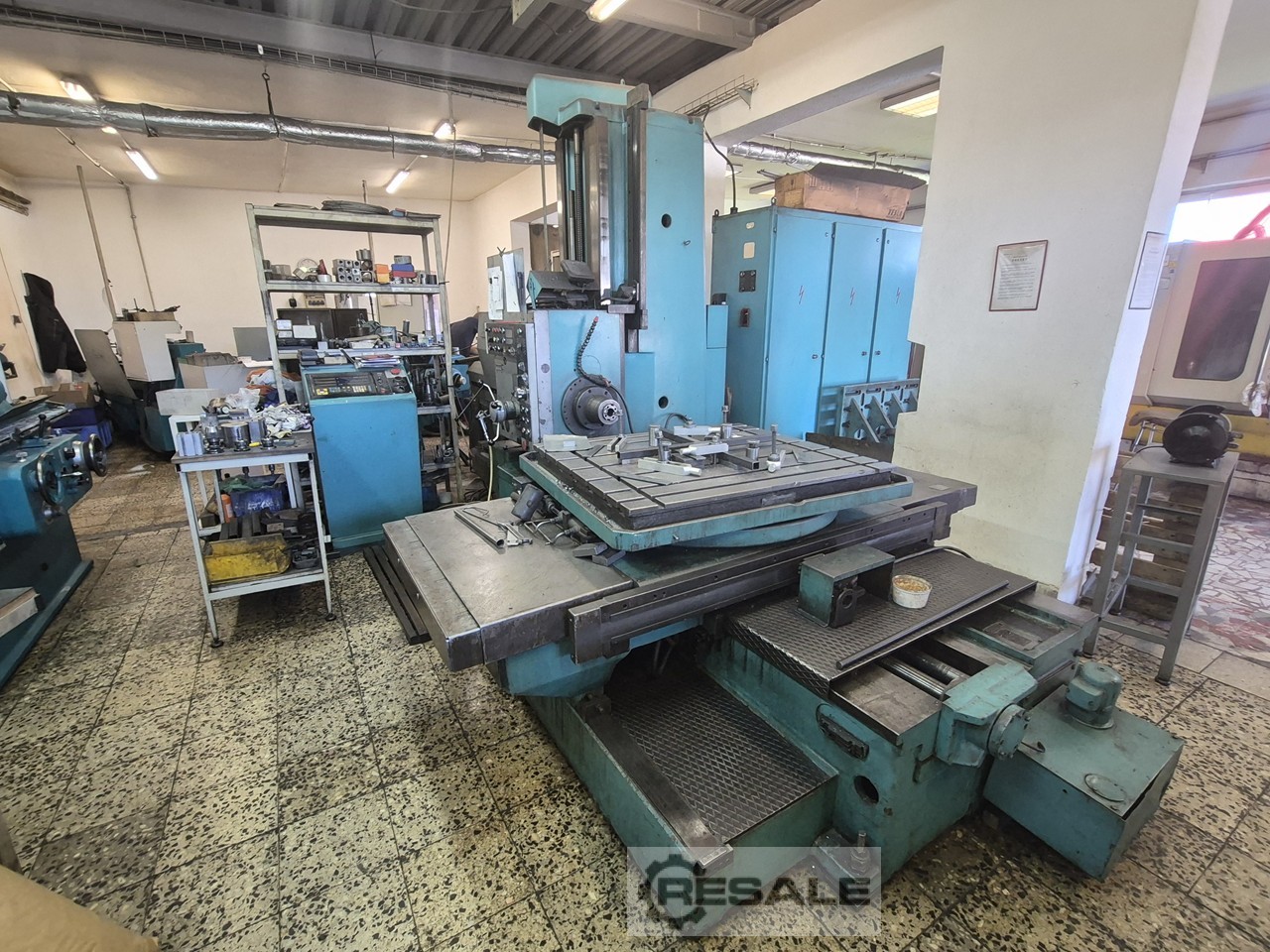

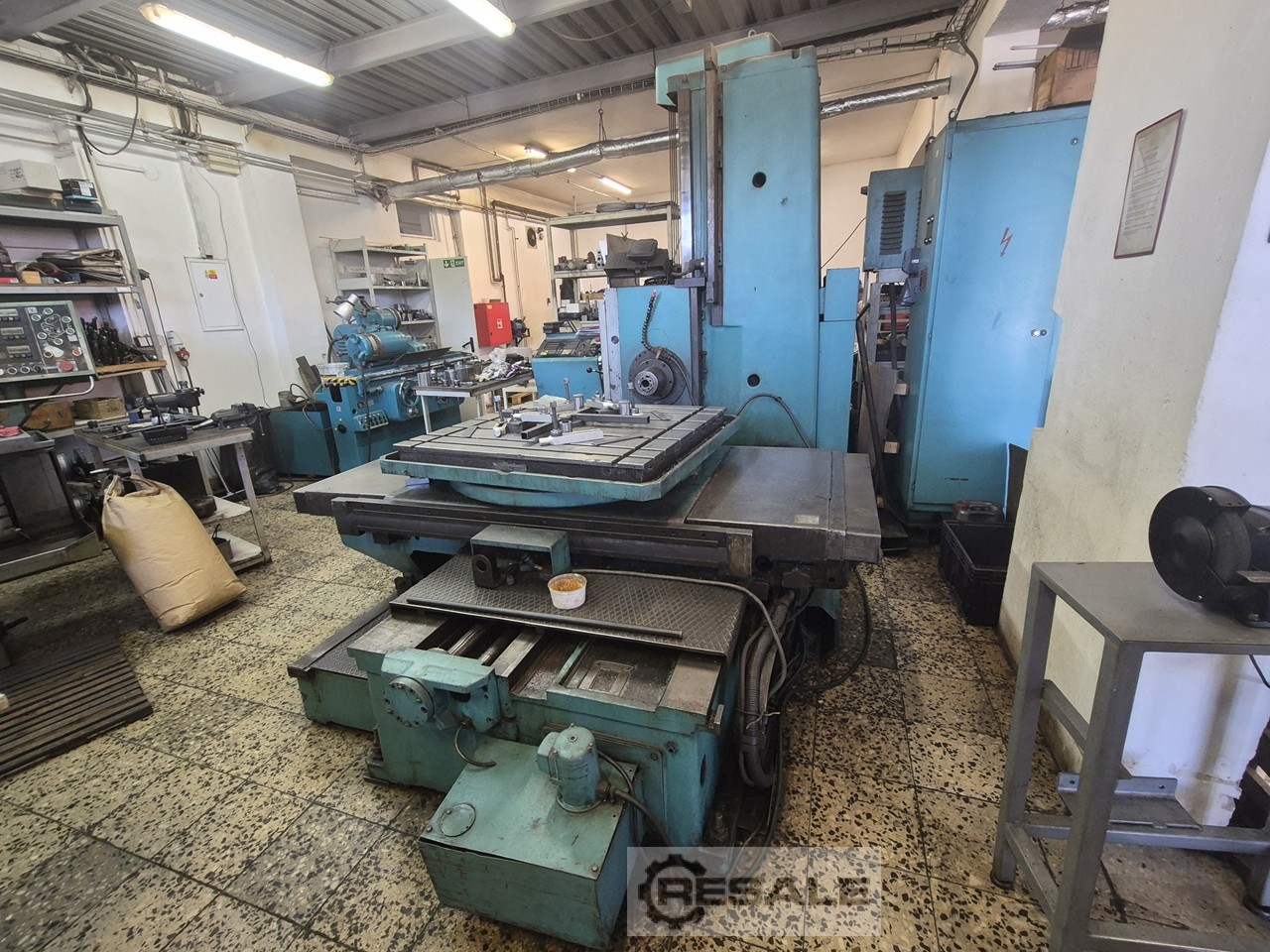

Manufacturer: TOS Model No.: WHN 9B Condition: Used Stock number: 9427 Work table length: 1120 mm Work table width: 1000 mm Maximum table load (uniform): 3000 kg X-axis travel: 1250 mm Y-axis travel: 900 mm Travel Z axis: 1000 mm Machine weight: 12000 kg
Key data: 762 mm, 406 mm, 508 mm

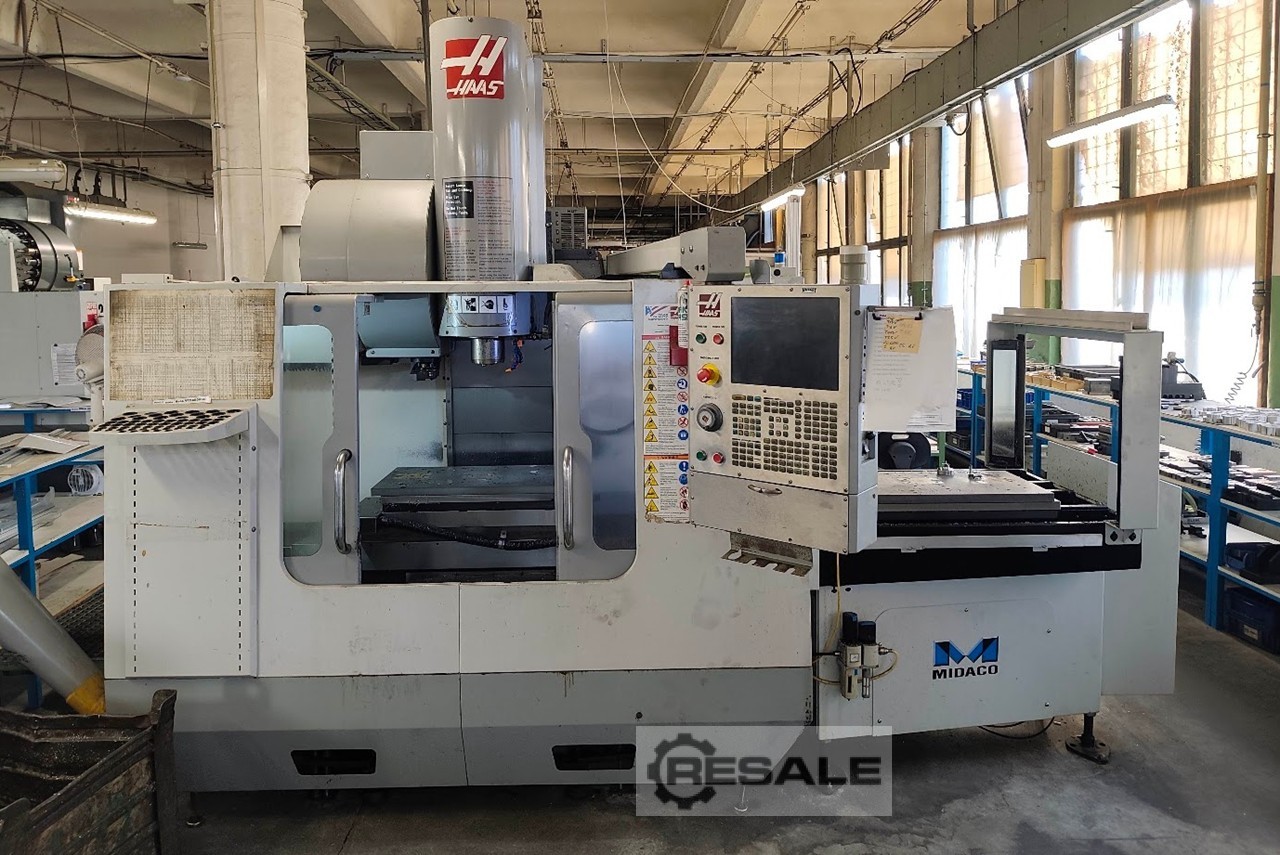

Manufacturer: HAAS Model: VF 2SS HE Year: 2007 Condition: Used Stock number: 9426 Work table length: 914 mm Work table width: 356 mm Maximum table load (uniform): 1361 kg Tool magazine: 24 pieces Maximum vertical spindle speed: 8000 1/min X-axis travel: 762 mm Y-axis travel: 406 mm Travel Z-axis: 508 mm Cone: ISO 40 Equipment: Pallet system
Key data: 762 mm, 406 mm, 508 mm

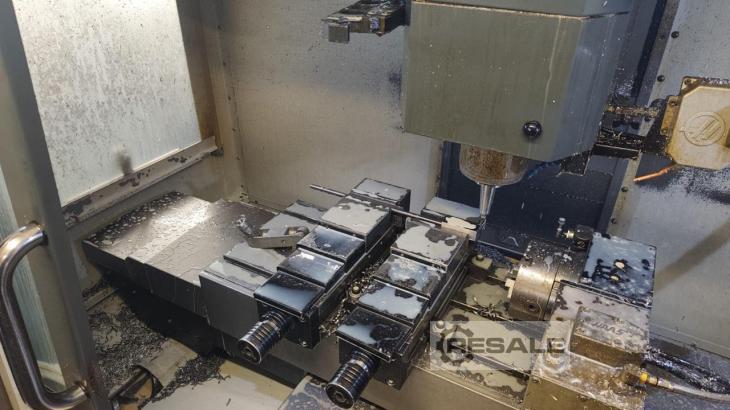

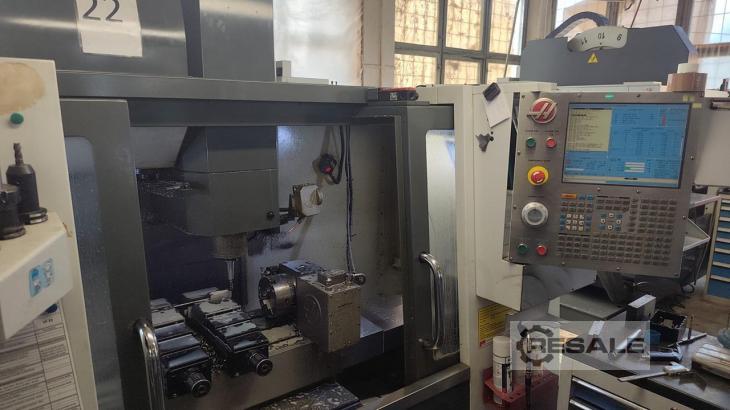

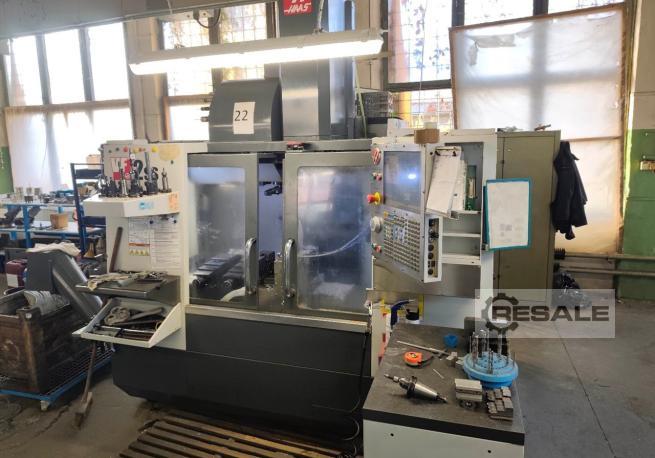

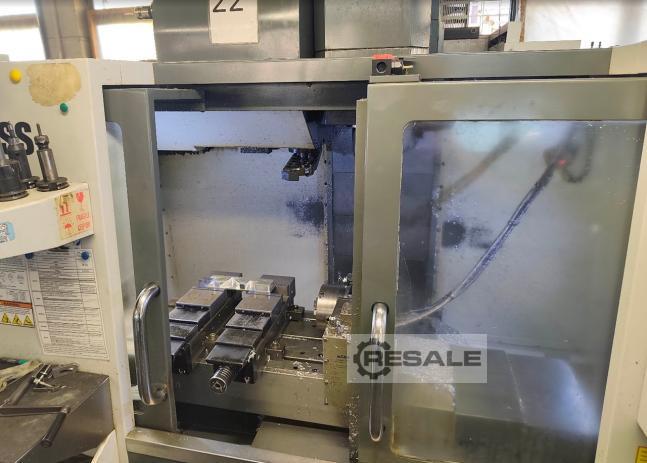

Manufacturer: HAAS Model: VF 2SS Year: 2010 Condition: Used Stock number: 9425 Operating hours: 1049 h Work table length: 914 mm Work table width: 356 mm Maximum table load (uniform): 1361 kg Maximum vertical spindle speed: 12000 1/min X-axis travel: 762 mm Y-axis travel: 406 mm Travel Z-axis: 508 mm Cone: ISO 40 Number of all tools: 24 pieces Equipment: 4. Axis
Key data: 711 mm, 406 mm, 394 mm

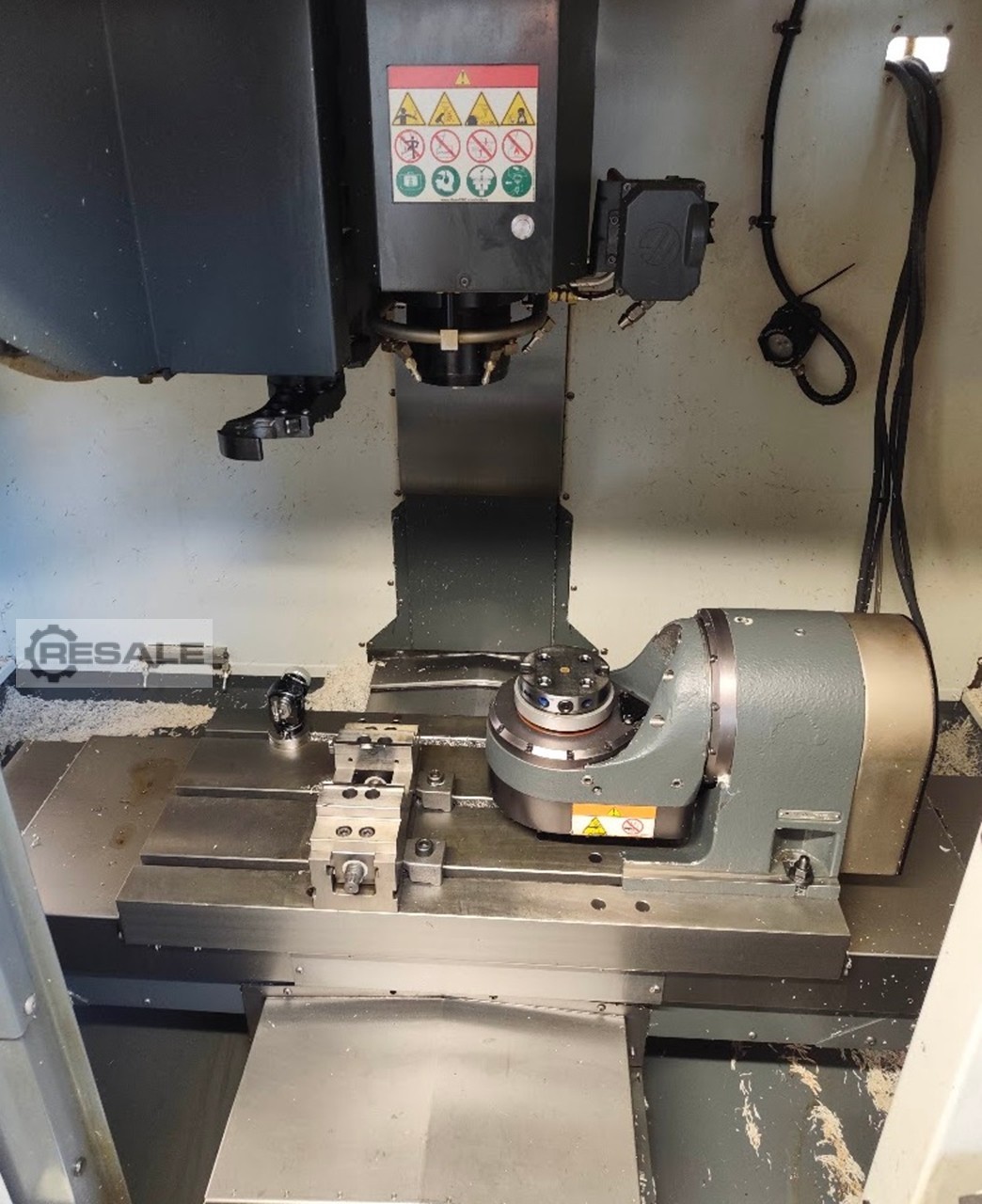

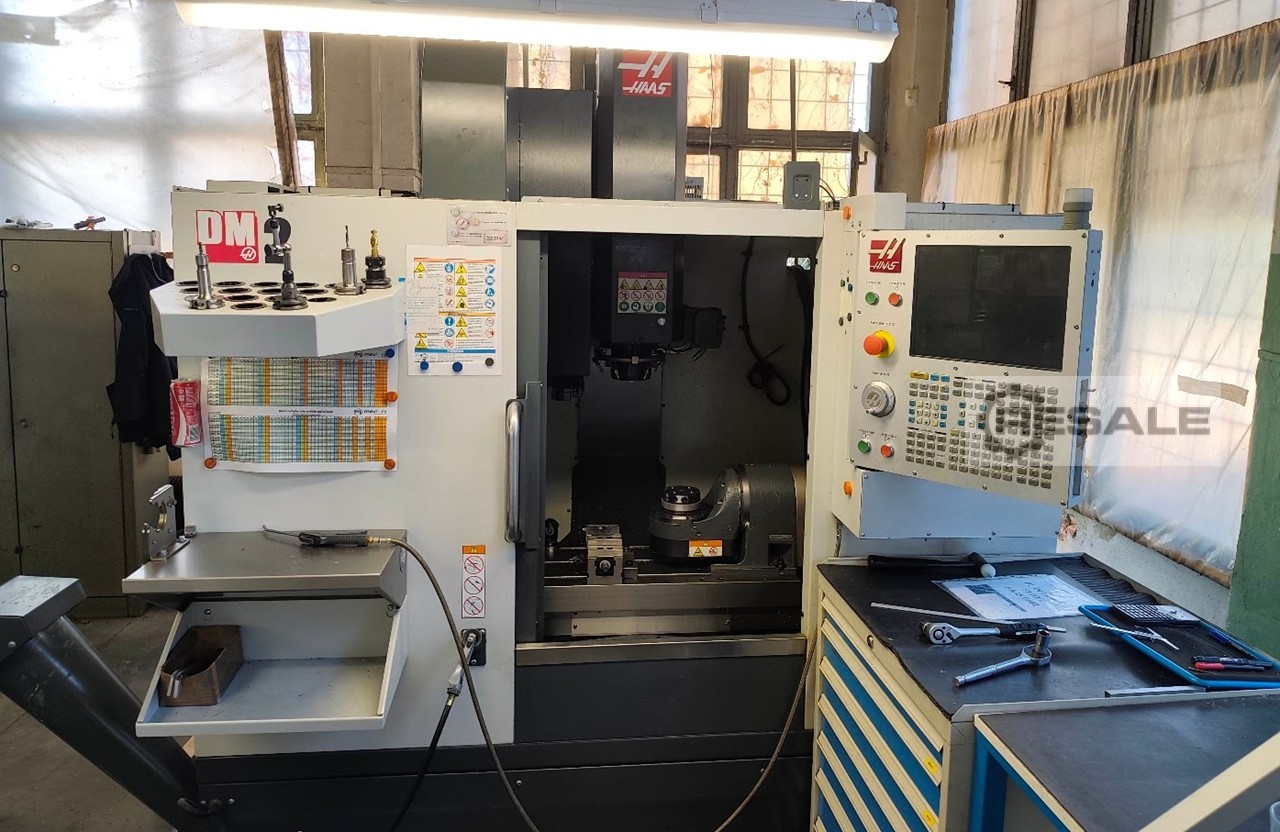

Manufacturer: HAAS Model No.: DM 2 Year: 2019 Condition: Used Stock number: 9424 Operating hours: 3700 h Work table length: 864 mm Work table width: 381 mm Number of axles: 5 pieces Maximum vertical spindle speed: 15000 1/min X-axis travel: 711 mm Y-axis travel: 406 mm Z-axis travel: 394 mm Cone: ISO 40 Number of all tools: 18+1 pieces Rapid traverse X/Y/Z: 61 m/min Machine weight: 2427 kg
Key data: 1020 mm, 510 mm, 560 mm

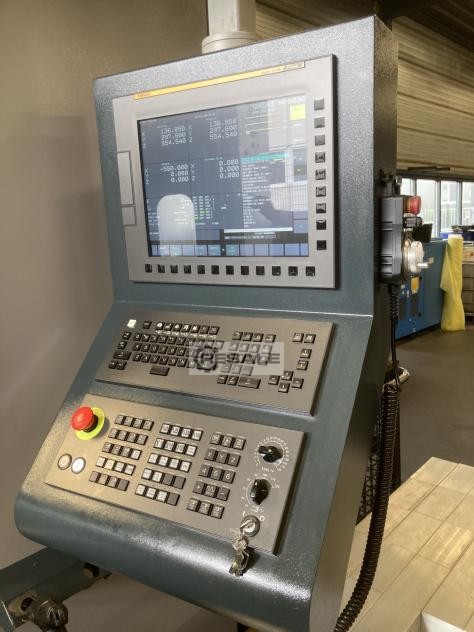

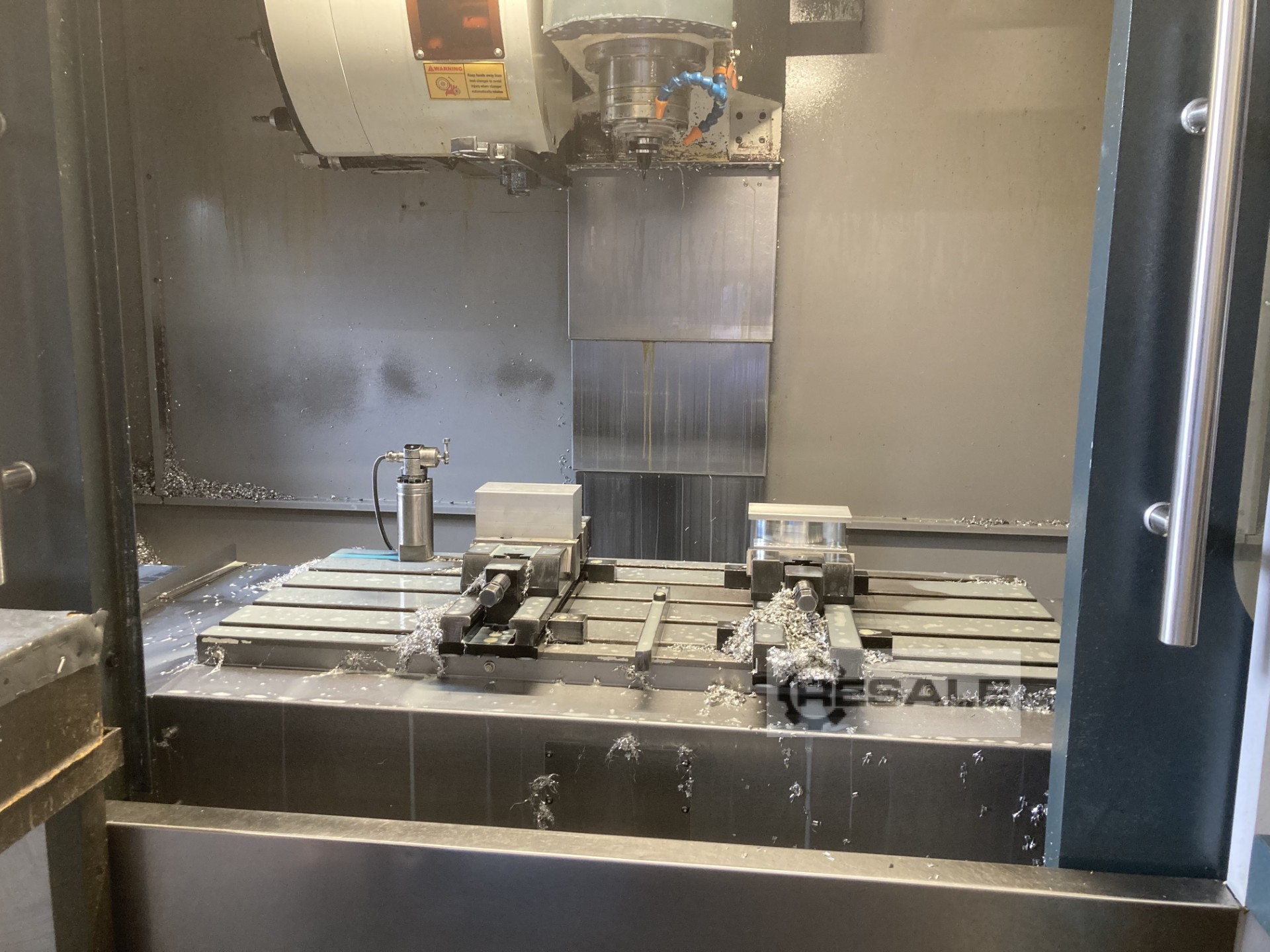

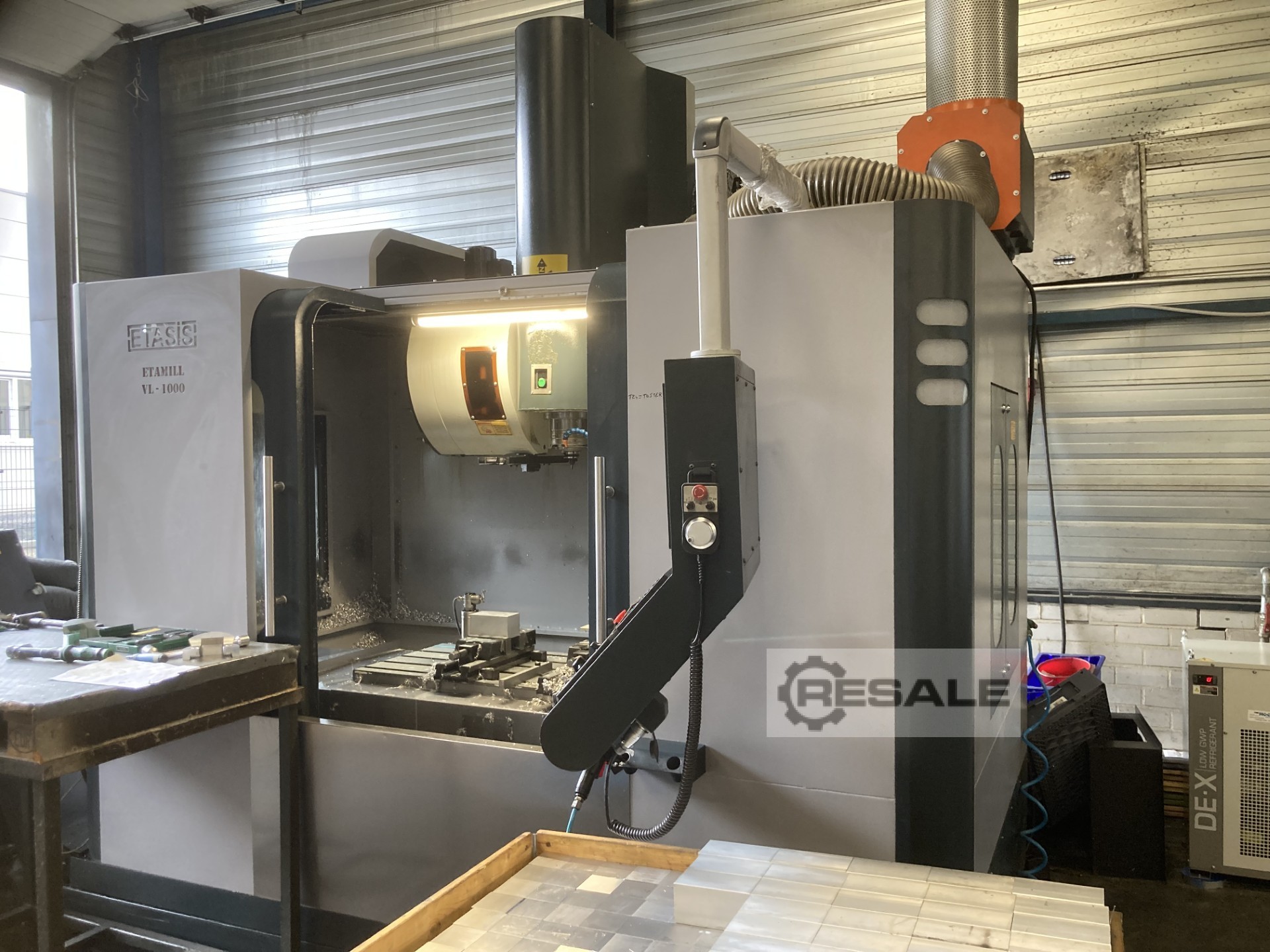

For sale; Etasis Etamill VL-1000 machining center in very good condition. Equipped with cooling by the spindle, The latest Fanuc control 0i Plus with Manual Guide i, chip conveyor, Renishaw TS27R, etc.

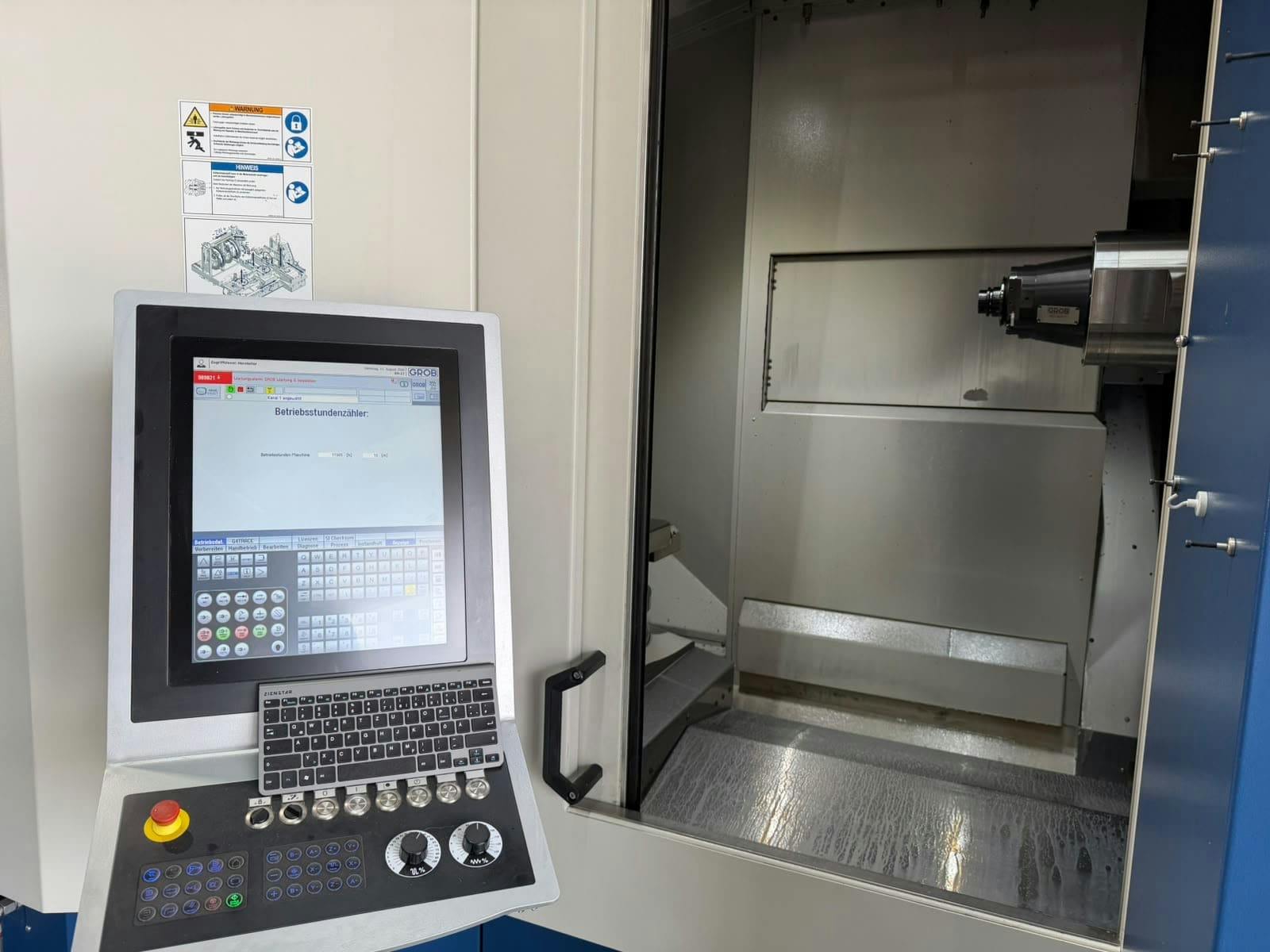

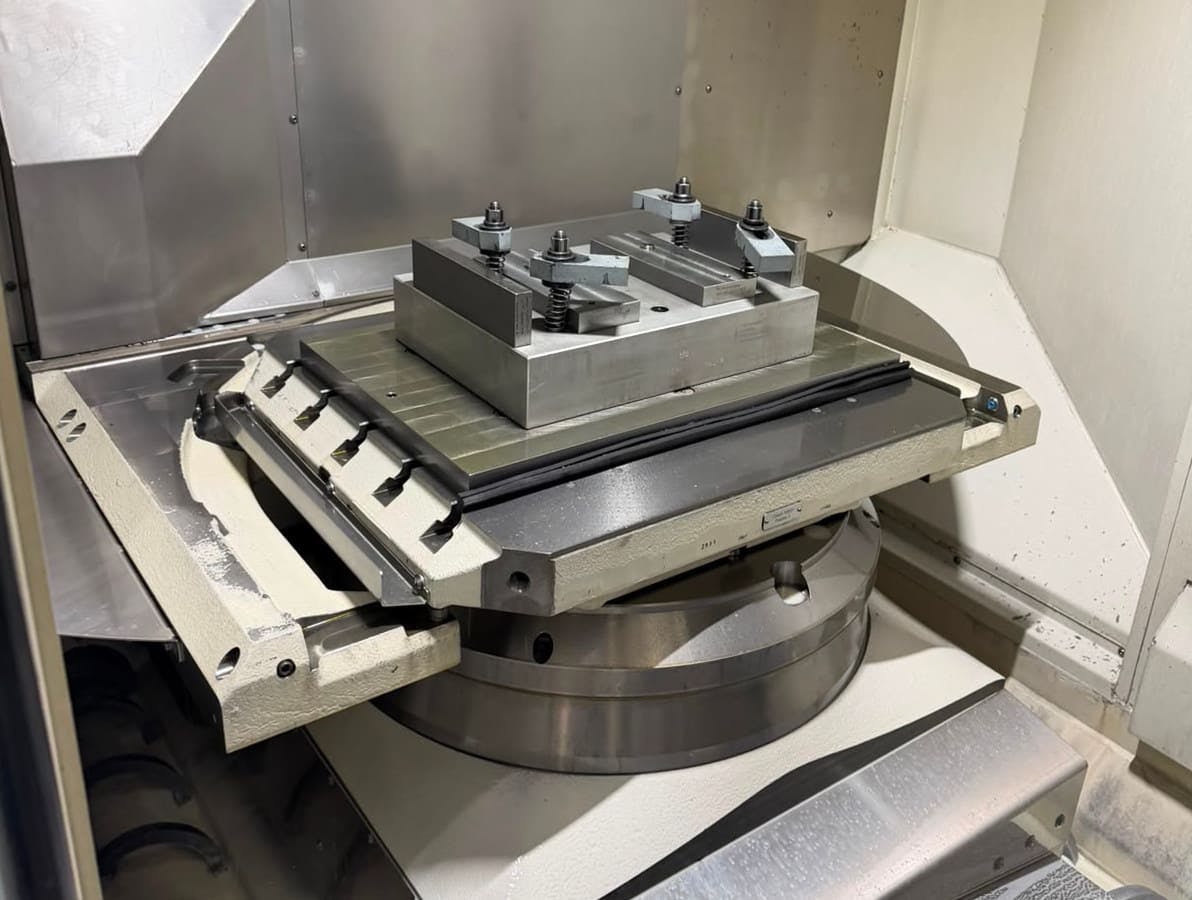

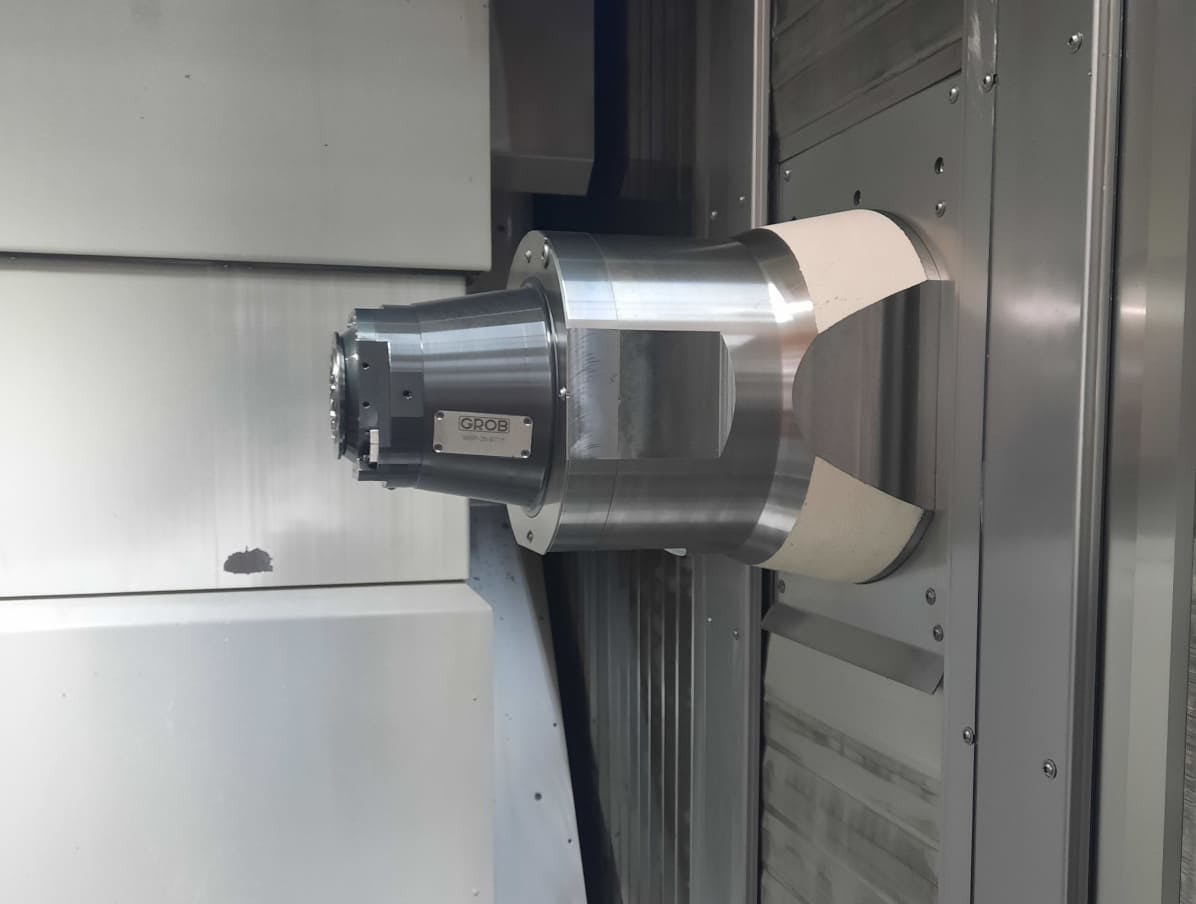

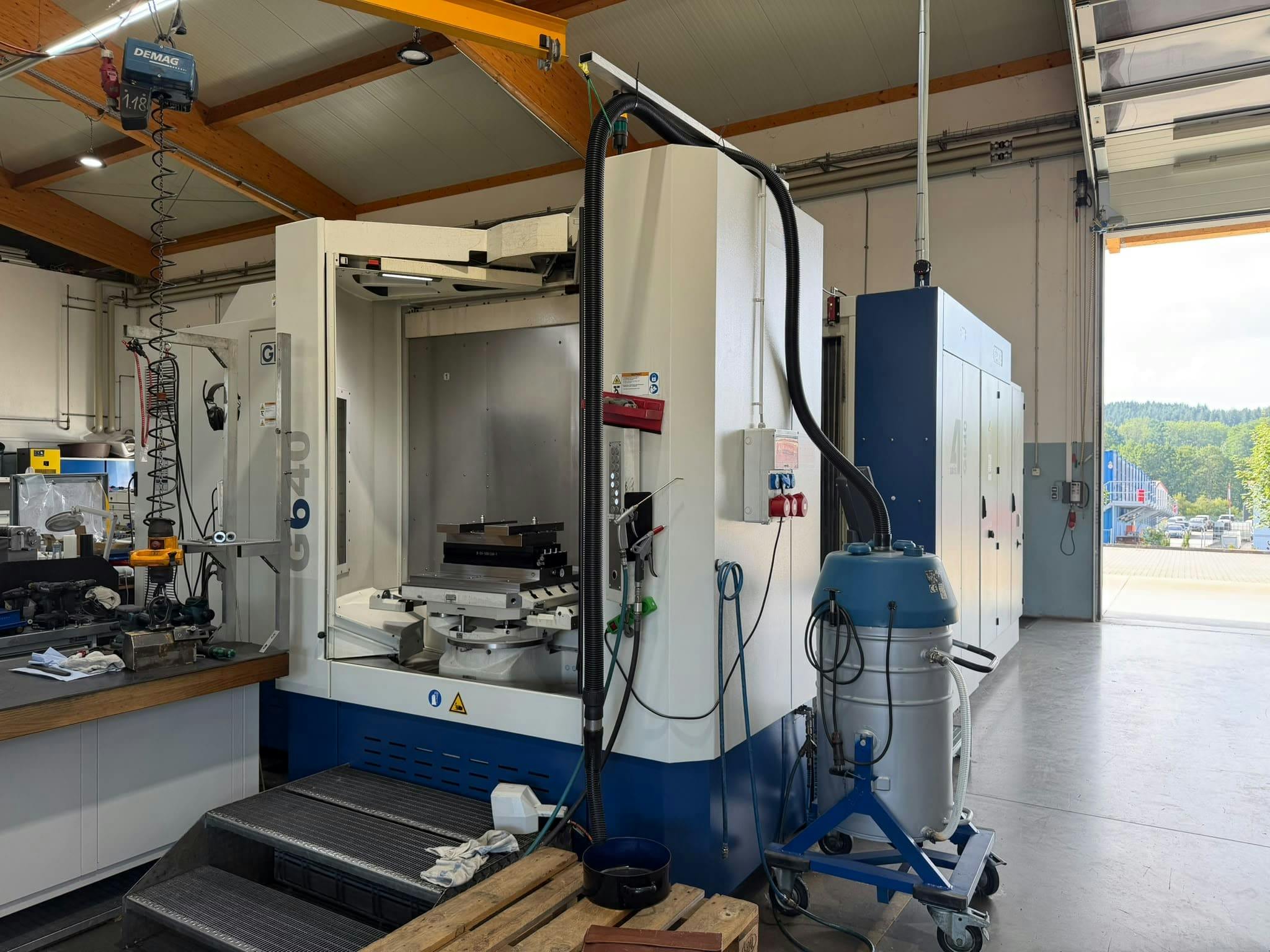

GROB G 640Year of manuf. : 2020 Control : Siemens 840 Dsl - GROB4Pilot Movement X/Y/Z : 1050/800/1050 mmTool holder : HSK 63 ____________Description:In General:Year of manufacture:2020Control system:Siemens 840 Dsl – GROB4PilotTravel ranges X/Y/Z:1,050/800/1,050 mmSpeed:16,000 rpmTool holder:HSK 63Fluid supply:coolant + blast airSpindle:Technology:Direct drive spindleSpeed:16,000 rpmMax. torque:206 NmMax. power:32 kWTool holder:HSK 63NC rotary table:Technology:NC rotary table with pallet clamping systemB-axis:0.001°Pallet size:630 x 800 mm (630 x 630 mm)Fluid connections:6Tool magazin:Technology:4-disc magazineNumber of stations:237Tool changer:Pick-upTool cleaning:MechanicalEquipment:Position measurement systems:Direct on all axes (glass scales)Chip removal:Chip conveyorCoolant supply:Internal coolant system, 80 barHydraulic clamping:4 clamping circuits, 30–190 barSupport con ...

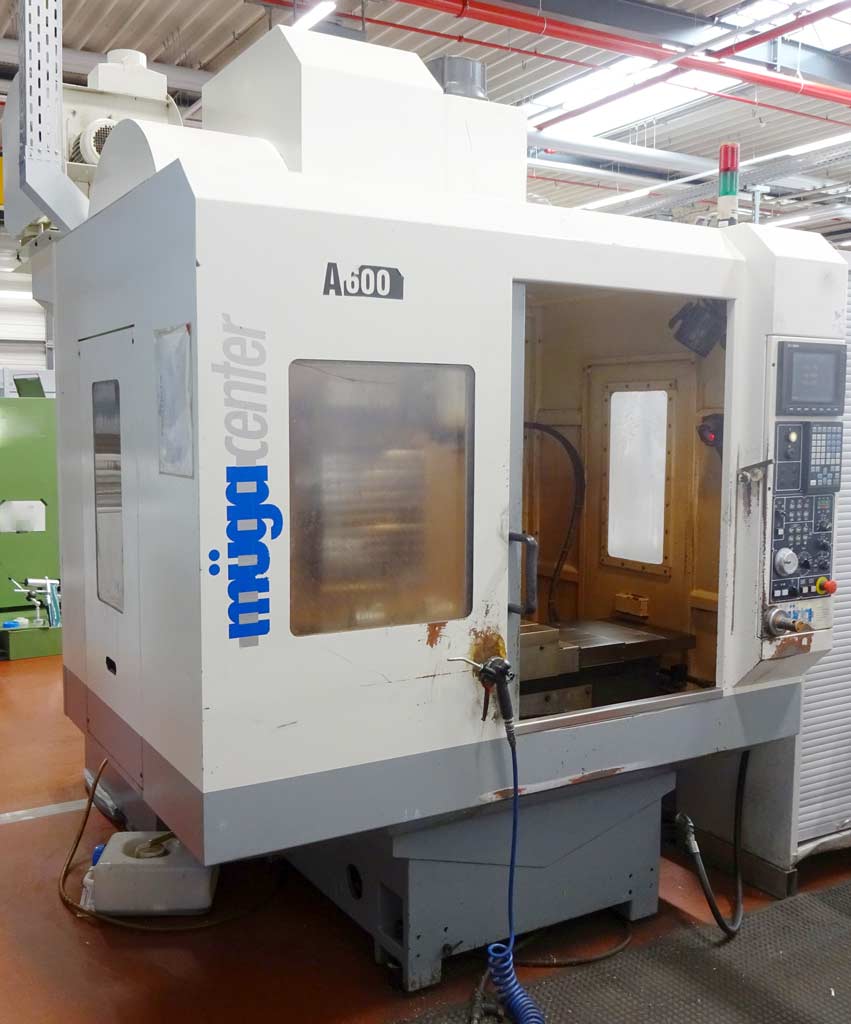

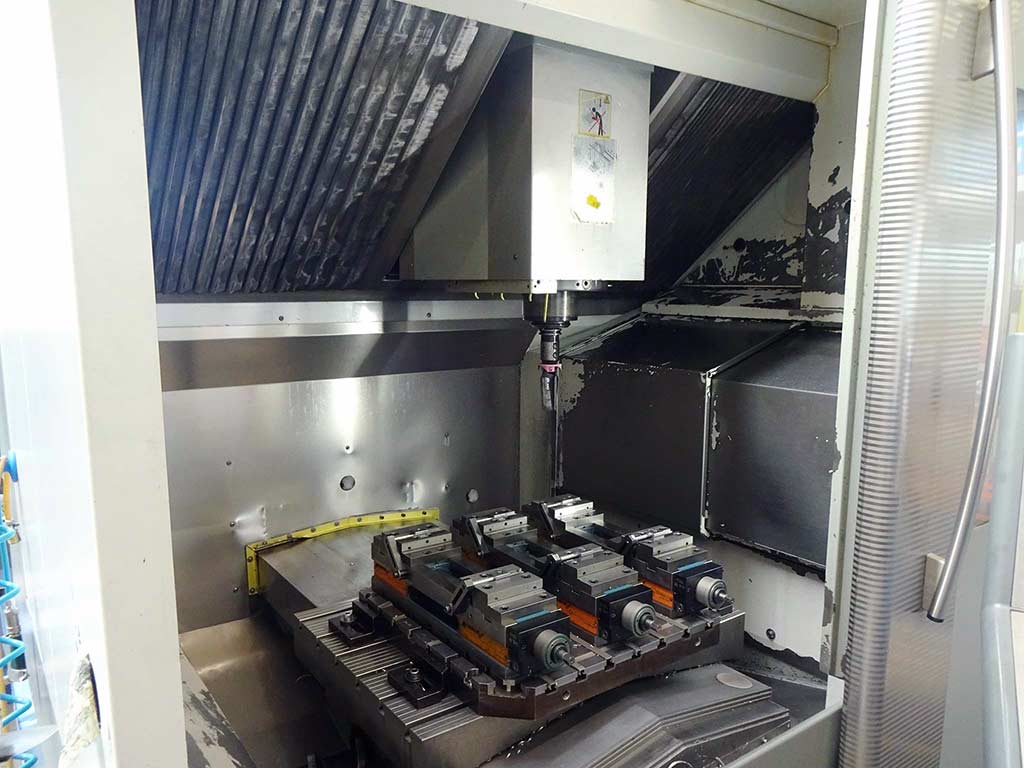

X-axis: 640mm, Y-axis: 600mm, Z-axis: 500mm, feed force (40% duty cycle) X-, Y-, Z-axis: 7000N, max. feed speed X-, Y-, Z-axis: 40m/min, rapid traverse speed Y-, Z-axis: 40m/min, rapid traverse speed X-axis: 70m/min, ball screw diameter/pitch Y-, Z-axis: 40/15mm, number of magazine pockets: 30, position coding: fixed-position coding, max. tool loading weight: 90kg, max. diameter of standard tools: 100mm, max. diameter of special tools with adjacent positions free: 140mm, max. tool length: 300mm, max. tool weight: 6kg, table clamping surface: 850x600mm, T-slots: DIN 650-14, loading height (top edge of table): 850mm, max. load: 600kg, connected load: 39kVA, control: Heidenhain iTNC 530, length: 2500mm, width: 4100mm, height: 3000mm, weight: 7,74t, operating hours: 60.366h. With documentation.

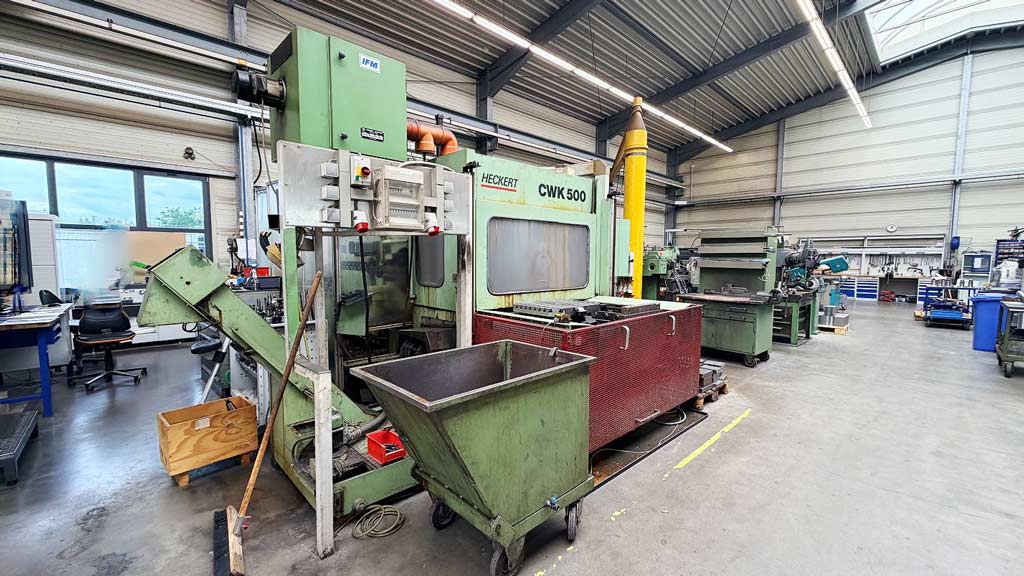

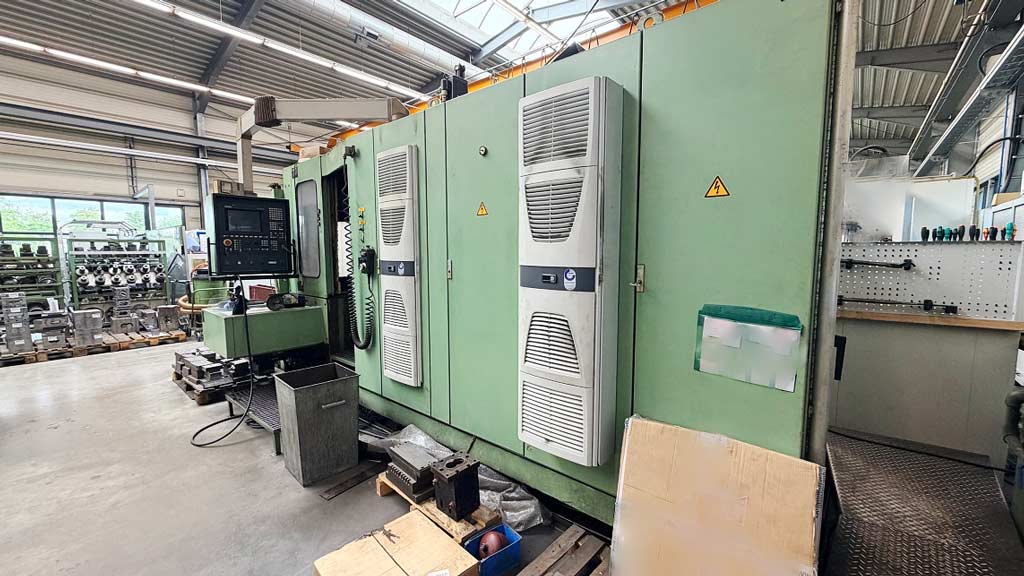

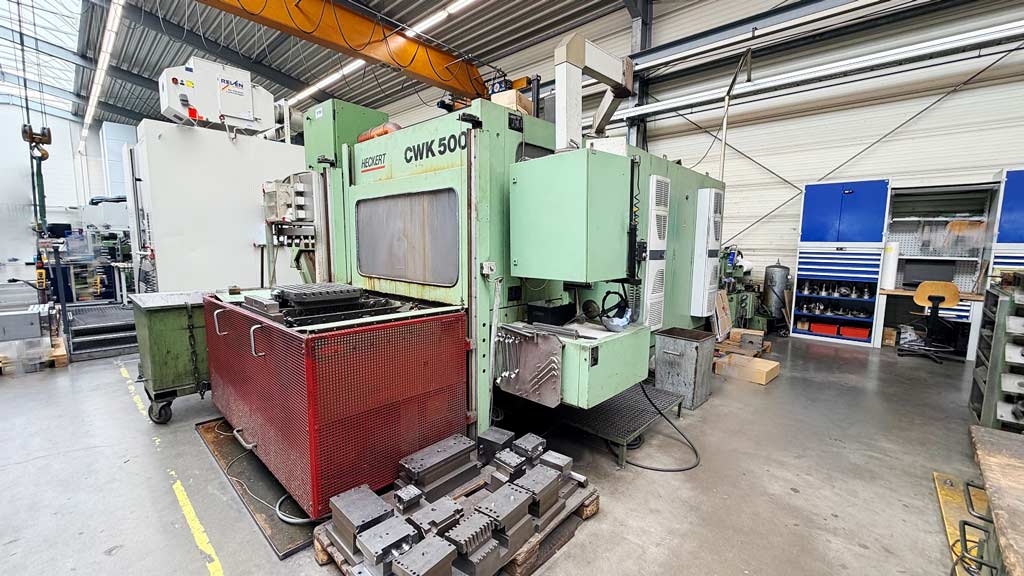

A Heckert horizontal CNC machining center in need of repair is offered. Travel X/Y/Z: 800mm/560mm/805mm, tool taper: SK50, pallet size: 500mm/500mm, number of pallets: 2, max. pallet load: 800kg, tool magazine: 40, max. spindle speed: 4200rpm, control: Siemens Sinumerik, rapid traverse X/Y/Z: 24m/min, B-axis: 360°. Machine dimensions: approx. 6510mm/5115mm/2933mm, weight: approx. 16000kg. The machine could not be powered up again after a power outage. Inspection possible by arrangement.

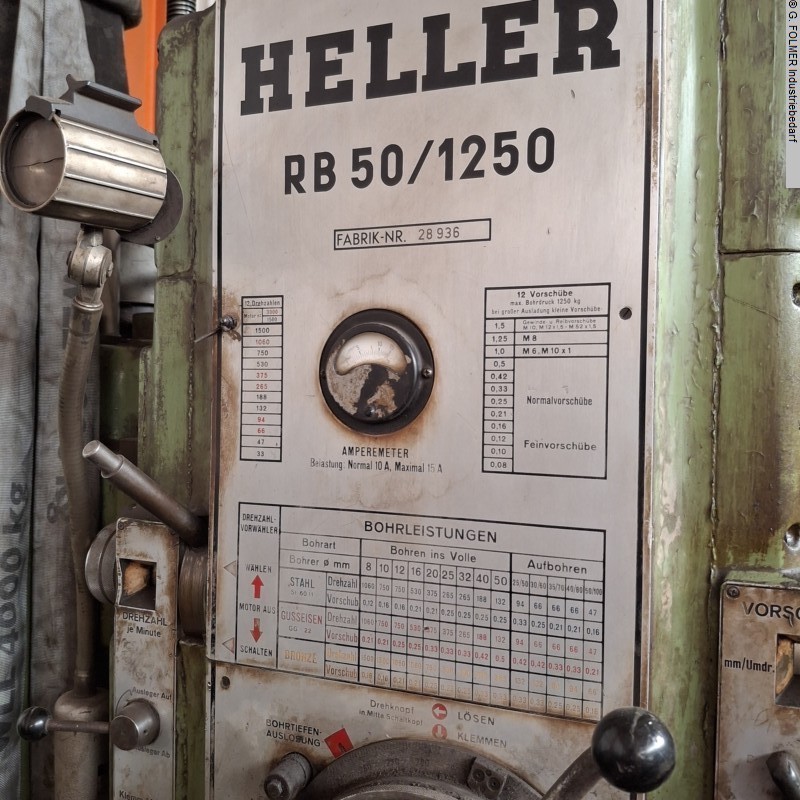

Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle axis to base plate: 320-1380mm, max. arm height adjustment: 750mm, max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°, spindle head diameter: 75h6, spindle diameter at front bearing: 55mm, length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with documentation. An on-site inspection is possible.

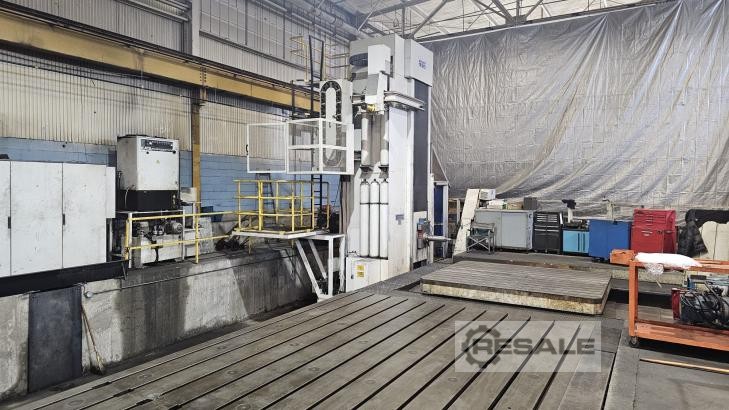

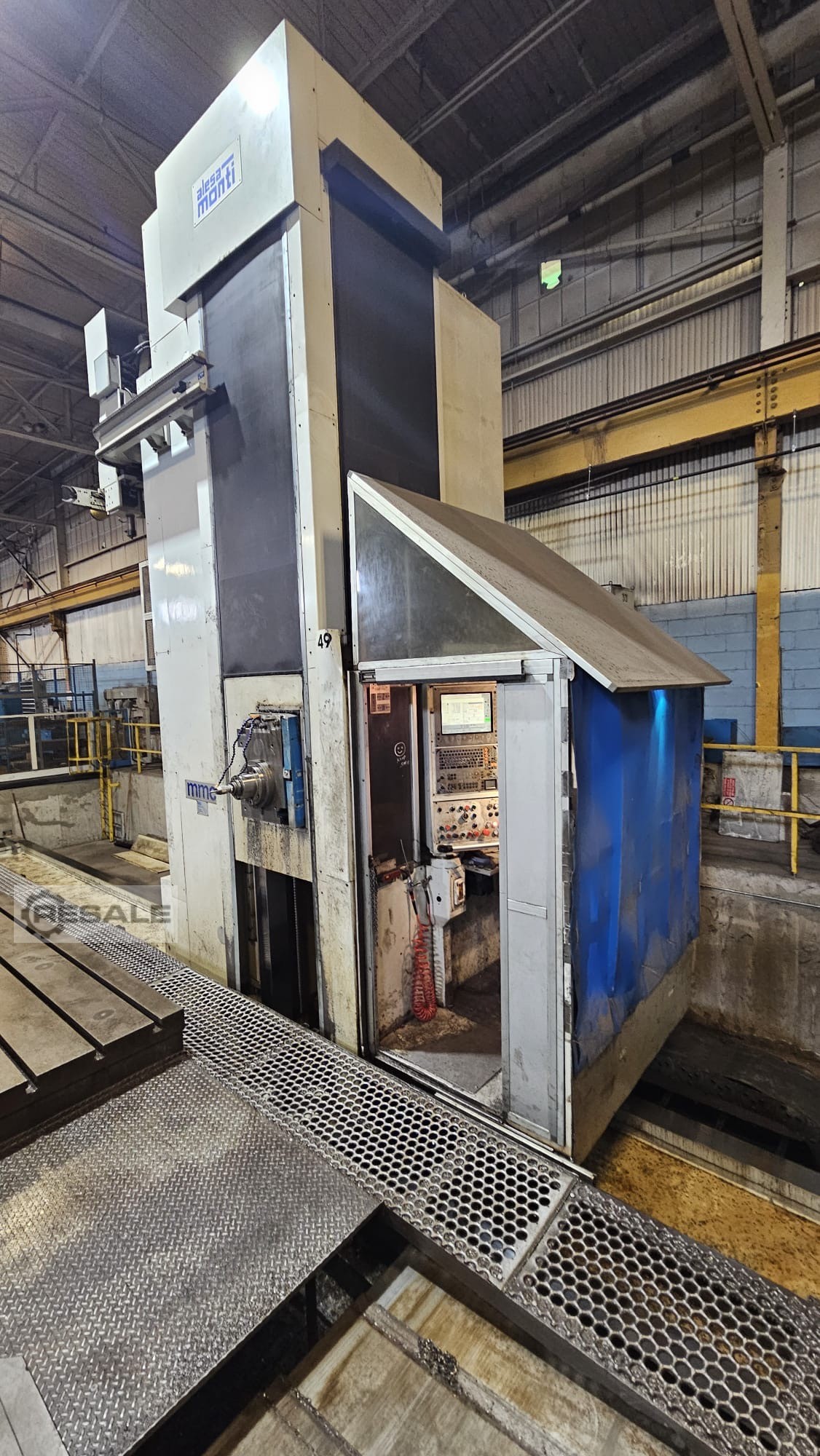

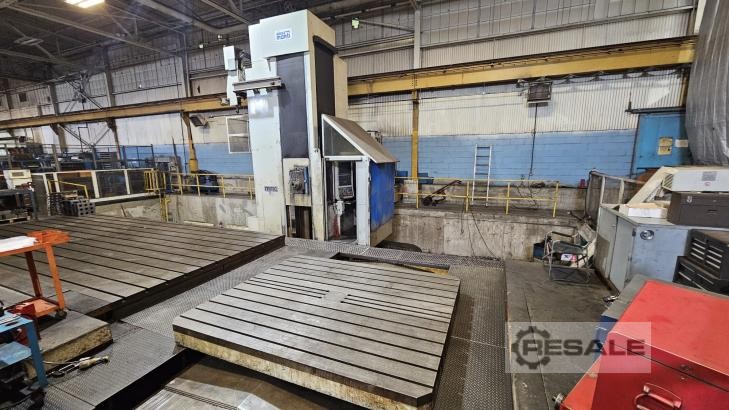

MACHINE SPECIFICATIONS Year: 2010 Spindle Diameter: 152.1 mm Cross Travel (X Axis): 12,065 mm Vertical Travel (Y Axis): 3,251 mm Spindle Travel (W Axis): 500 mm Spindle Ram Travel (Z Axis): 1,006 mm Rotary Table Travel (C Axis): 2,019 mm Rotary Table Rotation (B Axis): 360° Automatic Tool Changer: 30 tools Rotary Table Size: 2,502 × 2,997 mm Floor Plate Dimension (1): 4,191 × 3,607 mm Floor Plate Dimension (2): 4,191 × 3,607 mm Spindle Taper: CAT 50 Maximum Spindle Speed: 2,500 RPM CNC Control: Heidenhain iTNC 530, 6-Axis Electrical: 400V / 3PH / 60Hz Country of Manufacture: Italy Approximate Weight: 52,164 kg Overall Dimensions: 18,415 × 11,201 mm × H — height to be confirmed EQUIPPED WITH: Heidenhain iTNC 530 6-Axis CNC Control Heavy-Duty CNC Rotary Table Automatic Tool Changer Two Floor Plates Coolant System Hydrauli ...

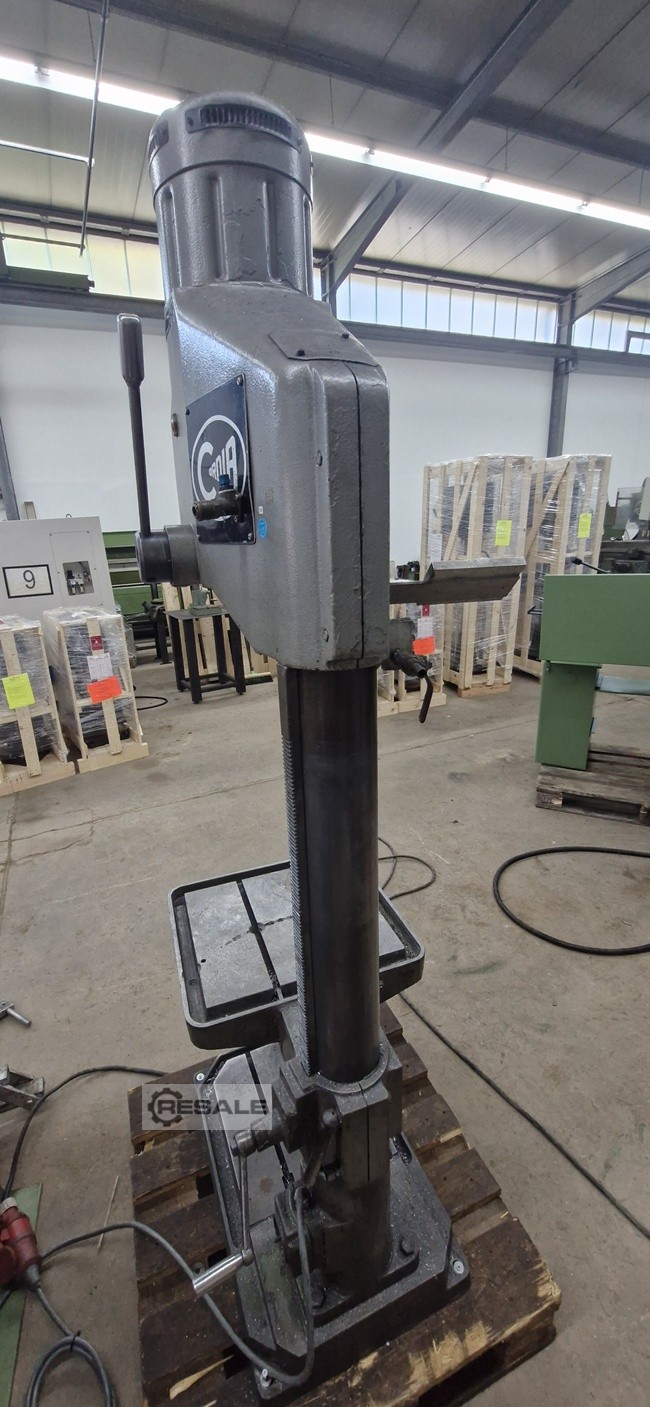

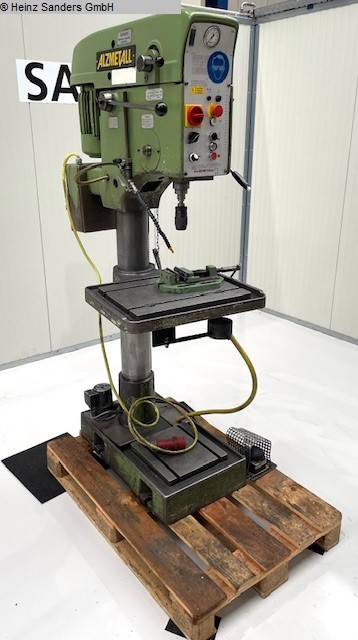

Gear drill without belt change Very quiet and quiet running - Drilling performance in steel ST 60 30 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 160 mm - 9 drilling spindle speeds 90 - 1450 rpm - Projection 300 mm - Table with 2 T-slots - Table dimensions swivel 500 x 450 mm - Table dimensions base plate 350 x 400 mm - Distance from base plate to spindle nose 1100 mm - Max. distance table - drilling spindle 660 mm - Height adjustable via rack with hand crank - Column diameter 120 mm - Drive 380 V / 1.2 kW - Space requirement approx. W 600 x H 2100 x D 670 mm - Weight approx. 350 kg - With drill chuck

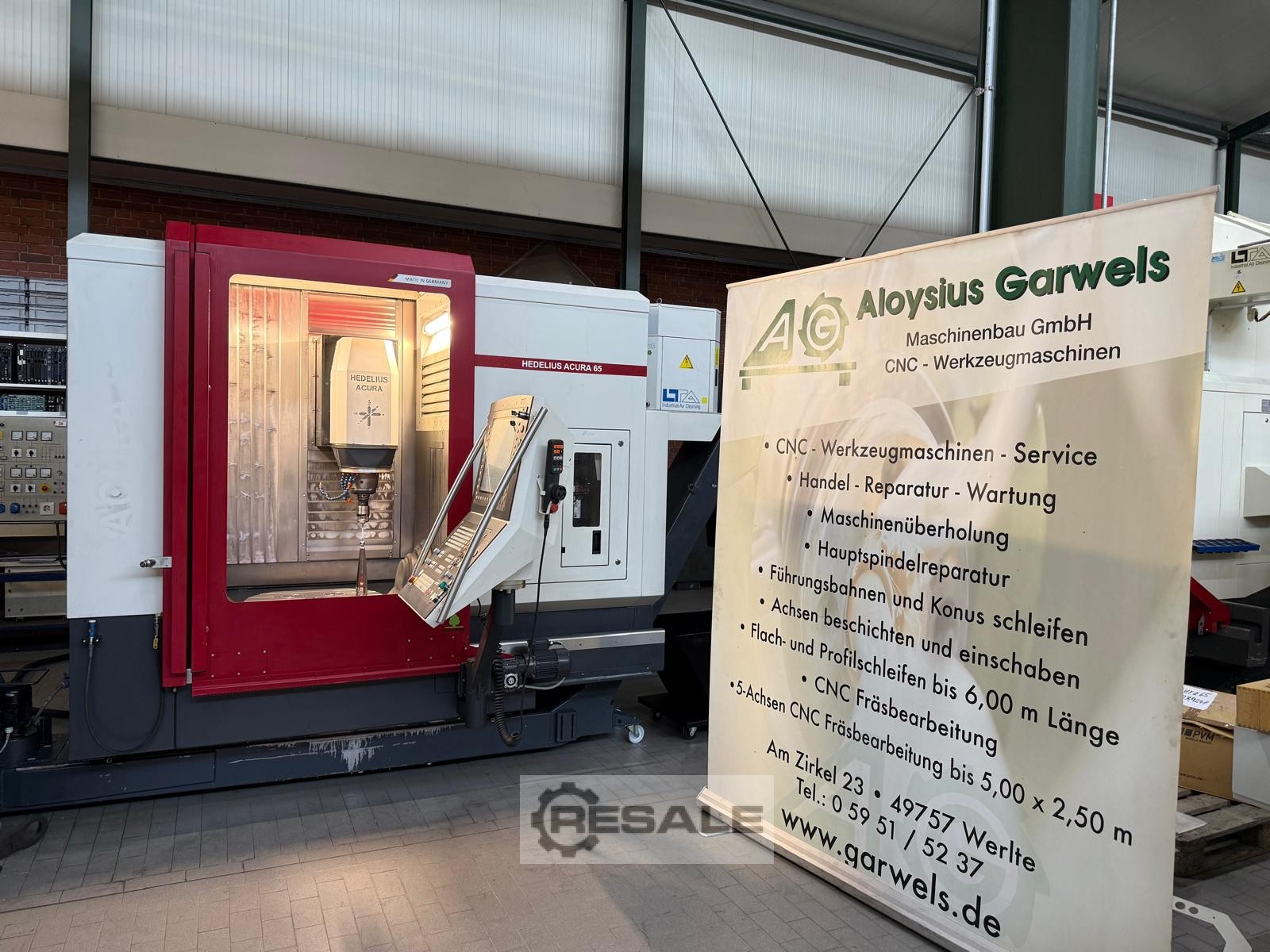

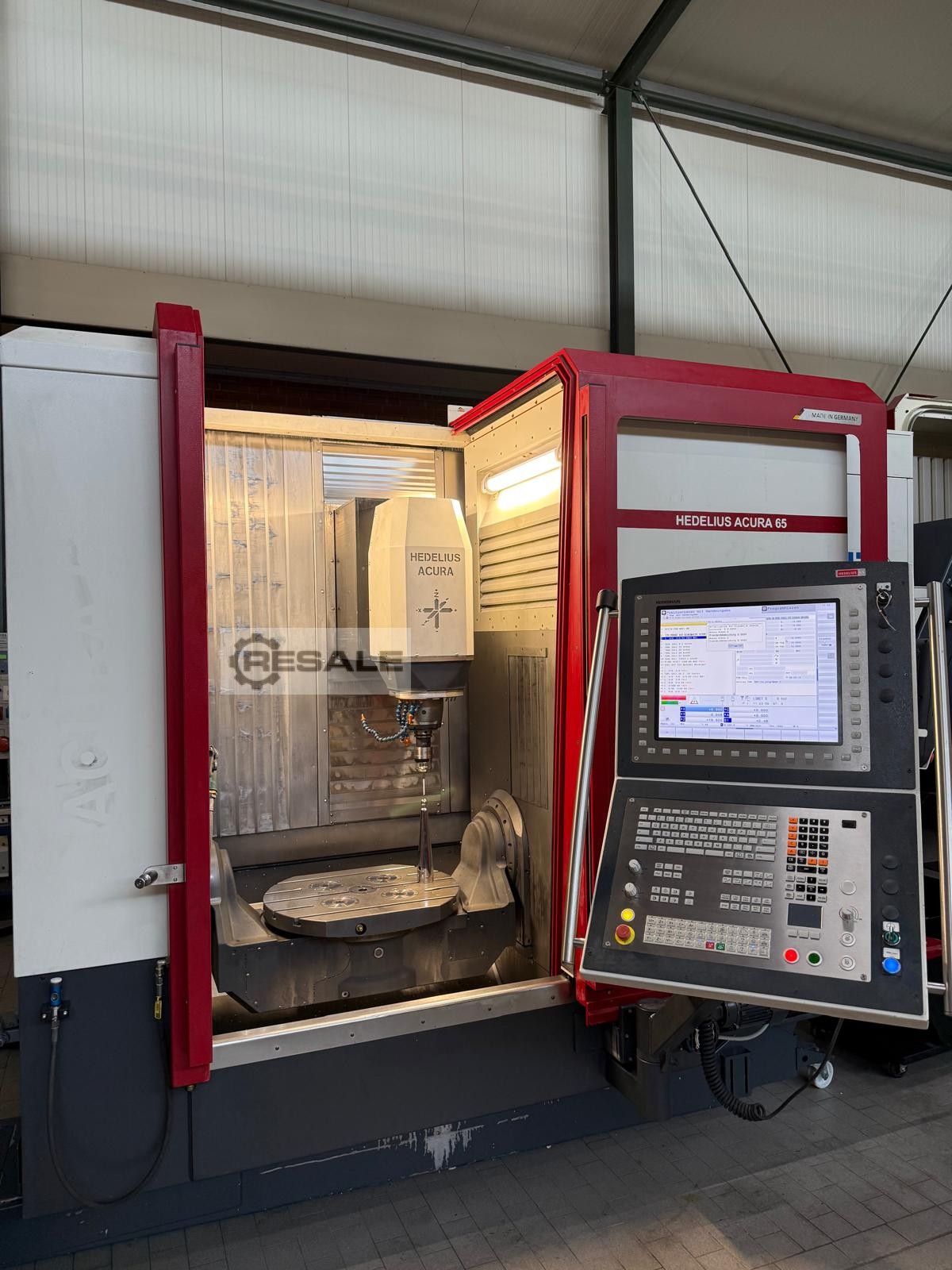

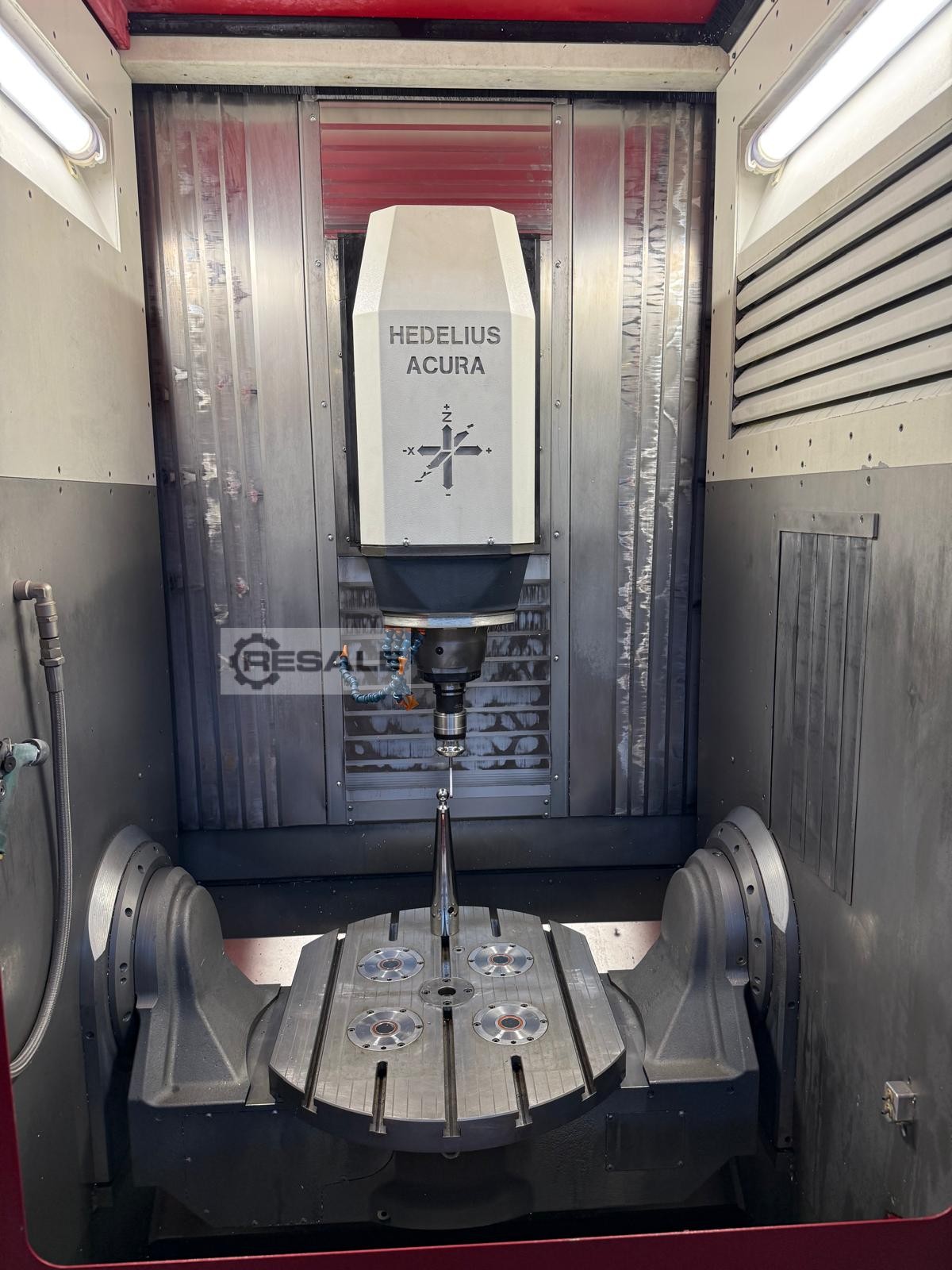

5-axis machining center Hedelius ACURA 65 Control: TNC 640 Year of Make: 2017 Internal machine no. 72 Travels: X-axis: 700 mm Y-axis H / V: 650 / 465 mm Z-axis: 600 mm Swivel table: Ø 650 x 540 mm Swivel range: +30° to -115° Interference circle diameter: Ø 700 mm Table load: 500 kg Mount: DIN 69893-1 HSK-A63 Tool magazine: 65 – compartment Spindle speed: 50 - 18,000 rpm ZeroClamp 4-way 3D Probe M&H 25.50 5-axis simultaneous machining ACURA Handheld control unit HR 250 3D Mold Making Coordination ACURA KinematicsOpt TNC640 Collision Monitoring ACURA/TNC Compressed air on the spindle head Coolant system 1250l IKZ 25bar Chip conveyor Exhaust air filter Laser light barrier for tools ACURA

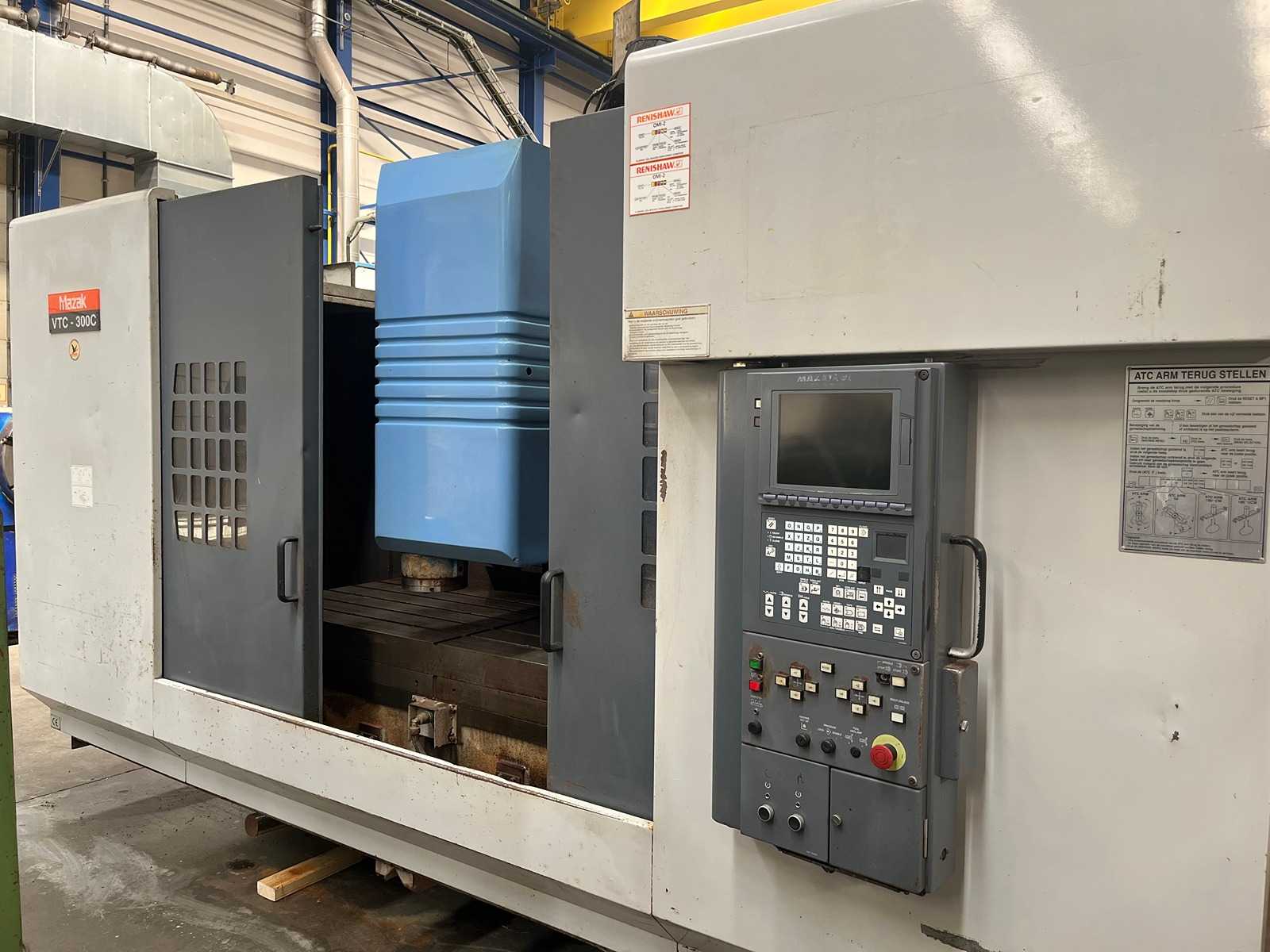

VERTICAL MACHINING CENTRE Inv. No.13.107M1 Make MAZAK Model VTC-300C Control Mazatrol Fusion 640M X-travel 1740 mm Y-travel 760 mm Z-travel 660 mm Table size 2000 x 760 mm Spindle taper ISO 40 R.P.M. 40 – 12.000 kW 15/11 Volts 400 Cycles 50 Including: Machine cover Manuals Coolant tank Work light Chip conveyor Auction-ID: A1-49027-48
Travel X/Y/Z: 740mm/500mm/480mm, tool holder: SK40, tool positions: 22, max. spindle speed: 4700rpm, control: Heidenhain TNC 426 PA. Machine dimensions: approx. 3000mm/2400mm/2700mm, weight: approx. 5000kg. The machine was used exclusively for machining plastic and operated without metalworking fluid. The coolant system must be repaired. The backup battery of the control is depleted and must be replaced. Inspection possible by arrangement.
T-slot system: 18 H8, working spindle: SK40, length: 5000mm, width: 3240mm, height: 3800mm, basic machine weight: 1,5t, machine-on operating hours: 31.546h, control-on operating hours: 56.903h, program run time: 10.521h, with documentation. An on-site inspection is possible.

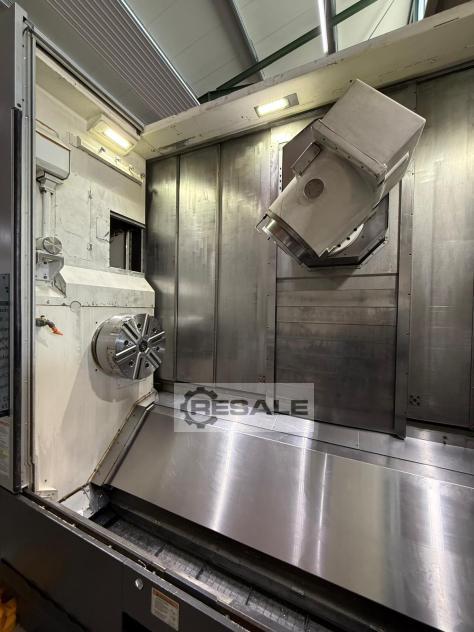

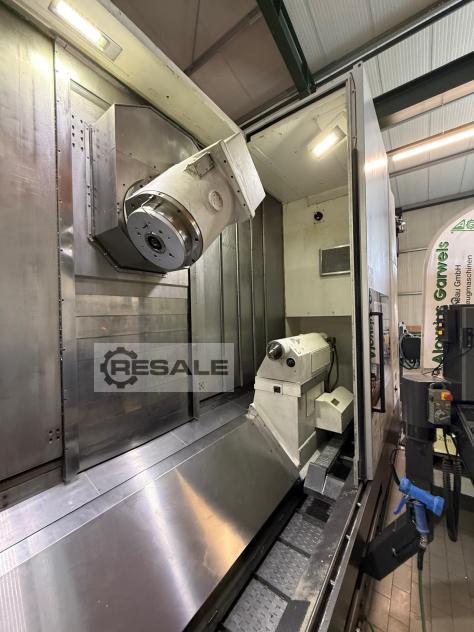

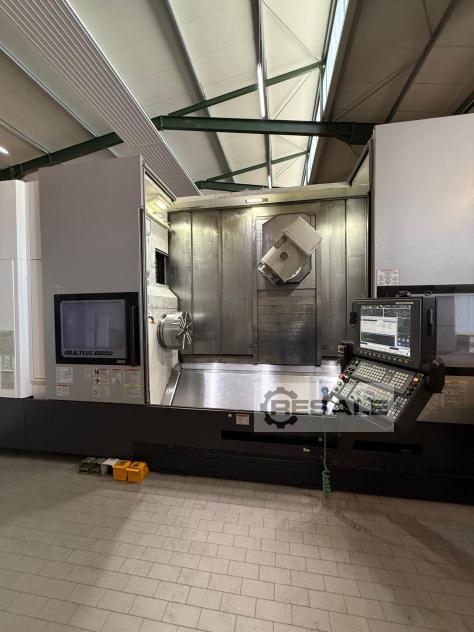

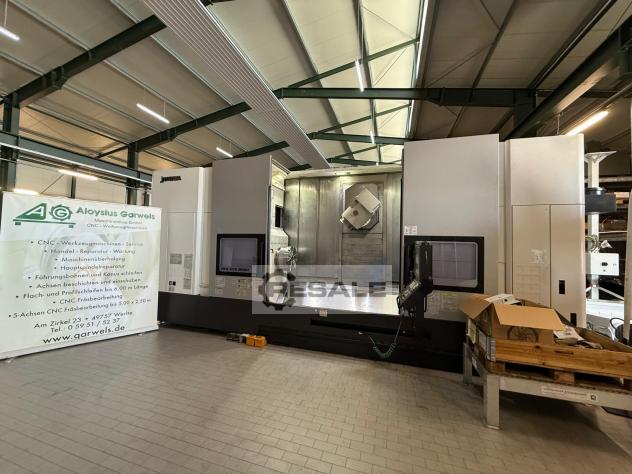

5 Axis CNC Turning and Milling Center Okuma Multus B550-C 2000 Control: OSP-P300SA-H Year of Make: 2019 Internal machine no. 71 Travels: X-axis: 925 mm Y-axis: 520 mm Z-axis: 2,215 mm Center width: 2,000 mm Turning Ø over bed: 830 mm Spindle bore: 112 mm Tool holder HSK-A100 40-fold tool changer Programmable tailstock with hydraulic quill Facilities - Hinged belt chip conveyor Interlit ISF - Full-clamping cylinder - 6-Jaw Power Chuck SMW Ø 500 IEP - - Hand Dishwashing Gun - Drum – trough filter TMF300/980/20 - IFS filter system IFE 5000 - Robot interface Type E - One Touch IGF - Software for input fineness 0.1μm - Software package for simultaneous 5-axis machining VTM-1200YB and VTM-2000YB - In process measuring with Renishaw probe for X/Z-C axis - Automatic zero point displacement in the z-axis main spindle - High-precision C-axis - Rotation func ...

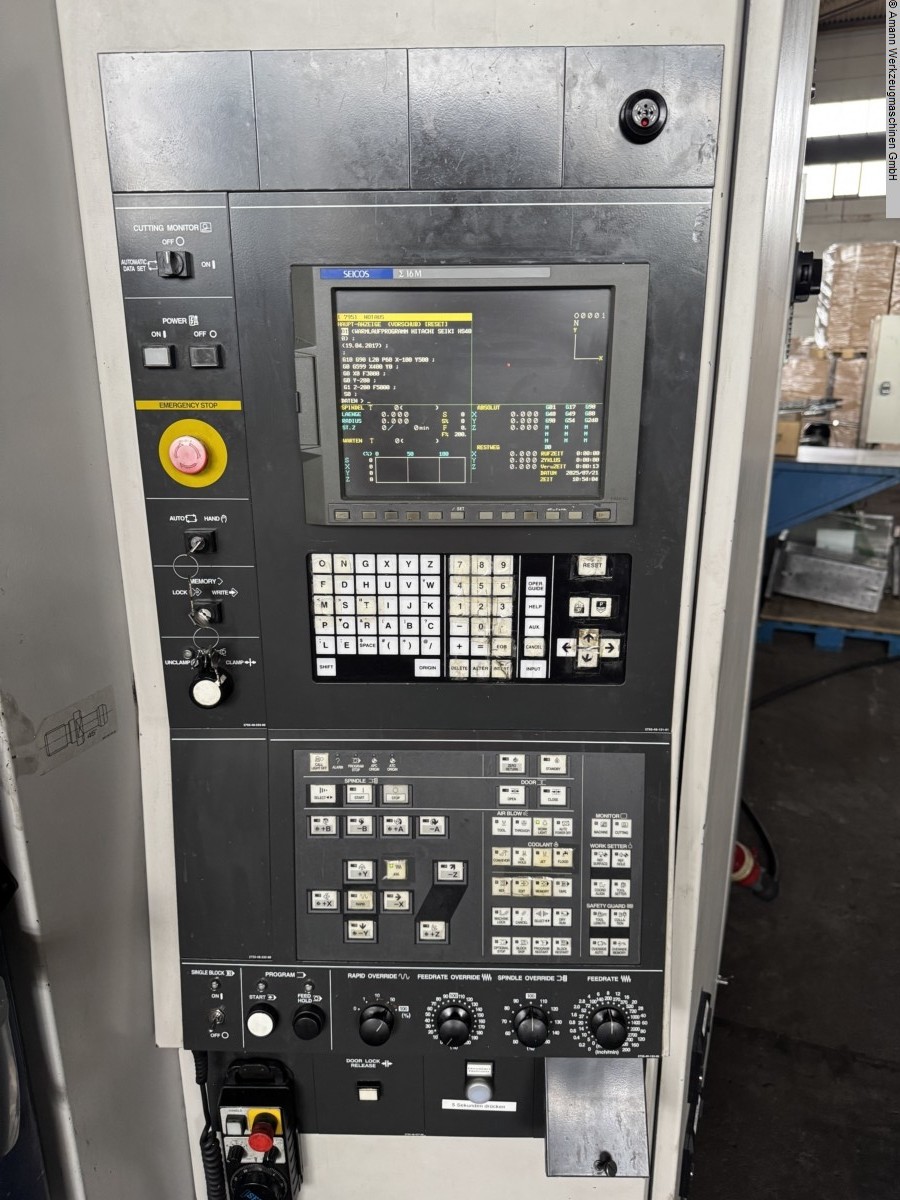

x-travel: 600 mmy-travel: 580 mmz-travel: 580 mmcontrol: SEICOS 16M B-axis (table): 360 x 1° mmfeed X/Y/Z/-axis: 1 - 50.000 mm/minrapid traverse X/Y/Z: 50,00 m/minturning speed range - stepless: 35 - 12.000 Nmspindle drive: 22,00 kWmax. torque on the spindle: 236 tool taper: BT40 toolpiece magazine: chain magazine: 61 Stücksize of pallet: 2x 400x400 mmmax. workpiece diameter: 630 mmworkpiece height max.: 680 mmworkpiece weight max.: 400 kgtotal power requirement: 30,00 kWweight of the machine ca.: 12,00 tdimensions of the machine ca.: 4,00 x 3,50 x H3,00 mWith SEICOS S16M control unit, coolant system, chip conveyor, electron. handwheel, dust exhauster.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

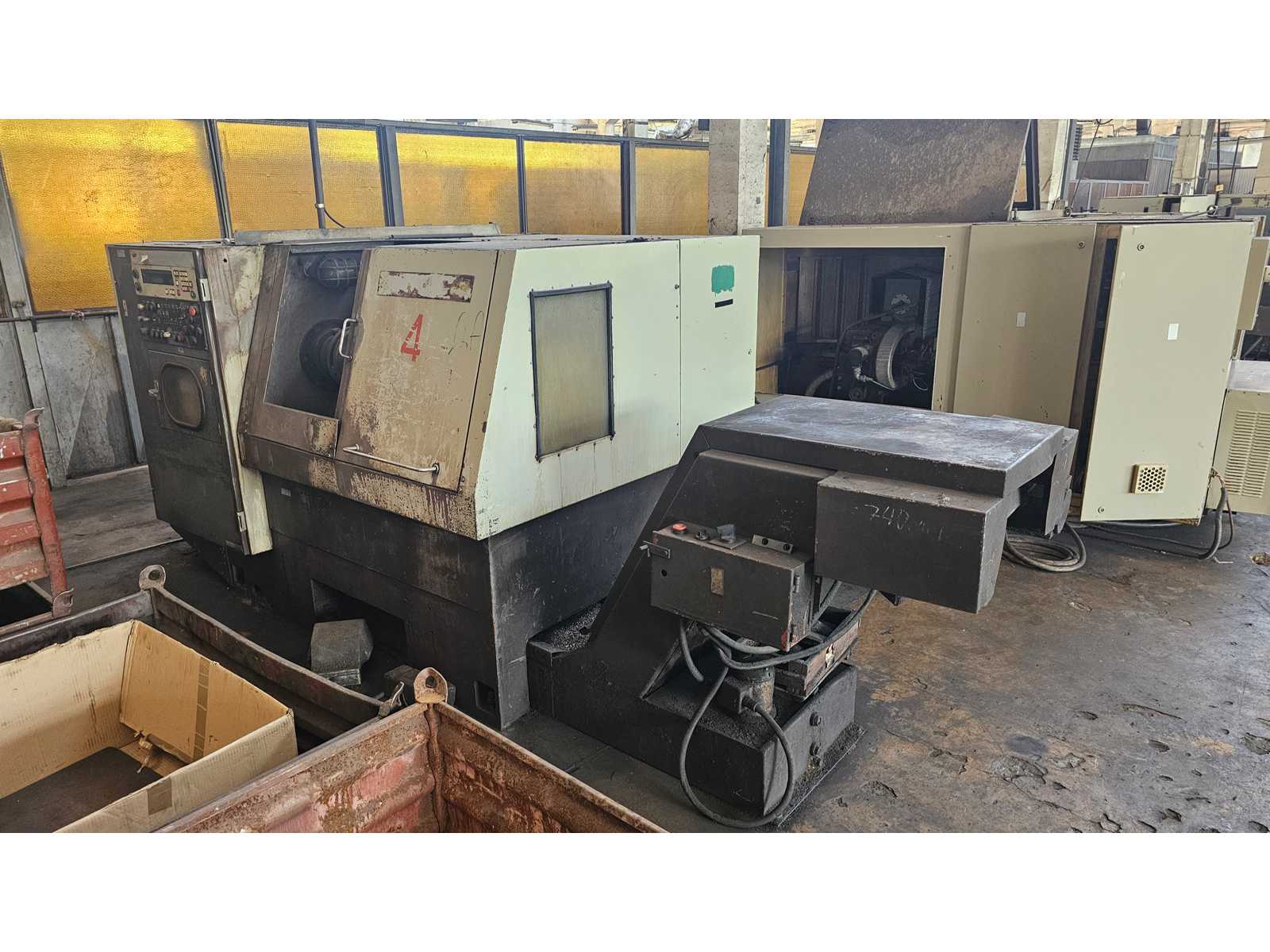

General Description Horizontal CNC turning center designed for precision turning, facing, drilling, boring and threading of cylindrical components. The machine is equipped with a 12-station hydraulic turret, hydraulic chuck and chip conveyor for efficient production machining. Technical Details Machine type: CNC turning center Horizontal CNC lathe 12-station hydraulic turret Hydraulic chuck Older monochrome CNC control Chip conveyor Coolant system Condition Used industrial condition. The machine appears complete with hydraulic chuck, 12-station turret, chip conveyor and coolant system. Operational status, spindle condition and CNC functionality have not been tested. Auction-ID: A7-49124-32
Serial Number: 141643 Control: MAZAK MAZATROL M PLUS Table dimensions: 1460 x 510 mm Tool holder: SK 40 X-axis travel: 1120 mm Y-axis travel: 510 mm Travel Z-axis: 510 mm Max. distance from spindle end face to clamping surface: 690 mm Spindle speed: 40 - 7000 rpm Max. permissible weight on machine table: 500 kg Rapid traverse in X and Y axis: 24 m/min Rapid traverse in Z-axis: 20 m/min Cutting feed speed X/Y/Z: 1 - 5000 mm/min Number of tool locations: 24 Max. tool diameter: 80 mm with occupied neighboring space max. tool diameter with free adjacent space: up to max. 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg incl. chip conveyor MAYFRAN incl. the tool holders located on the tool changer Attention: the machine vice clamped on the table is not included in the scope of delivery! Internal reference: previously lot 14 Auction-ID: A7-49056-264

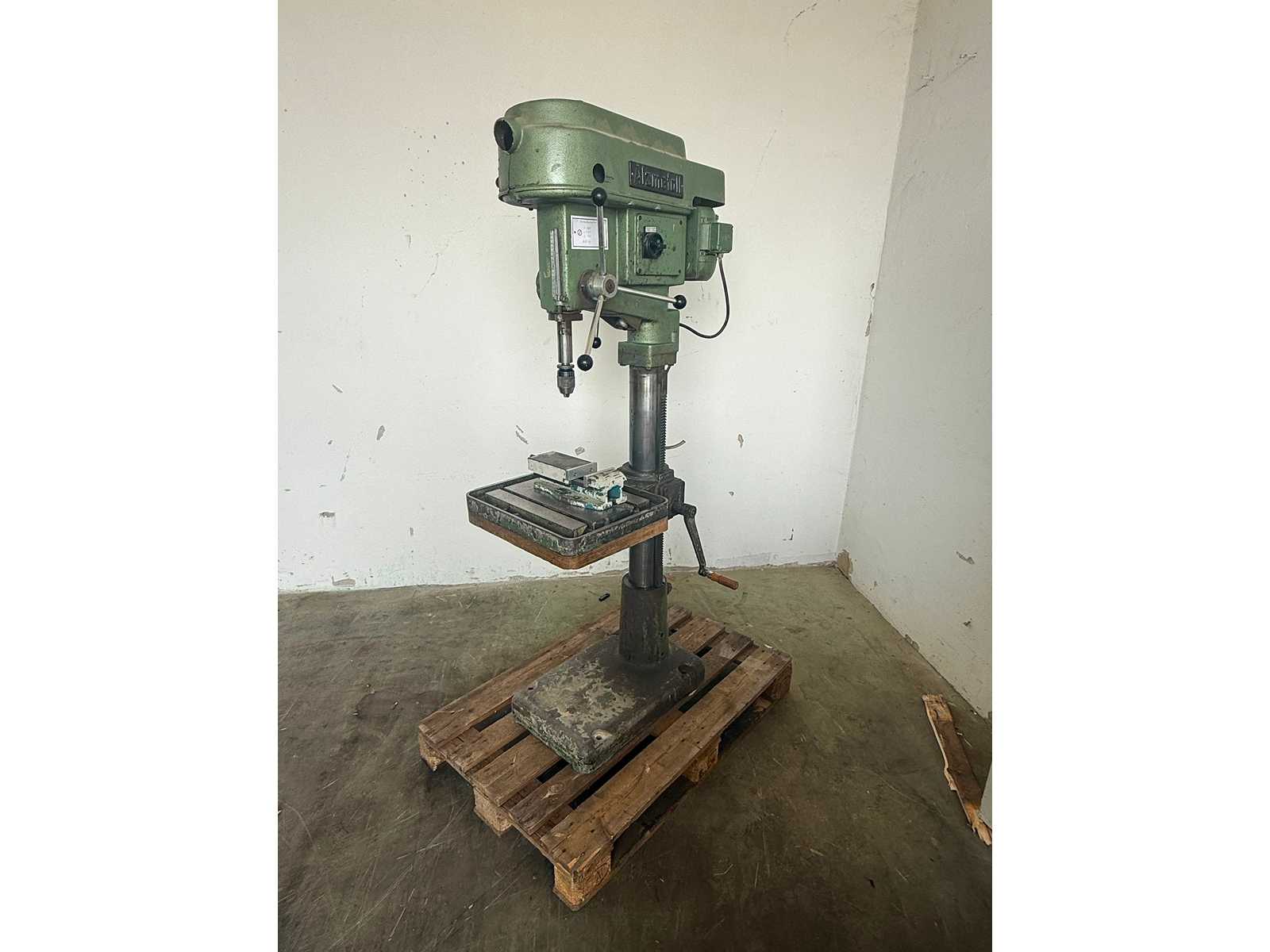

number of spindles: 25 -1500 U/min Stufenlosbore capacity in steel (diameter): 23 mmbore stroke: 120 mmtable clamping surface:: 1250 x 340 mmtaper MK: MK3 total power requirement: 2 kWweight of the machine ca.: 0,4 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

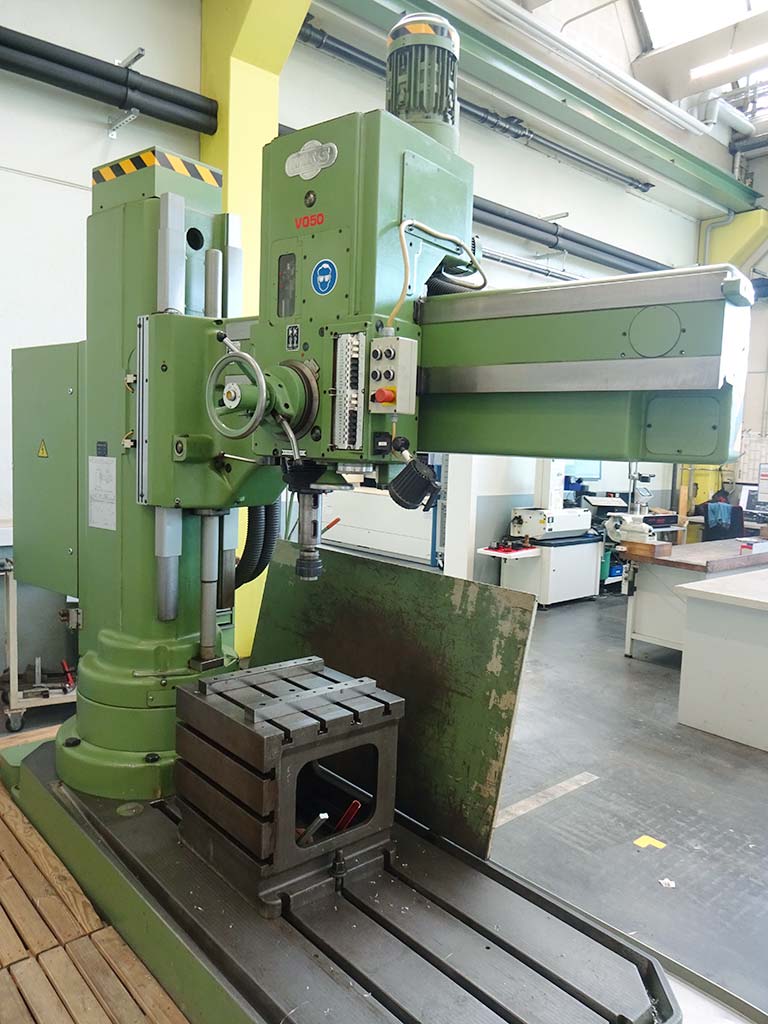

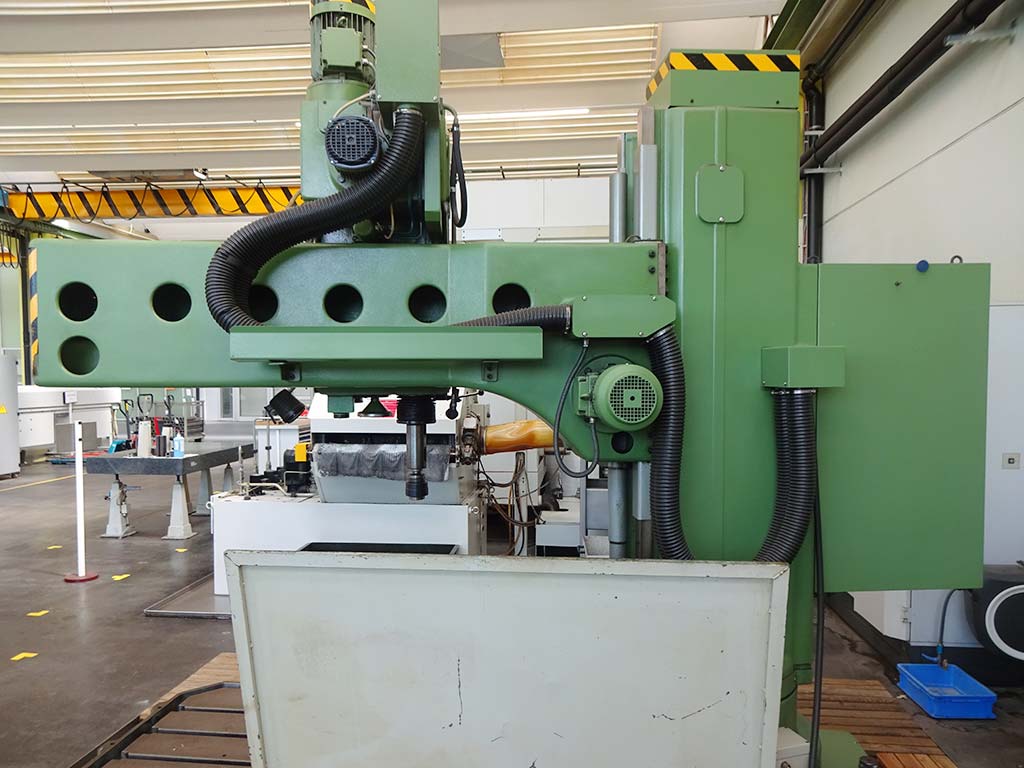

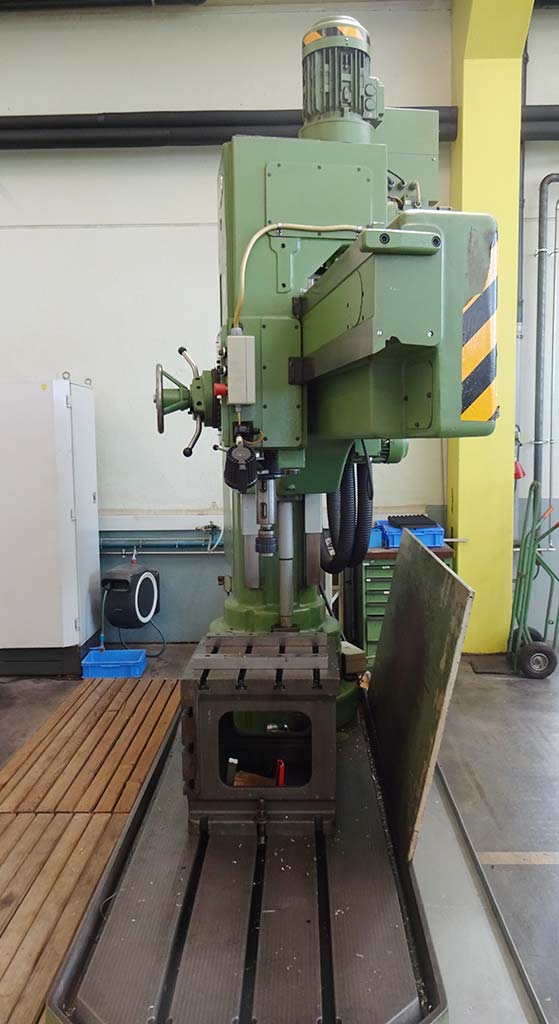

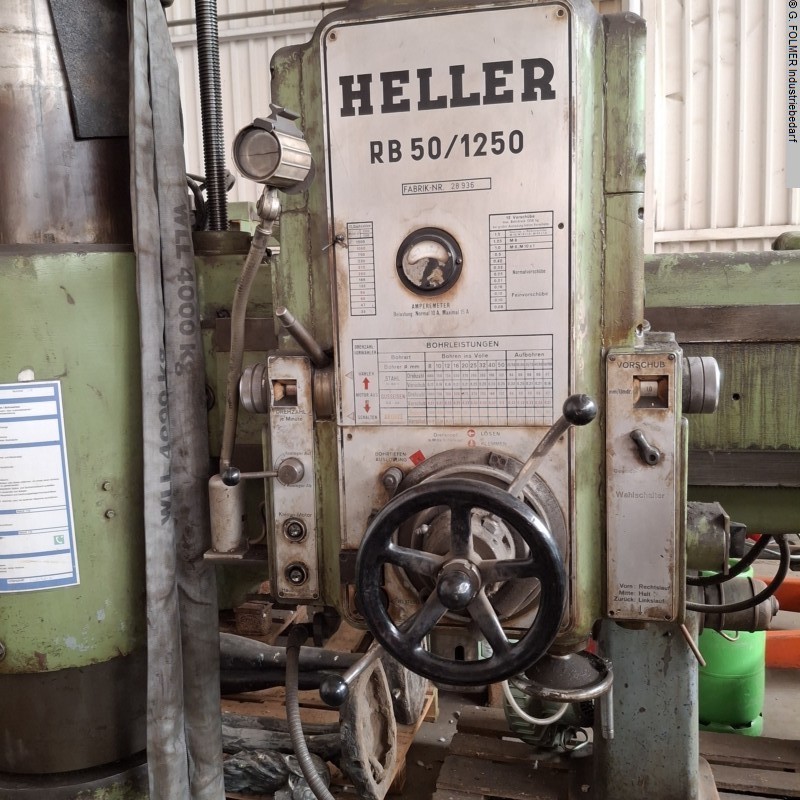

bore capacity in steel (diameter): 50 mmarm length: 1250 mmworkpiece height max.: mmtotal power requirement: 4 kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

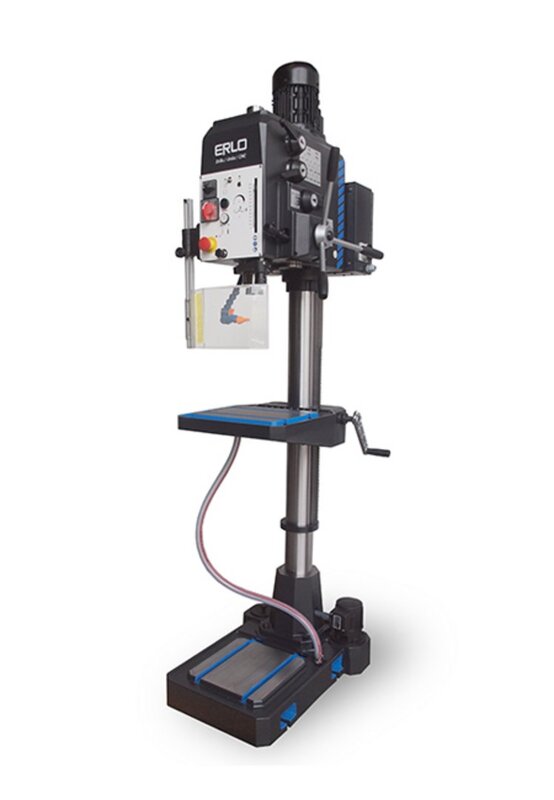

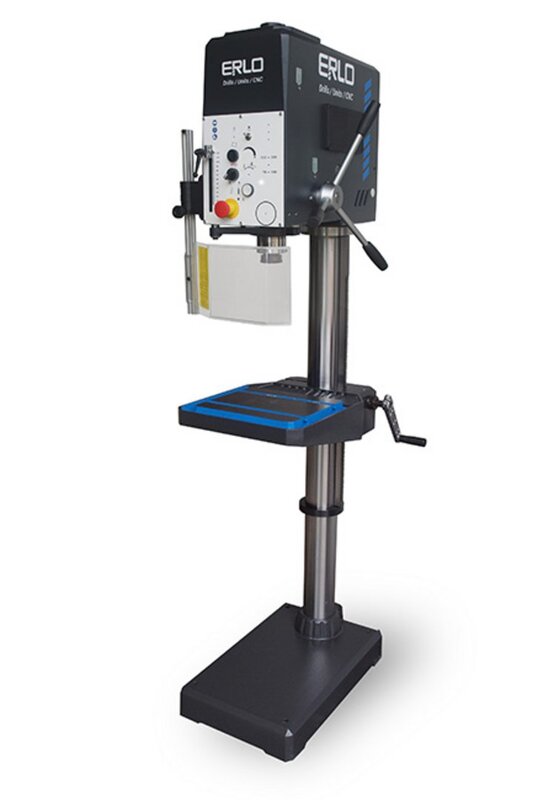

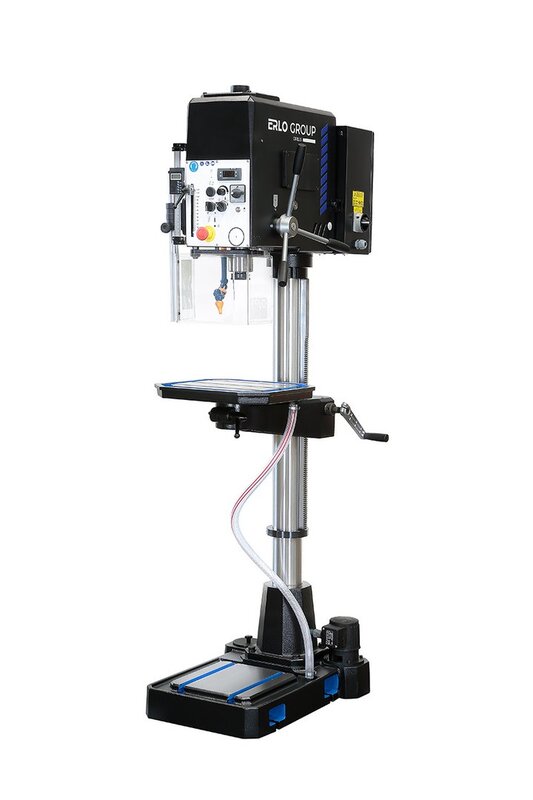

: neu : ca. 8 Wochen ab Auftragse : Spanien : 6840 €: 132.01 €: 25 mm: MK 3 : 250 mm: 245 - 4000 U/min: 0,7 / 1,3 kW kW: M18 : 400 mm: 655 mm: 1900 mm: 280 kg: 120 mm: 100 mm: 85 - 635 mm: 1.195 mm: 300 x 270 mm: 600 x 380 mmERLO(MADE IN SPAIN)FOR MANUFACTURING USEV-belt drivemanual feedleft-right drillingtool ejectoradjustable depth stoptable with T-slotsdrill guard with micro switchlightening equipmentuser manual in English or GERMANCEOPTIONS (PRICES ON REQUEST):Variable speed incl. digital display (VE+TAK)Tapping device (IR/RS)Coolant equipment incl. T-slots in the ground plate (ERB)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

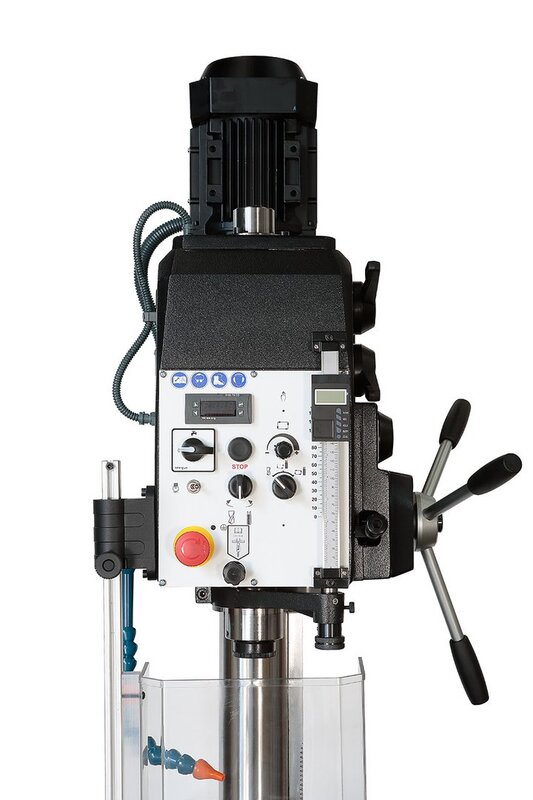

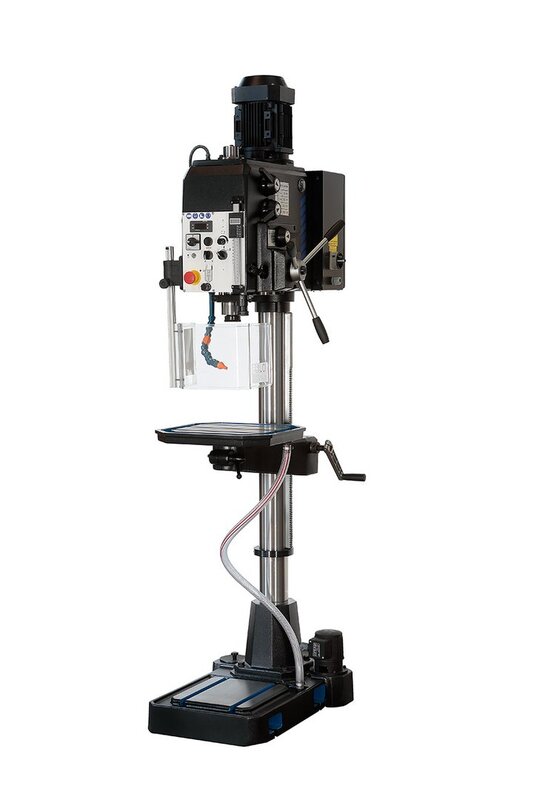

: neu : ca. 6-8 Wochen ab Auftrag : Spanien : 8970 €: 173.12 €: 30 mm: MK 3 : 250 mm: 65 - 3.060 (8) U/min: 380 mm: 600 mm: 2060 mm: 260 kg: 100 mm: 170 - 660 mm: 1.216 mm: 300 x 270 mm: 600 x 380 mmERLO(MADE IN SPAIN)FOR MANUFACTURING USEHigh quality geardrive machine2 automatical feedLeft-right drillingAutomatic tool ejectorAdjustable depth stopTable with T-slotsDrill guard with micro switchLightening equipmentUser manual in English or GERMANCEOPTIONS (PRICES ON REQUEST):coolant equipment with T-slots in base plate ERB Reverse for tapping IR/RSThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
1.550 €
