Key data: 4300 mm, 1500 mm, 1300 mm
CNC control: HEIDENHAIN iTNC 530, X-axis travels 4300 mm, Y-axis 1500 mm, Z-axis 1300 mm, table size 4970 mm x 1200 mm, max. table load 15,000 kg/m, tool holder ISO 50, multi-angle milling head 45 °, automatic angle positioning of axes B and A, spindle motor power 22 KW, rotary blocking hydraulic, working feed 10000 mm/min., express feed 20000 mm/min., with coolant system, deduction. Spindle hours 25,496 hours

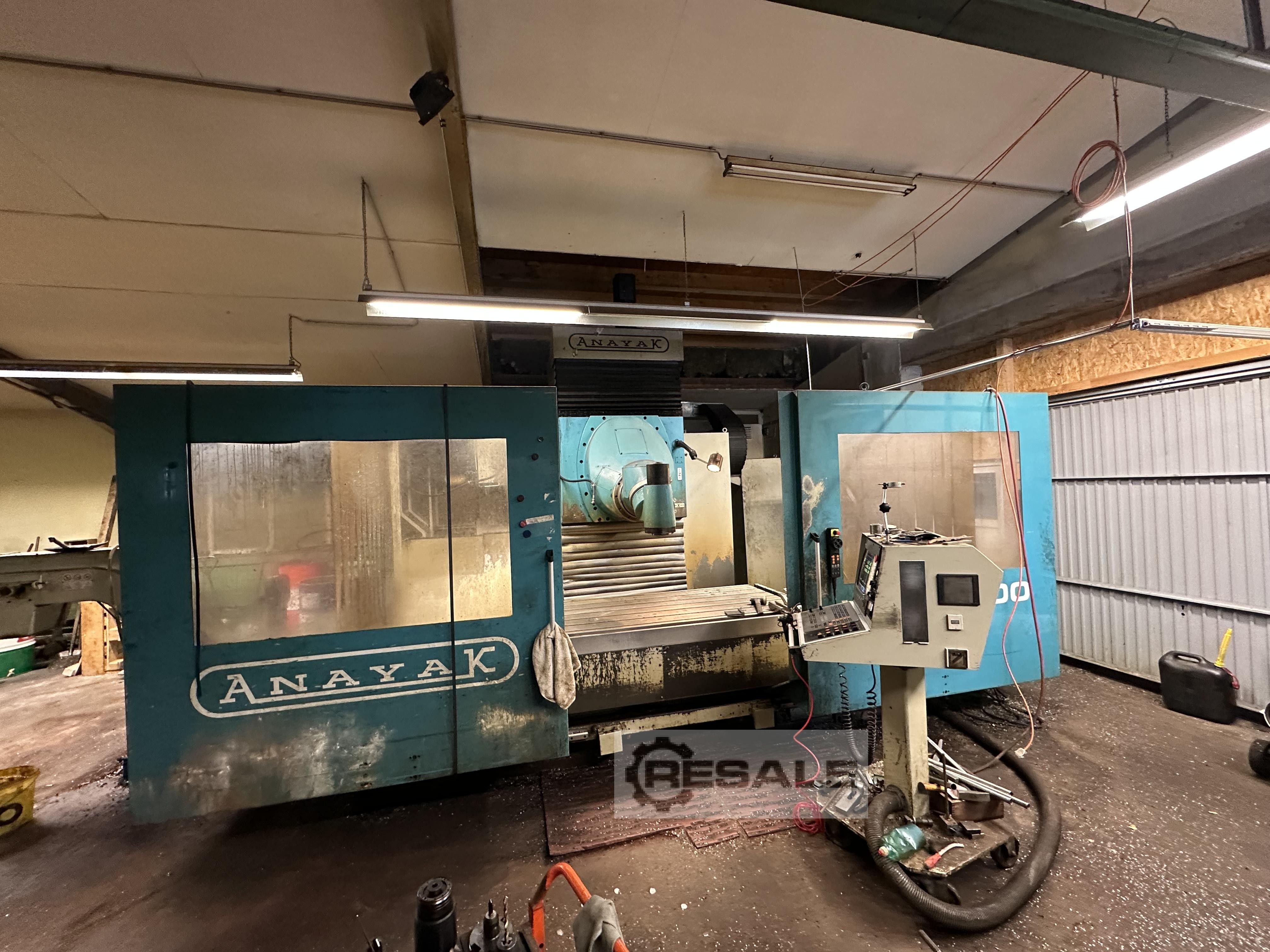

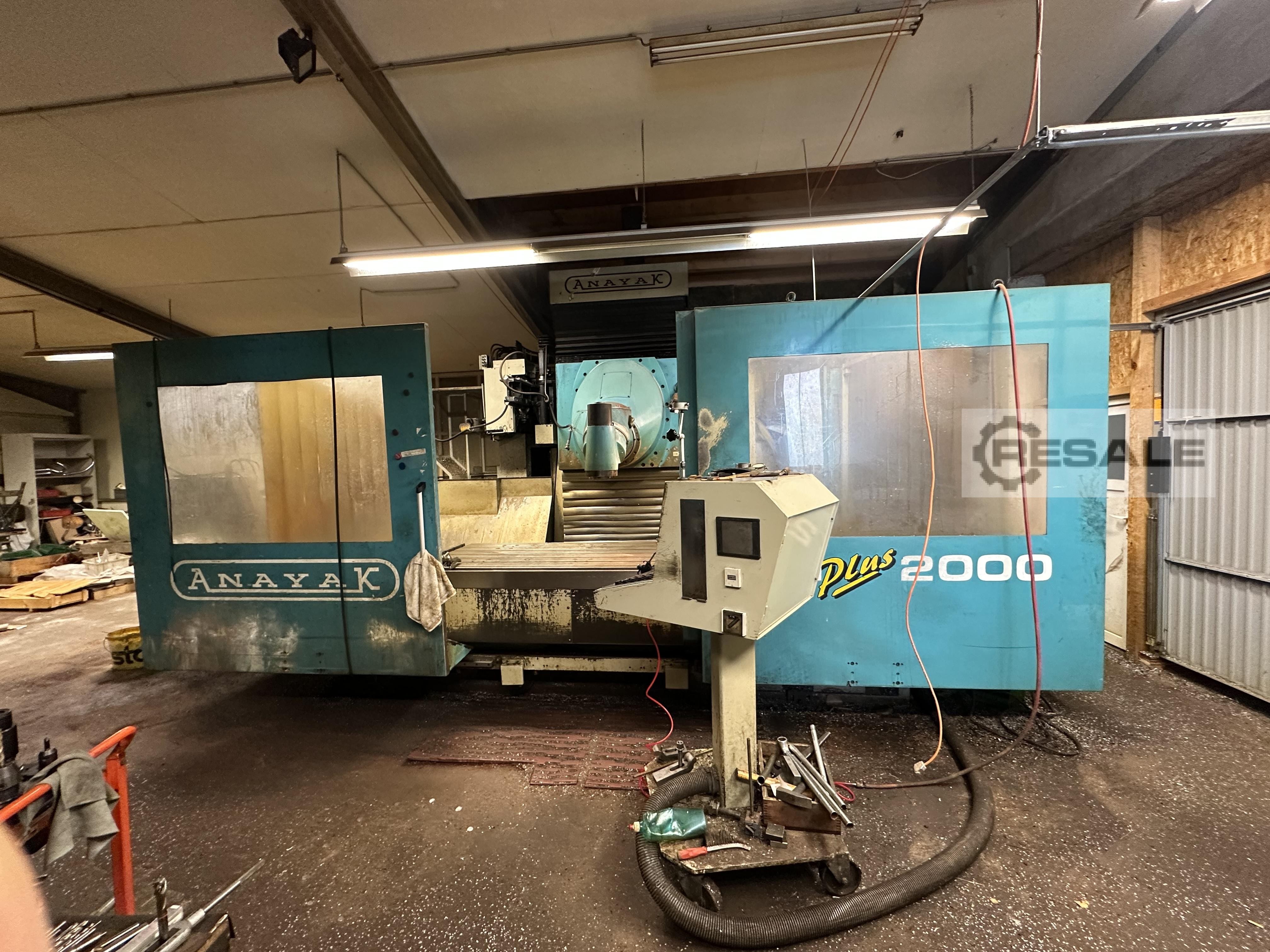

Bed milling machine Anayak VHPlus 2000 Travel: X: 2,000mm Y: 1,200mm Z: 1,050mm Diagonal milling head 45° Spindle: SK50 Power: Kw 30/35 Spindle speed: 4,000 rpm Coolant system Tool changer: 30 places, chain magazine Control: Heidenhain TNC426 Handwheel Export documentation and export possible for an extra charge. Viewing possible under power. We will be happy to send you further details or arrange an on-site exposure.
Key data: 2500 mm, 1000 mm, 1100 mm
CNC Bed Milling Machine Manufacturer: Anayak Type Performer 2500 Year of manufacture 2007 Control Heidenhain iTNC530 ( with new monitor ) Table size 2700 x 850mm Load 6,000kg Travel X/Y/Z 2500/1000/1100mm Tool holder SK50 IKZ Internal Coolant Supply Chip conveyor Electronic Handwheel Heidenhain HR410 Head cannot be swivelled over program Engine on: 54.205h Spindle on : 14.850h Without the accessories that can be seen.
Travel: x=1600mm Y=800mm Z=900mm Spindle speed max. 2000 revolutions per minute Control HH 407 A Cover of the z axis present but defective.
x-travel:2500 mm y-travel:935 mm z-travel:1000 mm table surface area:I 1615 x 800 mm table surface area:II 800 x 800 mm spindle taper ISO:50 milling head speed:60 - 3000 U/min feed speeds:1 - 3000 mm/min rapid speed:10 m/min total power requirement:45 kW weight of the machine ca.:18,5 t dimensions of the machine ca.:5 x 5 x 4 m with CNC HEIDENHAIN TNC 426 Universa Milling Head -C-axis automatic Horiz-Vertical - Intermediate angles manual table II 800 x 800 mm as B-axis ( rotary table ) coolant attachment diverse accessories
x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head diverses accessories
x-travel: 2000 mm y-travel: 920 mm z-travel: 900 mm table surface area: 2200 x 750 mm table load: 3 t number of T-slots: 6 T - slots - width: 18 mm T - slots distance: 120 mm spindle taper: ISO 50 DIN 69871-B spindle speed max.: 3000 U/min transmission ratio: 1 speeds infinitely variable range 1: 60 - 3000 U/min weight of the machine ca.: 21,6 t feeds longditudinal/cross/vertical: 0 - 5000 mm/min rapid traverse: 15000 mm/min total power requirement: 38 kw weight of the machine ca.: 11 t Pull studs DIN69872-B | IKZ Hours: Control on: 43036 h Machine on: 41311 h Program run 13894 h The machine is already dismantled The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 2000 mm y-travel: 1500 mm z-travel: 1460 mm Control: Heidemhain type: TNC 426 CB mm Rotary table: 1350x1550 mm turning speeds: 10-3000 U/min spindle taper ISO: 50 Table load: 6000 kg T-slot - width: 28h7 mm T-slot - distance: 150 mm number of T-slots: 150 Feed: 10-3000 mm/min total power requirement: kW weight of the machine ca.: 24 t dimensions of the machine ca.: m B-axis 0.1-1.5 rpm Feed rate 3 rpm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours a ...
x-travel: 2550 mm y-travel: 900 mm z-travel: 1200 mm Control: Heidenhain type: 355 table surface area: 2900x800 mm Center of spindle to wall or column: 1000 mm spindle taper ISO: 50 : chip conveyor: tool clamping electrical: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data fo ...
x-travel: 1600 mm y-travel: 920 mm z-travel: 900 mm table surface area: 1800x700 mm T-slot - distance: 120 mm Table load: 3000 kg spindle taper ISO: 50 power capacity: 22/30 kW spindle turning speed range: 60-3000 U/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Magnetic clamping plate can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your ...
x-travel: 10500 mm y-travel: 2750 mm y-travel: (3350) mm z-travel: 1500 mm turning speeds: 3500 U/min Tool changer: 80 Control: Heidenhain TNC 430 M positioning accuracy: 1 ° milling-head swivable +/-: CNC Plate area: 12000x2500 mm chip conveyor: spindle taper ISO: 50 Spindle capacity: 37 KW Feed: 6000 mm/min Rapid movement: 15000 mm/min total power requirement: kW weight of the machine ca.: 65 t dimensions of the machine ca.: 18,1x6,7 m CNC angle head 360 ° with 1 ° Hirtverzahnung spindle hours 13500 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, productio ...
- Chip conveyor - Double doors front side - Chain Tool chnager 30 positions - Central lubrication - IKZ 16 Bar and 2,2 kW Flow 16L/Min - Tool blocking power 1968 daN - Full set books and 1e owner machine
Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. - Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines - Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases - One sole operator can control the DUPLEX milling machines - Reduced space and investment requirement comparing with two single machines - Fast investment amortisation due to the high productivity - Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo
A CNC universal bed milling machine Anayak is available. Travel X/Y/Z: 2500mm/900mm/975mm, table dimensions X/Y: 2900mm/800mm, spindle taper: ISO50, spindle speed: 3000rpm, power: 22kW, feed: 6m/min, rapid traverse: 10m/min, tool positions: 30. Machine dimensions X/Y/Z: approx. 6000mm/3000mm/3000mm, weight: approx. 20000kg, control: Heidenhain TNC 426. Documentation available. An on-site inspection is possible. Expected to be available around September 2026.
A CNC universal bed milling machine Anayak is available. Travel path X/Y/Z: 2000mm/1300mm/1460mm, table dimensions X/Y: 1350mm/1550mm, max. table load: 6000kg, speed: 3000rpm, spindle taper: ISO50, feed rate: 3m/min, rapid traverse: 10m/min, weight: approx. 24000kg, control system: Heidenhain TNC426CB. Documentation available. An on-site inspection is possible.
x-travel: 4.000 mm y-travel: 1.700 mm z-travel: 1.500 mm control: HEIDENHAIN iTNC 530 clamping table: - surface area: 4.200 x 1.100 mm max. workpiece weight: 10.000 kg/m² T-slot number x size: 7 x 22 mm Abstand 150 mm feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min Orthogonal indexable milling head: - Swiveling area front/back level: 0,02 x 0,02 ° = 162 Pos., Power at S1/S6 ED: 30 kW Speed range, stepless: 60 - 6.000 min-1 max. torque: 1.500 Nm tool taper: SK 50 – DIN 69871 ZF - Gearbox: 2 Getriebestufen automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/200 mm workpiece length: 400 mm weight of tools max.: 25 kg changing positions: Horizontal/Vertikal total power requirement: kW weight of the machine ca.: 50 t dimensions of the machine ca.: 11,0 x 6,0 x 4,6 m Equipment / Accessories Universal milling head UAD, 0.02x0.02°, positioning via inter ...
Used machine in good condition. Available for immediate delivery. - Number of tool stations: 24 - Control: FANUC - Working area (X x Y x Z): 1.300 x 600 x 600 mm - Max. workpiece weight: 1.000 kg - Max. spindle speed: 9.000 rpm - Axes: 3 - Dimensions (long x wide x high): 3.550 x 2.568 x 2.171 mm
x-travel: 4300 mm y-travel: 1000 mm z-travel: 1050 mm total power requirement: kW weight of the machine ca.: 35 t dimensions of the machine ca.: m Brand: ANAYAK Type: HVM-5000 Build in : 1997 CNC Control HEIDEHAIN, TNC 426 Tablesize: 5000 x 1000 mm X= 4.300 mm Y= 1.200 mm Z= 1.050 mm Toolchanger for 40 tools Tools: BT 50 CNC Controlled head 2,5 degrees Cooling trough the spindle Number of controlles axes: 4 machineweight 35.000 kg Moveable column The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 6300 mm y-travel: 1200 mm z-travel: 2000 mm Control: total power requirement: kW weight of the machine ca.: 57 t dimensions of the machine ca.: 7000x1300x5000 mm Brand: Anayak Type: HVM7000 CNC brand: Heidenhain Year of make: 1997 Table length: 7.040 mm Table width: 1.000 mm X: 6.300 mm Y: 1.200 mm Z: 2.000 mm max. 3000 Rpm Machine dimensions (lxwxh): 7000 x 1300 x 5000 mm Machine weight: 57.000 kg including 6 angleplates 2500 x 700 mm this machine is in perfekt working order and can be inspected under power The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 450 mm z-travel: 400 mm table surface area: 1385 x 305 mm spindle taper: SK 40 quill stroke: 200 mm spindle turning speed range: 50 - 3500 U/min control: HEIDENHAIN control: TNC 155 total power requirement: 5,8 kW weight of the machine ca.: 2,5 t dimensions: 2,25 x 2,0 x 2,4 m Accessories: electron. handwheeel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
25.000 €
