CNC Turning Machines used for sale (567)

Key data: 480 mm, 785 mm, 45 1/min

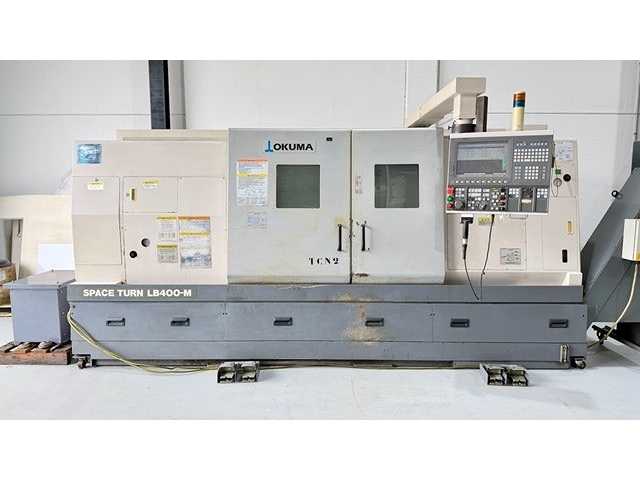

Control OKUMA ... OSP-P300LA Turning diameter... 480mm Turning length... 785mm Inclined bed Axis Y ... 115mm Sub-spindle Spindle bore ... 80mm Tool turret ... 12/12 Bar Feeder Axis X ... 260mm Axis Z ... 510mm Spindle speed ... 45-5000 rpm. Speed of the driven tools ... 45-6000 rpm Rapid traverse of the X axis ... 25m/min Rapid traverse of the Z axis ... 30m/min Rapid traverse of the Y axis ... 12.5m/min Axis C ... 360° Main engine power ... 22kW L x W x H ... 3330 x 1800 x 2250 mm Machine weight ... 5250kg Chip conveyor

Manufacturer: HYUNDAIYear: 1999Type: CNC latheCNC numerically controlled: Siemens Sinumerik 840CMax. turning circle: Ø 254 mmDiameter above bed: Ø 440 mmMax. turning length: 500 mmBar capacity: Ø 51 mmSpindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min)Chuck: Ø 210 mm, Hydraulic clampingTurret: 8 stations – 25 × 25 mm tools / Ø 40 mm barsTailstock: programmable hydraulic – CM4 taperChip conveyor: hinged, side outletDimensions (mm): 2600 × 1700 × 1750Weight (kg): approx. 4200Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-47716-214

Inv. Num. : 9027 Type: SE 520 - 1000 Producer: TRENS Created: 2017 Parameters: Control system: SIEMENS Sinumerik 840D Max. turning length: 1000 mm Maximum turning diameter: 520 mm Equipment: 3x bezel 15x quick-release bracket

Manufacturer: INDEXYear: 2005Type: Moving spindle CNC lathe with motorized tools and C-axisNumerical control: Siemens Sinumerik 840D PowerlineChuck: Ø 160 mmMax. rotation diameter: Ø 180 mmStrokes: X-axis 520 mm / Z-axis 200 mmFast feeds: X/Z 40 / 30 m/minMoving spindle: 5,000 rpm – 13 kW (100%) / 20 kW (40% ED) – max. torque 105 NmC-axis: 0.001° resolution Turret: 12 positions – all motorable stations – VDI 30Motorized tools: up to 6,000 rpm – 8.5 kWPower supply: 400 V / 50 Hz / 3 phases – installed power approx. 25 kWWeight (kg): approx. 4500 Auction-ID: A1-47716-273

The machine is in good technical condition, testing is possible after prior agreement. The machine is offered without a divider.

CNC lathe for metal part turning operations. CNC Control: Heidenhain Turn PlusAxes: 2 Axes Auction-ID: A1-47716-246

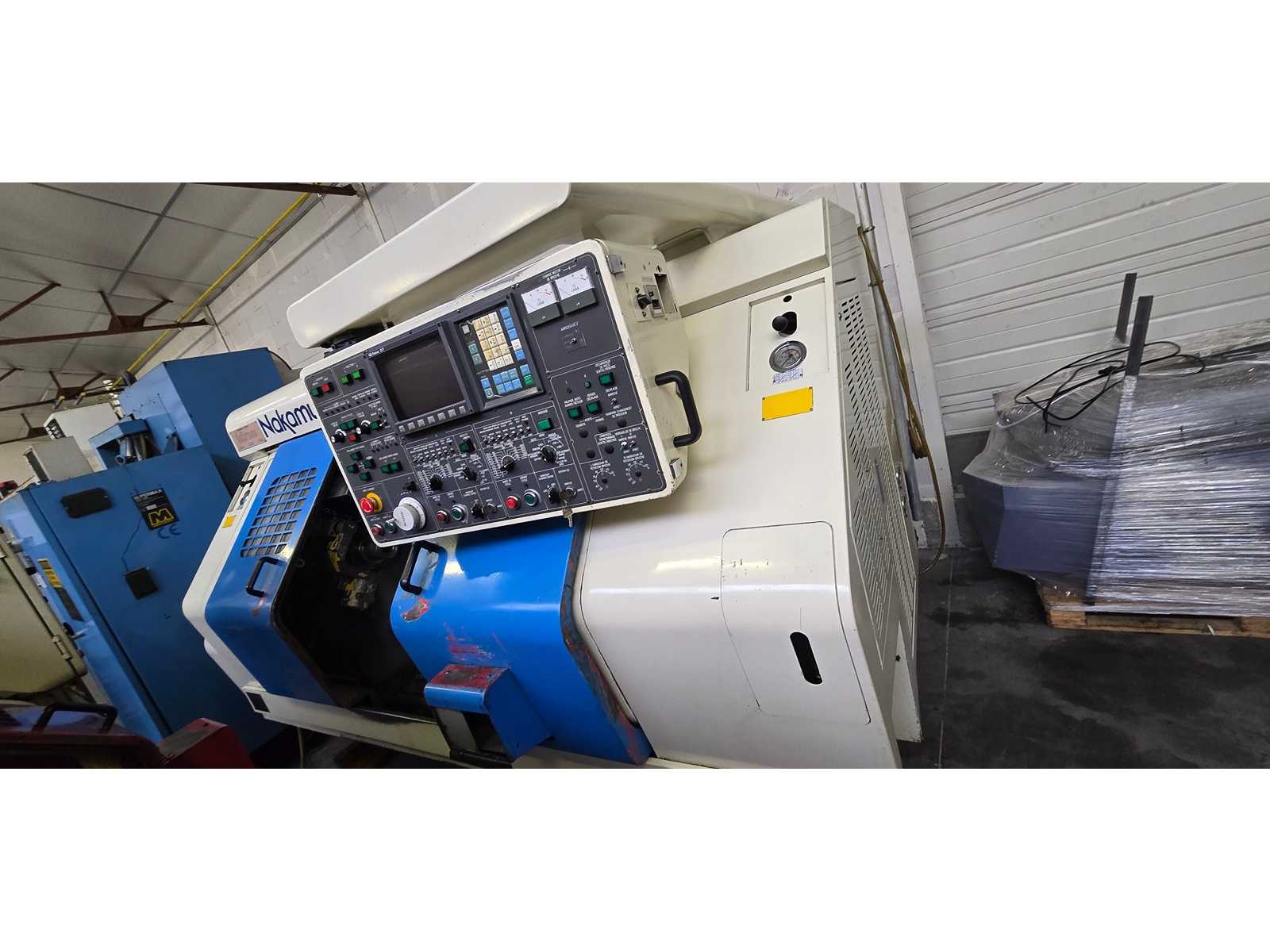

Nakamura CNC Lathe Tome NTJ-100 TECHNICAL FEATURES: Year: 2013 NC Type: FANUC 31i-B-NT-IPS Colour touch screen: 19 ["] Distance between spindles: 910 [mm] Maximum diameter Turning time: 175 [mm] Maximum length Machinable: 678 [mm] Z1 axis stroke: 1040 [mm] X1 axle stroke: 330 [mm] Y1 axis travel: +/- 40 [mm] Z2 axis stroke: 678 [mm] X2 axle stroke: 127.5 [mm] Y2 axis travel: +/- 32.5 [mm] B-axis angular travel: 182 [°] X-axis fast feed speed: 20000 [mm/min] Z-axis fast feed speed: 40000 [mm/min] Y-axis fast feed speed: 6000 [mm/min] Spindle Nose: A2-6" Maximum diameter in bar: 65 [mm] Maximum speed Spindle: 4500 [rpm] C-axis indexing accuracy: 0.001 [°] Spindle power: 11 [kW] Counter Spindle Nose: A2-5" Maximum diameter in sub-spindle bar: 42 [mm] Maximum speed Spindle: 5000 [RPM] C-axis sub-spindle indexing accuracy: 0.001 [°] Spindle power: 7.5 [kW] N ...

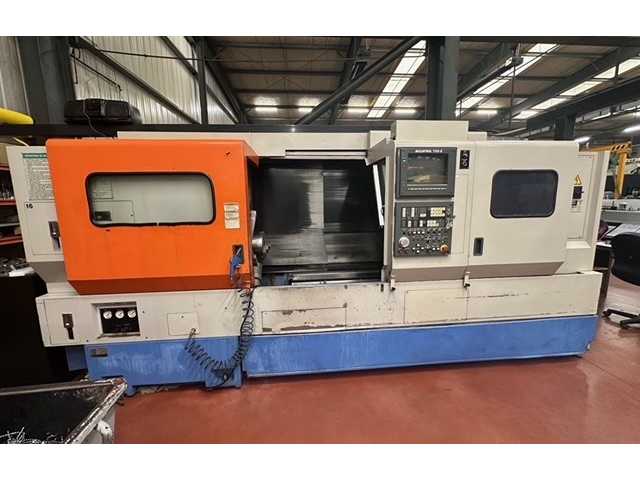

Manufacturer: YAMAZAKI MAZAKYear: 1994Type: CNC latheNumerical control: Mazatrol T32-2Axes: 2 axes (X, Z)Max. diameter above the bed: Ø 560 mmMax. turning diameter: Ø 410 mmMax. turning length: 1500 mmSpindle: 35–3500 rpm – main motor 22 kW – spindle nose A2-8 – bore 76 mmTurret: 12 positionsEquipment: Programmable tailstock, complete enclosureWeight: approx. 6900 kgOrigin: JapanCondition: used Auction-ID: A1-47716-230

FANUC Oi-TB control, power 25 kW, 12-fold tool changer, max. spindle speed 5,000 rpm, chip conveyor

CNC Control: FANUC 21i-TBNumber of axes: 3 (including C-axis)Max. rotation diameter: 120 to 150 mm (depending on tooling)Max. turning length: 120 mmX/Z axis strokes: 340 / 240 mmMax. spindle speed: up to 8,000 rpmSpindle nose: designed for precision grippers or chuckC-axis: 0.001° resolution (positioning and milling)Turret: high-precision, 12 positions (VDI 16 or VDI 20)Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpmDocumentation: completeWeight (kg): 2200Year & Manufacturer: 2007 – SPINNER Auction-ID: A1-47716-258

FANUC Oi-TC control, 12-fold tool changer, max. spindle speed 5,000 rpm, power 25 KW, chip conveyor

Manufacturer: GILDEMEISTERYear: 1996Type: CNC latheNumerical control: Heidenhain ELECTRO PILOT turn plusAxes: 2 axes (X, Z)Turning diameter above the bench: Ø 500 mmTurning diameter above the carriage: Ø 290 mmMax. turning length: 640 mmSpindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mmStrokes: Z 650 mm / X 212 mmFast feeds X/Z: 10 m/minTailstock: sleeve Ø 80 mm – CM4 – stroke 100 mmEquipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentationDimensions: approx. 3300 × 1800 × 1900 mmWeight: approx. 5000 kgRemarks: Robust German-made CNC lathe. Auction-ID: A1-47716-225

GILDEMEISTER NEF 600 CNC Lathe Year of construction 2006 Control SIEMENS 840D Powerline Equipment: Three-jaw chuck RÖHM 250 mm Four-jaw chuck RÖHM 250 mm Revolver 8-speed hydraulic tailstock Chip conveyor Footswitch Included in delivery: Complete set of VDI mounts, equipped with turning tools and much more Operating Instructions/Documentation Technical data, transport & plans – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes, errors. All other accessories visible in the photos and video are not included in the scope of delivery, so they are not part of this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice. FCA (Free Loading Truck) D-32457 Porta Westfalica Packaging only Delivery time immediately Subject t ...

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AAMax. turning diameter: 165 mmTurning length: 100 – 340 mmDiameter above bed: 220 mmMain spindle speed: 50 – 5,000 rpmMain spindle power: 5.5 / 7.5 kWMain spindle bar passing: 65 mmSub-spindle speed: 50 – 5,000 rpmSub-spindle power: 3.7 / 5.5 kWSub-spindle bar passage: 42 mmC-axis: 0.001° Turrets: 2Tool positions: 2 × 16Motorized tools: 2 × 16 positionsStrokes: X 175 mm / Z 240 – 680 mmTotal power: 41 kVADimensions (mm): 3,500 × 2,800 × 2,000Weight (kg): 5,500 Auction-ID: A1-47716-236

GILDEMEISTER NEF 400 CNC Lathe Year of manufacture 2007 Control SIEMENS 840D powerline Equipment: hydraulic three-jaw chuck SCHUNK ROTA NCK 250 mm Revolver 8-speed hydraulic tailstock Chip conveyor Footswitch Included in delivery: Complete set of VDI mounts, equipped with turning tools and much more Operating Instructions/Documentation Technical data, transport & plans – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes, errors. All other accessories visible in the pictures and video are not included in the scope of delivery, therefore not part of this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice. FCA (Free Loading Truck) D-32457 Porta Westfalica Packaging only Delivery time immediately Subject to prior sa ...

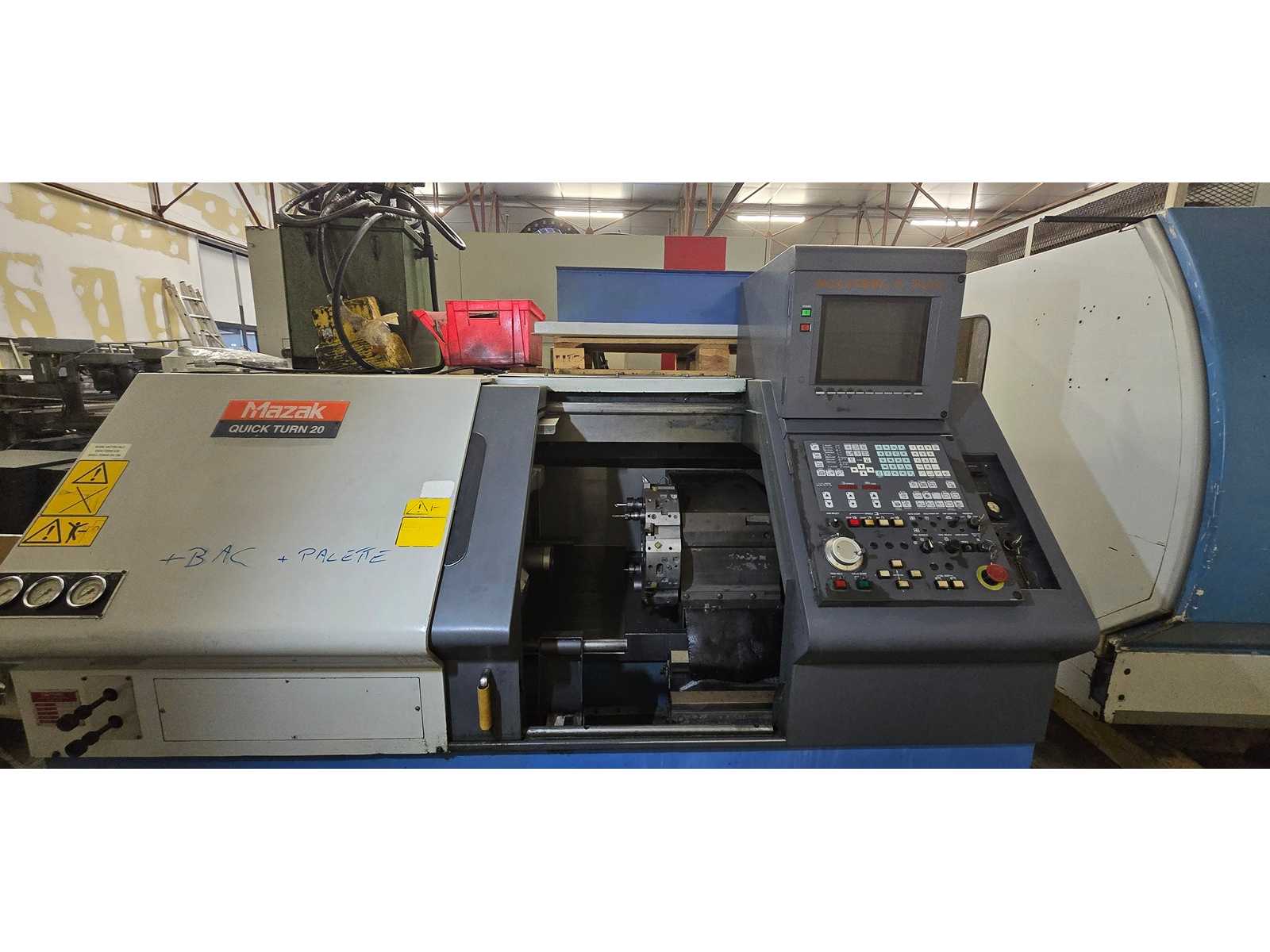

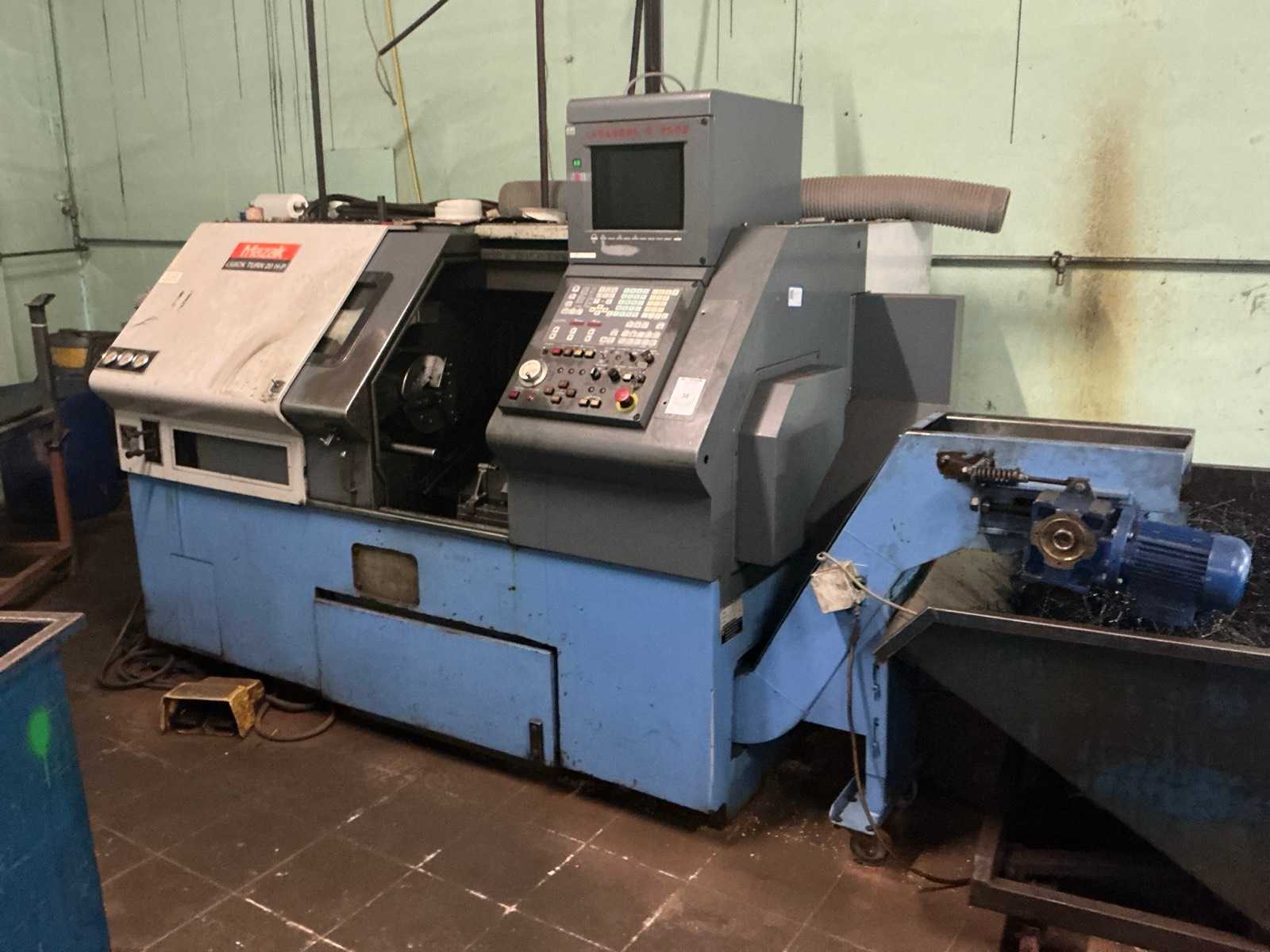

Manufacturer: YAMAZAKI MAZAKModel: Quick Turn 20Year: 1998Numerical Control: Mazatrol T PlusAxes: 2 Axes (X, Z)Capacities:Max. diameter above bed: Ø 300 mmDistance between points: 446 mmX-axis stroke: 180 mmSpindle:Bore: 61 mmMax. speed: 4500 rpmEngine power: 15 kWTurret: 8 positionsDimensions per machine: 2660 x 1520 x 1879 mmUnit weight: approx. 4170 kg (total batch weight approx. 8340 kg)Condition:used Lot sold as a single set (2 machines) Auction-ID: A1-47716-231

Inv. Num. : 5004 Type: SPR 63 CNC Producer: ZPS Generated: GO 2008 Parameters: Control system: SIEMENS Sinumerik 840 D PCU 50 Maximum turning length: 250 mm Maximum turning diameter over bed: 470 mm Spindle diameter: 75 mm Motor power: 30 kW Minimum spindle speed: 35 1/min Maximum spindle speed: 2300 1/min Length: 3500 mm Width: 1800 mm Height: 1940 mm Weight: 6500 kg

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AAMax. turning diameter: 165 mmTurning length: 100 – 340 mmDiameter above bed: 220 mmMain spindle speed: 50 – 5,000 rpmMain spindle power: 5.5 / 7.5 kWMain spindle bar passing: 65 mmSub-spindle speed: 50 – 5,000 rpmSub-spindle power: 3.7 / 5.5 kWSub-spindle bar passage: 42 mmC-axis: 0.001° Turrets: 2Tool positions: 2 × 16Motorized tools: 2 × 16 positionsStrokes: X 175 mm / Z 240 – 680 mmTotal power: 41 kVADimensions (mm): 3,500 × 2,800 × 2,000Weight (kg): 5,500 Auction-ID: A1-47716-237

HYUNDAI WIA L280 CNC Lathe Year of construction 2017 Control SIEMENS 828D Turning Ø over bed 590 mm Rotary Ø max. 410 mm Turning length 720 mm Spindle nose A2-8, speed 3,000 rpm. Spindle 22/18.5 (30min) kW Torque 729.5/613.5 (30min) Nm Travel X - 220 mm Travel Z - 750 mm Equipment: SIEMENS 3D Simulation SIEMENS Shop Turn Dialog Programming C-axis Hinged belt chip conveyor with side discharge 10 Tool Positions (BMT55) Three-jaw chuck Ø 310 mm Foot switch chuck Manual tool button Manual tailstock with hydraulic quill Coolant tank 180 L Standard coolant nozzle USB and Ethernet interface Monochrome signal light Included in delivery: Complete set of VDI mounts Assortment of turning tools Grain tip Tool cabinet with contents Operating Instructions/Documentation Machine parameters on USB stick Technical data & manufacturer's brochure – see PDF. All  ...

Working parameters: Tip height 260 mm; Ø allowed above the bench 530 mm; Ø allowed above the cross slide 315 mm; distance between points 1000 mm; bench width 350 mmEquipment included: GE Fanuc Series 0i Mate-TC control; 3-jaw chuck; tool turret; tooling set, jaws and accessories visible in the tank; visible SMART-TURN / PINACHO documentationPower: 7.5 kWYear & Manufacturer: 2008, PINACHO / METOSANotes: Serial No. 55217; spindle bore 80 mm; spindle nose DIN 55027; spindle taper CM5; spindle speed 0 to 2500 rpm; X/Z fast feed approx. 5 m/min; Sheath tailstock approx. Ø72 mm, stroke approx. 180 mm, CM5 morse taper; Machine with visible signs of use, dirt and shavings. Dimensions (mm): 3000 × 1600 × 1800Weight (kg): 1800 Auction-ID: A1-47716-2

Key data: 406 mm, 584 mm

Inv. Num. : 9153 Type: DS-30SSY Producer: HAAS Created: 2015 Parameters: Hours: 3002 h Maximum turning length: 584.2 mm Maximum turning diameter: 406.4 mm Maximum turning diameter over bed: 807.7 mm X-axis travel: 317.5 mm Y-axis travel: 50.6 mm Travel Z-axis: 584 mm Maximum main spindle power: 14 kVA Maximum spindle speed: 4800 1/min Number of all tools: 24 pieces Spindle bore: 88.9 mm Weight: 7259 kg Equipment: Chip conveyor Pick-up spindle C-axis Bar Feeder Tool Alignment System System for removing parts after cutting Driven Axial Holder ER32 (Heimatec) Driven radial bracket ER32 (Heimatec) Holders for rotary tools, other holders and jaws

CNC Control: GE FANUC Series 16i-TNumber of axes: 2 (with sub-spindle)Main spindle: ASA 5 nose, max. bar passage 42 mm, power 11 kW, max. speed 6,000 rpmMax. rotation diameter: 519.2 mmMax. turning diameter: 308 mmX/Z axis strokes: 189.2 / 406 mmTurret: VDI 30 bidirectional, 16 positions (16 motorized)Sub-spindle: ASA 5 nose, max. bar passage 42 mm, power 7.5 kW, max. speed 6,000 rpmIncluded equipment: parts catcher, motorized tools and stationary tools (depending on seller)Weight (kg): 5071Year & Manufacturer: 2001 – HARDINGE Auction-ID: A1-47716-257

Key data: 320 mm, 305 mm, 5000 1/min

FANUC i Series Control 12-station turret (not driven) Travel X= 175, Z= 330 mm Bar Passage 51 mm Tailstock Chip tank IEMCA BOSS 545/32 E Bar Feeder

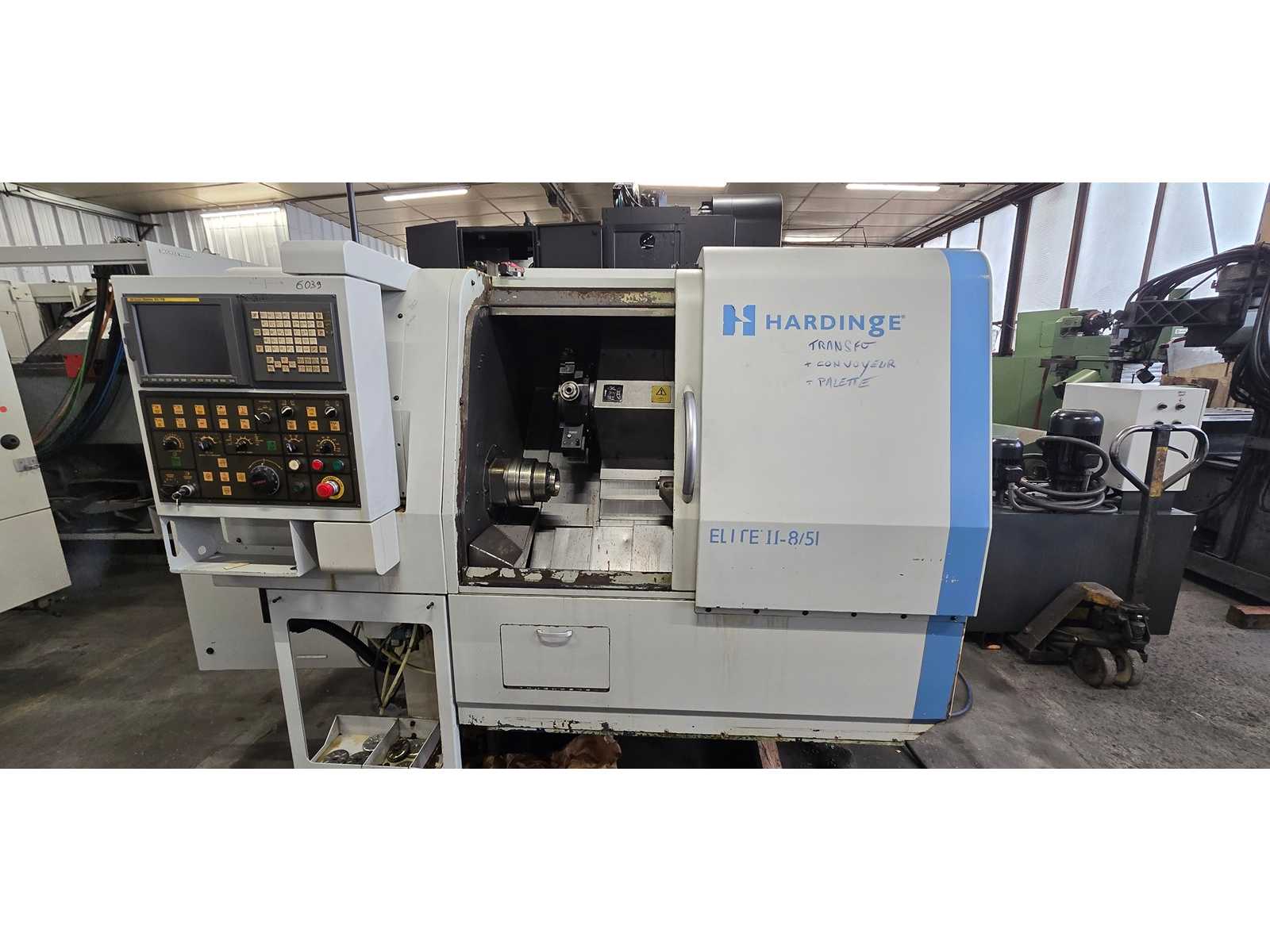

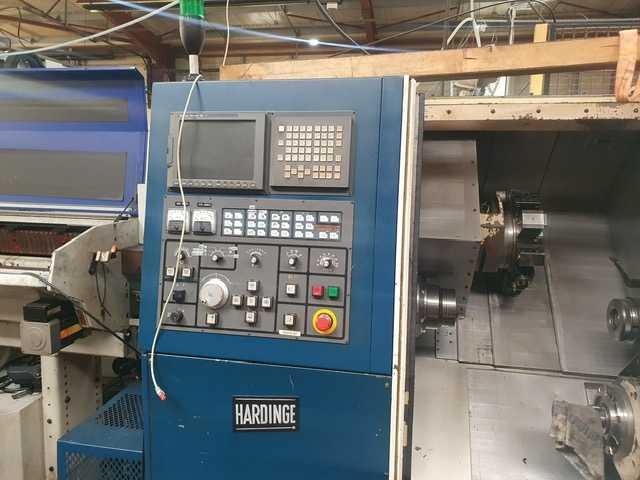

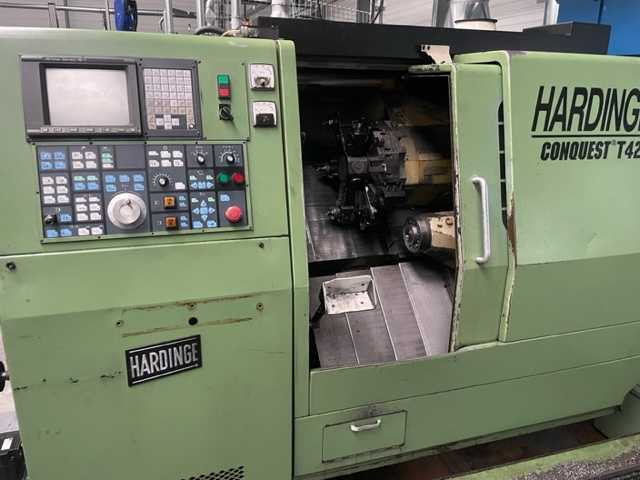

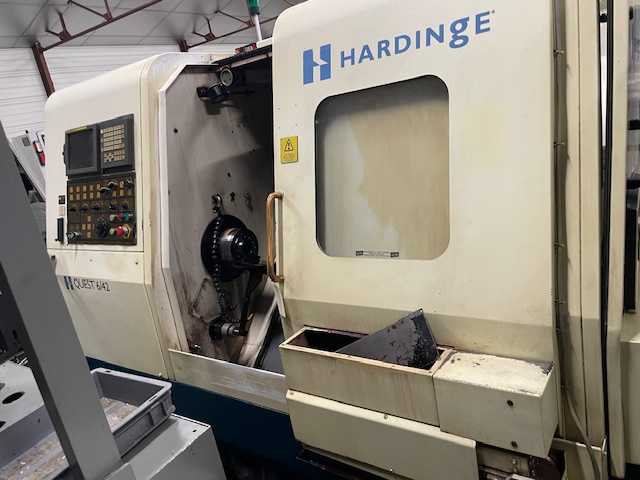

Manufacturer: HARDINGEYear: 2005Type: CNC Motorized Tool Lathe with C-AxisNumerical Control: FANUC 21i-TBBar Capacity: Ø 51 mmMax. Turning Circle: Ø 310 mmMax. Turning Length: 470 mmChuck: Ø 200 mm (8\")Bed Inclination: 45°Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous)Turret: 12 stations, all motorable positionsMotorized implements: 4,000–5,000 rpm – 3.7 kWFast feeds: X/Z 19 / 24 m/minAccuracy: ±0.005 mmIncluded equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feederWeight (kg): approx. 4200 Auction-ID: A1-47716-272

Lathe Hurco TM8i no defects , energized

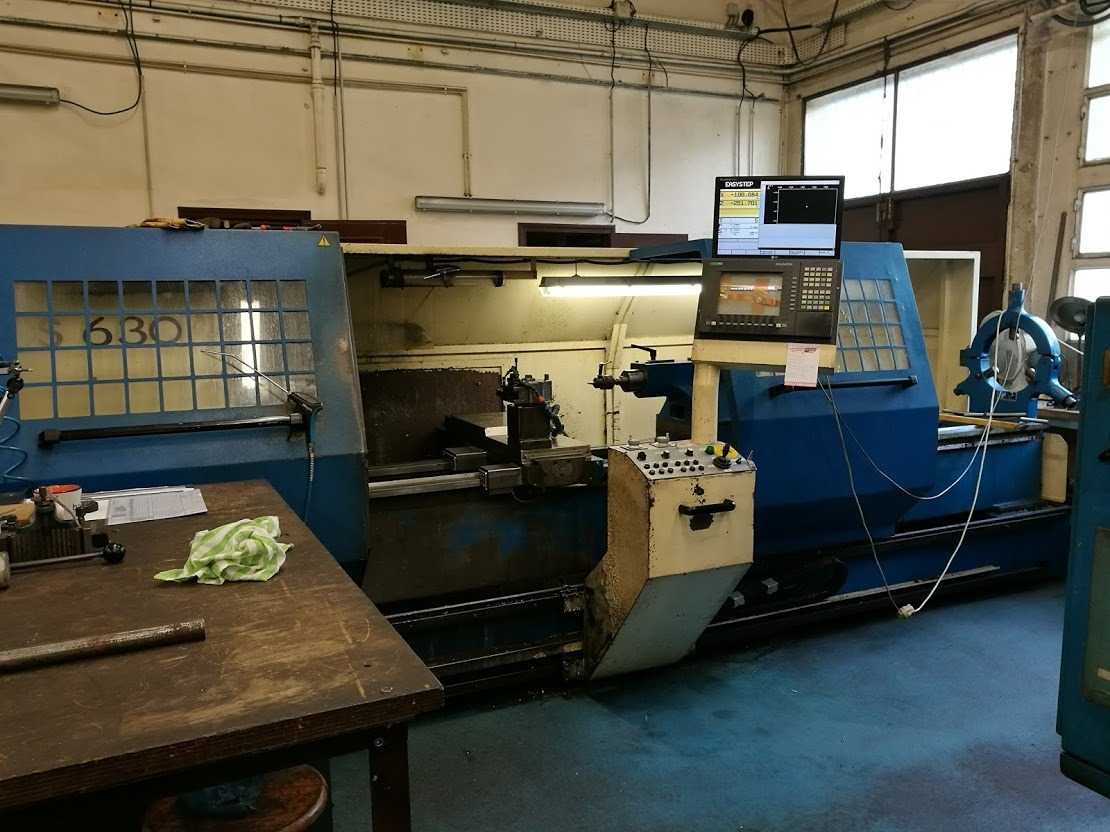

Manufacturer: SOTOS VOJUS (VOJUS a.s.)Year: 2001Type: CNC lathe with automatic cycleNumerical control: Siemens Sinumerik 840D ShopTurnMax. turning diameter: Ø 630 mmDiameter above dragger: Ø 420 mmMax. turning length: 3,000 mmSpindle: up to 2,500 rpm – passage Ø 110 mmFast feeds: longitudinal 10 m/min – transverse 5 m/minInstalled power: approx. 26 kWEquipment: Multifix tool holder, 1 bezel, coolantDimensions (mm): 3000 × 1800 × 1790Weight (kg): approx. 4500Remarks: High-capacity CNC lathe for long workpieces. Serial number included in the description. Auction-ID: A1-47716-220

The machine is in good technical condition, testing possible after prior agreement. Swing diameter over bed: 630 mm, max. turning diameter: 350 mm, max. turning length: 870 mm, spindle passage 52 mm.

CNC Control: NUM Teach-InMax. diameter above the bed: 380 mmMax. diameter above the carriage: 200 mmDistance between tips: 750 mmMax. turning length: 600 mmStrokes X × Z: 180 × 610 mmSpindle type: A2-6\"Spindle power: 11 kWRotational speeds: 0–3000 rpmMax. bar diameter: 62 mmTailstock: Morse code N°4, Ø sheath 60 mm, stroke 175 mmPower supply: 400 V / 50 HzIncluded equipment: touch screen on carriage, LCD control screen, AMESTRA Ø 200 mm 3-jaw chuck, set of hard jaws, AMESTRA type B turret, 5 AMESTRA quick-change tool holders, CM4 rotating tailstock, coolant tray with automatically controlled pump, lighting, 4 feetDimensions (mm): 1950 × 1320 × 1820Weight (kg): 2000Year: 2000Manufacturer: CAZENEUVE Auction-ID: A1-47716-268

Key data: 254 mm, 500 mm, 3600 1/min

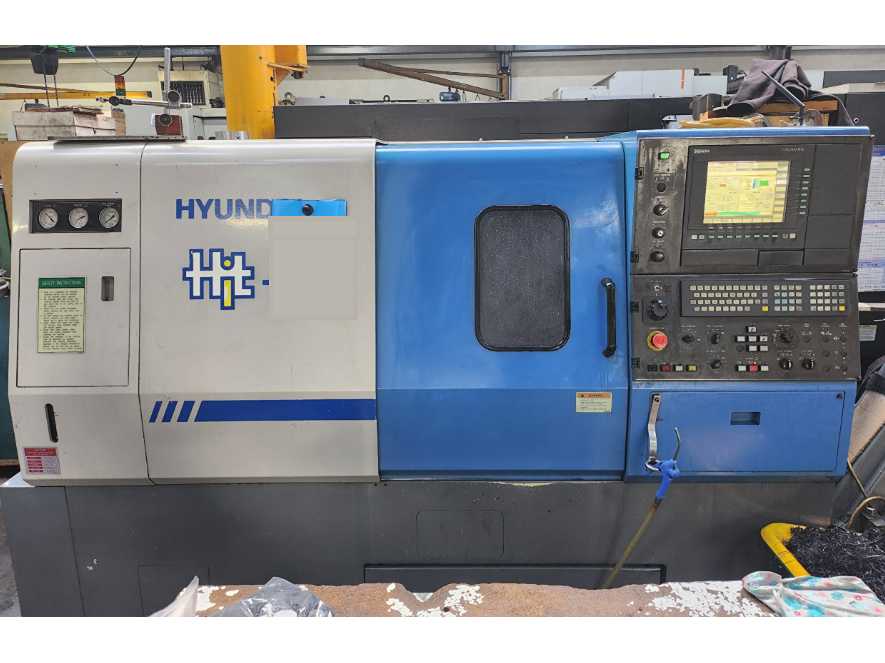

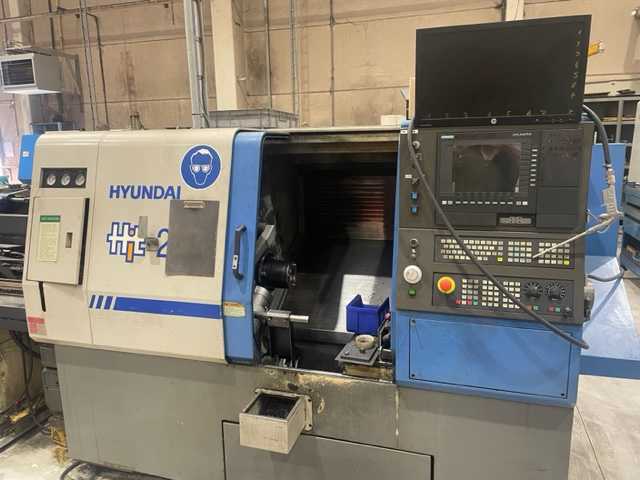

Stock number: 3967 CNC LATHE Manufacturer: HYUNDAI, Type: HIT 18S Machines NO.: 34156066, Year of manufacture: 1998 Specifications: Max. circulation diameter 254 mm dia. Turning length 500 mm Main motor power 15 kw Main spindle speed range 3600 rpm Spindle bore 75 mm dia. X axis movement 180 mm Z ash movement 510 mm Tool turret 1 with 8 stations Control Siemens 840C Fabr. Controlled in X-Z axes Accessories: Hydr. Chuck main spindle mm dia Various tool holders. Chip conveyance. Tailstock Whtitout Length: 2650 mm, Height: 1900 mm, Width: 1700 mm, Weight: 4300 kg

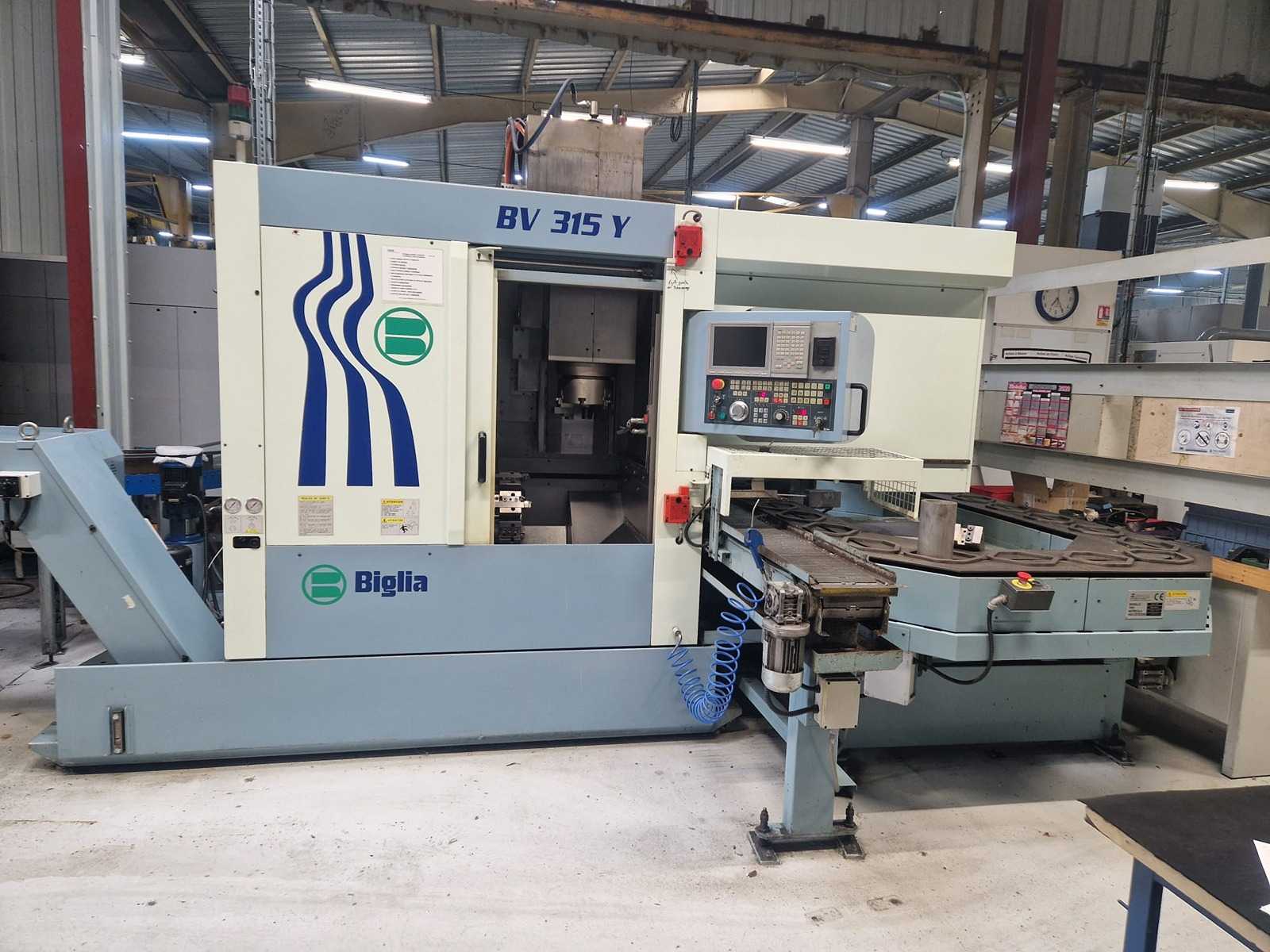

Lot composed of: CNC Tower Biglia BV 315 Y Mitsubishi CNC Y-axis COMAC / BRC automated parts loading/unloading system Motorized circular transfer table Conveyor for the evacuation of machined parts Hydraulic power unit with filtration Machine data: Manufacturer: BIGLIA Model: BV 315 Y Serial No.: 9266 Year of manufacture: 2007 Weight: 6,220 kg Posting working time: 22,057 h Automation data: Manufacturer: COMAC Type: BOX 126-24 Serial No.: 50807 Year of manufacture: 2007 Additional manufacturer: BRC Automazione Industriale Type: NTB BV 160 Serial No.: MT06 0810 Year of manufacture: 2007 Auction-ID: A1-47716-9

Key data: 800 mm, 600 mm, 500 1/min

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, coolant device, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AAMax. turning diameter: 165 mmTurning length: 100 – 340 mmDiameter above bed: 220 mmMain spindle speed: 50 – 5,000 rpmMain spindle power: 5.5 / 7.5 kWMain spindle bar passing: 65 mmSub-spindle speed: 50 – 5,000 rpmCounter-spindle power: 3.7 / 5.5 kWCounter-spindle bar passage: 42 mmC-axis: 0.001°Turrets: 2Tool positions: 2 × 16Motorized tools: 2 × 16 positionsStrokes: X 175 mm / Z 240 – 680 mmTotal power: 41 kVADimensions (mm): 3,500 × 2,800 × 2,000Weight (kg): 5,500Serial No.: 1105-02957 Auction-ID: A1-47716-238

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY KBF 452/500

Maximum passage diameter: 310 mm Maximum turning diameter: 190 mm Standard turning diameter: 170 mm Maximum turning length: 235 mm Bar passage: 65 mm Spindle speed: 50 to 5,000 rpm Spindle power: 22 kW / 18.5 kW Spindle nose: JIS A2-6 Spindle Bore: 73 mm Axis C: Indexation 0.001° Turrets: 2 independent turrets Tool capacity: 32 positions (16 per turret) Motorized tools: 16 positions per turret Motorized Tool Speed: 6,000 RPM Power with motorized tools: 5.5 / 2.2 kW Indexing time: 0.2 s X-axis: 140 mm Y-axis: ± 50 mm Z-axis: 700 / 690 mm B-axis: 775 mm Fast Advances: 18 m/min CNC Control: MSX 501 MAPPS II (Fanuc 30i) Weight: 6,600 kg Dimensions: 3,700 x 2,100 x 2,000 mm Equipment: Bar feeder included Auction-ID: A1-47716-15

CNC control Traub System TX8 F, with 1 turret with 6 tool positions and 1 turret with 6 tool positions, driven tools, bar passage 30 mm, with fleece filter system, coolant device and aut. Bar loading magazine

CNC lathe for metal part turning operations. Numerical control: Fanuc 18TAxes: 3-axisTurret: 12 fixed positions + 6 rotating positionsChuck: Ø 200 mm (possibility of mounting clamps in the spindle)Distance between tips: 350 mmSpindle speed: 4,000 rpmSpindle passage: 51 mm Auction-ID: A1-47716-249

CNC control Traub System TX8 D, with 1 turret with 12 tool positions, bar passage 60 mm, with fleece filter system and chip conveyor

Manufacturer: YAMAZAKI MAZAKModel: Quick Turn 20Year: 1997CNC Machine: Mazatrol T PlusAxes: 2 Axes (X, Z)Capacities:Max. diameter above bed: Ø 300 mmDistance between points: 446 mmX-axis stroke: 180 mmSpindle:Bore: 61 mmMax. speed: 4500 rpmMotor power: 15 kWTurret: 8 positionsDimensions per machine: 2660 x 1520 x 1879 mmUnit weight: approx. 4170 kg (total batch weight approx. 8340 kg)Condition: used Auction-ID: A1-47716-261

CNC control Traub System TX8 D, with 1 turret with 14 tool positions and 1 turret with 9 tool positions, driven tools, max. turning length approx. 1000 mm, bar passage 80 mm, power 73 KW, with fleece filter system and chip conveyor

CNC Control: FANUC 18i-TNumber of Axes: 5 (Twin-Spindle Configuration)Main Spindle: PresentSub-Spindle: Turrets: 2 Turrets with MotorizedTools Configuration: Combined Turning and MillingWeight (kg): Approx. 9000Year & Manufacturer: 2004 – HARDINGE Auction-ID: A1-47716-259

RETROFIT of the machine in 2010, CNC control FANUC Series 18i TB, total weight 5,500 kg, filter system W & W FILTER SYSTEMS, chip conveyor SEREMETO, cooling unit EMAG HTD 720

CNC Control: FANUC Series 18-TNumber of axes: 3 (including C-axis)Maximum machining diameter: 200 mmDistance between tips: 300 mmMax. spindle speed: 3,000 rpmSpindle power: approx. 17.5 kWTurret: 12 fixed positions + 6 rotating positionsChuck: Ø 200 mmSpindle: direct collet mounting possibleWeight (kg): approx. 4200Year & Manufacturer: 1993 – HARDINGE Auction-ID: A1-47716-255

Key data: 324 mm, 600 mm

Control: HEIDENHAIN CNC Pilot 4290 Max. spindle speed: 5,000 1/min C-axis Max. bar passage: 65 mm Travel: X= 260, Z= 630 mm 12-station turret (all driven, max. 4,500 rpm) Tailstock Tailstock stroke: 580 mm Chip conveyor Dimensions LxWxH: 3500 x 2440 x 2100 mm (without chip conveyor) Weight: 6,000 kg Switch-on hours: 32,600 h Spindle hours: 7,600 h

CNC control: MSX-850 IIINumber of axes: 2Strokes: X = 260 mm, Z = 590 mmSpindle speed: 50 – 5000 rpmPower: 15 kWBar capacity: Ø 65 mmSpindle bore: 73 mm Turret: 12 stations (BMT)Max turning diameter: 356 mmMax turning length: 510 mmChip conveyor: yes235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-47716-204

Key data: 290 mm, 450 mm, 5000 1/min

Control: EPL Country of origin: Germany Spindle passage: Ø65 mm Tool turret: 12-fold driven places Tool holder: VDI 40 Speed tools: 3000 rpm Weight: approx. 4,700 kg + 600kg control cabinet Chip conveyor: BMF Bürener Maschinenfabrik Bar feeder: GIOVANNI CUCCHI, type DB 70 Tools for an extra charge There are a total of 6 machines with bar feeder (price per machine with loader) Dcjwvey N Tdzeu Nu Ieg There is 1 machine without loader available (€ 8.500,-)

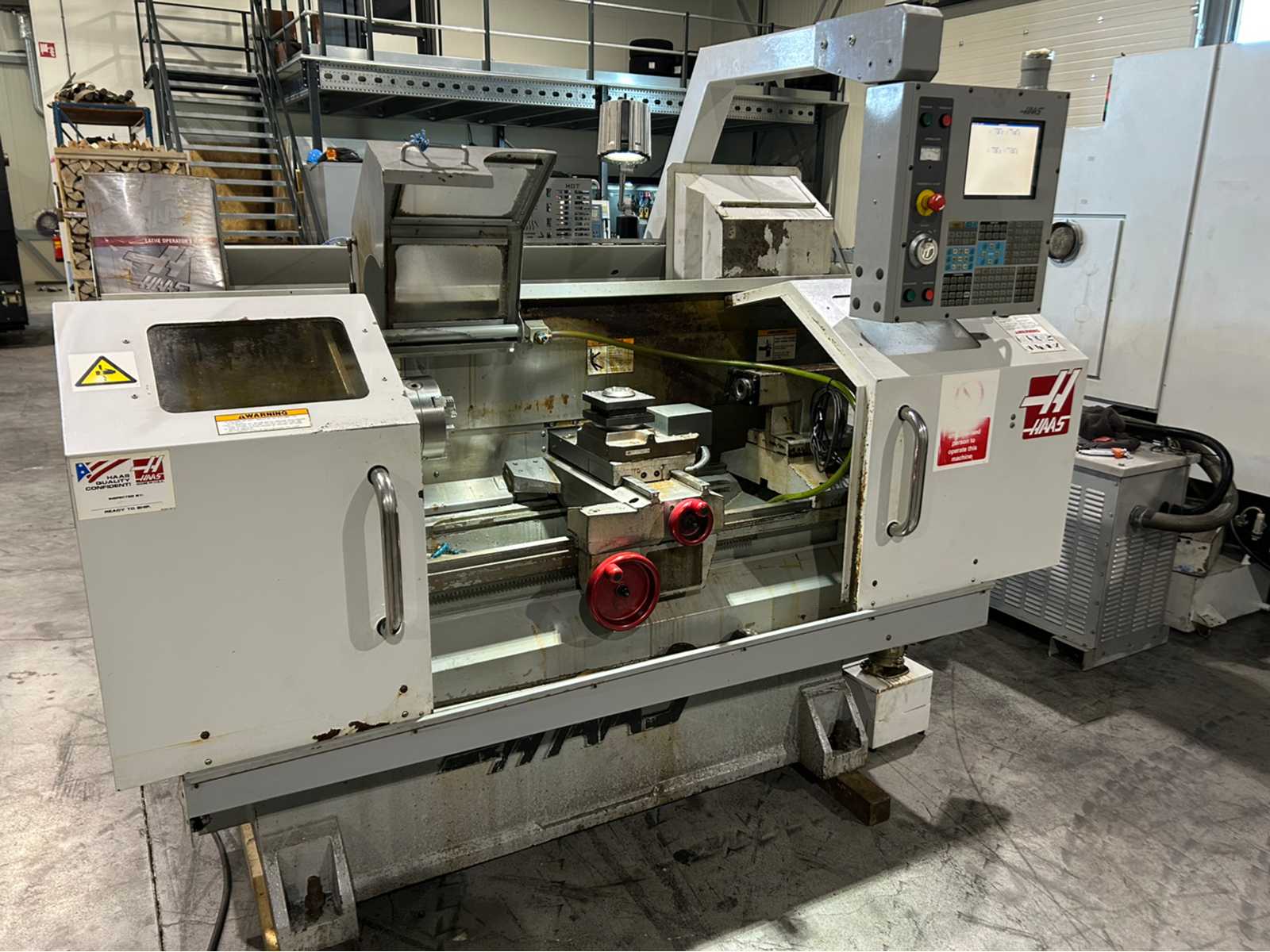

2-axis CNC lathe with HAAS CNC Manufacturer: HAAS Model: HL-2 Year: 1997 Serial Number: 61212 Max turning diameter: 508 mm Max turning length: 610 mm Spindle Bore: 76.2 mm Max spindle speed: 3750 rpm Turret: 10 positions CNC Control: HAAS CNC Power supply: 360 / 480 V – 3 phases – 50/60 Hz Dimensions approx. (L x W x H): 3200 x 1778 x 1778 mm Weight approx.: 4082 kg Auction-ID: A1-47716-263

The machine is in good technical condition, after prior agreement it is possible to test it. with the Siemens Shopturn system, including the feeder, the machine is fully equipped. BASIC PARAMETERS Working space max. turning Ø: ≈ 410–500 mm max. length: 800 mm distance between spindles: approx. 1020 mm swing diameter above the bed: ~700 mm realistic: ideal for shafts, flanges, bodies up to ~800 mm Travels (axes) X: ~480 mm Y: 100 mm Z: ~800–845 mm B axis: 110 (5-axis machining) C axis: 360 (indexing + interpolation) this makes it a full-fledged turn-mill (not a classic lathe) Spindles main spindle speed: ~5000 rpm power: ~25–34 kW passage: approx. 76–87 mm counter spindle speed: ~6000 rpm milling spindle (main difference compared to a classic lathe) speed: up to 12,000 – 20,000 rpm power: ~19–22 kW taper: HSK-A63 or Capto C6 allows: milling drilling tapping 5-axis simultane ...

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm Auction-ID: A1-47716-17

Key data: 350 mm, 650 mm, 3500 1/min

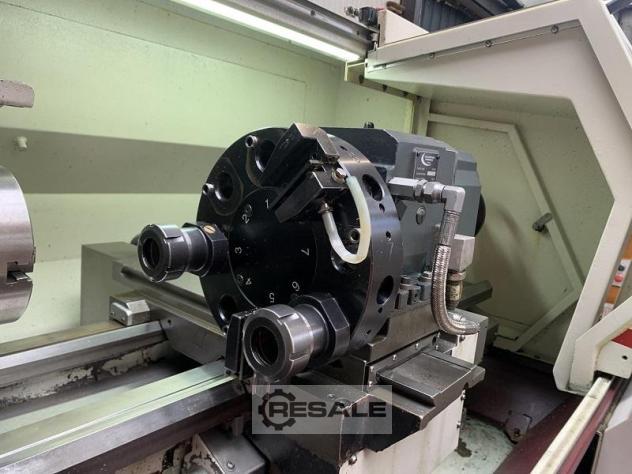

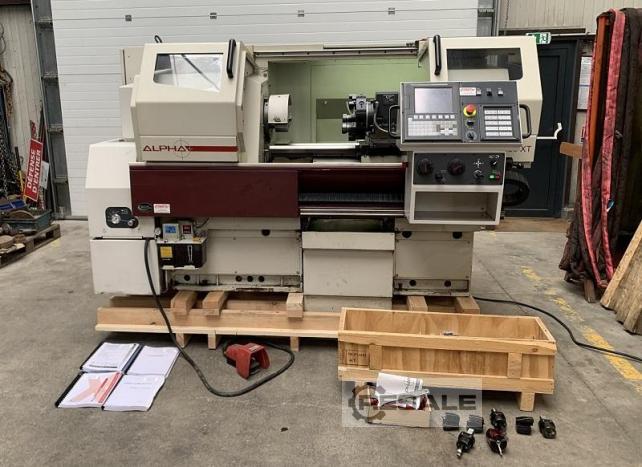

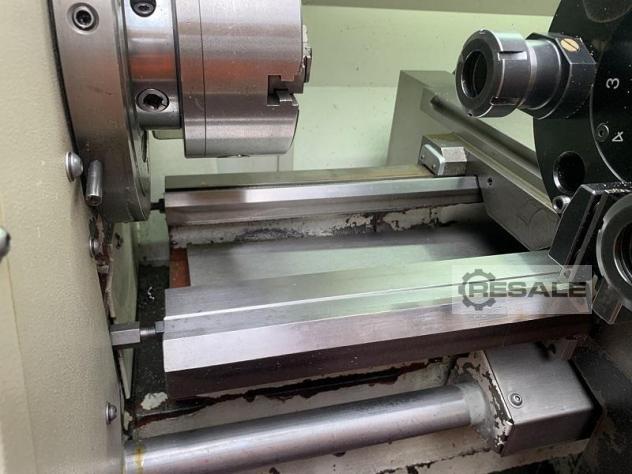

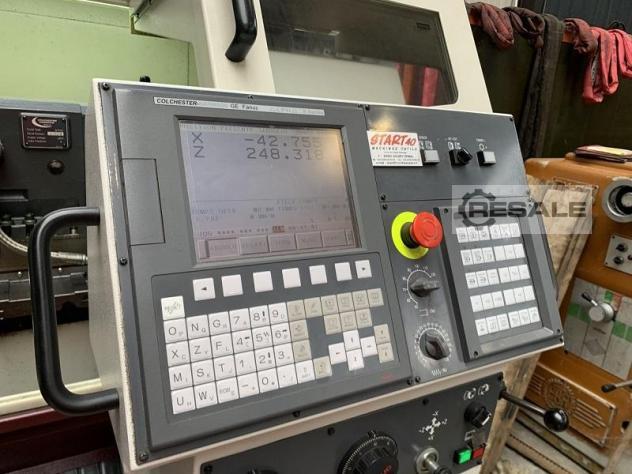

CNC Teach-in Lathe COLCHESTER Alpha 1350 XT Travel X: 245 mm Numerical Command FANUC Between points: 650 mm Maxi turning diameter: Ø 350 mm Spindle diameter: Ø 41 mm Max Rotation: 3500 RPM Turret: 8 tools VDI 30 Year of construction: 2006 Spindle motor: 5,5 kW 3 speed ranges Centralized lubrication pump Delivered with 2 3-jaws chuck Ø 160 mm Delivered with some tool holders (see photos) Voltage: 380 V Dimensions (L x W x H): 2500 x 2000 x 1900 mm Weight: approx 2 T Machine in very good condition

Working parameters:Max. turning diameter 325 mmMax. turning length 400 mmSpindle speed 30 – 4,500 rpmX-axis strokes 215 mm / Z-axis 420 mmEquipment included:12-station turret VDI 40Hydraulic chuck 3 jaws Ø 204 mmTailstock CM4Tool holder with motorized toolsCoolantBar loaderYear & Manufacturer: Year 2000Manufacturer HYUNDAI Auction-ID: A1-47716-266
