Year of construction: 80s Technical data: Tip height: 295 mm Turning diameter over bed: 600 mm Turning diameter over support: 390 mm Center width: 1000 mm Spindle bore: 72 mm Speed range: 72 - 1400 rpm Drive power: 11 kW Weight, approx.: 4000 kg Equipment: - 2-axis digital display, Heidenhain ND 780 - Collet chuck - 3-jaw lathe chuck - Quick-change holder System Multifix with 2 inserts - Spindle protection - Turning steel holder protection
Digital Center height 150 mm Circulation over bed 300 mm Center width 1000 mm 3-jaw chuck, Arbor Chip protection Chip tray
Specifications: Manufacturer: Weisser Type: Univertor AM-1L Year of Make: 2020 Control: CNC control Siemens SINUMERIK 840D sl Travels: X 1,700 mm Z 500 mm Spindle unit left side of the machine Speed Limit| 3,500 rpm Rated speed: 780 rpm Torque: 430/610 Nm (100/40% ED) Spindle bearing Ø: 120 mm Spindle flange: A8 according to DIN 55026 Dressing unit Max. speed: 16,000 rpm Dressing disc holder Ø: 40 x 10 mm Revolver Target turret: 12-speed Drive: electric swivel drive Internal grinding spindle with grinding software Tool holder: D28/43 (thread M28x2) Spindle bearing Ø: 45 mm in hybrid version Speed limit: 45,000 rpm. Rated speed: 30,000 rpm Drive power: 15/18 kw (100/60 % ED) Torque| 4.7/5.7 Nm (100/60% DC) External grinding spindle with grinding software Tool holder taper: 1:10; Ø 73 mm Spindle bearing Ø: 80 mm in hybrid version Speed limit: 6,00 ...
Key data: 400 mm
Description Lead and Pull Spindle Lathe Weisser Heilbronn Details Built in 1969 Height 1,700 mm Width 1,500 mm Length 3,100 mm Bed width 500 mm Bed height 850 mm Bed length 2,000 mm Face plate Ø 600 mm Food possible by arrangement max. workpiece lengths 1,300 mm Turning diameter over bed 800 mm Turning diameter over support 560 mm Center height 400 mm Spindle speed 1,120 rpm. Multifix holder size C with 5 pockets
White 91 Portioning Machine used Hourly capacity approx.: 1400 portions Ejector diameter: 90mm (other plates on request) Strength adjustment via sliding handle at the front Machine with corresponding traces of use and wear, but in good condition neat and quiet run Machine must be thoroughly cleaned before use Video about test run available
Heavy lathe, turning machine, lathe, center and feed screw lathe, center and feed screw lathe -Manufacturer: Weisser, lead screw lathe type PF200 -Turning length: 1340 mm -Turning Ø over bed: 420 mm -Turning Ø over support: 240 mm -Spindle bore: Ø 41 mm -Spindle speeds: 31.5 - 1400 rpm -Three-jaw chuck: Röhm Ø 250 mm -Accessories: incl., see photos -Tailstock mount: MK4 -Drive motor: 2.5/3.5 kW -Dimensions: 2670/1000/H1230 mm -Weight: 1450 kg
Hydraulic power pack, hydraulic pump, hydraulic pump -Max. Pressure: 40 bar -Liter output: 11 +4 l/min -Hydraulic tank: 450/320/H320 mm -Motor: 1.5 kW 1410 rpm -Hydraulic valve -Pressure relief valve -pressure clock -Price: per piece -Number: 3x available -Dimensions: 600/1000/H850 mm -Weight: 220 kg
turning diameter: 250 mm turning length: 400 mm control: Siemens 840 D swing diameter: max. 300 mm workpiece length - max.: 400 mm travel -x axis: 280 mm feed in x - axis: 0,1 - 30 m/min rapid traverse X-axis: 30 m/min travel -z axis: 1150 mm feed range Z-direction: 0,1 - 60000 mm/min rapid traverse Z-axis: 60 m/min spindle bearing diameter: 90 mm spindle head DIN 55026 - Size: A6 turning speeds: 1 - 5000 U/min tool turret 12 times: C4 Capto total power requirement: 45 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 7,0 x 5,0 x 3,2 m CNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyor with chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor. Without coolant system, was connected to central supply. Machine can be inspected under power. ...
turning diameter: 250 mm turning length: 400 mm control: Siemens 840 D swing diameter: max. 300 mm travel -x axis: 280 mm feed x-axis: 0,1 - 30.000 mm/min rapid traverse X-axis: 30 m/min travel -z axis: 1.150 mm Feed z- axis: 0,1 - 60.000 mm / min. rapid traverse Z-axis: 60 m/min spindle bearing diameter: 90 mm spindle head DIN 55026 - Size: A6 turning speeds: 1 - 5.000 U/min tool turret - number of stations: 12 tool taper: Capto C4 total power requirement: 45 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 7,0 x 5,0 x 3,2 m CNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyor with chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor. Without coolant system, was connected to central supply. Machine can be inspected under power. The dat ...
turning diameter: 250 mm turning length: 400 mm control: Siemens 840 D swing diameter: max. 300 mm workpiece length - max.: 400 mm travel -x axis: 280 mm feed in x - axis: 0,1 - 30 m/min rapid traverse X-axis: 30 m/min travel -z axis: 1150 mm feed range Z-direction: 0,1 - 60000 mm/min rapid traverse Z-axis: 60 m/min spindle bearing diameter: 90 mm spindle head DIN 55026 - Size: A6 turning speeds: 1 - 5000 U/min tool taper: Capto C4 total power requirement: 45 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 7,0 x 5,0 x 3,2 m CNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyor with chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor. Without coolant system, was connected to central supply. Machine can be inspected under power. The data ...

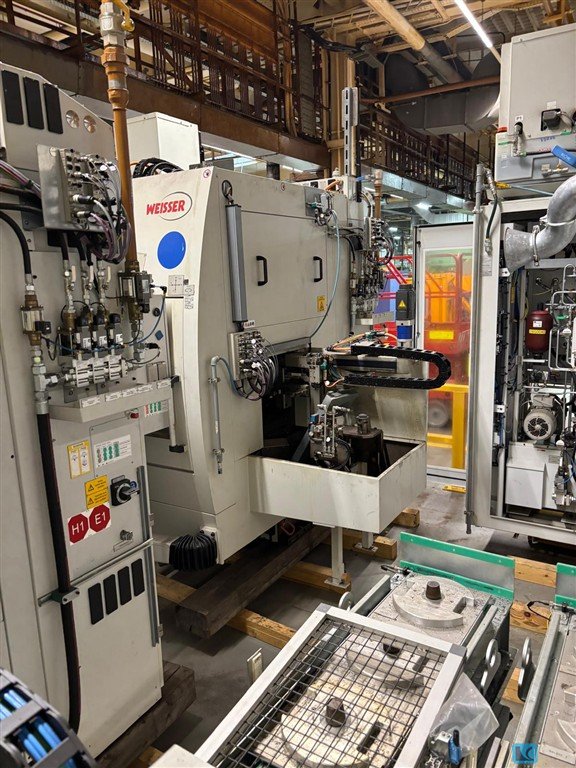

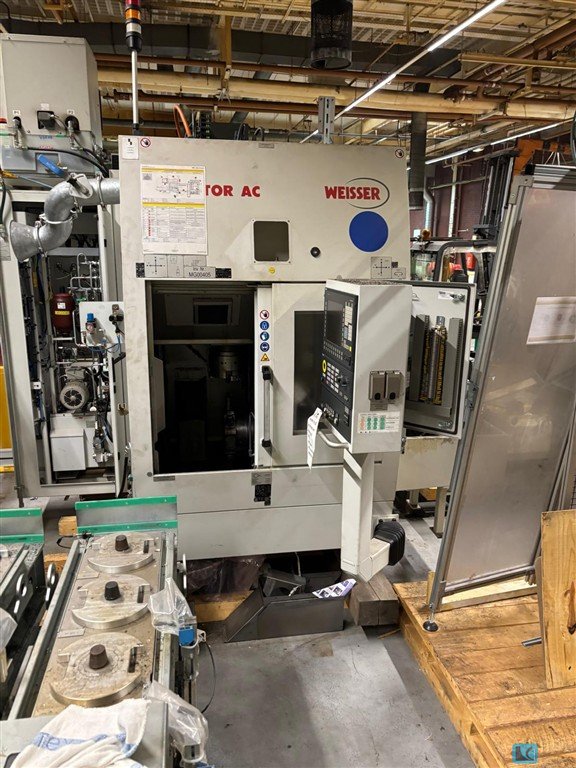

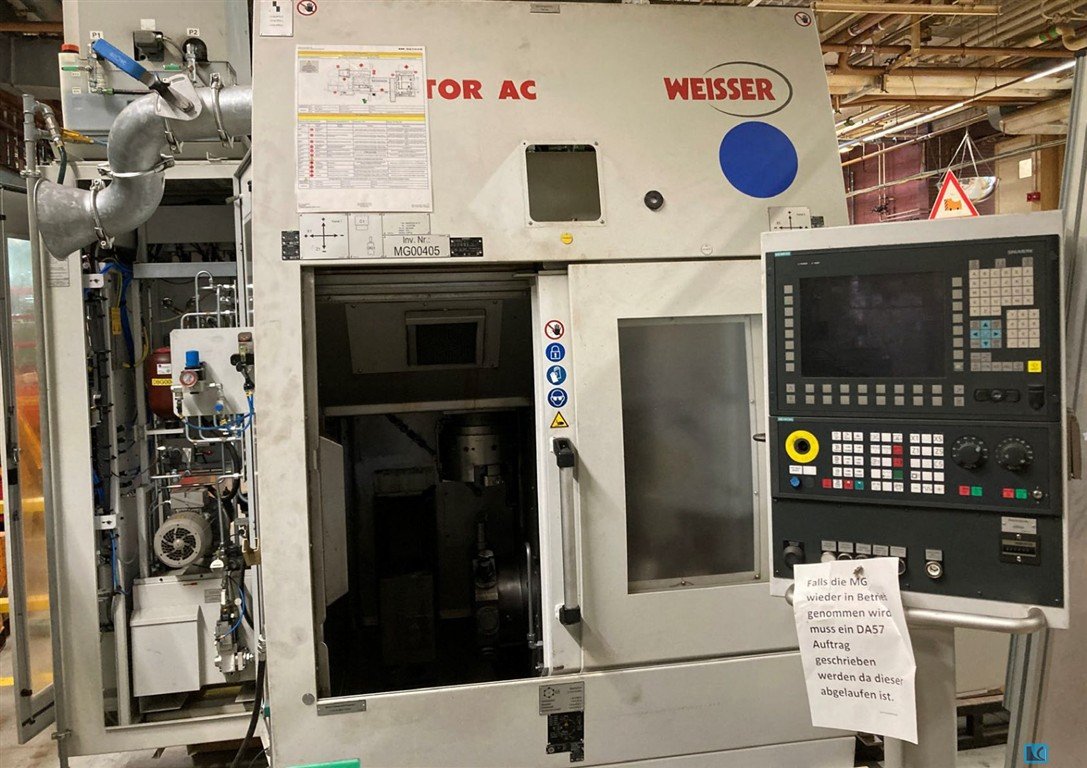

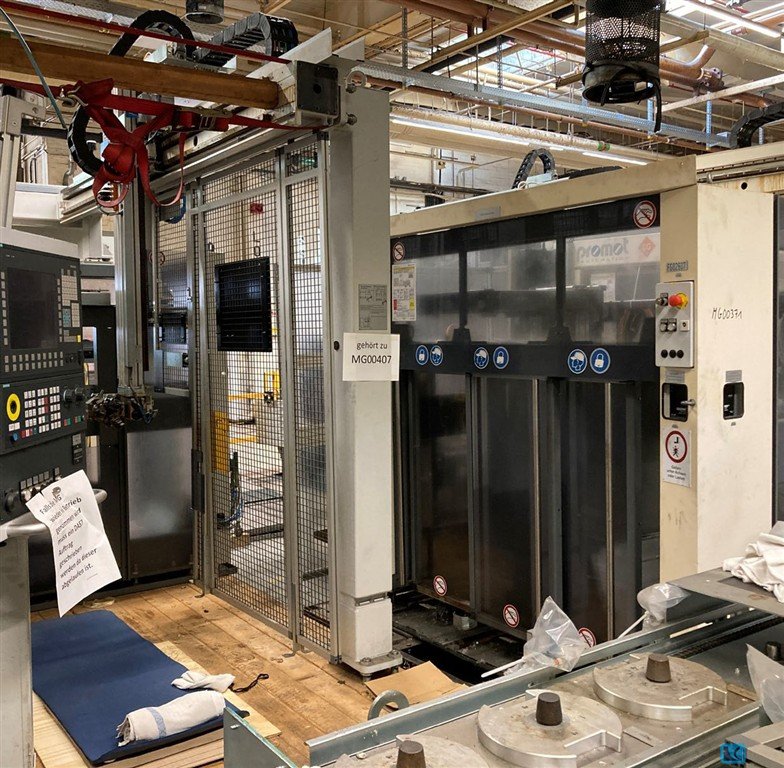

CNC lathe WEISSER Univertor AS 90L, Maximum clamping diameter: 200 mm, Maximum workpiece diameter: 120 mm, Maximum workpiece length: 400 mm, travel:, X-axis: 280 mm, Z-axis: 500 mm, Siemens Sinumerik control system, 12-station tool turret, With automated loading and unloading
CNC lathe WEISSER Univertor AS 90L, Maximum clamping diameter: 315 mm, Maximum workpiece diameter: 400 mm, Maximum workpiece length: 150 mm, travel:, X-axis: 400 mm, Z-axis: 280 mm, Siemens Sinumerik control system, 1 attached industrial filter, 12-station tool turret, 1 measuring system Marposs Compact IPC6
turning diameter: ca. 500 mm swing diameter: ca. 600 mm travel -x axis: ca. 400 mm travel -z axis: ca. 600 mm spindle turning speed range: 2000 U/min spindle drive: 63 kW control: SIEMENS control: SINUMERIK System 3 tool turret: 1 x 12 Pos total power requirement: kW weight of the machine ca.: 9,3 t dimensions of the machine ca.: m - R-version, turret right hand side of 3-jaw chuck - Accessories: hydr. 3-jaw chuck 400 mmø, various toolholders for turret, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
