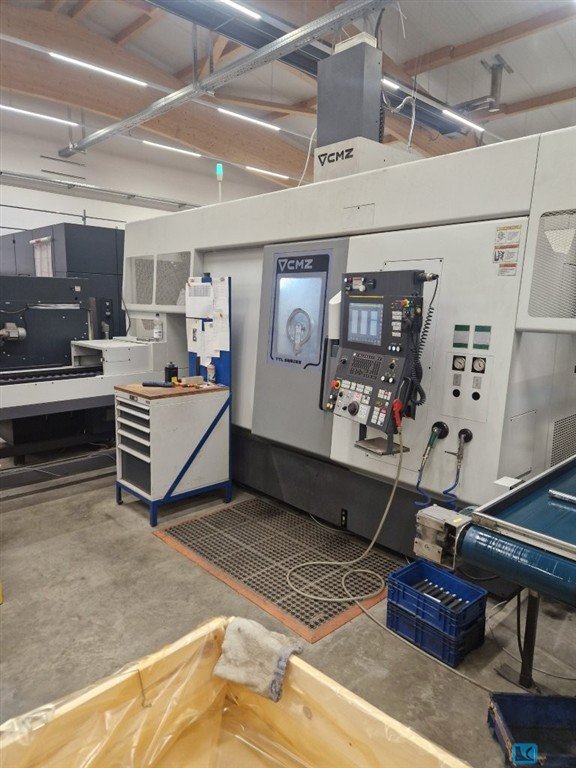

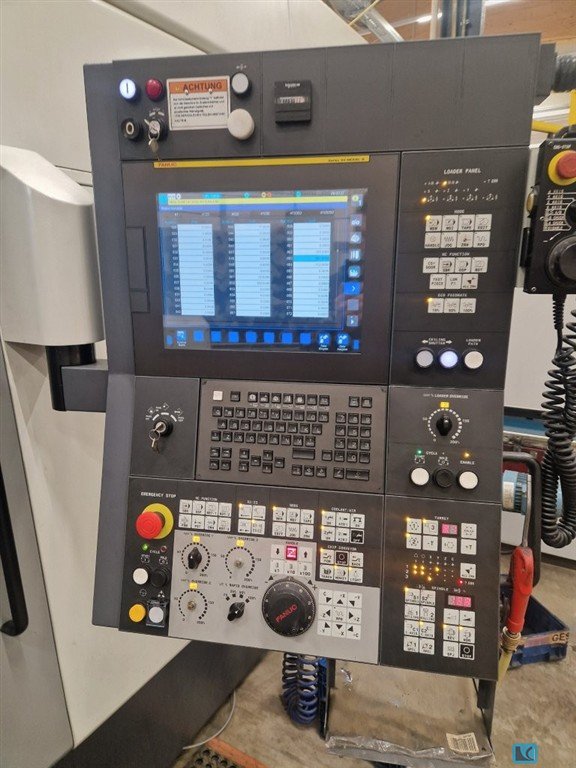

CMZ TTL-66-66-T1Y-T2Y+GL20II CNC Lathe GENERAL Project No.: 905769 Quantity: 1 pcs. Manufacturer: CMZ Type: TTL-66-66-T1Y-T2Y+GL20II Control: Fanuc 31i B Year of Make: 2021 Condition: Used machine Approx (hrs): 9050 DESCRIPTION TURN Max. turning diameter 220 mm Max. workpiece length 614 mm Max. circumferential diameter over bed cover 240 mm Max. chuck diameter 210 mm Max. distance between the two spindle lugs 800 mm Max. speed main spindle 4000 1/min Max. power main spindle at ED 10-40/100% 35.5/23.5 kW Max. torque main spindle at ED 10-40/100% 205/150 Nm Spindle aperture main spindle 72.5/66 mm Spindle diameter in the front bearing main spindle 110 mm Spindle flange size main spindle ASA 6 A2 Axes on the main spindle unit C Hollow clamping cylinder on the main spindle Stop device in the main spindle Coolant supply through the main spindle Max. s ...
Key data: 510 mm, 670 mm
machine details Stock-No. 1105-03944 Type of machine CNC Turning- and Milling Center Make CMZ Type TL 25 A SM Year of manufacture 2007 Type of control CNC Storage location FRANCE Country of origin espagne Delivery time to be agreed Freight basis EX WORK Technical details turning diameter 510 mm turning length 640 mm control FANUC 31 ITB bar diameter 66 mm Travel -X Axis 240 mm Travel -Z Axis 640 mm Turning speed range - drive spindle 4000 1/min spindle nose JIS A2-6 Spindle Bore 66 mm C-Axis 0.001° Spindle Bearing Diameter 110 mm turret head 12 Pos. Driven Tools 12 Pos. tool changing time 0,2 sec rapid traverse X-axis 18 m/min rapid traverse Z-axis 24 m/min Drive Capacity - Spindle Motor 19/14 kW power capacity - milling spindle 14/8 kW total power requirement 35 kW weight of the machine approx. 5.7 t dimensions of the machine approx. 2.4 x 1.8x 1.9 m ...
Machine Details Stock number 1105-03751 Machine type CNC turning and milling center Make CMZ Type TB 67 M Year of construction 2007 Control type CNC Control Fanuc 32 I MANUEL GUIDE Storage location HAGUENAU Country of origin spain Delivery time immediately Freight base freely loaded truck, from location Technical details Turning diameter 385 mm Turning length 400 mm Control Fanuc 32 I MANUEL GUIDE Spindle bore diameter 73 mm Number of controlled axes 3 Speed range 20 - 4,000 rpm Drive power 17 kW Rapid traverse speed 30 m/min Number of mounts in turret head 12 VDI 30 of which driven stations 12 Speed of the driven tools 4000 rpm Drive power on the driven tool 6 kW Tailstock Yes Weight 4 t Information CNC lathe with driven tools and short bar loading magazine in very good condition. Accessories: FANUC 32i MANUEL GUIDE -Conveyor - Three-jaw chuck DIA 210 ...

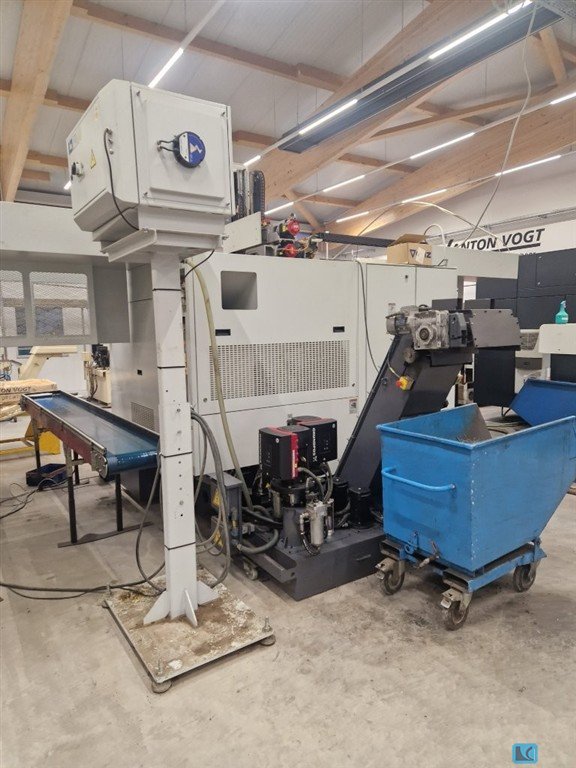

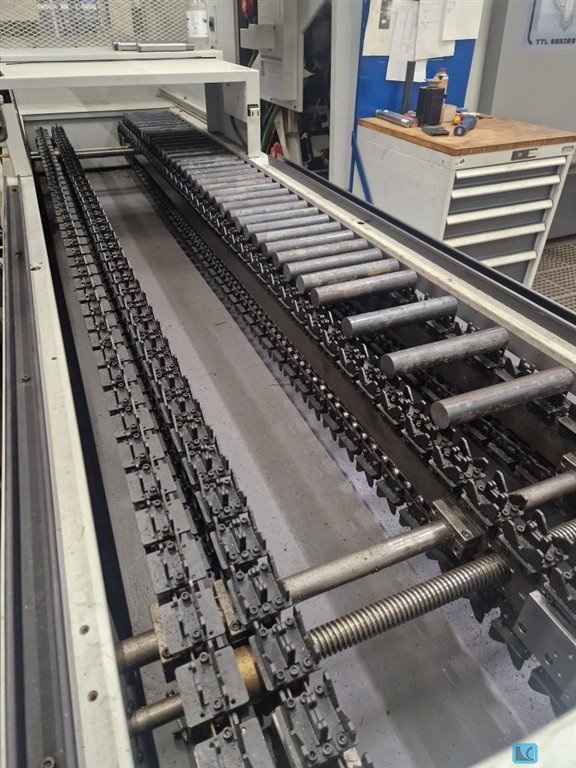

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package
This 3-axis CMZ TTL-66-66-TTY-T2Y was manufactured in 2021, offering advanced horizontal turning capabilities. Ideal for complex and precise metalworking tasks, this machine ensures efficient production with its robust design and modern technology. If you are looking to get high-quality turning capabilities, consider the CMZ TTL-66-66-TTY-T2Y machine we have for sale. Contact us for more information.
