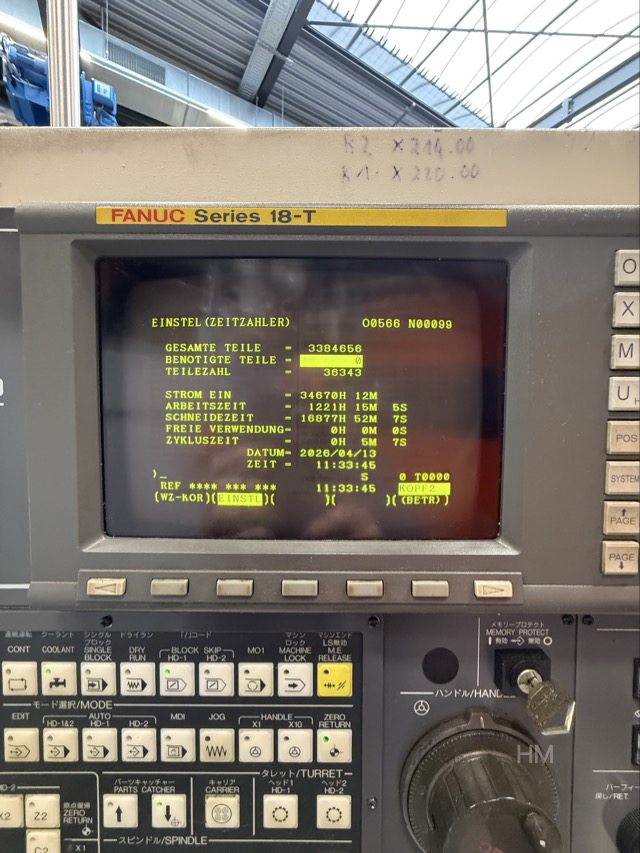

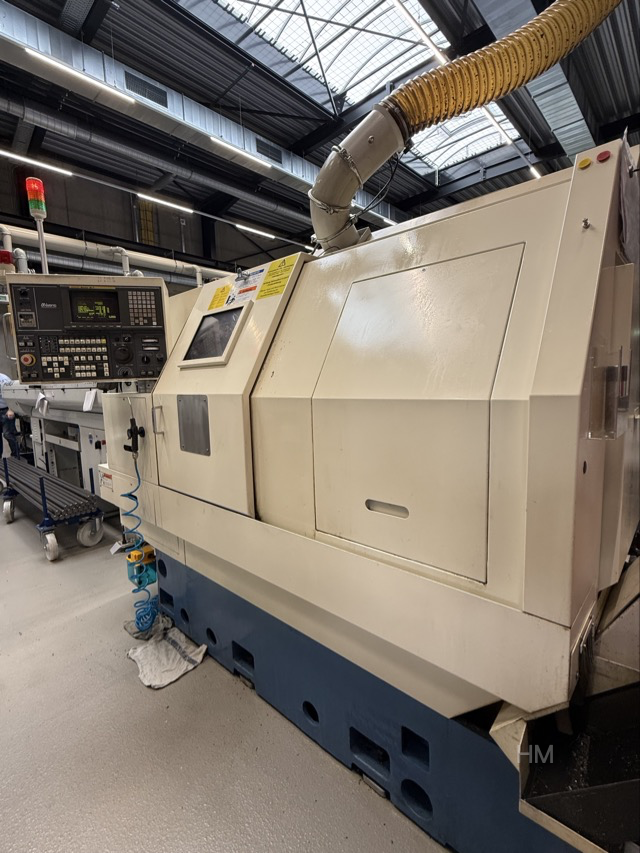

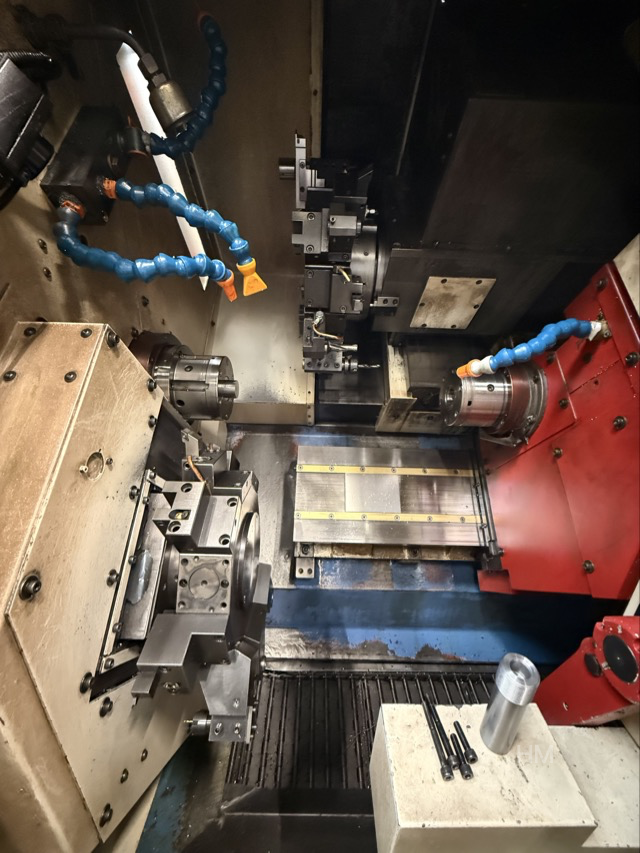

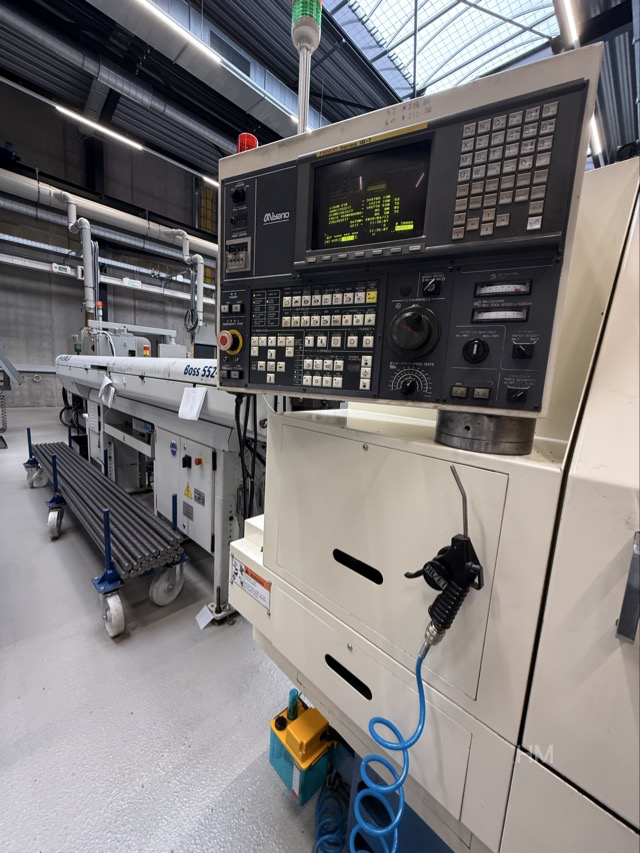

12 position upper turret (6 are driven) -10 positionlower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control
Inv. Num. : 8314 Type: 42 BNA DHY Producer: Miyano Created: 2011 Parameters: Max. turning length: 235 mm Max. turning diameter: 80 mm Maximum spindle speed: 6000 1/min Max. rod diameter: 42 mm Weight: 3900 kg Equipment: IEMCA Bar Feeder
12 stations main turret(6 are driven) - 6 stations sub turret - LNS sprint 552 barfeed new in 2010 - Fanuc 21TB Control.
MIYANO BNC-42 C 5 ist eine CNC-Drehmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Stangendurchlass 42 mm; Max. Werkstücklänge 175 mm; Verfahrwege Z 235 mm, X 135 mm; Revolver 8 Positionen. Spindeldrehzahlen 60 t/min–6000 t/min; Spindelmotor 7.5/5.5 kW; Anschluss 50 Hz 3x 400 Volt; Gewicht ca. 2400 kg; Abmessungen L2270 x B1270 x H1700 mm. Zubehör: Lademagazin Typ LNS Super Hydrobar. Erzielt enge Toleranzen; ideal für Automobil, Uhrenindustrie, Werkzeugmaschinenbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr
MIYANO BNE-51 S5 ist eine CNC-Drehmaschine hoher Präzision, ausgelegt für Arbeiten mit hoher Genauigkeit und Zuverlässigkeit. Arbeitskapazität: 2 Spindeln, 2 Revolver je 12 Positionen, max. Drehlänge 90 mm, Stangendurchmesser Ø51 mm, max. Dreh-Ø Ø41 mm; X/Z Hub oben X175/Z380 mm, unten X145/Z380 mm, Spindelbohrung 52 mm, angetriebene Werkzeuge 12 Positionen, Werkzeugschaft 20 mm, Bohr-Ø 13 mm, Gewinde M8. Technische Daten: Drehzahlen 0–4000 min-¹, stufenlos bis 5000 min-¹, Spindelleistung 11/15 kW, Gegenspindel 3.7/5.5 kW (7000 min-¹), Vorschübe 0.0001–60 mm/min, Eilgang X 18 m/min Z 20 m/min, Strom 3x380 V 50 Hz, Gesamtleistung 44 kVA, Gewicht ~7800 kg, Abmessungen 2690×2080×1925 mm, Druckluft 6 bar. Zubehör: Kühlmitteleinrichtung, elektronisches Handrad, C-Achse, Teilefänger, Förderband, Späneförderer, Satz Werkzeughalter, Zustandsleuchte. Ermöglicht enge Tole ...
turning diameter: 40 mm turning length: 50 mm control: Fanuc 0i-TD Spindle Speed: 8000 U/min. travel -x axis: 180 mm travel -z axis: 200 mm rapid power traverse in X-and Z direction: 15 m/min weight of the machine ca.: 1500 kg dimensions of the machine ca.: 1500x700x1600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: 45 mm turning length: 50 mm control: Mitsubishi FCA70LPC-V Spindle Speed: 8.000 U/min. travel -x axis: 180 mm travel -z axis: 200 mm rapid power traverse in X-and Z direction: 20 / 30 m/min weight of the machine ca.: 1.600 kg dimensions of the machine ca.: 1700x700x1700 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Miyano BNA-42 MSYYear of manuf. : 2012 Control : Mitsubishi M70 Turning length : 100 mm____________Description:Mainspindle:Technology:Belt-driven spindleSpeed:6.000 rpmPower (max.):7,5 kWTorque (max.):60,8 NmBarcapacity:42 mmC-Axis:0,001°Workpiececlamping:Collet chuck, Type 173ESubspindle:Technology:Belt-driven spindleSpeed:5.000 rpmPower (max.):5,5 kWTorque (max.):38,7 NmC-Axis:0,001°Workpiececlamping:Collet chuckMovement in X/Z:140/310 mmRapid travers in X/Z:12 m/minToolcarrier (X/Y/Z):Technology:Turret with 8 stationsTooldrive:5.000 rpmMovement in X/Y/Z:140/70/235 mmRapid travers in X/Y/Z:20 m/minEquipment/Accessory:Chipmanagement:Chip conveyorCoolingmanagement:Cooling pumpRawmaterialfeed:Bar laoder, IEMCA Master 80 HFFinishpart removal:Part catcher with conveyorbeltFire-extinguishing unit:Kraft + BauerFurther Equipment:Trafo
This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details.
This 4-axis MIYANO BNJ 42S lathe was manufactured in 2004, featuring dual turrets and a Fanuc 18iT control for precision turning operations. It has a bar passage capacity of 42 mm and spindle speeds up to 5000 rpm. Equipped with a LNS Hydrobar MiniSprint bar loader and both standard fixed and motorized tool holders, this machine optimizes productivity. Consider the MIYANO BNJ 42S machine we have for sale. For more information about this lathe, please reach out to us.
This 6-axis Miyano BX-26S was manufactured in 2010, featuring a maximum blank diameter of Ø26 mm and a maximum working length of 330 mm. It includes a dual-spindle setup with rotation speeds up to 8000 rpm and a linear turret with 18 total tools. The machine is equipped with a FANUC 18i-TB control system, supporting 6 controlled axes and 4-axis simultaneous interpolation. If you are looking to get high-quality turning capabilities consider the Miyano BX-26S machine we have for sale. Contact us for more information.
This 7-axis Miyano BNA-42DHY turn-mill centre was manufactured in 2011. It features a main spindle with a maximum bar diameter of 42 mm and speeds up to 6000 rpm, complemented by a counter-spindle that handles up to 34 mm and 5000 rpm. Equipped with two turrets, upper with 8 positions and lower with 6, it offers versatile machining options. Includes a chips conveyor and an IEMCA BOSS 545 E bar loader. Contact us for more information about this machine.
