Key data: 20 mm, 205 mm
Star ECAS 20 CNC Swiss Automatic Lathe CNC control Star NICS (Yaskawa-Siemens 840DI) Turning diameter 20 mm Turning length 205 mm Spindle diameter 20 mm Spindle speed 500-10,000 rpm Spindle motor 3.7/2.2 kW Min. indexing C-axis main spindle 0.001° Min. indexing C-axis subspindle 0.001° Number of tools on the tower 16x Spindle torsion driven tools 8,000 rpm FMB Turbo 3-26 (3200) LxWxH 6850x1150x1765 mm If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.
Key data: 32 mm, 32 mm, 330 mm
CNC Longitudinal Lathe Brand: Star Machine type : SR 32 / 330 Year of manufacture : 1997 Control : - FANUC 16 TCNC Control Location : Hultsfred warehouse Sweden Availability : direct from stock Technical data Max. rod diameter: 32 \[mm\] Main spindle stroke: 310 \[mm\] Main spindle stroke with driven taper: 295 \[mm\] Spindle Power: 7.5 \[kw\] Main spindle speed : 350 – 7000 \[rpm\] C axis on main spindle Number of Turning Tool Holders: 6 Number of powered tool holders: 4 Driven Tools Speed: 350-5000 \[rpm\] Number of tool holders on the combi device: 4 maxi diameter in pick-up spindle: 32 \[mm\] Spindle speed counter spindle : 350-7000 \[rpm\] Power sub-spindle: 3.7 \[kw\] Indexing C-axis sub-spindle: 1° Pick-up spindle stroke: 125 \[mm\] Electrical connected load. : Power: 20 \[kW\] Dimensions: 1700 x 2515 x 1700 \[mm\] W ...
Max. rod Ø 20 mm Max. headstock stroke 205 mm Spindle speed 500 - 10,000 1/min Kdowjyb R Awsvu Nu Ieg Max. rod Ø sub-spindle 20 mm Max. speed sub-spindle 8,000 1/min Number of tools that can be used: 22 Turning Tools Multiple Chisel Holders: 6 Driven tools for transverse machining: 3-8 Front side drilling tool: 4 Rear Reamer: 4 Speed driven tools: 8,000 1/min Bar Feeder FMB turbo 3-26
Robot STAR type ES 1400 II Année 2021 en très bon état Course en X : 2400 mm Course en Y : 1400 mm Course en Z : 975 mm Poids max. : 8 kilogs
STAR Swiss lathe S16-R, built in 2001 Swiss lathe SA16-R, Ø16mm with FMB Minimag magazine Pick-up spindle Parts Conveyor Belt Coolant system only ran on oil no chip conveyor
Control FANUC 18i-TB Max. rod Ø 32 mm Max. headstock stroke 310 mm Spindle speed 350 - 7,000 1/min Max. rod Ø sub-spindle 32 mm Max. speed sub-spindle 350 - 7,000 1/min Number of tools that can be used: 21 Turning Tools Multiple Chisel Holders: 6 Driven tools for transverse machining: 3 Front side drilling tool: 4 Rear Reamer: 4 Back side machining: 4 Speed driven tools: 5,000 1/min Bar feeder FMB turbo 3-36
Max. rod Ø 20 mm Max. headstock stroke 205 mm Spindle speed 500 - 10,000 1/min Max. rod Ø sub-spindle 20 mm Max. speed sub-spindle 8,000 1/min Number of tools that can be used: 22 Turning Tools Multiple Chisel Holders: 6 Driven tools for transverse machining: 3-8 Front side drilling tool: 4 Rear Reamer: 4 Speed driven tools: 8,000 1/min Bar Feeder FMB turbo 3-26
Star SR 32 J III Type B Year of Make: 2022 Machine is not yet for sale, but you are welcome to send us your offer today.
7 axes Max. spindle passage: Ø 16 mm Max. headstock stroke: 205 mm MAIN SPINDLE Spindle speed: 10000 1/min Spindle drive power: 3.7 kW Minimum C-axis resolution : 0.001 [degrees] SUB-SPINDLE - Max. rod end Ø: 16 mm - Spindle speed : 9000 1/min - Minimum resolution C-axis : 0.001 [degrees] TOOLS 5x Turning tool holder on linear slide 4x drilling unit incl. drilling holders (front/rear) 3x driven tools for transverse machining on linear slides 4x tools incl. drill holders for reverse side machining Driven Tools Speed : 7500 1/min Conveyor Bar Feeder FMB minimag 18/3200
STAR ECAS 32T CNC lathe was built in 2007 in Japan by STAR MICRONICS CO.,LTD. The machine, which combines high performance and precision, has been designed to improve the machining of even the most complex workpieces. Its extensive machining capabilities facilitate complex machining processes such as turning, drilling and threading, both on the front and back of the workpiece. This makes the STAR MICRONICS ECAS 32T CNC lathe indispensable in many industries, such as the automotive and aerospace. The STAR ECAS-32T swiss-type lathe is equipped with, among others, 11 axes, two spindles (main spindle and sub-spindle) and capacious turrets that can accommodate many tools for any type of machining. The maximally rigid design additionally ensures incredible process stability, which is essential to achieve excellent precision and quality of the produced parts. The total weight of the machine ...
STAR ECAS 32T CNC lathe was built in 2005 in Japan by STAR MICRONICS CO., LTD. The machine, designed for the precise machining of complex workpieces, is used in many industries, such as automotive and aerospace. Its extensive machining capabilities facilitate complex machining processes, such as turning, drilling and threading, both on the front and back of the workpiece. Compared to other lathes available on the market, the offered STAR ECAS-32T swiss-type lathe stands out with the use of 11 axes, two 10-position turrets and two spindles (main spindle and sub-spindle). The extremely rigid design, in turn, provides the incredible process stability which is necessary to achieve excellent precision and quality of the produced parts. All this is complemented by intelligent CNC control, in which even the most advanced work programs are created in just a few steps. The STAR MICRONICS ECAS ...
Inv. Num. : 8240 Type: KNC 32 Producer: STAR Created: 1990 Parameters: Control System: Fanuc Series O-TT Maximum turning length: 310 mm Max. turning diameter: 32 mm Maximum main spindle power: 8 kW Maximum spindle speed: 6000 1/min Length: 3100 mm Width: 1900 mm Height: 1900 mm Weight: 4000 kg
Key data: 205 mm, 20 mm, 205 mm
Swiss lathe Star SR 20 Control Fanuc 16 T Spindle passage 20 mm Headstock travel 205 mm Spindle power 2.2KW/ 3.7KW Number of Powered Tools 3 Sub-spindle Conveyor belt Weight approx. 1,700 KG Bar magazine FMB Mini-Turbo
Sliding head lathe Star SR 38 Type A :::SPECIFICATIONS::: CNC Model: Fanuc CNC version: 31i model B Main spindle power: 11Kw Main spindle bar clearance: 38mm Headstock stroke (Z1): 320mm Main spindle speed: 7000 Number of linear axes: 7 Number of fixed tool holder plate positions: 14 Number of driven tool holder plate tool slots: 7 Rapid feeds for linear axes X Y Z: 36m/min High refrigerant pressure: yes External tank system with filter: yes Sub-spindle: yes Sub-spindle speed: 7000 Power against spindle: 5.5Kw Bar clearance: 38mm Number of motorized rear tools: 8 Coolant Used: Neat Oil Model and brand of bar loader: Iemca Boss 552-HD for 4 meter bars Chip conveyor: belt conveyor :::D DIMENSIONS AND WEIGHT::: Length: 2740mm Width: 1315mm Height: 2120mm Weight: 4300Kg
Type 660 - Iemca Boss 332E/32L new in 2005 - machine that has ever worked in oil - Fanuc 18i-TB Control
510 J type - equipped with Iemca MiniBoss 325/37 new in 1996 - tool eye - accessories - Fanuc 18-TB Control
turning diameter over bed: n mm spindle passage: 20 mm turning length: mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Guide rail - support rail for shafts, rails -Type: 1050-620-00 -Holes: 6.5 mm -Holes spaced 100 mm -Price: per piece -Quantity: 6 pieces available -Dimensions: 600x50xH23 mm -Weight: 1 kg/piece
Recirculating ball screw with nut, transroll spindle, ball screw nut, threaded spindle, threaded rod, threaded bolt, threaded rod, ball screw drive, linear bearing, precision ball screw -Manufacturer: Star, precision ball screw -Type: 1502-2-1085 -Shaft: Ø 24 mm -Thread length: 1495 mm -Dimensions: 1700/110/H70 mm -Weight: 10 kg
Swiss type turning machine manufactured in 2000. This Star SR 20 R was designed for precision turning with a maximum turning diameter of 20 mm and a spindle speed of 8,000 rpm. It features 6 fixed turning tool stations and 4 radial motorized tool stations, providing versatility for various applications. Consider the opportunity to buy this Star SR 20 R swiss type turning machine. Contact us for further details.

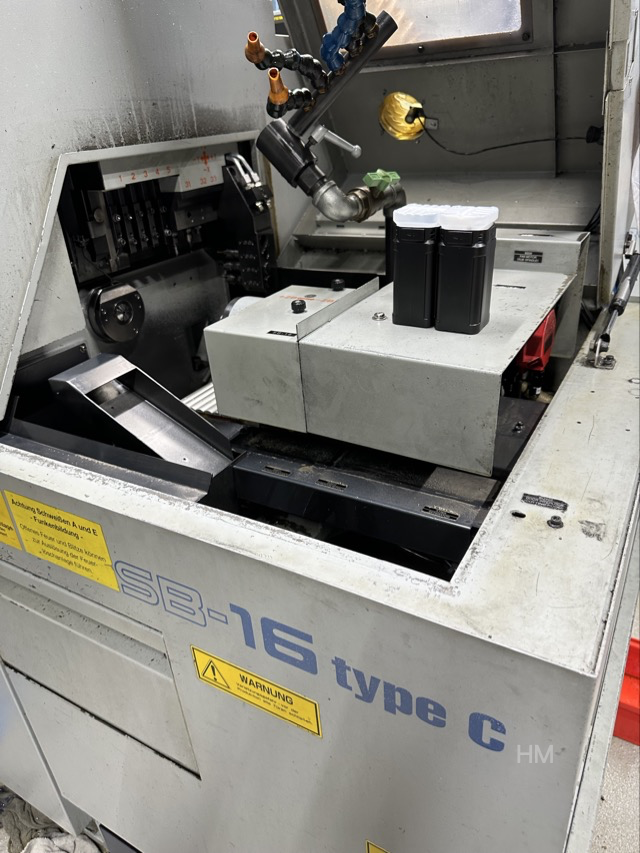

This Star SB-16 was manufactured in 2005. It features a robust FANUC control system, separate coolant tank, automatic central lubrication, and a 6-station tool holder. Ideal for precision turning, it includes a 4-spindle drill holder and a comprehensive workpiece removal system. Consider the opportunity to buy this Star SB-16 swiss type turning machine. Contact us for more information.
This 3-axis Star SR-20J N was manufactured in 2019. Its a Swiss type turning machine designed for precision and efficiency. Ideal for intricate machining tasks, this model offers robust performance in a compact footprint. If you are looking to get high-quality turning capabilities, consider the Star SR-20J N machine we have for sale. Contact us for more information.
This 7-axis Star SR-20J type C Swiss Type Turning was manufactured in 2015. It features a maximum machining diameter of 32mm, headstock stroke of 310mm, and spindle speeds up to 7,000rpm. Equipped with a Hydrajet BF20-2000 high-pressure coolant system and an Absolent A.Mist 10S mist extraction unit, the Star SR-20J type C represents a robust addition to any machining setup. Contact us for further details regarding this Swiss Type Turning.
This STAR SR-20 R II Lathe was manufactured in the year 2004. It is equipped with a Fanuc Series 18i-TB control unit and has 7 axis. The machine has a spindle speed of 500-10000 rpm.
This 3-axis Star SR 20 R III was manufactured in 1996. It features a max turning diameter of 20 mm, spindle speeds up to 8,000 RPM, and a rapid feed rate of 35 m/min. Ideal for precision turning, it also includes six fixed turning tool stations and five radial driven tool stations. If you are looking to get high-quality turning capabilities, consider the Star SR 20 R III machine we have for sale. Contact us for more information.
This Star SR 20 J Type C was manufactured in 2011. It features a max turning diameter of 20 mm, spindle speeds up to 8,000 rpm, and a spindle power of 2.2 kW. The machine includes six fixed turning tool positions and five radial motorized tools. Ideal for precision Swiss-type turning, it has a compact footprint of 2.20 Ã 1.20 m. Contact us for more information about this machine.
This 5-axis Star SB-20R type N was manufactured in 2014, featuring a CNC Fanuc 0i-TD, C-axis on both main and sub-spindles, and a 6-position tool holder. It includes a 5-spindle unit for cross drilling, a sub-spindle with a 20mm part picking capacity, and a standalone coolant tank. Ideal for precision small parts production. If you are looking to get high-quality turning capabilities, consider the Star SB-20R type N machine we have for sale. Contact us for more information.
