RAMO Industrie SA TN20 CNC Turning Machines
usedVerified seller
1 / 1
Technical data
· ID 168237026CNC Turning Machines
- Net price
- 7.000 € netto
- Condition
- used
- Operating hours
- 5.000 h
- Location
- 93110 ROSNY SOUS BOIS
Identifikation
ManufacturerRAMO Industrie
ModelSA TN20
Technik
Quantity1
Description
DATASHEET – RAMO TN20 CNC LATHE
Manufacturer: RAMO Industrie SA
Model: TN20
Numerical control: NUM 1060 (Telemechanical)
Type: Inclined Bench CNC Lathe
Condition: Good general condition, visible machine under power

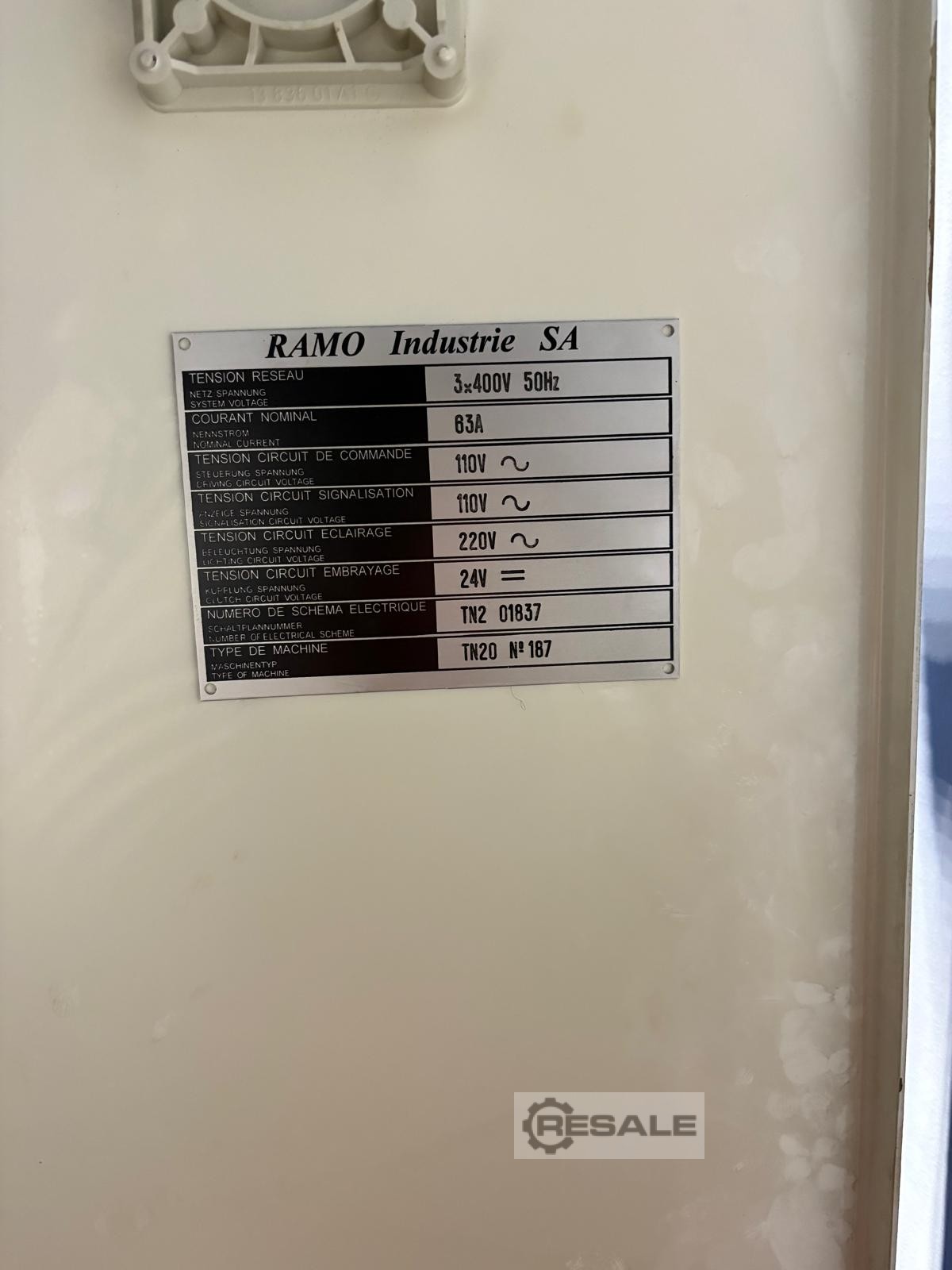

⚙️ TECHNICAL SPECIFICATIONS
Power supply: 3 × 400 V – 50 Hz
Current rating: 63 A
Control voltage: 110 V ~
Signaling voltage: 110 V ~
Lighting voltage: 220 V ~
Clutch voltage: 24 V =
???? MECHANICAL CAPACITIES (TN20 standard)
Turning diameter above the bed: 420 mm
Turning diameter above carriage: 250 mm
Length between toes: 500 mm
Z-axis travel: 500 mm
X-axis travel: 200 mm
Spindle passage: Ø 40 mm
Spindle speed: 30 to 4000 rpm
Spindle Cone: Camlock D1-4
Spindle motor power: 7.5 kW
Fast feeds: 10 m/min (X and Z axis)
Tool Turret: 8 automatic positions
???? DIMENSIONS AND WEIGHT
Dimensions (W × D × H): approx. 2200 × 1400 × 1600 mm
Approximate weight: 2,000 kg
???? EQUIPMENT
NUM 1060 control (functional)
Integrated chip tray
Lubrication system and coolant pump
Built-in lighting
Safety sliding door
Emergency stop
Electrical documentation and original diagram
Manufacturer: RAMO Industrie SA
Model: TN20
Numerical control: NUM 1060 (Telemechanical)
Type: Inclined Bench CNC Lathe
Condition: Good general condition, visible machine under power
⚙️ TECHNICAL SPECIFICATIONS
Power supply: 3 × 400 V – 50 Hz
Current rating: 63 A
Control voltage: 110 V ~
Signaling voltage: 110 V ~
Lighting voltage: 220 V ~
Clutch voltage: 24 V =
???? MECHANICAL CAPACITIES (TN20 standard)
Turning diameter above the bed: 420 mm
Turning diameter above carriage: 250 mm
Length between toes: 500 mm
Z-axis travel: 500 mm
X-axis travel: 200 mm
Spindle passage: Ø 40 mm
Spindle speed: 30 to 4000 rpm
Spindle Cone: Camlock D1-4
Spindle motor power: 7.5 kW
Fast feeds: 10 m/min (X and Z axis)
Tool Turret: 8 automatic positions
???? DIMENSIONS AND WEIGHT
Dimensions (W × D × H): approx. 2200 × 1400 × 1600 mm
Approximate weight: 2,000 kg
???? EQUIPMENT
NUM 1060 control (functional)
Integrated chip tray
Lubrication system and coolant pump
Built-in lighting
Safety sliding door
Emergency stop
Electrical documentation and original diagram
