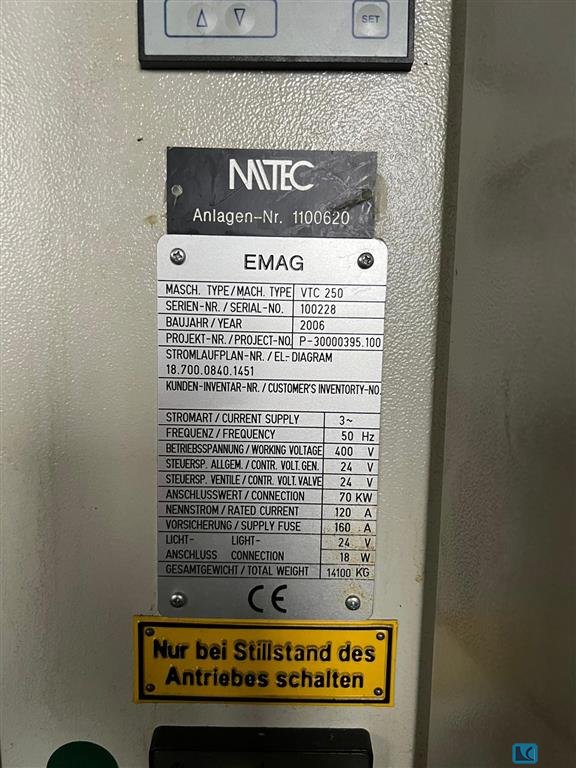

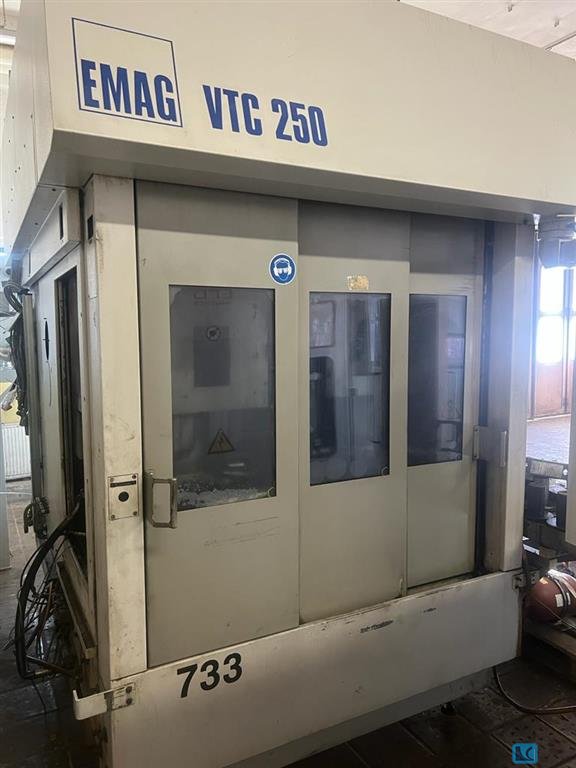

EMAG VTC 250 Vertical lathe GENERAL Project No.: 906007 Quantity: 1 pcs. Manufacturer: EMAG Type: VTC 250 Control: Siemens 840 D Year of Make: 2008 Condition: Used machine Layers Machine Approx (Hrs): 2 Layers DESCRIPTION TURNING Max. turning length 630 mm Max. chuck diameter 200 mm Max. speed main spindle 5000 1/min Max. power main spindle at ED 10-40/100% 38/29 kW Max. torque main spindle at ED 10-40/100% 250/200 Nm Full-clamping cylinder on the main spindle Tailstock NC-controlled Revolver left Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min Revolver right Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min OTHER EQUIPMENT Tool measurement using lasers ...

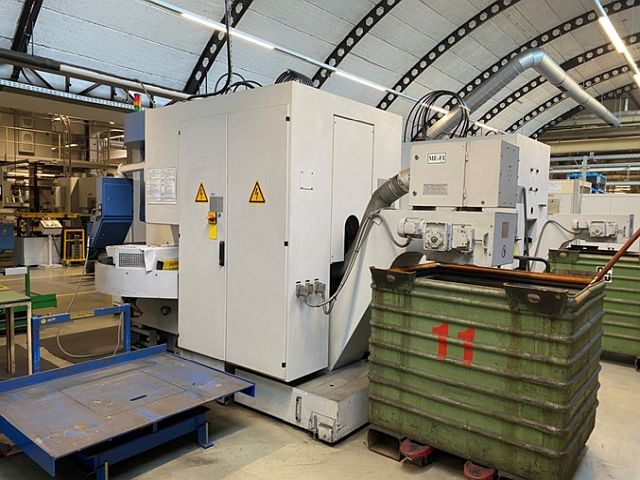

consisting of: CNC lathe EMAG VL3 DSL, BJ. 2012, Ser. No. 103899 and CNC lathe EMAG VLY , BJ. 2012, Ser. No. 10390, each CNC control SIEMENS SINUMERIK, robot loading system with loading robot FANUC M10iA, BJ. 2012, each machine with WW ME-FI 600 filter system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant device, workpiece conveyor system and hand control panel
consisting of: CNC lathe EMAG VL3 V6.1, BJ. 2012, Ser. No. 104113 and CNC lathe EMAG VL3 V6.1, BJ. 2012, Ser. No. 104114, each CNC control FANUC SERIES 32i-MODEL A, robot loading system with loading robot FANUC M10iA, BJ. 2012, each machine with WW ME-FI 600 filter system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant device, workpiece conveyor system and hand control panel
RETROFIT of the machine in 2010, CNC control FANUC Series 18i TB, total weight 5,500 kg, filter system W & W FILTER SYSTEMS, chip conveyor SEREMETO, cooling unit EMAG HTD 720
General: Max. workpiece diameter: 140 mm Chuck diameter: 250 mm Max. turning length: 700 mm Gauge I: Tool carrier I: Tool turret (X/Z) Tool drive: 9,600 rpm, 44 Nm Tool holder: BMT Number of stations: 11 + 1 part gripper X-axis: 310 mm Z-axis: 1,115 mm Displacement measuring systems (X/Z): Direct (glass scales) Sub-spindle (OP20): motor spindle Speed: 5,000 rpm Power: 33.9 kW Torque: 231 Nm Lining: 2+2 jaw power chuck Clamping Cylinder: Full Clamping Cylinder, Hydraulic C-axis: 0.01° Gauge III: Tool carrier II: Tool turret (X/Y/Z) Tool drive: 9,600 rpm, 44 Nm Tool holder: BMT Number of stations: 11 + 1 part gripper X-axis: 620 mm Y-axis: 50 mm (+ 22/ - 28 mm) Z-axis: 1,115 mm Displacement measuring systems (X/Z): Direct (glass scales) Gauge IV: Main spindle (OP30): Movable motor spindle Speed: 5,000 rpm Power: 33.9 kW Torque: 231 Nm Lining: Co ...
The following used CNC vertical lathe EMAG VL2 is for sale. Manufacturer: EMAG Type: VL2 Year of Make: 2014 Weight: 6000 kg Description: It is a reliable EMAG VL2 CNC vertical lathe, ideal for precision machining of small and medium-sized parts. The machine is in good technical condition, has been regularly serviced and is ready for immediate use. The machine is suitable for both one-off and series production.

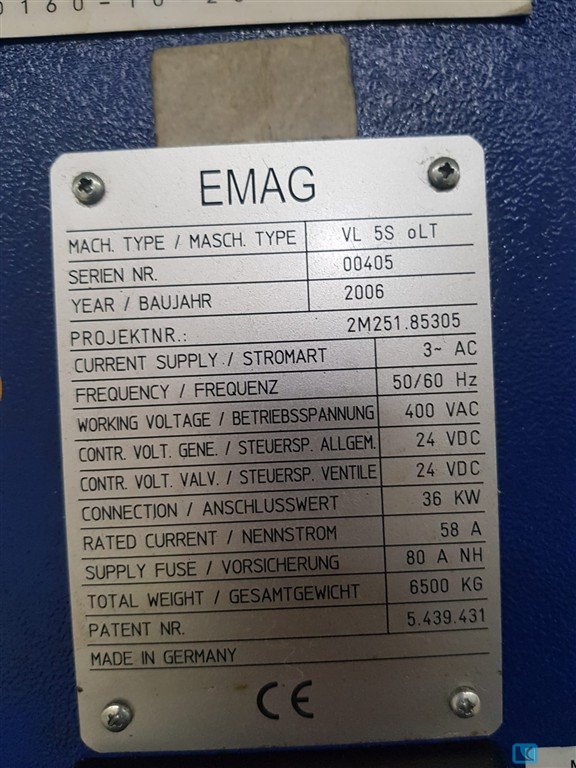

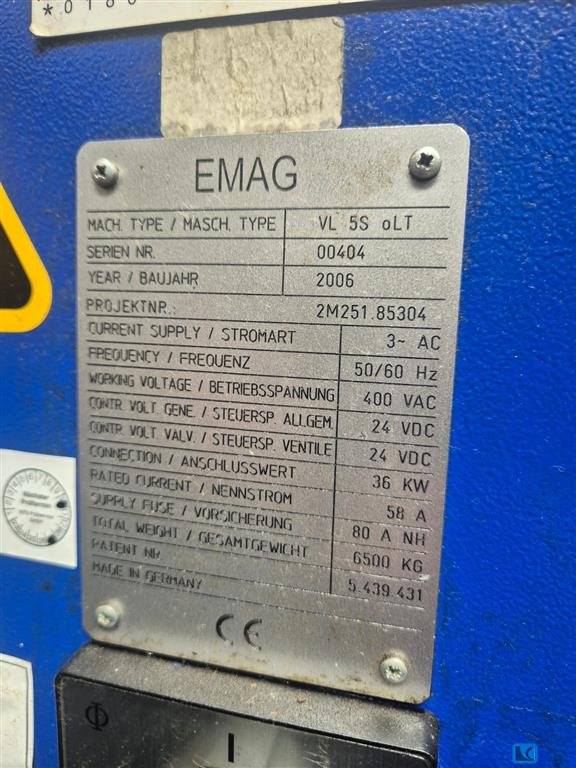

Inv. Num. : 8679 Type: VL 5S Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Feed length X-axis: 570 mm Feed length Z-axis: 200 mm Max. turning diameter: 220 mm Maximum workpiece weight: 120 kg Maximum spindle speed: 4500 1/min Max. workpiece height: 110 mm Weight: 6500 kg Equipment: Turret with Leiftool drive Chip conveyor
Inv. Num. : 8680 Type: VSC 250 DS Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Table diameter: 260 mm Feed length X-axis: 680 mm Feed length Z-axis: 200 mm Maximum turning length: 100 mm Max. turning diameter: 250 mm Maximum workpiece weight: 40 kg Motor power: 35 kW Length: 3800 mm Width: 2100 mm Height: 2400 mm Weight: 7500 kg Equipment: Chip conveyor
Inv. Num. : 7575 Type: VL7 Produzent: Emag Erzeugt: 2010, GO 2012 Parametern: Steuerungssystem: Fanuc 32i TB Max. Drehdurchmesser: 420 mm Maximale Drehzahl der Spindel: 3400 1/min Verfahrwege X: 850 mm Verfahrwege Z: 315 mm Spannfuttergröße: 400 Länge: 5250 mm Breite: 3500 mm Höhe: 3500 mm Gewicht: 9000 kg Ausstattung: Kühlung Späneförderer Angetriebene Werkzeuge Messsonde
GENERAL Project No.: 905398 Quantity: 1 pcs. Manufacturer: EMAG Type: VL 3 Control: Fanuc 18i TB Year of construction: 2001/2022 State of condition: Refurbished machine Layers approx.: 2-3 layers DESCRIPTION TURN circulation diameter over bed cover 210 mm chuck diameter 170 mm speed main spindle 7500 1/min power main spindle at ED 10-40/100% 25/16 kW torque main spindle at ED 10-40/100% 134/85 Nm Spindle diameter in the front bearing Main spindle 80 mm Spindle flange size main spindle size 5 (DIN 55026) Axes on the main spindle unit X/Z Travel in X/Y/Z main spindle unit 400/-/200 mm rapid traverse speed in X/Y/Z main spindle unit 60/-/30 m/min Feed force in X/Y/Z main spindle unit 5000/-/5000 N Direct displacement measuring system main spindle unit X/Z Full clamping cylinder on the main spindle Revolver bottom Number of stations/driven by 12/12 Tool ho ...
Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd
Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
swing diameter:200 mm weight of the machine ca.:15 t Distance between tips:832,5 mm turning length:380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!
turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!
This 4-axis EMAG VSC 200 TWIN OP 50 was manufactured in 2005. It features simultaneous machining of two workpieces, independent X and Z axis drives, and a maximum chuck diameter of 250 mm. With a maximum X travel of 850 mm and a rapid traverse speed of 45 m/min, this machine is designed for medium to large series production. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN OP 50 vertical turning machine we have for sale. Contact us for further details.
This 4-axis EMAG VSC 200 TWIN was manufactured in 2005. It features simultaneous machining of two workpieces, independent X and Z axis drives, and a maximum chuck diameter of 250 mm. With a rapid traverse of 45 m/min on the X axis and a robust turret with 16 tool stations, this machine is designed for medium to large series production. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN vertical turning machine we have for sale. Contact us for further details.
This 4-axis EMAG VSC 200 TWIN vertical turning machine was manufactured in 2005. It features a maximum chuck diameter of 200/250 mm and a swing diameter of 260 mm. With independent X and Z axis drives, it allows for the simultaneous machining of two workpieces. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN machine we have for sale. Contact us for further details.
This 4-axis EMAG VSC 200 TWIN OP 10 was manufactured in 2005. It features simultaneous machining of two workpieces, independent X and Z axis drives, and a maximum chuck diameter of 250 mm. With a rapid traverse of 45 m/min on the X axis and 30 m/min on the Z axis, this vertical turning machine offers efficient performance. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN OP 10 machine we have for sale. Contact us for further details.
control: Fanuc - - -: - - - - - - - - -: - - - - - - Vertical Turning Machine | EMAG - VL 4 with driven tools, equipped with a workpiece conveyor belt, a chip conveyor, and a coolant system The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL4 | VL-4 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
control: Fanuc - - -: - - - - - - - - -: - - - - - - Vertical Turning Machine | EMAG - VL 4 with driven tools, equipped with a workpiece conveyor belt, a chip conveyor, and a coolant system The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL4 | VL-4 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
EMAG VTC 250 DUO DDYear of manuf. : 2020 Control : Siemens 840 Dsl Turning diam. : 140 mmTurning length : 700 mm____________Description:In General:Max. workpiece diameter:140 mmChuck diameter:250 mmMax. turning length:700 mmTrack I:Tool carrier I:Tool turret (X/Z)Tool drive:9,600 rpm, 44 NmTool holder:BMTNumber of stations:11 + 1 Part gripperX-axis:310 mmZ-axis:1,115 mmPosition sensors (X/Z):Direct scalesTrack II:Main spindle (OP10):Travelling direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:Collet chuckClamping cylinder:Hydraulic clamping cylinderSupport control:PneumaticW-axis:772 mmC-axis:0.01°Position sensor (W):Direct scale:Sub-spindle (OP20):Direct drive spindleSpeed:5,000 rpmPower:33.9 kWTorque:231 NmChuck:2+2-jaw power chuckClamping cylinder:Hydraulic clamping cylinderC-axis:0.01°Track III:Tool Carrier II:Tool turret (X/Y/Z)Tool drive:9,600 rpm, 44 NmToo ...
This 3-axis EMAG VSC 315 vertical turning machine was manufactured in 1999. It features an X-axis travel of 680 mm and a Y-axis travel of 250 mm, along with live tooling capabilities. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 315 machine we have for sale. Contact us for further details.
This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, its ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.
Vertical turning machine manufactured in 2000. This EMAG VSC 400 features an X-axis travel of 850 mm and a Z-axis travel of 315 mm. It is equipped with live tools for enhanced functionality and track motion loading for efficient operation. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details.
CONTROLS CNC controls FANUC BASIC FUNCTIONS number of spindles: 1 number of turrets: 1 MAIN SPINDLE spindle revolutions (max): 6000 /min ELECTRICAL SPECIFICATIONS total power consumption: 36 kW mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 4200 mm space requirements -front/back-: 2300 mm total height: 3200 mm total weight approx.: 7500 kg
control: Fanuc - - -: - - - - - - - - -: - - - - - - Vertical Turning Machine | EMAG - VL 4 with driven tools, equipped with a workpiece conveyor belt, a chip conveyor, and a coolant system The machine is in a well-maintained condition. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL4 | VL-4 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-axis: 332 mm z-axis: 625 mm control: Fanuc The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
10.000 €
