ECOCA MT-208MC 750 CNC Turning Machines

Germany2010ID 170389065

Germany2010ID 170389065

usedVerified seller
Request price Send price proposal Directly to the seller
ECOCA MT-208MC 750 CNC Turning Machines
1 / 7

Technical data

· ID 170389065
Source: seller information

CNC Turning Machines

Condition
used
Year of manufacture
2010
Location
64807 Dieburg

Identifikation

ManufacturerECOCA
ModelMT-208MC 750

Technik

Quantity1
Technical parameter 1250mm
Technical parameter 2750mm
Technical parameter 348001/min

Description

CNC lathe ECOCA MT-208MC 750
YEAR OF CONSTRUCTION : 2010

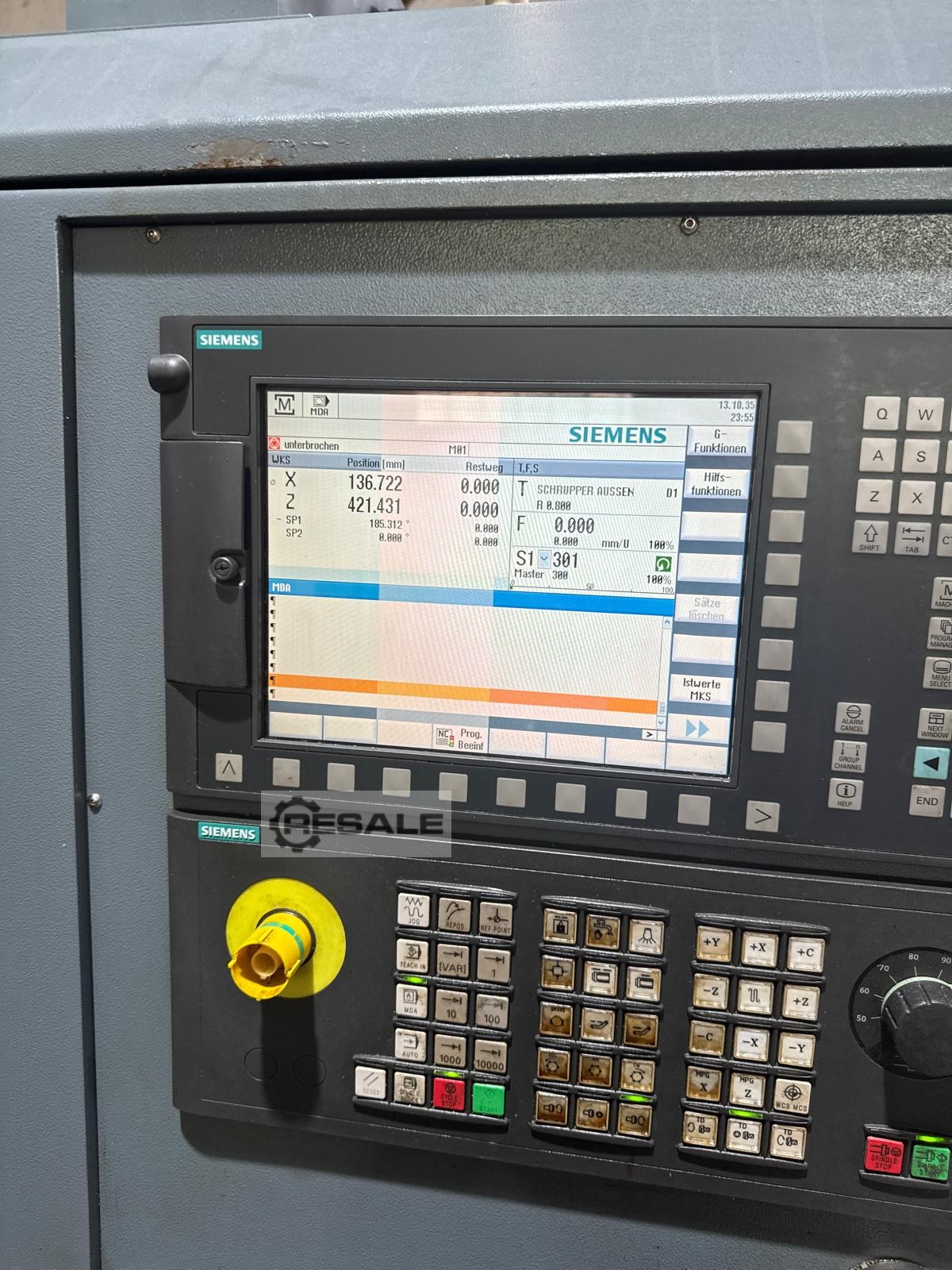

CONTROL : Sinumerik 828D

Technical data :

Workspace
* Circumferential diameter over bed: 525 mm
* Circumferential diameter via cross slide: 384 mm
* Max. turning diameter: 250 mm
* Max. machining length: 750 mm
* X-axis travel: 175 mm
Pgjc Eg S Rrjz Hl Eaegju
* Travel Z-axis: 537 / 787 mm

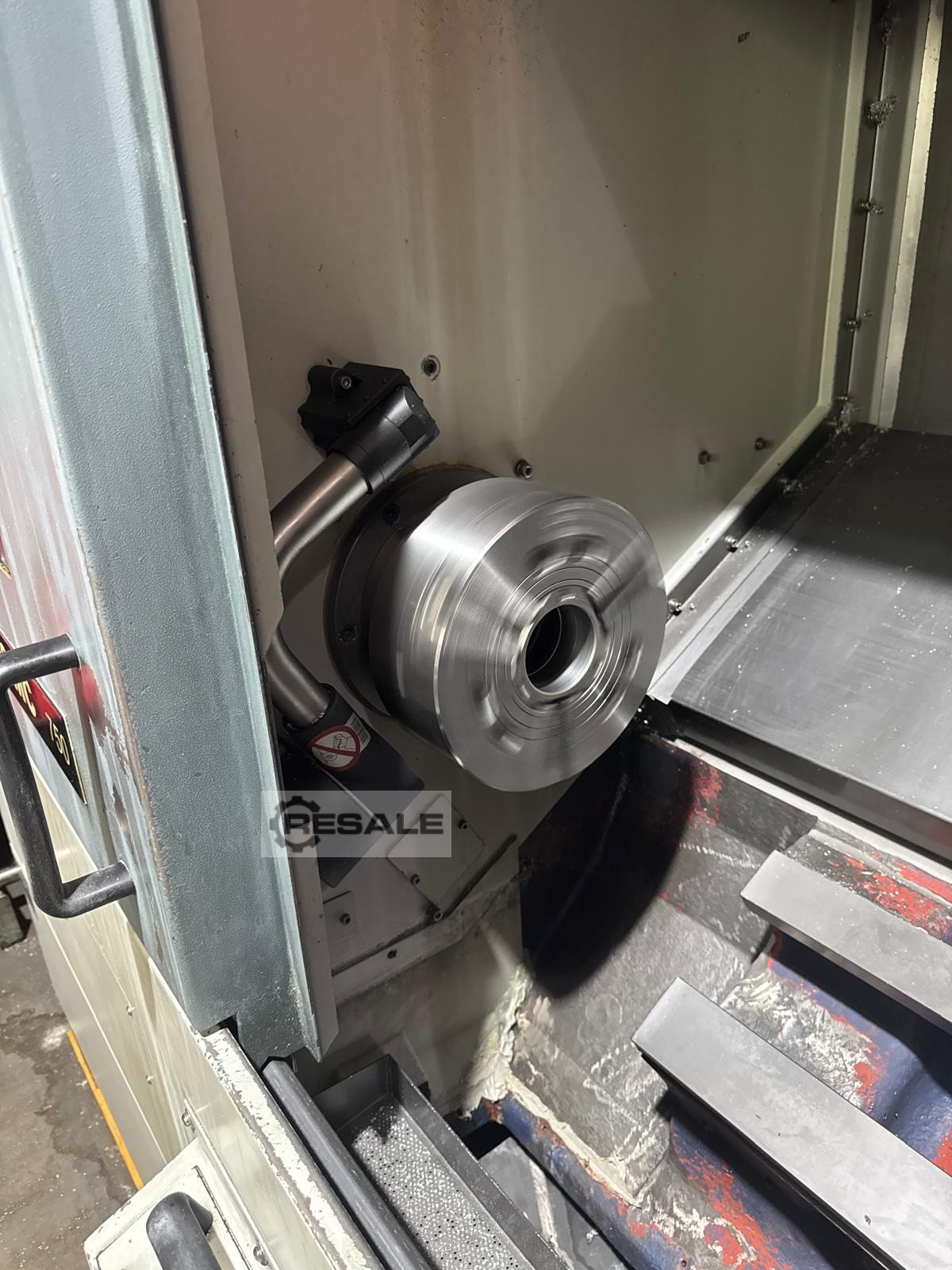

Main spindle
* Spindle speed: 750–4,800 rpm
* Spindle holder: ASA A2-6
* Spindle passage: Ø 62 mm
* Drawbar diameter: Ø 52 mm
* Front spindle bearing: Ø 100 mm
* Spindle cone: 1:20
* Lining Size: 8 inches
* Spindle motor: 7.5 / 9 kW
* Optional according to the manufacturer: 9 / 11 kW
Axles
* X-axis motor: 1.6 kW
* Z-axis motor: 3.0 kW
* Rapid traverse X-axis: 24 / 20 m/min
* Rapid traverse Z-axis: 24 / 20 m/min
* Guides: Linear / flat guides (depending on the design)

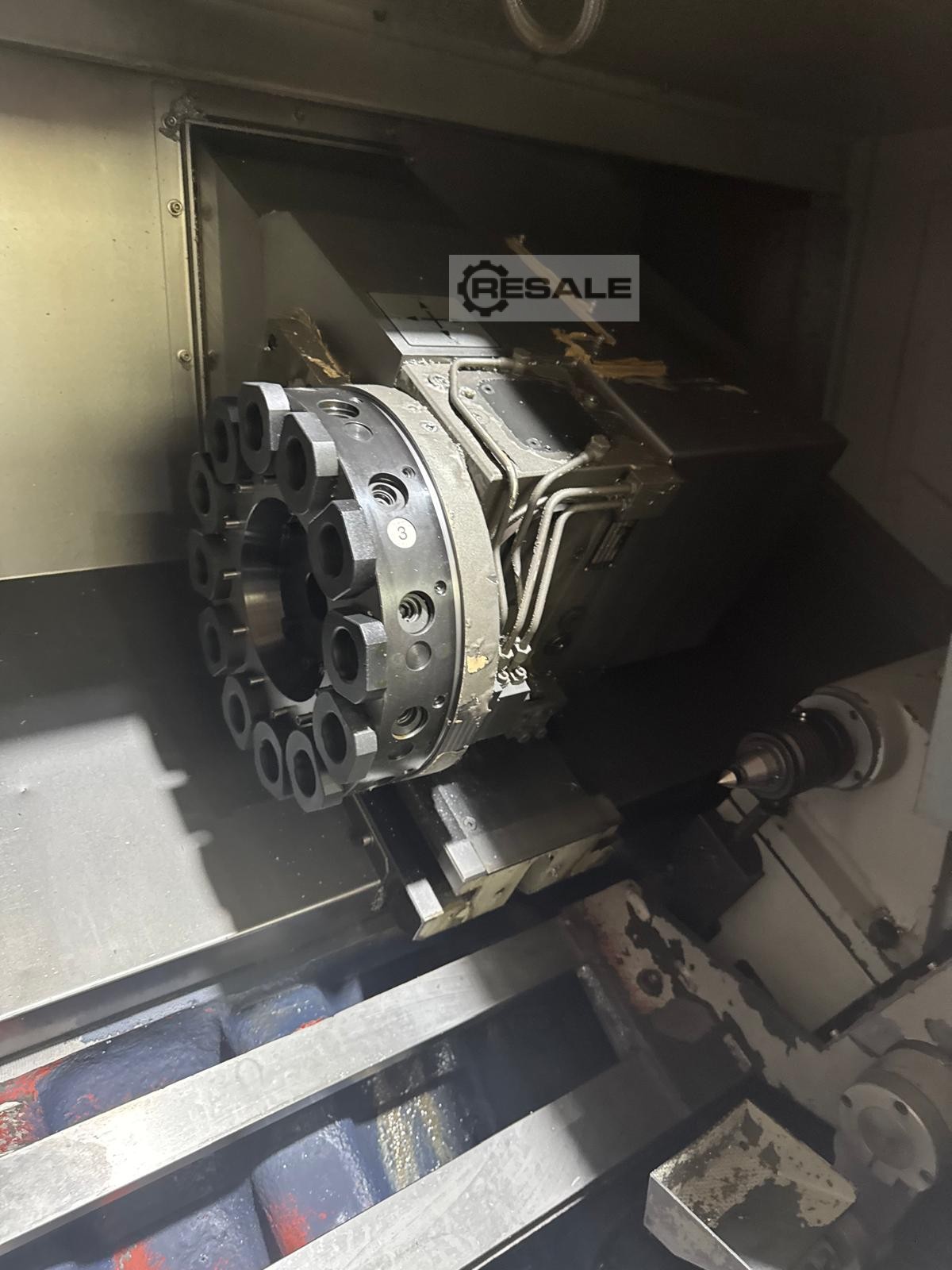

Tool turret
* Baruffaldi powered servorreactor
* Tool stations: 12
* Tool holder: VDI
* Max. external turning tool: 20 mm
* Boring rod diameter: Ø 40 mm
Tailstock
* Quill diameter: Ø 58 mm
* Quill stroke: 88 mm
* Tailstock travel: 415 / 665 mm
* Quill holder: MK4
