Control Fanuc 32i-TB Main spindle: Motor spindle technology Speed (max.) 6,500 rpm Power (max.) 7.5 kW Bar passage 38 mm Travel in Z (longitudinal turning operation) 320 mm Workpiece Clamping Collet Chuck (Type F48) Guide Bush Synchronous Running Sub-spindle: Motor spindle technology Speed (max.) 6,500 rpm Power (max.) 5.5 kW Workpiece Clamping Collet Chuck (Type F48) Pneumatic ejector Linear slides: Number of lathe chisel stations 5 Tool holder 16 x 16 mm/ 20 x 20 mm Number of stations cross drilling rig 5 Tool holder ER16/ER20 Tool drive 6,000 rpm, 2.2 kW Cross slide: Number of stations 2 Tool holder ER16 Milling operations tool drive Residual apparatus: Number of stations 8 Tool holder Ø32 mm Number of driven stations 4 Tool holder ER16 Tool drive 6,000 rpm, 1 kW Equipment/accessories: Chip Management Chip Conveyor Coolant system IKZ syste ...
Inv. Num. : 8258 Type: XE35N Producer: Hanwha Created: 2018 Parameters: Switch-on hours: 8482 h Operating hours: 6915 h Maximum turning length: 60 mm Maximum spindle speed: 6500 1/min Spindle bore: 35 mm Length: 2060 mm Width: 1440 mm Height: 1760 mm Weight: 2750 kg Equipment: Collets Chip conveyor Bar Feeder 2 driven holders on the sub-spindle C-axes on both spindles Medium pressure pump (15 bar) Guide tubes
Siemens 840D Control - Iemca Boss 545E-r/32 barfeed - Nanocool CIL750 A-CT oil cooler - machine has worked with oil
:::TECHNICAL SPECIFICATIONS::: CNC Model: Siemens CNC Version: 840 D Main spindle power: 11Kw Main spindle bar passage: 38mm Headstock Stroke (Z1): 320mm Number of main spindle speeds: 8000 Number of linear axes: 8 Number of fixed tool slots for tool plate: 5 Number of live tool slots for tool holder: 4 Fast feeds linear axes X Y Z: 32m/min High refrigerant pressure: yes Number-turrets-sled-tool-holders: 1 number-of-tool-places-first-sled-turret-sled: 10 Motorized-first-sled-turret-number: 10 tool-holder-type-first-turret-slide: VDI 30 travel-x-axis-first-turret-slide: 140mm travel-y-axis-first-turret-slide: + - 50mm Sub-spindle: yes Number of counter-spindle revolutions: 8000 Counter spindle power: 11Kw Bar Passage: 38mm Z stroke sub-spindle : 320mm Number of fixed rear tools: 4 Refrigerant used: neat oil Model a ...
equipped with Iemca Boss 332E-r/32 new in 2007 - Fanuc 18i-TB control - chip conveyor - machinery still in production will arrive in our stock at the end of January.
equipped with Iemca Boss 332E-r/32 barfeed new in 2008 with 12 mm guide channels - chip conveyor - Fanuc 18i-TB Control

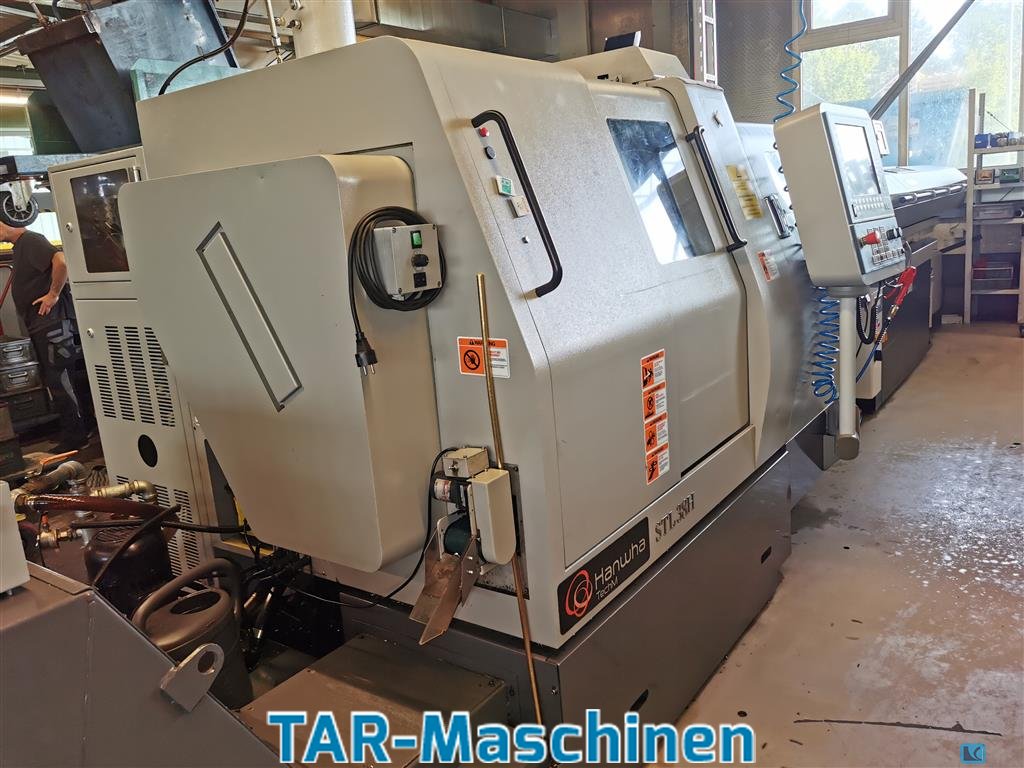

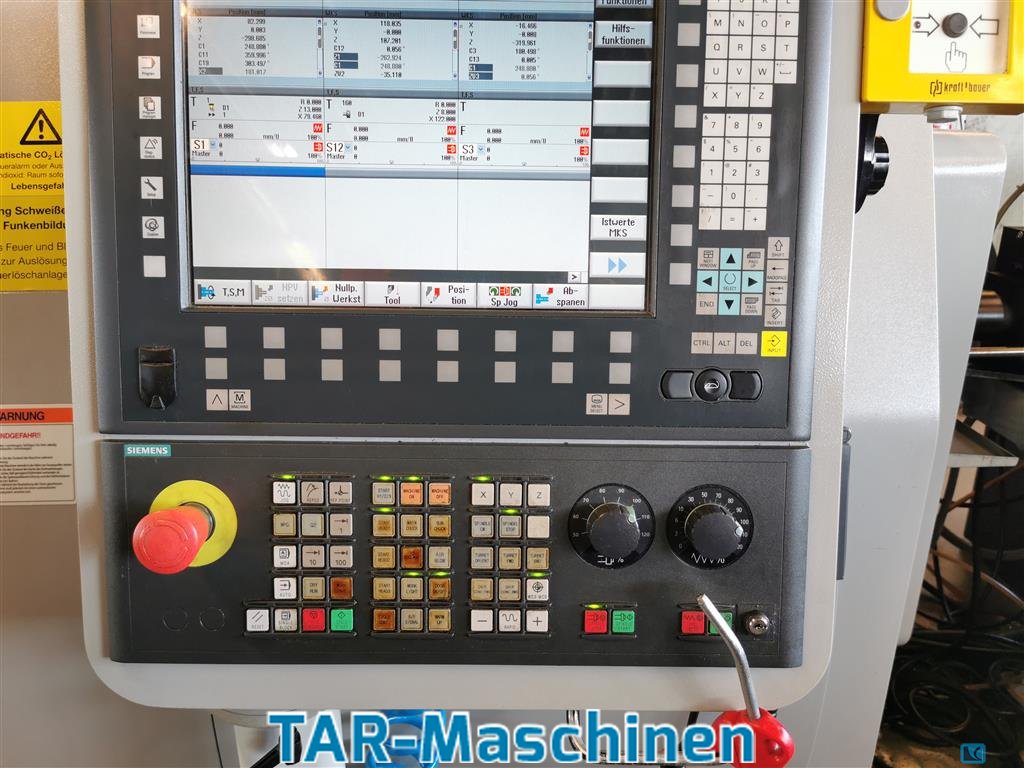

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Technical data subject to change, errors and prior sale reserved!
Year of manufacture: 08_2022 Fanuc control of the 0i series Hanwha CNC Swiss Type Lathe XD10 Y2 with Fanuc Control of the 0i Series The Hanwha CNC Swiss type lathe XD10 Y2 is a high-precision Swiss type automatic lathe with integrated Fanuc control of the 0i series, designed for machining small diameters in series production. It features a main spindle, sub-spindle, extensive tooling equipment, and accessories for efficient manufacturing processes. Main Spindle Maximum turning diameter: 10 mm Maximum spindle bore diameter: 15 mm Maximum speed: 15,000 rpm Maximum power: 3.7 kW (Built-in Motor) Z1 travel: 155 mm Synchronous rotating guide bushing unit: Type F853 Collet: Type 120E Sub-Spindle Maximum speed: 10,000 rpm Maximum power: 1.1 kW C-axis: Resolution 0.001° Maximum pick-up diameter: 10 mm Z2 travel: 180 mm Collet: Type 120E Tool Slide X1, Y1: Tool holder plate for 5 external turnin ...
This Hanwha STL45D was manufactured in 2011. It features a Siemens 840D control system, with main and sub spindles capable of 6,000 rpm and 5,000 rpm respectively. It supports a max turning diameter of Ã45 mm and includes 12 tool stations on both turrets. Additional features include a chip conveyor, product conveyor, and hydraulic brakes on both spindles. If you are looking to get high quality turning capabilities consider the Hanwha STL45D machine we have for sale. Contact us for more information.
