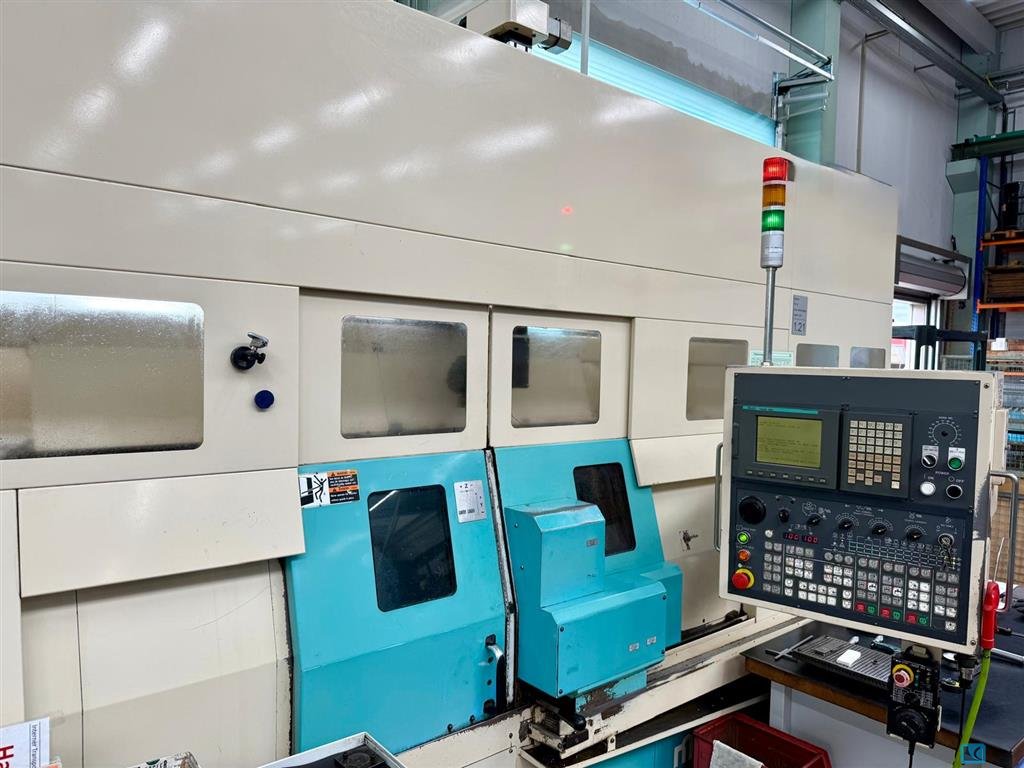

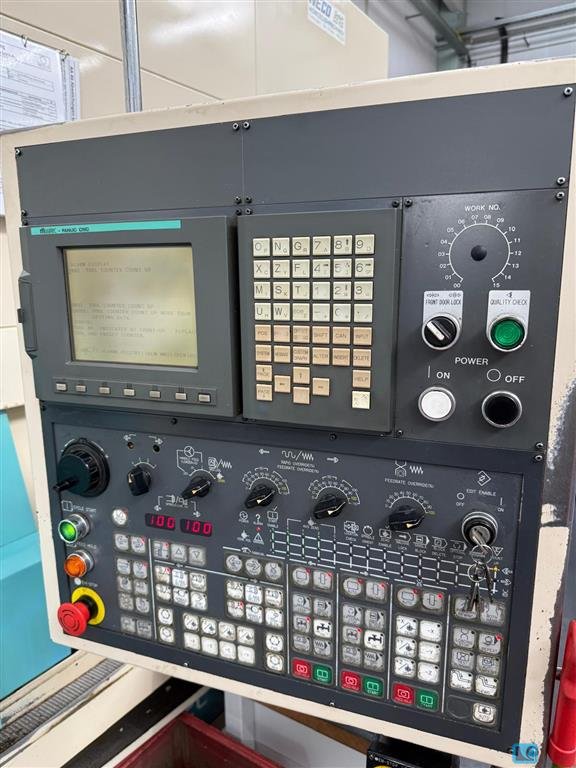

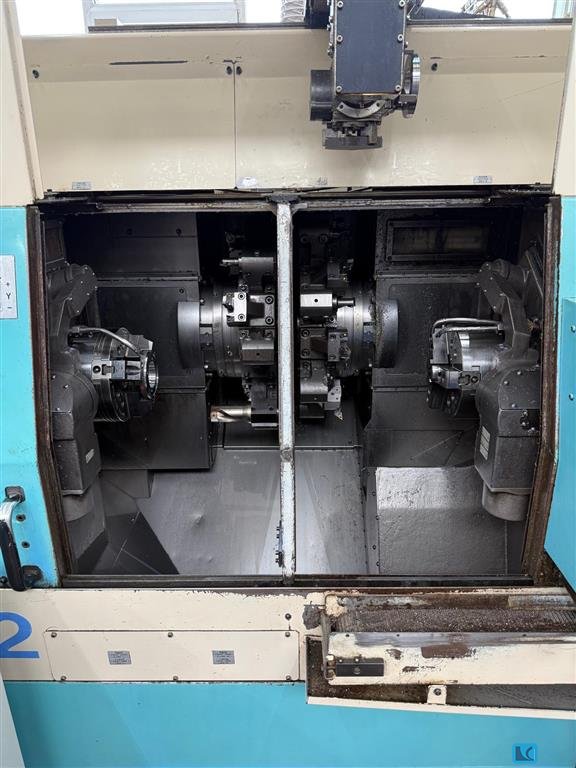

Year of construction 2006 Fanuc Control 16 TC max. turning diameter 210 mm X-axis X1 / X2 mm 200 Z-axis (left side) Z1 mm 200 . Z-axis (right side) Z2 mm 650 Bar diameter 45 mmLongitudinal travel Planweg Spindle head Spindle bore max. turning diameter 210 mm Spindle speed 4500 rpm Spindle power 2 x 11 kW Spindle nose A2-5 Rapid traverse X-Z axis 24 m/min Rapid traverse right spindle 32 m(min 2 x turret (tool carrier) for 15 tools, driven, VDI40 Indexing time 0.25 sec. Powered Tools 12 Tool holder VDI 40 Quill stroke 120 mm Recording MK 5 Accessories: Bar feeder (not original to this machine) Chip conveyor, 3 driven tools.
Horizontal CNC lathe with double spindle and two working spaces. Muratec MW 40 Year of Make: 2017 Original price: 260.000,- € net Current leasing rate: 2,678 € LNS FOX Spray Cabine, built in 2017 SPECIFICATIONS Machine Type: Lathe Front Spindle Construction: horizontal lathe Chuck size: 135 mm (5 inches) Number of spindles: 2 pieces Turret: 2 à 10 stations Spindle speed: 10,000 rpm Drive power: 3.7 / 2.2 kW
2012 Muratec MW 120 GT Metal 2012 Muratec MW 120 GT and more: Mori Seiki ZT 1500YB in operation, can be viewed during operation. 2002 yes Mori CL 2000 can be viewed under power. Currently not in operation 2004 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2001 yes Mori Seiki SL-204 can be viewed under power. Currently not in operation 2003 yes Tsugami NP-32 can be viewed under power. Currently not in operation 1992 yes Riello in operation, can be viewed during operation. 2002 yes
turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...
Manufacturer: Muratec Model: MVS 861 VORTEX Spindles per Machine: 80 Total Spindles: 480 Spindle Type: 1.3 Motor Power: 32 to 33 kw Piecers: 2 per machine Color: Red Blower: Yes Individual Machine Details M/C 1 - Status: Running - Model: MVS 861 - Year: 2011 - Polymaster: No - Motor: 33 kw M/C 2 - Status: Running - Model: MVS 861 - Year: 2011 - Polymaster: No - Motor: 33 kw M/C 3 - Status: Running - Model: MVS 861 - Year: 2011 - Polymaster: Yes - Motor: 33 kw M/C 4 - Status: Running - Model: MVS 2007 - Year: 2007 - Polymaster: Yes - Motor: 32 kw M/C 5 - Status: Running - Model: MVS 2005 - Year: 2005 - Polymaster: Yes - Motor: 32 kw M/C 6 - Status: Stopped - Model: MVS 2005 - Year: 2005 - Polymaster: No - Motor: 32 kw Find more here - / Contact us at -
This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details.
This Muratec MT 25 MC Lathe was manufactured in the year 2001 in Japan. It is equipped with a Fanuc 18i CNC control unit and has 7 axis. The machine has a spindle speed of 40-4000 rpm.
