Model
(Manufacturer: SPINNER)
Key data: 32 mm
Manufacturer: Spinner Type: PD-CNC IB-TMC-V3 Year of Make: 2008 Control: Siemens 840D ShopTurn Travels: X 400 mm, Z 400 mm, Q 400 mm Switch-on hours: (Information to follow) Working spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Tool/movement Tool holder: VDI 20 Tool turret: 12-speed Number of tools driven: 6 Dimensions and weight Dimensions: 2,500 mm x 1,400 mm x 1,700 mm Weight: 2,300 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: programmable tailstock Preparation for interface for bar feeders
Manufacturer: SPINNER Model No.: TC-32-MC Year: 1999 Condition: Used Stock number: 9422 Control system: SIEMENS Sinumerik Maximum turning length: 245 mm Maximum turning diameter: 120 mm Maximum turning diameter over bed: 290 mm Maximum length of travel in the X-axis: 96 mm Max. travel length of the Z-axis: 245 mm Maximum spindle speed: 6000 1/min Length: 1750 mm Width: 1100 mm Height: 1730 mm Weight: 1400 kg
Manufacturer: SPINNER Model No.: PD-CNC Year: 2006 Condition: Used Stock number: 9421 Control system: SIEMENS Sinumerik Maximum turning diameter: 120 mm Maximum length of travel in the X-axis: 400 mm Maximum feed rate in the Z-axis: 400 mm Max. rod diameter: 32 mm Spindle speed: 8000 1/min Length: 2300 mm Width: 1200 mm Height: 1700 mm Weight: 2300 kg
Key data: 400 mm, 250 mm
This machine is sold on behalf of the customer. Technical data: Manufacturer: Spinner Type: TC300-52 SMMCY Year of Make: 2010 Control: Siemens 840D SL Travel: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turning length: 400 mm Turning diameter: 250/200 mm Swing diameter: 400 mm Working Spindle 1 Speed: 5,000 rpm Torque: 96/121 Nm Power: 15/19 kW Bar Passage: 52 mm Working spindle 2 Speed: 7,000 rpm Torque: 38 Nm Power: 6 kW Tool turret 1 and 2 Number of stations: 12x Recording: VDI 25 Max. speed AGW: 6,000 rpm Power: 8/2.6 kW Dimensions and weight Dimensions: 2,200 x 2,000 x 2,000 mm Weight: approx. 4,600 kg Condition Condition: Used Other equipment and accessories included: Parts Conveyor Belt High Pressure Pump Chip conveyor Interface for bar feeders 3-jaw chuck on sub-spindle and main spindle
Key data: 250 mm, 400 mm
Technical data: Manufacturer: Spinner Type: TC300-52 SMMCY Year of Make: 2012 Control: Siemens 840D SL Travel: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turning length: 400 mm Turning diameter: 250/200 mm Swing diameter: 400 mm Switch-on hours: (Information to follow) Working Spindle 1 Speed: 5,000 rpm Torque: 96/121 Nm Power: 15/19 kW Bar Passage: 52 mm Working spindle 2 Speed: 7,000 rpm Torque: 38 Nm Power: 6 kW Tool turret 1 and 2 Number of stations: 12x Recording: VDI 25 Max. speed AGW: 6,000 rpm Power: 8/2.6 kW Dimensions and weight Dimensions: 2,200 x 2,000 x 2,000 mm Weight: approx. 4,600 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Parts Conveyor Belt High Pressure Pump Chip conveyor Interface for bar feeders 3-jaw chuck on sub-spindle and main spindle
General Manufacturer: Spinner Type: VC750-XL Year of Make: 2019 Control: Siemens 840DE SolutionLine V2 Travel: X 950 mm Y 460 mm Z 460 mm Rapid traverse: 36 m/min Working spindle Speed: 12,000 rpm Power: 11 kW (S6/40%) Tool/movement Tool taper: size 40 according to DIN 69871-A Tightening bolts: according to DIN 69872-A Tool changer: 32-fold Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: Multi-function control panel with handwheel and integrated display Chip Conveyor V2 VC750-XL Preparation for high-pressure flushing High-pressure flushing 22 bar (additional tank) Blow-out device for spindle taper Compressed air cooling nozzle on the headstock Option package "Shopmill programming" Preparation of interface for Blum infrared probe TC50/TC52/TC54-20 Linear guide in all three axes Splash protection ...
For sale is a high-quality CNC turning-milling center spinner TC77-SMCY with Siemens Sinumerik control. The machine is equipped with: Y-axis C-axis Sub-spindle powered tools Chip conveyor extensive tool package Technical data: Bar passage 77 mm 12-speed VDI50 turret Main spindle ASA 8 Sub-spindle ASA 6 Speed up to 4000 rpm Turning diameter approx. 500–690 mm Turning length approx. 800–900 mm Y-axis ±60 mm Main and sub-spindle Weight approx. 6000–7000 kg Nloc Egsy Uwmws S Rrgob

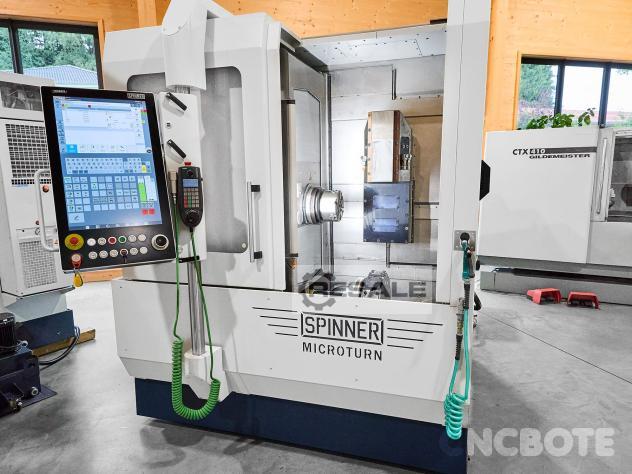

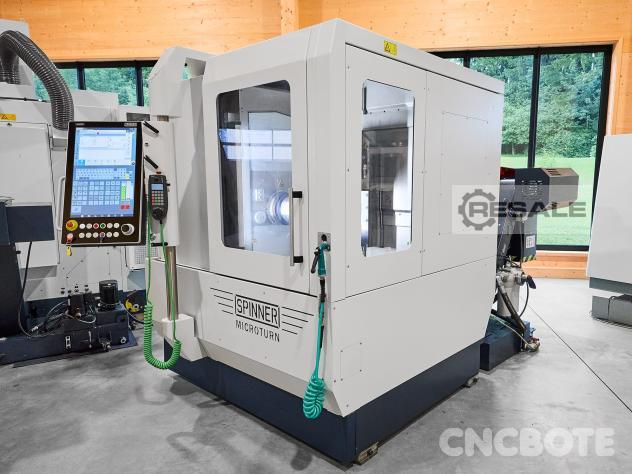

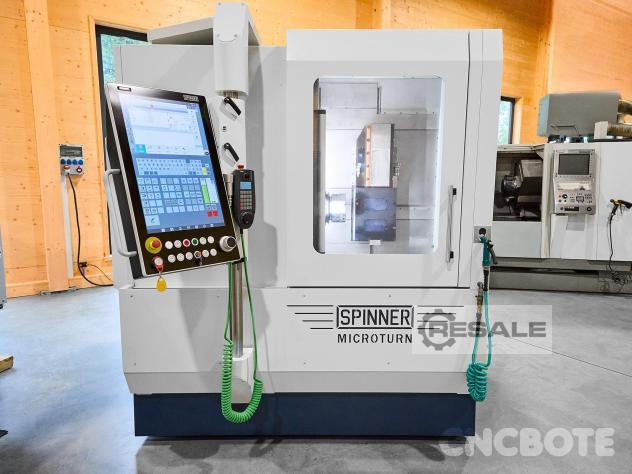

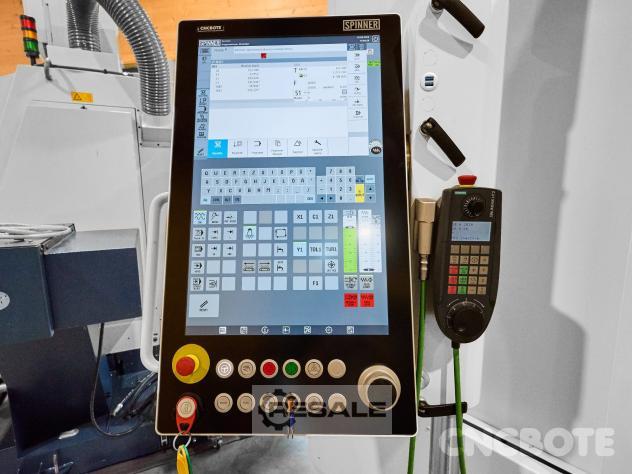

General Manufacturer: Spinner Type: Microturn LT Year of construction: 2024 Control: Siemens One Travels: X 600 mm Z 350 mm Y +/- 50 mm Switch-on hours: 4,587 h Work spindle hybrid bearing Speed: 10,000 rpm Tool/movement Tool holder: BMT45 with Y-axis Tool turret: 12-speed Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: High-precision motor spindle with a circular shape deviation and 1um Power Chuck Röhm KFD-HS 125 Power Chuck SMW Autoblok BH-D 165-46-3-A05 Various owners and AGW High-pressure system 70 bar including fine filter Chip conveyor Spindle coolers
Key data: 850 mm, 510 mm, 510 mm
General Manufacturer: Spinner Type: VC 850 Year of Make: 2022 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes
Key data: 850 mm, 510 mm, 510 mm
General Manufacturer: Spinner Type: VC 850 Year of Make: 2021 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes
Inv. Num. : 8904 Type: SB-CNC Producer: SPINNER Created: 1999 Parameters: Maximum turning length: 250 mm Maximum turning diameter: 285 mm Spindle diameter: 42 mm Maximum spindle speed: 8000 1/min Weight: 1500 kg
General Manufacturer: Spinner Type: TC800-110-MCY Year of Make: 2009 Control: Siemens 840D SolutionLine Travel: X 360 mm Z 900 mm Y -55/+65 mm Switch-on hours: 22,551 h Working spindle Speed: 3,200 rpm Power: 28/35 kW Torque: 175/875 Nm Tool/movement Tool holder: VDI40 Tool turret: 16-speed Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: C-axis for spindle incl. software option "Transmit" Hydraulic hollow clamping cylinder Electrical interface for connecting rod feeds 840D-SL Software Package "Turning with Shoturn" Tool monitoring 840D-SL 3D Simulation of the Precast Part Tailstock Chip conveyor High Pressure Pump Double filter Mahle Parts catcher V2 TC800 Clamping force control via differential pressure for main spindle
Key data: 280 mm, 500 mm
Turning lenght 500 mm Turning diameter 280 mm Controller Fanuc 32i 12 stations VDI30 tool holder
General Manufacturer: Spinner Type: TTC300 65SMMCY Control: Siemens 840D SL ShopTurn Year of Make: 2015 Travel X1 / X2 / Z / Y: 180 / 110 / 450 / +40-40 mm Rapid traverse X1 / X2 / Z / Y: 15 / 15 / 15 / 24 m/min Turning Spindle 1 Speed: 4,000 rpm Chuck size: 250 mm Spindle passage: 52 mm Spindle power S1 / S6: 21 / 27 kW Torque S1 / S6: 201 / 258 Nm Turning spindle 2 Speed: 7,000 rpm Chuck size: 130 mm Spindle power S1 / S3: 6 / 8.5 kW Torque S1 / S3: 49 / 68 Nm Revolver Number of tools: 12 + 12 (BMT45) Rotating Tools: 12+12 (BMT45) Speed: 6,000 rpm Power S1 / S3: 2.3 / 3.5 kW Torque S1 / S3: 7 / 11 Nm Dimensions and weight Dimensions: 2,700 mm x 1,900 mm x 2,165 mm Weight: 5,100 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: IKZ 50 bar with belt filter system Parts Conveyor Belt w ...
Key data: 32 mm, 8000 1/min
Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2015 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 52,356 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck
Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,889 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck
Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,616 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck
Key data: 32 mm, 8000 1/min
Specifications: Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2017 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 39,131 h Spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck
Specifications: Manufacturer: Spinner Type: SB-CNC Year of Make: 1998 Control: Siemens 840D Travels: X 250 mm Z 285 mm Switch-on hours: 32,156 h Main spindle: Spindle speed: 5,000 rpm Spindle passage: 42 mm Tool holder: Tool holder: Multifix A on linear beam Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Collet chuck Interface for bar feeders The machine has a headstock elevation of 10 mm.
Control Heidenhain TNC 620 V2 Travel X/Y/Z 760/480/480 mm Speed 12000 rpm. Tool magazine for 24 tools SK40 Table size 900x410 mm Conveyor
used
X,Y,Z Travels 630,530,465 mm Spindle speed 18.000 rpm Tool holder SK40 Number of tools 32 Controller Heidenhain iTNC 530 With Tool and workpiece measuring probe With chip conveyor
Inv. Num. : 8242 Type: VC 560 Producer: Spinner Created: 2007 Parameters: Control system: Siemens Work table length: 650 mm Work table width: 480 mm Maximum vertical spindle speed: 6000 1/min X-axis travel: 560 mm Y-axis travel: 400 mm Travel Z axis: 400 mm Cone: SK 40 Number of all tools: 16 pieces Equipment: Cooling
Inv. Num. : 8227 Type: U-620 Producer: Spinner Created: 2011 Parameters: Control system: Siemens Number of axles: 5 pieces X-axis travel: 620 mm Y-axis travel: 520 mm Travel travel Z-axis: 460 mm Maximum vertical spindle speed: 10000 1/min
Inv. Num. : 8228 Type: TC-42 Producer: Spinner Created: 2004 Parameters: Control system: Siemens Max. machining length: 500 mm Maximum turning diameter over bed: 400 mm Maximum main spindle power: 12 kW Maximum spindle speed: 4500 1/min Spindle bore: 42 mm Equipment: Powered tools
Inv. Num. : 8226 Type: VC 810 Producer: Spinner Created: 2005 Parameters: Control system: Siemens Work table length: 1000 mm Work table width: 600 mm Maximum vertical spindle speed: 8000 1/min X-axis travel: 800 mm Y-axis travel: 600 mm Travel Z-axis: 510 mm Machine height: 2600 mm Machine length: 2400 mm Machine width: 2200 mm Machine weight: 6000 kg
Key data: 2 mm, 810 mm, 700 mm
General Manufacturer: Spinner Type: MVC1600-B Year of Make: 2006 Switch-on hours: 30,240 h Control: Siemens 810D ShopMill Travels: X 1,600 mm Y 810 mm Z 700 mm Spindle Speed: 6,000 rpm Power: 25 kW Tool holder: SK50 Tool Changer Number of stations: 24-fold with double arm Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Conveyor Blow-out device for spindle High-pressure system IKZ 26 bar Preparation 4th axis Preparation of workpiece probes
General Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2016 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 46,318 h Spindle Spindle speed: 8,000 rpm Spindle Passage: 32 mmin Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck
BAZ Spinner VZ 750 Year of construction: 2011 Hours : 6910 Spindle hours: 5114 Control Type: Fanuc OIMD-Alpha-Drive-HV-Technology Accessories: Chip conveyor Equipment: SK 40 Tool Pack
