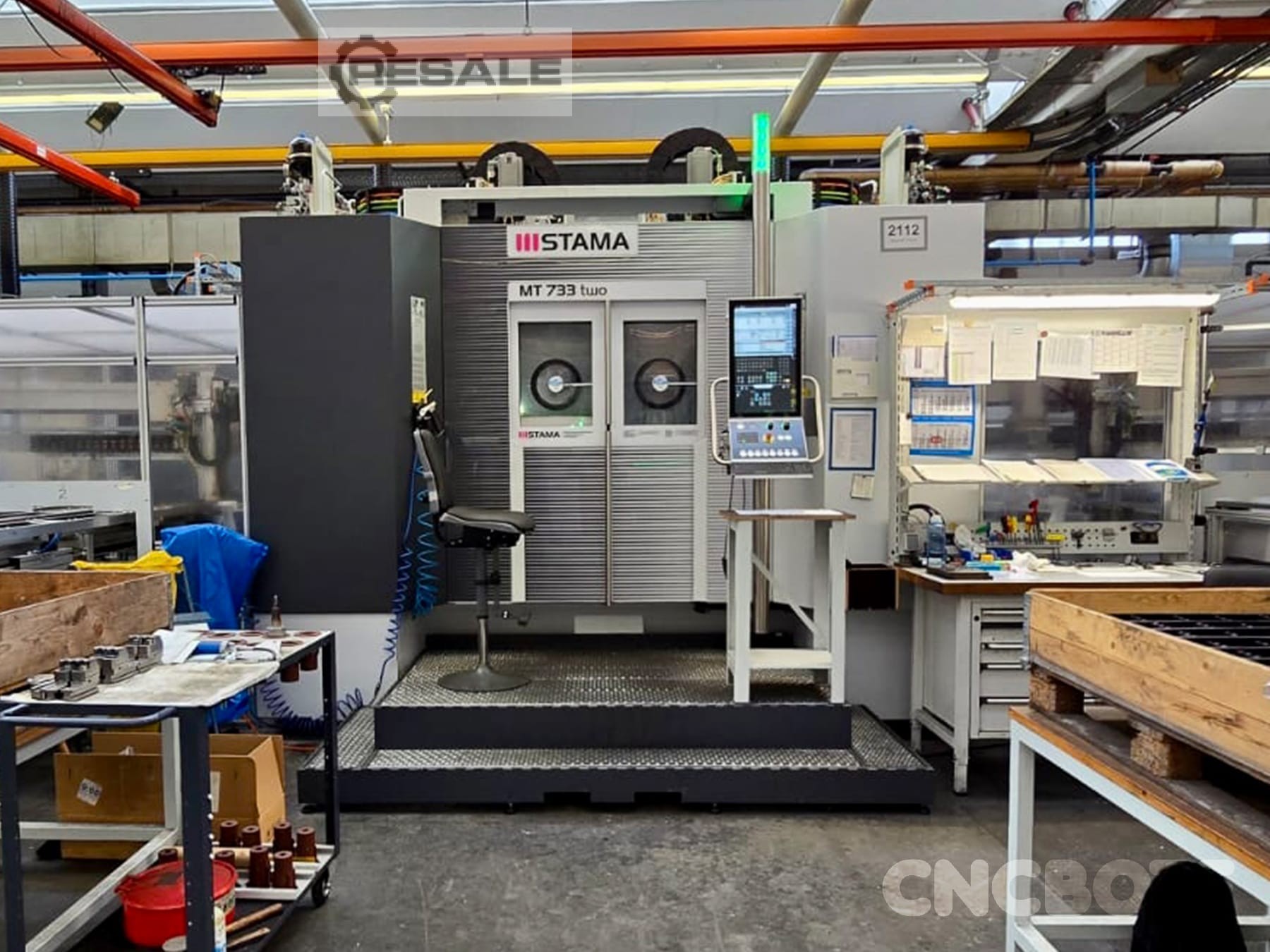

Stama MT 733 two CNC Turning Machines
usedVerified seller
1 / 5
Technical data
· ID 168387722CNC Turning Machines
- Net price
- 110.000 € netto
- Condition
- used
- Year of manufacture
- 2020
- Location
- 86971 Peiting
Identifikation
ManufacturerStama
ModelMT 733 two
Item number145539
Technik
Quantity1
Description
General
Manufacturer: Stama
Type: MT 733 two
Year of Make: 2020

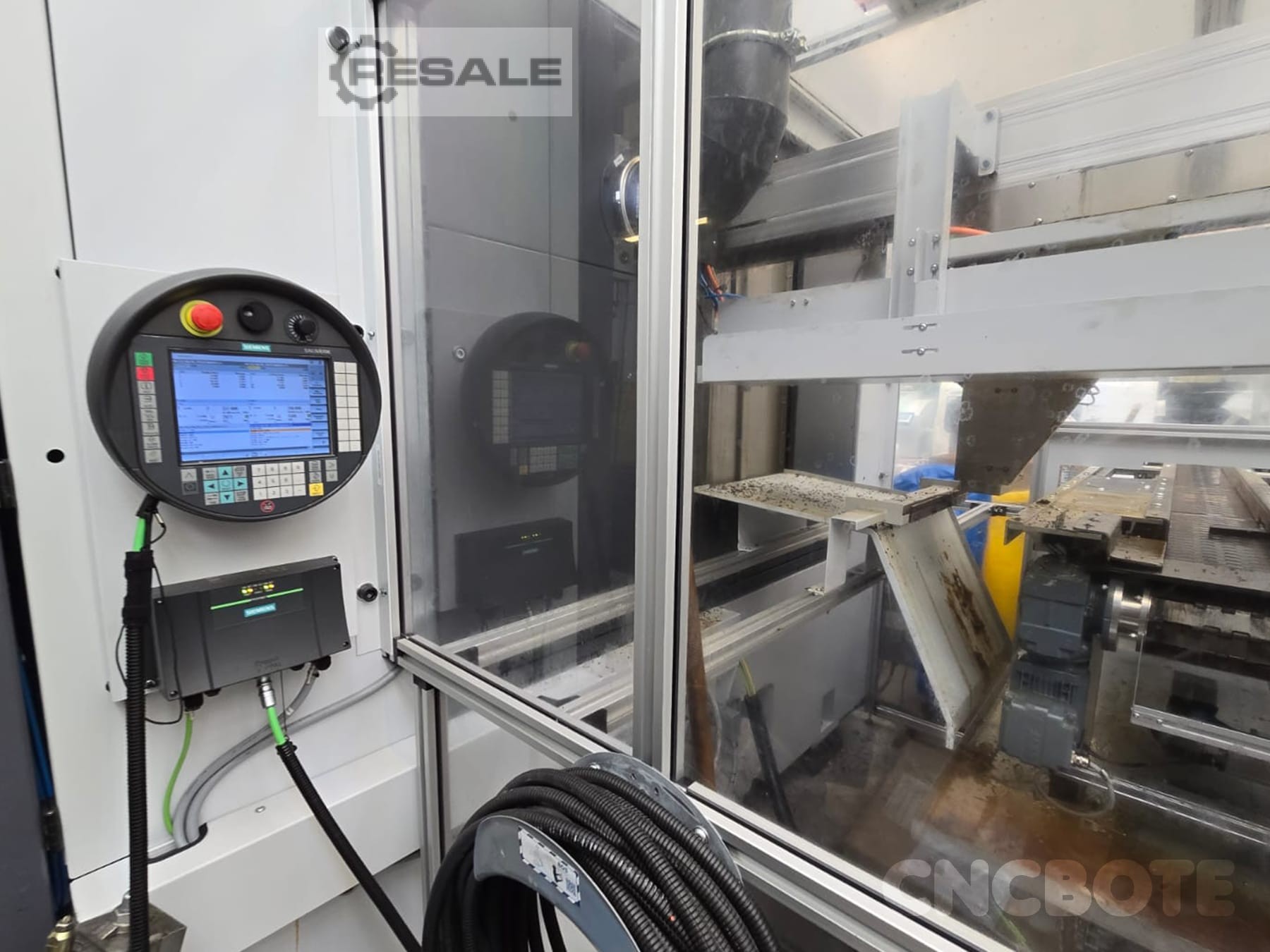

Control: Siemens Sinumerik 840D SL
Travel: X 615 mm Y 290 mm Z 500 mm
Rapid traverse: 65 m/min
Feed: x 4,000 N / Y 4,000 N / Z 8,000 N

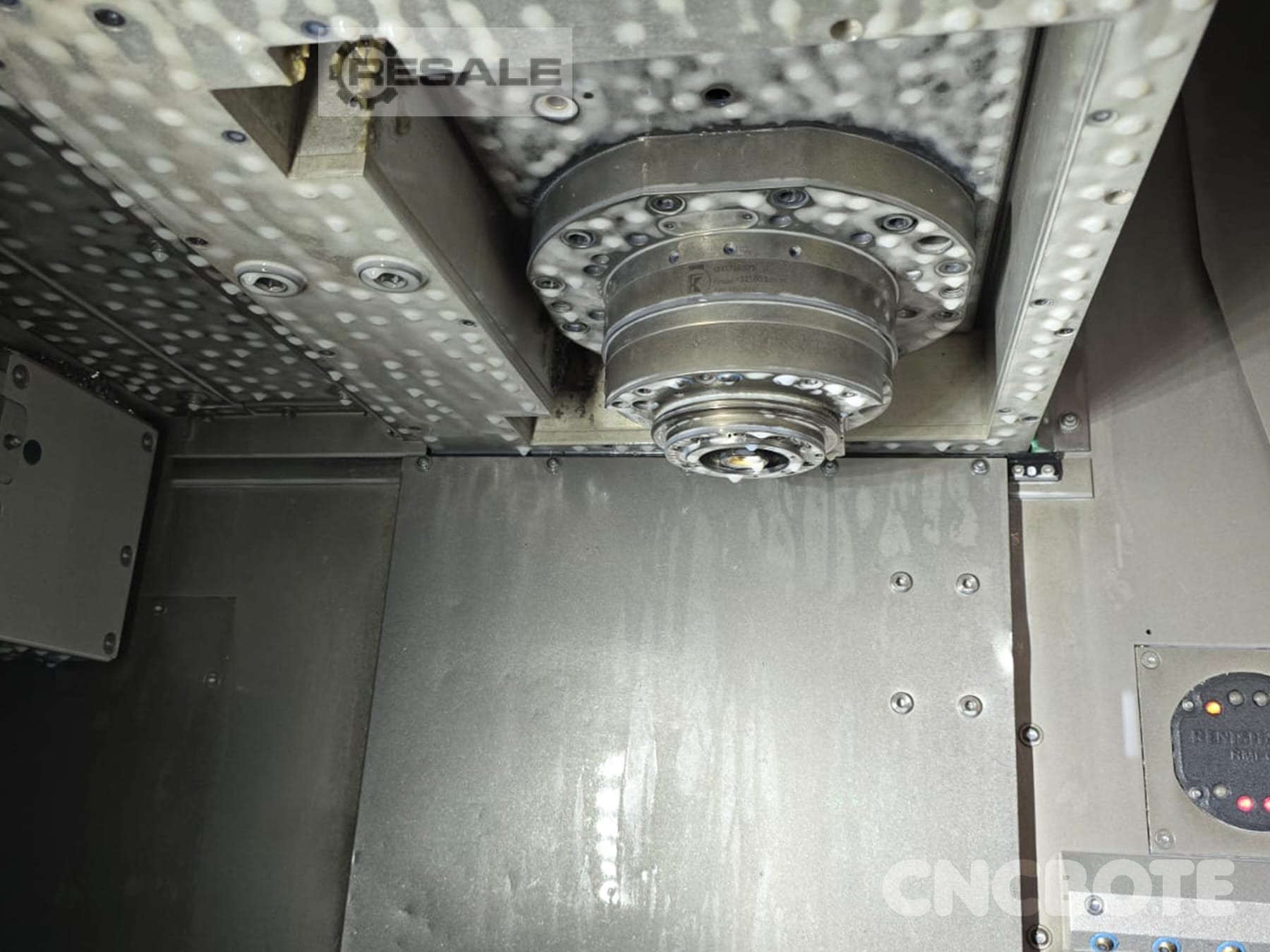

Main spindle unit
Speed: 12,500 rpm
Tool holder: HSK-T63
Pull-in force: 18 kN
Spindle bearing diameter: 80 mm
Tool magazine
Number of available magazine slots: 64
Tool diameter max. when fully equipped: 78 mm
Tool diameter max. with free secondary positions: 140 mm
Tool length: max. 300 mm
Tool holder: HSK-A/T63
Tool weight: max. 10 kg
Total chain load: max. 115 kg
Rotary swivel unit
Swivel angle: +30 to -180°
Swivel axis repeatability: ±1"
Swivel axis speed: max. 61 1/min
Clamping torque tangential swivel axis: 3,000 Nm
Clamping torque tangential counter bearing: 1,800 Nm
Condition
Condition: Used
Functional: tested and fully functional
Manufacturer: Stama
Type: MT 733 two
Year of Make: 2020
Control: Siemens Sinumerik 840D SL
Travel: X 615 mm Y 290 mm Z 500 mm
Rapid traverse: 65 m/min
Feed: x 4,000 N / Y 4,000 N / Z 8,000 N
Main spindle unit
Speed: 12,500 rpm
Tool holder: HSK-T63
Pull-in force: 18 kN
Spindle bearing diameter: 80 mm
Tool magazine
Number of available magazine slots: 64
Tool diameter max. when fully equipped: 78 mm
Tool diameter max. with free secondary positions: 140 mm
Tool length: max. 300 mm
Tool holder: HSK-A/T63
Tool weight: max. 10 kg
Total chain load: max. 115 kg
Rotary swivel unit
Swivel angle: +30 to -180°
Swivel axis repeatability: ±1"
Swivel axis speed: max. 61 1/min
Clamping torque tangential swivel axis: 3,000 Nm
Clamping torque tangential counter bearing: 1,800 Nm
Condition
Condition: Used
Functional: tested and fully functional
