other metal working machines used for sale (11,233)

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

Multifix size C 14 pieces. Used See pictures Viewing desired By appointment

DIMENSIONS / WEIGHTS:. - total height:1000 mm

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

different sizes; for more details see photos of nameplates

In disassembled state complete with 4 running meters of fence

Example picture;

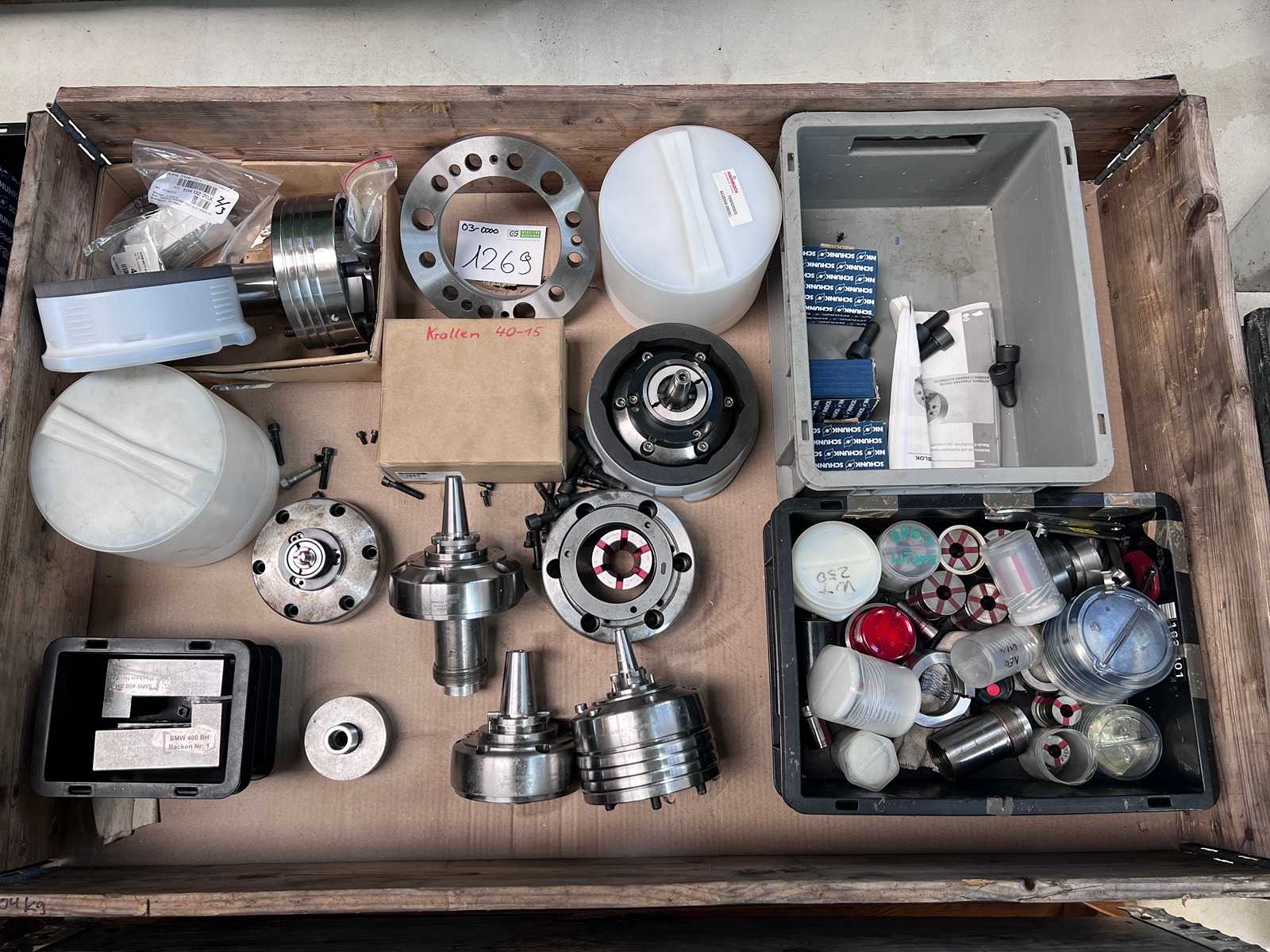

Lots of various chucks such as T812 Gr. 2, Adapt T212 Gr. XS, Adapt T212 Gr. 1 and T812 Gr. 3 incl. various accessories Transport dimensions: 1,200 x 800 x 400 mm, approx. 100 kg

DIMENSIONS / WEIGHTS:. - total height:900 mm

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

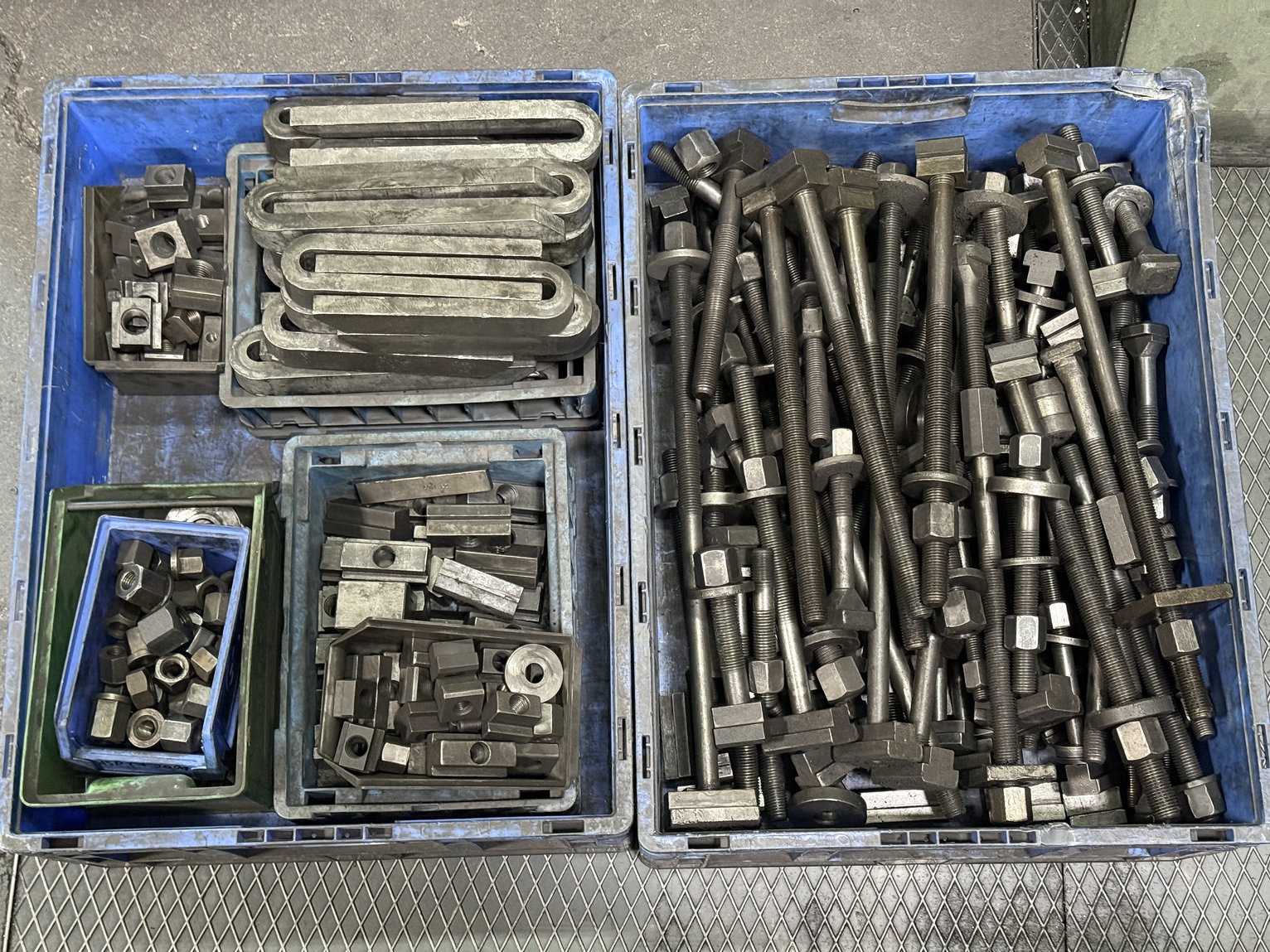

2 boxes with clamping devices such as: screws, slot nuts, U-profiles etc.; see photos for more details

Model: Hardened steel Table length [mm]: 3000 Table width [mm]: 1500 Tabletop thickness [mm]: 15

Description The Actuator Pressure Controller (APC) is a pressure control system developed for the calibration and testing of pneumatic control boxes. With this APC, it is possible to generate a pressure or vacuum level to be reached instantly or with a predefined control ramp. In addition, an external sensor can be used to measure the pressure obtained. It is possible to check the calibration of a pneumatic control box with a complete hysteresis cycle, defining all the parameters of the adjustment process. The pressure data from the sensors is recorded and analysed to check the maximum permissible hysteresis, either as an absolute value or as a proportion of the movement of the control box. Different control configurations can be saved and reloaded on demand. The calibration control cycles are carried out via 3 ports, 2 inlets from the test bench supplying the APC box with dry and clean  ...

DIMENSIONS / WEIGHTS:. - total height:35 mm

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

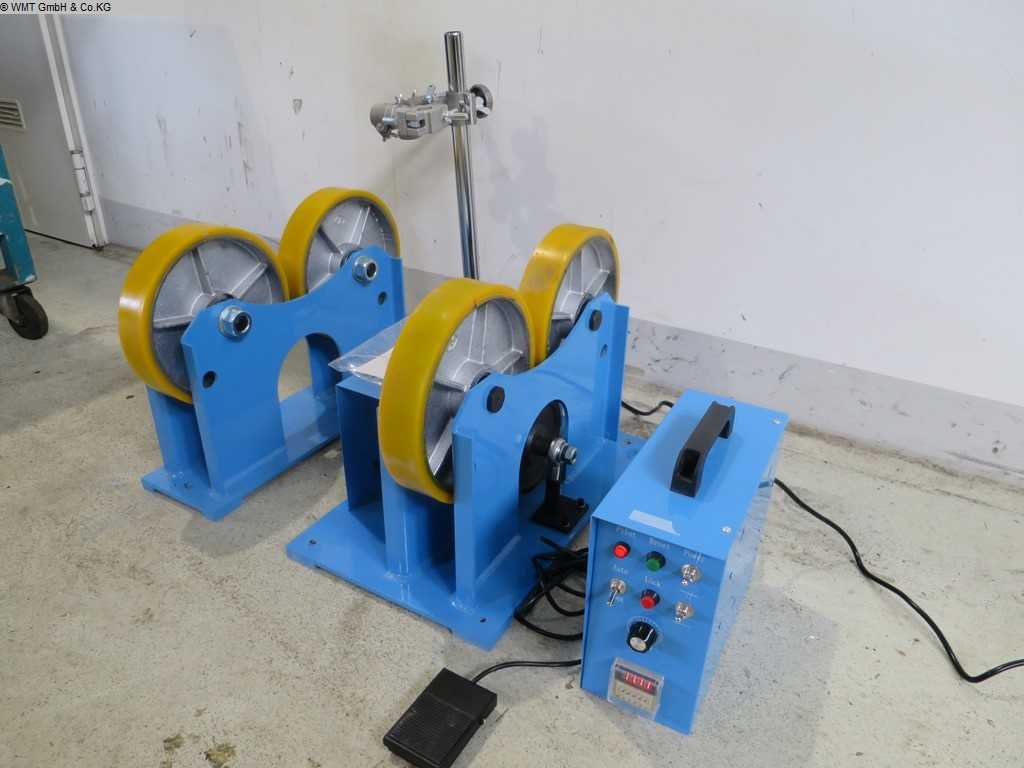

Roller trestle - Burner tripod - Continuous number - Footswitch - Instruction manual in English Load capacity 1000 kg Workpiece diameter 20 - 800 mm Drum diameter 200 x 50 mm Feed rate 50 - 2000 mm/min Weight 65 kg Total power requirement 0.6 kW Space requirement approx. 0.8 x 0.6 x 0.6 m Condition: never used / new (5)

With accessories, see pictures

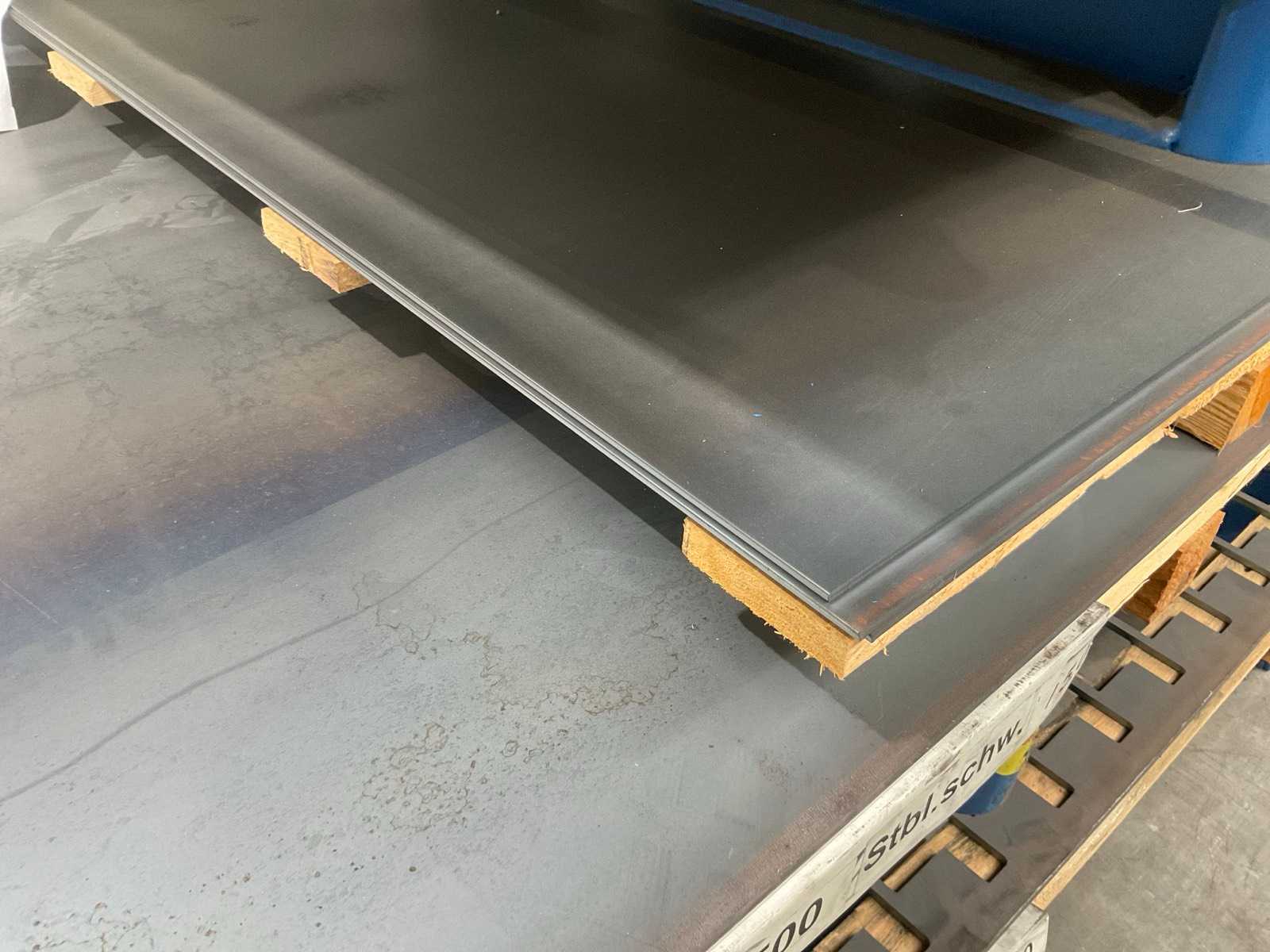

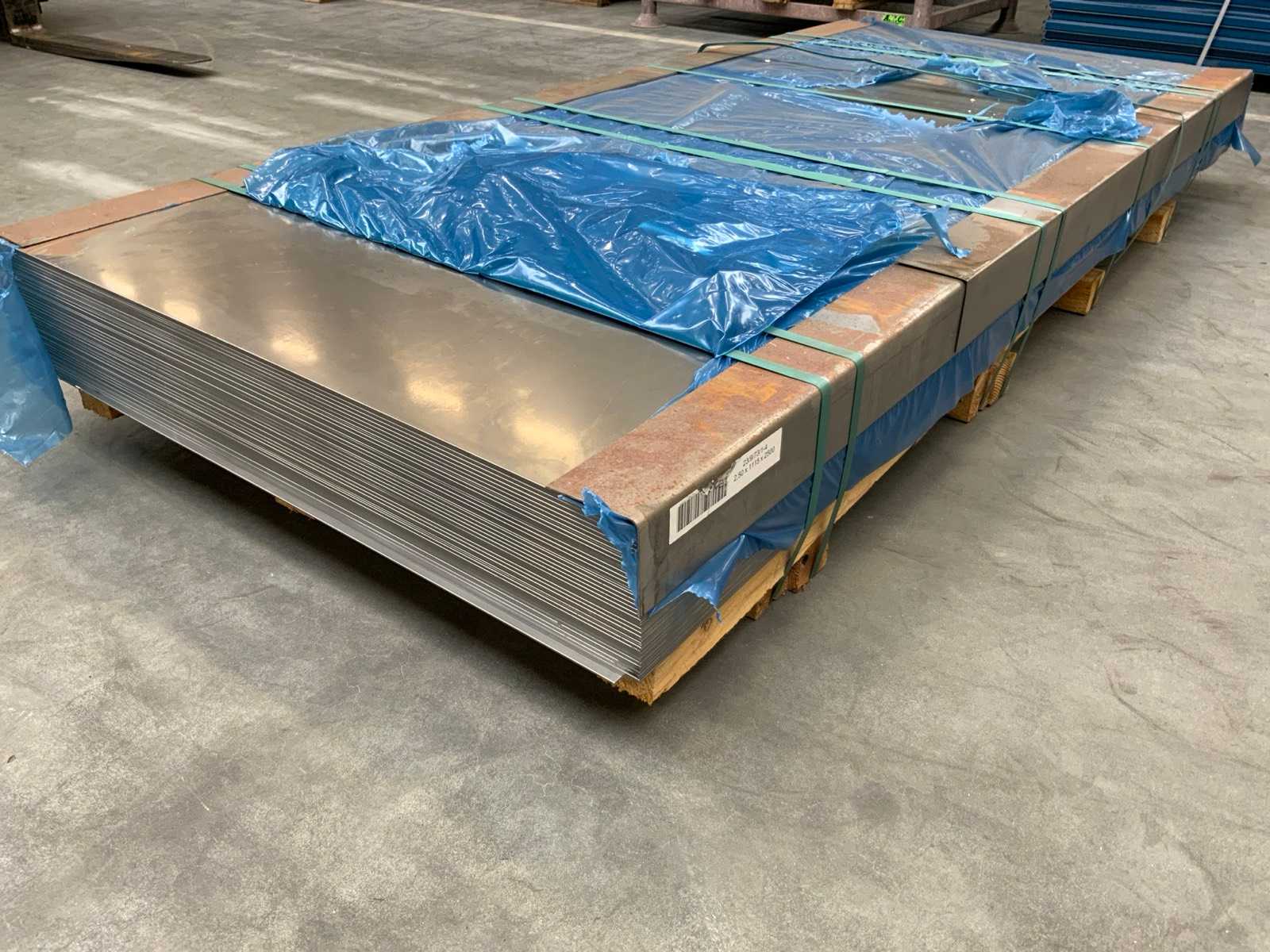

Thickness: 4,0< br>Total weight: 100,00 Kg, Total sqm: 3,13

DIMENSIONS / WEIGHTS:. - total height:1000 mm

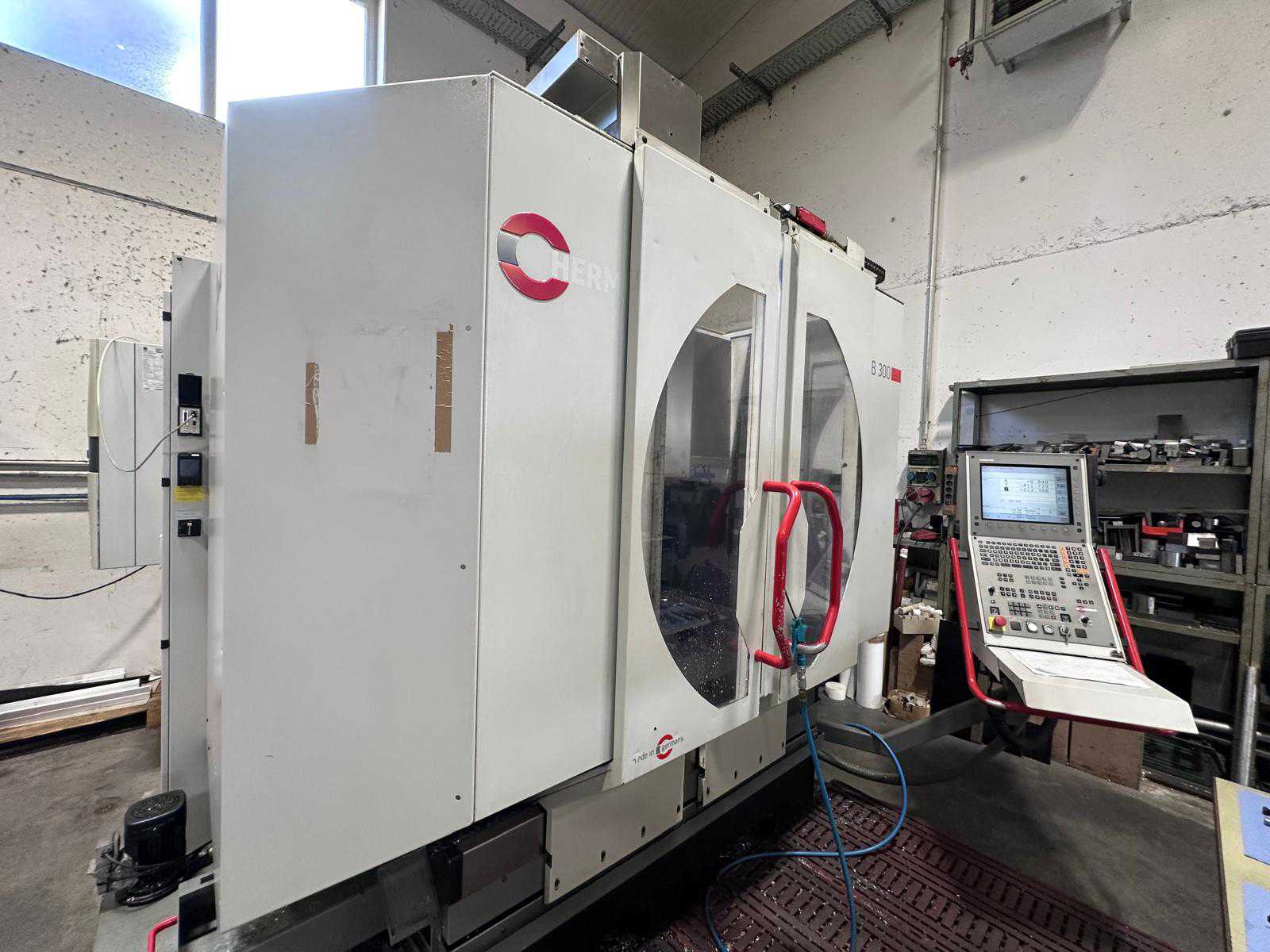

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

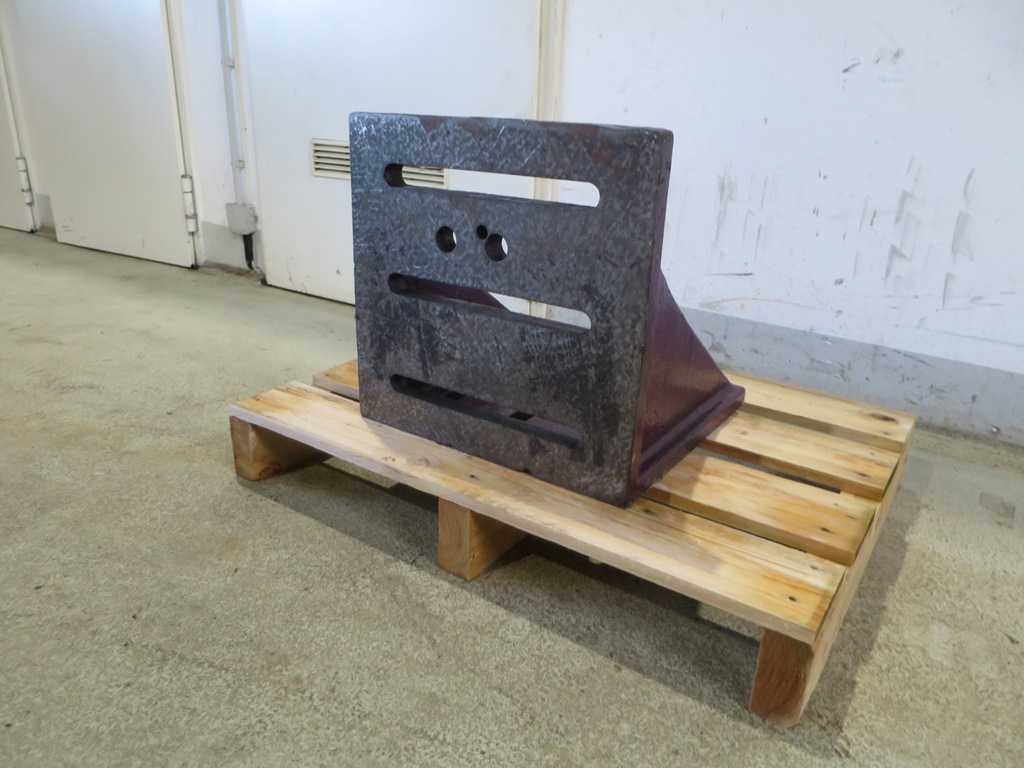

Clamping angle Clamping area 400 x 400mm each See pictures

Table size: 1000 x 560 mm Probe: Heidenhain Tool changer: 30 places

DIMENSIONS / WEIGHTS:. - total height:1000 mm

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

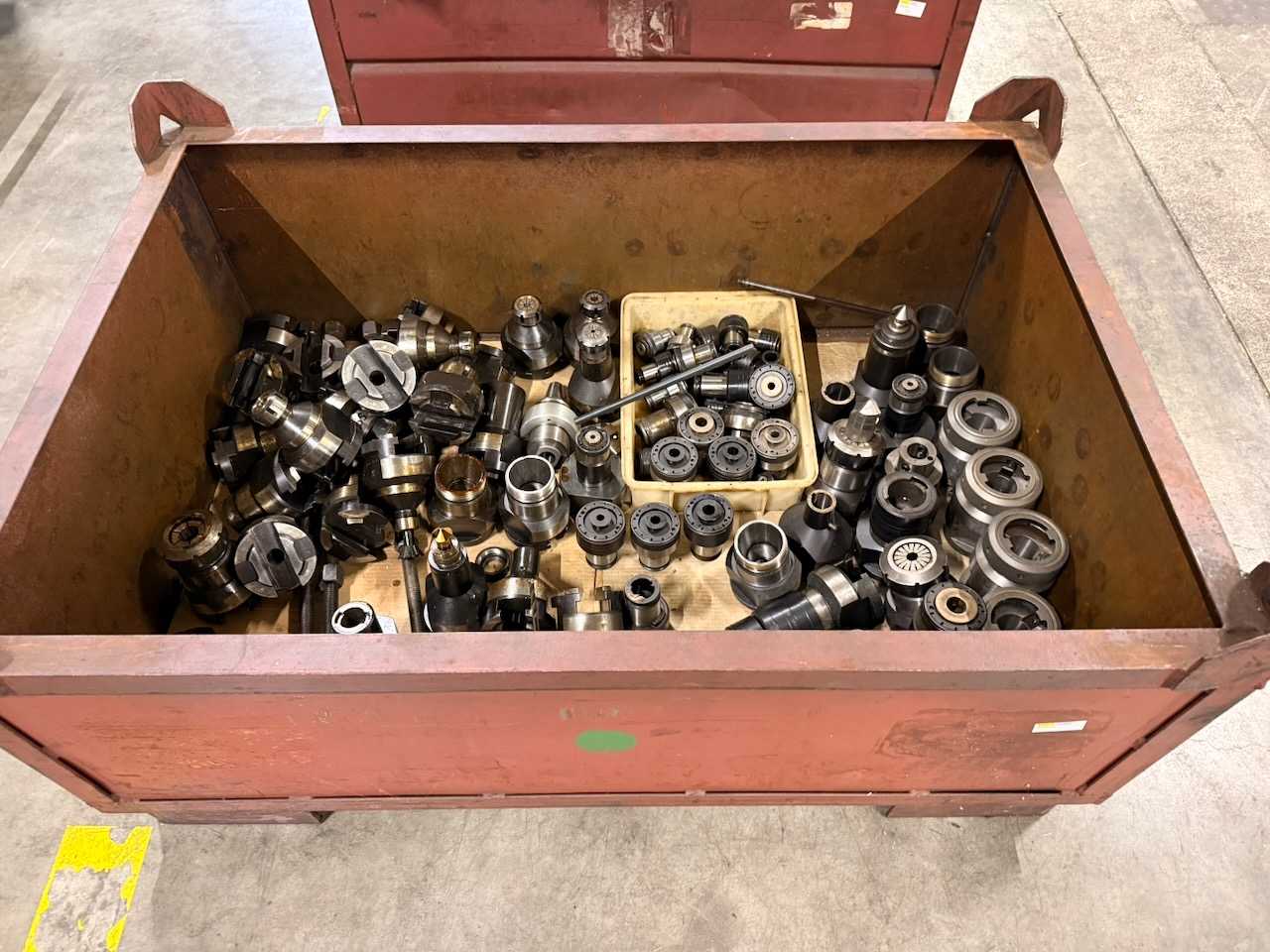

Tool holders and clamping adapters for BAZspecial tool holders and clamping adapters for machining centres of the STAMA-MC series (including MC 440).Stock: Mixed lot with approx. several tool holders, chucks, reducers and spindle adapters.Typical designs include:STAMA special adapter with bayonet/form-fit contourChuck with slotted clamping headsReduction adapter for STAMA unit interfacesMounting elements for special toolsTool carrier with STAMA logo and part numbers (including 150 864 / 150 865)

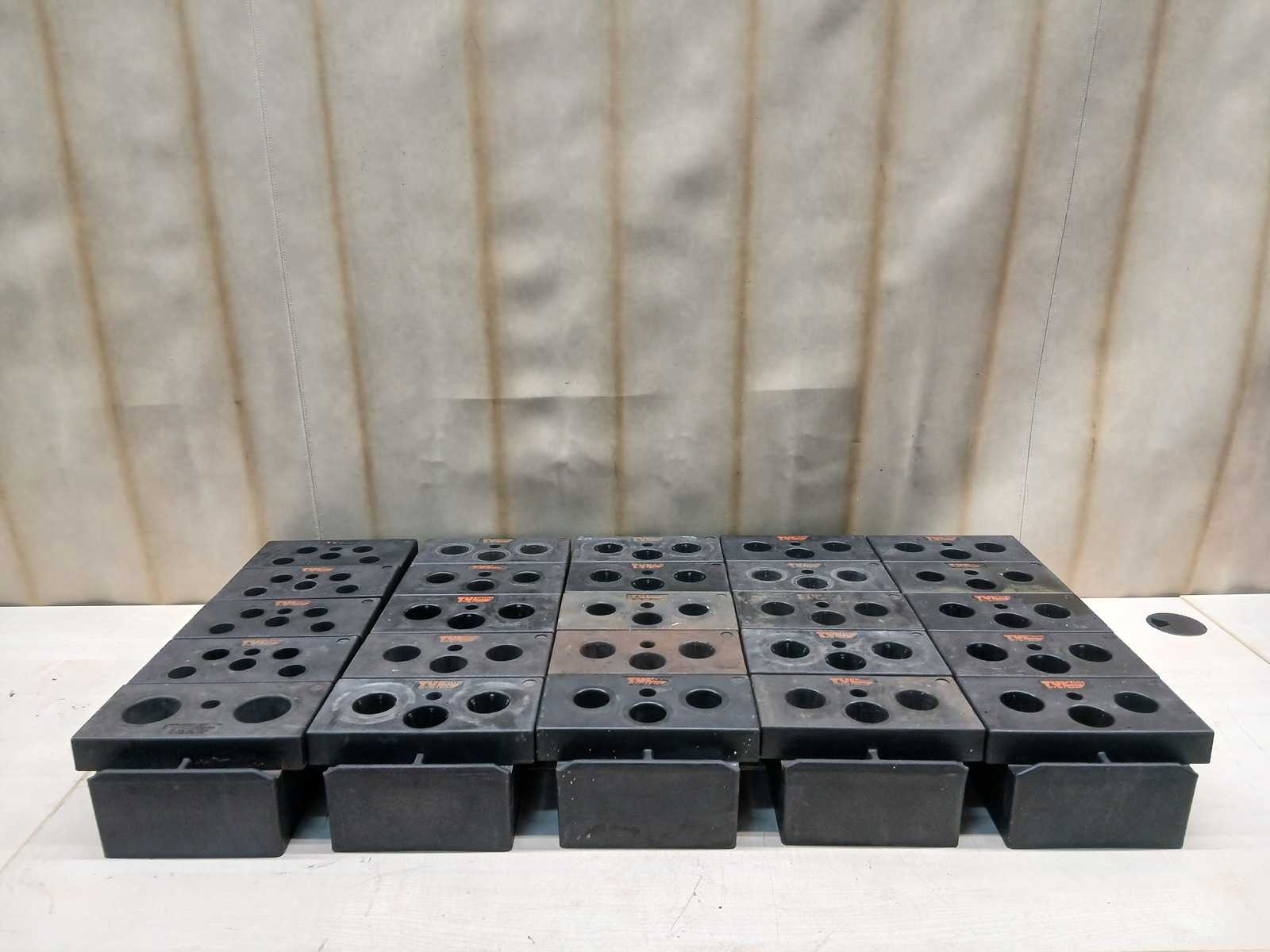

Plastic racks with precision bores for storage of tool holders. Markings TR40, TR36, SK40,TR28

DIMENSIONS / WEIGHTS:. - total height:900 mm
