Model
(Manufacturer: ARTHUR KLINK)

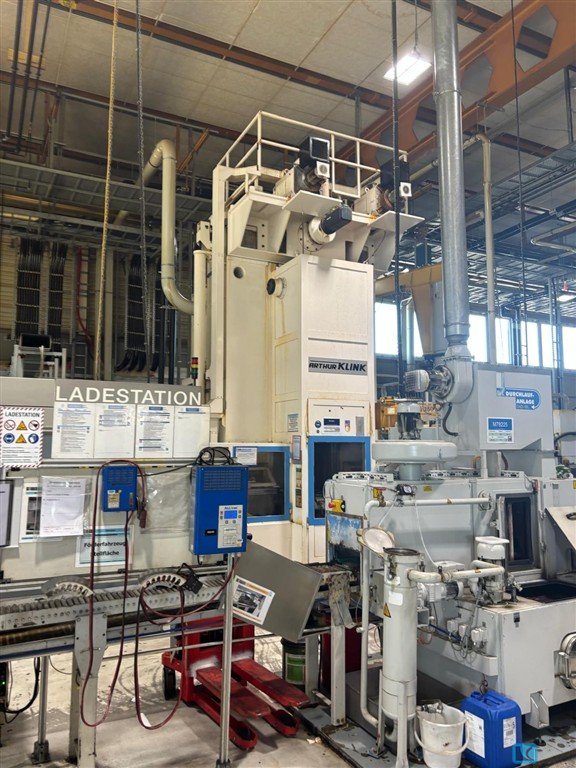

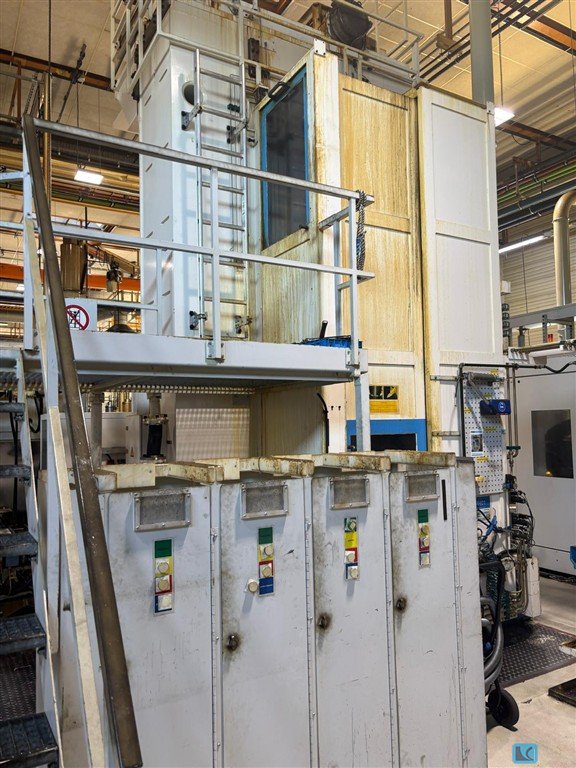

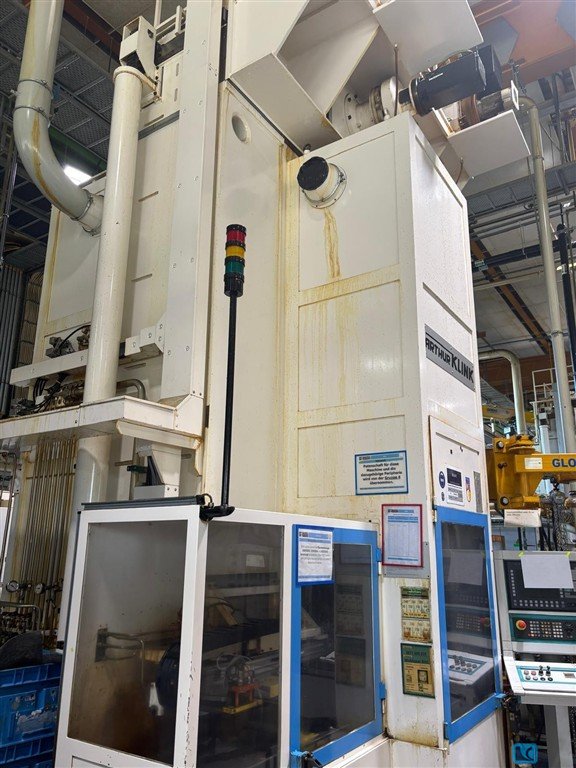

Fully functional Vertical internal broaching machine with electromechanical drive Manufacturer: Arthur Klink Pforzheim Type: RISH-M 10 x 1,250 x 500 with 4 broaching points Year of Make: 2014 Machine number: 03.2734 Control: Siemens Sinumerik 840 D Total weight of the machine: 24,000 kg Operating hours: 56,674 h Accessories: Slide conveyor type 2.126-3 (magnetic belt) Item number: 12513433-00-0 Year of construction 2014 FLT Portal Machine number: 03.2734 Year of construction 2014 Location of the machine: 73430 Aalen We are happy to send you videos in advance. The machine can be viewed on site. It is still energized and works perfectly. You can make an appointment for a viewing at any time. We would love to hear from you. We will be happy to answer any questions you may have at any time. We are looking forward to a good cooperation and thank you ...
hydraulic internal clearing machine in good operational condition Clearing stroke:1.500mm Tension: 16,000 KG â?¢ the drawing head shot in the drawbridge:85mm Through-hole in the clamping table: 120mm Workpiece diameter: max. 750mm (due to the machine body of the tool feeder) Cutting speed: hydraulically infinitely adjustable from 1 m/min to 6m/min Return speed: hydraulically infinitely adjustable from 5m/min to 30m/min Dimensions of the machine: (bx t x h) approx. 6,600 mm x 800 mm x 1,500mm (without working area) Power supply / connection power: 380Volt 50 HZ /8.0 KW Accessories / Optional equipment: â?¢ the machine has an electrical control for clearing lifting movement â?¢ the machine has an integrated cooling cutting system â?¢ the machine has a flanged machine bed with a manual tool feeder The machine is ideal for the produ ...
Tractive effort: to 25 Length: 2000 mm Room set: 3 piece
vert. Internal broaching machine maximum tractive force: 10T Max stroke: 1000 mm Max cutting speed: 10.9 m / min Max reverse speed: 27.5 m / min Clamping surface: 400 x 400 mm Room set: 3 piece
pulling force - max.: 6.3 t max. ram stroke: 1000 mm max. workpiece diameter: 60 mm Control: Siemens 840 D total power requirement: 99 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 4 x 5 x 6 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pulling force - max.: 16 t broaching length max.: 1250 mm table width: 400 mm broaching speed: 1...6,4 m/min return speed: 19,5 m/min tool length - max.: 1500 mm total power requirement: 42 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m - Specification: 2- jobs broaching right or left / right and left at the sametime The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
