used Measuring Machines for sale

Zeiss Model UMM850 Zeiss Model: UMM850 850mm X, 1200mm Y, 600mm Z, 7’ X 4’ X 12” table, Zeiss probe, 5 station probe changing station, joystick controls, Wilkerson compressed air dryer

Inv. Num. : 4368 Type: Comact Scan 2M Producer: ATOS Created: 2013 Parameters: Software: ATOS v7.5 Stack height: 1.8 mm Machine arm: 0.9 mm Swivel head: Foba Superball M-1 Notebook: Dell Precision M4700 Equipment: 1x Silver License Key 1x Remote Control 1x original notebook 1x bag with PC 1x Stand 2x Suitcase 3x Folders

Torque/angle/preload Analyzer Testing and measuring instrument Brand: BLM Type: 5040 Number of pieces: 2 More info: Please see photos All information without guarantee

Coordinate Measuring Machine Brown&Sharpe Model: Microval 454 PFX YOM: 1996 Measuring range X-axis: 457 mm Measuring range Y-axis: 508 mm Measuring range Z-axis: 406 mm Max table loading: 225 kg Machine dimensions (LHW): 895x885x1575 mm

Measuring and control ring for control of three-point internal micrometers Diameter 50mm Diameter 100mm Diameter 150mm Diameter 200mm More available

Code 6398 Umschreibung CNC Bahngesteuerte Drei-Koordinaten Messmaschine Fabrikat DEA Typ IOTA 1102 Maschine Nummer 514 Baujahr 1989 Steuerung DEA CU / 01 Tischabmessung L x H x B 1800 x 1000 x 700 mm Längs X = 915 mm Quer Y = 610 mm Vertikal Z = 610 mm Nutzbare Messvolumen 0.34 m3 Gewicht 2050 kg Bemerkungen Maschine hat KEINE Messkopf ( wie Renishaw ) Maschine ist ohne Computer

Description: Includes 2 Solatron buttonsApprox. Onsite Dimension. (l x w x h): 400 x 300 x 100 mm, weight approx.: 5 kg

Inv. Num. : 1608 Type: MM6-2.5-1.5 Producer: DYNOBEND B.V Created: 2011 Parameters: Specifications: • Measuring range L 6000 x W 2500 x H 1500mm (2500mm is 1250 on both sides of the rail) • Measuring time 6 mtr. 1 min • Calculation time data: 1 min • Machine weight +/- 500kg • Windows XP control incl. PC • Rommer Arm • Control computer Documentation: • Electrical circuit diagrams in paper form and CD • Spare parts list in paper form and CD • Maintenance instructions in paper form and CD • Cleaning instructions in paper form and CD • Instruction manual in paper form CD and "Help" Machine Requirement: • The machine is equipped with a connection • The IP address is available

Description: EMCO EMCOTEST Hardness TesterApprox. Onsite Dimension. (l x w x h): 600 x 800 x 1,850 mm, weight approx.: 250 kg

Ernest Bodmer type: MINIV - 350 (tool measurement) Serial number: 3152 ISO/50 Y2d0vum9 The HSK recording is not included. Measurements L x B x H 1250 x 900 x 1900 Tool measuring machine is fully functional. Tool measuring machine is in perfect condition. We love to hear from you.

FARO EDGE 2.7 M coordinate measuring arm was built in 2014. The efficient and productive portable measuring arm verifies the quality of workpieces of any shape by measuring components in 2D and 3D with an accuracy of ± 0.017 mm. The mounted measuring head and the non-contact laser scanning function also allow for comparative analysis of individual components and assemblies with CAD files. The machine has been designed with convenience and ease of use in mind, as evidenced by the excellent weight distribution and balance maintained. The FARO EDGE measuring machine consists of: – a 2.7 metre long measuring machine with base plate and probe, – battery and cables, – a removable handle, – a non-standard case (hard case). Applications of the FARO EDGE 2.7 M machine - measuring and verifying the dimensions of machine parts of any shape - measurement of shape deviation and c ...

Fully functional FARO Arm Measuring Arm Prime High Precision 3D Measuring Instrument Quality Control Year of construction: December 2012 Certification date: August 2014 Number: R04-02-12-28398 Single Point: 0.016 mm Volumetric: +/- 0.023 mm Made in Germany The Best Portable Coordinate Machine (CMM) High Measurement Accuracy, Measurement Stability Reduced inspection times, automatically generates reports Ready to use in a few seconds Measure parts and assemblies quickly, easily and precisely Ideal for complex measurement tasks Solid measuring plate with trolley table, 336 kg Drawer with key Degree of accuracy: DIN 876/1 Permissible deviation: 0.02 mm Actual deviation: 0.00589 mm Checked on 05.03.2013 Made in Germany With various accessories Measuring arm case HP PC Tower Screen Keyboard Lots of software e.g. Cam2 Measure 10, Nvidia Graphics, Windows, HP

Inv. Num. : 6253 Type: GIP 2520 MAN Producer: FARO TRICOORD 3000 Created: 2006 GO2016 Parameters: Software: TOUCH DEMIS Axis X: 5500 mm Axis Y: 2000 mm Axis Z: 2500 mm Table dimensions: 6500 x 4000 mm -: 2 x 8000 kg Equipment: Monitor Keyboard Manual Measuring head Renishaw Accessories Renishaw 2016: complete modernization incl. new measuring system

Description: Electronic Floor scale, 1200 x 1200 mm, maximum weight 3000 kg, piece counter function. Sturdy platform with reinforced structure and 4 load sensors. Very strong platform for weighing a large variety of objects. Made of waterproof epoxy painted steel and resistant to bumps and scratches. Adjustable feet to level the platform and transmit the force of the load sensors. CE certification. The item that is delivered is NOT the one shown in the pictures, but an equal oneApprox. Onsite Dimension. (l x w x h): 1,200 x 1,200 x 300 mm, weight approx.: 95 kg

Description: Electronic Floor scale, 1200 x 1200 mm, maximum weight 3000 kg, piece counter function. Sturdy platform with reinforced structure and 4 load sensors. Very strong platform for weighing a large variety of objects. Made of waterproof epoxy painted steel and resistant to bumps and scratches. Adjustable feet to level the platform and transmit the force of the load sensors. CE certification. The item that is delivered is NOT the one shown in the pictures, but an equal oneApprox. Onsite Dimension. (l x w x h): 1,200 x 1,200 x 300 mm, weight approx.: 95 kg

Description: Electronic Floor scale, 1200 x 1200 mm, maximum weight 3000 kg, piece counter function. Sturdy platform with reinforced structure and 4 load sensors. Very strong platform for weighing a large variety of objects. Made of waterproof epoxy painted steel and resistant to bumps and scratches. Adjustable feet to level the platform and transmit the force of the load sensors. CE certification. The item that is delivered is NOT the one shown in the pictures, but an equal oneApprox. Onsite Dimension. (l x w x h): 1,200 x 1,200 x 300 mm, weight approx.: 95 kg

Description: Electronic Floor scale, 1200 x 1200 mm, maximum weight 3000 kg, piece counter function. Sturdy platform with reinforced structure and 4 load sensors. Very strong platform for weighing a large variety of objects. Made of waterproof epoxy painted steel and resistant to bumps and scratches. Adjustable feet to level the platform and transmit the force of the load sensors. CE certification. The item that is delivered is NOT the one shown in the pictures, but an equal oneApprox. Onsite Dimension. (l x w x h): 1,200 x 1,200 x 300 mm, weight approx.: 95 kg

Description: Serial number: QVA01788 Operating voltage: 220 V Frequency: 50/60 Hz Connection: 300 W Rated current: 1.8 A Table dimensions: 450 x 300 mm Software: MESSURE X Including measurement capability for 3D (Z-axis measurement)Approx. Onsite Dimension. (l x w x h): 900 x 800 x 800 mm, weight approx.: 150 kg

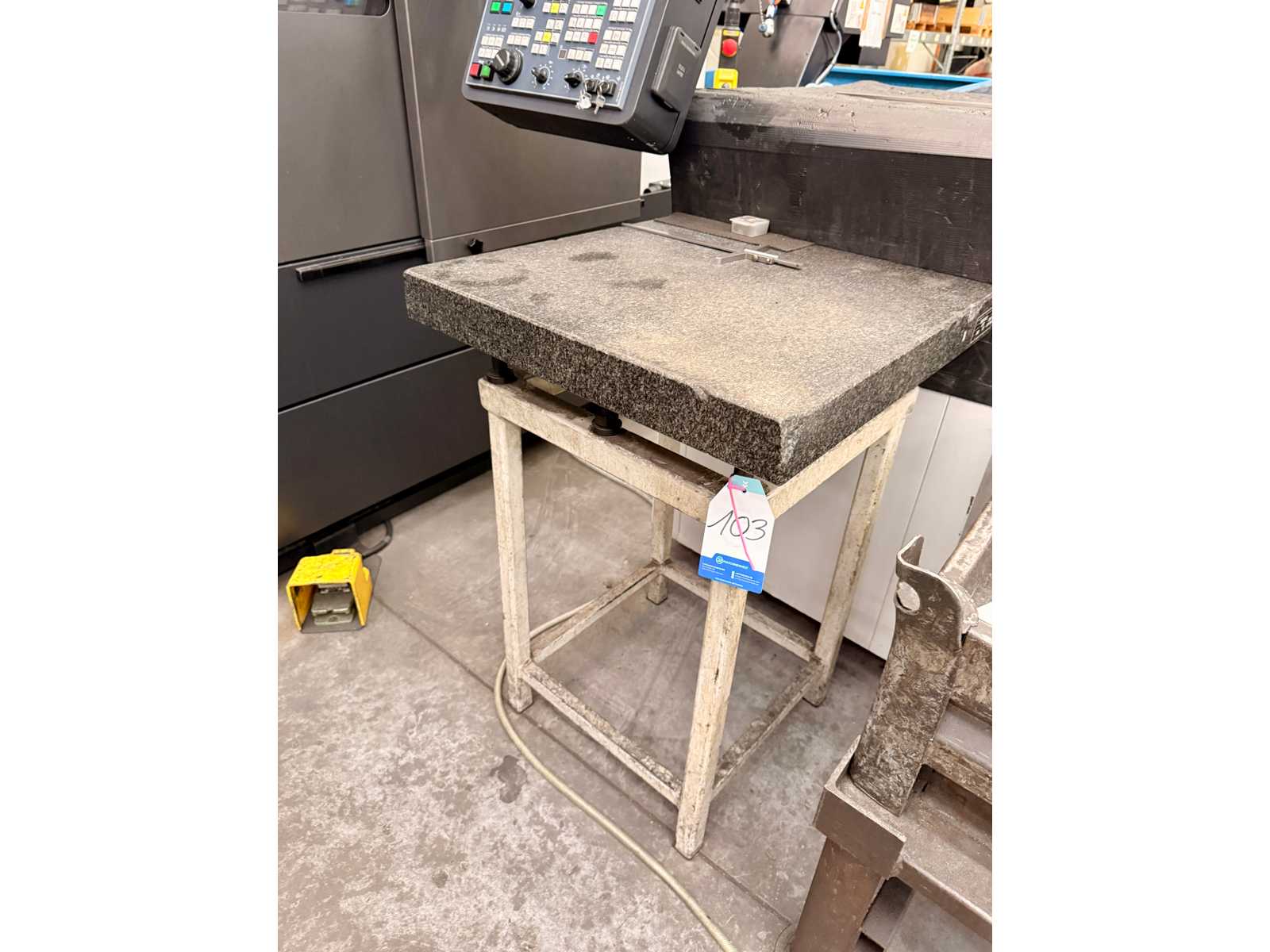

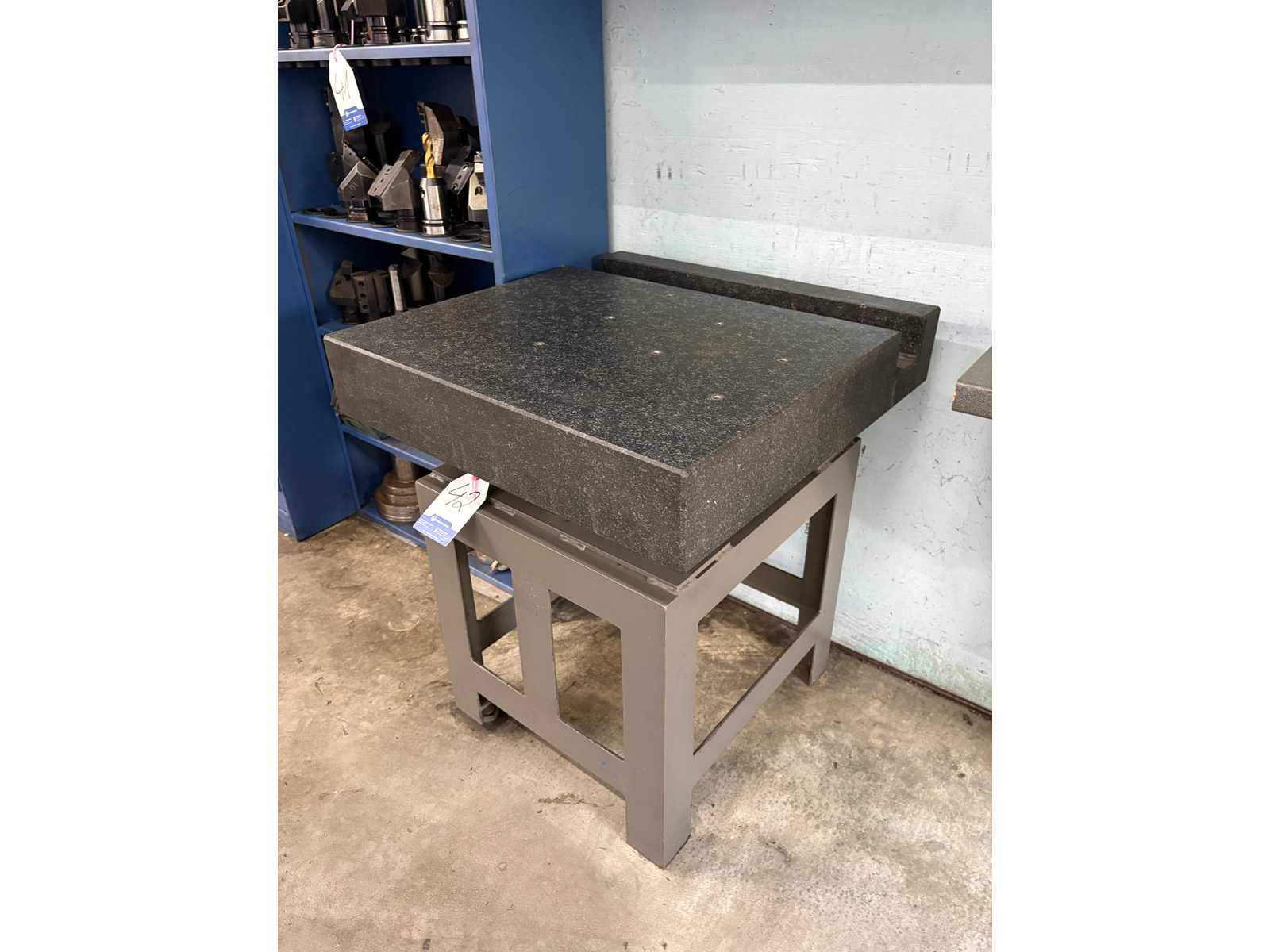

General: Granite slab 1,400 x 750 x 170 mm

weight: 70 kglength: 1840 mmlength: 2240 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Tool holder: SK 40Approx. Onsite Dimension. (l x w x h): 420 x 200 x 120 mm, weight approx.: 15 kg

Description: Tool holder: SK 40Approx. Onsite Dimension. (l x w x h): 420 x 200 x 120 mm, weight approx.: 15 kg

Ref. -No.: 10122Manufacturer: HELIOPANYear of construction: 1993Storage location: Mülheim an der RuhrCountry of origin: DeutschlandMeasuring range: 160 mmMachine number: 6060 Further information:The measuring jaw is used to measure the outside diameter of cylindrical parts and slim conesWith digital display

Description: Tool holder: SK 40Approx. Onsite Dimension. (l x w x h): 420 x 200 x 120 mm, weight approx.: 15 kg

Description: Tool holder: SK 50Approx. Onsite Dimension. (l x w x h): 420 x 200 x 120 mm, weight approx.: 15 kg

HEXAGON OPTIV CLASSIC 321 GL tp optic measuring machine was built in 2009 in Switzerland. This technologically advanced machine is the best solution for highly accurate measurement and inspection of e.g. electronic parts, micro-hole dies, fibre optics and inkjet nozzles. Thanks to the use of an 8-segment LED ring light with RGB colour sensitivity adjustment, the HEXAGON vision measuring machine detects and captures the edges of coloured parts much more easily compared to standard greyscale or lighting modifications. The offered machine also features, among other things, a 3 axes microprocessor CNC with vector path control, a CCD camera with 6.5x zoom and PC-DMIS Vision metrology software with the innovative MultiCapture function, which finds all 2D characteristics in the field of view simultaneously, increasing the inspection speed by up to 50%. The total weight of the machine is 170 kg. ...

DEA ALPHA STATUS COORDINATE MEASURING MACHINE New in 2008 Manufacturer Hexagon Metrology S.p.A. Type Gantry CMM Measuring Range (X/Y/Z) 5.000/2.500/1.500 mm. Measuring Head RENISHAW PH 10

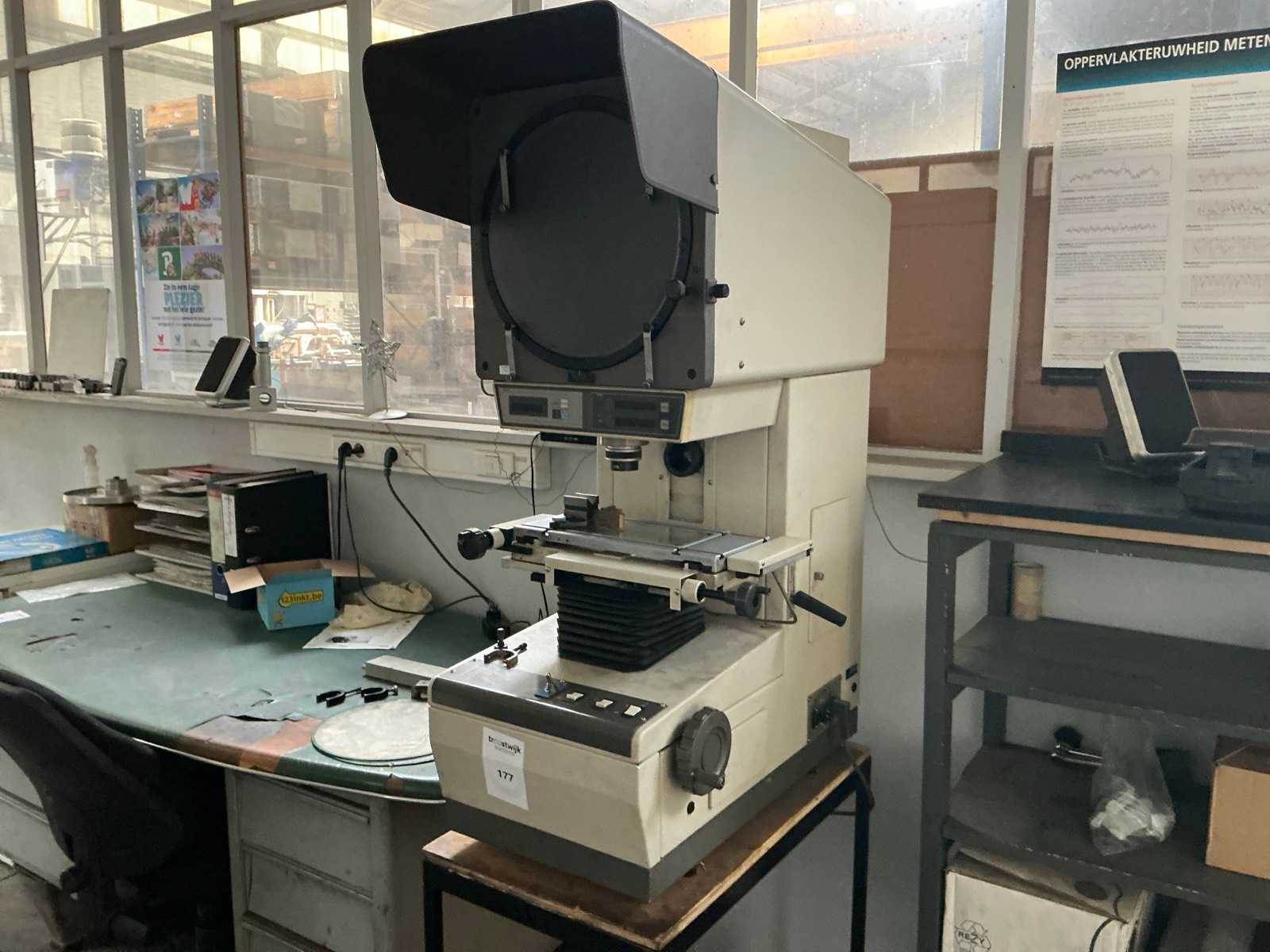

Code 8499 Omschrijving Projektor Fabrikaat Hilger Type TT 288.311 Serienummer 55211 Vergrotingen 10x, 15x, 25x, 50x en 100x

x-travel: 210 mmz-travel: 350 mmmax. loading: 25 kgDistance C/Z-axis (mm): 270 mmmax. test diameter (mm): 300 mmRotation axis C (turntable): 0° 90° 180° 270° diameter of rotary table: 150 mmMeasuring path R-axis: 170 mmrequired space: L2,0 x B0,8 x H0,82 mScope of delivery:- Form measuring system F1004/350- Work table- Rotary table (rotation axis C)- All documentation- Software TURBO FORM 8.21 + licences- Accessories (see pictures)Condition:- As good as new- FunctionalMaintenance:- Last inspection on 03/08/2021- Test report from Jenoptik availableThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Höfler stylus arm with stylus in holder Ø ball: 1.0 mm, - Ø shaft: 6 mm, - length of shaft: 20.6 mm, - total height: 124 mm, - length of extension: 84 mm, - measuring radius: 72.5 mm, unused, scope of delivery according to photosApprox. Onsite Dimension. (l x w x h): 235 x 175 x 45 mm, weight approx.: 1 kg

Description: With digital display and an SK 40 adapterApprox. Onsite Dimension. (l x w x h): 550 x 400 x 700 mm, weight approx.: 70 kg

Description: Measuring ranges length 300 mm, diameter 0.2 to 50 mm Includes computer, screen, keyboard and mouse Program unknownApprox. Onsite Dimension. (l x w x h): 700 x 700 x 950 mm, weight approx.: 120 kg

Measuring plate / mounting plate / Johann Fischer Aschaffenburg -Dimensions approx. LxWxH 2500x1250x500mm -Weight approx. 4000Kg -With thread for workpiece fastening

Length 5000mm Web width 395mm

Tensile testing machine Manufacturer: Karl Frank GmbH Type: 81559 Year of construction: 1980 Duck test: height: 1000mm, width: 400mm, depth ungraenzt Force ranges: 2000N, 1000N, 500N, 200N, 100N, 50N Original price at that time: 49.855,00 DM ATTENTION: The device has not been tested for functionality. All information without guarantee

Description: Serial number: 761 Operating voltage: 230 V Frequency: 50/60 Hz Connection: max. 1000 VAApprox. Onsite Dimension. (l x w x h): 1,500 x 760 x 1,800 mm, weight approx.: 500 kg

with various accessories

Description: Parallel gauge block '100' from Kolb & Baumann (KOBA), product information: Dimensions 100x 30 x 9 mm, including transport box, quantity = 1 pieceApprox. Onsite Dimension. (l x w x h): 140 x 65 x 45 mm, weight approx.: 1 kg

Description: Includes computer and keyboardApprox. Onsite Dimension. (l x w x h): 500 x 500 x 700 mm, weight approx.: 20 kg

Description: Additional information: Universal gear testing machine 898 C, determination of the rolling deviation, the rolling jump and the rotational backlash on external and internal gear spur gears with straight and helical teeth, as well as on bevel and worm gears. Testing of individual deviations, concentricity deviation and tooth thickness fluctuations on spur gears, bevel and Worm wheels, technical data: Voltage 220 V, - Adjustable axis distance between centers 25 - 300 mm, Flying mount 25 - 550 mm, - Maximum permissible wheel weight, on the adjustment slide 250 kg, on the measuring slide 100 kg, with abutment 898 CD-w4, Center distance on the measuring slide 50 - 750 mm, projection 140 mm, min. center distance 65 mm Accessories: Base cabinet 898 C-us, feed slot 898 CD-S2, electrical equipment 898 CD-e, abutment 898 CD-w4 (tip distance 150-750 mm), electronic precision display dev ...

x-travel: 999999 mmy-travel: 999999 mmz-travel: 999999 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mIm Kundenauftrag:Die Maschine wurde 2015 von uns aus einem Vorführraum der Fa. Mahr gekauft und ist Baujahr 2013. Das Meßgerät war bei uns so gut wie nicht im Einsatz (deswegen auch keine aktuelle Kalibrierung) da das fertigungsbegleitende Messen zu aufwendig war. Die Hardware der Maschine ist in einem neuwertigen Zustand. Die Software arbeitet einwandfrei (Windows 7). Ein kompletter Tastersatz, sowie ein neuer Default-Taster ist mit dabei. Die Maschine arbeitet vollautomatisch. Man kann alle Form- und Lagetoleranzen sowie Konturen messen. Die Maschine steht auf einer aktiv schwingungsisolierten (Druckluftdämpfung) Granitplatte.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Test capacity 2500 N 1 to 1000 rpm Funnel depth 70.5 mm , clear height 590 mm Including description and extensive accessoriesApprox. Onsite Dimension. (l x w x h): 290 x 450 x 1,000 mm, weight approx.: 25 kg

quantity: 1 STK.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

METRIS-NIKON MCA II 5124 measuring machine built in 2011 is a versatile device that can be used for measuring both small-sized objects as well as complex, large-sized parts. In addition, thanks to the computerisation of measurement procedures and its compact design, the machine can be used directly in the production environment or even inside the measured objects. The measurement process starts with an angular displacement of the arms to ‘pass’ through reference points. The operator then brings the machine’s measuring tip to the surface of the measured workpiece and validates the coordinates using a button located on the head. The coordinates are then transformed by the calculation procedures to the cartesian system (X,Y,Z), where they are used as the basis for determining the dimensions by approximation of the measured features and geometric figures, i.e. circles, cylinders and ...

Mitutoyo Crysta Plus M443 Handheld Coordinate Measuring Machine Measuring range: X: 400mm Y: 400mm Z: 300mm Very good condition and regular factory calibration. Last factory calibration: 09/2021 The machine was always in an air-conditioned measuring room. Equipment: Temperature Compensation Renishaw MH20i Swivel Head 2 TP20 STD Force pushbutton mounts Several ruby buttons with ball diameters of 1, 2, and 4mm, as well as different lengths and extensions. Calibration ball With PC and software MCOSMOS from Mitutoyo.

Measuring portal with touch probe, Fabr. RENISHAW, granite measuring plate, size: approx. 1000x1000 mm, with evaluation hardware

Approx. Onsite Dimension. (l x w x h): 800 x 800 x 1,100 mm, weight approx.: 80 kg

Description: Cross table 340 x 150 mm With comprehensive operating instructionsApprox. Onsite Dimension. (l x w x h): 700 x 450 x 700 mm, weight approx.: 30 kg

Description: With 2 digital displays For SK 40 tool holdersApprox. Onsite Dimension. (l x w x h): 420 x 200 x 700 mm, weight approx.: 70 kg

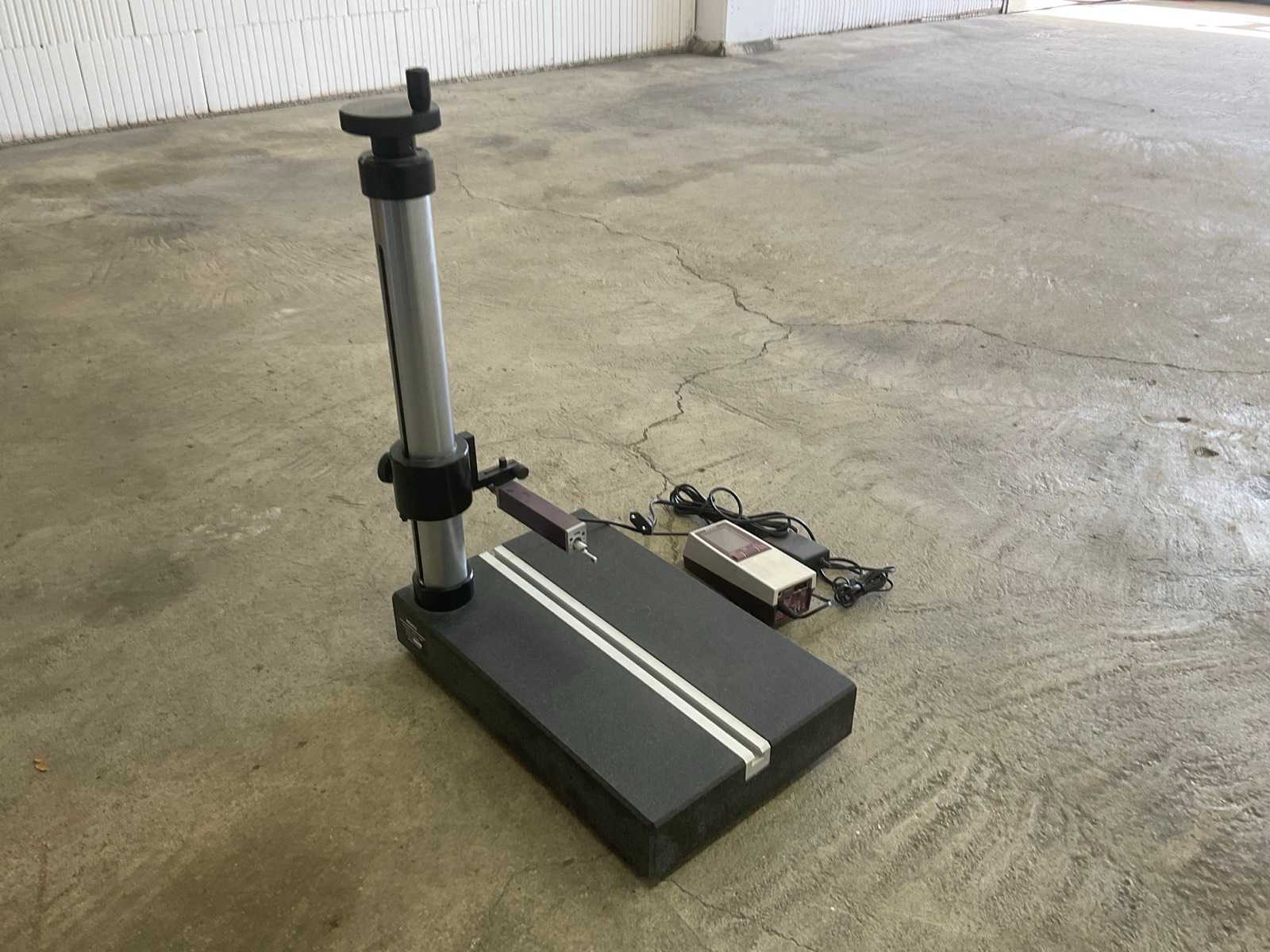

Description: Serial number 215151208 With granite measuring table 400 x 250 mm, with recessed T-slot Pillar height adjustment approx. ,300 mmApprox. Onsite Dimension. (l x w x h): 400 x 300 x 600 mm, weight approx.: 50 kg
