sheet metal working used for sale

weight of the machine ca.:620 kgdimensions of the machine ca.:1000 x 920 x 1550 mm

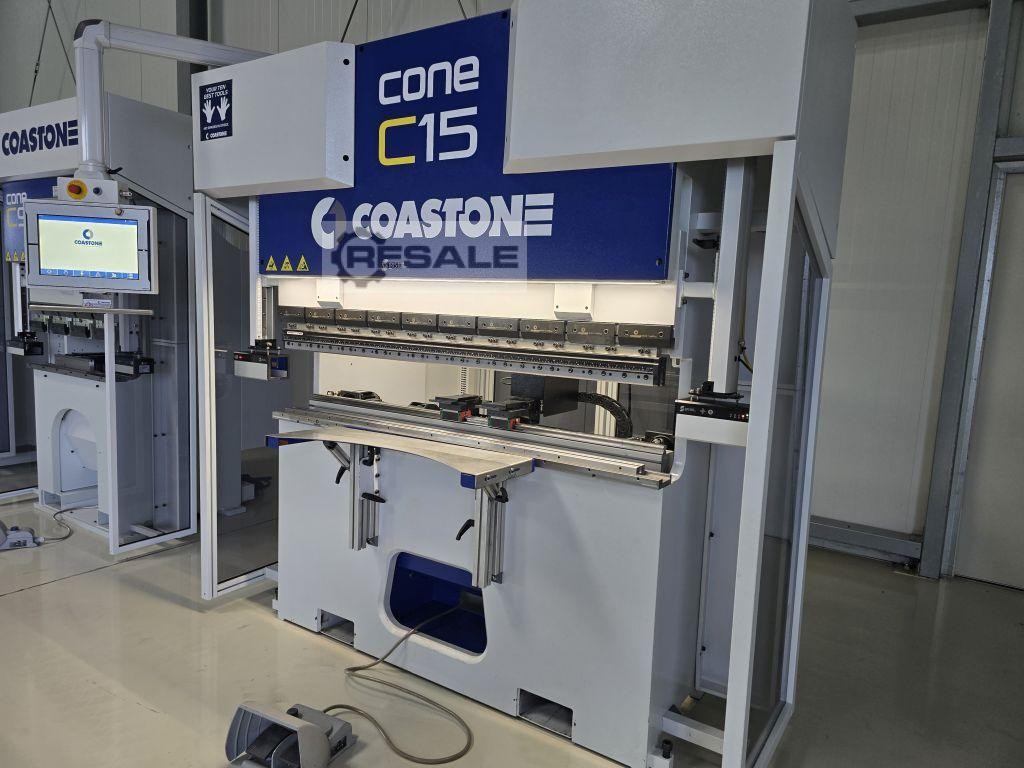

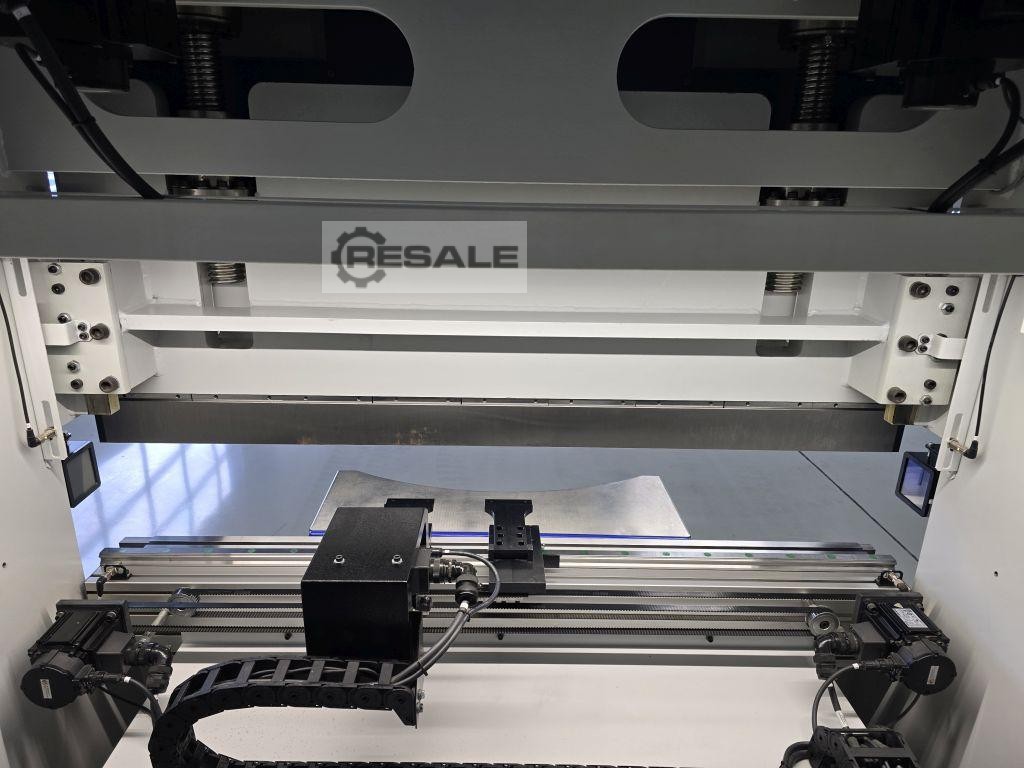

Rok produkcji: 2024 Model No.: R1550 Nr seryjny: V00324 Max zapotrzebowanie: 12KW Napięcie znamionnowe: 220V/50HZ/1 PHASES Max prąd: 32A

Table surface ... 3070x1660mm Nominal pressing force ... 18t Axis X ... 3070mm Axis Y ... 1660mm Max. sheet thickness ... 6.4mm Number of positions in the tool changer ... 22 Control Machine weight ... 14850kg L x W x H ... 7600x6700x2230mm The machine is in good condition, possible to test under power.

Key data: 2500 mm, 32 mm

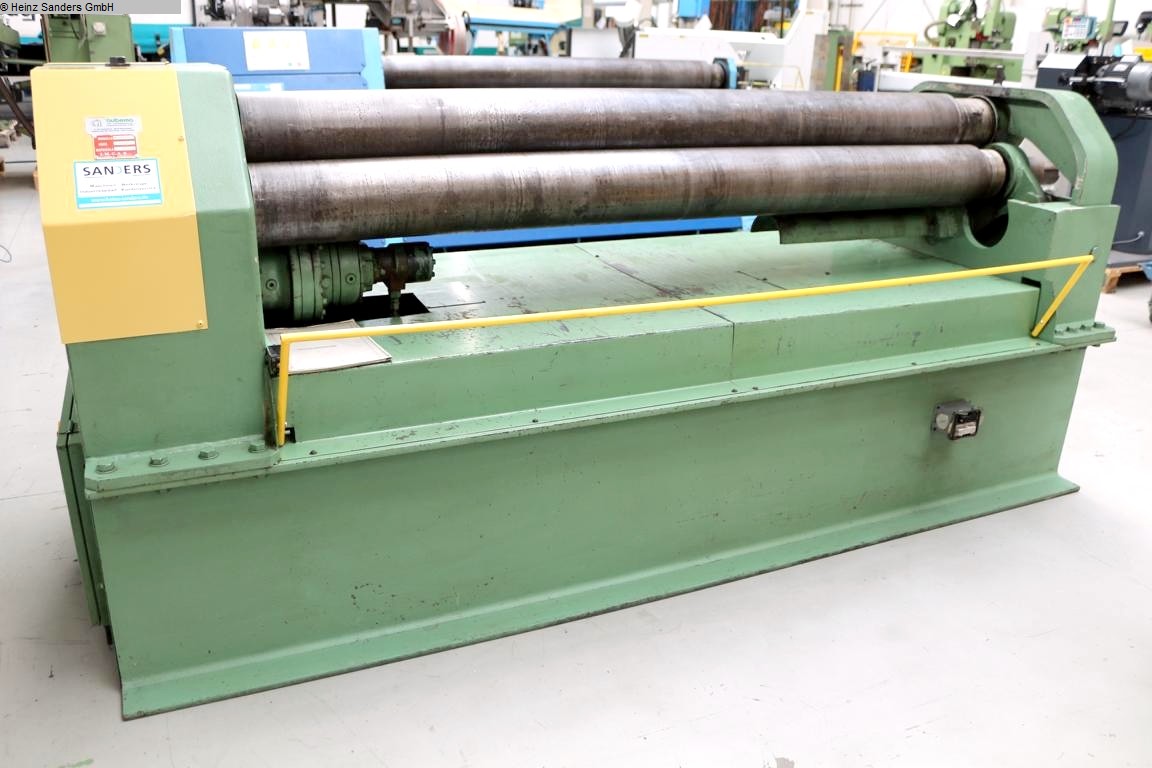

Manufacturer / make: WMW Schwermaschinenbau Wildau Type/ type: UBR 32 x 2500-7/16 Lagernummer / stock number: 1019 Baujahr / new in: 1969 max. sheet width: 2500 mm Bale length / convexity length of rollers: 2700 mm Max. sheet thickness ( St 50): 32 mm Max. sheet thickness ( St 34): 39 mm min. sheet thickness ( St 50): 8 mm Number of straightening rollers:7 rollen / rollers Number driven straightening rollers: 5 rollers Straightening roller diameter of straightening rollers: 290 mm Output straightening rollers / diameter of input / output straightening rollers: 345 mm Number of support rollers: 13 Stützrollendurchmesser / diameter of support rollers: 288 mm Oberbolenhub/ stroke of upper beam: 120 mm Straightening speed / speed of straightening: 16 m / min Hauptantrieb / rated power of main drive: 90 kW Total load: 138 kW Gewicht de ...

Standard Configuration? Closed machine frame with integrated laser unit? Laser unit: CO2 laser TLF 5000, radio-frequency excited, chiller, logbook function Laser? Automatic pallet changer and longitudinal conveyor for small parts / slag? Drives: Gantry drive in combination with linear direct drives? Laser power control? HI-LAS high pressure cutting? Plasma sensor system PSS? PCS Process Control System? DIAS capacitive height regulation? High-speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Automatic nozzle cleaning? Laser cutting head with 5? lens and laser cutting head with 7.5? lens? Cutting head quick-change device? Automatic sheet edge detection? Positioning laser diode? Programmable power cycles? Microweld? Automatic focus adjustment AutoLas Plus? Oil spray device for reliable thick plate machining? Automatic shutdown ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Gantry drive in combination with direct linear drives? Automatic pallet changer? Longitudinal conveyor? Enclosed beam delivery system? One cutting head strategy? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 6000 with optimized stand-by mode? Maintenance-free radial turbine blowers? Radio-frequency excitation? Laser control TASC 3? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device UTI ? LensLine with condition checking? ControlLine: Height regulation and sheet edge sensingControl? SIEMENS Sinumerik 840D? Technology data is integrated? Colour screen? Automatic shutdown? Programmable cutting gas pres ...

Standard ConfigurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? Chiller? Automatic pallet changer lengthwise installation? Longitudinal conveyor? 17 touch screen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 3200 including NitroLine, with optimized Standby Modus? beam tube purge with nitrogen? Maintenance-free radial turbine blower? Radio-frequency excitation? Laser control TASC 3? Laser power control? Logbook function Laser? Laser cutting head? One cutting head strategy? LensLine with status check? Laser cutting head with 250 mm lens? Universal quick-change device (UTI)? ControlLine: Height regulation and sheet edge detectionControl? Sinumerik 840D SL ? Integrated ...

Standard ConfigurationMachine ? Closed machine frame? Integrated cabinet? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Chiller? Automatic pallet changer lengthwise installation? Enclosed beam delivery via laser light cable? Integrated electrical cabinets with inside light? Wide longitudinal conveyor? Ergonomic control panel with Touchscreen? Work area lighting? Positioning laser diode? Spray device? PierceLine ? FocusLine? NitroLine? PlasmaLine? Automatic nozzle cleaningTRUMPF laser? External solid state laser TruDisk 4001 with 1 fiber optic cable laser output? Stimulation via pump diodes? Laser power controlCutting head ? Universal cutting unit? One cutting head strategy? Protection glass to avoid lens contamination? Online protection glass monitoring? ControlLineControl ? Easy shop floor programming? Fast post production? Control Sin ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? One cutting head strategy? Chiller? Automatic pallet changer, lengthwise installation? Longitudinal conveyor? Ergonomic control panel with Touchscreen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 3200 with optimized standby ? Maintenance-free radial turbine blower? Radio-frequency excitation? Gas mixer (integrated)? Laser control TASC ? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device (UTI) incl. bus connection? LensLine ? ControlLine: Height regulation and sheet edge detectionControl? Sinumerik 840D SL contro ...

Standard Configuration? Stable C-frame? Coordinate guide with integrated linear magazine, 19 tool stations,2 clamps? Drives: Maintenance-free, three-phase servo motors? Programmable presser foot for repositioning with preselectable pressing force? Sensor-monitored part chutes 500 x 500 mm for punching and laser station, ejection cylinder on the laser chute? 2 good parts containers? Laser unit: CO2 laser TLF2700, radio-frequency excited, insulated against vibrations, integrated in machine frame, incl. chiller, and laser control DIAS 3? High speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Punch stroke / thread counter? Laser cutting head: 5? lens, quick-change device, height regulation APC? Additional laser cutting head with 7.5? lens? Punching head: Hydraulic single tool adapter, 360? rotation of all tools, automatic tool l ...

AutomationLiftMaster CompactLoading max. sheet format 3000 x 1500 mmmin. sheet format 1000 x 1000 mmmax. sheet thickness 25 mmmax. sheet weight 900 kgUnloading min. parts size 150 x 150 mmmax. sheet thickness 25 mmmax. sheet weight 900 kgBasic system incl. synchronous loader, peeling device, measuring device for thick sheets, movable unloading rake, incl. loading / unpacking stationBasic configuration:? synchronous loader? peeling device? measuring device for thick sheets? movable unloading rake? raw material unpacking station? maximal stack height on loading side is 90 mm? maximal stack height on unloading side is 250 mmLiftMaster Compact options? Additional pallet for finished parts? Separation of thin sheets (s=1-2 mm)? Scraper for slats (cleaning brush)? Storage interface

Standard configuration? Closed machine frame with integrated laser unit ? Laser unit: CO2 laser TLF 6000, radio-frequency excited, maintenance-free turbo radial blowers, chiller, logbook function? Automatic pallet changer and longitudinal conveyor for small parts / slag? Drives: Gantry drive in combination with linear direct drives ? HI-LAS high pressure cutting? Plasma sensor system PSS? Automatic sheet edge detection? APC Advanced Process Control? PCS Process Control System? Programmable power cycles? Microweld? Automatic nozzle cleaning? High-speed processing with SprintLas? ContourLas for producing small holes? Programmable cutting gas pressure setting? Laser cutting head with 5? lens and laser cutting head with 7,5? lens (for TLF 6000)? Cutting head quick-change device? Positioning laser diode ? Automatic focus setting AutoLas Plus? Laser power control? Oil spray device for reliable ...

Standard configurationMachine? Closed machine frame with integrated laser unit? Motion unit for high precision processing? Torque drive in combination with direct linear drives? Enclosed beam delivery system? One cutting head strategy? Chiller? Automatic pallet changer, lengthwise installation? Longitudinal conveyor? Ergonomic control panel with Touchscreen? Working area lighting? Positioning laser diode? Spray device? PierceLine? FocusLine? NitroLine? PlasmaLineTrumpf Laser? CO2-Laser TruFlow 5000 with optimized standby, purged with nitrogen and LensLine? Maintenance-free radial turbine blower? Radio-frequency excitation? Gas mixer (integrated)? Laser control TASC ? Laser power control? Logbook function LaserLaser cutting head? Laser cutting head with 250 mm lens? Universal quick-change device (UTI) incl. bus connection? ControlLine: Height regulation and sheet edge detectionControl? Si ...

Machine including Liftmaster.

Inv. Num. : 7216 Type:- Producer: Gasparini Created: 2004 Parameters: Control System: DELEM DA-66W Compressive force: 320 t Maximum bending length: 6000 mm Projection (opening depth in the frame wall): 450 mm Throat depth: 850 mm Max. opening (without tools): 500 mm Equipment: 2 backgauges (in 4 axes)

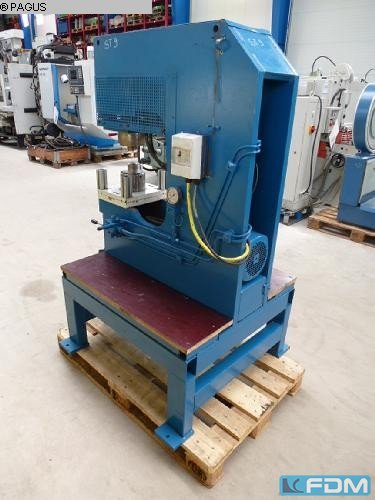

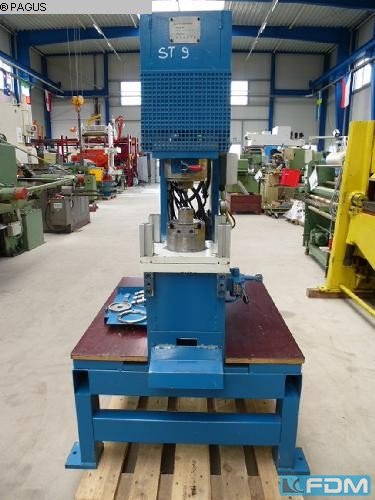

Offer 25025 Specifications: - Pressure capacity 500 KN - Stroke infinitely adjustable 10 - 32 mm - Stroke rate 22 - 27 1/min - Projection 510 mm - Installation height 350 mm - Drive 400 V / 4 kW - Holes e.g. up to 27 mm Ø in steel 14 mm - With special punching saddle, e.g. up to 39 mm Ø in steel 9.5 mm - e.g. up to 90 mm Ø in steel 4 mm - Space requirement approx. W 700 x H 1700 x D 1200 mm - Weight approx. 1150 kg - with: - Hydr. Low-Pressure Grain Locator - Anchor table - Footswitch - Emergency stop button - Various punches + dies

This TRUMPF TruLaser Cell 7040 was manufactured in 2015. It features a large working range with dimensions of 4000x2000 mm and a Z-axis height of 750 mm. Equipped with a powerful TruFlow 4000 Watt CO2 laser, it excels in both thin and thick material cutting. Additional features include CNC automatic scanning, height detection, and a Siemens 840D control system. Consider the opportunity to buy this TRUMPF TruLaser Cell 7040 CO2 laser cutting machine. Contact us for more information.

CONTROLS  conventional TECHNICAL SPECIFICATION  Working length: 3000 mm  plate thickness (max.): 8 mm

CONTROLS  electronic controls OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 200 mm  sheet thickness max.: 4.5 mm  coil weight max.: 0.5 toDECOILER  coil weight max.: 0.5 to  mandrel expansion range from: 250 mm  mandrel expansion range up to: 550 mmLEVELLER UNIT  sheet width max.: 300 mm  sheet width (min): 20 mm  sheet thickness max.: 4 mm  sheet thickness min.: 0.5 mm  material cross section max. (450 N/mm2): 800 mm²  number of leveller rolls: 7   diameter of leveller rolls: 65 mm  number of infeed-/outfeed rolls: 4   diameter of feed rolls: 65 mm  drive power: 1.5 kW  loop controls: yes ELECTRICAL SPECIFICATIONS  mains voltage: 380 V  mains frequency: 50 Hz

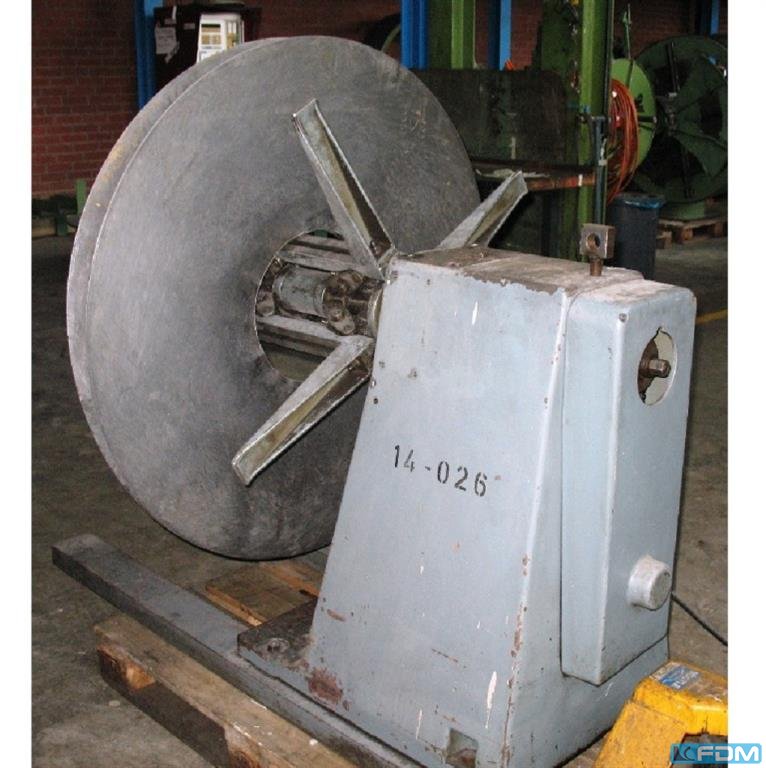

OVERALL SPECIFICATIONS (COIL LINES)  feed velocity max.: 18 m/minDECOILER  sheet width max.: 153 mm  coil weight max.: 0.5 to  max. diameter of coil: 1000 mmLEVELLER UNIT  sheet thickness max.: 1.5 mm  number of leveller rolls: 7 ELECTRICAL SPECIFICATIONS  total power consumption: 0.75 kW  mains voltage: 380 V

ELECTRICAL SPECIFICATIONS  total power consumption: 55 kWDIMENSIONS / WEIGHTS  total weight approx.: 70000 kgMaximum wall thicknesses:Material up to approx. 450 N/mm² max. 22mm (steel)Material up to approx. 750 N/mm² max. 17.5mm (stainless steel)Maximum diameter :dished end approx. 5000 mmBasket arch bottom approx. 3200 mmMinimum diameter :dished end approx. 1200 mmCorner radius :Range 150 - 500 mmLargest corner radius 500 mmClear width clamping bracket approx. 5800 mmMax. Sheet thickness clamping approx. 32 mmElectrical power :Main drive approx. 55KWShifting drive approx. 1,5/9 KWHydraulic unit approx. 11 KWadditional pressure roller drive approx. 7,5 KWAccessories :Push rollers additional drive2 lateral pressure rollersForm roller change consoleCentral lubricationClamping device oL 5033Included :Tools for flanging :1 piece standard flanging roller4 pieces  ...

CONTROLS  PLC SIEMENS S5 115U OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 140 mm  sheet thickness max.: 6 mm  coil weight max.: 3 toCOIL CHAIR  coil weight max.: 3 to  stroke: 500 mmDECOILER  design: single reel   sheet width max.: 300 mm  coil weight max.: 3 to  max. diameter of coil: 1300 mm  mandrel expansion range from: 360 mm  mandrel expansion range up to: 430 mmLEVELLER UNIT  sheet width max.: 140 mm  sheet thickness max.: 6 mm  sheet thickness min.: 3 mm  number of leveller rolls: 21   diameter of leveller rolls: 50 mmELECTRICAL SPECIFICATIONS  total power consumption: 35 kWKOHLER coil line consisting of:- Coil loading chair CS3000- Decoiler 300.1 H- VSRM 50.140/21 leveller- HK 140 upright l ...

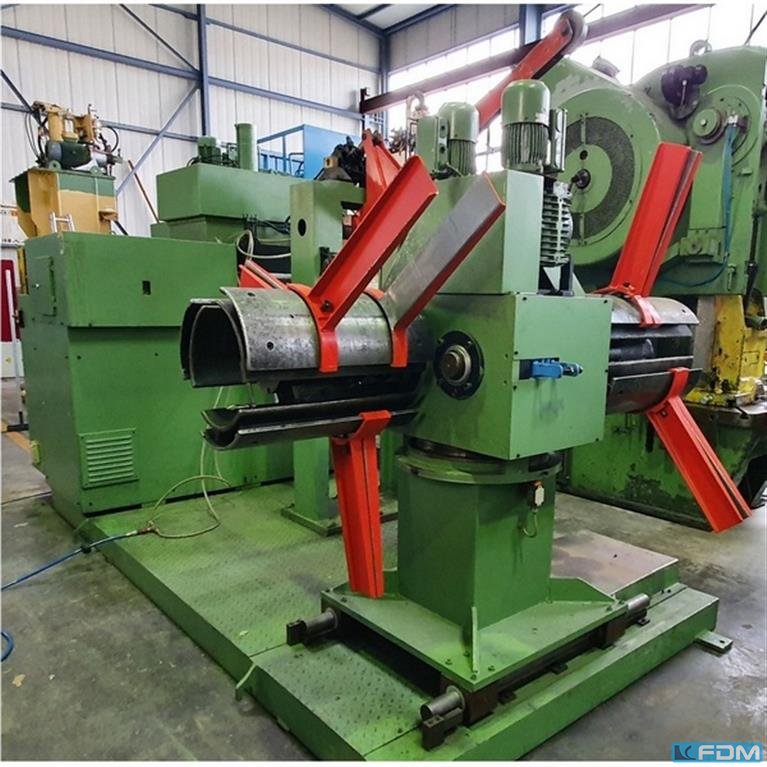

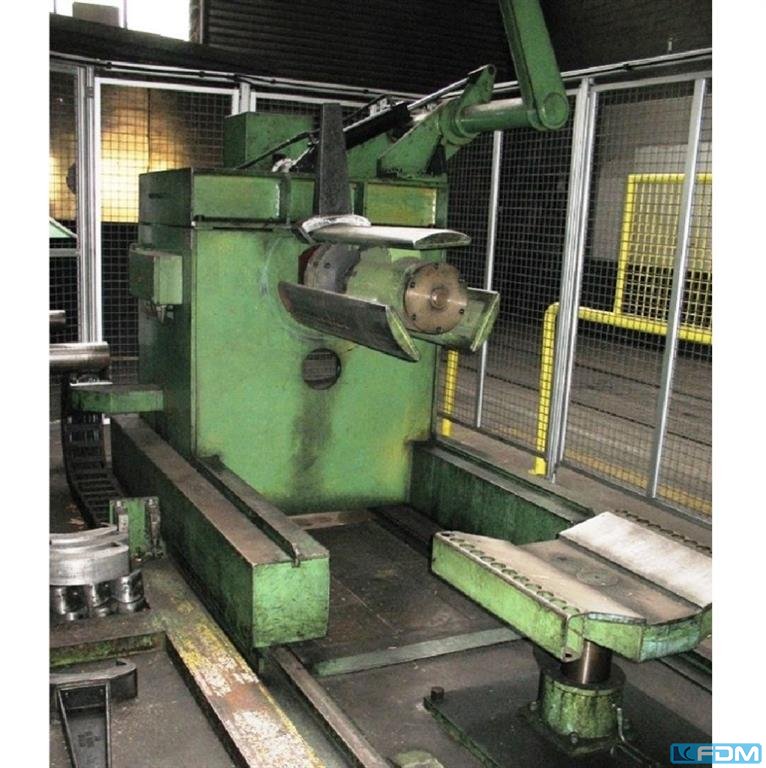

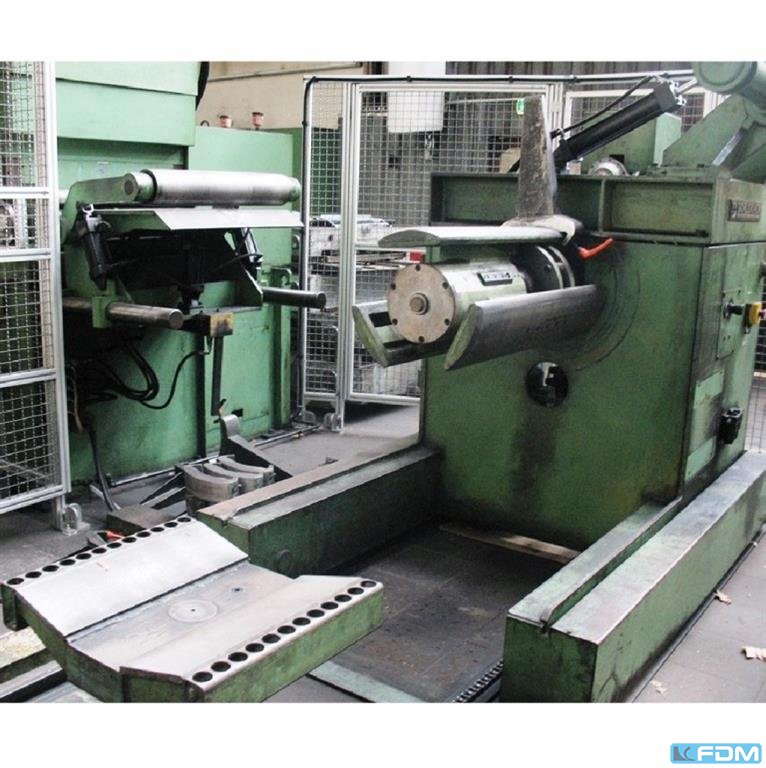

CONTROLS  PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 500 mm  sheet thickness max.: 4 mm  coil weight max.: 10.5 to  feedstock transport direction: right to left COIL CHAIR  coil weight max.: 10.5 to  stroke: 750 mmDECOILER  design: single reel   sheet width max.: 500 mm  sheet width (min): 150 mm  coil weight max.: 10.5 to  max. diameter of coil: 2020 mm  mandrel expansion range from: 470 mm  mandrel expansion range up to: 530 mm  feed velocity max.: 20 m/minLEVELLER UNIT  sheet width max.: 500 mm  sheet width (min): 150 mm  sheet thickness max.: 4 mm  sheet thickness min.: 2 mm  number of leveller rolls: 9   diameter of leveller rolls: 56 mm &n ...

CONTROLS  PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 350 mm  sheet thickness max.: 10 mm  coil weight max.: 3 to  feedstock transport direction: left to right DECOILER  design: single reel   sheet width max.: 350 mm  sheet width (min): 80 mm  coil weight max.: 3 to  sheet thickness max.: 12 mm  max. diameter of coil: 1500 mm  mandrel expansion range from: 470 mm  mandrel expansion range up to: 530 mmLEVELLER UNIT  sheet thickness max.: 10 mm  number of leveller rolls: 5   diameter of leveller rolls: 100 mm  number of infeed-/outfeed rolls: 2   diameter of feed rolls: 100 mmELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzLine consisting  ...

CONTROLS  PLC SIEMENS S5 115 U OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 350 mm  sheet thickness max.: 8 mm  coil weight max.: 4 to  feed velocity max.: 10 m/min  feedstock transport direction: left to right DECOILER  design: single reel   sheet width max.: 350 mm  coil weight max.: 4 to  max. diameter of coil: 1500 mm  mandrel expansion range from: 370 mm  mandrel expansion range up to: 530 mm  feed velocity max.: 10 m/minLEVELLER UNIT  sheet width max.: 350 mm  sheet thickness max.: 8 mm  number of leveller rolls: 21   diameter of leveller rolls: 50 mm  number of infeed-/outfeed rolls: 2   diameter of feed rolls: 120 mm  feed velocity max.: 10 m/minELECTRICAL SPECIFICATIONS& ...

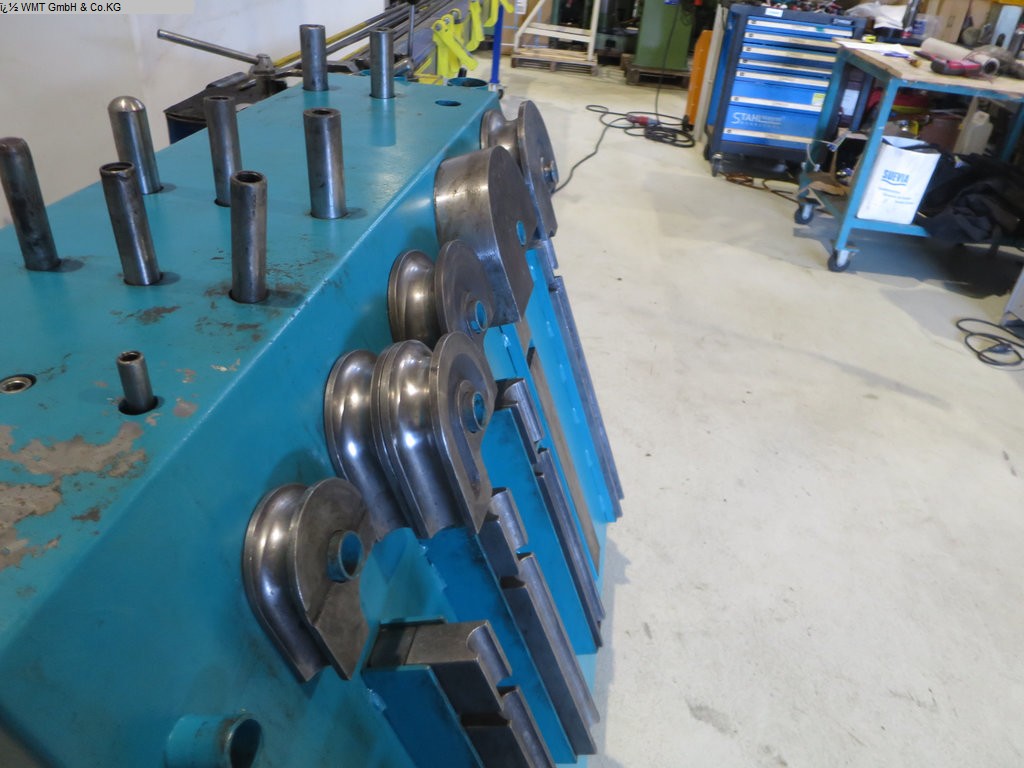

TECHNICAL SPECIFICATION  Max. diameter of tube: 31.75 mm  Max. bending radius: 1200 mmComplete Line for U-tubes that are primarily used for large heat exchangers in power plant construction, waste incineration plants, the chemical industry, etc.- Bending machine manufacturer: Dynobend CB60SLMax. Primary material tube length: 25.000 mmMin. Bending Radius: 10xD Max. Bending Radius: 1.200 mmMin. Leg Length: 3.000mmMax. Leg Length: 11.600mmMin. OD: 15mmMax. OD: 31,75mmCamera separation systemControl system: BeckhoffBending tool set: 8 bending rollsAvailable tool sets for OD: 15 mm, 15.88 mm, 16 - 18 mm, 19.05 mm, 20 mm, 22 - 23 mm, 25 mm, 25.4 mm, 31.75 mmBypass system for bending and annealing smaller radius <10xDTransport with Strothmann portal - Resistance anealing machine manufacturer Ideal-Werk WER300Temperatur control: PyrometerHolding time: 5 secAnnealing under  ...

CONTROLS  PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 500 mm  sheet thickness max.: 2.5 mmDECOILER  design: single reel   coil weight max.: 4.5 to  max. diameter of coil: 1400 mm  mandrel expansion range from: 370 mm  mandrel expansion range up to: 620 mm  feed velocity min.: 7.5 m/min  feed velocity max.: 30 m/min  movement: 200 mmLEVELLER UNIT  sheet width max.: 500 mm  sheet width (min): 100 mm  sheet thickness max.: 2.5 mm  sheet thickness min.: 0.3 mm  material cross section max. (450 N/mm2): 4000 mm²  number of leveller rolls: 21   diameter of leveller rolls: 30 mm  feed velocity min.: 7.5 m/min  feed velocity max.: 30 m/minCUT-TO LENGTH SHEAR & ...

CONTROLS  PLC SIEMENS S5 100 U DECOILER  sheet width max.: 120 mmLEVELLER UNIT  number of leveller rolls: 19 2 x machines

CONTROLS  PLC OVERALL SPECIFICATIONS (COIL LINES)  sheet width max.: 500 mm  sheet thickness max.: 4 mm  coil weight max.: 10.5 to  feedstock transport direction: right to left COIL CHAIR  coil weight max.: 10.5 to  stroke: 750 mmDECOILER  design: single reel   sheet width max.: 500 mm  sheet width (min): 150 mm  coil weight max.: 10.5 to  max. diameter of coil: 2020 mm  mandrel expansion range from: 470 mm  mandrel expansion range up to: 530 mm  feed velocity max.: 20 m/minCROP SHEAR  sheet thickness max.: 4 mm  working width max.: 530 mm  stroke rate (max.): 20 /minLEVELLER UNIT  sheet width max.: 500 mm  sheet width (min): 150 mm  sheet thickness max.: 4 mm  sheet thic ...

Capacity: 170 tFolding length: 4080 mmCNC Brand: DelemCNC Model: Delem DA -69 PressbrakeTRUMPF - TrumaBend V170 MACH-ID 8982 Make: TRUMPF Type: TrumaBend V170 Control: Delem DA -69 Year: 1999 CNC Pressbrake 8 Axis Y1 /Y2 / X / R / I / Z1 / Z2 / Crowning Motorized sheet support arms front Left &amp; Right Pneumtic lower die table adjustment Hydraulic top tool clamping Max. bending length:        4080mm Distance between column:    3680mm Max. pressing force:        170T Dis. Beam - Table:          535mm Beam stroke:                365mm Table Width:                120mm Troth beam:                 410mm Approch speed:              200mm/min. Working speed ...
