sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163400108
New in: 1993

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 6,0 mmcutting angle: 0,5 - 3,0 °down holder: 18 Stückno. of strokes: 9 / 14 Hub/minback stop - adjustable: max. 750 mmControl: konv. engine output: 10,0 kWweight: 4800 kgrange L-W-H: 3750 x 1600 x 2450 mmFurnishing:- electro-hydraulic / slide-guided sheet metal shears- front control panel, left - easy to use- with electro-hydraulic cutting angle adjustment- with manual cutting gap adjustment, from the rear- electro-motorized back gauge 10-750 mm- with analogue position display + handwheel for fine adjustment- 1x extra long, robust side stop .. 3,000 mm- 1x extra long, robust support arm- 1x freely movable foot switch- front finger/encroachment protection- 2x EMERGENCY stop buttons at the front- User manual (PDF) Machine link:http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno =1008-9325333The data for this ad was created with ModulMWS  ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 158266289
New in: 1997

used

Location: Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 6 mmdistance between columns: 3100 mmback stop - adjustable: 750 mmcutting angle adjustment: 0,5 - 3,0 °no. of strokes: 9 - 17 Hub/mintable height over floor: 775 mmtotal power requirement: 7,5 kWweight of the machine ca.: 4,5 tdimensions of machine L x W x H: 3,75 x 1,65 x 1,7 mAccessories: electr. back stop, angle front stop, table extensions, spare knivesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 13.01.2024 add to watchlist
item-No.: 160203274
New in: 1995

used

Seller: CS-Maschinen
Location: 66701 Beckingen Land-de

add to watchlist

Hydraulic guillotine shears Manufacturer Atlantic Type ATS3000 Year of construction 1996 max cutting thickness 6,0mm cutting length 3050mm New knife on machine in addition there are 2 knives plus 1 stump once new Machine is fully functional, has not been energized for 4 months Anschäge, circulation and documentation available.

sheet metal working / Hydraulic Shear
date: 04.04.2024 add to watchlist
approved
dealer
item-No.: 163725010
New in: 1990

used

check Seller: Mieth Maschinenhandel
Location: 63322 Rödermark Land-de

add to watchlist

Specifications: - max. working width 3050 mm - max. cutting capacity St 40 6 mm - Cutting angle adjustable mot. 0,5 - 3 ° - Cutting gap adjustment by hand - Number of hydraulic hold-downs 18 pcs -Mot. - Back gauge 10 - 750 mm - Front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 9 - 17 per/min - Hydraulic drive 400 V / 7.5 kW - Table height 770 mm - Space requirements incl. back gauge, without front support arms -ca. W 3750 x H 1600 x D 1650 mm - Weight approx. 4500 kg - with: - E. - Foot - Switch - Cutting line illumination

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163091877
New in: 1987

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 12,0 mm STplate thickness: 8,0 mm VAno. of strokes: 7 - 14 Hub/mindown holder: 18 Stückcutting angle: 0,5 - 3,0 °work height max.: 930 mmback stop - adjustable: 1000 mmNumber of working hours: 18.822 htotal power requirement: 22,5 kWweight: 8.500 kgrange L-W-H: 4180 x 2030 x 2210 mmFurnishing:- Robust hydraulic, link-guided guillotine shears- Electro-motor backgauge with analogue display Fine adjustment via hand wheel, front left- Control panel, front left- manual cutting gap adjustment, from behind- electro-hydraulic cutting angle adjustment- Front finger protection- Stable front support table- 1x side stop with T-slot and millimeter scale- 3x support arms- 1x free moving footswitch- User manual (PDF) Machine link :http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=100 8-9325234The data for this ad was created with ModulMWS - the sof ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 156327151
New in: 1990

used

Location: Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 12 mmdistance between columns: 3100 mmtable height over floor: 900 mmcutting angle adjustment: 0,5 - 3 °no. of strokes: 6 - 13 Hub/minback stop - adjustable: 1000 mmdown holder: 18 Stoil volume: 350 ltotal power requirement: 22,5 kWweight of the machine ca.: 8 tdimensions of machine L x W x H: 3,96 x 2,38 x 2,22 mAccessories: electr. back gauge, spare knivesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 23.10.2023 add to watchlist
approved
dealer
item-No.: 161040023
New in: 1992

used

checkTOP Seller: ZOMA Maschinenhandel
Location: Land-de

add to watchlist

Type / type: ATSL 3013 Fabr./ make: Atlantic Year of construction/ year: 1992 Stock number: 0969 Sheet thickness with largest sheet width/ thickness at max. cutting length: 13 mm ( mild steel ) 6 mm ( stainless steel / high grade steel) Cutting length: 3050 mm Weight/ weight: approx. 8.6 t Specification: Backstop

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163361384
New in: 1992

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 6.0 mmcutting angle: 0.5 - 3.0 °down holder: 18 Stückno. of strokes: 9 / 14 Hub/minback stop - adjustable: 750 mmControl: SC7p engine output: 10.0 kWweight: 4800 kgrange L-W-H: 3750 x 1600 x 2450 mm from a maintenance workshop well maintained condition - checked annually ()Furnishing:- electro-hydraulic sheet metal shears - backdrop-guided- ATLANTIC NC control unit - model SC7p Target / actual information about the motorized back gauge Manual positioning possible via handwheel Digital display for backgauge position electro-hydraulic cutting angle adjustment Adjustable retraction from the back gauge before the start of the cut Front left control unit- electro-motorized back gauge 10-750 mm- manual cutting gap adjustment, from the rear- 1x front side stop, with mm scale- 3x front support arms- 1x freely movable foot switch- Finger protection at the fr ...

sheet metal working / Hydraulic Shear
date: 23.10.2023 add to watchlist
approved
dealer
item-No.: 150201262
New in: 1993

used

checkTOP Seller: ZOMA Maschinenhandel
Location: Land-de

add to watchlist

Hydraul. Table scissors, used, ready for demonstration under electricity       hydraulic plate shearer, used , under power, ready for operation Type: XTSL 3016 Fabr./ make : Atlantic Year of construction/ year: 1993 Sheet thickness with the largest sheet width/ thickness at max. cutting length: 16 mm ( structural steel / mild steel ) 12 mm ( stainless steel / high grade steel) Cutting width/ cutting length: 3100 mm Weight/ weight: approx. 14 t Specification: Rear stop / backstop

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162896069
New in: 1995

used

check Seller: SKM Industriemaschinen
Location: Bayern - 89264 Weißenhorn Land-de

add to watchlist

sheet width: 3050 mmplate thickness: 6 mmControl: SC5 back stop - adjustable: 750 mmtotal power requirement: 7,5 kWweight of the machine ca.: 4,5 tdimensions of the machine ca.: LTH 3,8 x 2,5 x 1,7 m- motorized backgauge- Electric cutting gap adjustment- electric Cutting angle adjustment- Footswitch- Front support arms 2.60 m.- pneumatic lifting device- Spare knife- Rear area monitoring optical sensorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163163688
New in: 1994

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 2560 mmplate thickness: 6.0 mmthickness at Niro-steel: 4.0 mmdistance between columns: 2600 mmdown holder: 12 Stückno. of strokes: 20 Hub/minoil volume: 160 ltr.cutting angle: 1.6 °Control: ELGO TYP 71 back stop - adjustable: max. 750 mmtotal power requirement: 11.37 kWweight: 3800 kgrange L-W-H: 3030 x 1910 x 1510 mm Current new price approx. 37.000 euros Special price on requestFurnishing:- Robust electric hydraulic swing cutter- Elgo type 71 digital control unit Driving back stop x = 750 mm play -free ball circuit spindle for back attack Speed 100 mm/sec- 1x side stop with a t-groove, flip stop and millimeter scale- 2x front reversing arms- Electrical cutting length limit Cutting length limitation to increase the number of lifts/min.- Manual interpretation- front finger/intervention protection- TIP operation with push buttons on the switch on the left- original operatin ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163673225
New in: 2002

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus

add to watchlist

sheet width: 3060 mmplate thickness: 8.0 mmthickness at Niro-steel: 6.0 mmdistance between columns: 3100 mmdown holder: 16 Stückno. of strokes: 10 Hub/minoil volume: 160 ltr.cutting angle: 1.6 °Number of working hours: ca. 2.100 hback stop - adjustable: 6.0 - 750 mmControl: total power requirement: 18.5 kWweight: 6300 kgrange L-W-H: 3900 x 2300 x 1630 mm from a maintenance workshop hardly used - only approx. 2.100 operating hours () New price approx. 40.000 euros Special price on requestFurnishing:- electro-hydraulic swing cutting shears- ELGO digital display model P9521, for electric back gauge Travel distance back gauge X = 750 mm Backlash-free ball screw for back gauge Back gauge beam can be automatically tilted up to maximum position for pushing extra long sheets through Travel speed 100 mm/sec- 1x stable side stop with T-slot, flip stop and millimeter scale- 2x front, stable supp ...

sheet metal working / Hydraulic Shear
date: 08.04.2024 add to watchlist
approved
dealer
item-No.: 162639174
New in: 1993

used

check Seller: Mieth Maschinenhandel
Location: 63322 Rödermark Land-de

add to watchlist

Offer 22408 Specifications: - max. working width 3050 mm - max. cutting capacity St 40 10 mm - Projection 270 mm -Cutting angle° - Cutting gap adjustment by hand - Number of hydraulic hold-downs 16 pcs - Mechanical backgauge 20 - 650 mm - Front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 7 - 12 per/min - Hydraulic drive 400 V / 22 kW - Table height approx. 820 mm - Space requirements incl. back gauge, without front support arms -ca. W 3850 x H 2000 x D 2000 mm - Weight approx. 8500 kg - With: - E-foot switch - Cutting line illumination

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162862910
New in: 1998

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3060 mmplate thickness: 10,0 mmthickness at Niro-steel: 6,0 mmback stop - adjustable: 5,0 - 1000 mmwork height max.: ca. 820 mmcutting angle: 2,4 °stroke: 7-12 p/min.down holder: 14 Stückoperating pressure: 360 barControl: ELGO oil volume: 200 ltr.voltage: 400 Vtotal power requirement: 22,0 kWweight: 9000 kgrange L-W-H: 4000 x 2300 x 2000 mmFurnishing :- robust / hydraulic swing shears- with ELGO digital control- electric backgauge 5.0 - 1,000 mm zero-backlash ball screw for backgauge Backstop beam can be automatically tilted up in max. position Speed 100mm/sec- 1x side stop- 2x front support arms- electrical cutting length limitation Cutting length limitation to increase the number of strokes/min.- manual cutting gap adjustment centrally operated on the right side stand- Machine side stand with overhang- Front support plates with ball rollers- front finger protection- Tip ...

sheet metal working / Hydraulic Shear
date: 26.10.2023 add to watchlist
approved
dealer
item-No.: 160952082
New in: 1993

used

check Seller: Ruppert Werkzeugmaschinen GmbH & Co.KG
Location: Land-de

add to watchlist

Beyeler VE 6.5 x 4080 hydr. guillotine shears, Year of construction 1993, cutting width 4,000 mm, Backdrop-guided knife bar, Auto. Cut / angle adjustment Ermaksan, sheet thickness up to 10 mm, annual security check, Accessories spare knives,

sheet metal working / Hydraulic Shear
date: 08.04.2024 add to watchlist
approved
dealer
item-No.: 160155727
New in: 1996

used

check Seller: Mieth Maschinenhandel
Location: 63322 Rödermark Land-de

add to watchlist

offer 22537 Specifications: - working width 4040 mm - cutting capacity St 40 6 mm - Cutting angle hydro.adjustable 0.5 - 3 ° - Cutting gap adjustment hydr. - Number of hydraulic hold-downs 22 pcs -Mot. – Backgauge with positioning control 10 - 1000 mm - front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 7 - 15 p/min - Hydraulic drive 400 V / 7.5 kW - Pneumatic connection 6 bar - Table height 770 mm - Space requirement approx. W 5100 x H 2250 x D 2150 mm - Weight approx. 9000 kg - with: - E-foot switch - Cutting line lighting - Pneumatically supported sheet metal lifting

sheet metal working / Hydraulic Shear
date: 12.03.2024 add to watchlist
approved
dealer
item-No.: 163176525

used

check Seller: Retec Machines S.A.S
Location: Land-fr

add to watchlist

Hydraulic Shear COMESSA CP 316 Capacity: 3000 x 16 mm Back gear gauge travel: 1000 mm Throat depth: 500 mm Motor power: 35 CV Adjustable blades 4 cutting blade Voltage: 380 V Dimensions (L x W x H): 3500 x 2200 x 2400 mm Weight: 16,5 T

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 157172688
New in: 1987

used

check Seller: Intermach BV
Location: Holland Land-nl

add to watchlist

sheet width: 3100 mmplate thickness: 20 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mStocknumber 2110009Type of machine ShearMake DARLEYType GS 3100/20Build in 1987Type of control Incl. electric guidesheet widht 3100 mmPlate thickness 20 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 08.01.2024 add to watchlist
approved
dealer
item-No.: 12778814
New in: 1978

used

check Seller: Kurt Steiger Werkzeugmaschinen GmbH
Location: Wiesbaden Land-de

add to watchlist

Working width: 4100 mm sheet thickness: 6 mm radius: 100 mm rear gauge: 0-1000 mm power: 18.5 kW space: 4600 x 2200 x 1950 mm weight: 11000 kg

sheet metal working / Hydraulic Shear
date: 13.11.2023 add to watchlist
approved
dealer
item-No.: 161416174
New in: 2022

new

check Seller: VVB-Concept GmbH
Location: Land-de

add to watchlist

-Exhibition Machine- DERATECH Practica CNC hydraulic guillotine shears 3050 x 20 mm Available Model VAC-20 x 3050 mm Hydraulic kullissen-guided guillotine shears in robust design Cybelec CybTouch 8 controller Backgauge 1000 mm, foldable Angle stop 1000mm Support arms 1000 mm Knife for cutting VA material with 4 cutting edges Support table with ball rollers DWSQ0E Automatic cutting angle and cutting gap adjustment CE

sheet metal working / Hydraulic Shear
date: 13.09.2023 add to watchlist
approved
dealer
item-No.: 162391845
New in: 2023

new

check Seller: Dr. Hochstrate Maschinenbau
Location: Land-de

add to watchlist

Hydraulic guillotine shears - ordering machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear installation room with light barrier monitoring, cutting gap automatic/electric, cutting angle automatic/electric, hydraulic hold-down, mot. Backgauge up to 1000 mm depth -Illustrations similar- Hydraulic plate shear - order machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear set-up area with light barrier monitoring, automatic/electrical cutting gap, automatic/electrical cutting angle, hydraulic hold-down, mot. backgauge up to 1000 mm -images similar-

sheet metal working / Hydraulic Shear
date: 15.02.2024 add to watchlist
approved
dealer
item-No.: 163367389
New in: 2019

new

check Seller: Dr. Hochstrate Maschinenbau
Location: 58454 Witten Land-de

add to watchlist

Guillotine shears type 3000x8

sheet metal working / Hydraulic Shear
date: 13.09.2023 add to watchlist
approved
dealer
item-No.: 162391867
New in: 2021

new

check Seller: Dr. Hochstrate Maschinenbau
Location: 58454 Witten Land-de

add to watchlist

Hydraulic guillotine shears - ordering machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear installation room with light barrier monitoring, cutting gap automatic/electric, cutting angle automatic/electric, hydraulic hold-down, mot. Backgauge up to 1000 mm depth -Illustrations similar- Hydraulic plate shear - order machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear set-up area with light barrier monitoring, automatic/electrical cutting gap, automatic/electrical cutting angle, hydraulic hold-down, mot. backgauge up to 1000 mm -images similar-

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 157209452
New in: 2002

used

check Seller: Intermach BV
Location: holland Land-nl

add to watchlist

sheet width: 3000 mmplate thickness: 10 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 9,8 tdimensions of the machine ca.: 4,15 x 3,55 x 2 mBrand: DurmaType: DHGM 3010Year of make: 2002Knife length: 3.000 mmPlate thickness: 10 mmElectric backstopMachine dimensions (lxwxh): 4.150 x 3.550 x 2.000 mmMachine weight: 9.800 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163381194
New in: 2008

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 6.0 mmthickness at Niro-steel: 4.0 mmdistance between columns: 3120 mmdown holder: 16 Stückoil volume: 200 ltr.cutting angle: 1° 30 no. of strokes: 15 Hub/mincontrol: ENC 100 table width: 500 mmthroat: 50.0 mmNumber of working hours: 912 htotal power requirement: 15.0 KWweight: 7650 kgrange L-W-H: 3810 x 2200 x 2050 mm from a maintenance workshop () very good / well-maintained condition (as new) with only 912 operating hours current new price ~ 45.000 euros Special price on request-------------------------------------------------- NC electro-hydraulic swing cutting shear with DURMA ENC 100M control manual cutting gap adjustment Incl. pneumatic sheet metal holding device for thin sheet metal cuts-------------------------------------------------- Furnishing:- robust electro-hydraulic swing cutting shears- including DURMA ENC 100M NC control unit Backg ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 161147849
New in: 2011

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 10,0 mmthickness at Niro-steel: 6,0 mmdistance between columns: 3120 mmdown holder: 16 Stückoil volume: 200 ltr.cutting angle: 1°50 no. of strokes: 13 Hub/mincontrol: ENC 100M table width: 580 mmthroat: 50,0 mmtotal power requirement: 22,0 KWweight: 9300 kgrange L-W-H: 4200 x 2250 x 2100 mm from a maintenance workshop New price ~ 55.000 euros-------------------------------------------------- robust electro-hydraulic oscillating shears with DURMA ENC 100M NC control Manual cutting gap adjustment, via eccentric-------------------------------------------------- Furnishing:- electro-hydraulic oscillating shears- with DURMA ENC 100M control Backgauge preselection - X axis Number of pieces Cutting length limitation Swivel control, left front- motorized backgauge, travel = 1.000 mm (X axis) on ball screws Travel speed 200 mm/sec.- Manual cutting gap adjust ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 143841503
New in: 2010

used

check Seller: AMARON s.r.o.
Location: Land-cz

add to watchlist

Maximum cutting length: 3080 mm Maximum sheet thickness during cutting: 6 mm Maximum cutting angle: 2 st Total power requirement: 11 kW Rear stop: 1000 mm Machine height: 1950 mm Machine length: 4100 mm Machine width: 2050/3650 mm Machine weight: 7980 t

sheet metal working / Hydraulic Shear
date: 08.04.2024 add to watchlist
approved
dealer
item-No.: 160648165
New in: 1989

used

check Seller: Mieth Maschinenhandel
Location: 63322 Rödermark Land-de

add to watchlist

offer 21001 Specifications: - working width 3050 mm - cutting capacity St 40 10 mm - Cutting angle 2 ° - Cutting gap adjustment by manual hand - Number of hydraulic hold-downs 17 pcs - Motor - Backgauge 20 - 1000 mm - front angle stop + support arms - Hydraulic drive 400 V / 22 kW - Table height approx. 900 mm - Space requirements incl. backgauge, without front support arms -ca. W 3900 x H 1950 x D 2250 mm - Weight approx. 7800 kg - with: - E-foot switch - Cutting line illumination - - Cutting length preselection

sheet metal working / Hydraulic Shear
date: 14.02.2024 add to watchlist
approved
dealer
item-No.: 162844673

used

check Seller: Venker Werkzeugmaschinen GmbH
Location: 33335 Gütersloh Land-de
Price: 7.200 € add to watchlist

Key data: 1050 mm, 3 mm, 1000 mm

Max. cutting length: 1050 mm Max. sheet thickness: 3 mm steel Motorized backgauge up to 1000 mm with fine adjustment via handwheel Shear angle adjustment Knife sharpened Operating instructions Weight: approx. 1400 kg

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162848911

used

Location: Land-de

add to watchlist

sheet width: 1050 mmplate thickness: 3,00 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 1,40 tdimensions of the machine ca.: mMotorized back gauge up to 1000 mm with fine adjustment via handwheelShear angle adjustmentKnife sharpenedoperation manualThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 157045254
New in: 1994

used

check Seller: ATMH werkzeugmaschinen-Handel GmbH
Location: Ennepetal Land-de

add to watchlist

sheet width: / mmplate thickness: / mmdistance between columns: / mmManufacturer: EHTType: TSS 20-25Year of construction: 1994Max. Cutting length: 2250 mmMax. Sheet thickness: 20 mmStrip width min / max: 10/1000 mmDistance between the consoles: 2530Height above the ground: 900 mmTable length without extension arms: 3030 mmOil volume: 800 lMax. Pressure: 280 barOperating voltage: 400VControl voltage: 230 V.Nominal current: 87 A.Weight: 15.8 toDimensions L x W x H: 3500 x 2500 x 2400 mmAccessories / special equipmentPneumatic cutting gap adjustmentCutting length limitationRoller conveyor elevation bracketHand protection 1 bayMultitron control Multitron PS 80, ELCO 85 PLower knife height adjust ...

sheet metal working / Hydraulic Shear
date: 08.04.2024 add to watchlist
approved
dealer
ankerimg
item-No.: 126219819
New in: 1991

used

check Seller: Mieth Maschinenhandel
Location: 63322 Rödermark Land-de

add to watchlist

Technical data: -maximum cutting width 3050 mm -maximum cutting capacity at 45 KP / mm² 4 mm -hydr... Cutting angle adjustment - number of holders of 18 PCs -Speed up to 24 / min -front angle stop 1100 mm -3 PCs front support arms 750 mm -mot. Backgauge positioning control 5-1000 mm - sheet reversible - cutting line illumination -E - foot switch -Rear area protection with light barrier -Drive 400 V / 9.5 kW -Space requirement approx. B 3900 x H 1850 X 2100 mm -Weight approx. 5.7 t

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 156893973
New in: 1970

used

check Seller: WeMa A. Pigge GmbH
Location: Goldenstedt Land-de

add to watchlist

sheet width: 5000 mmplate thickness: 6 mmdistance between columns: 5030 mmthroat: 340 mmweight of the machine ca.: 14 tdimensions of the machine ca.: 5500 x 2250 x 2200 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160004435

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162984804

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160072792
New in: 2022

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162879590
New in: 2023

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

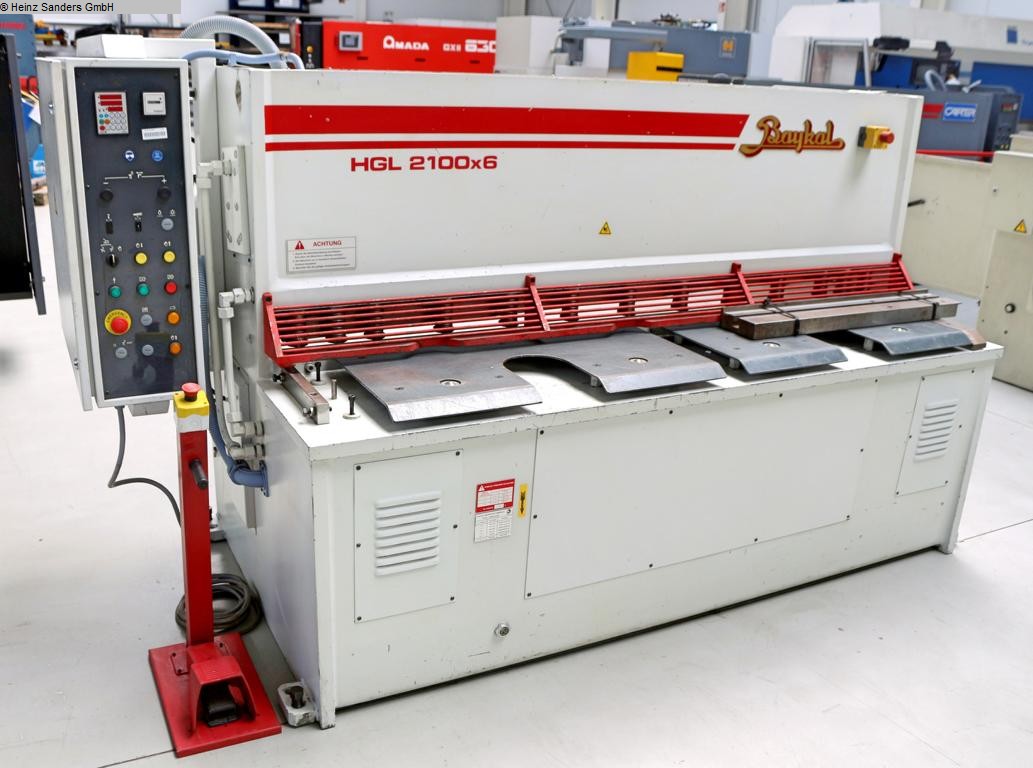

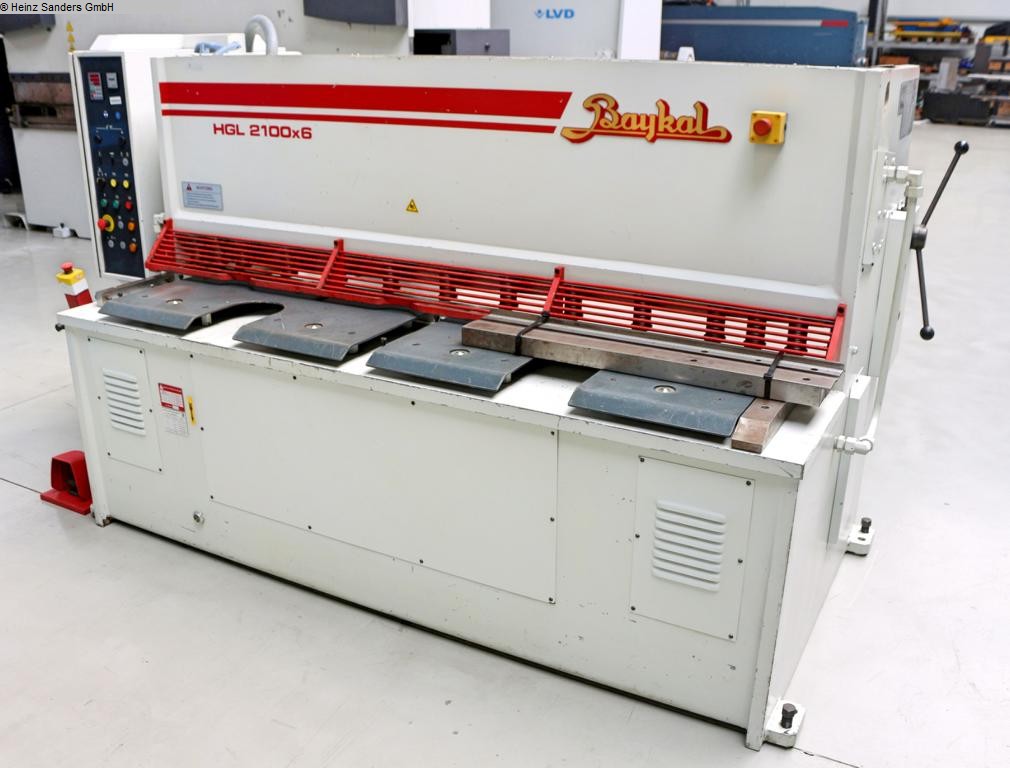

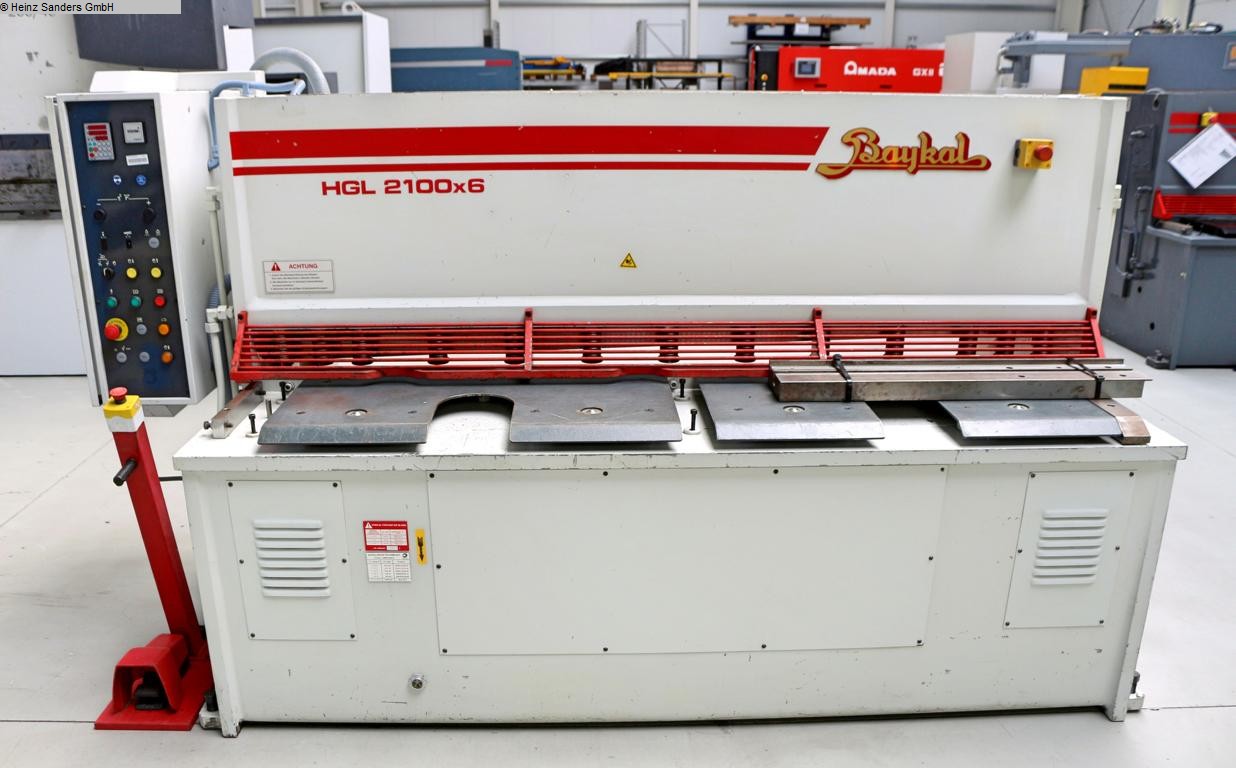

sheet width: 2100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 11 Stkno. of strokes: 28 Hub/minoil volume: 150 ltotal power requirement: 11 kWdimensions of the machine ca.: 3010 x 2100 x 1640 mmweight: 4500 kg Available from stock-------------------------------------------------- ---------electrical / hydraulic CNC swing cutting shear with CYBELEC CNC touch screen control with electric / hydr. Cutting gap adjustment-------------------------------------------------- ---------Furnishing:- CNC electrical / hydraulic swing cutting shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material selection, including sheet thickness Cutting line lighting- motorized back gauge, travel = 1,000 mm (X axis) on ball screws automatic Can be folded up at maximum travel ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160004491
New in: 2022

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 14 Stkno. of strokes: 18 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4.000 x 2.100 x 1.640 mm-----------------------------------------------------------electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-----------------------------------------------------------F urnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. can be folded up at max.travel, for longer cuts- 1x side stop- 2x front support arms- Ball rollers in the f ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160022968
New in: 2022

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 14 Stkno. of strokes: 18 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4.000 x 2.100 x 1.640 mm-----------------------------------------------------------electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-----------------------------------------------------------F urnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. can be folded up at max.travel, for longer cuts- 1x side stop- 2x front support arms- Ball rollers in the f ...

sheet metal working / Hydraulic Shear
date: 27.03.2024 add to watchlist
item-No.: 159287088
New in: 2007

used

Location: Land-cz

add to watchlist

Control Cybelec ... DNC 60 cutting length ... 2600 mm sheet thickness ... 8mm Drive... Hydraulic L x W x H ... 3550x2020x1850mm Machine weight... 6200kg Main engine power ... 15kW The machine is in good condition, possible to test under power.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160004461
New in: 2022

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 0,5 - 1,5 °down holder: 14 Stkno. of strokes: 16 - 24 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4100 x 2200 x 2190 mmweight of the machine ca.: 7060 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer c ...

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 162883777

new

check Seller: Heinz Sanders GmbH
Location: 49779 Niederlangen Land-de

add to watchlist

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 0,5 - 1,5 °down holder: 14 Stkno. of strokes: 16 - 24 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4100 x 2200 x 2190 mmweight of the machine ca.: 7060 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer c ...

sheet metal working / Hydraulic Shear
date: 09.02.2024 add to watchlist
approved
dealer
item-No.: 163324736
New in: 1969

used

check Seller: Dr. Hochstrate Maschinenbau
Location: 58454 Witten Land-de

add to watchlist

FASTI guillotine shears Effective length: 1030mm Maximum sheet thickness: 2.5mm

sheet metal working / Hydraulic Shear
date: 14.02.2024 add to watchlist
approved
dealer
item-No.: 161132758

used

check Seller: Venker Werkzeugmaschinen GmbH
Location: 33335 Gütersloh Land-de
Price: 16.700 € add to watchlist

cutting length: 3040 mm sheet thickness: 4 mm steel Motorized rear gauge with digital display up to 1000 mm Side stop and table lengths Cutting length limitation Cut edge illumination Weight approx. 4500 kg

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 161098474
New in: 1998

used

Location: Land-de

add to watchlist

sheet width: 3000 mmplate thickness: 10,00 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 10,00 tdimensions of the machine ca.: 3,60 x 2,50 x 2,05 m• Controlled back gauge 10 - 1000 mm• Angle stop 1600 mm• 3 additional support arms• Automatic cutting gap adjustment• Automatic cutting angle adjustment• Cutting edge lighting• Cutting length limitThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 16.01.2024 add to watchlist
approved
dealer
item-No.: 159814878
New in: 1993

used

check Seller: Jaschek Industrieservice GmbH
Location: 14656 Brieselang Land-de

add to watchlist

Working length 2,500 mm, max . Sheet thickness 6 mm , pneumatic hold-down , electric backgauge , weight 6,400 kg

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 160897369
New in: 1993

used

Location: Land-de

add to watchlist

sheet width: 4000 mmplate thickness: 4,00 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 8,50 tdimensions of the machine ca.: mControlled back gauge up to 1,000 mmSide stop and table extensionscutting length limitationcutting edge lightingProtective fence, rollable with safety switchesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 14.02.2024 add to watchlist
approved
dealer
item-No.: 128246240
New in: 1993

used

check Seller: Venker Werkzeugmaschinen GmbH
Location: 33335 Gütersloh, Anemonenweg 8 Land-de
Price: 21.200 € add to watchlist

Maximum cutting length: 4000 mm Maximum sheet thickness: 4 mm steel Driven back gauge to 1000 mm Page fence and table extensions Cutting length limit Cutting edge lighting Protection fence, roll with safety switches Weight: 8500 kg

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 163739001

used


add to watchlist

sheet width: 1040 mmplate thickness: 4,00 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 1,60 tdimensions of the machine ca.: mManual backgauge up to 550 mmSide stop and table extensionsThe rear area is protected by a protective fence with light barriersKnife sharpenedOperating instructions availableThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet metal working / Hydraulic Shear
date: 12.04.2024 add to watchlist
approved
dealer
item-No.: 161708403
New in: 1982

used

check Seller: A+B Werkzeug Maschinen Handels GmbH
Location: Ahaus Land-de

add to watchlist

sheet width - max.: 1255 mmplate thickness: 4,0 mm STplate thickness: 2,0 mm VAplate thickness: 6,0 mm ALUnumber of strokes - loaded: ~ 66 Hübe/min.cutting angle: 1,5 °total power requirement: 5,5 kWweight of the machine ca.: 2600 kg.range L-W-H: 2300 x 1800 x 1800 mm Machine from a technical college - prototype construction very well-maintained condition ()Furnishing:- electro-hydraulic guillotine shears- manual backgauge with analogue position display (scale + magnifying glass)- electrical cutting length limitation- manual cutting gap adjustment- 1x extra long side stop- 2x extra long support arms- 1x free moving footswitch- rear sheet metal slide- User manual (PDF) Machine link :http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=100 8-9325278The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

You didn't find your wanted machine? send wanted inquiry to all dealers (no registration necessary)
Banner ad information
