PLATE BENDING MACHINE 4 ROLL HYDRAULIC 3000 X 30 MM brand OMCCA YEAR 2009 DOUBLE INITIAL PINCH Machine used in working condition Bending capacity -Plate width : 3000 mm -Rolling plate thickness 40 mm - Prebend thickness 30 mm Rolls dimensions: -Useful length 3050 mm -central rolls upper/lower D 470 mm -side rolls left/right D 430 mm One extra smaller upper roll D=350mm fast interchangeable Hardening of the rolls high strength surface All 4 rolls driven hydraulic powered rollers rotation Conical bending attachment side rolls tiltable to form cones, contrast pad roller type. Opening of top roll hydraulic drop-en ...
PLATE BENDING MACHINE 4 ROLL HYDRAULIC 2000 X 22 MM brand OMCCA YEAR 2004 DOUBLE INITIAL PINCH Machine used in excellent condition Bending capacity -Plate width : 2000 mm -Rolling plate thickness 22 mm - Prebend thickness 16 mm Minimum bending diameter ID 400 mm Rolls dimensions: -Useful length 2050 mm -central rolls upper/lower D 320 mm -side rolls left/right D 290 mm Hardened rolls high strength Driven rollers rotation central upper and lower Conical bending attachment side rolls tiltable to form cones, contrast pad roller type. Opening of top roll hydraulic drop-end to unload the plate being formed wide opening plate fe ...
4 Roll plate bending machine dual initial pinch MG Italy 2000X6mm Mode CNC EASYCOM 4-AXIS NEW MACHINE serial no. 25072 Capacity: -Width of plate: 2000 mm -Thickness plate roll 6 mm -Plate pre-bend 4 mm Rolls -useful width mm. 2050 -Top roll mm. 160 - Lower roll mm. 140 Configuration installed: hardened rollers, surface smooth finishing for all kind of plates and stainless steel Prebend process in manual and automatic full rounding no-flat plate ends Conical plate rolling cones and reducers hydraulic control dual initial pinch Driven rolls rotation hydraulic powered with axial gear unit plate dragging and forming . Console electric CNC with centralized commands joysticks , 4-axis position programming and readout. CNC controller interface touch screen 15”, 4 axis teach-in programming mode, infinite memory storage for automatic plate roll. On scr ...
Capacity plate width up to 3000 mm thickness 22 mm plate prebend 18 mm dual prepinch technical data: -length of rolls 3100 mm -top roll dia. 350mm -lower roll dia. 330mm -Hydraulic power unit with 20Hp motor -Electric supply Vac 400/50 – 480/60 Configuration complete: -Hardened surface of the 4 rolls -Conical plate bend hydraulic attachment. -hydraulic power driven rolls rotation with gear unit axial each -Synchronized hydraulic power dragging . -front open drop-end to remove closed shells. -Calibration re-rolling feature for welded shells Safety configuration in compliance. Control console electric commands with digital readout Predisposed ready to connect nr. 1 central hydraulic support for large dia. nr. 1 side arm hydraulic to hold in place think plate sheet being formed
DAVI MCA 1513 4-roll plate rolling machine was built in 2023 in Italy by Promau S.r.l.. This highly efficient machine is the perfect choice for precision rolling of cylindrical, elliptical and conical forms. Sheet metal with a maximum thickness of 6,5 mm is machined fully automatically by four rollers, which are driven by planetary gears. In turn, the advanced control system allows, among others, the generation of a full programme from CAD files and an offline performance test. The offered DAVI MCA 4-roll plate bending machine is a guarantee of achieving repeatable parts of the highest quality. Technical specifications of the DAVI MCA 1513 plate rolling machine - number of rollers: 4 - maximum sheet metal thickness (mild steel, yield point 260 MPa): 6,5 mm - maximum sheet metal length: 1500 mm - control system: DAVI - motor power: 5.5 HP - power supply of the MCA 1513 machine: 4 ...

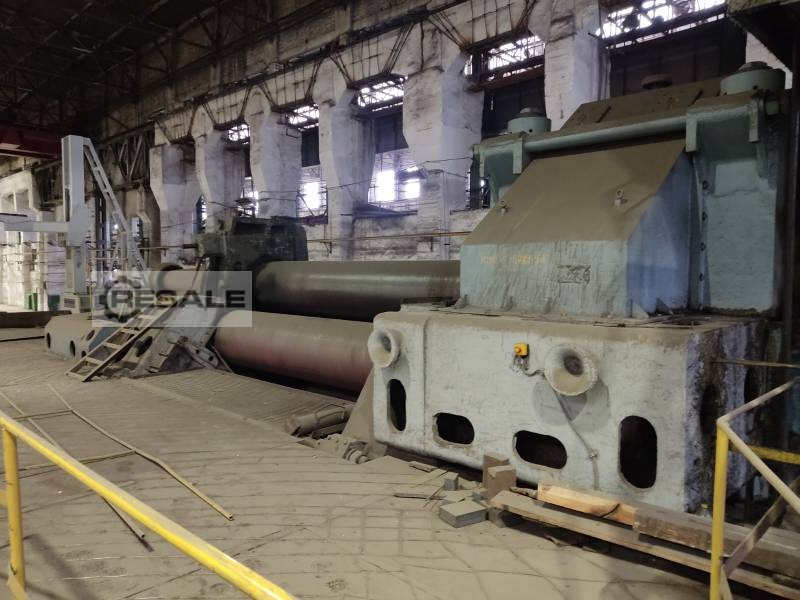

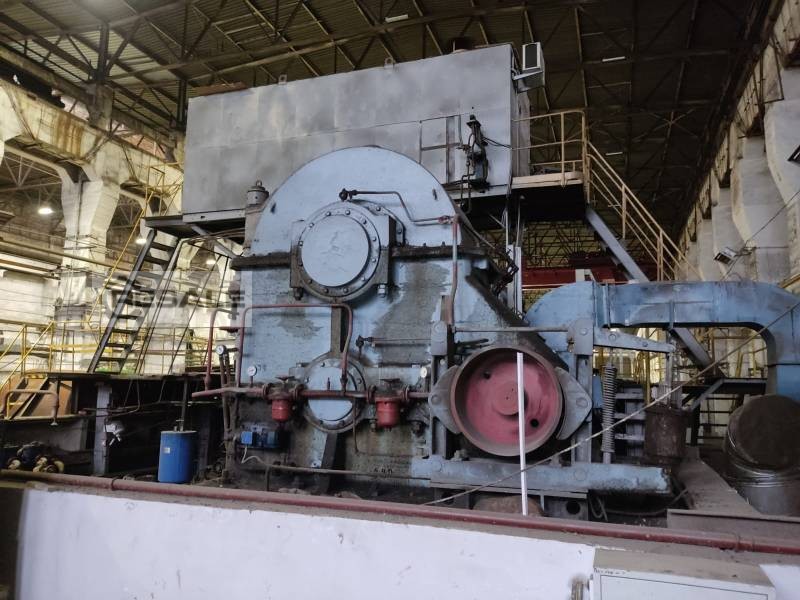

4-rolls Kramatorsk plate bending machine Ultimate tensile strength of material: 500 MPa (50 kg/mm²) Yield strength – cold bending: 250 MPa (25 kg/mm²) Yield strength – hot bending (primary): 100 MPa (10 kg/mm²) Yield strength – hot forming (secondary heating): 45 MPa (4.5 kg/mm²) Elongation at cold state: ±18% Maximum sheet width: 4000 mm Max sheet thickness – cold, without pre-bend: 71 mm Max sheet thickness – cold, with pre-bending: 63 mm Max sheet thickness – hot forming: 150 mm Minimum bending radius – cold: 560 mm Minimum bending radius – hot: 600 mm Maximum radius for closed bending (curled edge): 1000 mm Main motor: 160 kW Weight: 730 tons
Specifications: hydr. Four Roll Round Bending Machine Working width: 4000 mm Max. bending power: 10.0 mm Max. bend: 8.0 mm Diameter upper roller: 305 mm Diameter of side lower rollers: 305 mm Diameter middle lower roller: 265 mm Conical bending device by inclined position of the two side rollers Hardened rollers Hydraulic Safety Chucks Lateral bending aid on the right side Mobile control panel Dimensions (length x width x height): approx. 7300 x 1600 x 1600 mm Net weight: approx. 17 tons
Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic, CNC – controlled double-sided pre-bending – conical bending device Roll diameter 350 mm Smallest weft diameter 1.1 x the roll diameter = 385 mm Maximum bending length 3,000 mm Nominal pre-bending performance over the entire bending length at 5 x D = 18 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 22 mm sheet steel/ST40 Drive power 22 kW Weight 13,500 kg. Three hydraulically driven rollers (one hydraulic motor per roller) - The rollers run in bronze plain bearings Hydraulic linear sub-roller adjustment Hard chrome-plated piston rods Hardened and ground rollers PILZ® Laser Validation BECKHOFF® CNC – Control with Ethernet technology and large touch screen DANFOSS® Precision Hydrau ...
