Dreher 2 vessel brew system Type: KBA500 Year: 2006 Kettle: 550 litres Heating: 42 kW Controls KBA basic 3x Dreher fermenting tanks Type: GW500 Year: 2006 Content: 520 litres With Dreher ZKV120 cooling 3x Dreher / Brovarni dispensing tanks Type: 500 L CCT Year: 2017 Content: 500 litres 1x Dreher brite tank Content: 1000 litre 6x Dreher Kombi-tank Type: KT500 Year: 2006 Content: 500 litres 5x FIB beertanks Type: 70200503 Year: 2022 Content: 540 litres Auxiliary equipment a.o. - Gail 103 grain mill - Enotecnica Pillan srl F30 20x20 filter - Serrco SW-150 cooling water tank - bottle washing station - bottle filling machine - corking device - 45x 20 litre kegs - working table - double sink
Dreher Delta 20/40 granulator for the size reduction of injection mouldings or hollow plastic bodies with a medium cross-section, rotor diameter 200 mm, working width 400 mm, 3 rotor blades and 2 stator blades, infeed opening 200 x 400 mm, cyclone and bagging opening with a diameter of 304 mm, capacity 40-180 kg/h, electrical connection 400V/50Hz, connected load of granulator 7.5 kW, connected load of extraction 0.75 kW, connected load of control unit 1.0 kW, machine floor space approx. 2500 x 950 mm (WxD), machine height approx. 1950 mm, machine net weight approx. 800 kg
Rotor Ø: 340 mm Working width: 410mm Motor power: 11-18.5 kW Rotor cutting strips: 5 Stator cutting strips: 2 Insertion opening: approx. 410 x 340 mm Capacity depending on plastic and screen size: approx. 130-400 kg/h Granulate conveyor: 1.1 kW Net weight: approx. 1640 kg Gross weight: approx. 1865 kg Box dimensions: approx. 2.2 x 1.7 x 1.6 m Feed belts with silencer Centre distance: 3700 mm Belt width: 400mm Net weight: approx. 296 kg Gross weight: approx. 430 kg Box dimensions: approx. 0.8 x 0.8 x 4.4 m - Overhaul in 2022 - Real bevel cut - Integrated sound insulation - Conveniently designed grinding room - Safe material acceptance - Optimum granulate quality - Built-in granulate conveyor system - Easy maintenance and cleaning - Tested occupational safety Ø of rotor: 340 mm Useful width: 410mm Motor output: 11-18,5 kW Rotor blades: 5 Stator blades: ...
Key data: 300 , 1 , 1300
Payload 1000 - 1250 kg Band width 305 and 505 mm Spreading range - 375 -520 mm Coil outer diameter 1300 mm without cabinet and control
material width:203 mm material thickness:0,1 - 1,9 mm feed length:101 mm weight:0,1 t dimensions (WxDxH):0,5 x 0,8 x 0,5 m
material width:300 mm coil weight:2 x 1,25 t material thickness:0,4 - 1,2 mm coil internal diameter:320 - 420 mm coil external diameter:1300 mm no. of straightening rolls:9 straightening roll diameter:30 mm number of draw-in rolls:2 roll diameter:30 mm speed:3 - 30 m/min feed length:0 - 9999,9 mm power requirement:3,0 + 2,5 kW weight of decoiler:0,7 t dimensions decoiler (WxDxH):2,1 x 1,4 x 1,5 mm weight of straightening machine:0,45 t dimensions straightener (WxDxH):1,5 x 0,8 x 1,1 mm weight of the feeder:0,4 t dimensions feeder (WxDxH):1,2 x 0,8 x 1,1 mm universal straightening machine:SC 12-FQ double decoiler:2352 B-FPS expansion:hydraulic lag brake:pneumatic electronic roll feed:WAV-RDS-2Z, Modell 1082 B intermittant lifting:pneumatic control:Siemens S 5
material width:500 mm material thickness:0,2 - 3,8 mm feed length:0 - 9999,9 mm number of rolls:2 material cross-cut:128 mm² speed:60 m/min power requirement:2,0 kW dimensions (WxDxH):1,2 x 1,3 x 1,5 m roll feed:Servo control:Siemens S 7, modification 2002
used
material width: 650 mm material thickness: 0,8 - 5 mm Feed speed: 8 m/min. total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 500 mm plate thickness: 0,8 - 5 mm no. of straightening rolls: 7 straightening roll diameter: 80 mm 2 pinch rolls, diameter: 80 mm Adjustable entry height Pass line: 505 mm Oiling system Roller cage Strip guide: 505 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Decoiler Coil weight: 2 x 2 ton Material width: 380 - 500 mm Coil exterior diameter: 1.300 - 1.400 mm Expansion range: 445 -530 mm Leveller / Straightener Material width : 40 - 500 mm Number of levelling rolls: 7 pcs. Diameter of the levelling rolls: 60 mm Number of pinch rolls: 2 pcs. Diameter of the drawing rolls: 60 mm Number of pull out rolls: 2 pcs. Diameter of the pull out rolls: 60 mm Material thickness: 0,4 - 1,6 mm Cross section: 800 sq mm Feeding speed: 0 - 30 m / min Required power: 3 kW
A Dreher plastic granulator is available. Rotor diameter: 270mm, rotor width/working width: 820mm, feed opening X/Y: 820mm/260mm, motor power: 18.5kW, throughput capacity: approx. 300kg/h, weight: approx. 1000kg. Including equipment cladding. Documentation available. An on-site inspection is possible.
Line is consisting of:, Dreher 2 vessel brew system, Type: KBA500, Year: 2006, Kettle: 550 litres, Heating: 42 kW, Controls KBA basic, 3x Dreher fermenting tanks, Type: GW500, Year: 2006, Content: 520 litres, With Dreher ZKV120 cooling, 3x Dreher / Brovarni dispensing tanks, Type: 500 L CCT, Year: 2017, Content: 500 litres, 1x Dreher brite tank, Content: 1000 litre, 6x Dreher Kombi-tank, Type: KT500, Year: 2006, Content: 500 litres, 5x FIB beertanks, Type: 70200503, Year: 2022, Content: 540 litres, Auxiliary equipment a.o., - Gail 103 grain mill, - Enotecnica Pillan srl F30 20x20 filter, - Serrco SW-150 cooling water tank, - bottle washing station, - bottle filling machine, - corking device, - 45x 20 litre kegs, - working table, - double sink

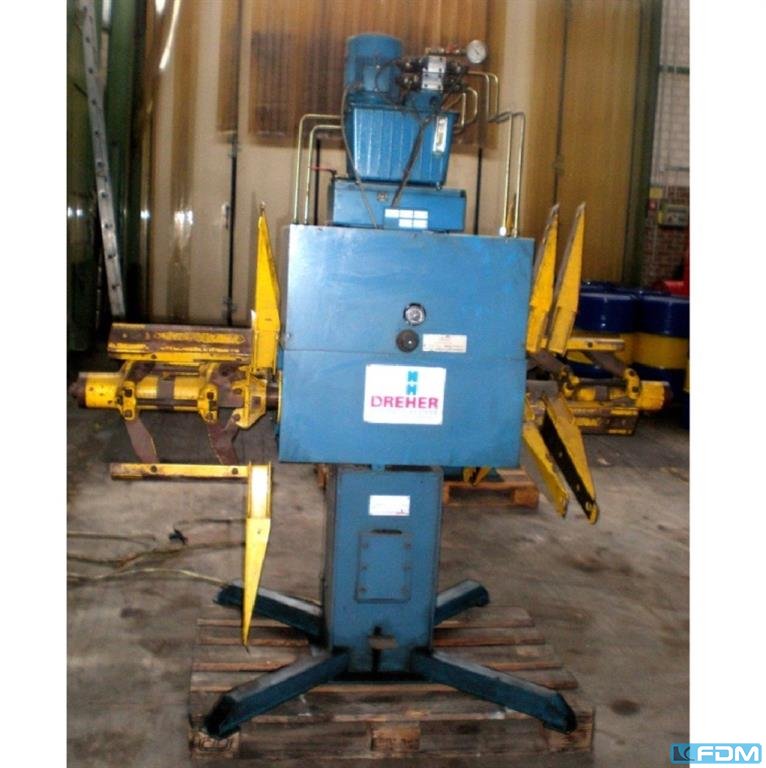

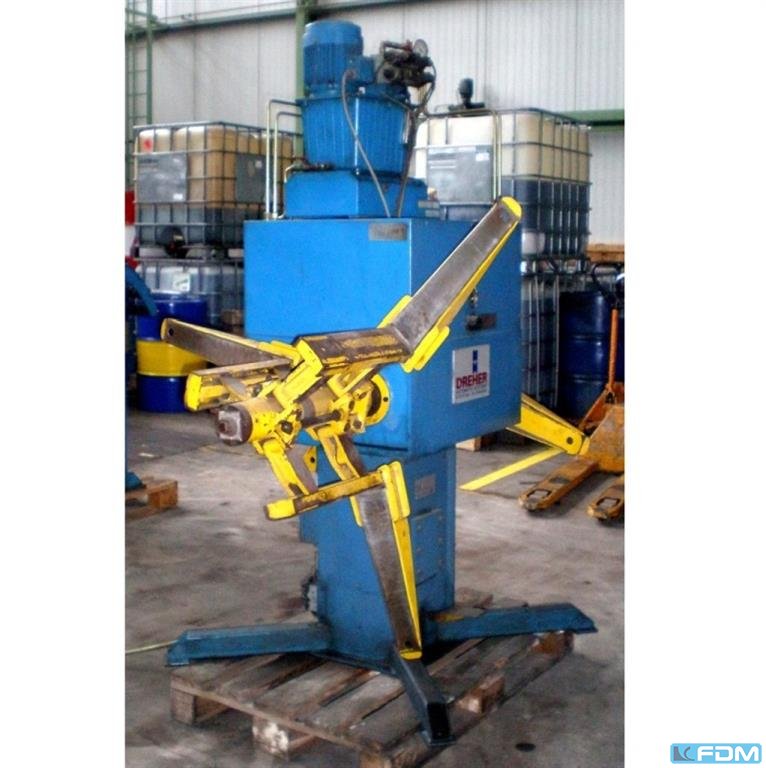

Double coiler, coiler, decoiler, for sheet metal processing, punch, eccentric press, hydraulic press, punching machine -Handover in the current condition as seen -Drive: without -Max. Recording: Ø 590 mm -min Recording: Ø 250 mm - Recording width: 300 mm -Dimensions: 1460/1000/H1400 mm -Weight: 332 kg
DREHER GRANULATOR, Mod. S26 - 41 GF, 410 mm rotor width, 260 mm rotor Ø, 11 kw drive (or lower), control panel, Average throughput rate 250 kg/h, Machine offered totally reconditioned, Suitable to reuse self-produced plastic scraps, installed power - used power in work: about 60-65% : 11 kW, availability: 3 weeks, working width: 410 mm, options available: lower power, capacity: 250 kg/h, conditions: reconditioned with sworn appraisal
Decoiler Coil weight: 2 x 4,5 ton Material width max.: 520 mm Coil exterior diameter: 1800 mm Expansion range: 460 - 525 mm Leveller / Straightener Material width : 30 - 500 mm Number of levelling rolls: 11 pcs. Diameter of the levelling rolls: 90 mm Number of pull out rolls: 2 pcs. Diameter of the pull out rolls: 90 mm Number of pinch rolls: 2 pcs. Diameter of pinch rolls: 90 mm Material thickness: 0,8 - 8,0 mm Feeding speed: 3 - 30 m / min

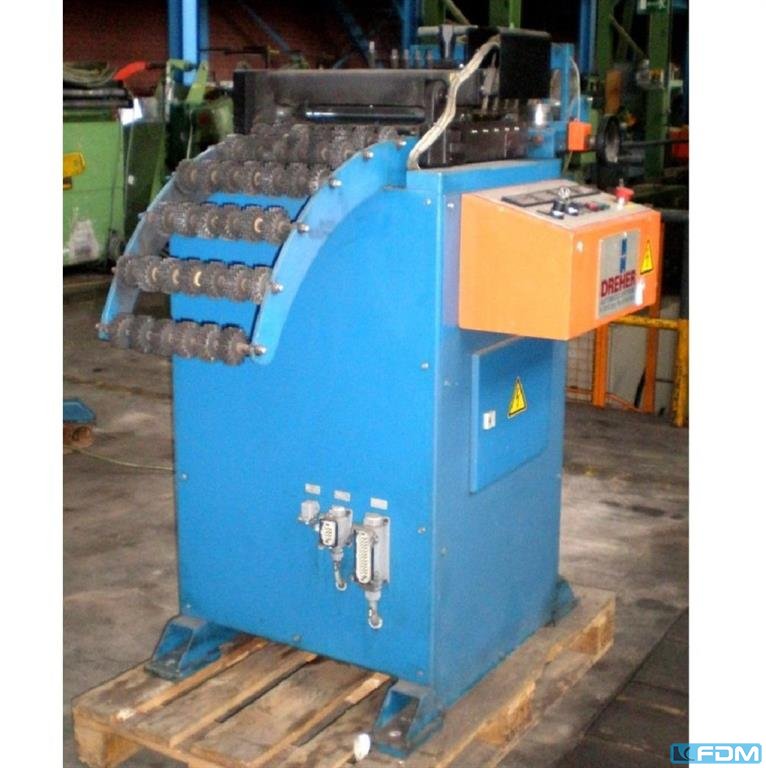

Decoiler Coil weight: 4,5 ton Material width max.: 520 mm Coil exterior diameter: 1600 mm Expansion range: 460 - 530 mm Leveller / Straightener Material width : 20 - 400 mm Number of levelling rolls: 7 pcs. Diameter of the levelling rolls: 60 mm Number of pull out rolls: 4 pcs. Diameter of the pull out rolls: 60 mm Material thickness: 0,4 - 3,5 mm Feeding speed: 2 - 10 m / min Roll feeder Material width max.: 310 mm Material thickness: 3,0 mm Material thickness at max. width: 2,8 mm Material thickness at max. cross section: 850 sq mm Number of feeding rolls: 2 pcs. Diameter of feeder rolls : 80 mm Feeding speed: 104 m / min Required power: 1,5 kW
material width: 200 mm material thickness: 3 mm feed length: 999999 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

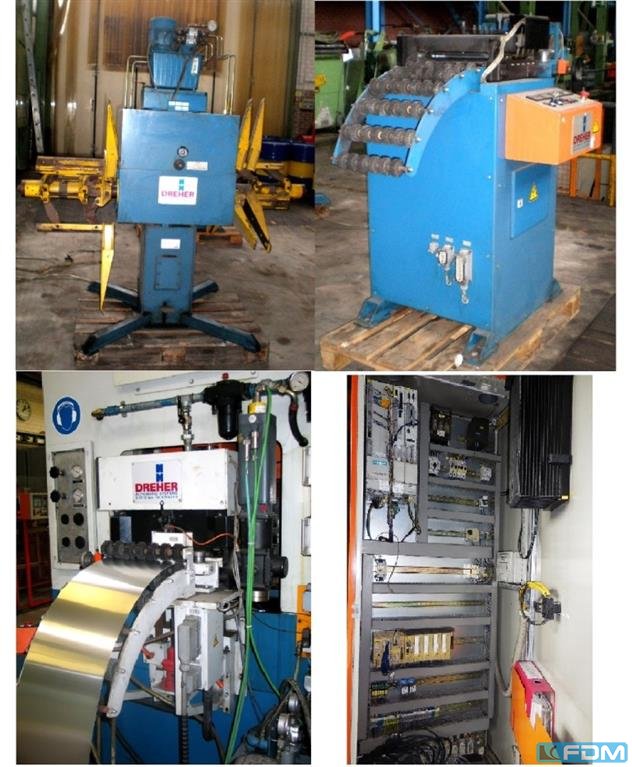

sheet width: 0500 mm coil outside dia.: 1400 mm weight max. in kg: 4000 kg plate thickness: 0,80 - 3,60 mm diam. of the rolls ca.: 80 mm feed rolls: 2 nomb. of straightening rolls: 7 exit pinch rolls: 2 speed: 5-30 m/min range of expansion ca.: 445 - 530 mm expansion: manuell total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Control conversion to SIEMENS S7 in 2012 - pneumatic pressure roller on the side - pneumatically ventilated feed roller - Straightening rollers manually adjustable - lateral belt guide at the inlet - Large roller basket at the outlet - Ultrasonic transmitter for loop control - Roller feed type 1125 D - Bandwidth max. 510 mm - Band thickness max. 6 mm with full width 5.50 mm - Roll diameter 125mm - Feed speed: max. 100 m/min. - pneumatically ventilated top roller - Lateral tape guide with digital display - Inlet roller basket ...
