used Bending Tools for sale

Nominal forming force:80 t Table length:2570 mm The machine is in good technical condition, by prior arrangement there is the possibility of testing. CNC control Operator 2000, 7 axes. Maximum pressing force 800 kN Press beam length 2570 mm Column passage 2125 mm Projection 420 mm Stroke 350 mm Installation height 620 mm Table width 60 mm Table height 960 mm Feed speed 1-100 mm/s Working speed 1-100 mm/s Drawing speed 1-100 mm/s Oil capacity 90 l Electrical connection 400 V / 50 Hz / 9 kW Length 3680 mm Width 2145 mm Height 2485 mm Weight 5750 kg

Inv. Num. : 6328 Type: PR 6 Producer: BEYELER Produced: 1997 Parameters: Control system: DNC 800 Compressive force: 100 t Maximum bending length: 3100 mm Maximum bending speed: 100 mm/s Total power requirement: 7.5 kW Maximum ram stroke: 215 mm Machine weight: 8500 kg

Model TAD SERVO 170 t / 3200 mm Stock machine/demonstration machine special price Linear CNC measurement for the deep Y1-Y2 ESA 630, 2D graphical CNC control, 15 "touch CNC X-R back gauge on ball screws CNC controlled hydraulic crowning 1 set of upper Tools HP, 135-85-R =.8, 3 x 835 + 1 x 805 1 set divided sub-tools or assistants Rolleri M460-R CE system unit AKAS® Control ESA 650W, 2D graphical control with automatic bend sequence calculation, 15-inch touch-screen, incl. remote assistance via TeamViewer Backgauge 2-axis CNC rear stop X-R Drive SERVO drive energy savings of up to 50% EXTRA high speed 200 mm / s and Lower tool holder Small narrow table, width 60mm x height 110mm Front Auflegearme 2 heavy Auflegearme on Linearfûhrung, adjustable in height with Handwheel + parking L + R Upper tool holder Manual f ...

plate width: x mmplate thickness: x mmno. of straightening rolls: x Tool for STRAIGHTENINGSeveral tools for SHRINKINGThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical data: -maximum working length 1250 mm -Stand round 1050 mm -Max pressing force 80 t -Stroke 250 mm -Stand RADIUS 300 mm -Max height betw. Table - press bar 560 mm -Lifting speeds -Backward speed idle max 100 mm / sec. -Forward speed 100 mm / sec. -Backward press speed max. 12 mm / sec. -Total power 15 kW -Space requirement approx. B 1750 x H 3400 X 2000 mm -Weight approx. 8500 kg -with: - CNC - control CYBELEC DNC 7400 PSGY -controlled X - axis back gauge 5-1000 mm -Pneum. Z - axis in three stages. height-adjustable -manually movable and foldable stop fingers -controlled pneumatic die shift - hydr. Tool clamping -Manual crowning - 2 piece support arms -Pointed tool shared H 320 x L 1000 mm -Foot tool H 320 mm x L 1000 mm - universal matrix L 1000 mm

Pressing force 20 to Edge length 2500 mm Stand – passage 2100 mm Stand – projection 2100 mm Largest passage 500 mm Engine power 18.5 KW Table width 500 mm Total length 2700 mm Total height 3100 mm Total depth 1900 mm Tools available Weight 13,5 to

Hand - Bending bench Manufacturer: GEKA

Technical data: -Pressure capacity 2000 kN -Max working width 3100 mm -Stand round 3200 mm -Stand RADIUS 300 mm -Max mounted height 965 mm -Hub, or insertion depth Steplessly adjustable 0-400 mm -Plunger speed forward + reverse per 100 mm / sec -Operating speed in 9 steps selectable 1-10 mm / sec -Drive 400 V / 26.5 kW - space requirement approx. B H 4400 x 3500 X 2200 mm -Weight approx. 18500 kg -with: - CNC - control CYBELEC ModEva 15s BJ. 2007 -Back gauge with 4 controlled pneum. on the side and height-adjustable stop fingers -controlled bending AIDS in the velocity range -Hydr. -Pneum.. Clamp of the upper tool + substation witness -mot. Crowning / hydro cushion in the table -laterally movable support arms -E - foot switch -split pointed tool R 1-100 t / m, split die

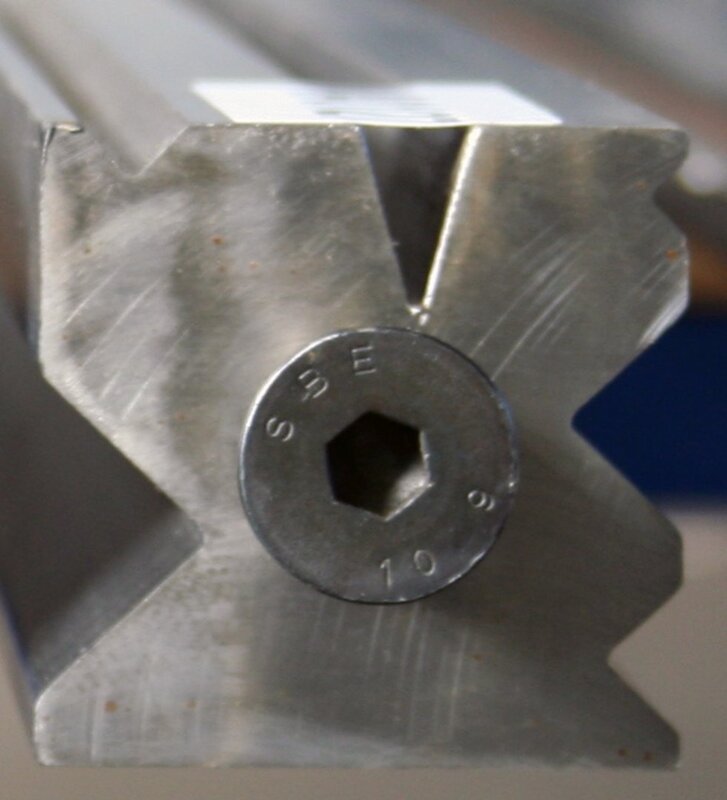

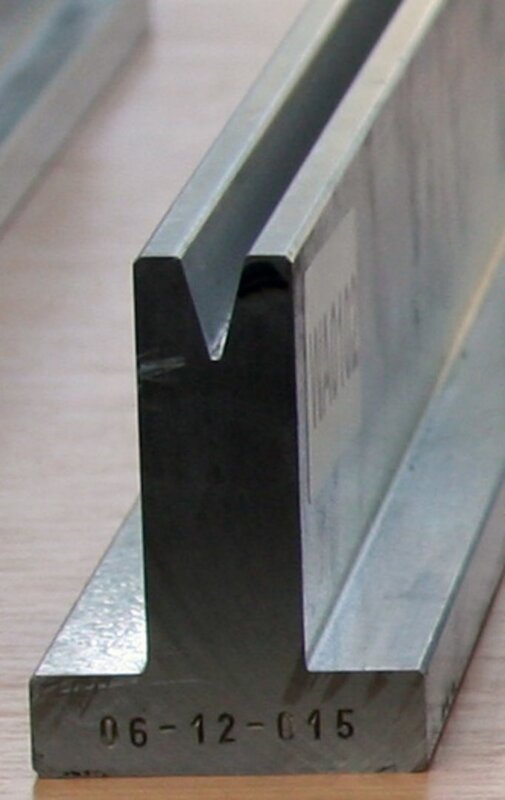

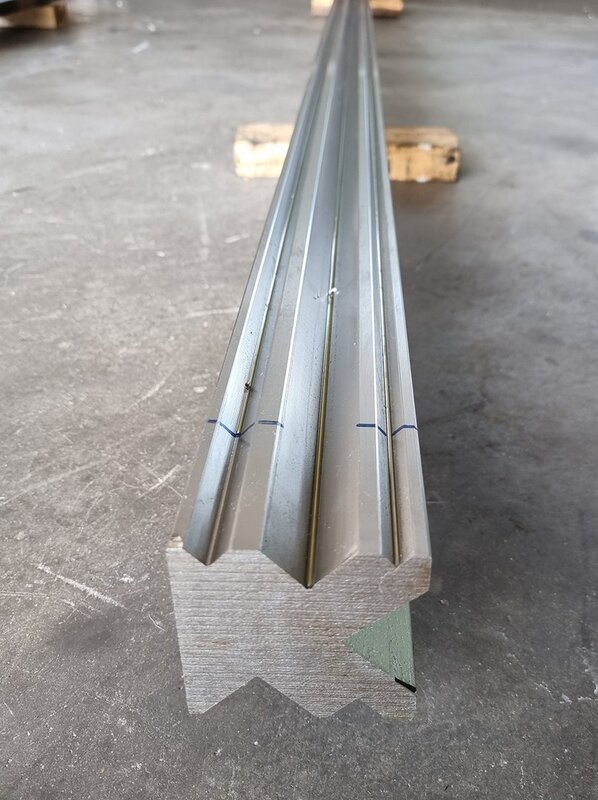

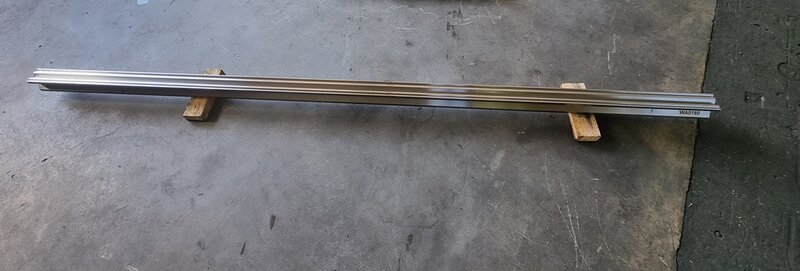

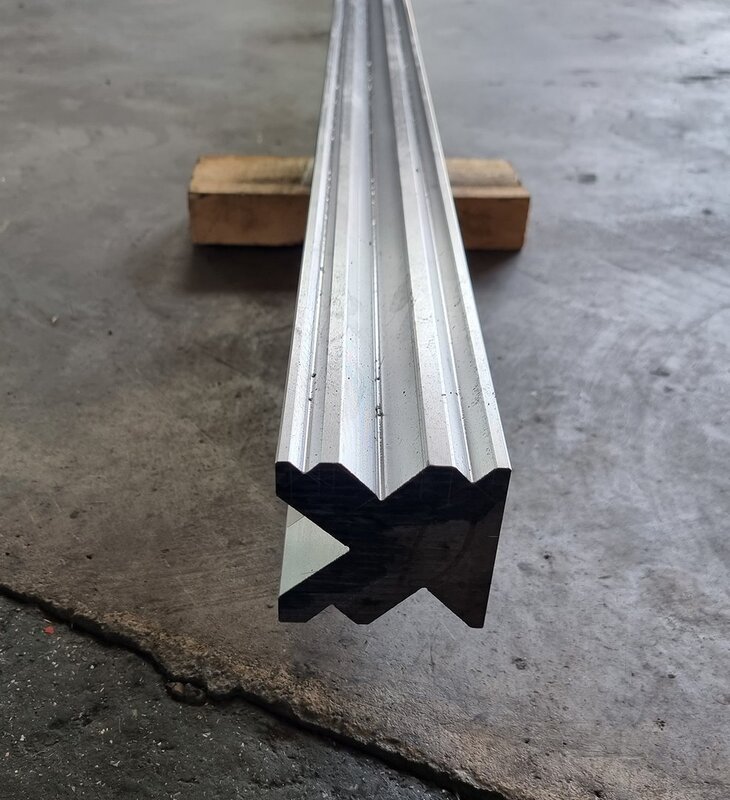

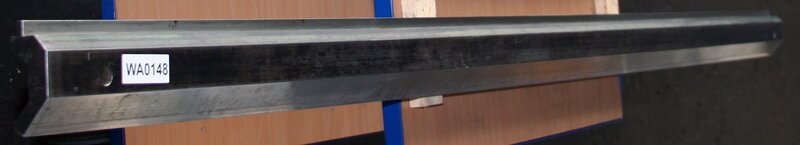

length: 4100 mmheight: 120 mmwidth: 120 mm brand new die block V - openings:- 110 mm with infeed rollers- 80 mm with infeed rollers- 50 mm- 35 mm- with suspension screws The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

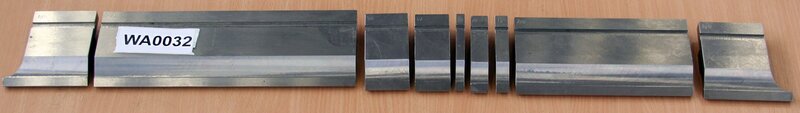

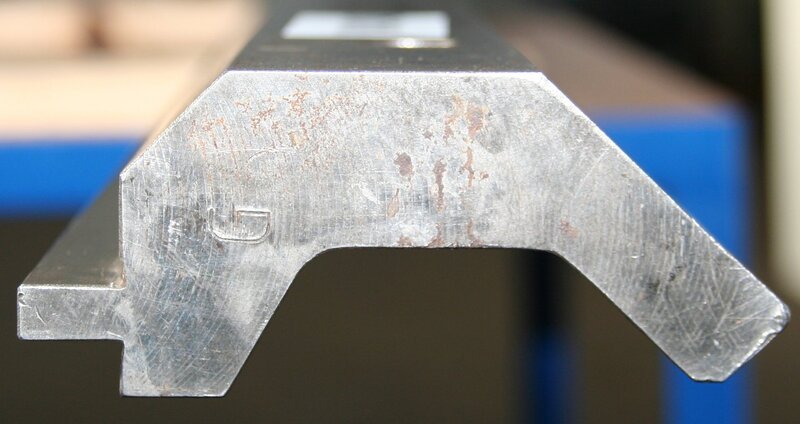

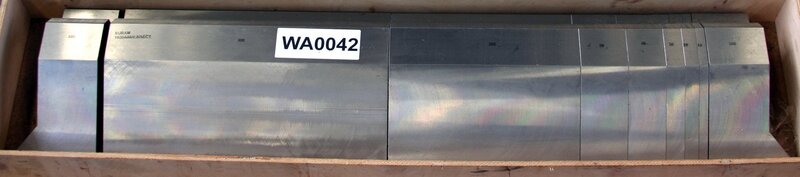

Bending tool Upper tool Rehfuss split 3500 mm very good used deer foot top tool split planed steel - version divided with pins 18 parts - the end parts Lg: 125 mm are 40 mm free milled. Total height of the tool: 161 mm Thickness ( Top approx. 38.25 mm -"Neck approx. 18.3 mm" see photo dimensions ) Angle 87° Parts of 45 mm-50-55-60-65-70-75-80 etc. Top condition pass exactly with pins
