Offer 24339 Specifications: - Sanding belt dimensions 2000 x 100 mm - Surface grinding opening 400 x 100 mm - Support vise – angle adjustable 90° - 30° - Support fine adjustment by hand lever - Sanding belt speed 30 m/sec. - Contact disc / grinding roller for approx. Ø 42 mm - Drive 400 V / 2880 rpm / 3 kW - Space requirement approx. W 700 x H approx. 1200 x D 1200 mm - Weight approx. 225 kg - Contact rollers 33.7 , 42 , 48 mm
used
Offer 24315 Univ. Radii Metal Belt Grinding Machine Specifications: - Sanding belt dimensions 2000 x 100 mm - Surface grinding opening 400 x 100 mm - Support vise – angle adjustable 90° - 30° - Support fine adjustment via handwheels - Sanding belt speed 30 m/sec. - Contact disc / grinding roller Ø 42 mm - Drive 400 V / 2880 rpm / 3 kW - Space requirement approx. W 700 x H approx. 1200 x D 1200 mm - Weight approx. 225 kg - 10 contact - sanding rollers approx. Ø 10 + 18 + 22 + 24 mm - 28 + 33 + 36 + 48 + 60 + 68 mm
Motor tube Notchers from ALMI AL1â2U Notching of gas -, steam -, stainless steel, non-ferrous, as well as numerous other pipes with heavy use, ALMI has developed a series of particularly efficient pipe Notchers with electric drive. Wherever ensure the Notcher ALMI extremely quickly and accurately for the correct tube recess where welded tubes at a 90 ° angle. They are suitable also for the production of double corner joints. The pipe Notchers with a 2.2 KW motor is equipped for intensive use. The engine forms a whole with special eccentric shaft, which drives the notching tool. The model AL1-2U also has a Notcher for zinc spout. The tube Notcher has a 0 voltage fuse, and a protection device. Properties High productivity Low investment costs Several diameter available immediately Ideal for double corner joints up to 5 mm wall thickness (for VA up to 4 ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 7508 € : 144.9 € : 1 : 150 x 2.000 mm : 20 - 114,3 mm : 1 : 1 : 4 kW : 270 kg The new AL150HS 2 in 1 machine: grinding belt and pipe grinder. High Speed Belt thanks to a unique transmission, up to 150ft/per second. The Benefits of the AL150HS: less dust/particules, less change of colour and longer belt life (2 to 3 times) due to high speed. The AL150HS can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL150HS can be used to grind material from Ø 20 mm tot Ø 114.3 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL150HS can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 951 € : 1 1/2 48,3 mm, 2 60,3 m mm : 3 mm : 2.5 mm : 15 kg The AL 2 can be used to notch pipes with an external diameter of 48.3 mm (1 1/2",) and 60.3 mm (2",). ALMI products are subjected to stringent quality control inspections before they leave the factory. ALMI’s pipe notcher, in contrast to punch-cutting machines with separate auxiliary tools, is always available for immediate use. Moreover, the price is more affordable than the auxiliary tools for punch-cutting machines. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are available immediately, ideal for double corner joints. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 5760 € : 111.17 € : 3/4 26,9 mm, 1 33,7 mm, mm : 5 mm : 3 mm : 93 kg The motor driven AL 1-2U can be used to notch pipes with an external diameter of 27.9 mm 26.9 mm (3/4",), 33.7 mm (1",), 42.4 mm (1 1/4",), 48.3 mm (1 1/2",) and 60.3 mm (2",)and notch pipes with an external diameter of 22 mm to 76 mm for sink outflows. Do you often have to notch pipes? If so, the motor-driven AL1-2U equipped with a 2.2 kW electric motor is the ideal solution! The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with a zero voltage protection and guard. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are readily available, ideal for double corner joints. The data for this ad wa ...

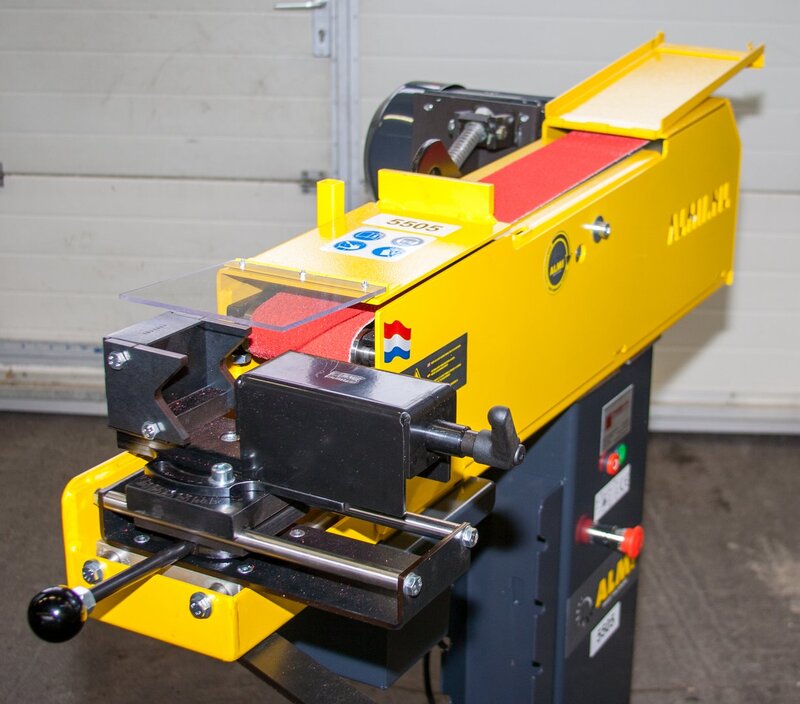

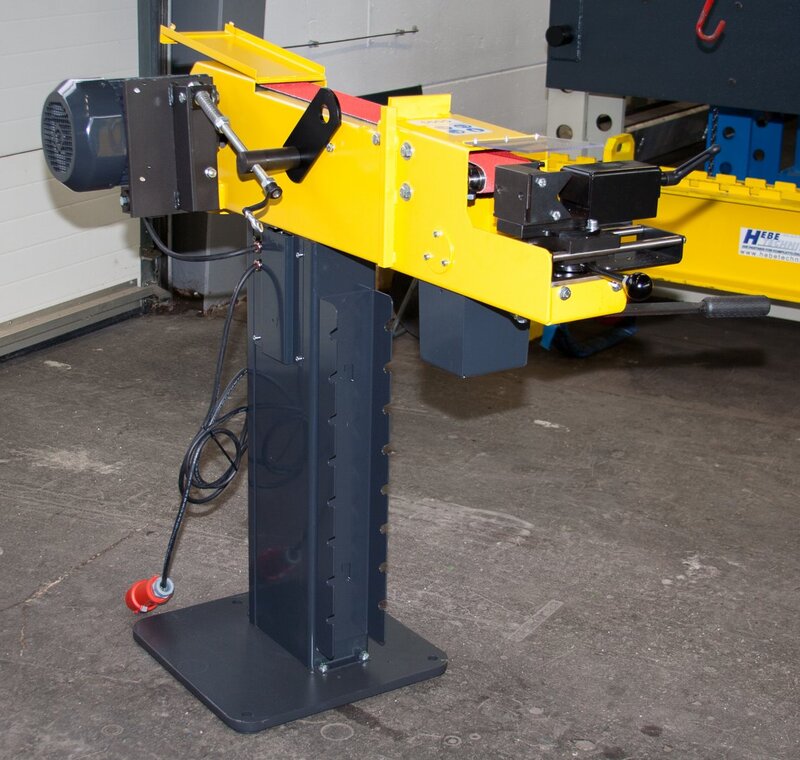

: gebraucht : 2023 : 5543 : prompt, Zwischenverkauf v : Niederlande : 3100 € : 1 : 100 x 2.000 mm : 20 - 76,1 mm : 1 : 3 kW : 190 kg Demo machine / mint condition Net price (price for new machine € 3.798,00) The lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a d ...

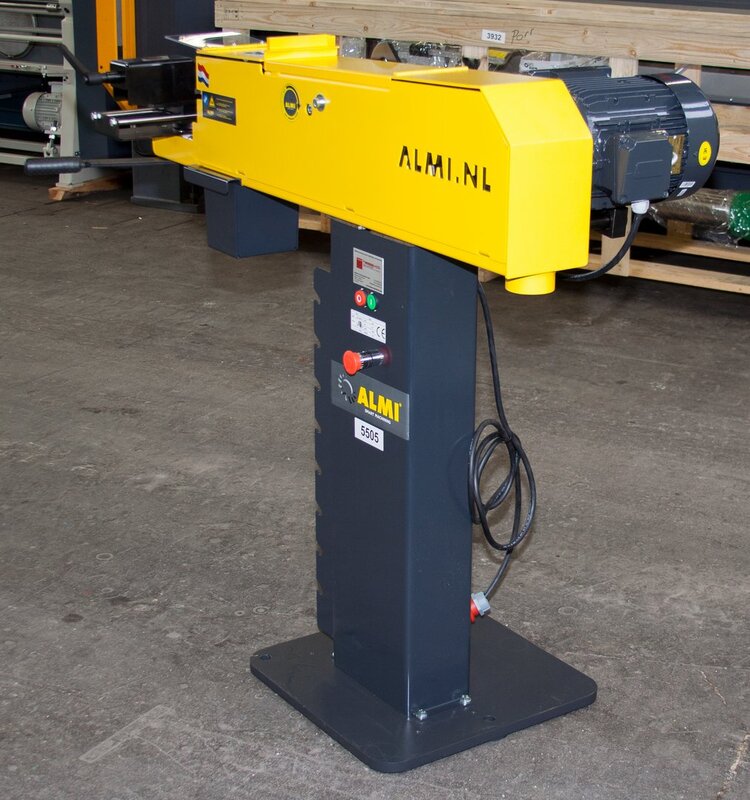

: gebraucht : 2019 : 5505 : prompt, Zwischenverkauf v : Niederlande : 2670 € : 1 : 100 x 2.000 mm : 20 - 76,1 mm : 1 : 3 kW : 190 kg DEMO MACHINE / MINT CONDITION The lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a deburring table. Incl. 5 pcs. grinding belts, 1 ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 853 € : 20 - 76,1 mm : 3 mm : 2.5 mm : 7 kg The ALU can be used to notch a sink outflow in pipes with an external diameter of 22 mm to 76 mm. Since ALMI pipe notchers have a favourable price and high productivity they are an excellent investment. ALMI pipe notchers are available for cutting out venting slots in round and rectangular met pipes with an external diameter from 27 mm upwards and a wall thickness of a maximum of 3 mm. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are immediately available. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 2 Wochen ab Auftragse : Niederlande : 4646 € : 100 x 2.000 mm : 20 - 76,1 mm : 1 : 1 : 3 kW : 220 kg The AL100U-02 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL100 U-02 can grind material from Ø 20 mm to Ø 76 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL100U-02 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are e ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 6167 € : 119.02 € : 150 x 2.000 mm : 20 - 114,3 mm : 1 : 1 : 4 kW : 270 kg The AL150 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL150 can be used to grind material from Ø 20 mm tot Ø 114.3 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL150 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds.All pipe ...
width of the strips: 150 mm band length: 2000 mm band speed: 45 m/s total power requirement: 4 kW weight of the machine ca.: 275 kg dimensions of the machine ca.: 1450 x 1260 x 900 mm The AL150HS is a 2-in-1 machine: Belt sander and pipe grinder at the same time. Technical data: - Adjustable sanding angle: 20° - 90° - Grinding diameter: 20.0 / 114.3 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
plate thickness: max. 5.0 mm tube diameter: 27.9 - 61.0 mm motor: 400 Volt total power requirement: 2.2 kW weight of the machine ca.: 93.0 kg. The AL1-2U electric pipe notcher is started at the push of a button, and the pipe notcher is driven continuously. This means you can continually work on new parts without having to switch the machine on again each time. With the electrically driven AL1-2U pipe notcher you can notch pipe outer diameters of Ø 26.9 (3/4?), Ø 33.7 (1?), Ø 42.4 (1 ¼), Ø 48.3 (1 ½), Ø 60.3 (2?). This pipe notcher is also suitable for notching a zinc outlet in round and rectangular metal pipes. You can notch pipe outer diameters of ø 20.0 -60.3. Do you often notch pipes? Then the electrically driven pipe notcher AL1-2U with the 2.2 kW electric motor is just the thing for you. The motor forms a unit with the special eccentric shaft that drives the notching tool. T ...

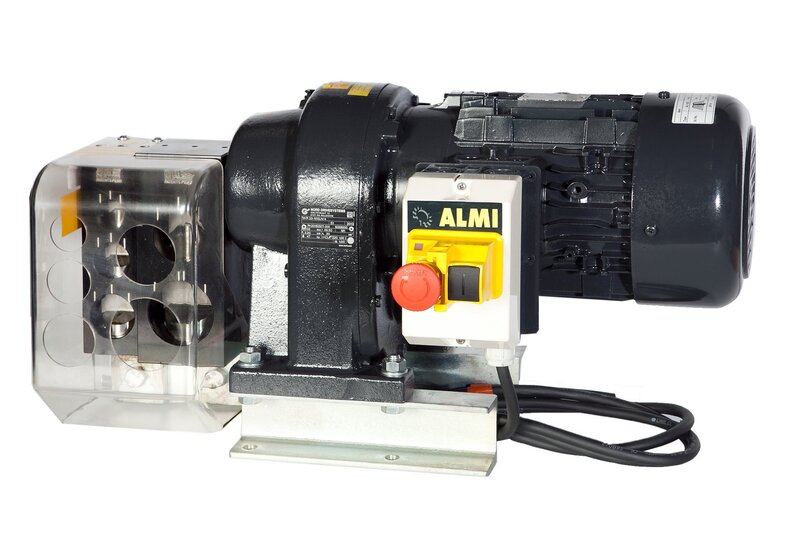

plate thickness: max. 5.0 mm tube diameter: 27.9 - 61.0 mm motor: 400 Volt total power requirement: 2.2 kW weight of the machine ca.: 87.0 kg. The AL1-2E electric pipe notcher is started at the push of a button, and the pipe notcher is driven continuously. This means you can continue to work on new parts without having to switch the machine on again each time. With the electrically driven AL1-2E pipe notcher you can notch pipe outer diameters of Ø 26.9 (3/4?), Ø 33.7 (1?), Ø 42.4 (1 ¼), Ø 48.3 (1 ½), Ø 60.3 (2?). Do you often notch pipes? Then the electrically driven AL1-2E pipe notcher with the 2.2 kW electric motor is just right for you. The motor forms a unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with 0-voltage protection and a protective cap. Equipment: - electric motor pipe notching machine - for pipes ...
