Manufacturer:
(Category: 104)
grinding length:1000 mmgrinding width:250 mmworkpiece height:400 mmtotal power requirement:12 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3.300 x 1.800 x 2.300 mmhydraulic power unit:400 x1000 x 1500 mmcontrol cabinet:2 Stück, 1000 x 1400 x 1500 mm
grinding length:150 mmtotal power requirement:3 x 380 /220 Vweight of the machine ca.:2100 kgdimensions of the machine ca.:1200 x 1700 x 2000 mmgrinding wheel diameter:280 - 350 mmgrinding wheel width max.:20 mmworkpiece diameter:65 - 120 mmworkpiece turning speeds:1,5 -20 U/minDocuments:vorhanden

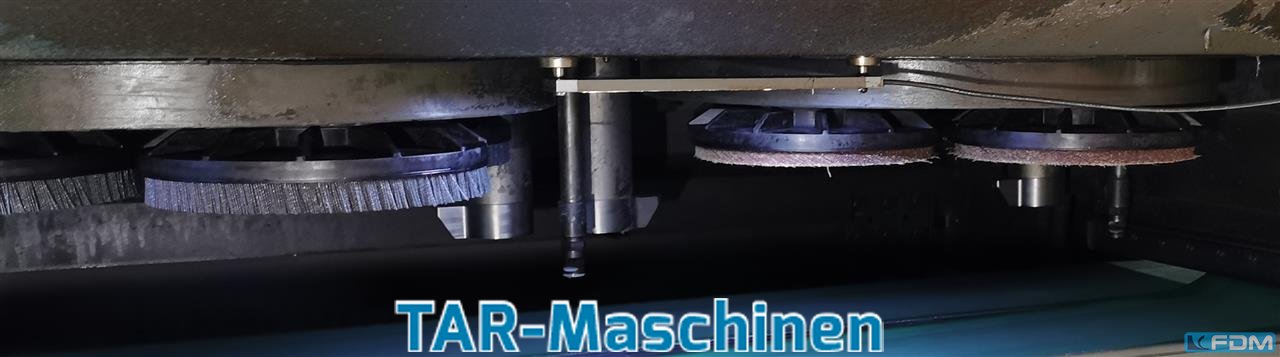

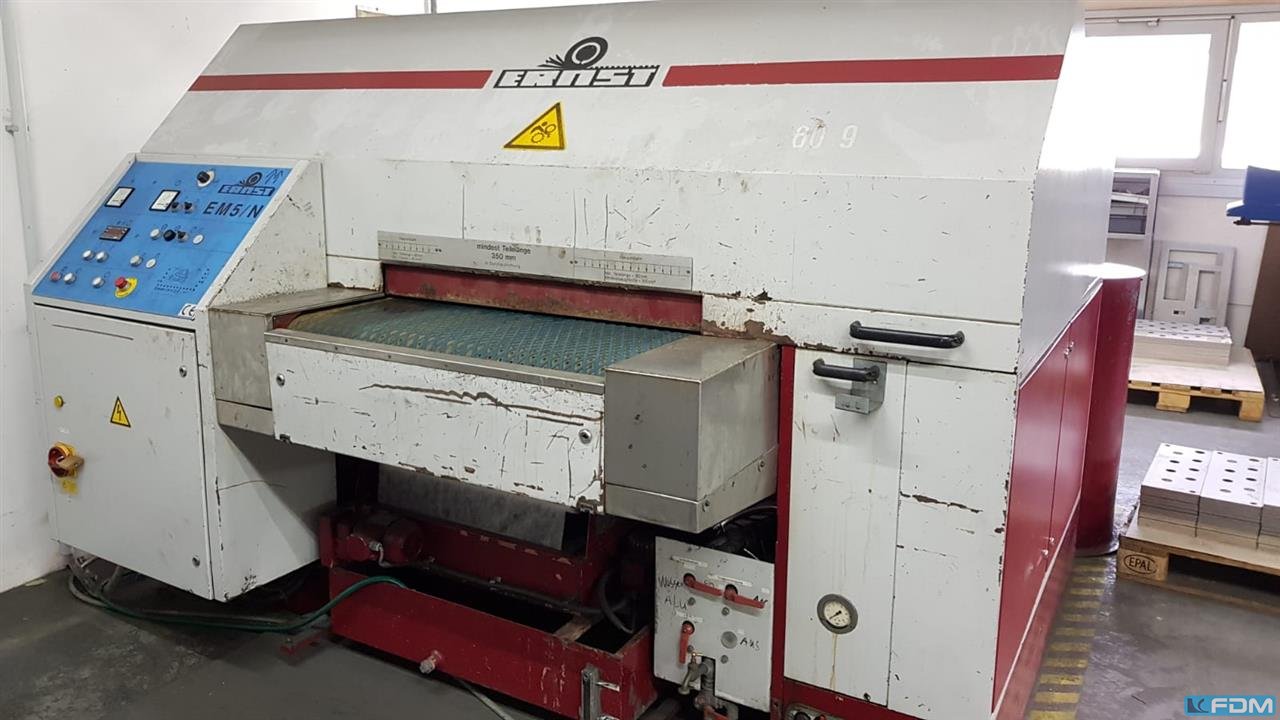

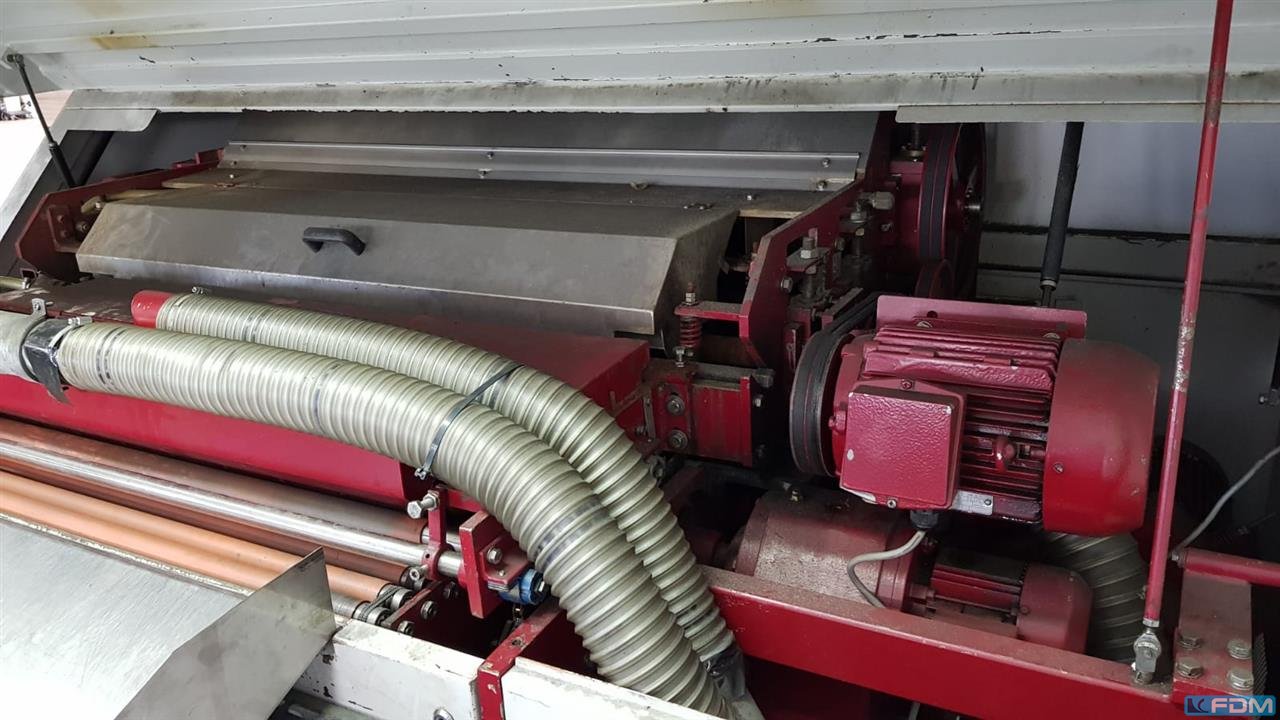

working width:880 mmworkpiece height:1- 70 mmwork height max.:1000 mmFeed speed:4- 8 m/min.voltage:50 Hz, 400 Vweight of the machine ca.:2.800 kgdimensions of the machine ca.:2500 x 1715 x1675 mmwidth:min. 350 mmSanding cylinder diameter:420 mmelectr. connected load:20 KWRequired air-pressure:1 x R3/ 8 " pressure:5 bartank:des Bandfilter ca.200 lautomatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mmaccessories::9 Bänder Documents:vorhanden

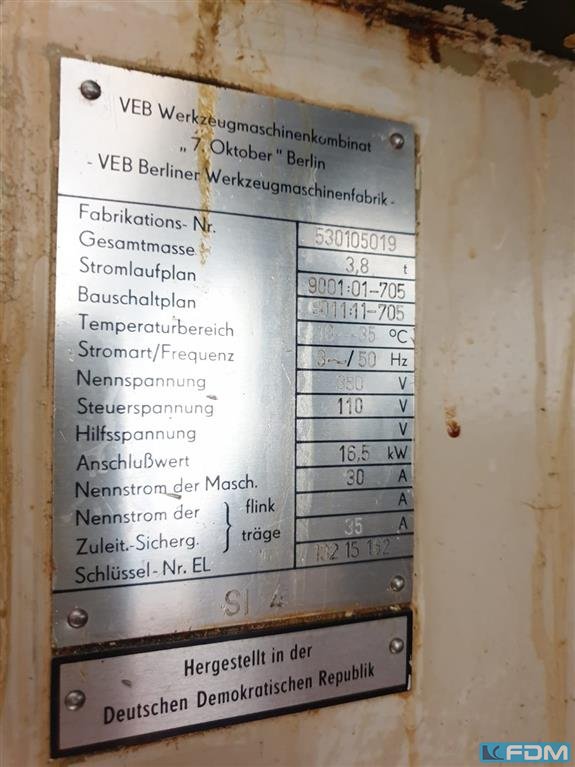

total power requirement:16,5 kWweight of the machine ca.:3,8 t
total power requirement:380V, 50Hz, 7,9A kWweight of the machine ca.:1 tdimensions of the machine ca.:4 x 3 m
grinding length:600 mmgrinding width:200 mmtotal power requirement:5 kWweight of the machine ca.:1,4 tdimensions of the machine ca.:3 x 3 m
grinding diameter:4000 mmcentre height:310 mmweight of the machine ca.:17 tdimensions of the machine ca.:10.5 x 3.6 x 1,9 m

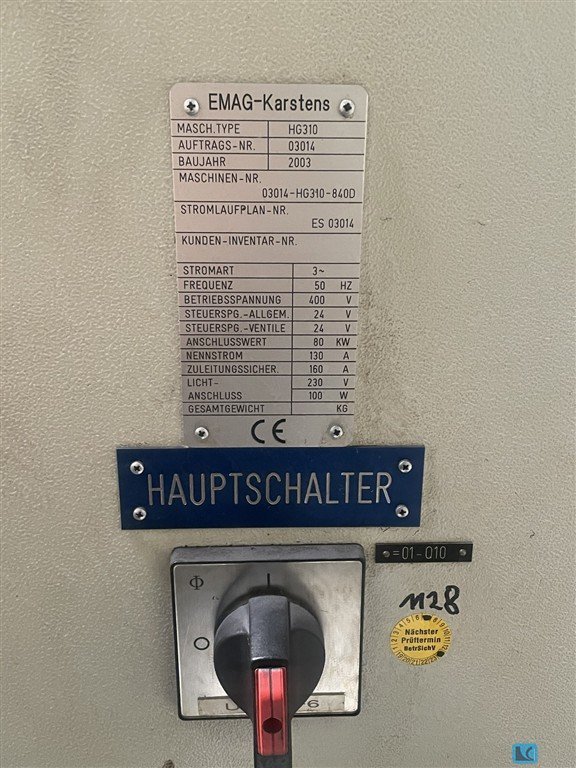

grinding length:1500 mmcentre height:325 mmweight of the machine ca.:12 tKarstens EMAG H310 Universal Grinding MachineYear of manufacture: 2004Center distance: 1500 mmCenter height: 325 mmReinforced workpiece spindle, load capacity up to 250 kgDriven C-axis for polygon, thread, and eccentric grinding.3 individually mounted grinding spindles.Siemens 840D control system
grinding wheel diameter:300 mmvoltage:380 Vtotal power requirement:1,5 kWweight of the machine ca.:310 kgdimensions of the machine ca.:1100x900x1250 mm
grinding diameter max.:400 mmmax. width of grinding wheel:180 mmgrinding range:2-100 mmtotal power requirement:24 kWweight of the machine ca.:3,2 tOut of valve production
x-travel:400 mmy-travel:250 mmworkpiece height:500 mmgrinding diameter:220 mmtable surface area:600 x 320 mmthroat:310 mmrange of angles:12 °grinding wheel stroke - vertical:110 mmstroke speeds:0 - 6 m/mingrinding spindle speed:bis 50000 U/minperipheral speed:max. 35 m/seccapacity:ca. 7 kVApower capacity:6 kWweight of the machine ca.:2 tdimensions of the machine ca.:3 x 3 x 3 mrotary table d = 300 mmfrequency changerTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding diameter:600 mmgrinding length:3000 mmcentre height:315 mmworkpiece weight max.:3000 kgwork piece spindle speed:8 - 120 U/mingrinding wheel motor:25 kWgrinding wheel speed:45 m/secgrinding wheel width x diameter:750 x 80 mmtable speeds:30 - 4500 mm/minfeeds of grinding head:0 - 5 mm/mintable swivelabel +/-:7,5 °total power requirement:55 kVAweight of the machine ca.:18 tdimensions of the machine ca.:11,5 x 4 x 2,2 m- Internal grinding device- taper grinding up to 10,1° based on diameter- automatic grinding cycle- grinding wheels and flanges- dressing device- coolant attachment- dust exhauster, various steady rests
grinding length:600 mmgrinding width:300 mmworkpiece height:450 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2,8 x 3,0 x 2,0 mgrinding spindle speed:1440 / 2905 U/minwith magnetic plate 600 x 200 mmautom. vertical feed coolant attachmentTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.

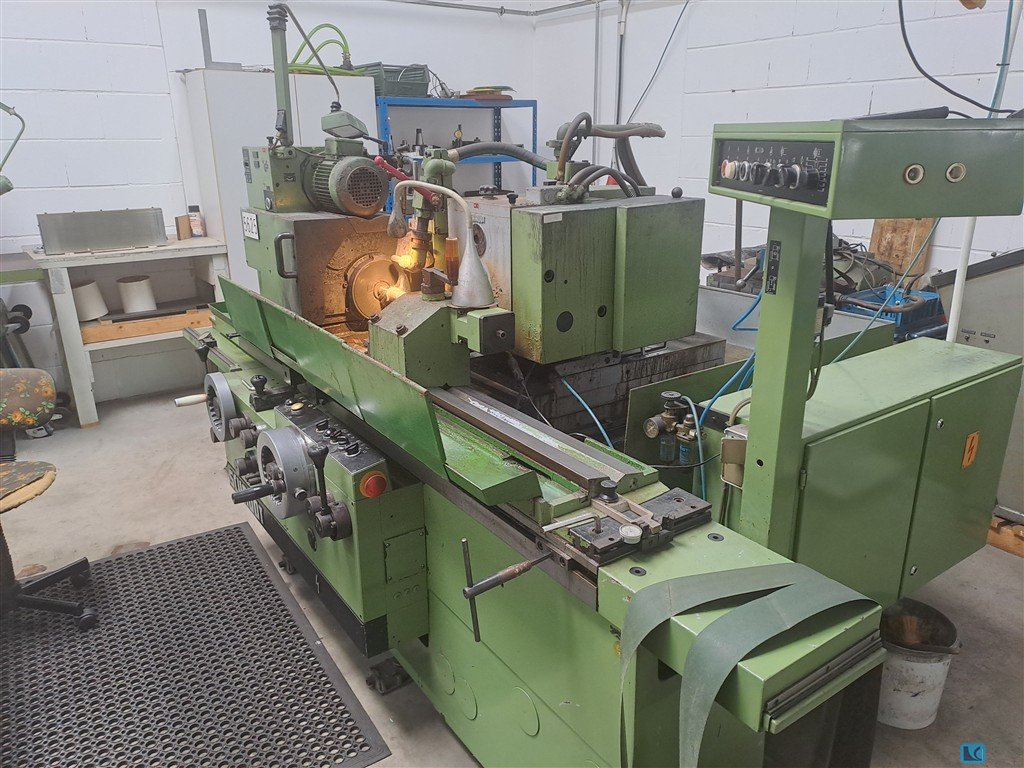

grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank

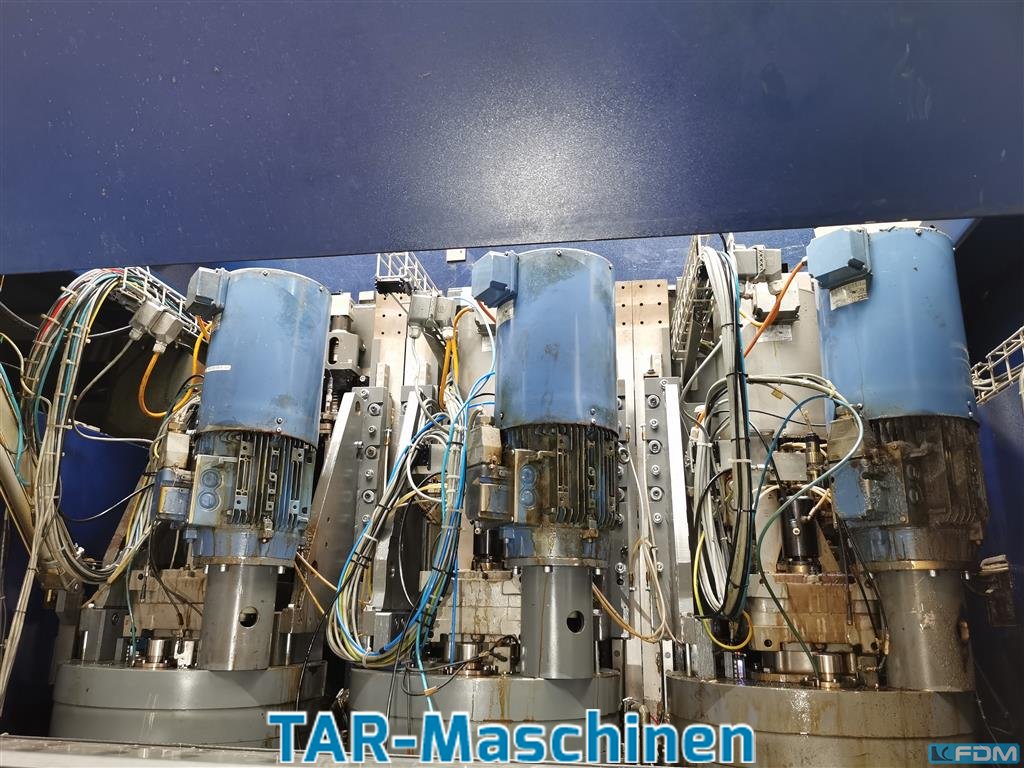

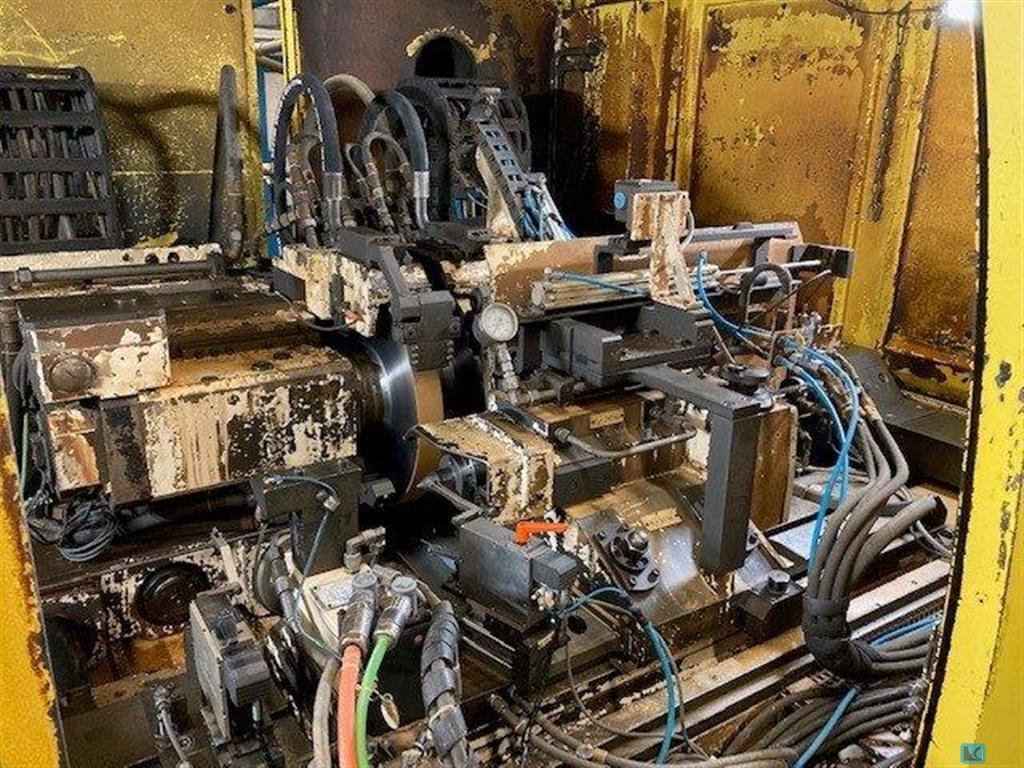

grinding height:-- mmgrinding width:220 mmgrinding wheel diameter:762 mmtotal power requirement:90 kWweight of the machine ca.:13 tgrinding spindle 1 drive::37 kWgrinding spindle 2 drive::37 kWGrinding machine for pre-grinding the connecting rodWith 2 replacement spindle motors

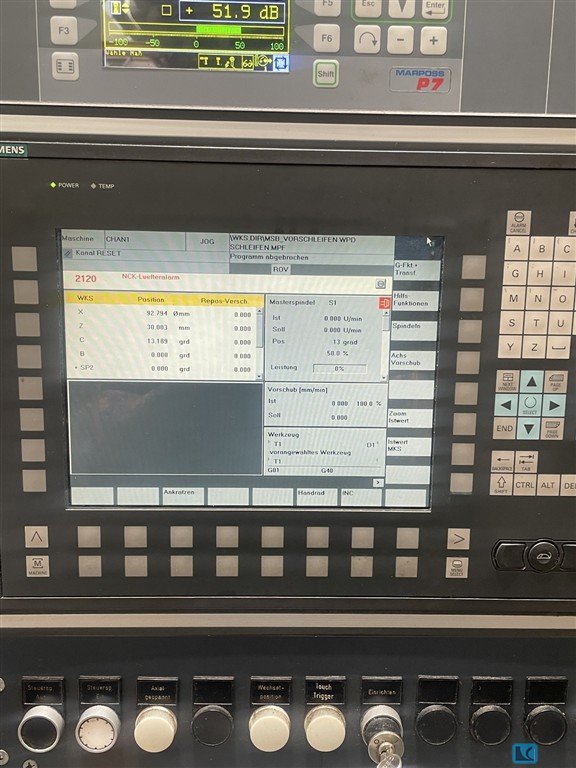

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device

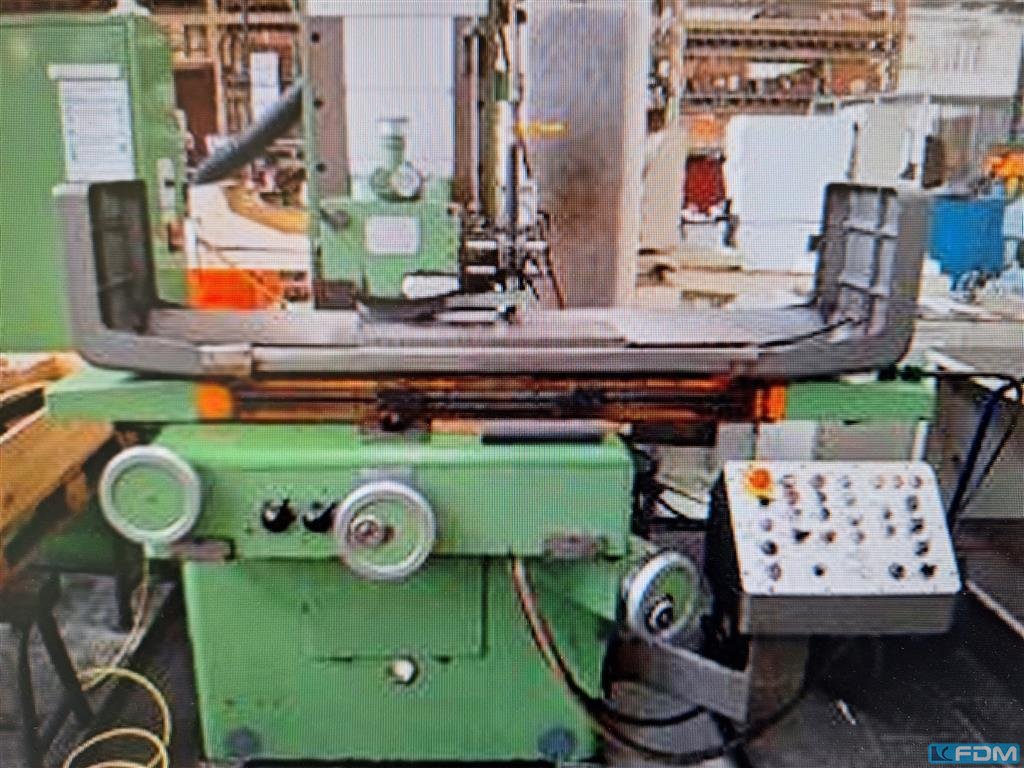

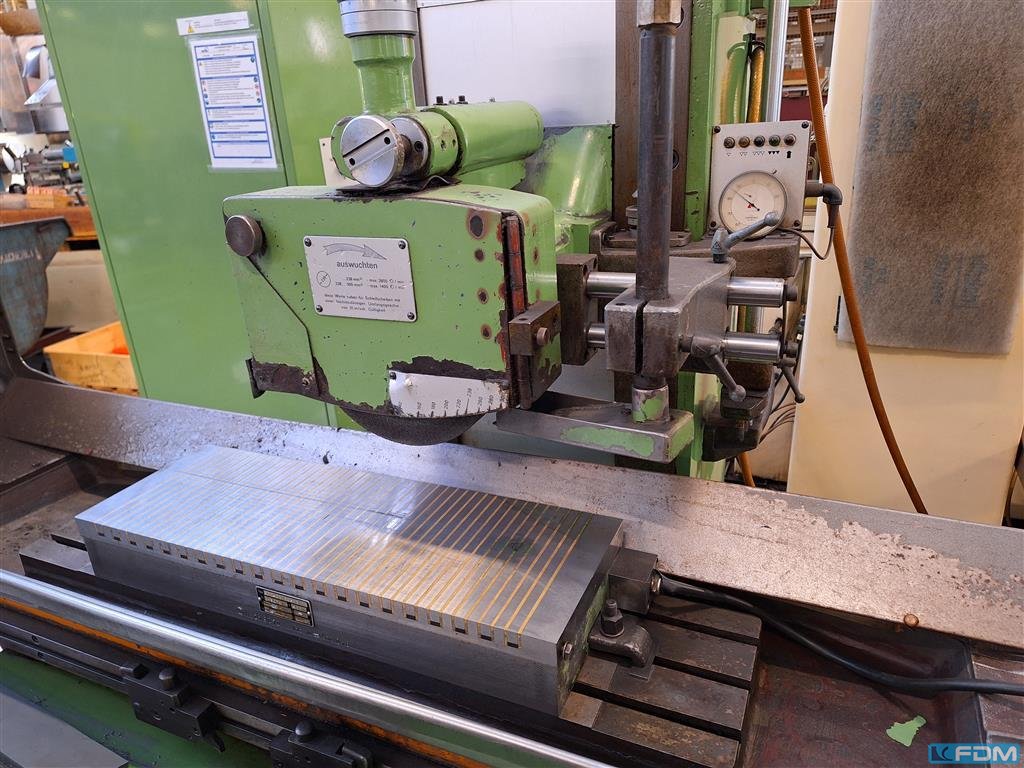

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

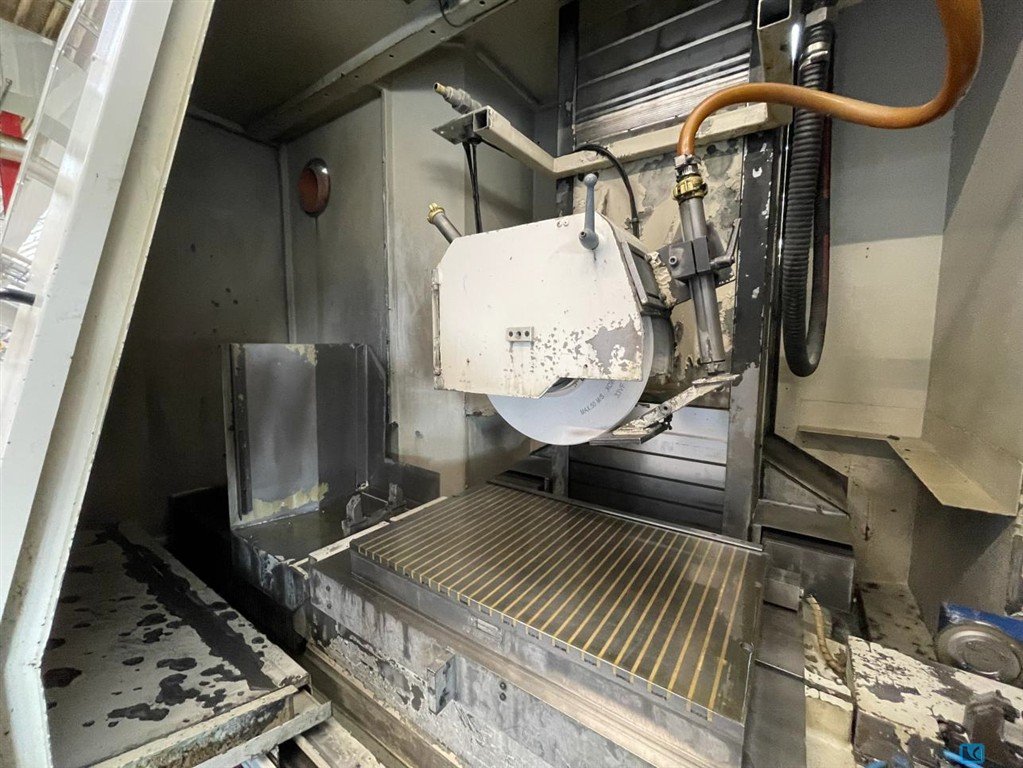

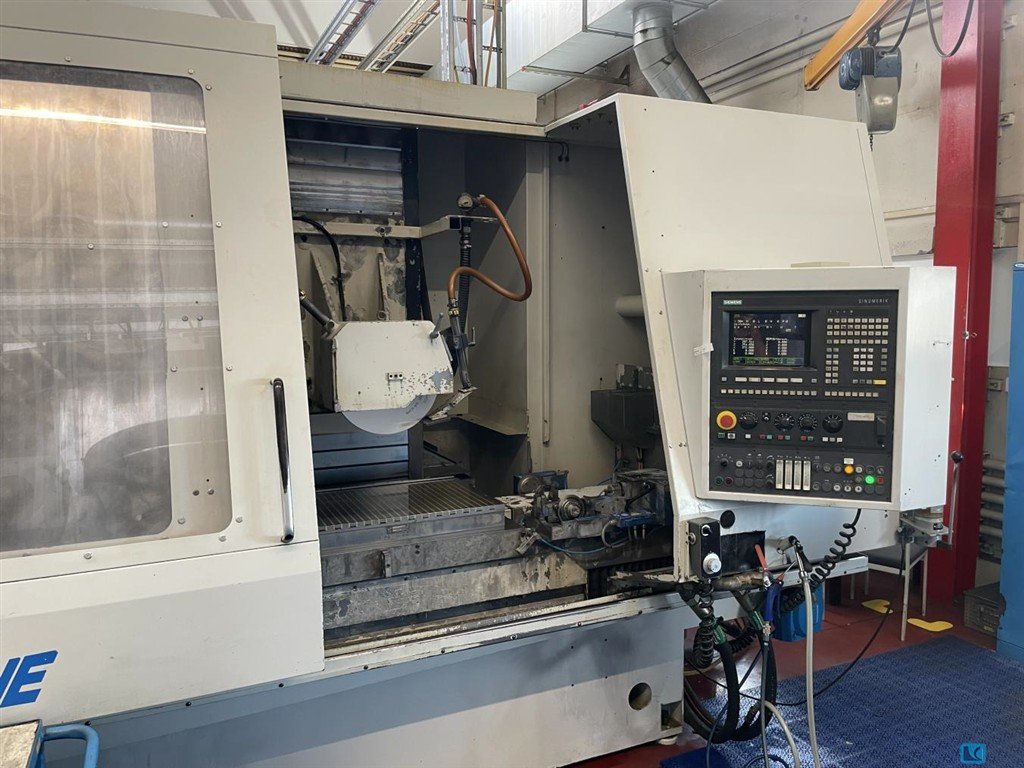

grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m
A conventional precision surface grinding machine with NC control is available. Resolution: 0.001mm, travel X/Y/Z: 1200mm/550mm/400mm, table dimensions X/Y: 1600mm/450mm, table feed: 30m/min, max. table load: 750kg, spindle-table distance: 800mm, Y feed: 180mm/min, Y precision: 0.001mm, Z feed: 1200mm/min, Z precision: 0.3mm, speed: 2800rpm, grinding wheel dimensions X/Y/Z: 400mm/100mm/127mm. Machine dimensions X/Y/Z: approx. 6500mm/3000mm/2500mm, weight: approx. 6700kg. Documentation available. On-site inspection is possible.
A centerless cylindrical grinding machine König & Bauer (Koebau) is available. Grinding wheel width: 300mm, max. grinding diameter: 200mm, grinding wheel bore: 305mm. Control wheel width: 300mm, control wheel bore: 127mm, speed: 85rpm, max. workpiece length (plunge grinding): 300mm. Machine dimensions X/Y/Z: approx. 3150mm/2100mm/1850mm, weight: approx. 6000kg. On-site inspection is possible.
grinding length: 800 mmgrinding width: 400 mmworkpiece height: 550 mmtable dimensions: 1.200 x 400 mmspeed spindle max.: 1.000 U/min.feed x-axis: 40.000 mm/mintotal power requirement: kWweight of the machine ca.: 4,10 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding range: 1000 mmDimensions (L/W/H): 1500x700x1600 mmWeight: 900 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 500 mm, 1500 mm
Universal Cylindrical Grinding Machine Manufacturer: Fortuna Type: AFC 1500 A 45 Year of manufacture: unknown Grinding length: 1,500 mm Grinding wheel diameter: 500 mm Largest workpiece pass: 350 mm Largest grinding diameter: 350 mm Largest workpiece weight between tips: approx. 300 kg
This 3-axis Proth PSGC-50120AHR surface grinding machine was manufactured in 2021. It features a table size of 500 x 1,200 mm and a maximum travel of 560 x 1,350 mm. The machine has a continuous table load capacity of 1,200 kg and includes a digital readout system retrofitted in 2022. If you are looking to get high-quality grinding capabilities, consider the Proth PSGC-50120AHR machine we have for sale. Contact us for further details.
grinding length: 450 mmgrinding width: 250 mmworkpiece height: 275 mmtable surface area: 550 x 200 mmdistance spindle center to table: max. 400 mmtable speeds: 0 - 30 m/mincross feed: 0 - 60 mm/Hubrapid traverse cross: 1,2 m/mingrinding wheel size: ø 250 x 30 x ø 51 mmgrinding spindle speed: 1400 / 2800 U/mintotal power requirement: 4 kWweight of the machine ca.: 1 tdimensions of machine L x W x H: 1,55 x 1,23 x 1,80 mAccessories: magnetic plate 450 x 200 mm, grinding wheel with flange, wheel trueing attachmentThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length: 450 mmgrinding width: 250 mmworkpiece height: 275 mmtable surface area: 760 x 200 mmdistance spindle center to table: max. 400 mmtable speeds: 0 - 30 m/mincross feed: 0 - 60 mm/Hubrapid traverse cross: 1,2 m/mingrinding wheel size: ø 250 x 30 x ø 51 mmgrinding spindle speed: 1400 / 2800 U/mintotal power requirement: 4 kWweight of the machine ca.: 1 tdimensions of machine L x W x H: 1,55 x 1,23 x 1,80 mAccessories: magnetic plate 450 x 175 mm, grinding wheel with flange, wet grinding attachmentThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
