used Tool Grinding Machines for sale

Sharpening machine for band saw blades Manafacture: Alber Sharpening machine for band saw blades Sharpening circuit Fabr. Alber Model: TB1 - AE2 Year of construction: 1978

Description: • Sharpening machine for band saw blades • Grinding wheel diameter 140 mm • Motor 0.37 KW-1370 rpm • Rollers diameter 2 x 400 mm • Max. distance between the centers of rollers approx. 3000 mm • Dimensions for transport 1200 x 800 x 1350 mmweight approx.: 150 kg, Approx. Onsite Dimension. (l x w x h): 3,300 x 600 x 1,200 mm

max. grinding diameter: / mmgrinding length: / mmworkpiece length: / mmtotal power requirement: / kWweight of the machine ca.: / trequired space: / mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

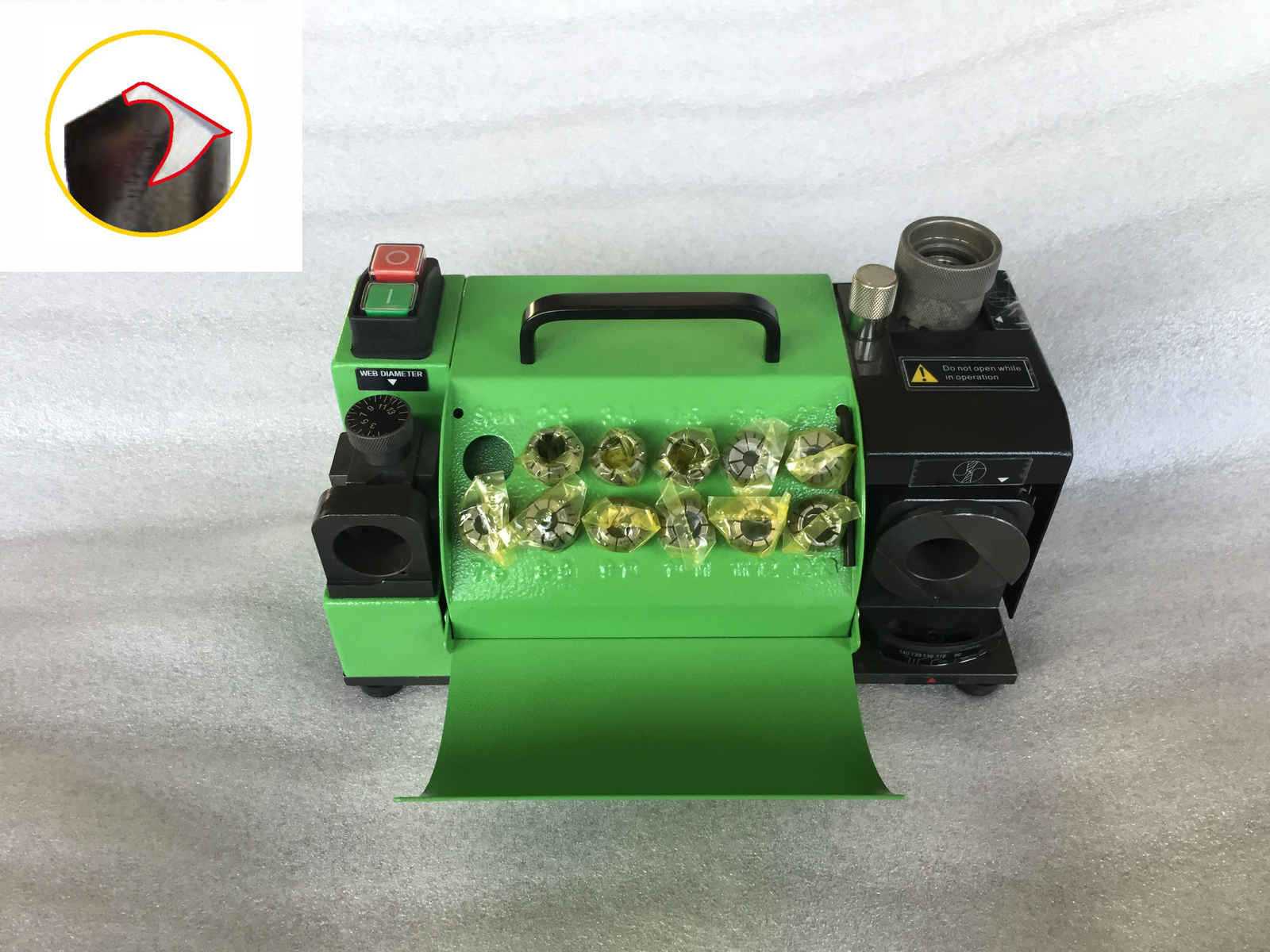

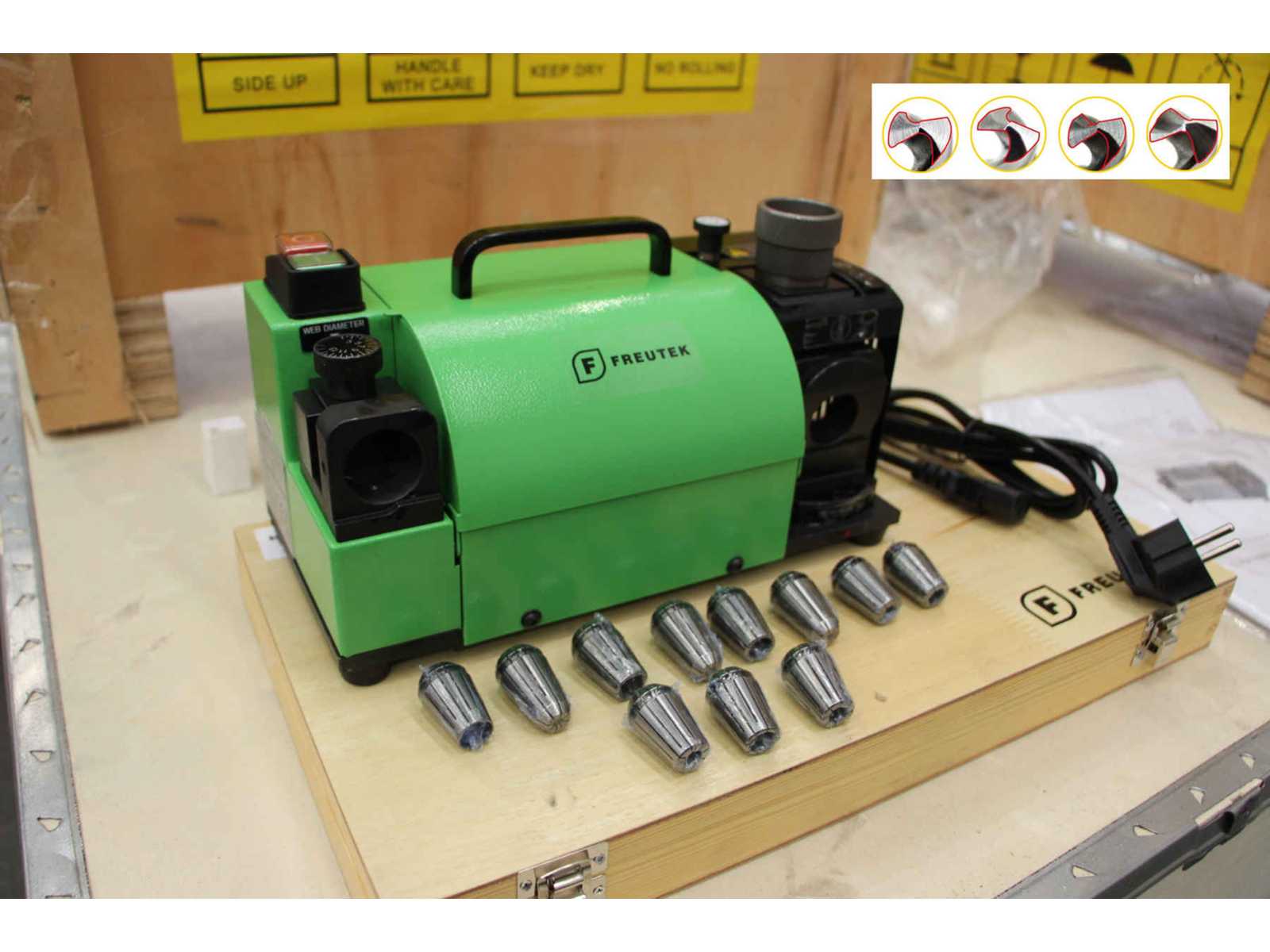

Description: 0.38 kW, 0.7 A, 380 V, , maximum grinding wheel diameter 70 mm , 7100 RPM 84 LBweight approx.: 40 kg, Approx. Onsite Dimension. (l x w x h): 450 x 450 x 450 mm

Description: 0.38 kW, 0.7 A, 380 V, maximum grinding wheel diameter 70 mm 7100 rpm 88 LB including accessoriesweight approx.: 50 kg, Approx. Onsite Dimension. (l x w x h): 500 x 500 x 500 mm

Description: Universal tool grinding machine incl. suctionweight approx.: 450 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 1,600 mm

Lid S1 Tool Grinding Machine

Techn Data: Clamping range, Tips height of the part head, without /with swivel plate 65/95mm Largest cutter pass-through between the peaks 130mm Largest distance between the tips 250mm Largest cutter diameter at flying clamping 320mm Inner cone partial scopic spindle standard cone 40 or Morse 4 Largest bore of collet pliers 25mm Motion Longitudinal movement of the partial slide 260mm Cross-movement of the cross-loop guide Coarse 200mm Cross-movement of the cross-sled geese Fine 50mm Height adjustment of the vertical slide 50mm Swivelability of the table slide 360° Swivelcapability of the vertical slide guide 360° Swivel lingability of the swivel bearing around axis persethering to the partial spindle 220° Swivelability of the partial head slide guide around axis parallel to the partial spindle 30° Largest grinding length for spiral grinding 100mm Smallest and larg ...

Deckel S11 Tool grinding with lots of accessories

For sale: Lid Universal Tool Grinding Machine Type S12M-NC. The machine is in good condition. Still visible under power. With lots of accessories. Available at short notice

large bore of the collet: 17.5 mm gr. radius to be sanded: 10 mm Cup disc Ø: 100 mm Cup wheel speed: approx. 2500 rpm Drive motor: 380 V, 0.25 kW Dimensions: 550 x 450 x 1270 mm

large bore of the collet: 17.5 mm gr. radius to be sanded: 10 mm Cup disc Ø: 100 mm Cup wheel speed: approx. 2500 rpm Drive motor: 380 V, 0.25 kW Dimensions: 550 x 450 x 1270 mm

BN 102 C Producer Tos Swing 280 mm Distance between centres 630 mm Cross table adjustment 250 mm Longitudinal table adjustment 510 mm Vertical milling head adjustment 290 mm Machine weight 1000 kg

Control NUM 1060 / II Working distances: transverse axis x = 360 mm, height adjustment y = 150 mm, feed axis z = 230 mm, swivel axis B +/-100° Inclination of the grinding spindle from – 15° to +25° Rapid traverses x/y/z 10 m / min Grinding wheel speeds 1,000 rpm – 6,000 rpm Grinding wheel diameter max. 250 mm Machine weight 4.5 t Accessories: Ewamatic 3D measuring system for orienting and measuring the tools

Sell a tool grinding machine especially for grinding stools or similar. One side is equipped with a chuck that can be adjusted in all directions. The whole thing is on a cross support Dimensions 16001000'1500mm High Clamping range chuck 4040mm Grinding wheels diameter 175mm50mm and 320mm50mm Voltage probably 110V

grinding wheel diameter max.: 100 mm, weight approx.: 150 kg, Approx. Onsite Dimension. (l x w x h): 550 x 500 x 1,200 mm

Specifications: - Grinding wheel diameter approx. 175 mm - Disc speeds 2820 rpm - Support table left height adjustable + laterally movable + rotatable -Lighting - Drive 400 V / 0.75 kW - Space requirement approx. W 1050 x H 1350 x D 650 mm - Weight approx. 120 kg

Description: Operating hours: 422 hours Rated current: 8A Rated voltage: 400 V 50 Hz Connected load: 4 kVA Total weight: 415 kg Documentation is available weight approx.: 415 kg, Approx. Onsite Dimension. (l x w x h): 730 x 850 x 1,800 mm

Tool grinding machine is equipped with two grinding wheels. Of which is a diamond disc. The two tables can be adjusted by loosening the clamping lever in their angles. The tool is set by a scaled handwheel. On one side, a swinging table on the other side is a handwheel. A coolant pump is installed in the foot

CONTROLS  CNC controls SIEMENS 840 D SL TECHNISCHE DATEN  .. max.: 18000 /min  .. to: 30000 m/min  .. to: 30000 m/minWORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 5   X-axis travel: 630 mm  Y-axis travel: 465 mm  Z-axis travel: 630 mm  rotating range C-axis from: 70 °  rotating range C-axis up to: -250 °ELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzX,Y,Z linear axes CU GentryA Rotation axis SK50 n=1000 1/minC axis = -70 +250Equipment:- Robot automation CU Fanuc M-10iA- Workpiece - Renishaw MP250 probe- Tool - Renishaw LP2 probe- Dittel balancing system P6001- Dittel structure-borne sound system DM6000- Haas-CU, including automation- Haas robot cell CU- Siemens 840 DSL handheld control unit- Expansion of pallet ...

Description: Serial number: 2786 Control: SIEMENS SINUMERIK 840D/additional program 'Sequence list' Technical data (without guarantee): Travel distances: X-axis: 400 mm Y-axis: 270 mm Z-axis: 250 mm A-axis (dividing head): 360° C-axis (spindle axis) Tool changer: Number of tools: 4 Grinding spindle: HSK 50/12 kW max./8000 rpm Incl. ram handling Incl. the tool clamping device (SK 50 holder) which can be seen in the last pictures Important note: without centrifuge and oil tank Coolant system not included in the scope of sale and delivery Also without the clamping device for workpieces shown in the photos and videosweight approx.: 7,500 kg, Approx. Onsite Dimension. (l x w x h): 2,350 x 1,750 x 2,800 mm

Description: Motor SIEMENS 220/380 V, 0.55 kW, 2770 rpm Magnetic plate 00110-15 B 3, approx. 250 x 150 mm max. grinding wheel diameter 180 mmweight approx.: 150 kg, Approx. Onsite Dimension. (l x w x h): 1,000 x 900 x 1,600 mm

Description: Suitable for manual grinding of cutting, milling and drilling tools such as end mills, shell end mills, Radius milling cutters, end milling cutters, thread taps, step drills, etc. on the circumference, end face and spiral. Accesories : optical length and angle measuring device with measuring microscope cylindrical grinding device 1 dressing device for radii 3 grinding wheel guards 3 cover discs 2 dividing discs 10 grinding wheel mounts, Workpiece diameter between the centers: 238 mm, grinding stroke max.: 110 mm, Grinding stroke max.: 190 mm, Vertical adjustment of grinding head: 325 mm, Cross adjustment tool slide: 100 mm, Grinding head carrier swivelling: 360 °, Vertical adjustment of the grinding head: 325 mm, Tool carrier swivelling: 360 °, Grinding spindle speeds infinitely variable from: 2,000 - 10,000 rpm,, Connected load: 2.0kW (400V/50Hz), Dimensions L x W x H: 11 ...

max. grinding diameter: 400 mmgrinding length: 140 mmworkpiece length: 400 mmtotal power requirement: 3 kWweight of the machine ca.: 0,56 tdimensions of the machine ca.: 0,9x1,2x1,70 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Equipment: Precision Six-Jaw Chuck 1. Cylindrical grinding device Partial Setup Coolant system Instruction manual

Description: Saw blade grinding machine with: - Diamond grinding wheel for carbide circular saw blades - Rubber feet for damped and low-noise operation - Spacers for different saw blade holes Without saw blade Saw blade diameter 80 - 700 mm Workpiece headstock motor 0.25 kW Grinding wheel diameter 125 mm Speed 2850 U / min Grinding range -20 to +20 degrees Machine weight approx. 12 kg Space requirements approx. 700 x 400 x 300 mweight approx.: 12 kg, Approx. Onsite Dimension. (l x w x h): 700 x 400 x 300 mm

Description: Voltage: 380V Power: 0,26kW Collection on: 29/04/2024 or 30/04/2024 afternoon or 06/05/2024  ,  ,Collection times by arrangement  , IMPORTANT: Collection times may vary if separate collection times are explicitly stated in  ,in the item descriptionweight approx.: 150 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 1,100 x 1,000 mm

US 2305 young, with lots of accessories

Tool grinding machine Jungner US-450 Table: 800 x 114 mm Travels: -X: 450 mm -Y: 300 mm -Spindle vertical travel: 250 mm Spindle speed: 1400 / 2800 / 3500 / 7000 / 5600 / 11200 rpm 2-axis digitals No equipment with the machine Dimensions: -Length: 120 cm -Width: 140 cm -Height: 170 cm

max. grinding diameter: 250 mmgrinding length: 600 mmworkpiece length: 780 mmtable-size: 1030x214 mmspindle turning speed range: 2000-6000 U/minweight of the machine ca.: 1.2 tHydraulic executionUniversal dividing headRelief grinding attachmentHelical grinding attachmentLots of accessorieswww.marcels-maschinen.c The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 1640 weight: 280 kg: ja The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Max. diameter at the centers: 250 mm Max. distance between workpiece carrier head and tailstock: - A090010 CM4: 620 mm - A090011 ISO 40: 620 mm - A090012 CM5: 585 mm - A090200 CM5/ISO 50: 575 mm Max. distance between tailstocks: 670 mm Table surface: 950 x 120 mm Orientation on the table: ± 90 ° Stroke of the longitudinal table: 500 mm Vertical movement of the wheel holder: 230 mm Transverse movement of the wheel head: 230 mm Alignment of the wheel head: 360 ° Tiltable head: ± 20 ° Max. grinding wheel Ø: 150 Max. grinding wheel Ø: 180 Right tailstock CM N°: 2 The length can be ground from the outside: - A090010 CM4: 395 mm - A090011 ISO 40: 395 mm - A090012 CM5: 360 mm - A090200 CM5/ISO 50: 350 mm Speed of the grinding spindle: 3000 ÷ 6000 rpm Internal spindle speed: 15000 ÷ 30000 rpm Motorized speed of the working head: - A090010 CM4: 95 - 160 - 250 rpm - A090011  ...

CNC Tool grinder Makino Seki Mod.CNJ5u-H Year: 2009 Excellent condition, occasionally used by Samsung Electronics.

Description: machine no.: 33 operating voltage: 400 V frequency: 50 Hz , nominal current: 16 A connected load: 11 kW speed: 3000 – 8000 rpm grinding body diameter: max. 150 mm , clamping and grinding ranges: , max. workpiece diameter: approx. 250 mm , max. workpiece diameter with counter bearing: approx. 125 mm , max. workpiece length without clamping shaft: approx. 450 mm , max. workpiece length with counter bearing without clamping shaft: approx. 250 mm , max. grinding length depending on workpiece position, grinding body holder: max. 340 mm , max. grinding length at ,working programs: approx. 280 mm , tool holder: SK 50 , tool weight: max. 50 kg , travel of X-axis: 340 mm , feed rate of X-axis: 7,5 m/min , direct measuring system resolution: 0,0005 mm , travel ,of Y-axis: 240 mm , feed rate: 7,5 m/min , direct  ...

max. grinding diameter: 200 mmcentre height: 100 mmcentre distance: 525 mmweight of the machine ca.: 700 kgdimensions of the machine ca.: 120x100x150 cmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight approx.: 100 kg, Approx. Onsite Dimension. (l x w x h): 600 x 600 x 1,100 mm

PONAR KOWARY NUA 25 tool grinding machine was built by the Polish company PONAR KOWARY (LAKFAM) in 1984. A machine characterised by a robust construction of high stability, is used in tool shops and workshops for precision grinding of tools and tooling. Grinding of workpieces is performed on a table with a surface area (L x W) of 915 x 135 mm with two handwheels for manual longitudinal movement (X axis) and transverse movement (Z axis) of the work table. The reliable grinding wheel spindle moving at 3850 and 5635 rpm guarantees rapid and precise machining. The total weight of the machine is 910 kg. The machine is offered with the extensive range of equipment shown in the attached photos, which includes: – driven divider to the instrument along the screw line – angle vice 2 pcs. – moving tailstock: 2 pcs. – 3-jaw chuck fi 160 + spanner – workpiece centre positioning tool ...

weight approx.: 200 kg, Approx. Onsite Dimension. (l x w x h): 750 x 700 x 1,600 mm

Tool grinding machine, Fabr. Reinecker, WZS 3, used, with extensive accessories Spiral sander Handpiece head Automatic part head Hydraulic table movement Cylindrical grinding device for exterior and interior

Description: Universal tool grinding machine Cylinder loose on one side, freely movable by handweight approx.: 650 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 1,600 mm

Catalog No. : 6752 Type: UWIE Producer: Saacke Made in: 2005 Characteristic: X-Axis travels: 340 mm Travels Y: 240 mm Z-Axis travels: 840 mm Max. tool lenght: 330 mm Max. tool diameter: 250 mm Maximum rotary speed of the spindle: 10000 1/min Center height: 152 mm Machine height: 2090 mm Machine length: 2450 mm Machine width: 2050 mm Machine weight: 3900 kg Equipment: Chuck Collets Mandrel

Saacke UWIA CNC 5 A CNC Tool Grinder machine

Description: Included - 3-axis digital display - Operation manual Spindle diameter 75 mm x-travel 850 mm y-travel 900 mm z-travel 950 mm Spindle holder ISO SK 40 Table size 1000 x 800 mm Total power requirement 16 kW Machine weight approx. 10.5 t Space requirement approx. 4.0 x 2.3 x 2.75 mweight approx.: 10,500 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,300 x 2,750 mm

Schneeberger Aries ENP4 CNC Precision Tool Grinding Machine Manufacturer [manufacturer]: Schneeberger Type [ type]: Aries ENP4 Control unit: Fanuc control, 2 CNC axes, simultaneous interpolation 10.4" LCD color touchscreen, RS232 Baujahr[construction year]: 10/2008 Tool and cutter grinder Note: Ideal for tooling and sharpening Optimal grinder for grooving, circumferential, flank, front, rear and flank surfaces Axes Longitudinal travel X mm 400 (CNC) Transverse travel Y mm 260 (CNC) Vertical travel Z mm 300 (CNC) Workpiece rotation A degree free (CNC) C-axis, manual, position indicator integrated in the control unit. Resolution of the measuring system: 0.001°, grinding head ±180° rotatable Center height mm 210 Landing cone ISO50 Spindle Drive power kW 2.2 / 7.5 Double spindle HSK 50 - (2 + 2 grinding wheels) Spindle speed 1/min 9000 Grinding wheel diameter ...

Suitable for regrinding and making new wood and metalworking tools of all kinds. Accessories: Pallet loader,, Quinto Software Version 4.3 b 10 for milling cutters, drills, step drills, profile tools, groove simulation, Kennametal Hertel,, hydraulic workpiece clamping,, automatic Renishaw measuring probe,, automatic fire extinguishing system,, automatic central lubrication,, Glass scales on the linear axes, 1 clamping claw, 1 automatic chuck, 1 collet D:32mm, 2 loader pallets,, 2 grinding wheel holders., X-axis longitudinal movement: 380mm, Y-axis transverse movement: 280 mm, Z-axis vertical movement: 280 mm, C-axis swivel range: 340°, A-axis rotation range: 360 °, Center height: 210 mm, Workpiece holder: ISO 50, Grinding wheel diameter: Max. 200 mm, Drive power grinding lockers: 7,5 kW, Grinding spindle speed: stepless 0 - 9000 rpm, Connected load: 29 kW (400 V / 50 Hz), Dimensions W  ...

Item no. 5042: 1 gebr. Tool grinding machine Fabr. SIMON , Type VSR 3, Bauj. 1984 with digital display Drive power: 1.1 kW

General: Year of construction 1993 Speed 4,500 rpm Dimensions 500 mm x 530 mm x 1230 mm Weight approx. 150 kg Other equipment and included accessories: Machine light

Specifications Grinding diameter max.: 100 mm Longitudinal movement of the table: 55 mm Grinding head vertical adjustment: 160 mm Swivel range of the grinding head: Horizontal: 360° Speed of the grinding spindle: Number (levels): 2 from: 2800 rpm up to: 5100 rpm Connection 50 Hz 3x: 380 volts Grinding spindle motor: 0.50 hp Machine weight approx.: 400 kg Dimensions machine: Length: 1000 mm Width: 950 mm Height: 1550 mm

max. grinding diameter: x mmgrinding length: 120 mmworkpiece length: 270 mmtable-size: 270x80 mmweight of the machine ca.: 0.2 tdimensions of the machine ca.: 0.8x0.7x1.4 mDividing headCollet setCoolantMORE DETAILS ON www.marcels-maschinen.chThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Fabrication number: 269 Center height above table: 105 mm Center width: 550 mm Largest sanding diameter: 200 mm Largest sanding length: 400 mm Largest clamping diameter: 200 mm Largest clamping length: 550 mm Table: Clamping surface: 800 x 112 mm Largest longitudinal movement: 400 mm Can be swiveled to 2 sides: 180° Adjustability of the grinding spindle slide: Transverse: 250 mm Vertical: 300 mm Can be swiveled: 360° Sanding spindle: Pivoting of the spindle head to 2 sides: +/- 30° Smallest/largest distance from the center of the grinding spindle to the top edge of the table: 75/375 mm Grinding wheel: Largest grinding wheel diameter: 150 mm Largest width: 20 mm Bore: 64 mm Flange diameter: 80 mm Cone diameter: 25 mm With machine accessories as shown in the pictures Machine dimensions: 1220 x 1100 x 1400 mmweight approx.: 900 kg, Approx. Onsite Dimension. (l x w x h): 1,60 ...
