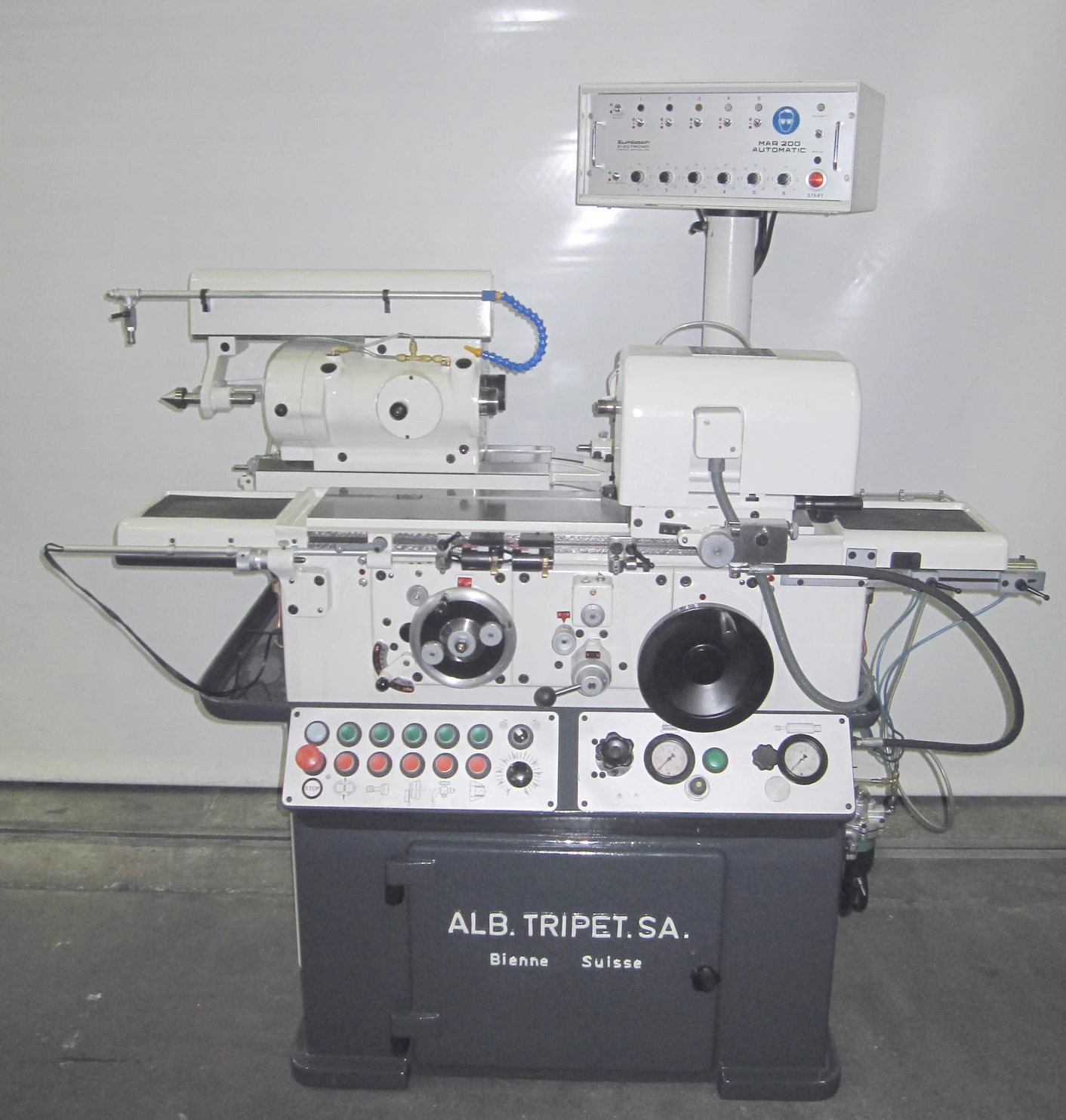

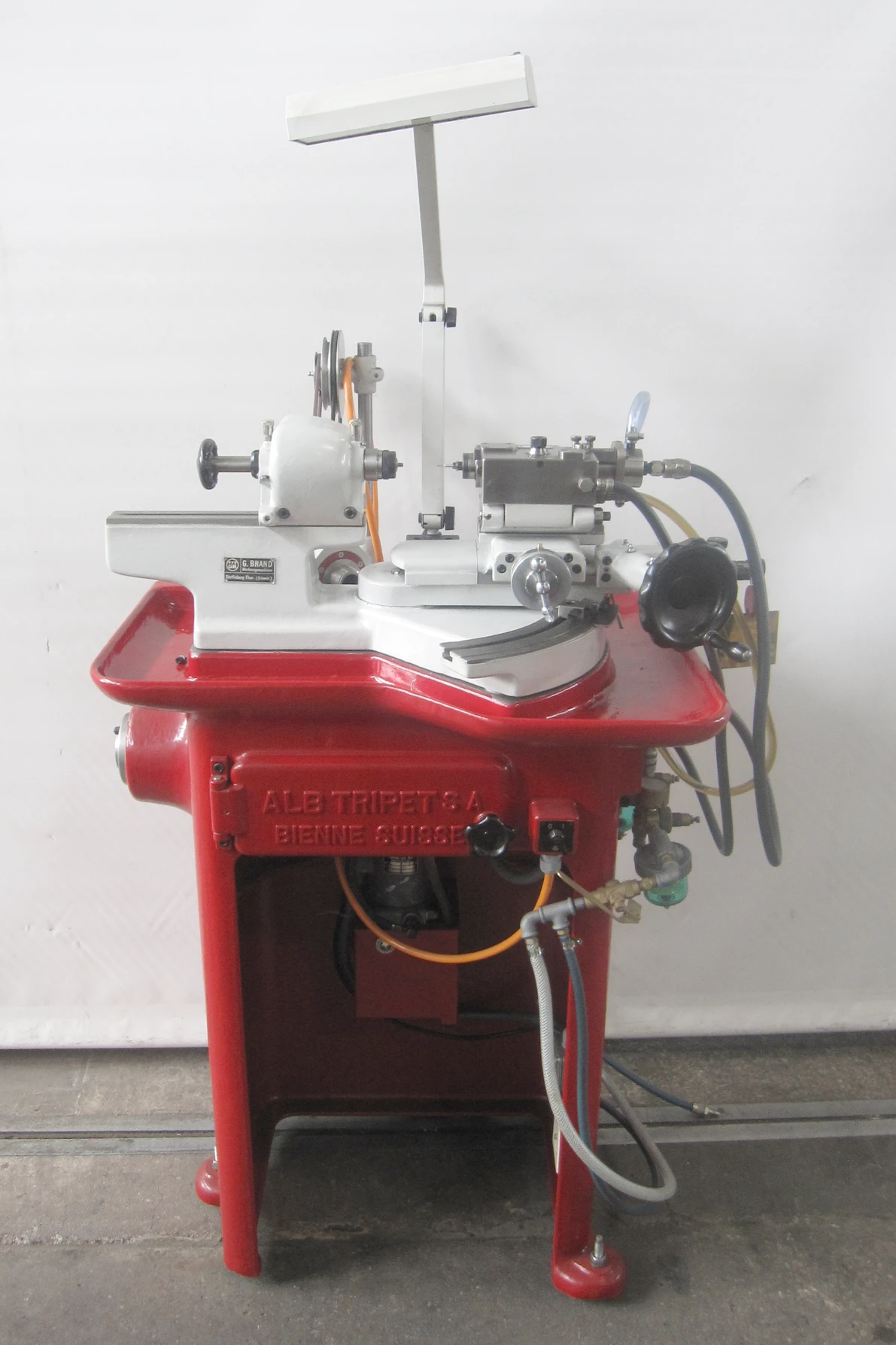

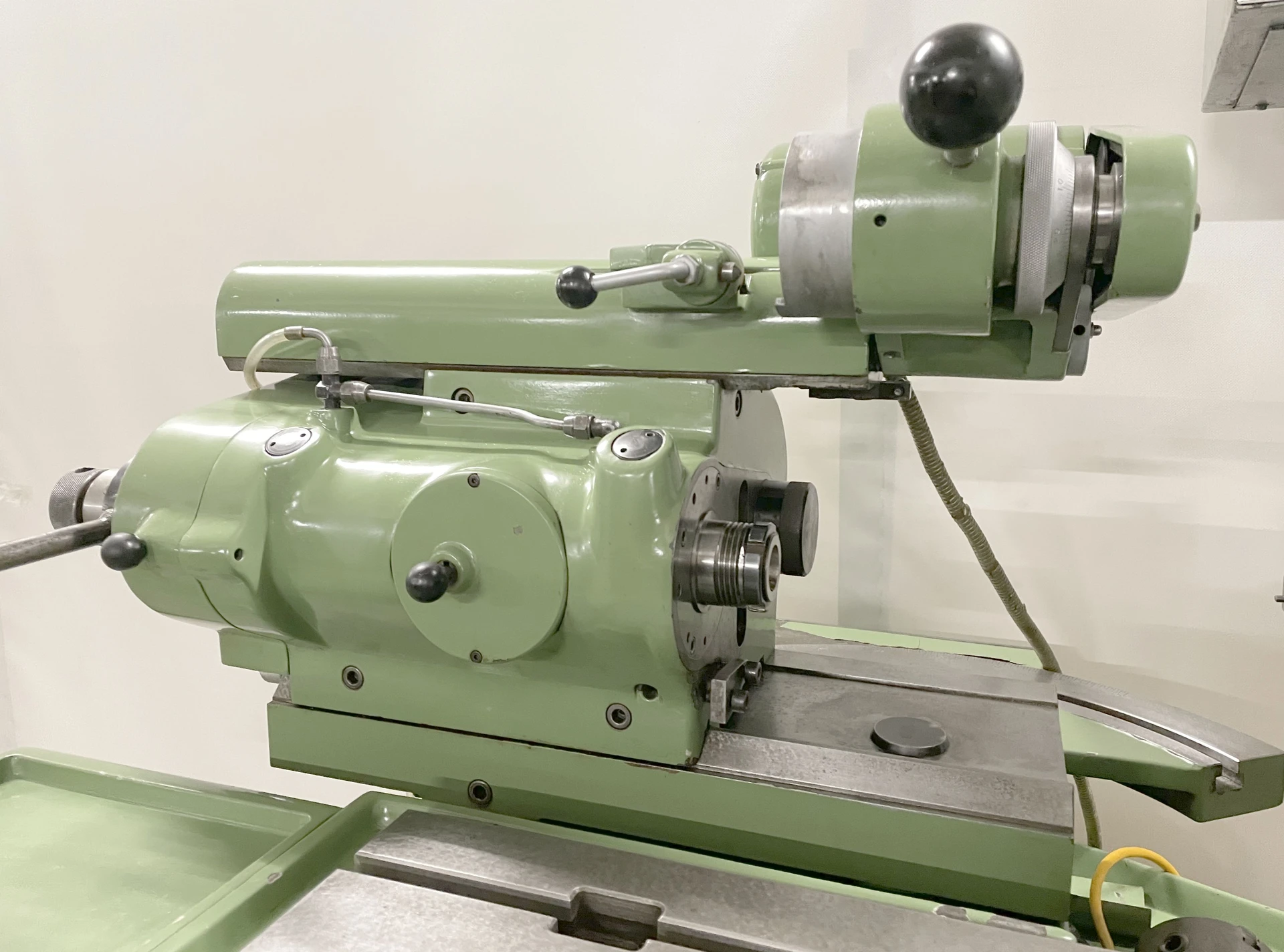

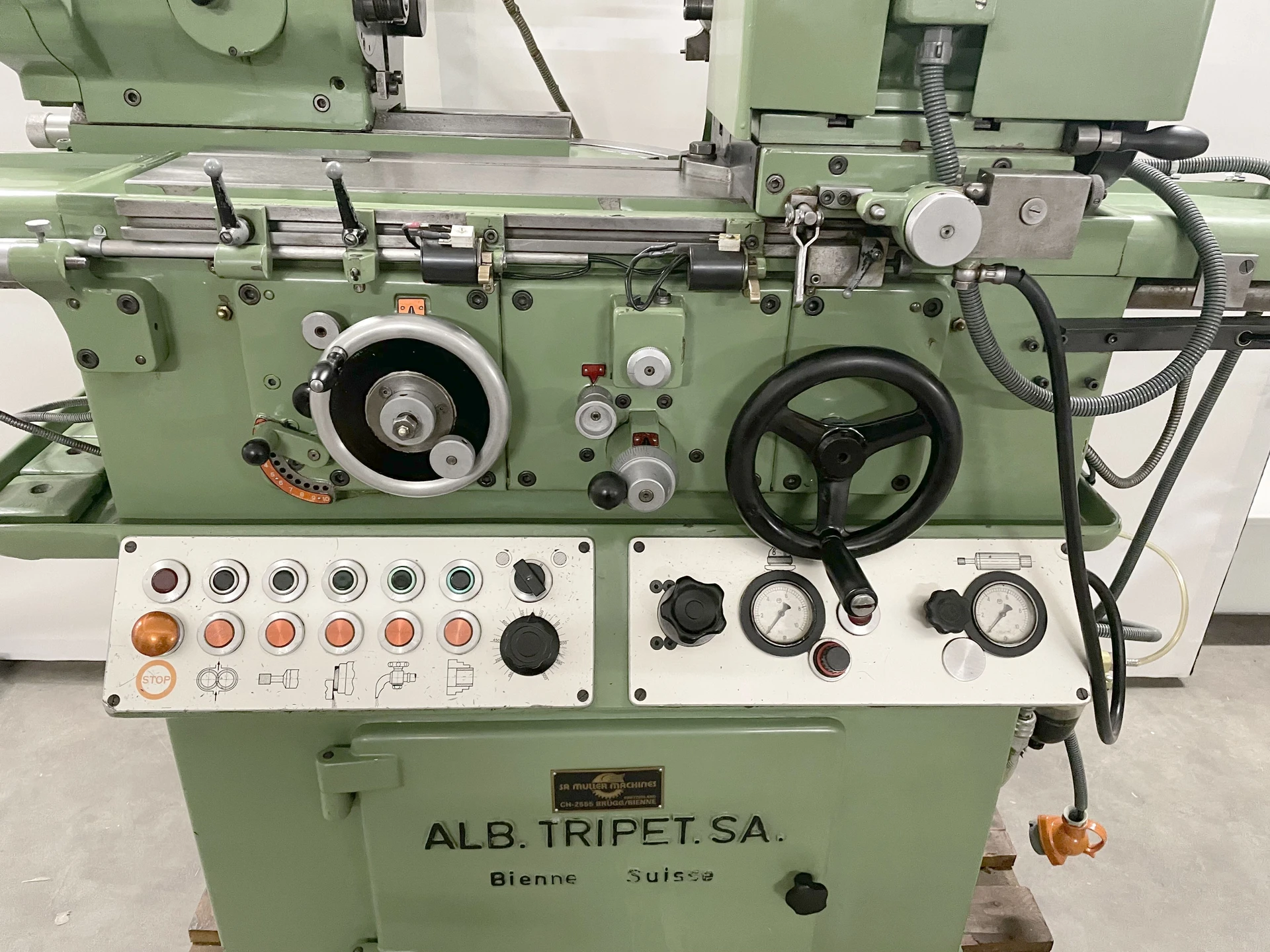

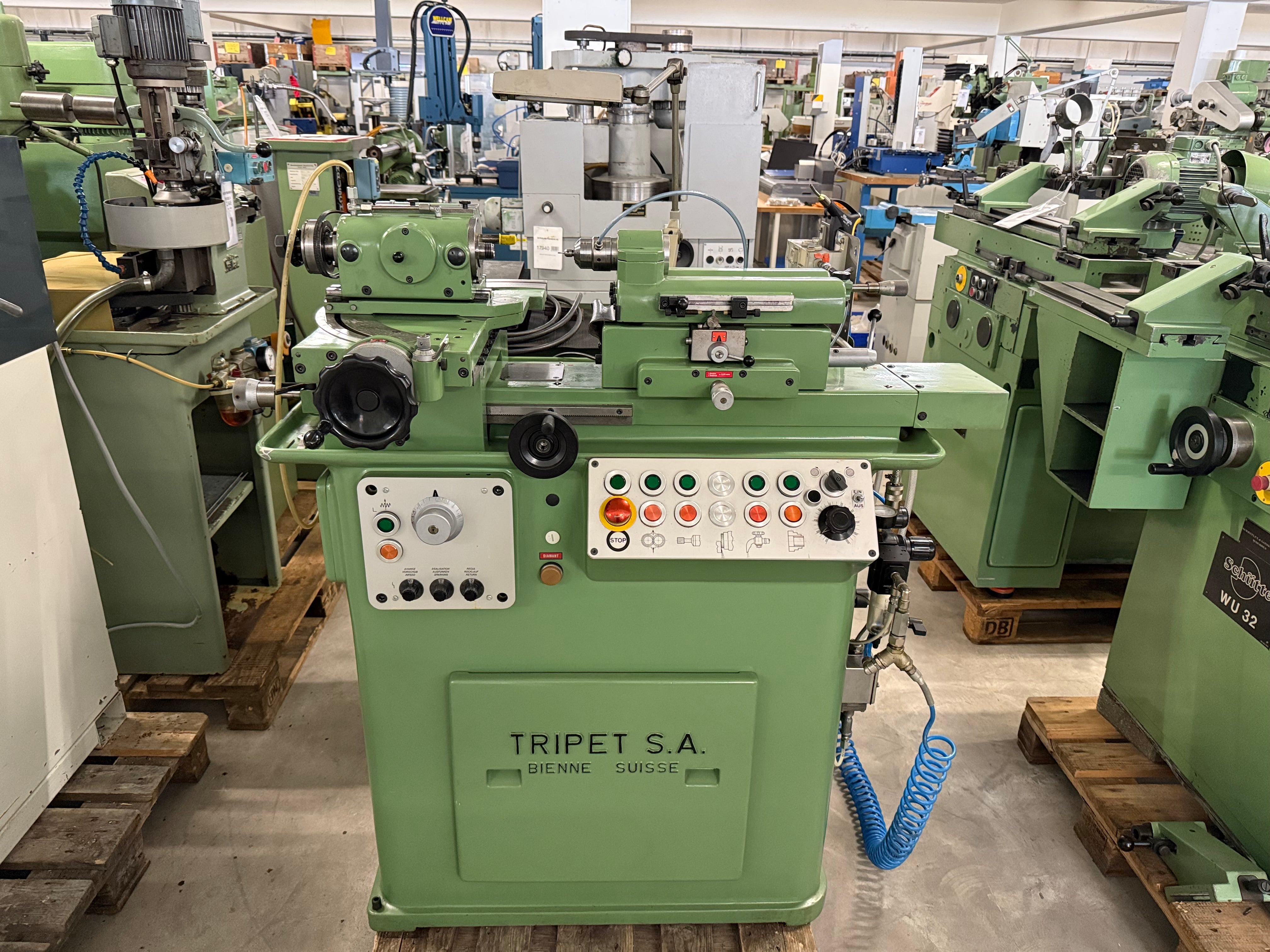

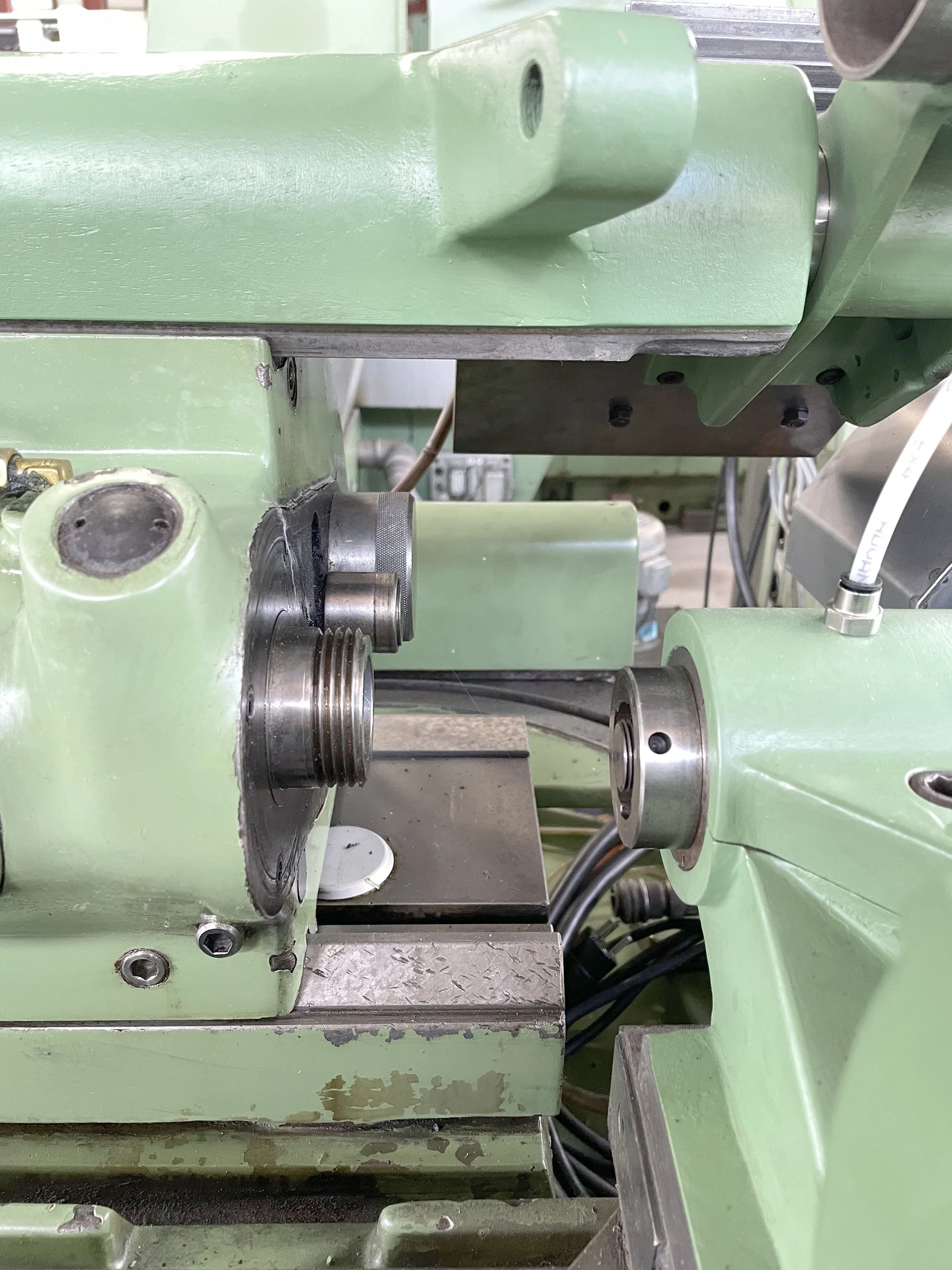

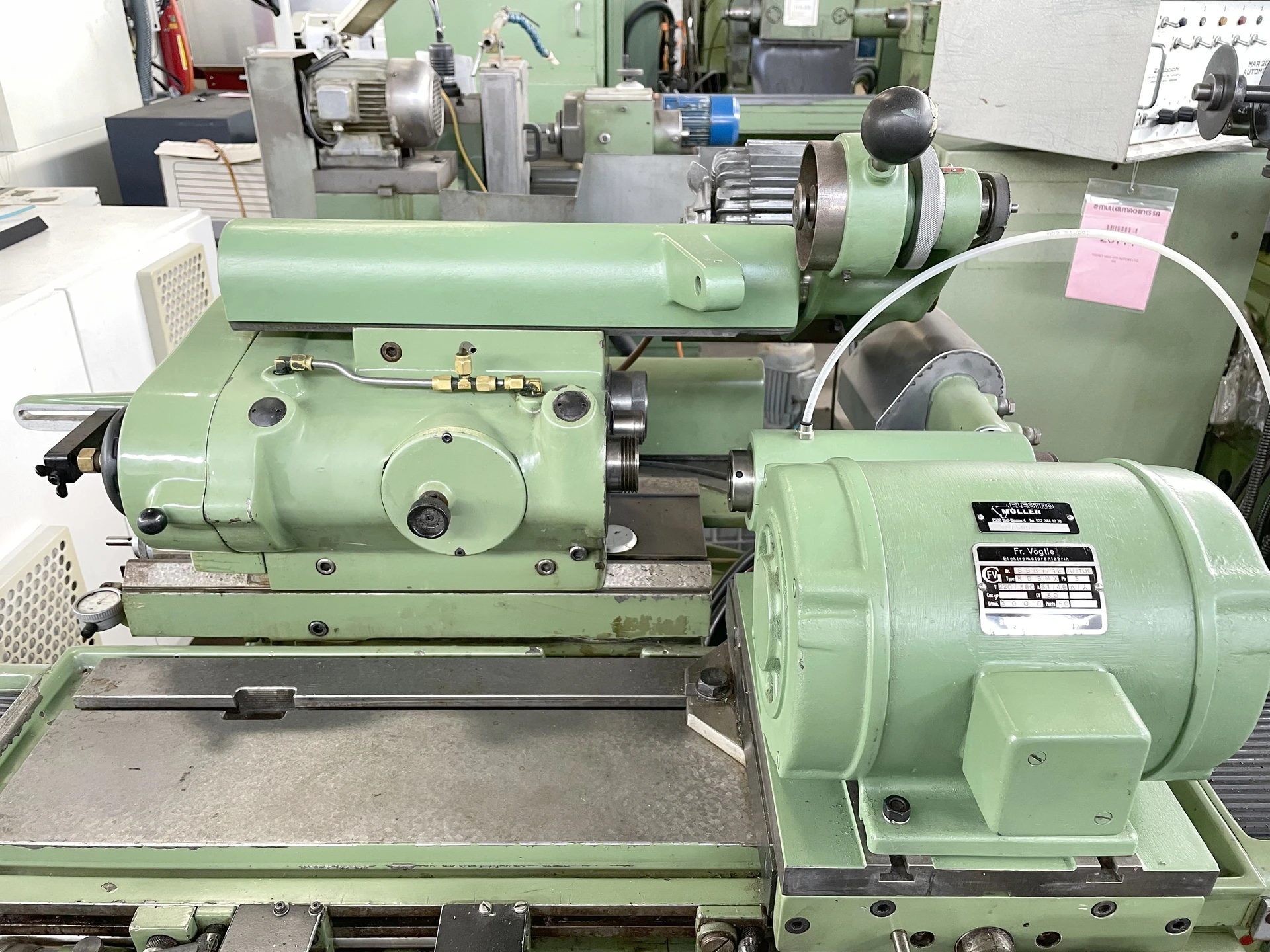

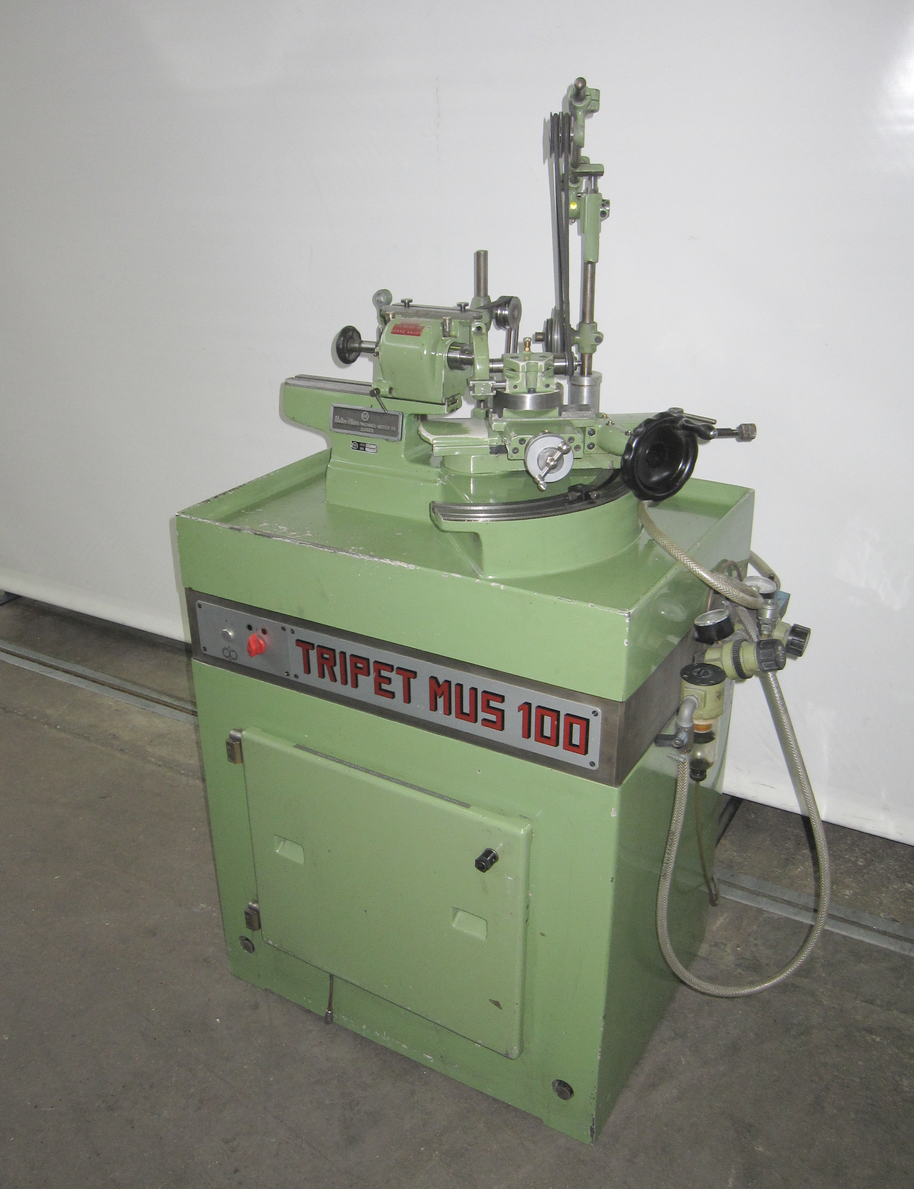

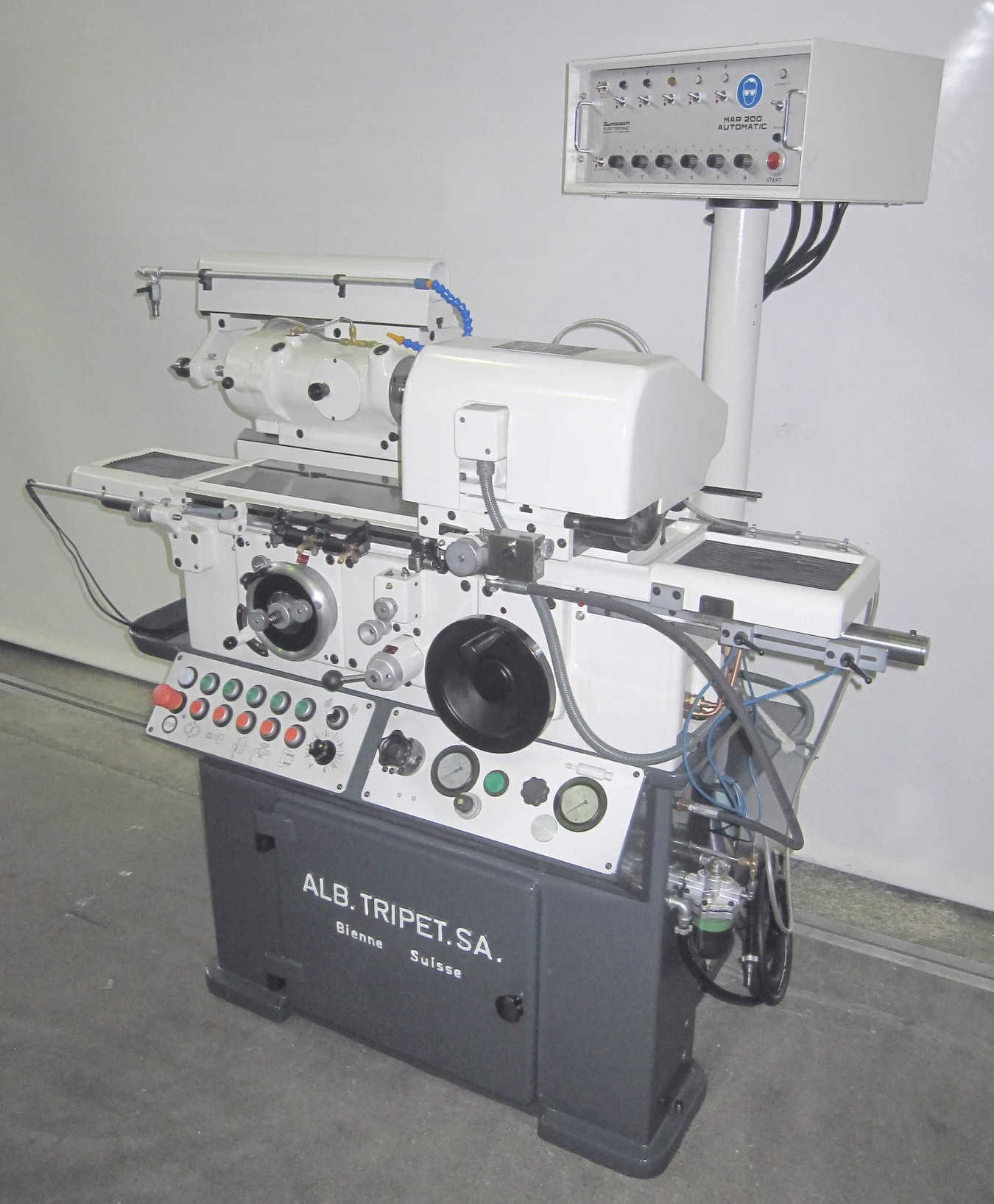

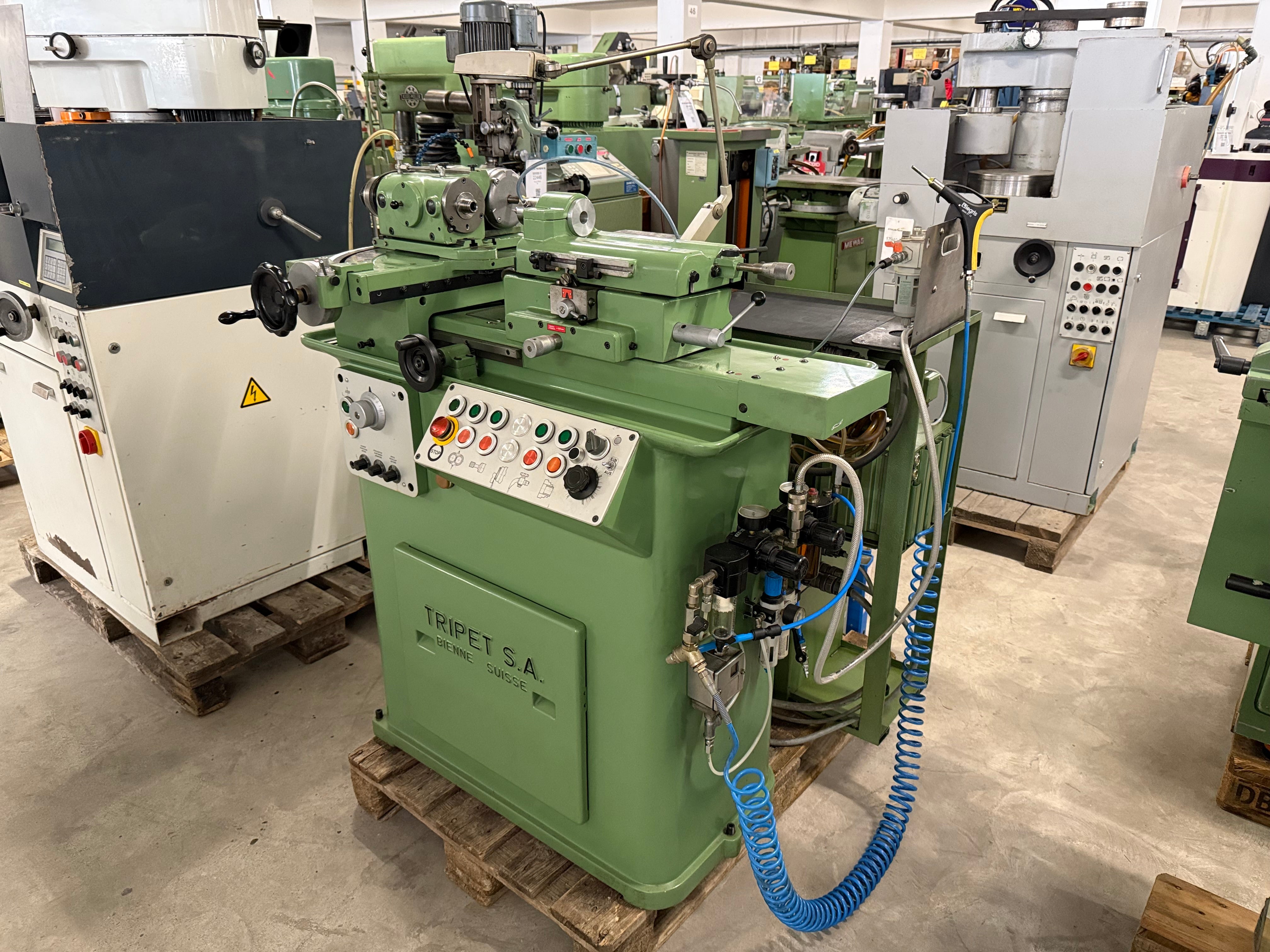

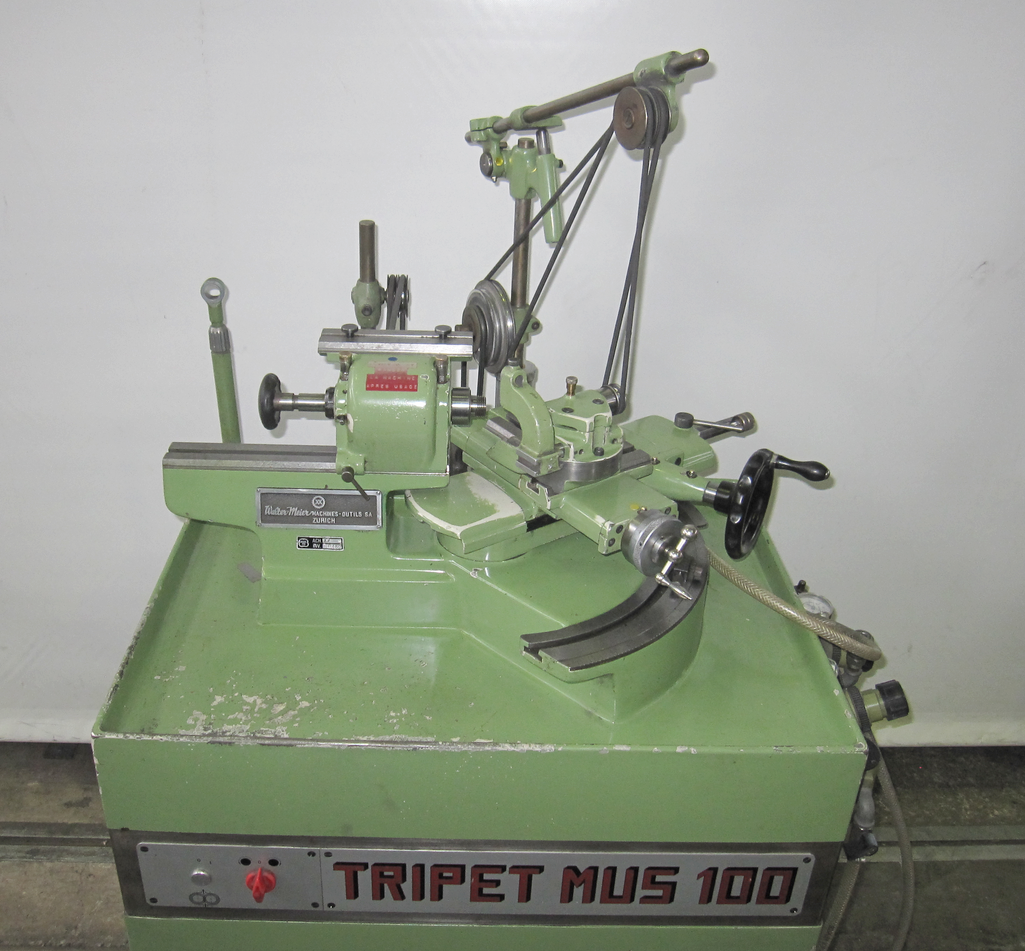

Internal cylindrical grinding machine, Tripet Swiss, 1991, Grinding slide. 0.5 - 30mm, Grinding depth: 50, Center height: 102, Axles: Z , Y, U, B, V, , autom. Chuck, ...
used
Key data: 100 mm, 200 mm, 350 mm

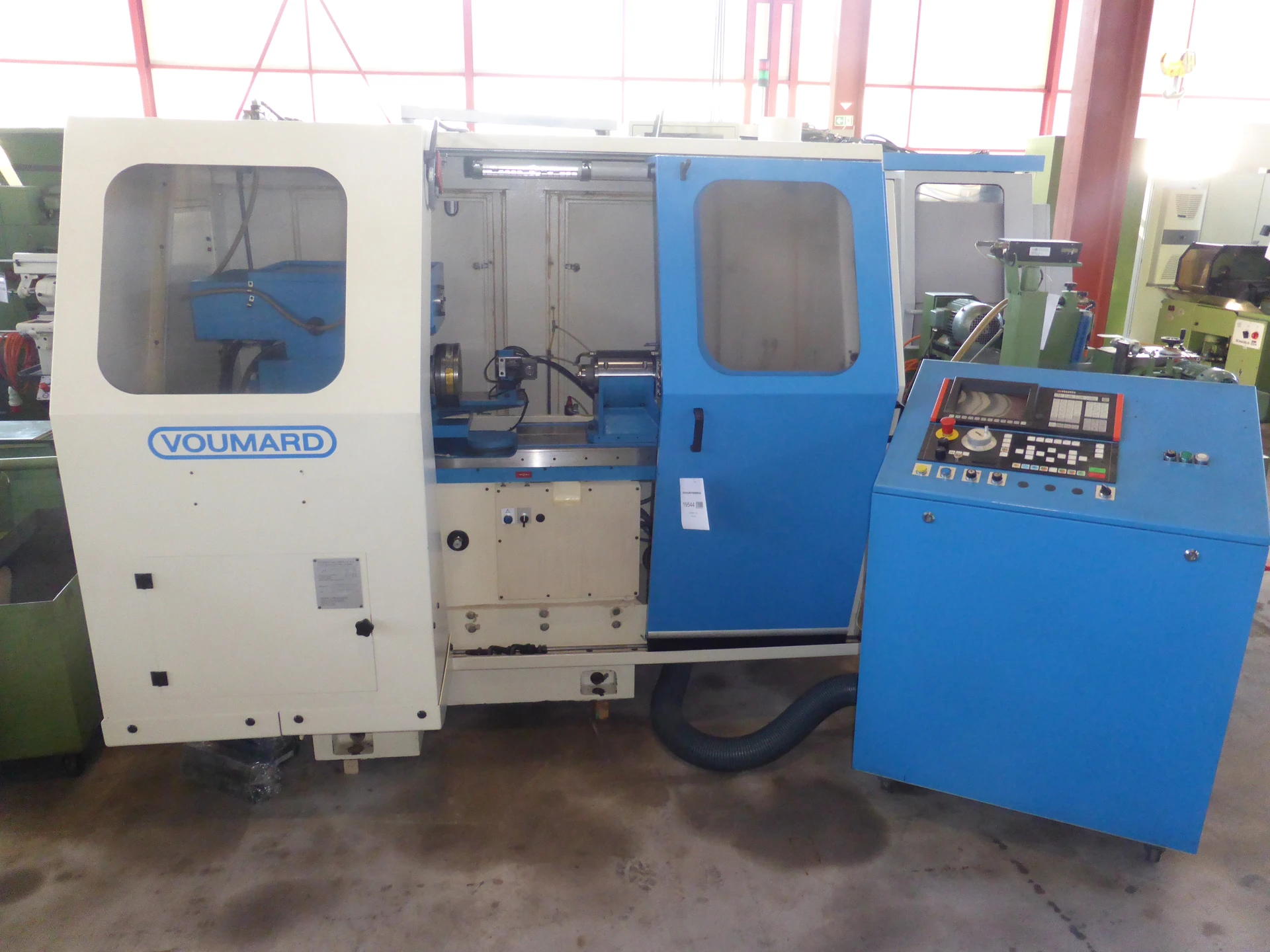

2014 VOUMARD 130 Gang-Style 3-Spindle CNC ID Grinder Technical Specifications X-Axis Travel: 300 mm Y-Axis Travel: 200 mm Z-Axis Travel: 250 mm Spindle Motor: 4.1 kW Maximum Swing Diameter Over Table: 350 mm Center Height: 165 mm Maximum Workpiece Length: 200–300 mm Maximum Grinding Depth: 200 mm Maximum Grinding Wheel Diameter: 150 mm Maximum Grinding Wheel Width: 15 mm Grinding Wheel Bore Diameter: 50 mm ID Grinding Diameter Range: 1–100 mm Maximum Chuck Diameter: 152 mm Workhead Speed Range: 1,000–1,500 RPM Workhead Swivel Range: -30° to +120° Electrical Requirements: 460 V, 3-phase Approximate Machine Weight: 4,500 kg Approximate Machine Dimensions (L × W × H): 2,591 × 2,032 × 2,184 mm Equipped With GE Fanuc Series 32i-Model A CNC Controller MistBuster Mist Collector
Voumard CNC 130F Gang Style 3 Spindle CNC ID Grinder, 2009 – Mist Collector SPECS SHEET X-Axis Travels: 11.81″ Y-Axis Travels: 7.87″ Z-Axis Travels: 9.84″ Spindle Motor: 5.5 HP Max Grinding Wheel Diameter: 5.91″ Max Grinding Wheel Width: 0.59″ Grinding Spindle Speed: 12,000 RPM Grinding Wheel Dimensions: 5.91″ x 0.59″ x 1.97″ Center Height: 6.5″ Workpiece Length: 7.87″ Grinding Depth: 7.87″ Workhead Spindle Speed: 1,000 RPM Workhead Swivel Range: -30/+120°F Internal Grinding Spindle Speed: 42,000 RPM Electrical: 460V, 3-Phase Equipped With Fanuc 21i CNC Controller
internal diameter: - mmgrinding depth: - mmswing diameter: - mmControl: total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
internal diameter: - mmgrinding depth: - mmswing diameter: - mmtotal power requirement: - kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding diameter: 0/ mmgrinding length: 960 mmfeed in: mmControl: total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: 0/ mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
