Surface Grinding Machines used for sale (64)

1 used ELB SURFACE GRINDER Model: SWBE 010 NPC-K Grinding area: 1000 X 550 X 400 mm Year of Make: 1988 Grinding wheel:  400 X100 X 127 mm ACCESSORIES Electric straight-line dresser with compensation Electro-Permian Magnetic Clamping Plate 1000 X 400 mm (SAV) Magnetic adhesive force control Universal Paper Belt Filter Grinding wheel with holder

Auction-ID: A1-40979-34

Surface grinding machine, used, Grinding area: 450x200x250mm, with magnetic plate, puller, holders, coolant device, ...

Auction-ID: A1-40979-3

JOTES SPD 30B surface grinding machine was built in 1978 in Poland by PONAR-JOTES Łódź. The machine, designed for precision grinding of workpieces, is an excellent choice for professional production applications. Workpieces placed on a large magnetic plate or directly on the work table are machined by means of a spindle with a grinding wheel which moves transversely and vertically. The grinding wheel, driven by an electric motor, reaches a maximum speed of 26 m/s. The work table, on the other hand, is hydraulically driven and allows stepless adjustment of the feed rate in a range of 2 to 30 m/min. Changing the table’s travel direction is done automatically using stops or manually by switching the appropriate lever. The SPD 30B magnetic surface grinding machine weighs 5000 kg. Technical specifications of the JOTES SPD 30B grinding machine - work table surface (L x W): 1000 x 3 ...

Auction-ID: A1-40979-71

ELB PERFEKT BD10 SPS surface grinding machine was built in 2004 in Germany by ELB-Schliff Werkzeugmaschinen GmbH. The machine is used for precision grinding of workpieces with a maximum weight of 1000 kg. The machining process is carried out fully automatically on a large magnetic plate or directly on the work table. The grinding head, consisting of a spindle and grinding wheel, moves along guide rails to ensure an even and accurate surface finish. The ELB SCHLIFF PERFEKT BD10 SPS magnetic surface grinding machine is also equipped with, among others, a cooling system with a belt paper filter, which cleans the coolant after machining and allows it to be reused in the next process. The total weight of the machine is 6300 kg. Technical specifications of the ELB PERFEKT BD10 SPS grinding machine - magnetic plate dimensions (L x W): 1000 x 750 mm - maximum grinding dimensions (L x W x H) ...

Auction-ID: A1-40979-28

CHEVALIER FSG-1640ADIV surface grinding machine was built in 2022 in Taiwan by Falcon Group Co., Ltd. The machine is used for precision grinding of workpieces with a maximum weight of 440 kg. A number of state-of-the-art technical solutions, combined with extensive equipment, make it the best choice for professional production applications. Grinding is performed fully automatically on a large electromagnetic plate or directly on the work table. The work table is hydraulically driven and moves on ground and induction hardened guideways. To achieve the highest machining accuracy and precision, the CHEVALIER FSG 1640 ADIV magnetic surface grinding machine is equipped with dynamic balancing and automatic dressing of the grinding wheel. During grinding wheel dressing, the work table automatically positions itself where the diamond tools are and compensates according to the operator’s  ...

Auction-ID: A1-40979-4

JOTES SPD 40 surface grinding machine was built in 1988 in Poland by PONAR-JOTES Łódź. The machine, designed for precision grinding of workpieces, is an excellent choice for professional production applications. Workpieces placed on a large magnetic plate are ground by means of a spindle with a grinding wheel, which moves transversally and vertically. This solution, combined with the ability to automatically/manually adjust the height of the grinding wheel, significantly increases the accuracy and precision of the machining process. The SPD 40 magnetic surface grinding machine weighs 4800 kg. Technical specifications of the JOTES SPD 40 grinding machine - work table dimensions (L x W): 1000 x 400 mm - work table feed rate: 2-30 m/min - minimum work table stroke: 200 mm - grinding wheel dimensions (diameter x width x bore): 350 x 63 x 127 mm - grinding wheel stroke adjustment r ...

Auction-ID: A1-40979-70

Surface Grinding Machine ABA FFV 1000/50 Travel X: 1000 mm Travel Y: 500 mm Travel Z: 400 mm Magnetic chuck dimensions: 1000 x 400 mm Auto stepover X / Y / Z Separate electrical panel Separate lubricant tank Separate hydraulic group Voltage: 380 V Length: 4000 mm Depth: 1700 mm Total height: 2300 mm Weight: approx 6 T

Auction-ID: A1-48414-318

Stock number: 3986 SURFACE GRINDING MACHINE Manufacturer: SEEST , Type: Surface grinder Specifications: Large stone diameter 350 mm Automatic feed. Length: 1500 mm, Height: 1200 mm, Width: 800 mm , Weight: 1000 kg

Special feature: Stepless grinding wheel speed for copper grinding work Auction-ID: A7-48614-20

Grinding wheel diameter: 200 mm Clamping surface: 250 x 150 mm Diameter magnetic table: 120 mm Spindle speeds: 11 - 3,150 rpm Country of origin: Italy Machine LxWxH: 1,000 x 700 x 1,600 mm Machine weight: 250 kg

Saw blade diameter: 100 to 1720 mmTooth pitch: 7 to 110 mmRake angle: -20° to + 45° Clearance angle: 8° to 45°Grinding wheel Ø100 mmSpeed grinding spindle3,600 rpmTotal weight approx. 550 kg Auction-ID: A7-48614-8

Travel paths X/Y/Z: 900 x 400 x 200 mm Table size 800 x 400 mm

Feeding takes place on the side of the top of the grinding head and handwheel for the transverse feed path of the grinding wheelGrinding length: 820 mm, longitudinal feed of the grinding carriage with three-phase motor: 380 V. Water cooling works WITHOUT a pump, because the grinding wheel runs sideways in the water. Auction-ID: A7-48614-6

ELB SURFACE GRINDER 460x2440mm CNC Dresser

Conversion to Linux CNCworking area: 1150 x 600 mm, table: 3400 long, weight: approx. 2500 to 4000 kg. Auction-ID: A7-48614-18

Technical details Grinding length max. 600 mm Grinding width max. 350 mm Control conv. Distance from spindle center to table max. 525 mm Magnetic clamping plate 600 x 350 mm max. table load 400 kg Table longitudinal movement 660 mm Table speed 2 - 28 m/min Transverse movement 360 mm Grinding wheel dimensions max. 300 x 50 x 76.2 mm Clamping width max. 30 mm Drive power - grinding spindle 3.7 kW Total power requirement 8 kW Machine weight approx. 2.1 t Space requirements approx. 4.5 x 3.0 x 2.4 m

Weight: approx. 18 tgrinding length: approx. 4.10 m longBed: 7300 mm longincluding: segment grinding head, the original grinding spindle has already been ground over, the plain bearing has to be adjusted, a butt head is supplied to process the bending beams. Auction-ID: A7-48614-19

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

Saw blade diameter: minimal. 80 mm up to a maximum of . 710 mm Tooth Pitch: 3 mm to 25 mmMaximum. Saw blade thickness: approx. 6.5 mmWorking speed: infinitely adjustableGrinding wheel diameter: 200 mm Working speed: infinitely adjustable, usually between 10 and 45 teethWeight: approx. 600 to 1200 kg. Automatic chamfering of both bevels in one rotation Auction-ID: A7-48614-7

Surface Grinding ERNAULT SOMUA FU 660 Travel X: 660 mm Travel Y: 400 mm Travel Z: 400 mm Magnetic chuck BRAILLON 700 x 300 mm Grinding wheel: Ø 355 mm Motor power: 7,5 CV Swivel head Automatic diamond cutting Auto stepover X - Y - Z Lubricant tank Hydraulic Group Voltage: 220 V Tri Length: 2900 mm Depth: 2000 mm Total height: 2200 mm Weight: approx 4,5 T

Used, the X axis is out of serviceNote: Due to the size of the machine, it is recommended to inspect the machineDisassembly and loading by buyer, disassembly possible by seller upon requestTransport dimension: approx. 5.50 x 3.20 x 3 m (L/W/H), the head section and side panels can be disassembled. Auction-ID: A7-48614-16

COSMOS 1050 precision surface grinding machine, grinding area 1000 x 500 mm, grinding wheel 400 x 80 mm, magnetic clamping plate 1000 x 500 mm, Mitsubishi PLC control and drive technology, automatic grinding cycle with roughing, finishing, firing and lifting, dressing amount is automatically compensated, highest quality with unbeatable cost-benefit ratio. Machines can be viewed under electricity, test grinding of your workpieces is possible. We are also happy to take over the installation and training on site, as well as the subsequent service. For more information, please visit: long-grinding technology

GER RS-500 Surface Grinding Machine Type: Surface grinding machine Manufacturer: GER Model: RS-500 Serial number: 85/26 Magnetic fixture plate size: 200-500 mm Longitudinal travel: 500 mm Transversal travel: 400 mm Vertical travel: 400 mm Grindstone: 250 mm Approx. machine weight: 2500 kg Approx. dimensions (L x W x H): 2000 x 1650 x 2260 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-20

Precision surface grinding machine, COSMOS 7040 SPS, grinding area 700 x 400, grinding wheel 300 x 50 mm, magnetic clamping plate 700 x 400 mm, Mitsubishi PLC control and drive technology, automatic grinding cycle with roughing, finishing, firing and lifting, dressing amount is automatically compensated, highest quality with unbeatable cost-benefit ratio. Machines can be viewed under electricity, test grinding of your workpieces is possible. We are also happy to take care of the installation and training on site, as well as the subsequent service.

Industrial surface grinding machine for machining flat surfaces. Equipped with NC control, magnetic table and sprinkler system with tray and filtration. Auction-ID: A1-48609-218

ELB Perfect BD 10 750, grinding area 1000 x 750 mm, year of construction 2004, grinding spindle 10 KW, grinding wheel 400 x 100 mm, automatic dresser with compensation, electric perm magnetic clamping plate 1000 x 750 mm, partial enclosure with suction, water tank with paper belt filter, the machine is partially overhauled, geometry according to the standard of new machine, we are happy to take over the installation / training on site, as well as the subsequent service.

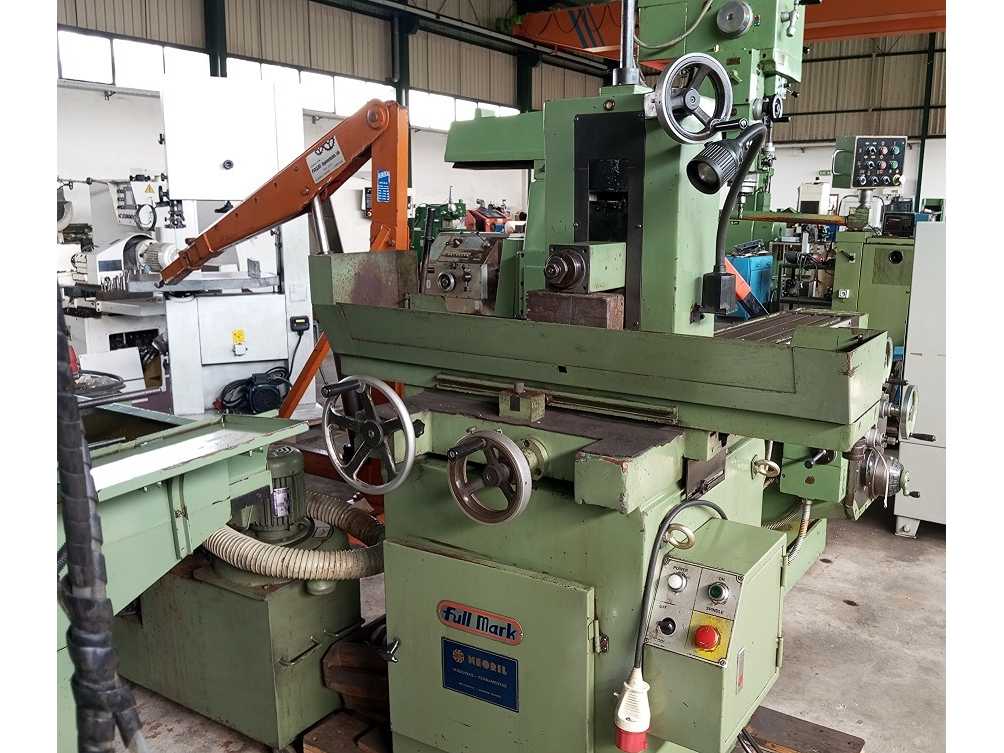

Full Mark RT 02 Surface Grinding Machine Type: Surface grinding machine Manufacturer: Full Mark Model: RT 02 Speed range: 1000 - 3000 rpm Maximum part diameter: 200 mm - 500 mm Main motor power: 2 kW - 10 kW Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-27

Surface grinder BPH 320A/1000

ELB SW3T Flat Grinding Machine Type: Flat grinding machine Manufacturer: ELB Model: SW3T X-axis travel: 600 mm Y-axis travel: 200 mm Z-axis travel: 350 mm Approx. machine weight: 1500 kg Approx. dimensions (L x W x H): 1150 x 1150 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-28

Hydraulic surface grinding machine Kair TM800x400. Max. table travel: 800mm. Max. cross travel: 400mm. Height over grindstone: 260mm. Main motor power: 3hp. Speed: 2000rpm. Grindstone: 250x40x76mm. Max. dimensions magnetic chuck: 600x300mm. Weight: 1800kgs. Dimensions: 2500x1500x1900mm.

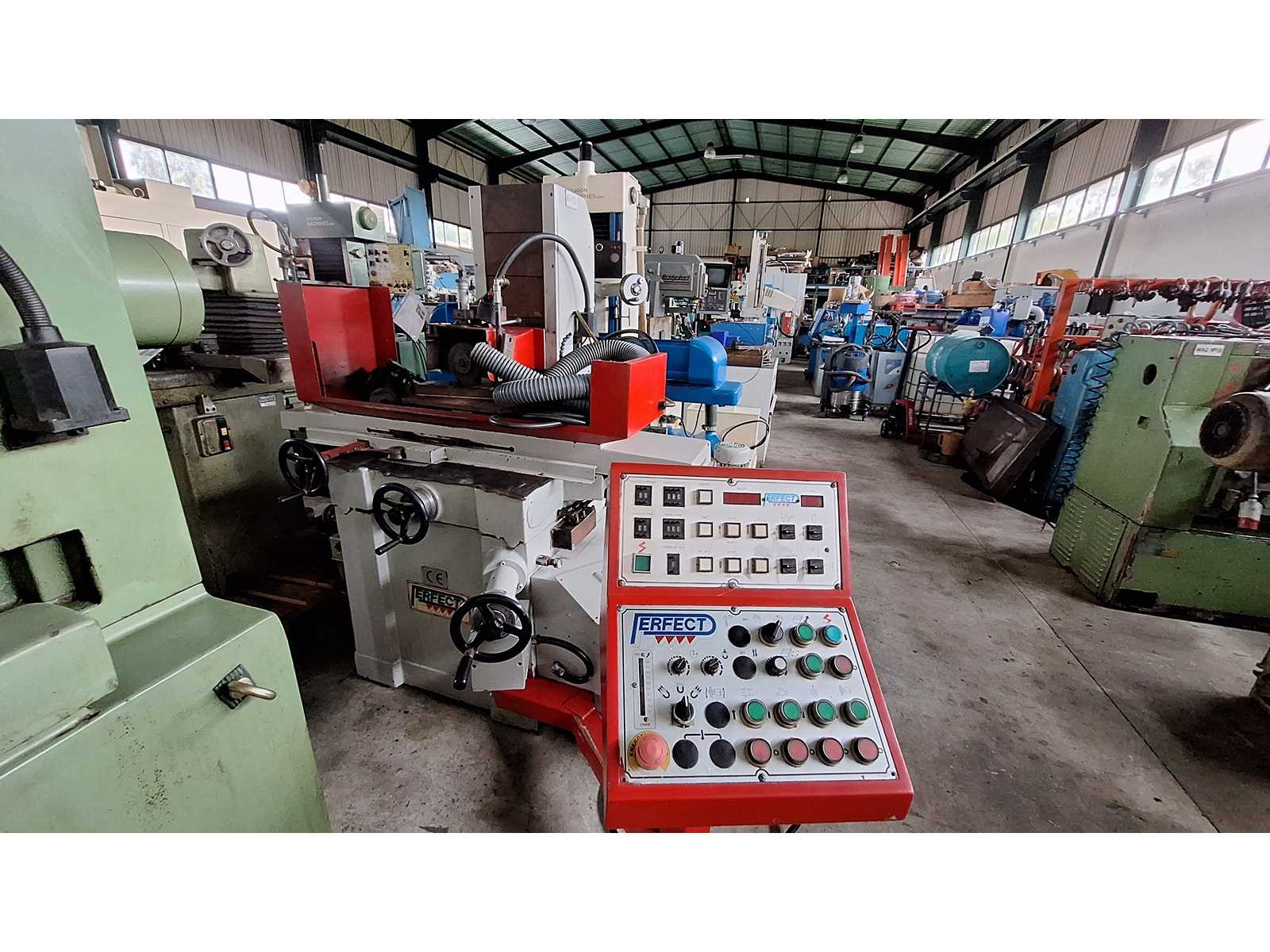

Perfect PFG2550 Surface Grinding Machine Type: Surface grinding machine Manufacturer: Perfect Model: PFG2550 Year of manufacture: 1997 Table size: 500 x 250 mm Stroke: 550 x 270 mm Approx. machine weight: 1250 kg Approx. dimensions (L x W x H): 1500 x 1200 x 1300 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-24

Surface grinding machine Make: LECHLER Model: 500 x 150

ELB SW3HA Flat Grinding Machine Type: Flat grinding machine Manufacturer: ELB Model: SW3HA X-axis travel: 600 mm Y-axis travel: 200 mm Z-axis travel: 350 mm Approx. dimensions (L x W x H): 1150 x 1150 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-26

Code 5976 Description Hydr. Surface grinding machine Make DANOBAT Type RT – 1200 Machine No. 565 Manufacturing date 1989 ( 1990 in use ) Table size 1400 x 700 mm Grinding dimensions L x W x H 1200 x 750 ( 800 ) x 800 mm Magnetic plate size L x W 1000 x 600 mm Table speed movement 1 - 25 m/min. Max. distance table surface – centre grinding wheel 1000 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1500 rpm Spindle power 7,5 kW Grinding wheel size Ø 400 x 50 ( 100 ) x Ø 127 mm Weight 8.500 kgs Total power 12 kW – 380 Volt Accessoiries Electro magnetic plate 1000 x 600 mm from Tecnomagnete Coolant Pendel control Condition Machine is in good condition

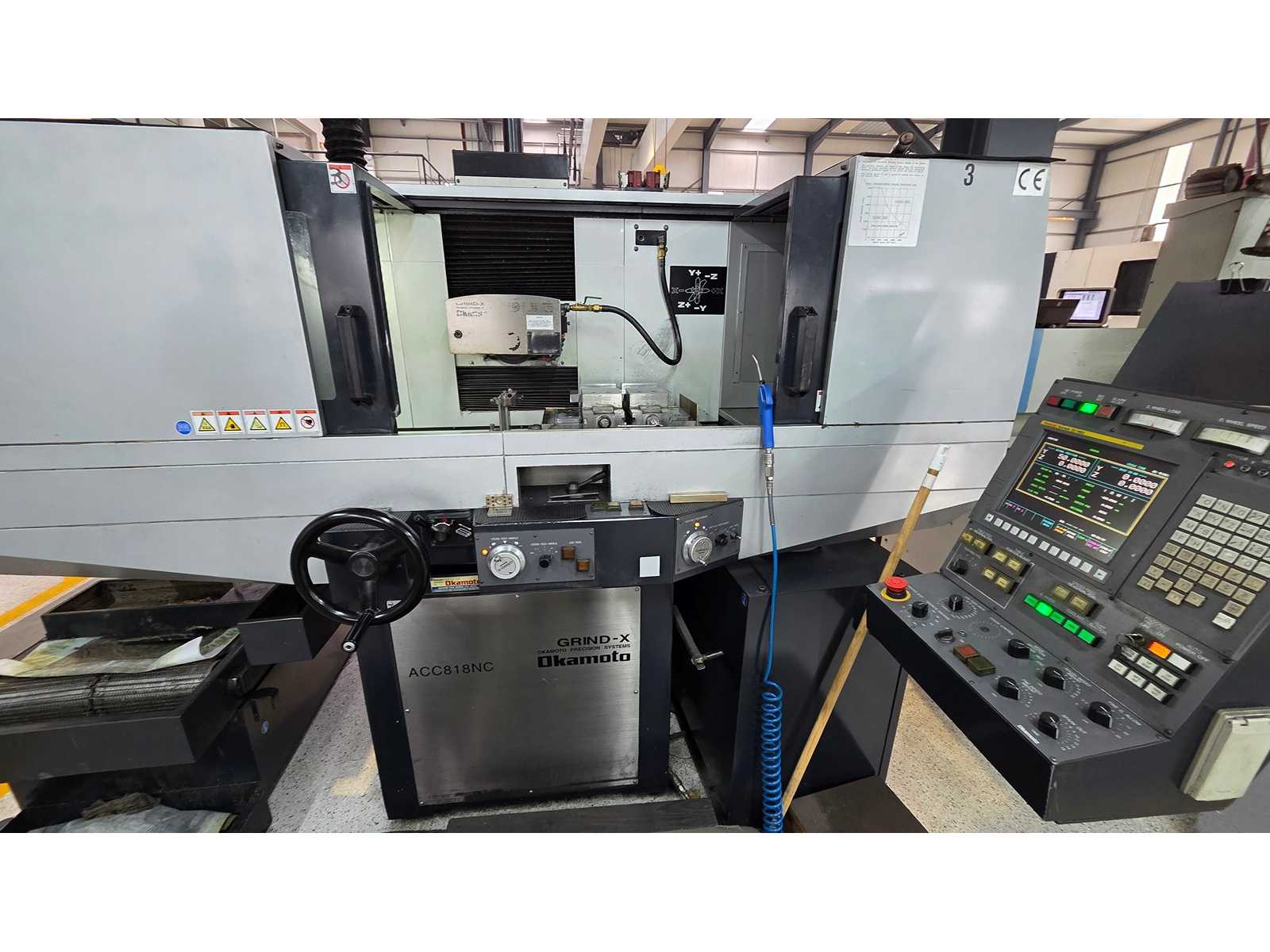

Okamoto ACC818NC Grind-X Precision Surface Grinding Machine Type: CNC surface grinding machine Manufacturer: Okamoto Model: ACC818NC – Grind-X Year of build: 2019 Serial number: Not visible Control: CNC Application: Precision surface grinding Power supply: 3 phase, 200 V, 50 Hz Control circuit: AC100 / DC24 V Total power: Approx. 9 kVA / 6.5 kW Main motor power: Approx. 2.2 kW Maximum load current: 30 A Short circuit interrupting capacity: 5 kA Installation dimensions: approx. 2105 x 1611 x 2233 mm Machine weight: approx. 1800 kg Grinding capacity: Maximum workpiece length: approx. 450 mm Maximum workpiece width: approx. 200 mm Maximum grinding height: approx. 350 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-48274-72

Code 171305 Description CNC surface grinding machine Make DANOBAT Model PSG - 1000 Serial No. 30102 A Control Fanuc 210i - M Year 2001 Tablesize 1000 x 500 mm Grinding surface L x W x H 1000 x 600 x 450 mm Long ( X axes ) 1150 mm Cross ( Z axes ) 500 mm Speed table movement 1 – 30 m/min. Max. distance table – centre grinding wheel 650 mm Max. workpiece weigth 1500 kg Max. table load 1500 kg Magnetical plate size L x W 1000 x 500 mm Grinding stone dim. Stone x Wide x Taper Ø 400 x 100 x Ø 127 mm Spindel power 7,5 kW Spindel speed 1500 rpm Motor power 7,5 kW – 380 Volt Total electr.com. 20 kW Total space L x W x H 3950 x 3150 x 2550 mm Weight 5500 kgs Accessoiries Elec. Magneticplate 1000 x 500 mm Coolant with paperfilter Digital readout Grinding stones, etc. Condition Machin ...

Including various spare parts & accessories Auction-ID: A1-48232-13

Code 81199 Description Hydr. Surface grinding machine Make DANOBAT Type RT – 1200 Machine No. 504 Manufacturing date 1987 Table size 1400 x 450 mm Grinding dimensions L x W x H 1200 x 600 x 450 mm Magnetic plate size L x W 1200 x 450 mm Table speed movement 1 - 30 m/min. Max. distance table surface – centre grinding wheel 675 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1200 rpm Spindle power 7,5 kW Grinding wheel size Ø 450 x 50 ( 100 ) x Ø 127 mm Weight 6000 kgs Size of machine 3250 x 1850 x 2600 mm Total power 19 kW – 380 Volt Accessoiries Electro magnetic plate 1200 x 450 mm from Tecnomagnete Coolant Pendel control Condition Machine is in normal condition

Including various spare parts & accessories Auction-ID: A1-48232-12

Code 61063 Description Surface grinding machine Make ABA Model FFU 2000/60 Serial No. 208 125 Control Abamatic 3 Year 1986 Tablesize 2510 x 500 mm Grinding surface L x B x H 2000 x 600 x 700 mm Magnetical plate size L x B 2000 x 500 mm Speed table movement 3 – 30 m/min. Max. distance table – centre grinding wheel 900 mm Grinding stone dim. Stone x Wide x Taper Ø 400 x 50 x Ø 127 mm Spindel power 26 kW Spindel speed 1600 - 3000 rpm Motor power 26 kW – 380 Volt Total electr.com. 34 kW Total space L x W x H 7000 x 3500 x 2650 mm Weight 10500 kgs Accessoiries Elec. Magneticplate 2000 x 500 mm Coolant with paperfilter Digital readout Grinding stones, etc. Condition Machine is in good condition

Including various spare parts & accessories Auction-ID: A1-48232-11

Code 61062 Description Hydr. Surface grinding machine Make DANOBAT Type RTS - 1600 Machine No. 16 220 Manufacturing date 1975 Table size 1800 x 550 mm Grinding dimensions L x W x H 1600 x 600 x 650 mm Magnetic plate size L x W 1600 x 550 mm Table speed movement 1 - 25 m/min. Max. distance table surface – centre grinding wheel 750 mm Speeds cross 0,1 - 5 m/min. Vertical movement 0,005 – 0,05 mm Spindle rotation 1500 rpm Spindle power 15 kW Grinding wheel size Ø 400 x 50 ( 100 ) x Ø 127 mm Weight 10.000 kgs Total power 20 kW – 380 Volt Accessoiries Electro magnetic plate 1600 x 550 mm from Tecnomagnete Coolant Vertical grinding spindel Condition Machine is in good condition

Auction-ID: A1-48232-32
