Manufacturer:
(Category: 102)

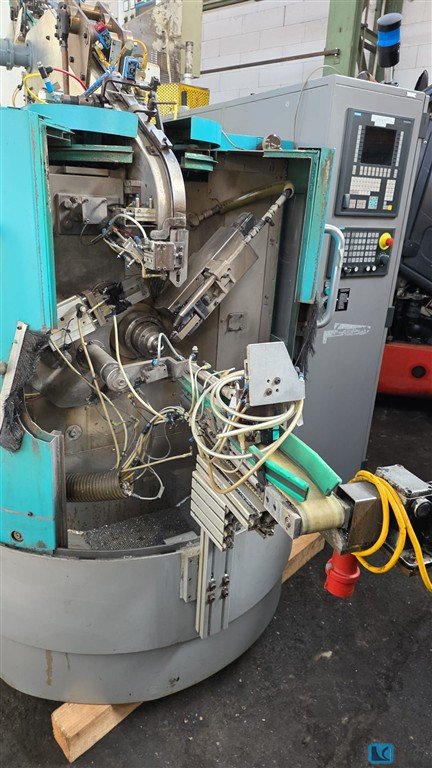

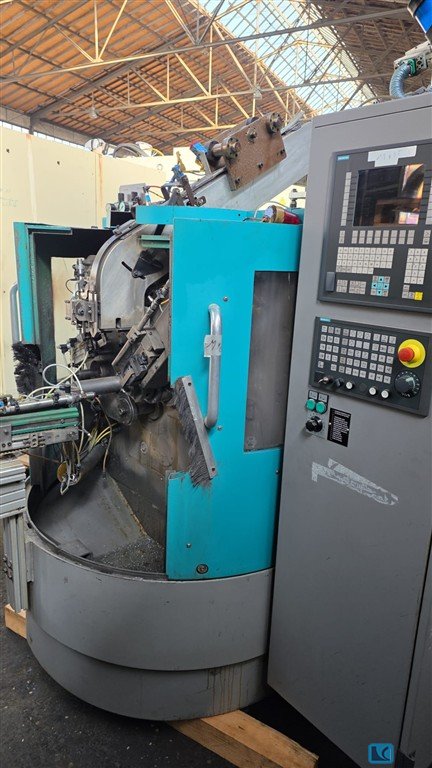

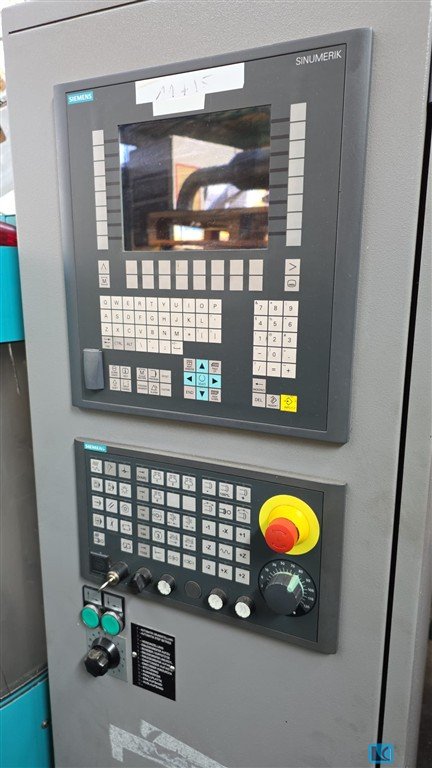

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

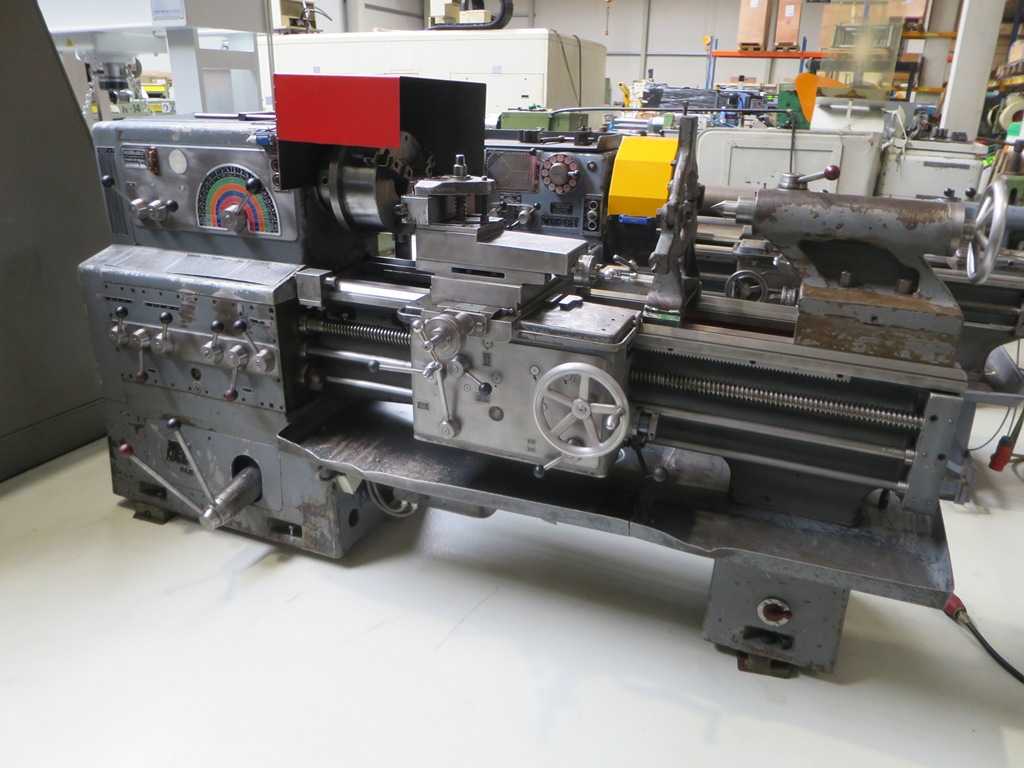

Guide and tension spindle lathe machine - Forkardt-3 jaw chuck F 315 - Single steel holder - Bezel - Moving center punch - Lining protection, limit switch monitored - Chip tray Turning diameter over bed 600 mm Turning diameter over support 400 mm Turning length 1000 mm Turning diameter in the offset 850 mm Speed 15 - 810 rpm Center height 300 mm Spindle bore 56 mm Total power requirement 9.0 KW Machine weight approx. 2.9 t Dimensions approx. 2.8 x 1.45 x 1.65 m

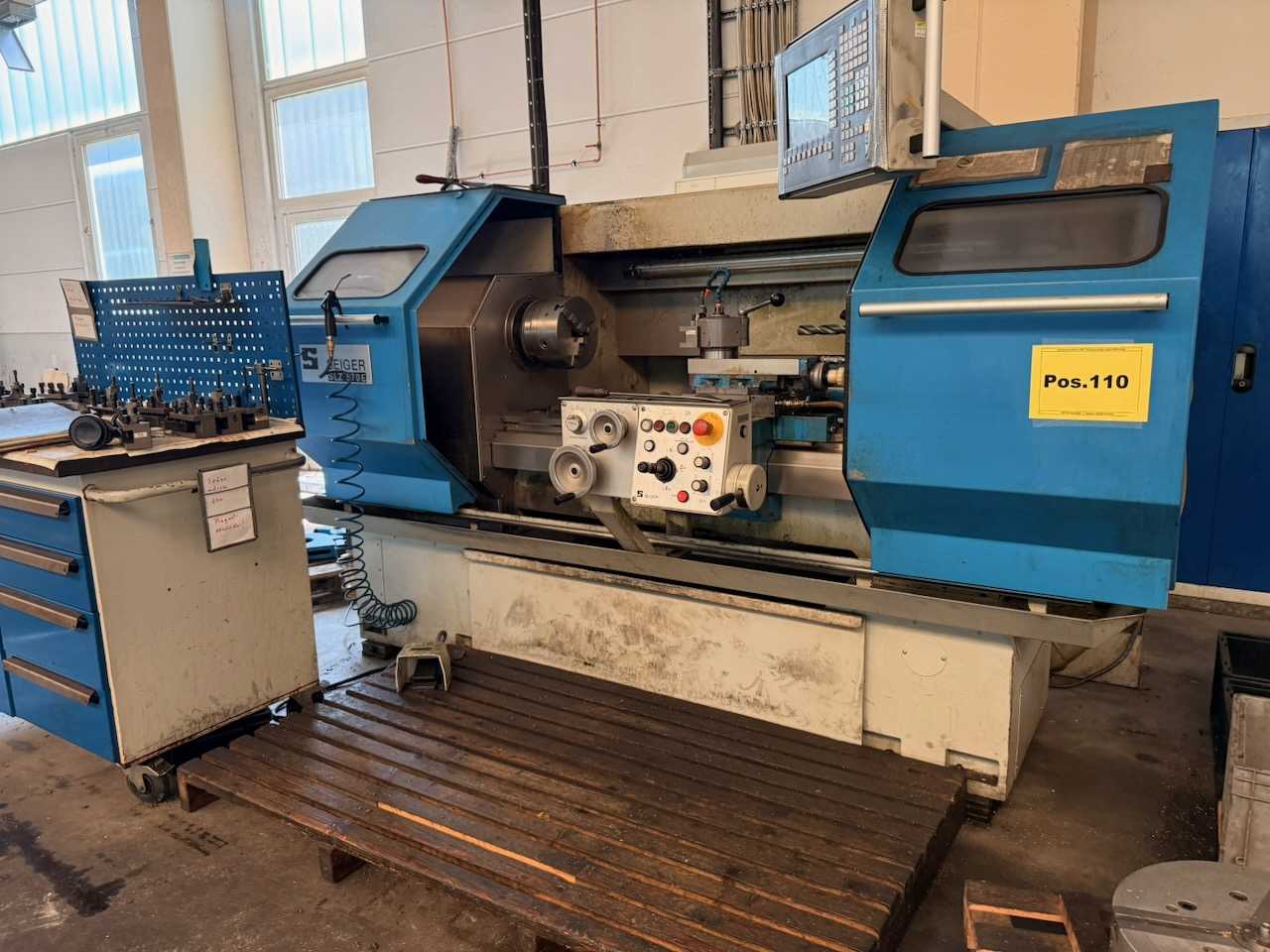

ManufacturerSEIGER Präzisions-Maschinenbau TypeSLZ 570 E Year of manufacture2004 Series NR4330 Cycle lathe / CNC high-performance lathe with Siemens SINUMERIK control. Description with scope of delivery and condition description Used cycle lathe for chuck and shaft machining. The machine has a controlled main drive, servo-driven feed axes and a Siemens SINUMERIK control system with cycle rotation function. The machine comes from industrial use and is in well-maintained used condition. Signs of wear due to age and use present. Scope of delivery according to existing equipment: • 3-jaw chuck Ø 250 mm • Quick-change steel holder with tool holders • Coolant device • Machine light • Fixed and moving centering tip MK5 • Fixed bezel (12-150 mm) • Rotating bezel (12-125 mm) • Various tool holders and accessories • Documentation if available Technical data • Center ...
turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

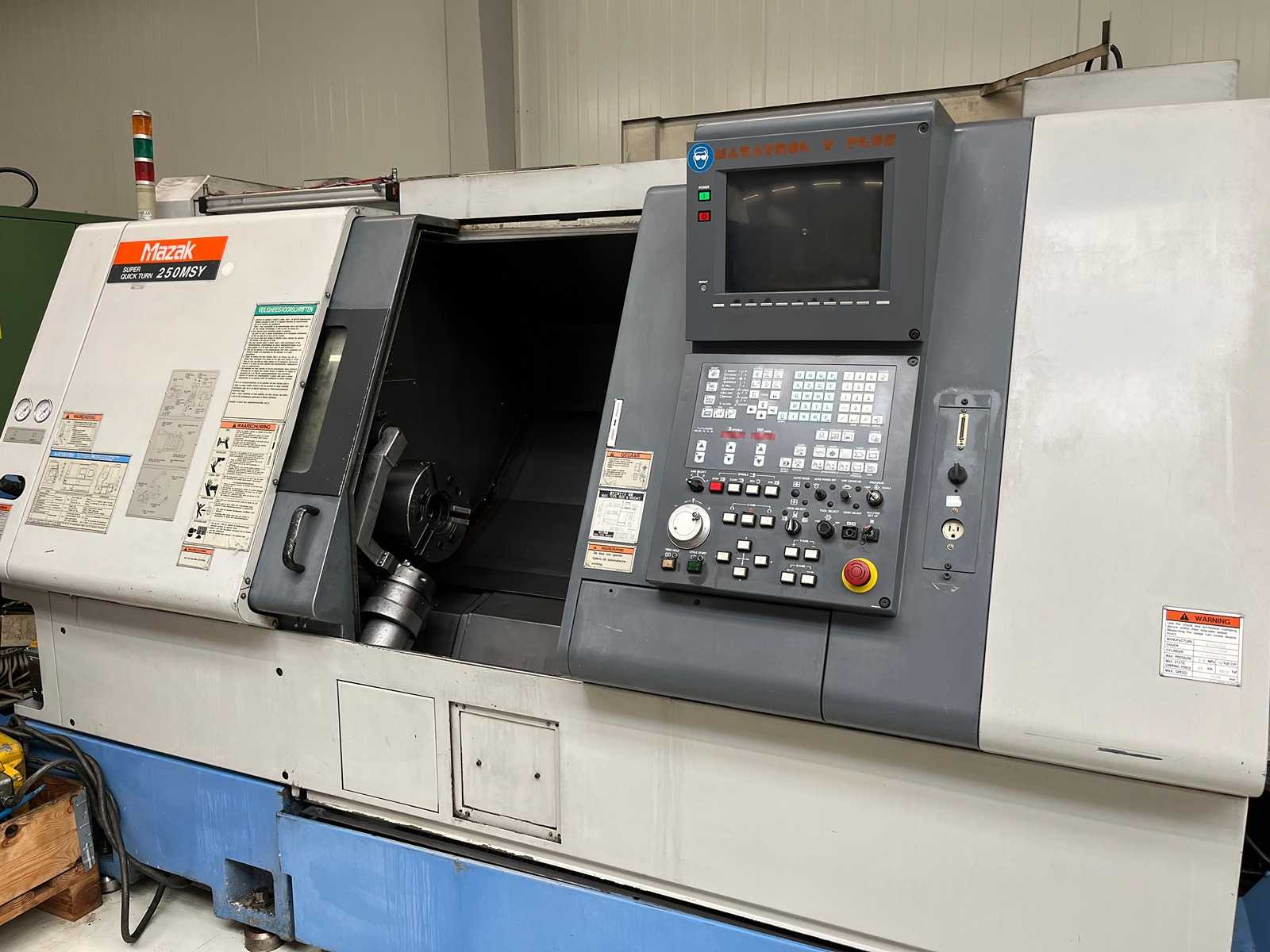

CNC LATHE WITH SUBSPINDLE AND Y-AXIS Inv. No. 13.032C1 Make MAZAK Model SQT250MSY Control T-PLUS Center distance 495 mm Max. swing over bed Ø 525 mm Max. swing over cross slide Ø 350 mm Spindle bore Ø 64 mm R.P.M. 35 – 4,000 (16x) kW 18 Volts 380 Cycles 50 Including: 12 pos. A.T.C.(driven tools) Hydraulic chuck Ø250mm
This Pinacho STH 400-105Ã3000 was manufactured in 2017. A robust horizontal turning machine with a swing over bed of 400 mm and a distance between centers of 3000 mm. Features a high-torque spindle and CNC-controlled feed for precise heavy-duty turning. Ideal for machining shafts, pipes, and flanges. Consider the opportunity to buy this Pinacho STH 400-105Ã3000 horizontal turning machine. Contact us for more information.
This 5-axis Mazak INTEGREX i-200 S was manufactured in 2017. It features full 5-axis simultaneous machining, a maximum machining diameter of Ã658 mm, and a maximum machining length of 1519 mm. The machine includes a robust tool magazine capacity of 72 positions and is equipped with both main and second spindles for enhanced capabilities. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX i-200 S turn-mill centre. Contact us for further details.
turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024
turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-AxisTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser ...

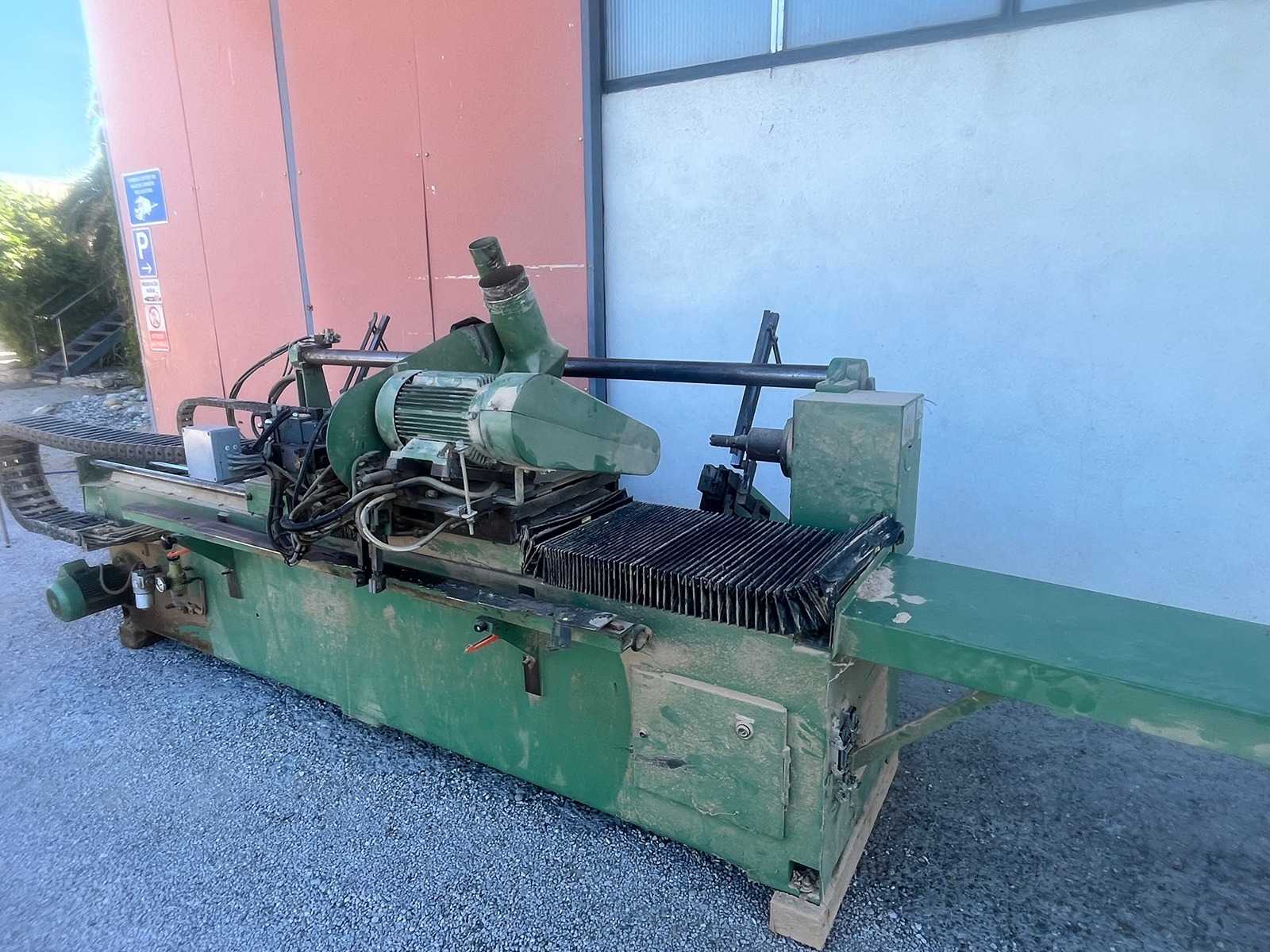

HEMPEL CKE semi-auto lathe 20Long. max 2000 mm, max Ø 250 mm. Manual/auto controls, longitudinal carriage, 3-jaw chuck. Robust construction for wood or metal turning, suitable for prod. average. Reliable and versatile machine.
faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis
faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis
CNC control: MSX-850 IIINumber of axes: 2Strokes: X = 260 mm, Z = 590 mmSpindle speed: 50 – 5000 rpmPower: 15 kWBar capacity: Ø 65 mmSpindle bore: 73 mm Turret: 12 stations (BMT)Max turning diameter: 356 mmMax turning length: 510 mmChip conveyor: yes235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders.
Manufacturer: Heidenreich & Harbeck (VDF), Hamburg , Type: 18 RO , Year of construction: 1960 , Working range: Center width: approx. 1,000 mm , Circulation over bed: approx. 360–380 mm , Circulation over support: approx. 200 mm , Speed range: 28 – 1,250 rpm , Multi-stage mechanical transmission , 3-jaw chuck Forkardt Ø200 mm , Operating voltage: 380 V ; Control current: 220 , frequency: 50 Hz I ; PhotosTotal current: approx. 4 A , Equipment: Multifix quick-change holder , Type B several rotary holders and drill holders ,Forkardt 3-jaw chuck Ø200 mm , extensive tool equipment , see photos for more details
Lathes with: - Digital display - Quick-release steel holder - 3-jaw chuck 200mm and 160mm - Chip tray - Centering tip Turning diameter over bed 460 mm Turning diameter over support 280 mm Turning length 1000 mm Center height 230 mm Circumferential diameter in offset 720 mm Spindle bore 53 mm Spindle speeds 28 - 1250 rpm Total power requirement 4.0 kW Machine weight approx. 1.8 t Dimensions approx. 2.4 x 1.4 x 1.75 mm
turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

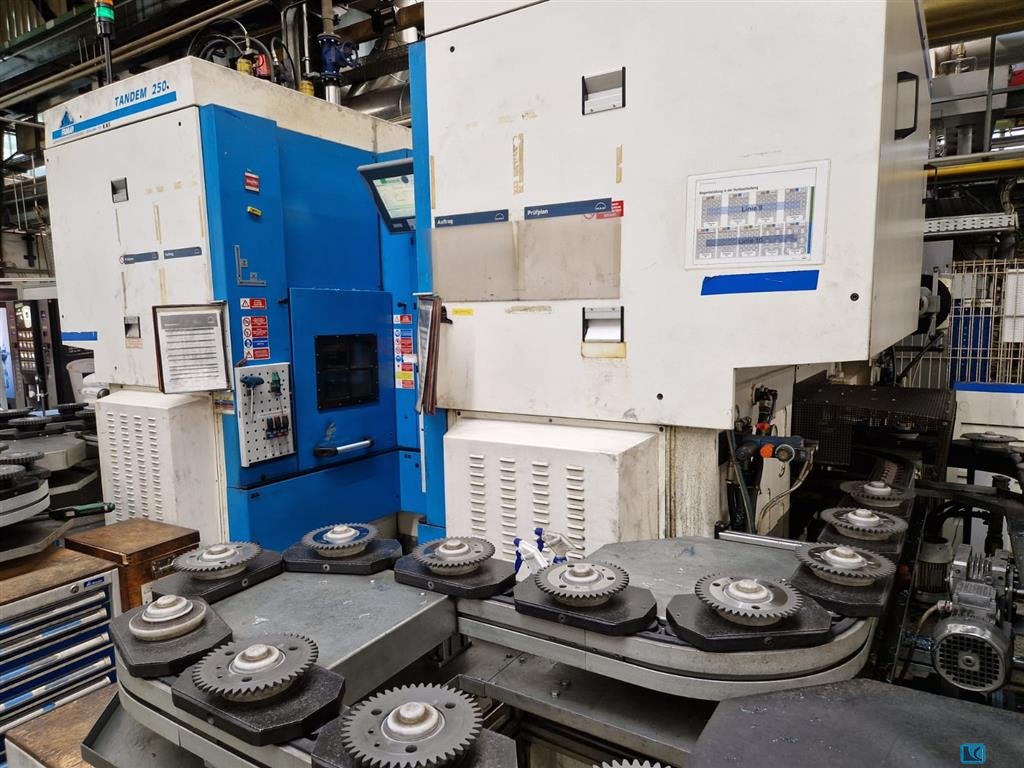

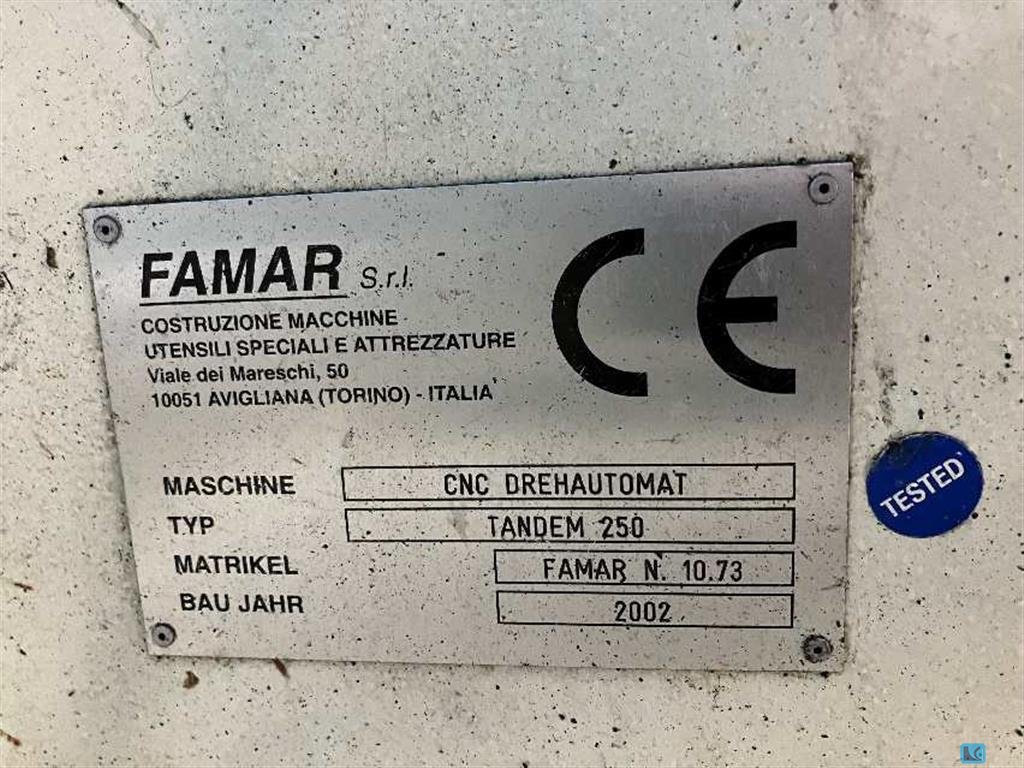

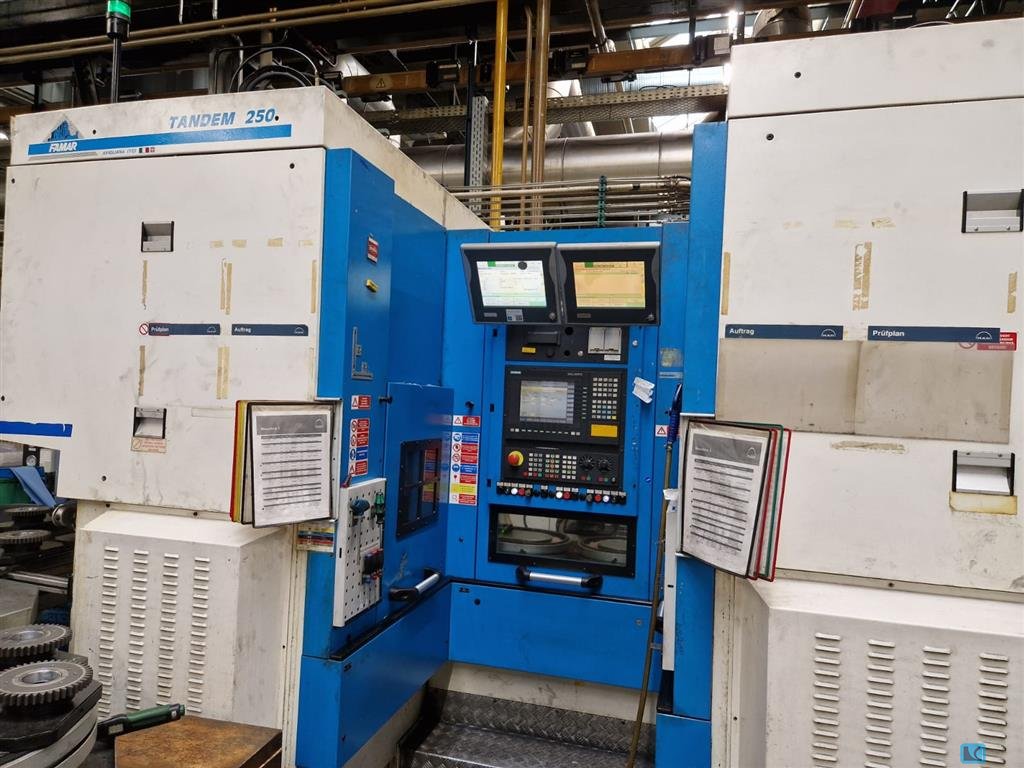

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!
turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min
turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mmTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.
turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
CNC LATHE Inv. No. 12.711C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG1685B17GE Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith live tools:VDI40 Live tooling VDI40with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!
Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m
