TEACH IN LATHE Inv. No.: 13.110C1C Make CHEVALIER Model FCL1840 Mach. No. X186A005 Control FAGOR 800TGI Centre Distance 1.000 mm Max. Swing over Bed Ø 460 mm Max. Swing over Cross Slide Ø 230 mm Spindle Bore Ø 58 mm R.P.M. 40 – 2,000 HP 7.5 Volts 400 Cycles 50 Including: 1 x Steady Rest Fixed toolpost multifix 3-jaw chuck
CNC lathe for metal part turning operations. Numerical control: Fanuc 18TAxes: 3-axisTurret: 12 fixed positions + 6 rotating positionsChuck: Ø 200 mm (possibility of mounting clamps in the spindle)Distance between tips: 350 mmSpindle speed: 4,000 rpmSpindle passage: 51 mm
CNC LATHE Inv. No. 12.271C1 Make COLCHESTER Model CNC 1000 Machine No. 28/0001C/00020 Control FANUC OT Centre distance 750 mm Max. swing over bed Ø 340 mm Max. swing over cross slide Ø 200 mm Spindle bore Ø 69 mm RPM 75 – 4000 rpm (16x) kW 18 Volts 380 Cycles 50 Including: 4 positions automatic toolchanger
Equipped with- 27 mm spindle passage- adjustable guideways- Powerful motor with 0.75 kW- High resolution of the axis spindles for exact positioning- Attention without digital displayScope of delivery:3-jaw chuck 100 mm, interchangeable wheel set, splash guard.Turning diameter over bed 250 mmTurning diameter over support 130 mmTurning length 700 mmSpeed 115 - 1620 rpmTip height 125 mmSpindle bore 27 mmTailstock quill holder MK 2 Tailstock quill stroke 40 mmMetric threads 0.2 - 3.5 mmThread - inch 8 - 56 inch.Thread module 0.2 - 12.5 mmSwivel range +/- upper slide 45 °Connection voltage 400 VTotal power requirement 0.75 kWMachine weight approx. 0.15 tSpace requirement approx. 1.41 x 0.61 x 0.41 m Condition: never used / new (5)
Manufacturer: DMG GILDEMEISTERYear: 2008Type: CNC lathe with motorized tools with C and Y axesNumerical control: Heidenhain iT PlusMax. turning diameter: 400 mmMax. turning length: 600 mmDistance between tips: 615 mmMain spindle: 20–6,000 rpm – 16 kW – max. torque 155 NmBar capacity: Ø 52 mm – spindle bore 61 mmC-axis: 0.001° resolution Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW)Strokes: X 160 mm / Z 450 mm / Y ±32 mmFast feeds: X 60 m/min – Z 45 m/minAttachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic systemDimensions (mm): 8000 × 3000 × 2700Weight (kg): approx. 4500Remarks: Machine in good condition, powered on. Serial number included in the description.
Guide and pull spindle lathe:3-jaw chuck 160 mm.4-jaw chuck 200 mm.Face washer200mm steadyrest fixed steady rest running4-fold steel holder.Halogen machine lightChip tray, chip protection wallHardened and ground bed tracksLongitudinal and transverse feedComplete coolant systemChuck protectionKit changegears Machine toolsTurning diameter over bed 320 mmTurning diameter over support 220 mmTurning diameter 600 mm Turning diameter in offset 320 mmSpeed 60 - 1650 rpmCenter height 160 mmSpindle bore 38 mmTailstock quill holder MK 3 MKConnection voltage 400 VTotal power requirement 1.1 kW Condition: never used / new (5)
turning diameter:1600 mmturning length:3000 mmcentre height:800 mmturning diameter over bed:1600 mmturning diameter over bed slide:1400 mmturning dia. over face-slide:1200 mmmax. workpiece weight between centers:20 tospeeds:5,6 -800 1/mintransmission ratio:3 spindle bore:112 mmturret (x-stations):8 / VDI 60 travel -x axis:850 mmtravel -z axis:3020 mmrapid power traverse in X-and Z direction:6 / 10 m/minpower maindrive:46 kWweight of the machine ca.:22 to.dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 mtech-in lathe, flatbed,tailstock,8-pos. BARUFFALDI turret with 4 live tools, power 9kW,4-pos. BARUFFALDI square-headed turret horizontal,C-axis,3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm,quick adjustment, power cylinder with 2 pressure clamping system,chipconveyor,coolant device,accessories
Turning length210 mm Turning diameter660 mm Diameter on the bench760 mm Diameter on trolley Distance between tips995 mm CNC TypeMazatrol Matrix X-axis580 mm Z-axis1045 mm Max Weight Piece- Capto C6 Spindle Nose Spindle bore76 mm Motorized substations- Rotational speed5000 rpm Spindle motor power22 kW Tool: Capto C6 ILS Bar Feeder Type MUK - 7016 -III Year of Manufacture: 2019
turning diameter:230 mmturning length:810 mmcentre distance:1.000 mmturning diameter over bed:460 mmspindle passage:56 mmchucking diameter:200 mmturret head:8 x VDI 30 Pos.turning speeds:3.100 1/minmax. workpiece weight:570 kgspindle motor:18 kWdimensions of the machine ca.:3,7 x 1,9 x 1,8 mweight of the machine ca.:2,9 tteach-in lathe,PARAT tooling-system,hand operated collet chuck,3 jaw chuck,4 toolholders
swing diameter:320 mmcontrol:840 D SIEMENSturning speeds:5000 1/minspindle drive:20 / 27 kWchucking diameter:250 mmtravel -x axis:650 mmtravel -z axis:300 mmturret head:12 Pos.tool holder:VDI 40 toolpiece turning speed range:4000 1/minwork piece power:max. 11,7 kWweight of the machine ca.:8 tCNC vertical lathe,live tools,C-axis,high pressure pump 20 bar, 500l, filter,flush gun,3-jaw chuc,EWAB loading station right,chipconveyor,approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total)MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours)
Manufacturer: CAZENEUVEModel: CT 200Year: 2000Type: CNC lathe with learning (conversational)CNC control: NUM 1040 T PlusSerial number: 20177Inclined bed CNC lathe with 4 slides, allowing use in CNC mode and in learning mode with conversational. Machine suitable for precision turning work and small to medium series. Capacities communicated by the seller:• Distance between tips: 800 mm• Maximum spindle speed: 4,000 rpm (high-precision cartridge spindle – chuck speed to be checked)• Maximum permissible weight in mandrel: 200 kg• Maximum weight between tips (without bezel): 800 kgSpindle:• Spindle nose A1-6" – DIN 55026• Advertised bore: Ø 42 or 54 mm (depending on configuration)Equipment listed by the seller: • Duplomatic 12-position bidirectional automatic turret – VDI 30• Ø 200 mm Gamet chuck with jaw sets• CoolantAdditional data:• Machine net weight: approx. 2 ...

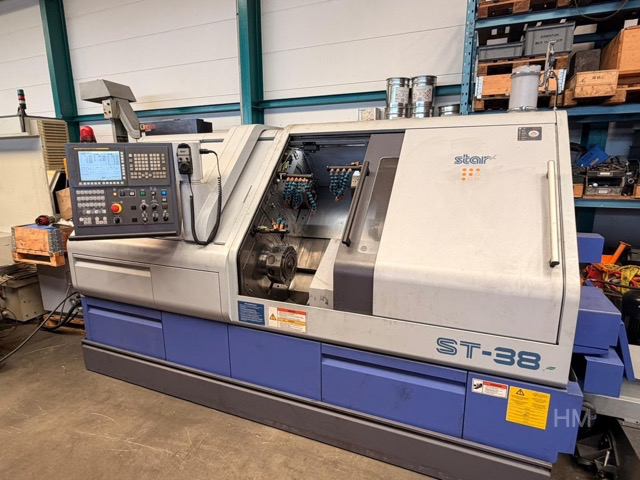

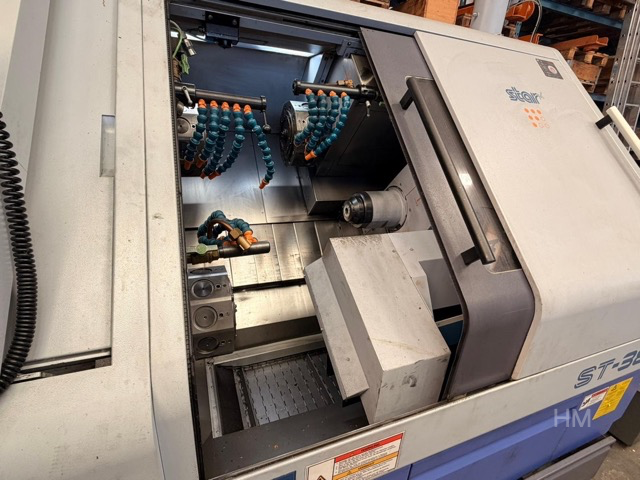

bar material dia.:38 mmturning length:350 mmturning speeds:7.000 / 7.000 U/minnumber of tools:30 (3 x 10) driven tools:ja / yes control:FANUC 31i-B5 rapid traverse:30 m/mintotal power requirement:10,5 kVAweight of the machine ca.:6,5 tdimensions of the machine ca.:2,50 x 1,45 x 1,75 plus Lademagazin mwork piece power:4 kWtoolpiece turning speed range:5.700 1/minmain spindle power:11 kWsub spindle power:7,5 kWCNC sliding headstock machine STAR ST 38,3 turrets,12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3,Fireextinguisher KRAFT und BAUER FB 703,partscatcher and conveyor belt (for long parts),LTA oilmist suction,chiller for oil,machining with oil as coolant,reading hours:approx. 14.500 hours "machine on", approx. 4.100 hours "machining"
CONVENTIONAL LATHE Inv. No. 13.188C1 Make PINACHO Model S-90/180 Mach.no. 22417 Centre Distance 750 mm Max. Swing over Bed Ø 360 mm Max. Swing over Cross Slide Ø 205 mm Spindle Bore Ø 42 mm R.P.M. 30 – 2000 kW 2.2/3.4 Volts 400 Cycles 50 Including: 3-Jaw Chuck Ø 200 1 x Steady Rest Toopost Rapid Original type A Coolant attachment
bar material dia.:65 mmturning length:644 mmturning dia. over bed:600 mmturning diameter over slide:430 mmy-axis:100 (+-50) mmturning speeds:2x 5.000 1/minpositive location each:2x C-Achse, 0,001° GradSub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos.driven tools:2x 12 Pos.turning speeds:2x 4.000 1/mincontrol:FANUC 18 iTB total power requirement:30 kVAweight of the machine ca.:8 tdimensions of the machine ca.:3,5 x 2,5 x 2,3 mturning- milling center with Y-axis,collet device on main and subspindle,high pressure pumps 2x 14bar,parts catcher/conveyor,barloader ENTL 10-65,chip conveyor,lot of accessoriesapprox. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"
turning diameter:1000 / 700 mmturning length:3000 mmface slide travel:600 mmturning diameter over slide:700 mmturning speeds:1-1.800 1/mintransmission ratio:2 spindle:46 (60%) kWspindle bore:132 mmquill stroke:280 mmworkpiece weight max.:2.560 kgtotal power requirement:38 kWweight of the machine ca.:6 tdimensions of the machine ca.:5 x 2,6 x 1,9 mteach in lathe,PARAT tooling system,SCHUNK ROTA NC 500-160 hydr. power chuck,tailstock,chipconveyor
turning diameter:80 mmturning length:235 mmmax. bar capacity:42 mmpower capacity - driven tools:1 kWspeeds spindle 1:6000 1/minspeeds spindle 2:5000 1/minnumbers of turret head positions:8 posdrive capacity - spindle motor:SP1 11 / SP2 5,5 kWTools speed:60-6000 1/minweight of the machine ca.:ca. 3 tdimensions of the machine ca.:2,4 x 1,5 x 1,6 mHigh Performance CNC Turning- and Milling Center - chipconveyor- subspindle- live tools- C-axis- brake- partscatcher and partsconveyor- tool eye- barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours
CNC LATHE Inv. No. 12.711C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG1685B17GE Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant
swing diameter:260 mmcontrol:840 D SIEMENSturning speeds:3.500 1/minspindle drive:36 / 28 kWchucking diameter:260 mmtravel -x axis:900 mmtravel -z axis:400 mmturret head:12 Pos.tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/mindimensions of the machine ca.:5,3 x 2,4 x 3,31 mCNC vertical lathe with 2 spindles,2x RÖHM power chucks dia. 315mm,
turning diameter:420 turning length:1230 mmswing over bed:700 mmswing diameter over slide rest:550 mmcentre distance:1390 mmy-axis:+/- 60 mmturning speeds:3500 1/minturret (x-stations):12 power capacity:22 / 18,5 kW:1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min:76 mmtotal power requirement:50 kVAweight:7,8 tdimensions of the machine ca.:4,10 x 2,05 x 2,21 mCNC lathe with Y-Axis and driven tools,C-axis,tool eye,hydraulic 3-chaw-juck D= 250 mm,reinforced pump 15 bar,pressure-compensated clamping cylinder ,2 step clamping pressure,prepared for steady (without steady),progr. tailstock (dragging device),live tool device (3,7 kW, 3.000 rpm),chipconveyor,1 pcs. live tool includedapprox. 15.500 working hours
Machine serviced, checked for operation and geometry Everything works and is in good condition

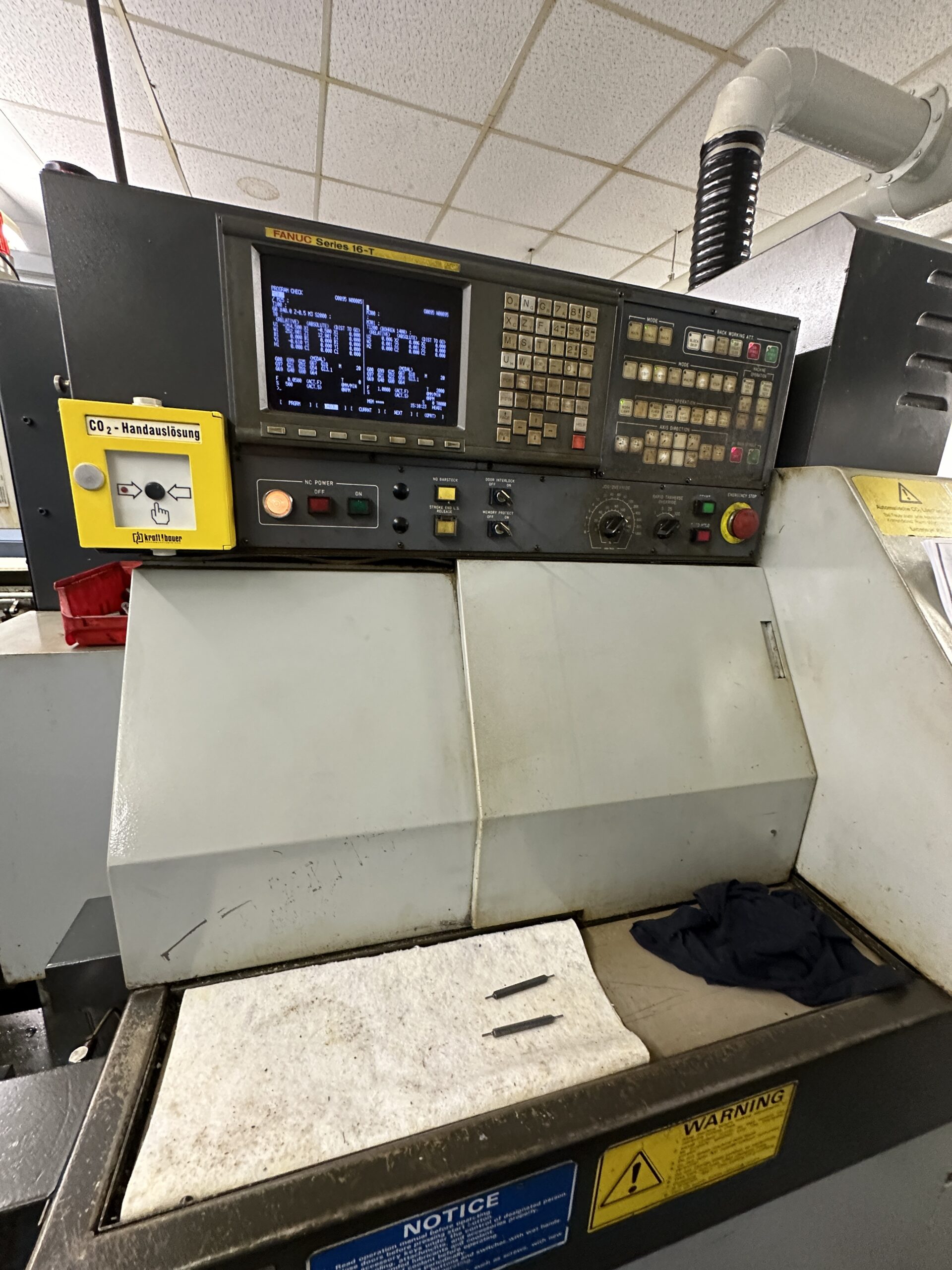

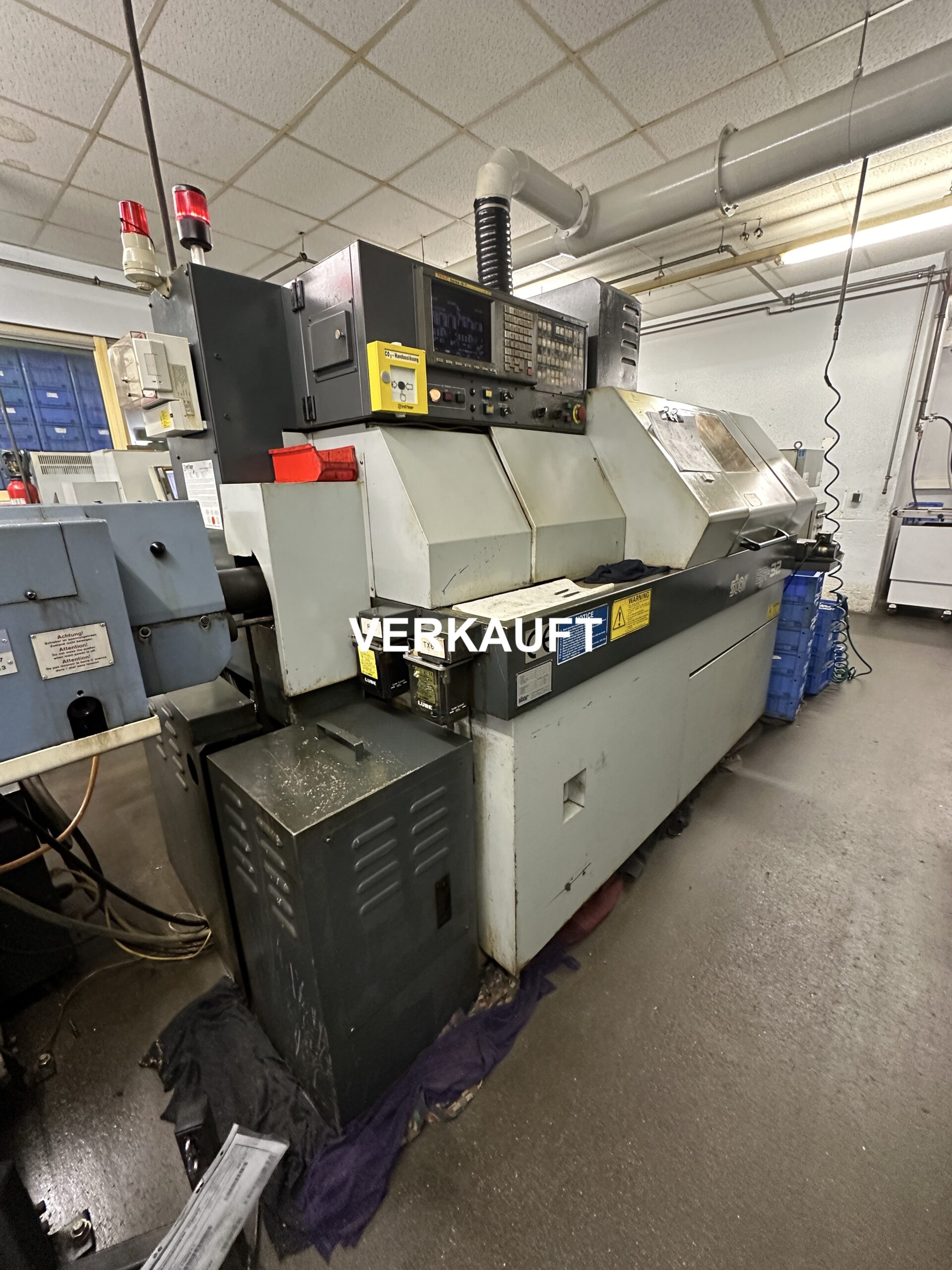

bar material dia.:13 mmturning length:205 mmturning speeds:12.000 / 12.000 U/minnumber of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVAweight of the machine ca.:1,7 tdimensions of the machine ca.:2,7 x 1,4 x 1,7 mCNC sliding headstock machine,subspindle,Year 2003 (0450)FANUC 16i-T control with 9 axes,9 axes (X / C1 / Y / E / B / A / X / c2),Main spindle, speed max. 12,000 rpm, C-axis,Counter spindle with collet, speed max. 12,000 rpm, C-axis,4-fold tool holder3 transverse drilling apparatusesRevolver with 8 stationsvarious additional tool holders, quills,Extinguishing system Kraft and BauerHigh pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves,Parts conveyor beltManuals Operation/Programming/Electrical/Spare PartsOperating tool machineUp to 29 turning tools and up to 19 attachments possible9.0KVATank capacity 170LLoading maga ...
