number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AFH130 with CNCYob: 1990eight-spindle automatic lathe8 main spindlesChucker AFH130 for complete machining means front- and back sideControl Siemens Sinumerik 840DIcomplete revising and new configuration of this machine in year 2010.loading arm, for loading and disloading Workpiece turn around station in pos. 4 position 4 with workpiece length controlCNC compound slide in pos. 5coolant pump with magnet candle filterdelivered tooling: could be different like picturesoption:Ergomat TBF42 for cutting off for half finnishing with FMB-TurboVisiting under production condition is possiblePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
turning diameter:336 mmturning length:216 mmweight of the machine ca.:8,3 tArticle: CNC multi-axis latheManufacturer: HurcoModel: TMX 8MYSiYear of manufacture: 2022CNC multi-axis latheExcerpt from manufacturer?s specifications:Working area:Max. turning diameter: 336 mmMax. swing diameter: 560 mmMain spindle specifications:Max. speed: 4,500 rpmChuck diameter: 210 mmTie-bar diameter: 64.5 mmCounter-spindle specifications:Max. speed: 6,000 rpmTool turret with driven toolsBar-Loading Magazine: SAMSYS M3000 (2022 model)HYDAC CoolerThe machine can be visited under power.The tool configuration included in the scope of delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden
turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm
turning diameter over bed:240 mmturning length:450 mmtotal power requirement:0,5 kWweight of the machine ca.:120 kgdimensions of the machine ca.:1500 x 600 x 1200 mmcentre height:120 mmspindle bore:21 mmrevolutions per minute: 75 - 2980 U/min
turning diameter:480 mmturning length:1250 mmcontrol:H 645 weight of the machine ca.:8 tdimensions of the machine ca.:5 x 2 x 2 mcentre distance:1580 mmswing over bed:495 mmswing diameter:üb.Querschlitten ca.350 mmworking area:1600 mmcontrol:H645 connected load:50 kW
control: Numeriksteuerung CNC 700 K total power requirement:28 KVAweight of the machine ca.:7,8 tdimensions of the machine ca.:6610 x 2280 x 2235 mmwork height max.:1060 mmgreates pass round over bed:305 mmspindle bore:82 mmDocuments:vorhanden
turning length:630 mmtotal power requirement:16 kWweight of the machine ca.:5 tdimensions of the machine ca.:3400 x 1500 x 1600 mmswing diameter over slide rest:Hinterdrehschlitten 250 mmcentre height:über Hinterdrehschlitten 150 mmcenter height over bed:300 mmturning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mmaccessories::2 Schränke Wechselräder
turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5
turning length:2000 mmcontrol:- total power requirement:25 kWweight of the machine ca.:3 tdimensions of the machine ca.:3800 x 1800 x 1850 mmswing over bed:500 mmswing diameter over face slide:280 mmcontrol:Zyklen-Steuerung Heidenhain bed width:350 mmDocuments:vorhanden
turning diameter over slide rest:280 mmturning length:4000 mmtotal power requirement:7,8 kWweight of the machine ca.:6 tdimensions of the machine ca.:5,9 x 1,9 x 1,40 m
turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools
turning length:140 mmdimensions of the machine ca.:4 x 2 x 1,9 m
turning diameter:570 mmturning length:1000 mmdimensions of the machine ca.:3,25 x 2,03 x 1,95 mTool disc turret for 8 tools with VDI 30.Not for power toolsmachine manual, technical documentation;Accessories: 3-jaw chuck, various tool holdersVideo is available
swing diameter:200 mmweight of the machine ca.:15 tDistance between tips:832,5 mmturning length:380 mmwith chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers
number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.No socket for powered tools!
Lathe with 4 tools only for 3-cylinder crank shaft
weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft
weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft
max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...
turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW
turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024

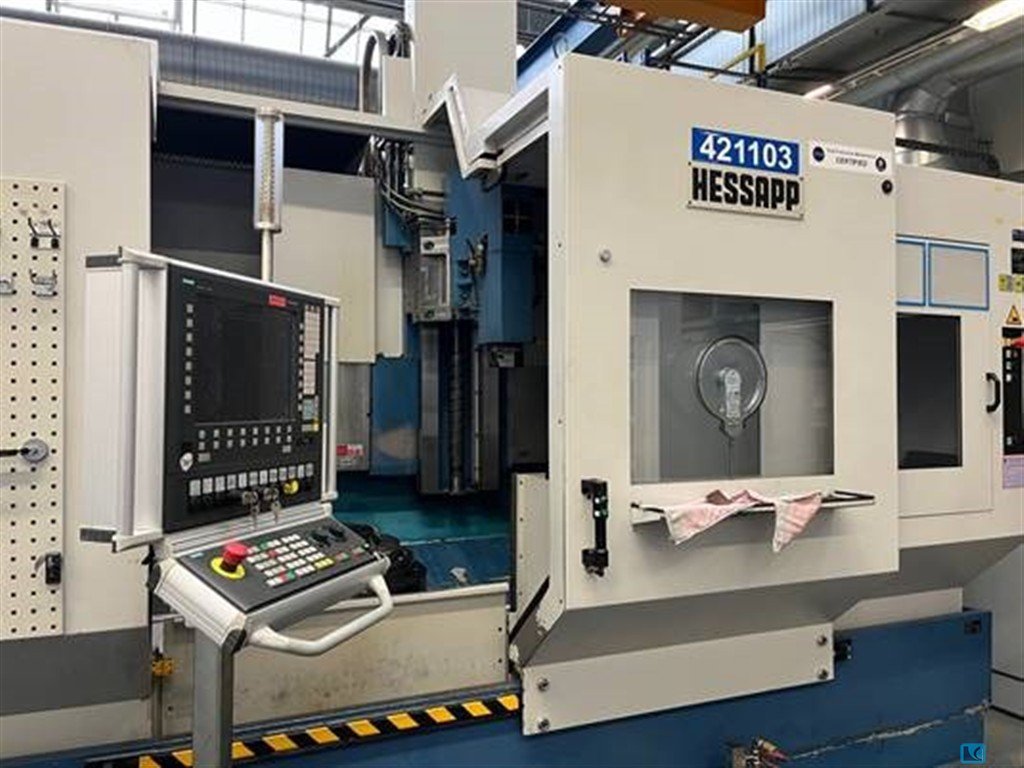

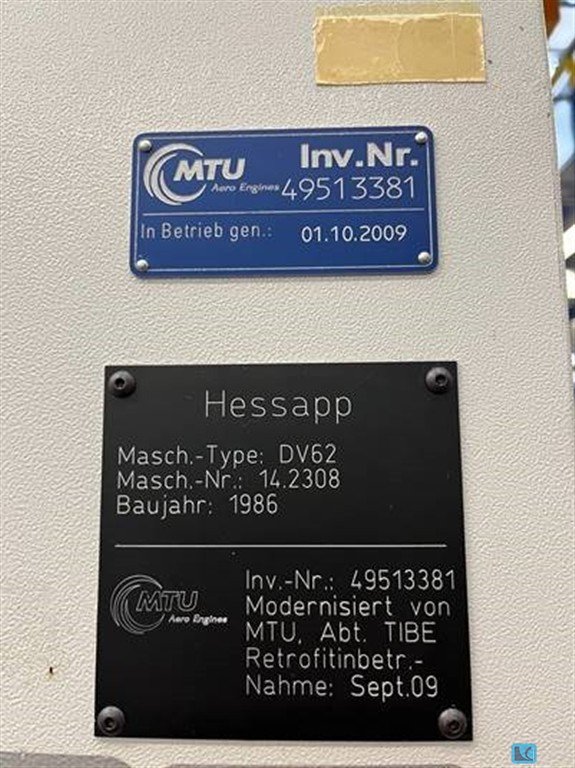

turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-AxisTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser ...
