used Other Turning Machines for sale

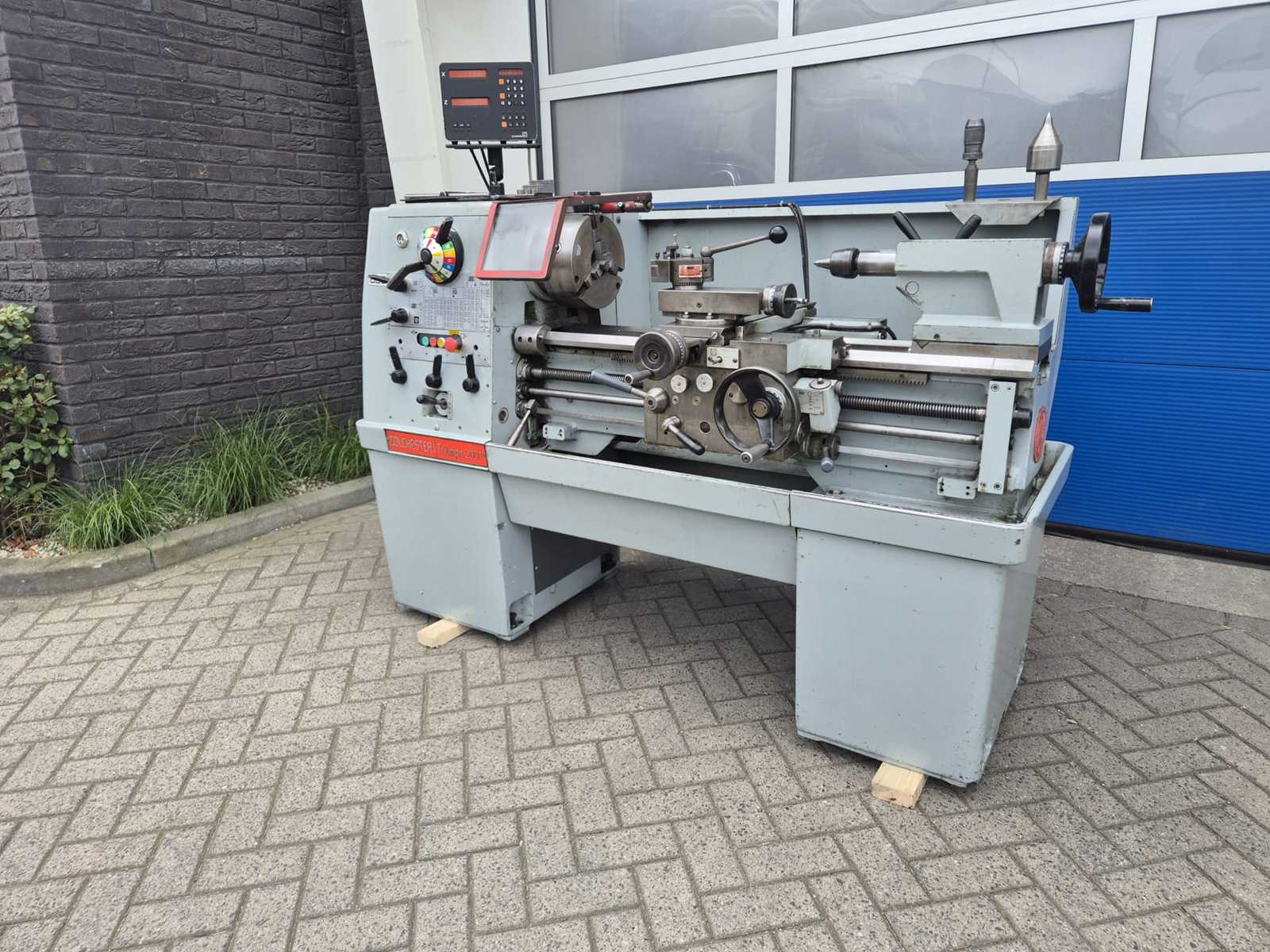

Metal Lathe make COLCHESTER Type Master 2500 / 165x1000Fabr. -No: MCH No 5/0009/07505, year of construction 1979Tip width: 1000 mmTop height: 165 mmTurning diameter over bed: 335 mmTurning diameter over cross slide: 210 mmSpindle bore: 40 mm16 spindle speeds: 30 - 2500 rpm.39 metric thread pitches: 0.2 - 14 mm45 Whiteworth thread pitches: 2 - 72 tip18 module thread pitches: 0.3 - 3.521 diametrical pitch thread pitches: 0 - 44 DPLongitudinal feeds: 0.03 - 1.0 mmFeed rates: 0.015 - 0.5 mmDrive power: 3.7 kWExternal dimensions: 1985 x 890 x 1195 mmWeight approx: 890 kgWith- 3- jaw chuck diameter 200 mmused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckW ...

Metal Lathe Make COLCHESTER Type Master 2500Fabr. -No: MCH No 5/0007/05812, built in 1977Tip width: 635 mmTop height: 165 mmTurning diameter over bed: 335 mmTurning diameter over cross slide: 210 mmSpindle hole: 40 mm16 spindle speeds: 30 - 2500 rpm.39 metric pitches: 0.2 - 14 mm45 Whiteworth thread pitches: 2 - 72 tip18 module thread pitches: 0.3 - 3.521 diametral pitch thread pitches: 0 - 44 DPLongitudinal feeds: 0.03 - 1.0 mmFlat feeds: 0.015 - 0.5 mmDrive power: 3.7 kWExternal dimensions: 1985 x 890 x 1195 mmWeight approx: 855 kgused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

AUTOMATIC SPINNING LATHE DENN RPE-290 Denn Mod.RPE-290 Automatic Spinning Lathe- Spindle Speeds 615/1060/1825 RPM. More information on request.

Post turning machine make FEINBAU type PM 1-HUBFabr. -No: 3473Tip width: 165 mmTop height: 110 mmgr. circulation diameter over bed: 220 mmover cross slide: 110 mmSpindle bore: 23 mm3 spindle speeds by directly on theSpindle drive motor: 690/1380/2850 rpm.Drive motor 380 V,: 690/1380/2850 rpm.: 0.22 / 0.37 / 0.5 kWSpace required: 400 x 830 x 1170 mmWeight: 160 kgused, from a service release, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

CNC carousel lathe FKD 30 CNC control: Siemens 840D sl Machining-range: diameter 3500mm Working height: 3000mm Workpiece weight: max. 25 tons Driven tools: speed 0-3000 rpm Tool holder: ISO 50 for milling and drilling, Capto C8 for turning Faceplatespeed: 0 - 150 rpm Pickup station: 5 places. Filter system: 3000 liters incl. high-pressure pump 25 bar Chip conveyors: 3 items Remark: 2column carousel vertical lathe with traversing cross beam (W-axis adjustable) Support (X-axis) with one ram (Z-axis, ram 300mm x 300mm) for turning and milling with driven tools C-axis (faceplate) with master-slave bracing – zero backlash Manufactured in the EU

Metal lathe make GRAZIANO type SAG 210Technical specifications:Distance between centers: 1000 mmCenter height: 210 mmCircumferential diameter over cross slide: 268 mmCircumferential diameter in the crank: 580 mmSpindle bore: 57 mmBed width: 330 mmLength of the offset with the driving flange: 316 mm24 spindle speeds: 38 - 2000 rpm.80 longitudinal feeds: 0.020 - 0.44 mm80 cross feeds: 0.010 - 0.22 mm40 WW thread: 46 - 340 metric pitches: 92 - 640 module thread: 0.25 - 2.875 mod.Leadscrew pitch: 3/8 Rapid traverse: 6000 mm / minDrive power: 7.5 kWDimensions: 2700 x 1400 x 1370 mmWeight approx: 2270 kgWith- three-jaw lathe chuck- Multifix steel holder with several inserts- fixed bezel- moving center point- cooling deviceused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Error ...

Turret Lathe Fabr. HARDINGE Type HCT 3Machine -No: EC 2270Top height: 170 mmTurning length: 240 mm16 spindle speeds: 125 - 3000 rpm.stepless slide feed: 0 - 100 mm / min.Drive power: 1.5 hpExternal dimensions approx: 1900 x 800 x 1600 mmWith- Collet device- Three-jaw lathe chuck 125 mm- 6-fold revolver slide- 8-fold revolver stop- Abstechschlitten- 48 collets up to max. 28.5 mm- Cooling device- R + L runvery little used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Brake boring device Hunger 6.5 A 400 V System Brake drum & disc with accessories Grinding spindle Safety grilles

Poppet turning lathe make HUNGER type VDKYear of construction 1982Center height: 60 mmSupport adjustable: 29-30 and 44-45 °Bed width: 85 mmCone diameter: 20 - 60 mmShank diameter: 6 - 15 mmPower connection: 380 V / 50 HzWeight approx.: 15 kgOutside dimensions approx: 340 x 120 x 220 mmvery little used, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Metal turning machine make LIEBER type SS / VO / EVYear of construction 1974 with movable upper bed and electrical preselection controlTechnical specifications:Center height: 500 mmTip width: 2500 mmTurning diameter over bed: 1000 mmTurning diameter over cross slide: 750 mmSwing diameter in the crank: 1650 mmCamber length infinitely adjustable: 0 - 1500 mmSpindle bore: 101 mm12 spindle speeds: 6 - 600 rpm.Bed width: 640 mmBed slide guide length: 1020 mmSlide gate width: 350 mmUpper support width: 250 mmUpper support path: 250 mm132 longitudinal feeds: 0,051 - 4,876 mm / min.132 flat feeds: 0.027 - 2.688 mm / min.Gewindevorschübe: 66metric threads: 0,785 - 24 mmWW thread: 1.5 - 46 Gg / 1 Tailstock: MK 6Motor power: 15 kWExternal machine approx: 5000 x 2200 x 2300 mmWith- sliding bed- electrical preselection control- Faceplate Drm. 1600 mm- Leadscrew is missingusedPrice on request.Deliver ...

Metal lathe make MEXPOL / PONAR type TUR 50 SMachine -No: 45499 built in 1985Technical specifications:Distance between centers: 1000 mmCenter height: 250 mmCircumferential diameter over bed: 500 mmCircumferential diameter over support: 300 mmSpindle bore: 80 mmShort cone: size 836 spindle speeds: 18 - 1800 rpm.42 feeds lengthways: 0.64 - 26 mmacross: 0.32 - 13 mmMetric thread pitches: 42Inch thread: 42Diametrical pitch thread: 42Machine weight: 2720 kgRequired space approx .: 2500 x 1300 x 1630 mmWith- Acu-Rite digital display- three-jaw lathe chuck- faceplate- 4-way steel holder- 1 steady rest (fixed)- 1 moving center punchused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queri ...

Draw spindle precision lathe Fabr. WMW Mikromat Dresden Type DZFG 200 x 500Fabr. -No: 7960, year of construction approx. 1986Technical specifications:Tip width 500 mmTop height 165 mmgr. circulation diameter over bed 315 mmGr. orbital diameter over cross slide 200 mmTurning length between the tips 560 mmgr. workpiece diameter for bar work 31 mmGr. chisel cross section 20 x 20 mmPassage of fixed set stick 100 mmPassage of the walking stick 70 mmgr. workpiece mass between the tips 50 kg9 spindle speeds 56 - 2800 rpmRotary feeds with increments of 1.25xa0xa0xa0longitudinal 0.02 - 0.8 mm / revxa0xa0xa0plan 0.02 - 0-4 mm / revThread feeds metric thread lengthwise 0.2 - 60 mm / revxa0xa0xa0plan 0.2 - 30 mm / revInch thread lengthwise 60 - 1/2 Gg / xa0xa0xa0plan 60 - 1 Gg / Module thread lengthwise 0.1 - 28 mm / revxa0xa0xa0plan 0.1 - 14 mm / revDiametrical pitch thread lengthwise 240-1 3/8 Gg ...

:::SPECIFICATIONS::: CNC Model: Mori Seiki - Spindle nose: ASA 5 - Spindle power: 11Kw - Main spindle revolutions: 6000 - Turning diameter: 370mm - Bar clearance: 52mm - Turning length: 424mm - Number of tools: 38 - Tool connection: CAPTO C5 Spindle power: 9Kw Number of spindle revolutions: 20000 X Shaft Stroke: 380mm Y Axis Stroke: + - 105mm Z-axis stroke: 460mm Swivel B-axis travel: + - 120°degrees Rapid feeds linear axes X Y Z: 40m/min Number of Tool Turrets: 1 Number of tool places before turret: 10 Number of motorized first turret: 10 X axis travel first turret: 155mm Z axis travel first turret: 610mm Counter-spindle: yes Spindle nose: ASA 5 Number of Counterspindle Revolutions: 5500 Counter-spindle power: 7,5Kw Z counterspindle stroke : 665mm Chip evacuator: carpet Other technical data: Axis B3 (counter-spindle) degrees 0 ...

Metal lathe make MYFORD type Super 7Technical specifications:Distance between centers: 330 mmTip height: 84 mmBed width: 76 mmSpindle bore: 15.5 mmTurning diameter over support: 98 mmInfeed per division: 0.02 mm12 spindle speeds: 25 - 2150 mmThread pitches metric: 0.2 - 3.5 mmThread pitches inch: 8 - 28 Gg / 1 Feeds: 0.1 - 0.25 mm / rev.Fine feeds: 0.009 - 0.004 mmDrive power: 0.9 / 0.52 kWWeight approx: 53 kgExternal dimensions approx: 910 x 660 x 400 mmWith- Four-jaw lathe chuck- Set of change gears- steel holder- drill chuck- mitl. Center point- Tapered roller bearings in the main spindleused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machi ...

:::SPECIFICATIONS::: CNC Model: Okuma OSP CNC version: U100 - L Spindle nose: ASA 6 Spindle power: 22Kw Main spindle revolutions: 5000 Turning diameter: 630mm Bar clearance: 51mm Turning length: 1170mm Number of tools: 44 Tool connection: HSK 63 Spindle power: 7,7Kw Number of spindle revolutions: 6000 X Axis Stroke: 475mm Y axis stroke: + - 80mm Z Axis Stroke: 1155mm Swivel B-axis travel: 0.001degree Rapid feeds linear axes X Y Z: 40m/min High cooling pressure: yes Pressure value: 120bar System with external tank with filter: yes Number of Tool Turrets: 1 Number of tool places before turret: 12 First turret tool attachment type: VDI Counter-spindle: yes Number of counter-spindle revolutions: 6000 Counterspindle power: 22Kw Bar clearance: 32mm Z stroke counterspindle : 1180mm Model and brand bar magazin ...

Metall lathe manufactured by PINACHO type L-1/165Masch. -No: 11782Technical specifications:Tip height: 165 mmDistance between centers: 750 mmTurning diameter over bed: 330 mmTurning diameter in the crank: 480 mmSpindle bore: 42 mmSpindle mount: DIN 55022/518 spindle speeds: 30 - 2000 rpm.20 feeds: 0.047 - 0.86 mm / rev20 cross feeds: 0.021 - 0.39 mm / rev20 metric threads: 0.5 - 916 WW threads: 56 - 4 Gg / 1 20 module thread: 0.25 - 4.5 MDrive power: 2 / 3.8 HPDimensions: 1645 x 820 x 1260 mmWeight approx .: 800 kgWith- Three-jaw lathe chuck 200 mm- Multifix steel holder with multiple inserts- moving center pointused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best rega ...

Brake drum lathe make PMD type IRIA 2Year of construction 1981 for the processing of truck brake drumsTechnical specifications:External dimensions approx.: 1400 x 800 x 1500 mmWith- 5 automatic feeds 0.05 - 0.25 mm / min.used, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Table Universal after Lathe Fabr. SEE Type RAPIDCenter height: 125 mmSpindle bore: 36 mmSpindle cone: MK 5infinitely variable spindle speeds: 465 - 4200 rpmTable mounting surface: 300 x 265 mmSupport longitudinal path: 100 mmSupport cross travel: 125 mmDrive power: 0.37 kWPower connection: 380 V / 50 HzWeight approx: 100 kgDimensions approx: 850 x 400 x 350 mmWith- without base- Three-jaw chuck 125 mm- clamping clawused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Metal lathe make TOS type SV 18 RAMachine -No: 018100830833, year of construction approx. 1980Technical specifications:Distance between centers: 1000 mmCenter height: 180 mmCircumferential diameter over bed: 380 mmCircumference diameter over support: 215 mmSpindle bore: 41 mmSpeed range: 14 - 2800 rpm.Longitudinal feeds: 0.02 - 5.6 mm / revFlat feeds: 0.01 - 2.8 mm / revmetric pitches: 0.2 - 140Inch thread: 1/5 - 140/1 DP thread: 1 - 224 DFModule thread: 0.2 - 70 M.Drive power: 6.0 kWDimensions approx: 2200 x 1000 x 1400 mmWeight approx: 1800 kgWith- Steel holder- three-jaw lathe chuck- moving center pointused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. W ...

Table Universal Nachdrehmaschine Make SEE type RAPIDCenter height: 125 mmSpindle bore: 36 mmSpindle cone: MK 5infinitely variable spindle speeds: 465 - 4200 rpmTable mounting surface: 300 x 265 mmSupport longitudinal path: 100 mmSupport cross travel: 125 mmDrive power: 0.37 kWPower connection: 380 V / 50 HzWeight approx: 100 kgDimensions approx: 850 x 400 x 350 mmWith- without base- Three-jaw chuck 125 mm- 4-fold steel holderused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Universal small lathe manufactured by UNGARN, type EMU - 250Fabr. -No: 3104, year of construction 1973Technical specifications:Center distance: 600 mmTop height: 130 mmTurning diameter over bed: 260 mmSpindle bore: 28 mmStepless speeds: 52 - 2250 rpm.Drive power: 1.62 kWExternal dimensions: 1785 x 600 x 1200 mmWeight: 770 kgWith- Three-jaw chuck 140 mm- Quadruple steel holder- tailstock- Drill chuckusedPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Metal Lathe Fabr. WEILER Type Condor VSMasch. -No: 9127 built in 1979 with preselectionCenter height: 155 mmTip width: 800 mmGr. circulation diameter over bed: 320 mmxa0xa0xa0 via support slide: 170 mmSpindle bore: 38 mmMounting taper of the tailstock quill: MK 317 spindle speeds: 12 - 2800 rpm.60 feeds along: 0,037 - 1,253 mmxa0xa0xa0 plan: 1/2 of the longitudinal feeds35 metric thread pitches: 0.35 - 12 mm40 inch thread: 45 - 2 Gg / 25 module thread: 0.2 - 4 module32 diametrical pitch threads: 5 - 90 DPDrive motor: 380 V, approx. 3 kWDimensions L x W x H: 700 x 1830 x 1260 mmWeight approx: 815 kgWith- compl. electrical device- Lighting- Coolant device- Quick change tool holder Multifix m. morexa0xa0 steel holders- Three - jaw chuck Forkhardt 200 mm Drm.- Tool cabinet with contentused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net  ...

Drilling and parting lathe make WEIPERT type WPBA 710Machine -No: 16717 built in 1961Technical specifications:Distance between centers: 2500 mmCenter height over flat track: 710 mmTurning diameter over bed: 730 mmBed width: 580 mmSpindle bore: 230 mm16 spindle speeds: 14 - 450 rpm.Drilling depth: 1200 - 5700 mmDrive power: 25 HPused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

Pipe and flange lathe make WISCH type RA 8-36Mash. -No: 9-3430light construction site machineTurning diameter: 80 - 400 mmClamping diameter: 80 - 365 mmminute Clamping length: 190 mmTool speeds: 11.3 / 22.6 rpm.Radial feed: by hand / by camMax. Travel: 95 mmFeed rates: 0.166 / 0.33 mm / rev.Axial feed: by handMax. Travel: 55 mmMax. Turning length for external turning work: 40 mmMax. Turning length for internal turning: 30 mmDrive power: 0.8 / 1.2 kWSupply voltage: 380 V / 50 HzDimensions approx L x W: 775 x 760 mmHeight above center (without carrying hook): 210 mmHeight below center: 320 mmTotal height: 530 mmWeight approx: 74 kgused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your  ...

Metal lathe make WMW Karl-Marx-Stadt type DLZ 355 x 1600Fabr. -No: 2410/60, built in 1960Technical specifications:Technical specifications:Turning length: 800 mmCircumferential diameter over bed: 355 mmCenter height: 180 mmSpindle bore: 35 mmTailstock tip taper: Morse 4Quill shift by hand: 140 mmTailstock shift of the upper part from the central position: 10 mmWorkpiece weight between the steadies: 630 kgbetween the tips: 400 kg18 spindle speeds: 18 - 2500 rpm16 feeds length: 0.071 - 1 mm / rev16 cross feeds: 0.036 - 0.5 mm / revmetric thread 16: 0.5 - 7 mmInch thread 28:60 - 4 turnsModule thread 1 0.25 - 3.5Main drive: 5.8 kWExternal dimensions: 2200 x 1060 x 1225 mm highWeight: 1900 kgWith- three-jaw chuck- Steel holderused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. ...
