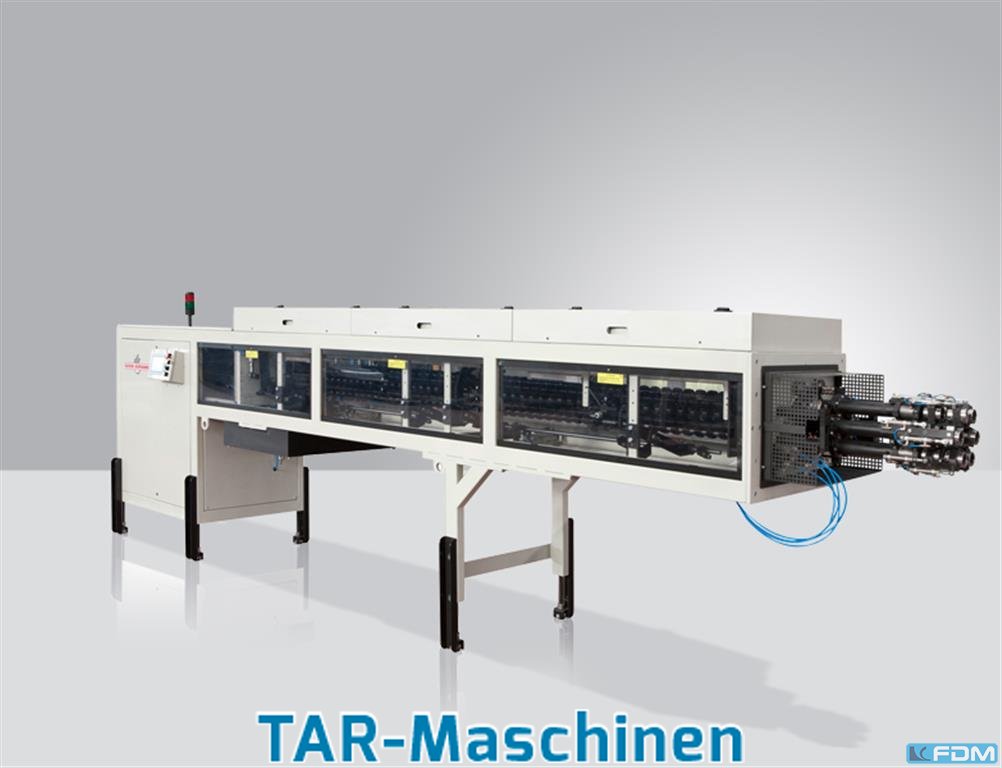

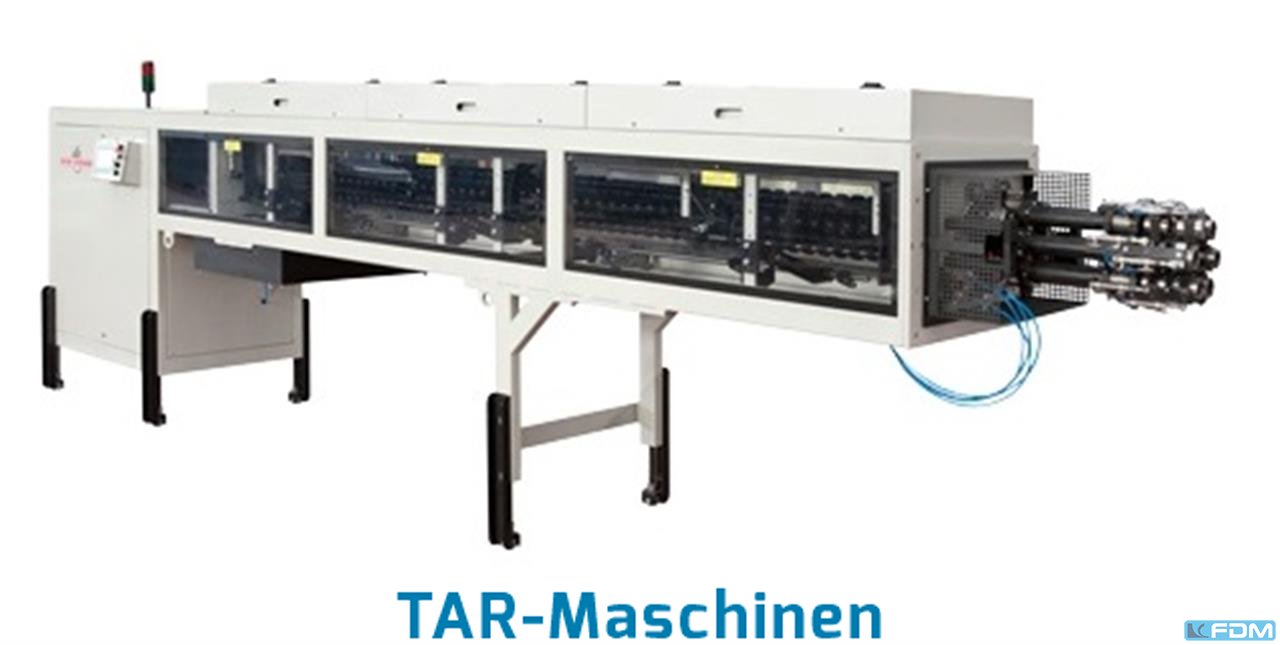

Bar loading magazine for multi spindle automatic lathe, newManufacturer: Giovanni CucchiMachine type: Bar loading magazine for multi-spindleType: CMSP/CMSPFDesign: Side loader as surface loading magazine or bundle loading magazineCMSP / CMSPF at a glance:Proven technology - in use for decadesThe material feed of this loader generation is carried out by the loading magazine. Bar loading magazines CMSP/CMSPF are mounted on rails, so they can be easily disconnected from the machine at any time by unlocking them at the quick release.These magazines do not require bar tubes on the machine and are screwed directly to the machine. It is possible to work in automatic mode as well as in manual mode.The magazine is mounted on rails, so it can be easily disconnected from the machine at any time by the operator by unlocking it on the machine. To change bar diameters, only the clamping sleeves of the ...
LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm
turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m
LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:24000 mm - total weight approx.:10100 kg

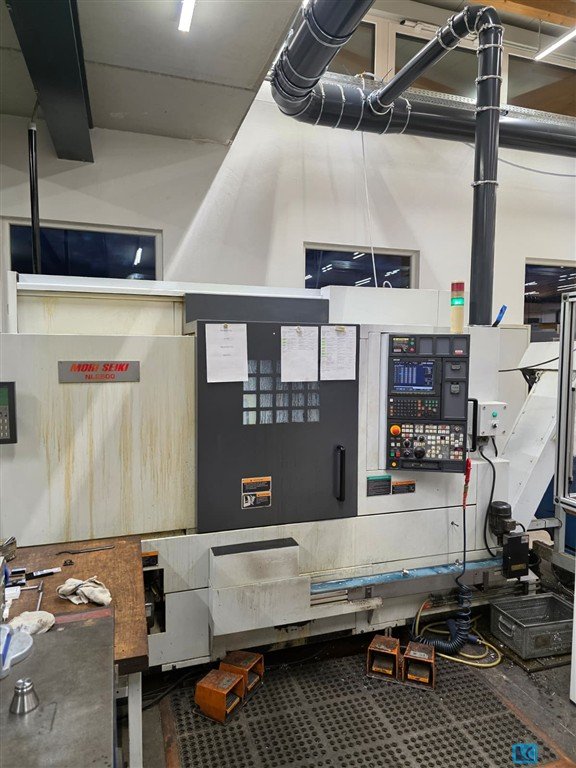

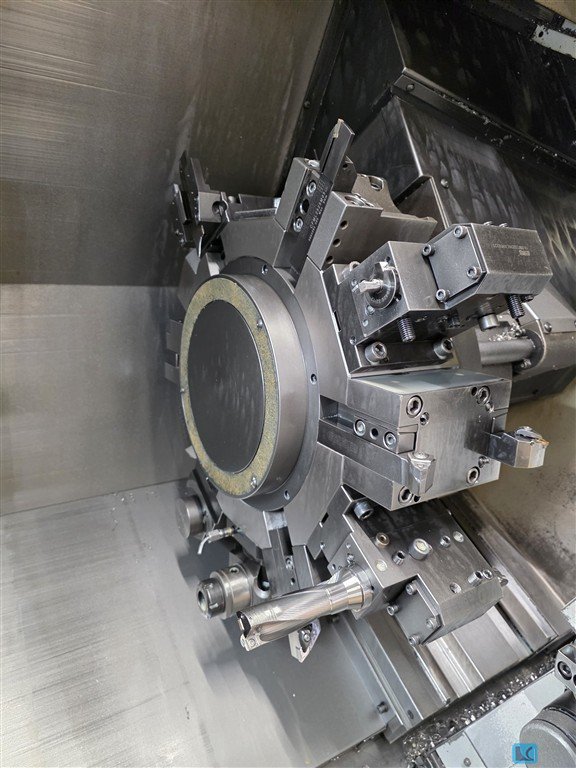

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks ...
LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:19000 mm

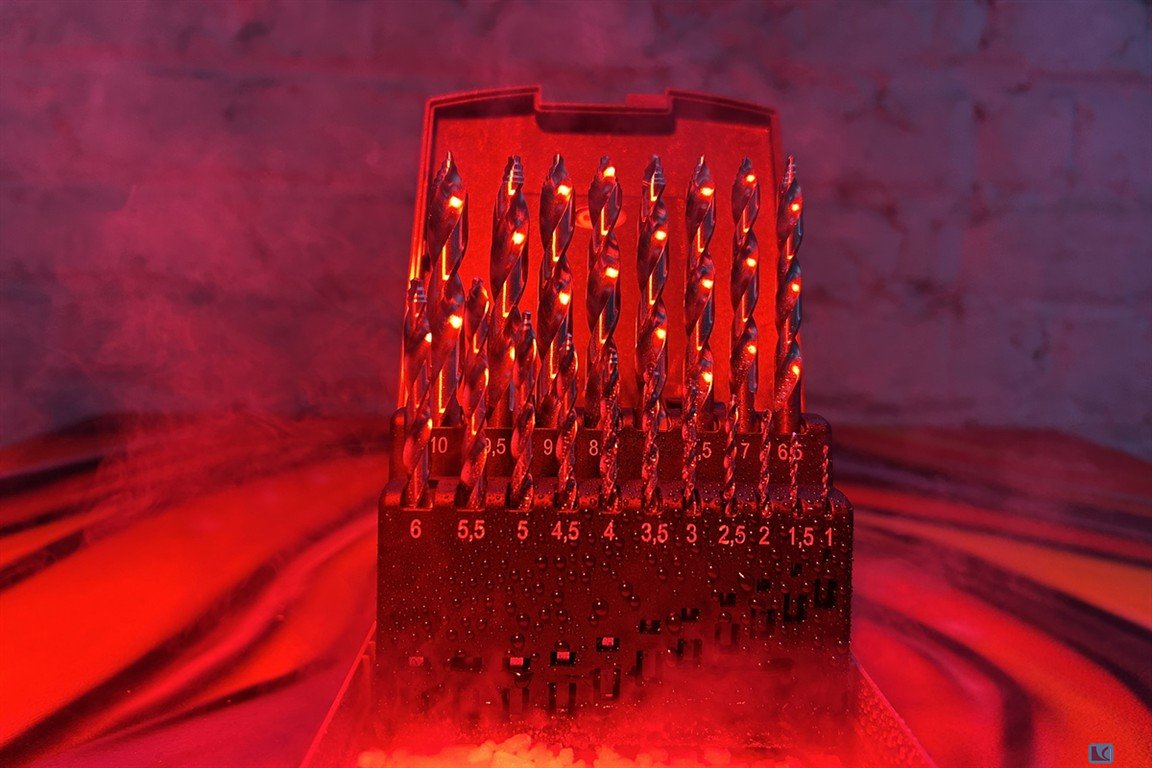

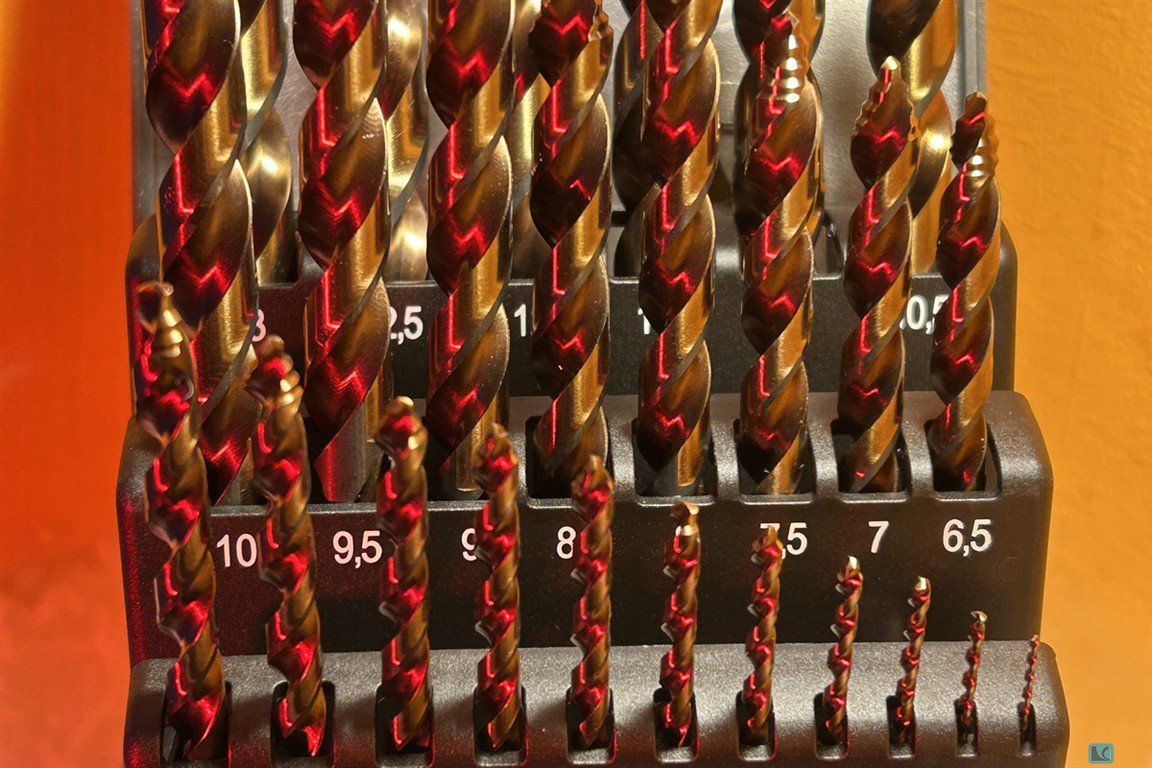

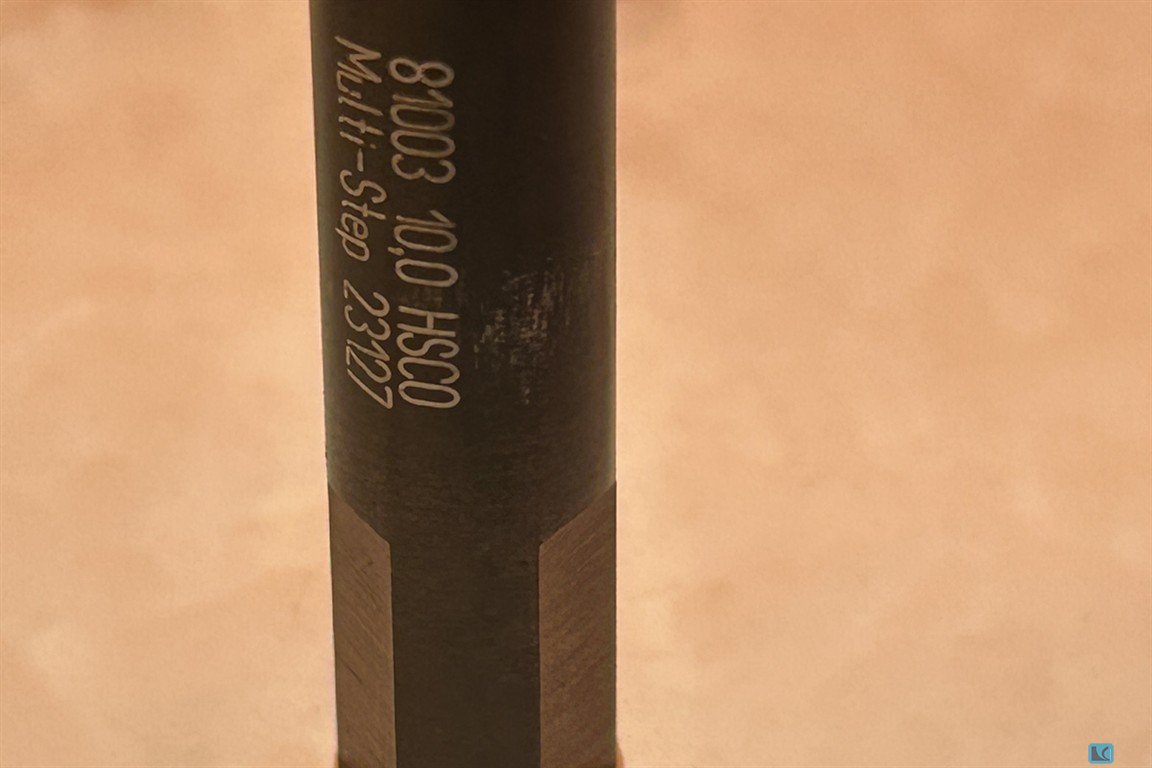

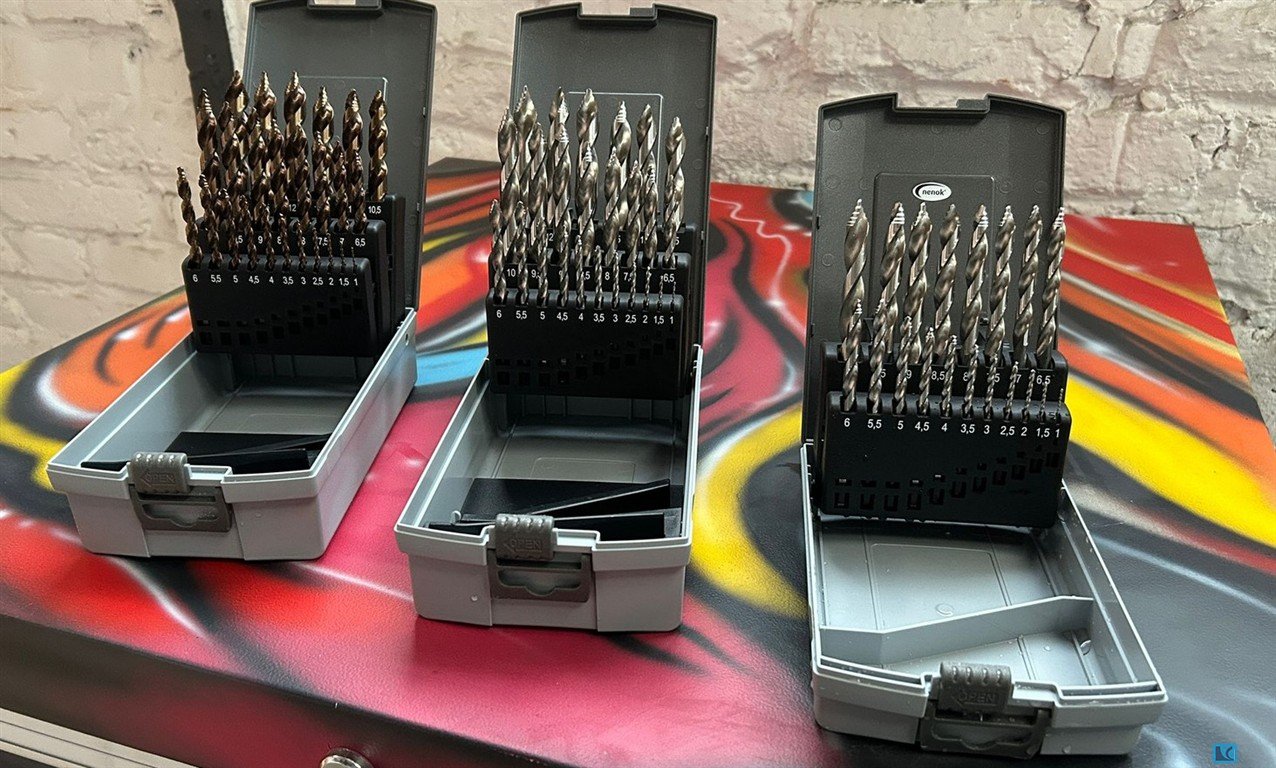

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...

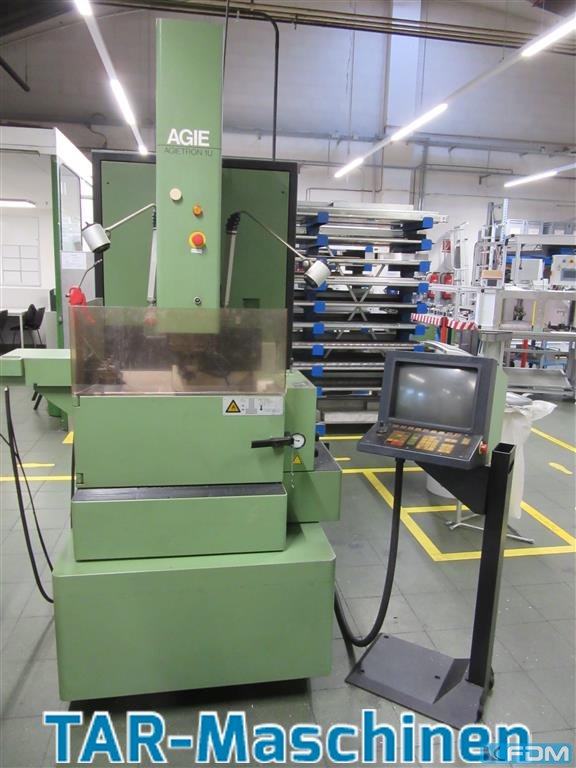

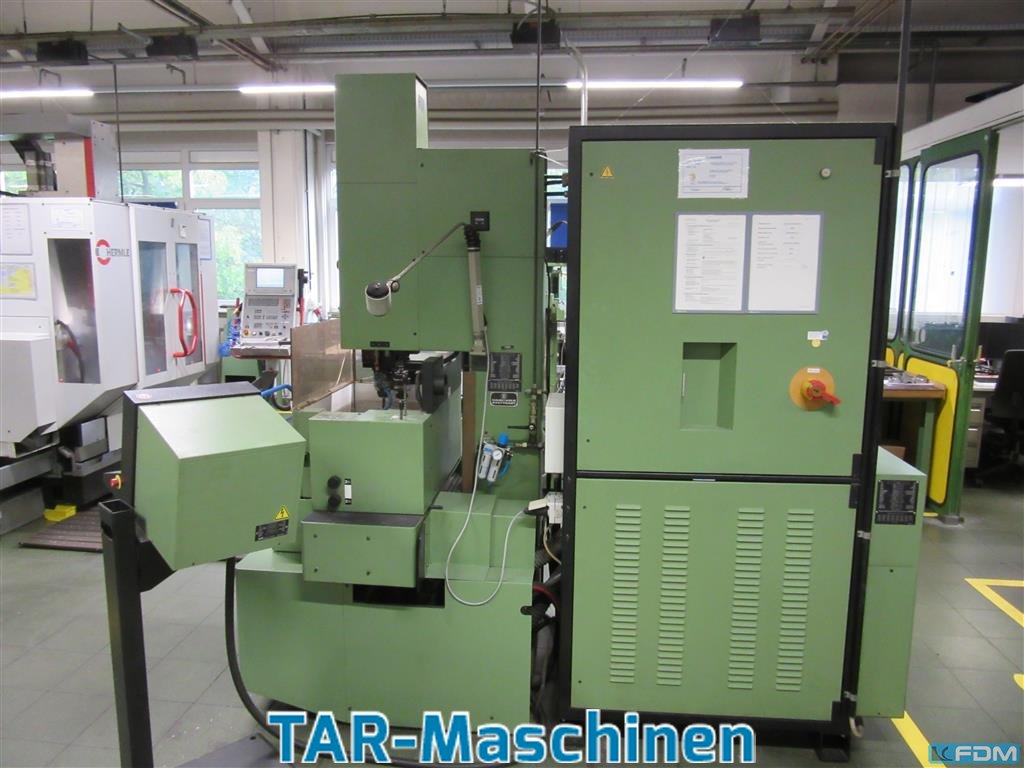

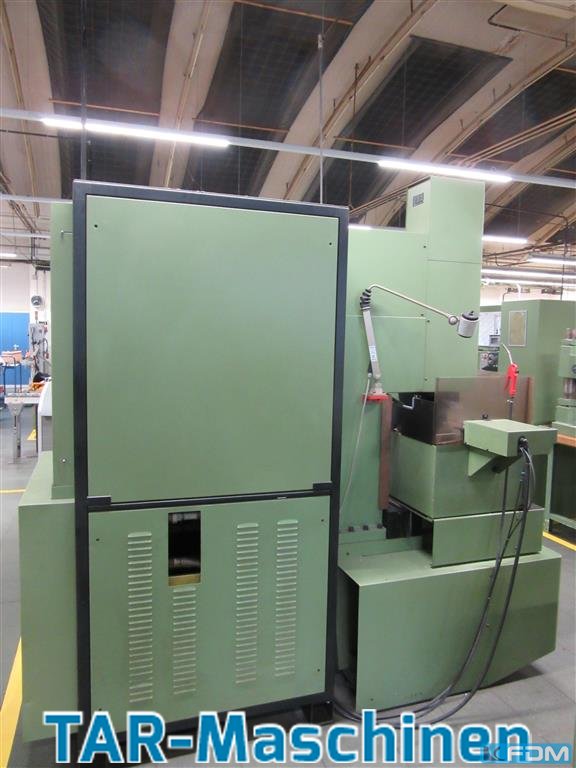

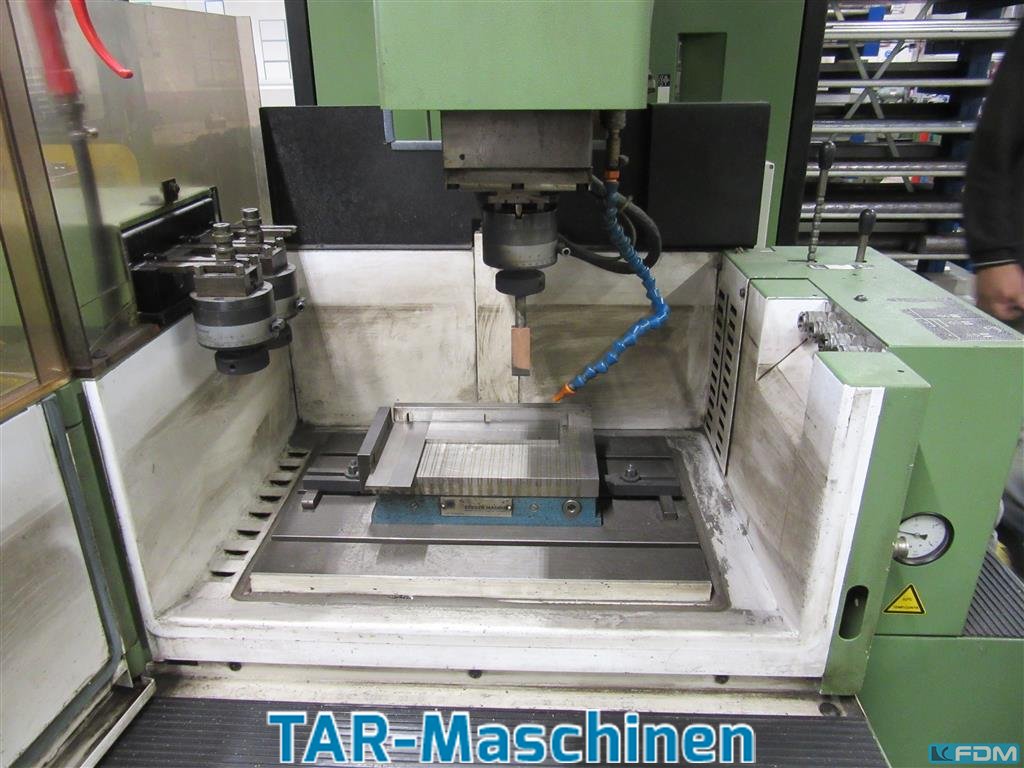

Erodiermaschine, gebrauchtBaujahr: 1989Bitte kontaktieren Sie uns für weitere Informationen und Bilder über mail(at)tar-mc.com oder www.tar-mc.com
LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:7000 mm

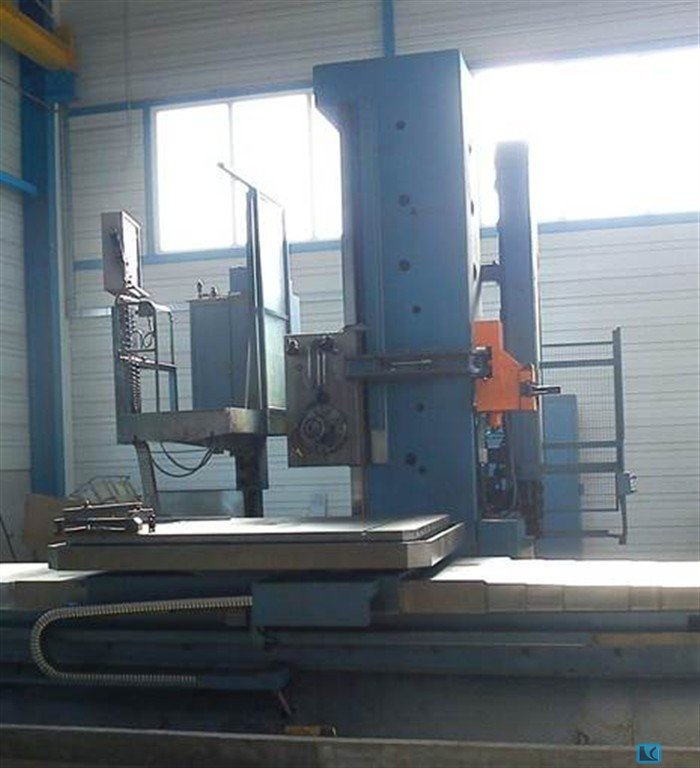

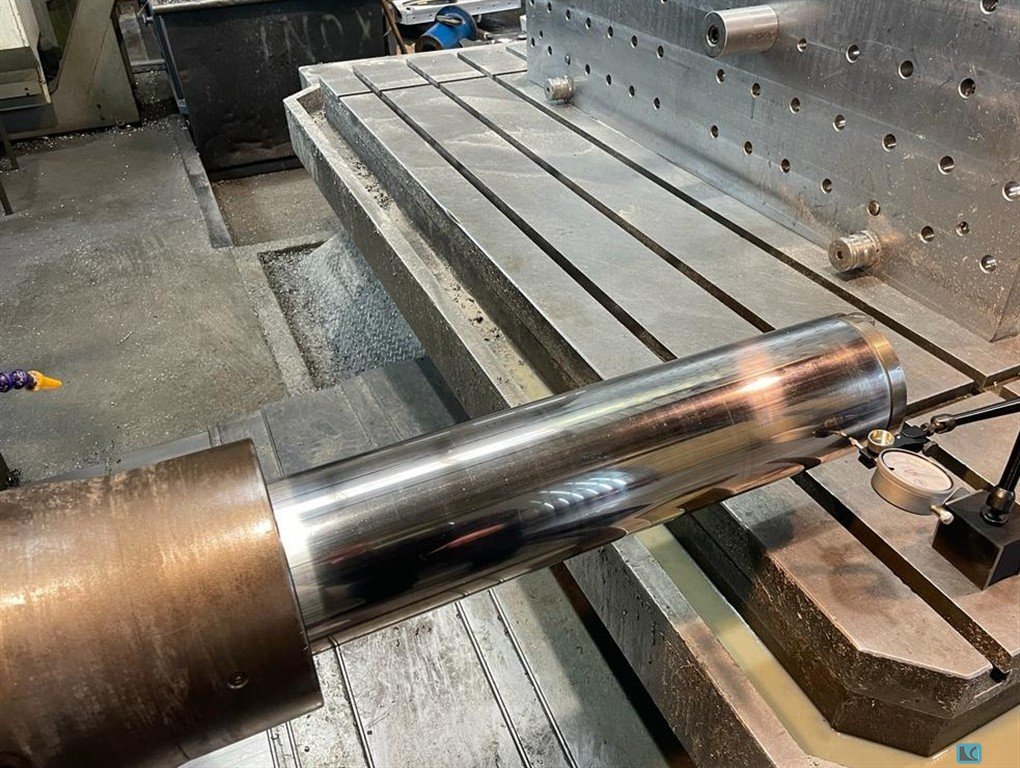

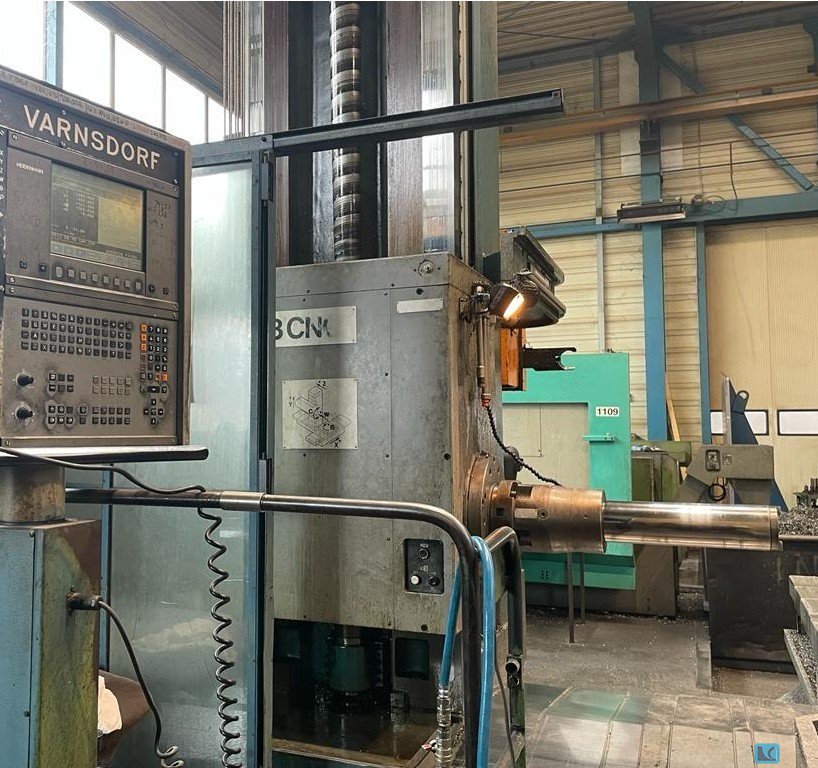

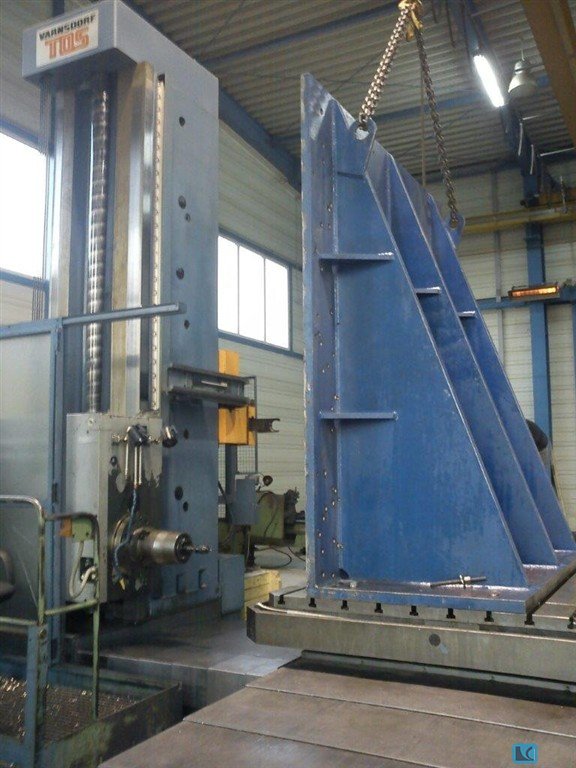

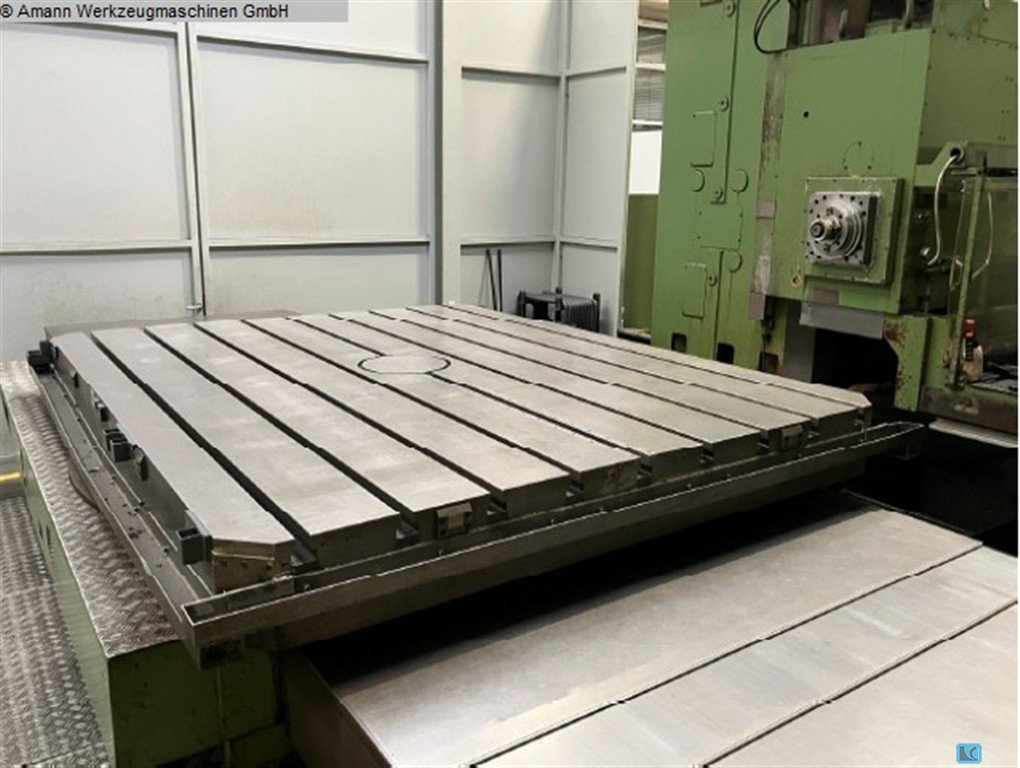

x-travel:3500 mmy-travel:2500 mmz-travel:1250 mmw-axis:800 mmbore spindle speeds:2500 U/mintable load:12 tdia. of rotary table:1800 x 2200 mmnumbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf? 12-month warranty and guarantee on geometric accuracyScope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, linear s ...
LINEAR AXLE:. - Movement:3500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

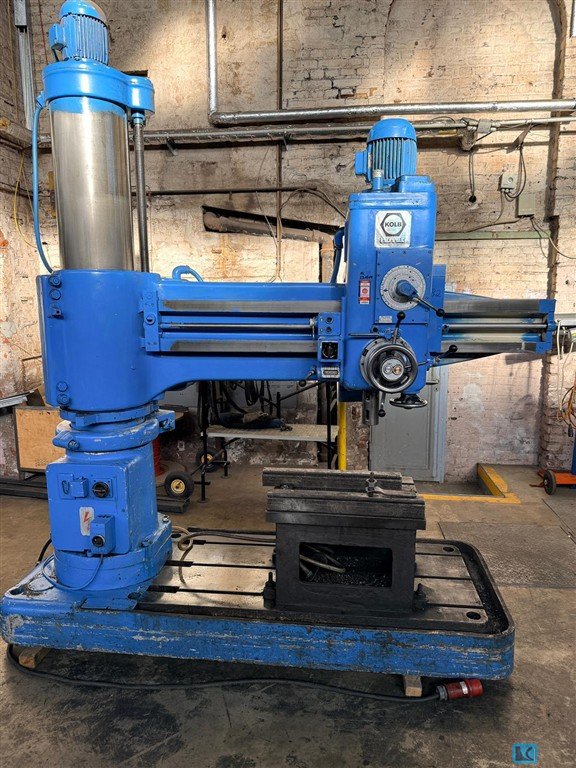

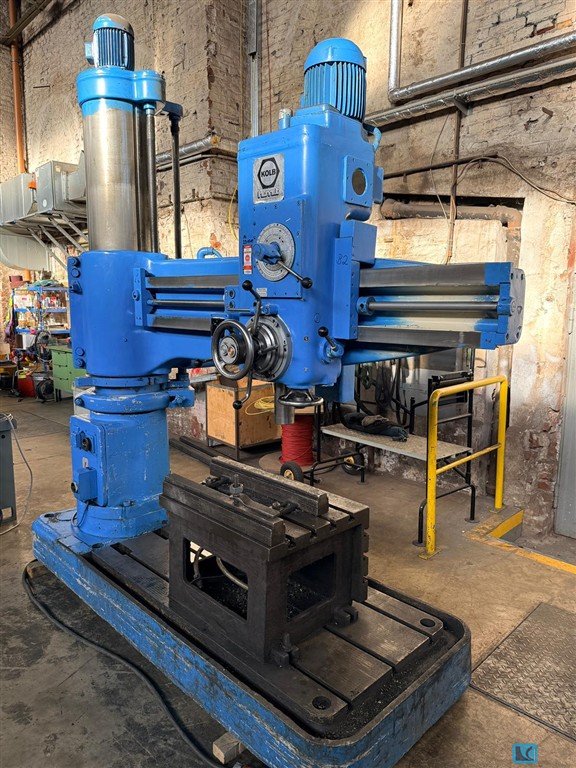

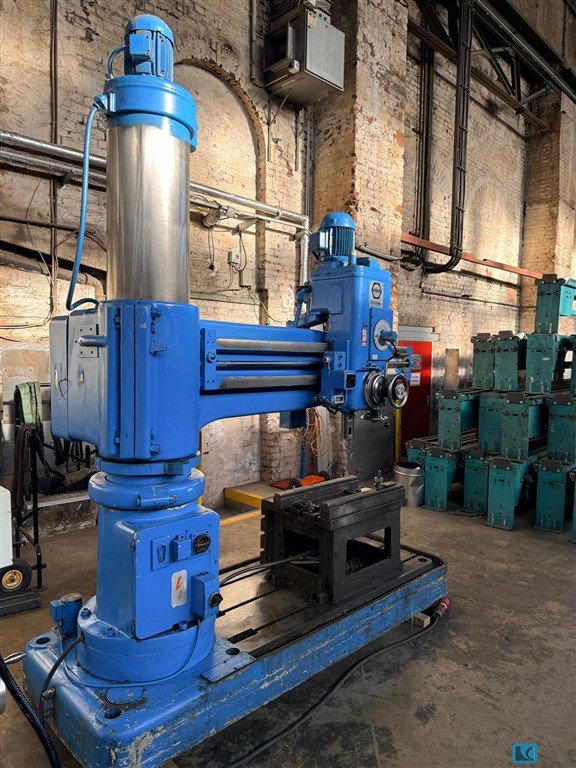

bore capacity in steel (diameter):50-60 mmarm length:1.600 mmweight of the machine ca.:5-7 tspindle taper MT:wahrscheinlich MK5
LINEAR AXLE:. - Movement:2500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:4000 mm
turning diameter:570 mmturning length:635 mmtravel -x axis:220 mmtravel -z axis:635 mmTorque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fachmain spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mmweight of the machine ca.:5.300 t
turning diameter:500 mmturning diameter over bed:500 mmturning dia. over base-slide:290 mmcentre distance:1000 mmcentre height:250 mmz-travel:1350 mmspeeds:10 - 3000 U/min
PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm
groove width:40 mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:200 mmtool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mmweight of the machine ca.:3,5 tCoolant systemDimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H)Hydraulic systemPartially overhauled
PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm - total weight approx.:905 kg
groove width:- mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:150 mmspindle speed::50/6000 uprtool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kgOperating hours: 2,100 hClamping hydraulicsPendulum operation possible8-position tool changer
PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm

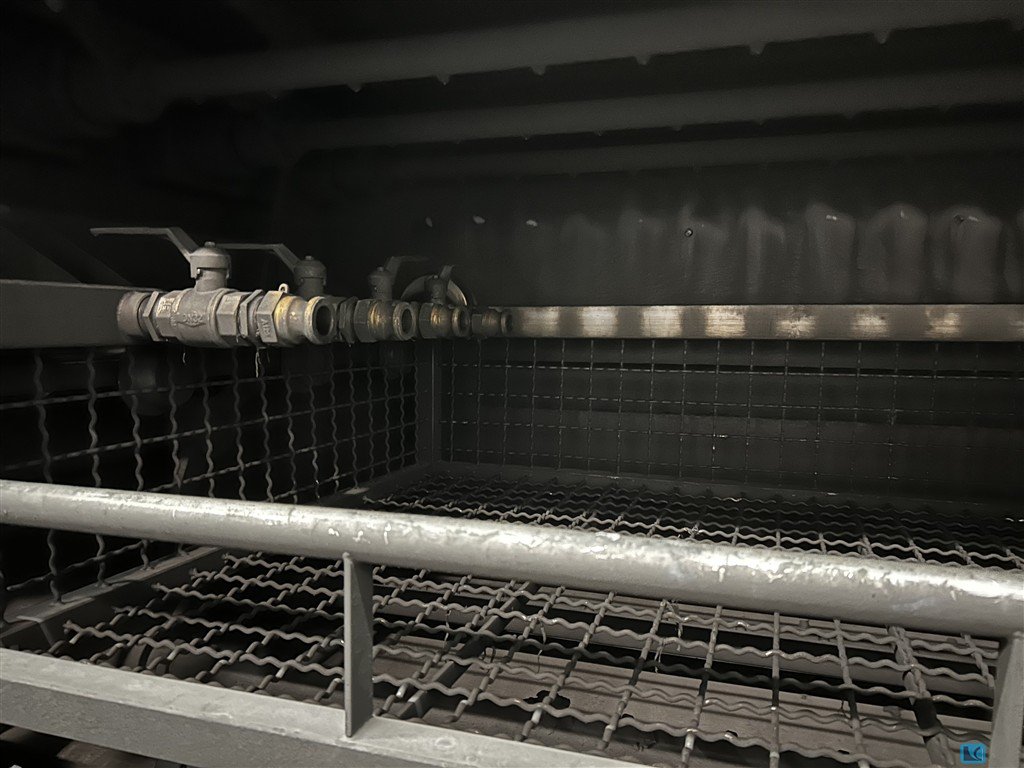

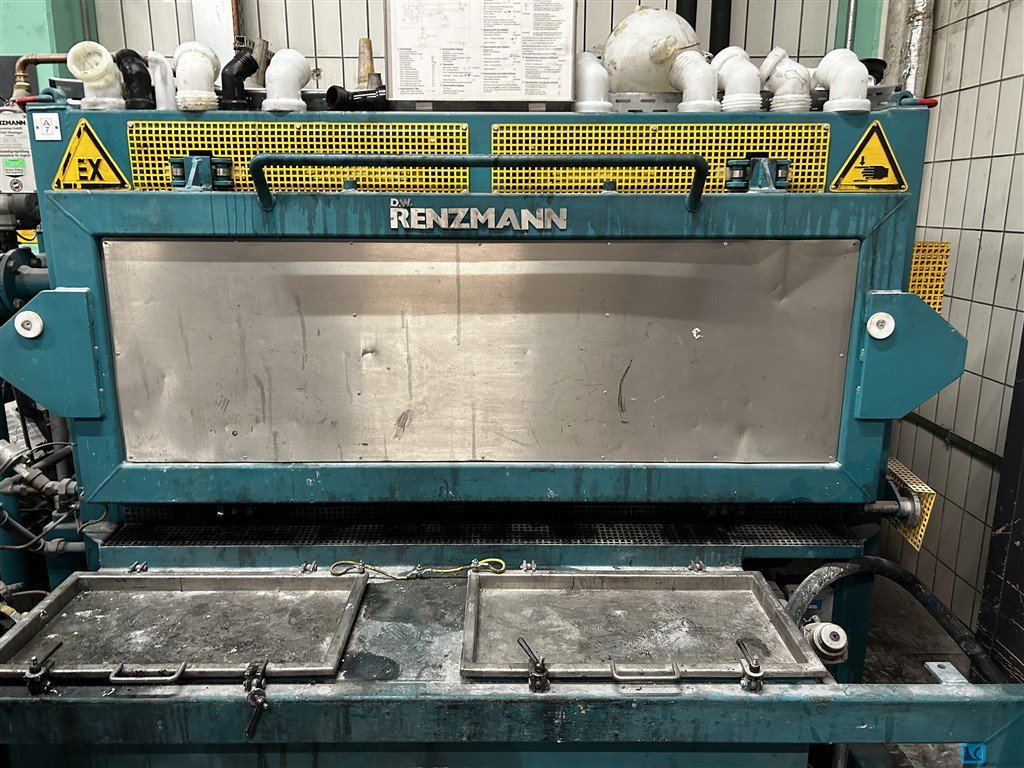

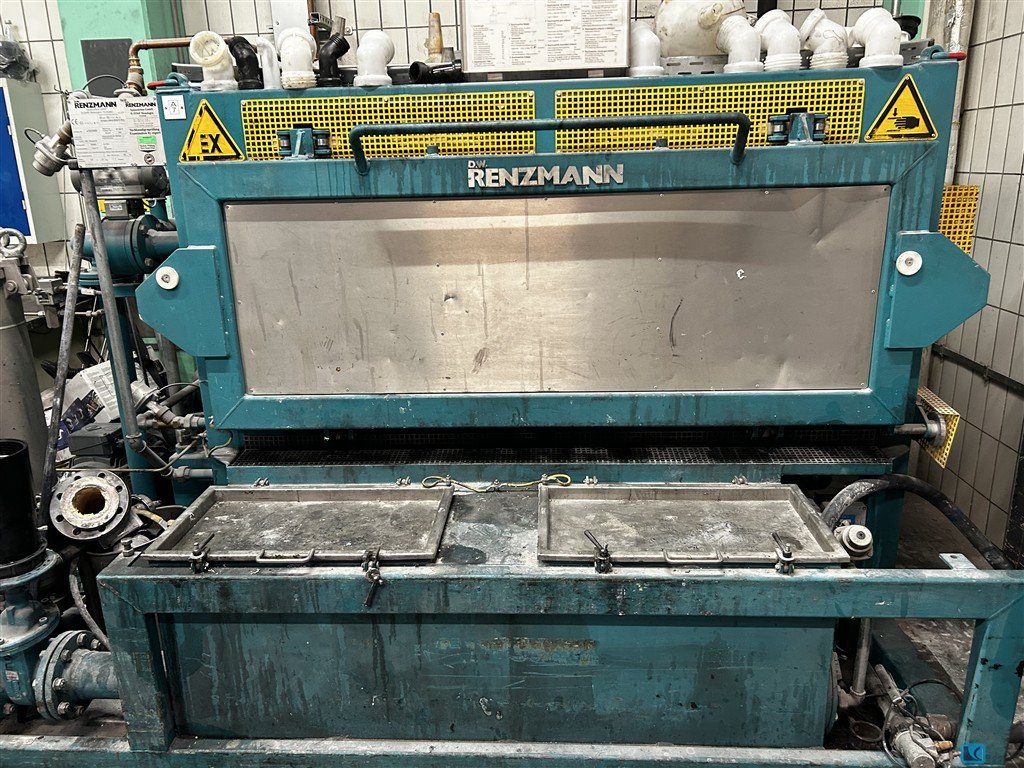

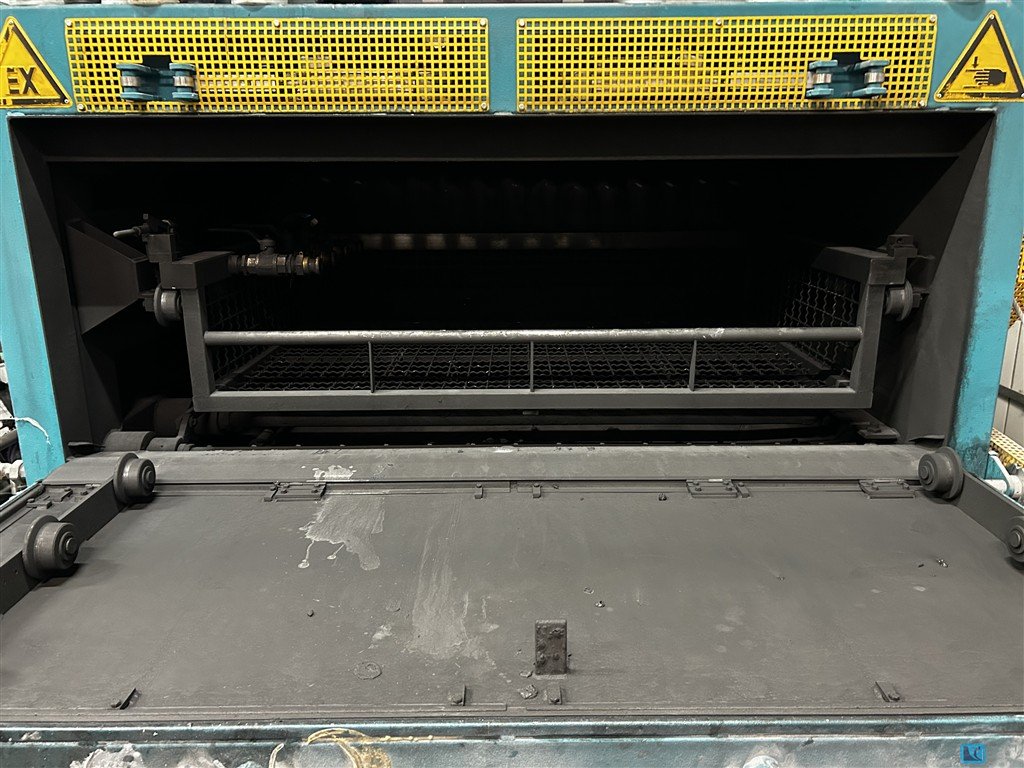

Basket size LxWxH:900 x 1.500 x 500 mmMax. basket weight:- kgNo. of washing chambers:1 filling amount:min. 270, max. 400 lMachine weight:2.000 kgdimensions of machine:2.650 x 1.945 x 1.870 mm
PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm

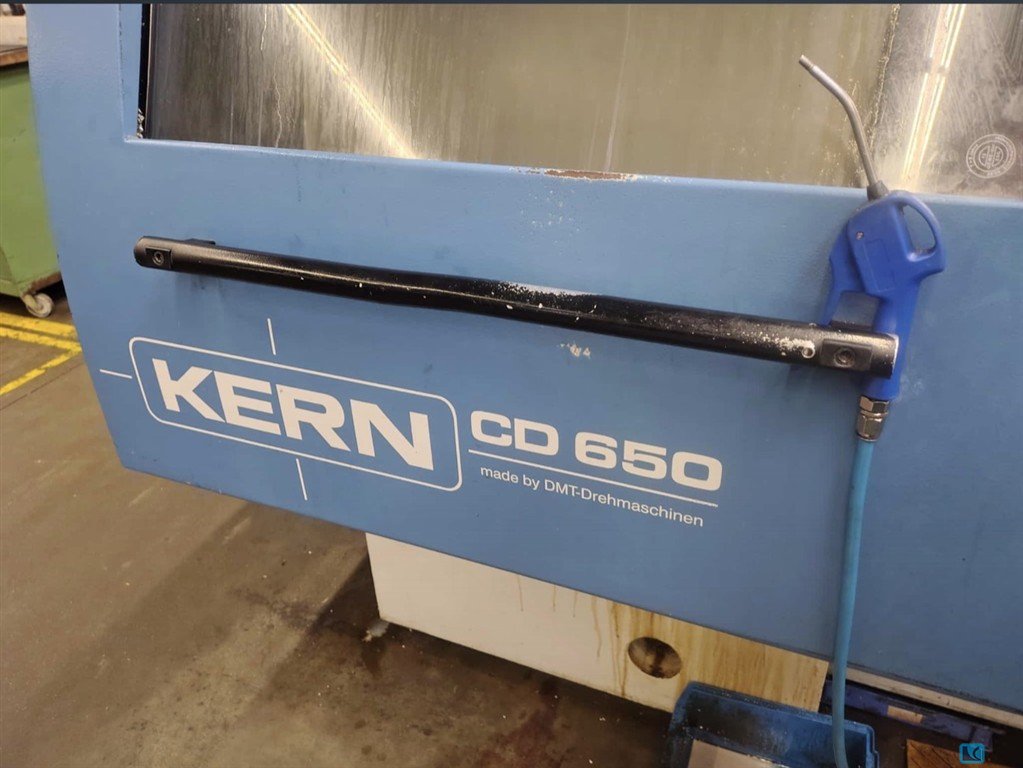

turning diameter:650 mmturning length:1.500 mmchucking diameter:400 mm
PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1000 mm

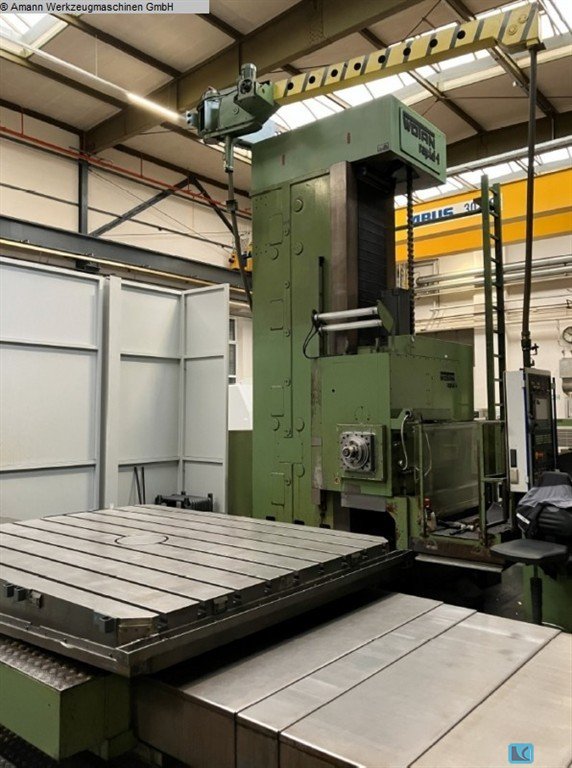

spindle diameter:150 mmx-travel:3.000 mmy-travel:2.000 mmspindle stroke:700 mmdimension of the ram:340 x 340 mmram stroke:700 mmcolumn travel:1.500 mmhigh speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/mintable surface area:2.000 x 2.500 mmmax. table load:25.000 kgrapid traverse speed:5/10 m/minfeed speeds:1 - 1.500 mm/minfaceplate speeds from - to:3,2 - 140 U/mindimensions of the machine ca.:8,4 x 6,8 x 5,9 mweight of the machine ca.:57 ttotal power requirement:100 kWFull B-axisAerostatic guidesCoolant system with IKZ

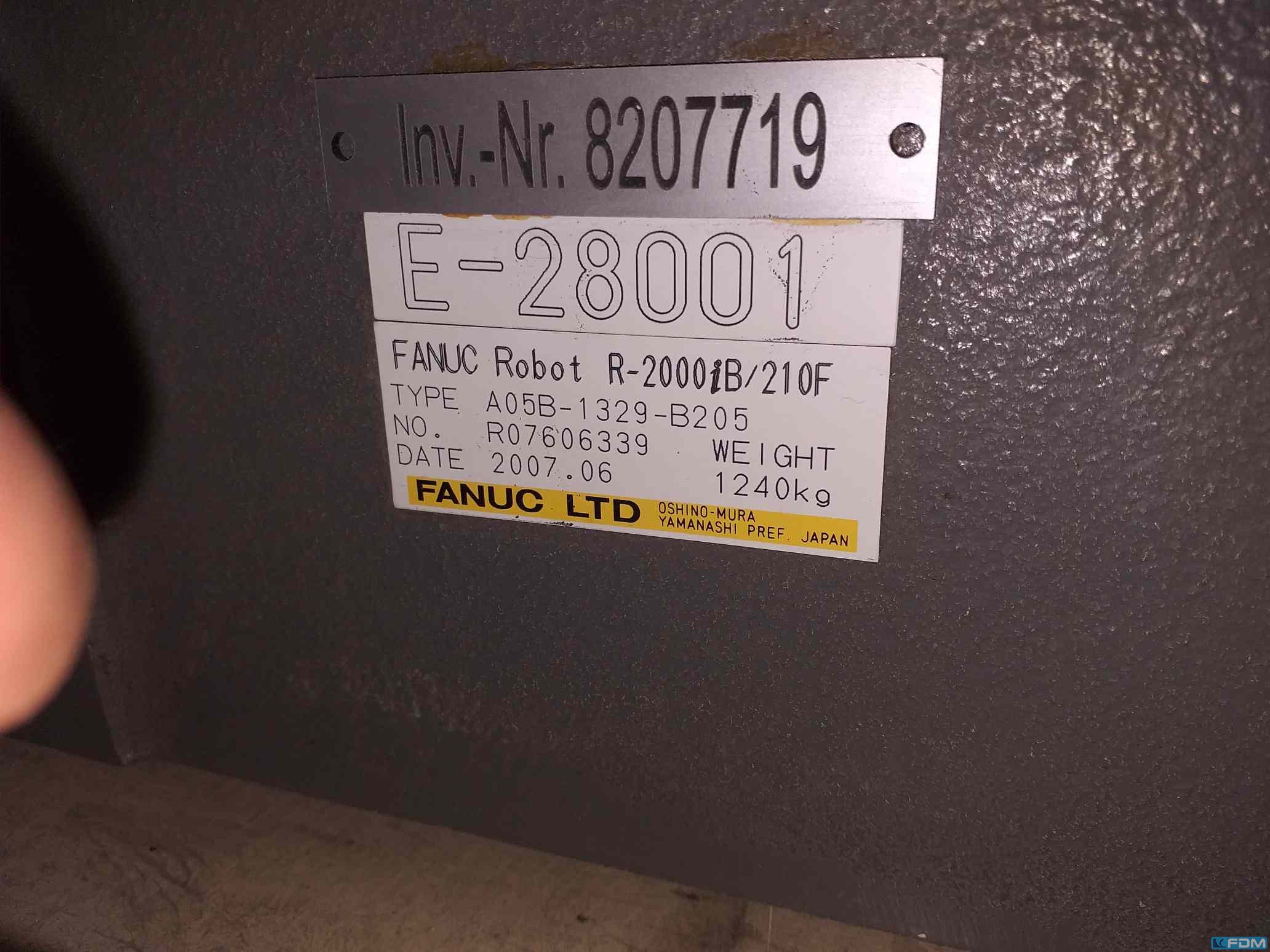

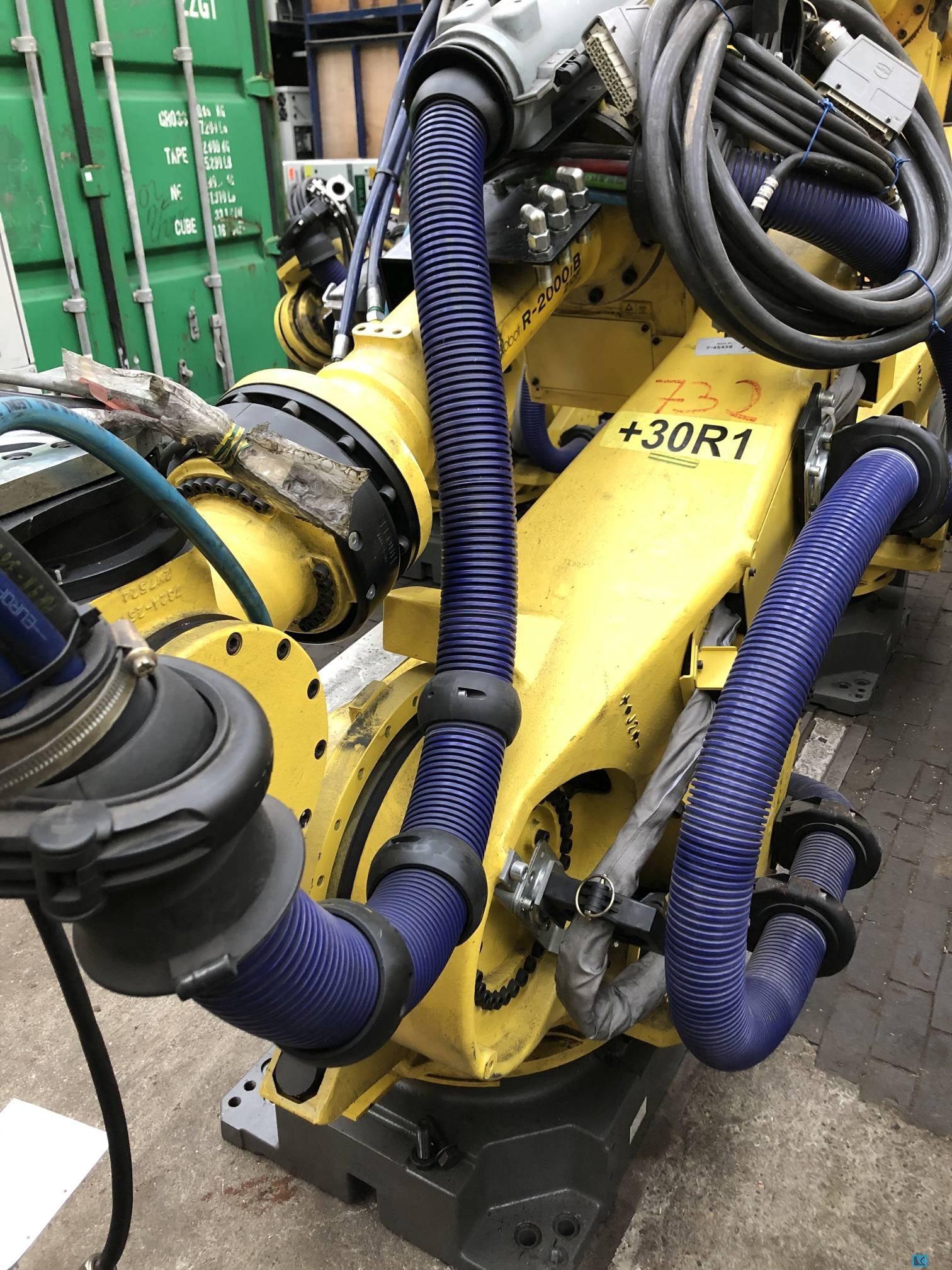

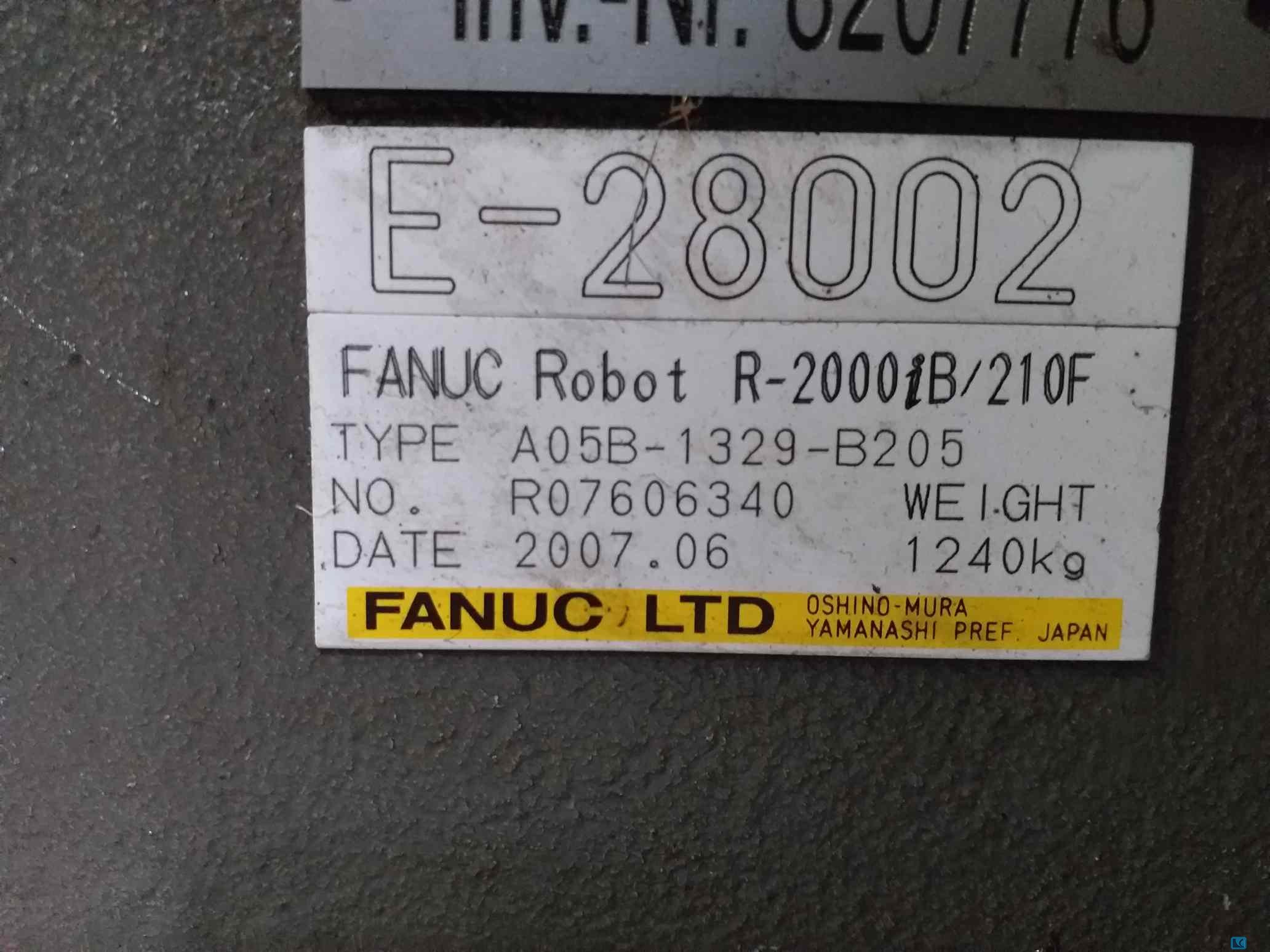

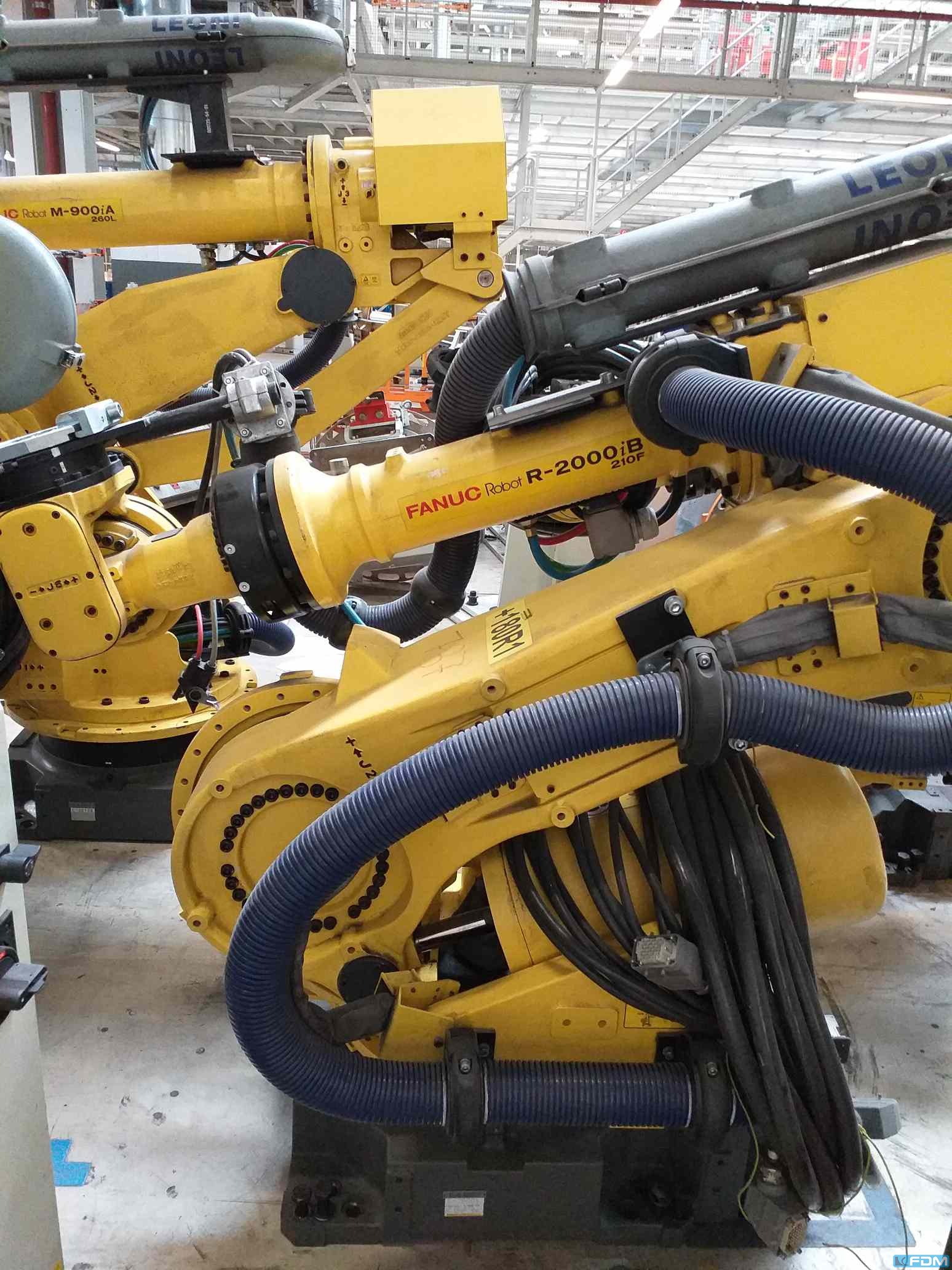

Controls:FANUC J3iC WORKING RANGE -ROBOT-:. - capacity:210 kg - Reach:2655 mm - Number of controlled axes:6 DIMENSIONS / WEIGHTS:. - total weight approx.:1240 kgTechnical description :6-axis industrial robot.Payload according to model.Including electrical cabinet operating panel and cable.More KUKA robots in quantities available i.e.# KUKA KR 150# KUKA KR 210# KUKA KR 240# KUKA KR 360
x-travel:1.250 mmy-travel:880 mmz-travel:800 mmspindle turning speed range:1 - 10.000 U/minhigh speed spindle taper ISO:50 table-size:1.250 x 1.000 mmmax. workpiece weight: 2.000 kgfeed speeds infinitely variable:1 - 30.000 mm/minrapid traverse speed:40 m/minweight of the machine ca.:16 tdimensions of the machine ca.:7,2 x 4,4 x 2,9 m
Controls:FANUC J3iC WORKING RANGE -ROBOT-:. - capacity:210 kg - Reach:2655 mm - Number of controlled axes:6 DIMENSIONS / WEIGHTS:. - total weight approx.:1240 kgTechnical description :6-axis industrial robot.Payload according to model.Including electrical cabinet operating panel and cable.More KUKA robots in quantities available i.e.# KUKA KR 150# KUKA KR 210# KUKA KR 240# KUKA KR 360

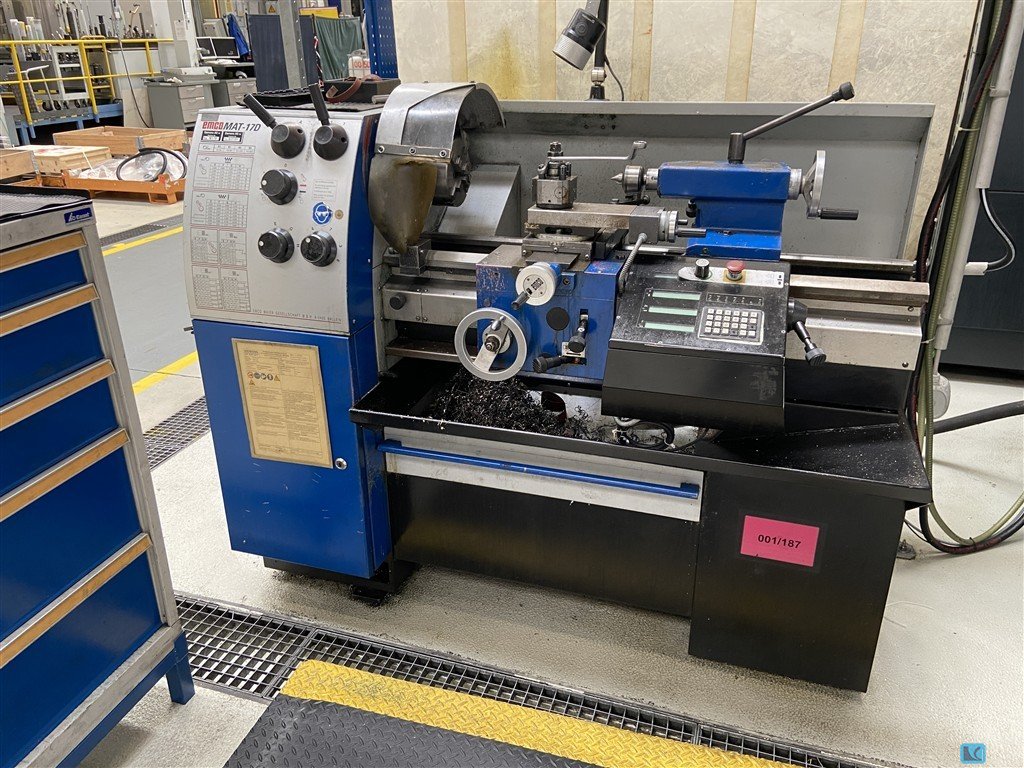

turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmshaving-spindle speed range:40 - 3.000 U/mindimensions of the machine ca.:2 x 1 x 1,6 mtotal power requirement:6 kWweight of the machine ca.:1,2 t
