swing diameter:80 mmworkpiece length:450 mmweight of the machine ca.:3500 kg
table length:920 mmtable width:600 mmampere:13,2 Aweight of the machine ca.:6 tdimensions of the machine ca.:2,46 x 2,24 x 2,33 mX-axis:600 mmy-axis:400 mmZ-axis:260 mmmax. table load:1500 kgThe dimensions for transport are: wide 2240 mm x high 2330 mm x deep 2460 mm weight approx. 6000 kg.
measuring range X-axis:200 mmmeasuring range Y-axis: mmTable dimensions: mmmeasurement range Z =:600 mmtool diameter:max. 250 mmtool taper:50 (SK40, HSK63, CT with adaptor) SKcompressed air:4-6 bardimensions:2 x 0,9 x 2 mmachine weight ab.:400 kgMounted on 1 cabinet, equipped with 2 monitors, with keyboard, 1 control computer, 1 operating data printer
x-travel:1120 mmy-travel:370 mmz-travel:410 mmtotal power requirement:14,5 kWweight of the machine ca.:3850 kgdimensions of the machine ca.:3,5 x 3,5 x 2,2 mTable dimensions:400 x 1600 mmspindle taper ISO:50
x-travel:500 mmy-travel:250 mmz-travel:325 mmtable-size:400 x 200 mmT-slots:10/ 20 mmT-slots:4 Stworkpiece height max.:300 mmtemplate table:380 x 380 mmspeeds::2500 - 20000 U/minno. of turning speeds:3 total power requirement:0,25 kWweight of the machine ca.:430 kgdimensions of the machine ca.:1000 x 1200 x 1500 mm

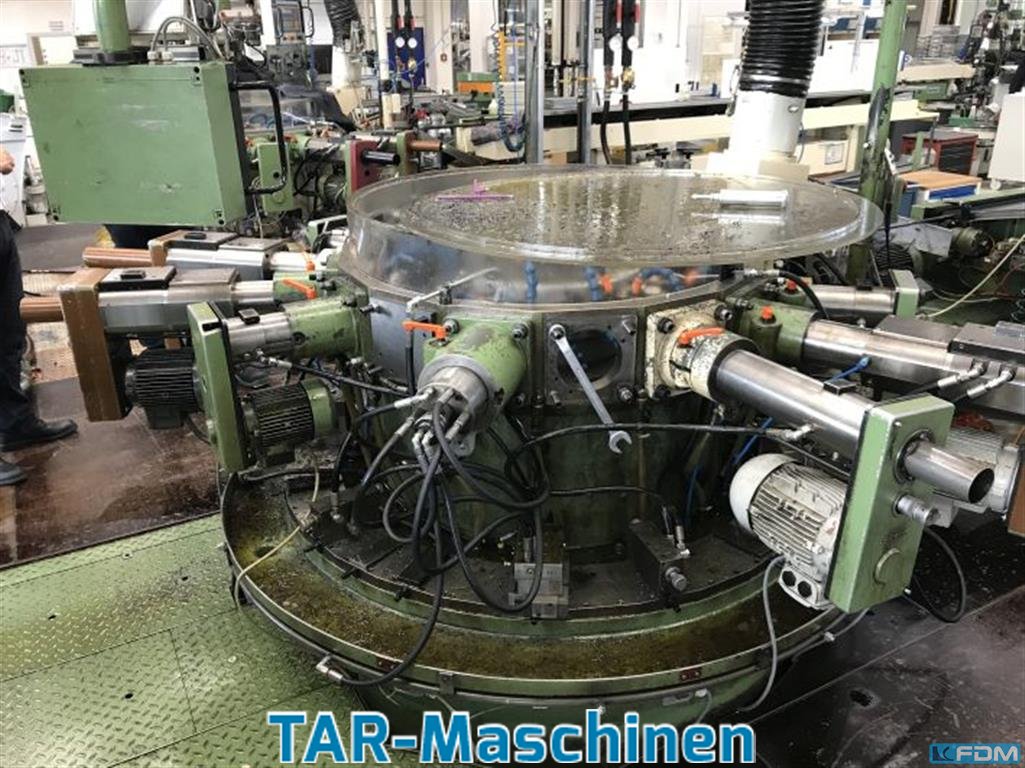

table diameter:500 mmtotal power requirement:3 kWweight of the machine ca.:2 tdimensions of the machine ca.:2300 x 1270 x 2200 mm
groove width:1,5 , 12, 14 mmtotal power requirement:380V, 50Hz, 32A, 15 kWweight of the machine ca.:5,6 tdimensions of the machine ca.:4000 x 750 x 1300 mm

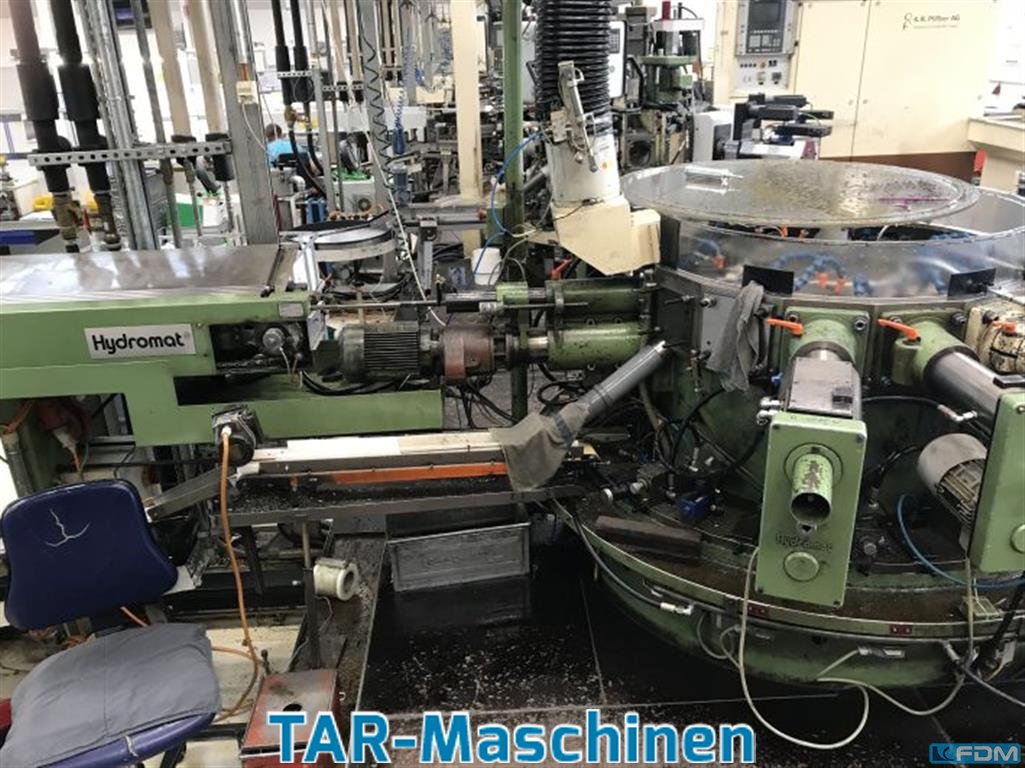

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:4,5 tspindle drive motor:11 kW
Slitting amp; cut to length line 1 - Double head decoiler (hydr): gt; 20 ton capacity gt; with coil supply cart amp; lift min coil width: 500 mm both units are movable 2 - Pulling unit 3 - Shear for making the first clean cut 4 - Pre-leveller Ungerer 4 + 5 rolls hydraulically adjustable 5 - Slitting unit with 4 cuts 6 - Supply system for shear 7 - Shear for cut to length 8 - Conveyor table 9 - Broncx fine leveller 10 - Stacking unit gt; featured a mechanical back gauge; once plate make contact then the shear makes the cut max length of cut: 7 meters Total length of the installed line: 50 metersMaterial thickness x width: 2200 x 4 mm DECOILER(s): 20 ton
8 axes: Y1 / Y2 / X / X#39; / Z1 / Z2 / R / V Laser safe security front amp; back CNC crowning upper amp; lower willa tooling Easy Form Laser measuring systemCapacity: 170 ton x 4100 mm Backgauge: CNC Control: Cadman B Touch Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 400 mm Table width: 120 mm Locking speed: 100 mm/sec Working speed: 12 mm/sec Returning speed: 130 mm/sec Electric motor (power): 42 kW Weight: 14,5 ton Capacity: 170 ton Bending length: 4100 mm
Viscotech SEM12-F Industriemonitor TFT 12
measuring range X-axis:500 mmmeasuring range Y-axis: mmTable dimensions: mmmeasurement range Z =:1000 mmtool diameter:max. 380 mmtool taper:HSK 100 compressed air:4-6 bardimensions:2,1 x 1 x 2,3 mmachine weight ab.:380 kg
sheet width:3050 mmplate thickness:4 mmtotal power requirement:9 kWweight of the machine ca.:6 tdimensions of the machine ca.:3900 x H 1850 x T 2100 mm
grinding diameter:3 - 150 mmgrinding length:200 mmtotal power requirement:380V, 50Hz, 30 kWdimensions of the machine ca.:5 x 3 x 2,5 m
grinding diameter: 0,2 - 190 mmgrinding length:400 mmcentre height:100 mmweight of the machine ca.:1,6 tdimensions of the machine ca.:2 x 1,5 x 1,8 m
passage width:500 mmworking heigth:150 mmtotal power requirement:250 kWdimensions of the machine ca.:10 x 3 x 3 mheating capacity:2 x 50 + 2 x 33 =166 kWdrying plant - electrically heated:2 units: 40 + 53 KW cleaning pump:in gesamt ca. 20 kW1 Markert Cleantec continuous surface cleaning machine, year of manufacture: 2003 Continuous length approx. 7,000 mm with division into washing zones, rinsing zone, and blow-off system with associated transport system with 2 x 90° curved elements with chain drive with electric control for transporting wire mesh baskets, primarily 400 x 600 mm with associated control cabinet for controlling the timed material flow Machine no.: 932
pulling force - max.:80 ttotal wight:26 tdimensions of the machine ca.:49 m² mtotal power requirement:85 kWworking stroke:250 mm
pulling force - max.:100 ttotal power requirement:87 kWweight of the machine ca.:51 tdimensions of the machine ca.:95 m² mworking stroke:2750 mmmax. helix angle:+/- 30 °Working stroke: 2750 mm
number of spindles:6 spindle drive:5,5 kWspindle turning speed range:8000 U/minmax. bar length:1500 mmbar material dia.:16 mmweight of the machine ca.:3,5 t
