Manufacturer:
(Category: 102)
number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

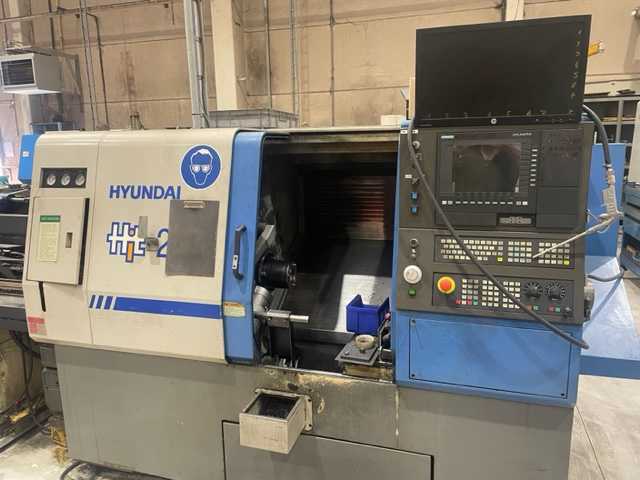

CNC Control: SIEMENS 810 DNumber of axes: 3Max. turning diameter: 325 mmMax. turning length: 400 mmMax. passage over the bed: 500 mm X/Z axis strokes: 215 / 420 mmSpindle speed: 30 – 4,500 rpmSpindle bore: 52 mmSpindle power: 15 kWTurret: 12 VDI 40 positions with motorized toolsChuck: 3-jaw hydraulic Ø 204 mmTailstock: present, CM4 taperTailstock sleeve stroke: 130 mm, Ø 80 mmIncluded equipment: coolant, bar feederWeight (kg): approx. 4500Year & Manufacturer: 2000 – HYUNDAI
spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Incl. LNS Hydrobar 6.65HS-4.4, oil-flooded single-rod feed, dimensions (LxWxH) approx: 4700x1350x1400 mm
Incl. HEIDENHAIN PGM 246 112 05 digital display, FORKARDT F250 3-jaw chuck, 6 quick couplers WITHOUT turning chisel
Technical data Manufacturer: FMS Drehtechnik Schaffhausen AG, Switzerland Type: NDL-40/130 Machine Type: CNC Lathe Year of Make: 2003 Control: Siemens SINUMERIK Machine No.: 16212-51 Turning length: 1500 mm Turning diameter: 400 mm Swing diameter over bed: 630 mm Swing diameter over face slide: 410 mm Speed range: 40 – 3200 rpm Main drive: 68 kW Spindle bore: 90 mm Hydr. Clamping Cylinder Passage: 86 mm Tailstock: MK5, quill stroke 120 mm Rapid traverse: 16,000 mm/min Coolant tank: 400 l Dimensions (L x W x H): approx. 5350 x 2270 x 2670 mm Machine weight: approx. 14,000 kg Configuration Siemens SINUMERIK CNC control Heidenhain Digital Display Hydraulic clamping system Tool turret Coolant system Chip conveyor Hydraulic power unit Various clamping devices and tool holders Extensive technical documentation available Machine dismantled in the production environment Included : Manufact ...
turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden
turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm
turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools
turning diameter over bed:240 mmturning length:450 mmtotal power requirement:0,5 kWweight of the machine ca.:120 kgdimensions of the machine ca.:1500 x 600 x 1200 mmcentre height:120 mmspindle bore:21 mmrevolutions per minute: 75 - 2980 U/min
turning diameter:480 mmturning length:1250 mmcontrol:H 645 weight of the machine ca.:8 tdimensions of the machine ca.:5 x 2 x 2 mcentre distance:1580 mmswing over bed:495 mmswing diameter:üb.Querschlitten ca.350 mmworking area:1600 mmcontrol:H645 connected load:50 kW
: neu : ca. 4 Monate ab Auftragse : Bulgarien : 113620 €: 2147.42 €: 800 mm: 2000 mm: 400 mm: 260 mm: 560 mm: 560 mm: 318 MK: 12 : 8 - 400 1/min: 152 : 0.039 - 15 mm/U: 0.02 - 7.5 mm/U: 76 : 0.5 - 150 mm: 60 - 1/5 Gänge/: 0.125 - 37.5 : 240 - 4/5 : 410 mm: 150 mm: 105 mm: 6 MK: 225 mm: 11 kW: 6000 kgTheir main purpose is to process pipes. Accordingly, this type of machines is widely used in the oil industry.Oil country lathes have large capabilities of processing inner and outer cylindrical and conical threads on pipes with large diameters.The clamping of the pipes with two universals and stands allows the processing of long pipes.These lathes are suitable for producing elements and equipment for the oil industry, as well as for maintaining such facilities.Drive via gearboxElectrodynamic brake3-axis digital display FagorQuick-change tool holder Amestra type C, system like Multifix i ...
control: Numeriksteuerung CNC 700 K total power requirement:28 KVAweight of the machine ca.:7,8 tdimensions of the machine ca.:6610 x 2280 x 2235 mmwork height max.:1060 mmgreates pass round over bed:305 mmspindle bore:82 mmDocuments:vorhanden
turning length:630 mmtotal power requirement:16 kWweight of the machine ca.:5 tdimensions of the machine ca.:3400 x 1500 x 1600 mmswing diameter over slide rest:Hinterdrehschlitten 250 mmcentre height:über Hinterdrehschlitten 150 mmcenter height over bed:300 mmturning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mmaccessories::2 Schränke Wechselräder
turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5
turning length:2000 mmcontrol:- total power requirement:25 kWweight of the machine ca.:3 tdimensions of the machine ca.:3800 x 1800 x 1850 mmswing over bed:500 mmswing diameter over face slide:280 mmcontrol:Zyklen-Steuerung Heidenhain bed width:350 mmDocuments:vorhanden
turning diameter over slide rest:280 mmturning length:4000 mmtotal power requirement:7,8 kWweight of the machine ca.:6 tdimensions of the machine ca.:5,9 x 1,9 x 1,40 m
turning length:140 mmdimensions of the machine ca.:4 x 2 x 1,9 m
turning diameter:570 mmturning length:1000 mmdimensions of the machine ca.:3,25 x 2,03 x 1,95 mTool disc turret for 8 tools with VDI 30.Not for power toolsmachine manual, technical documentation;Accessories: 3-jaw chuck, various tool holdersVideo is available
swing diameter:200 mmweight of the machine ca.:15 tDistance between tips:832,5 mmturning length:380 mmwith chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers
: neu : ca. 6 Monate ab Auftragse : Taiwan : 95950 €: 1813.46 €: 630 mm: 2000 mm: 85 mm: 400 mm: 350 mm: D1-8 : 1/16 MK: 3 : 37 - 2250 1/min: 5000 mm/min: 8000 mm/min: 280 mm: 75 mm: 5 MK: 190 mm: 9 / 13.5kW (S1 / S6 40%) kW: X: 0.02 Z: 0.04 mm: X: 0.01 Z: 0.035 mm: ISO3655 : 3840 mm: 1905 mm: 2235 mm: 4200 kgTHREE OPERATING MODES: CNC / TEACH-IN / MANUALSiemens 828D CNC control• 12-inch colour screen• Linear interpolation• Circular interpolation• Helical interpolation• Skip function• Workpiece coordinate system• Coordinate system rotation• Rigid tapping• Mirror image, scaling and rotation• Turning cycle• ShopTurn softwareLarge spindle bore, with precision bearings for high accuracy and consistent cutting stability.Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis.2-axis AC servo motors50-300 mm roller-type ...

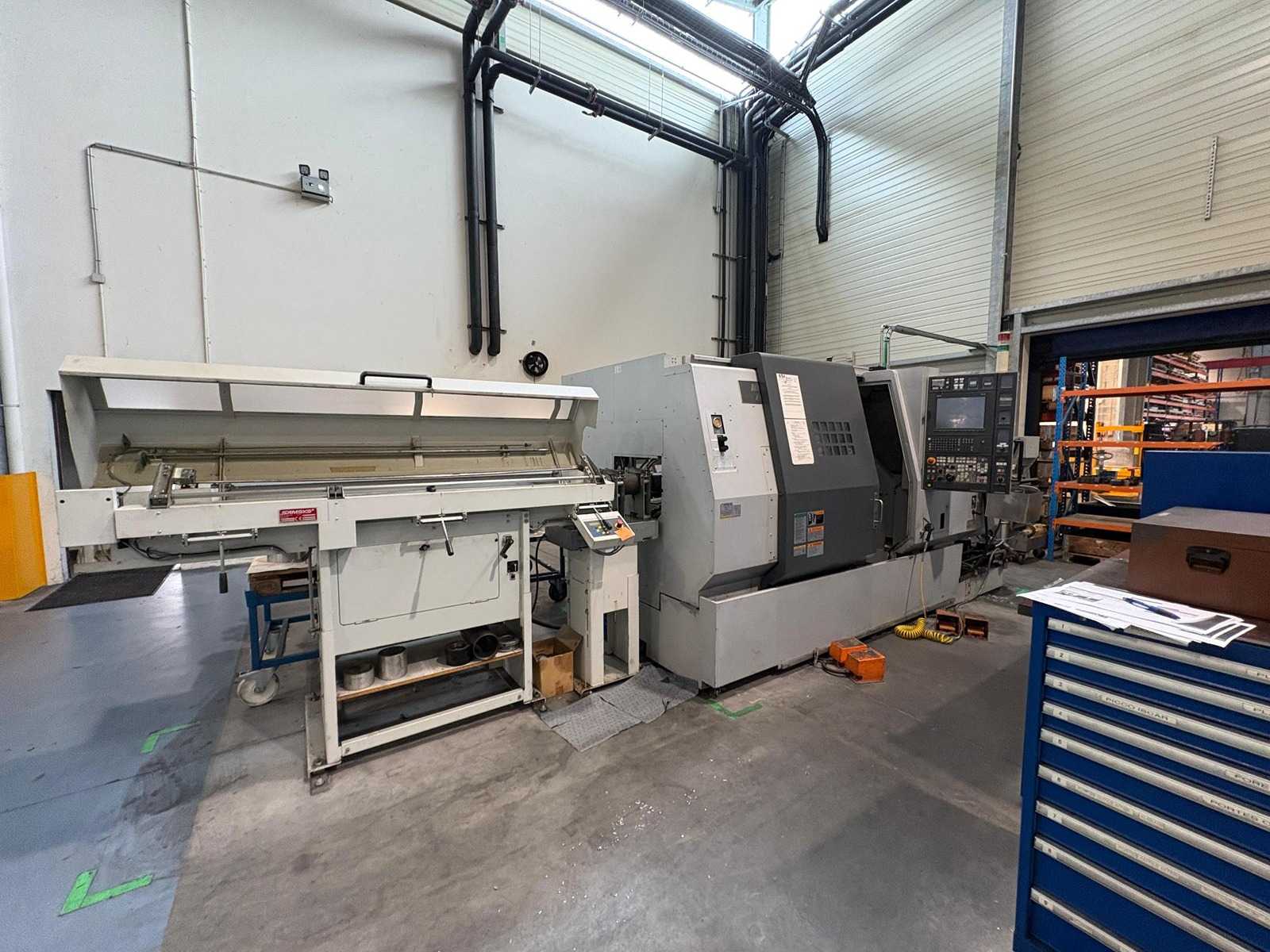

Maximum passage diameter: 310 mm Maximum turning diameter: 190 mm Standard turning diameter: 170 mm Maximum turning length: 235 mm Bar passage: 65 mm Spindle speed: 50 to 5,000 rpm Spindle power: 22 kW / 18.5 kW Spindle nose: JIS A2-6 Spindle Bore: 73 mm Axis C: Indexation 0.001° Turrets: 2 independent turrets Tool capacity: 32 positions (16 per turret) Motorized tools: 16 positions per turret Motorized Tool Speed: 6,000 RPM Power with motorized tools: 5.5 / 2.2 kW Indexing time: 0.2 s X-axis: 140 mm Y-axis: ± 50 mm Z-axis: 700 / 690 mm B-axis: 775 mm Fast Advances: 18 m/min CNC Control: MSX 501 MAPPS II (Fanuc 30i) Weight: 6,600 kg Dimensions: 3,700 x 2,100 x 2,000 mm Equipment: Bar feeder included
number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.No socket for powered tools!
WITHOUT tools and clamping devices Gearbox defective, the small feed gears can no longer be shifted Output via goods elevator
1.800 €
