Manufacturer:
(Category: 209)
We are offering for sale a Weinig planing line consisting of: - Stacking system (x2) (can also be rotated 180 degrees) - Slat disposal - Isolation - Weinig Hydromat 22 – 7 spindles, up to 80 m/min feed speed ( new control) - sorting station - capping - Bundling Specifications: - Total line length: 35 meters - Total line width: 15 meters Find more here - / Contact us at -

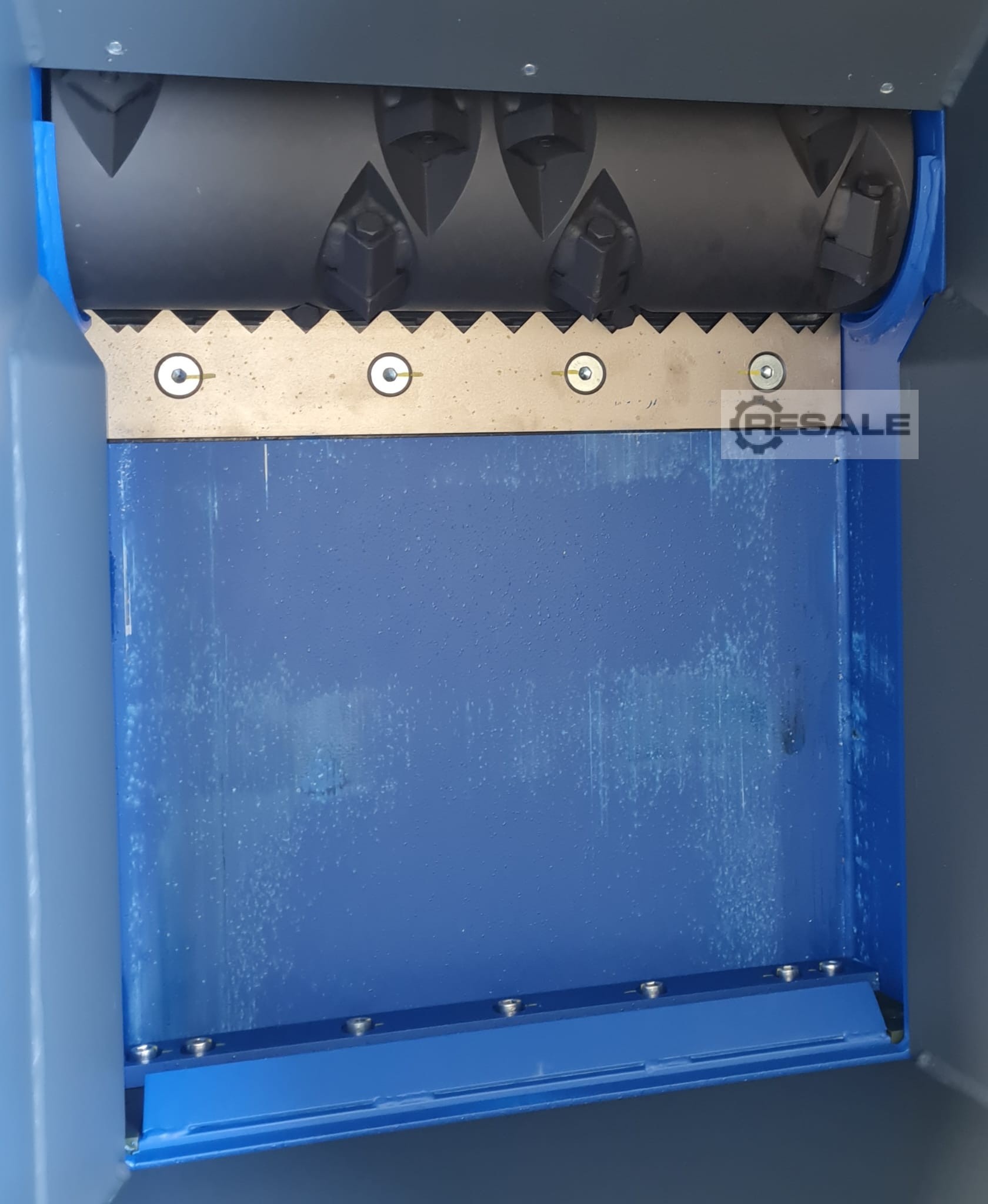

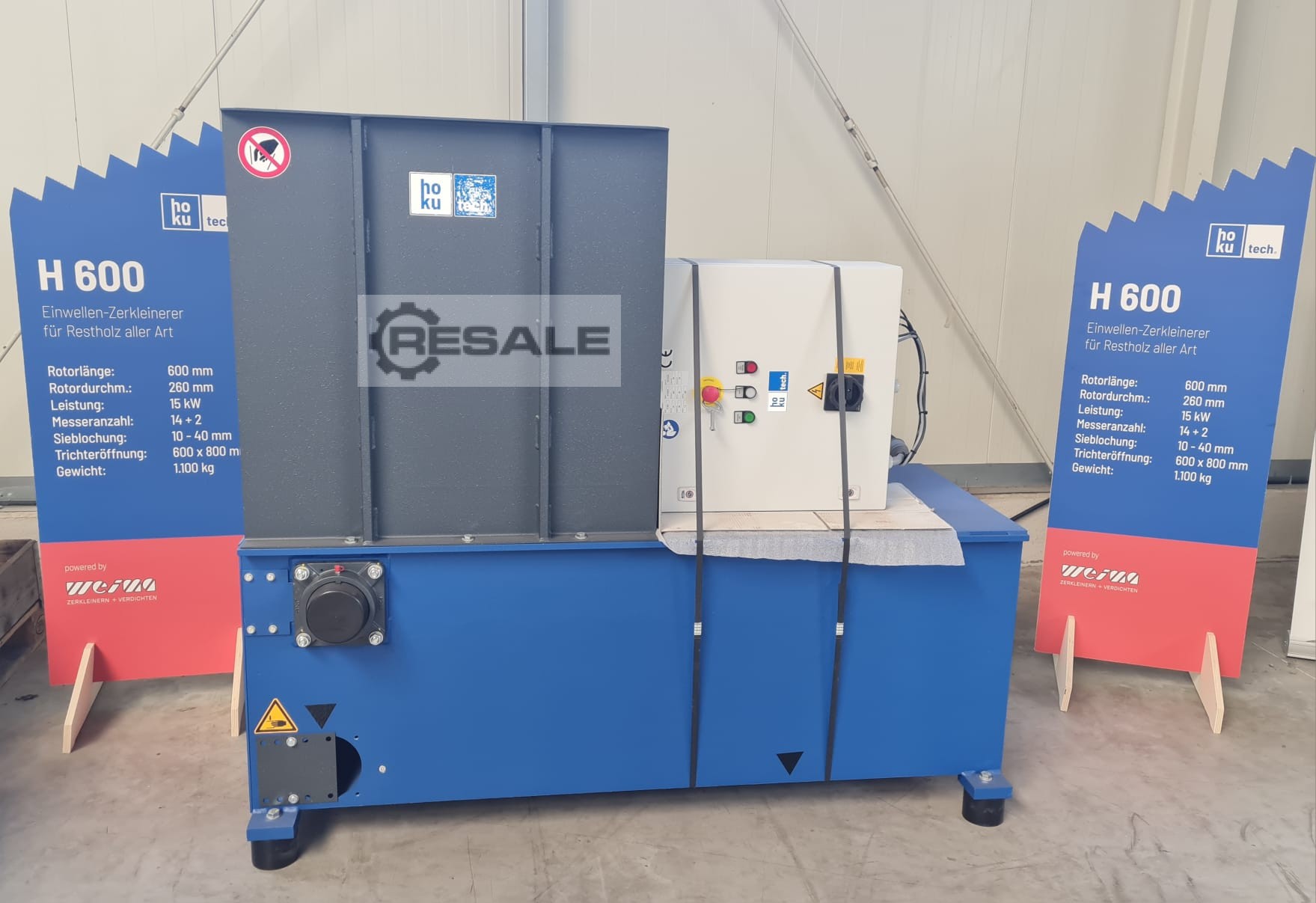

Single-shaft shredders Technical Specification: Hopper opening: 600 x 800 mm Hopper capacity: 0.6 m³ Working width of the rotor: 600 mm Diameter of the rotor: 260 mm Drive power: 15 kW Rotor speed: 90 rpm Number of knives: 14 pieces + 2 pieces Type and size of the knives: concave / 40 x 40 mm, cutting turning crowns concave / 30 x 30 mm, scraper blade Screen perforation: 15/20 mm Lacquering: Frame in RAL 5010, Tricher in RAL 7016 (HoKuTech standard paint) Connected load: 400 V +/- 5 % / 50 Hz For material: chipboard, MDF/HDF, softwood/hardwood, OSB inclusive: - Control cabinet (Rittal) with 5 m cable - Electrical control (PLC Siemens) - Star triangle run-up - Rubber oscillating elements - E-rotor with knife pockets milled into the profile - Transmission limit switch - 1st row of knives - Hold-down device on the slide for long and large parts - Large 4 ...

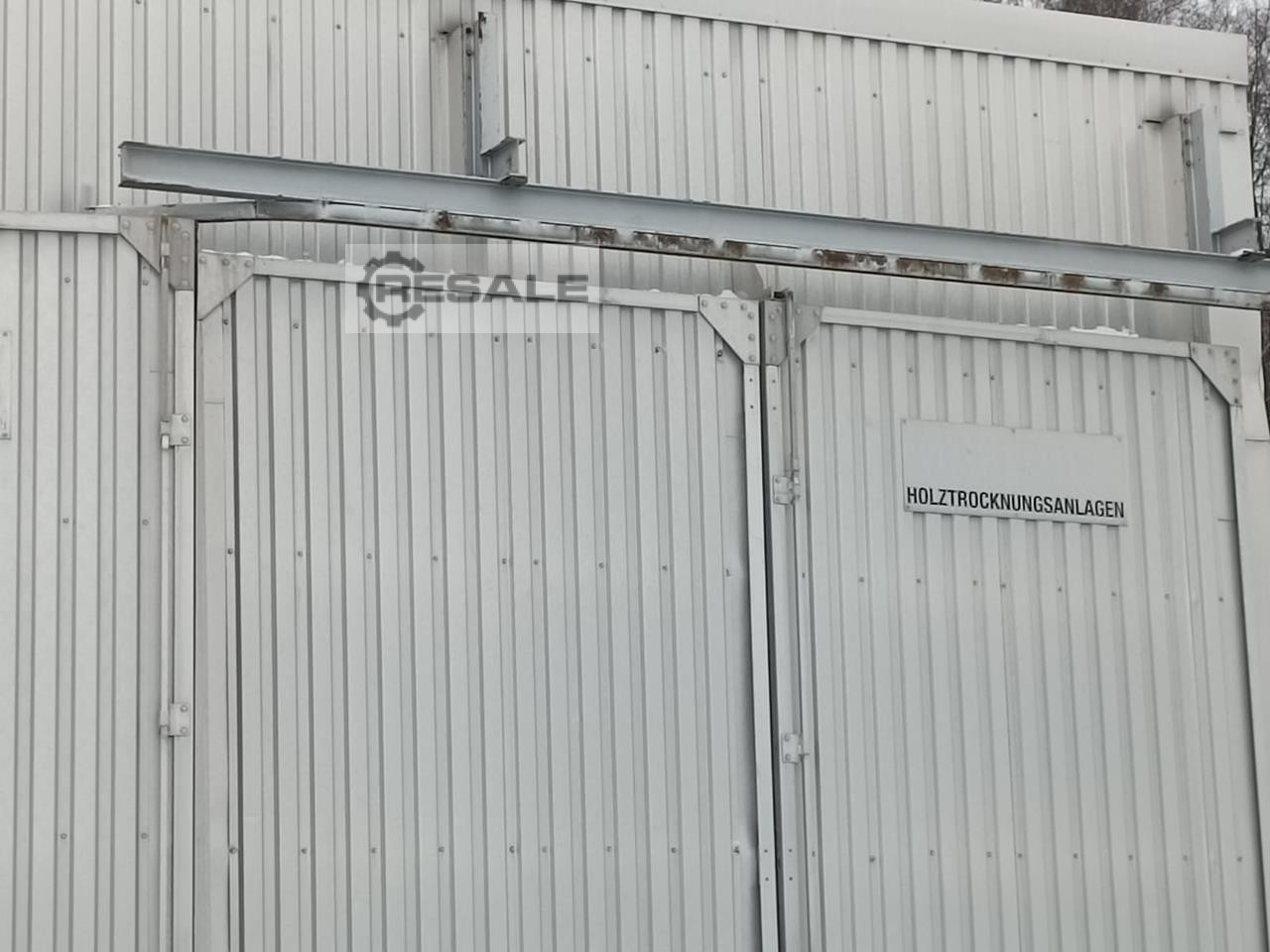

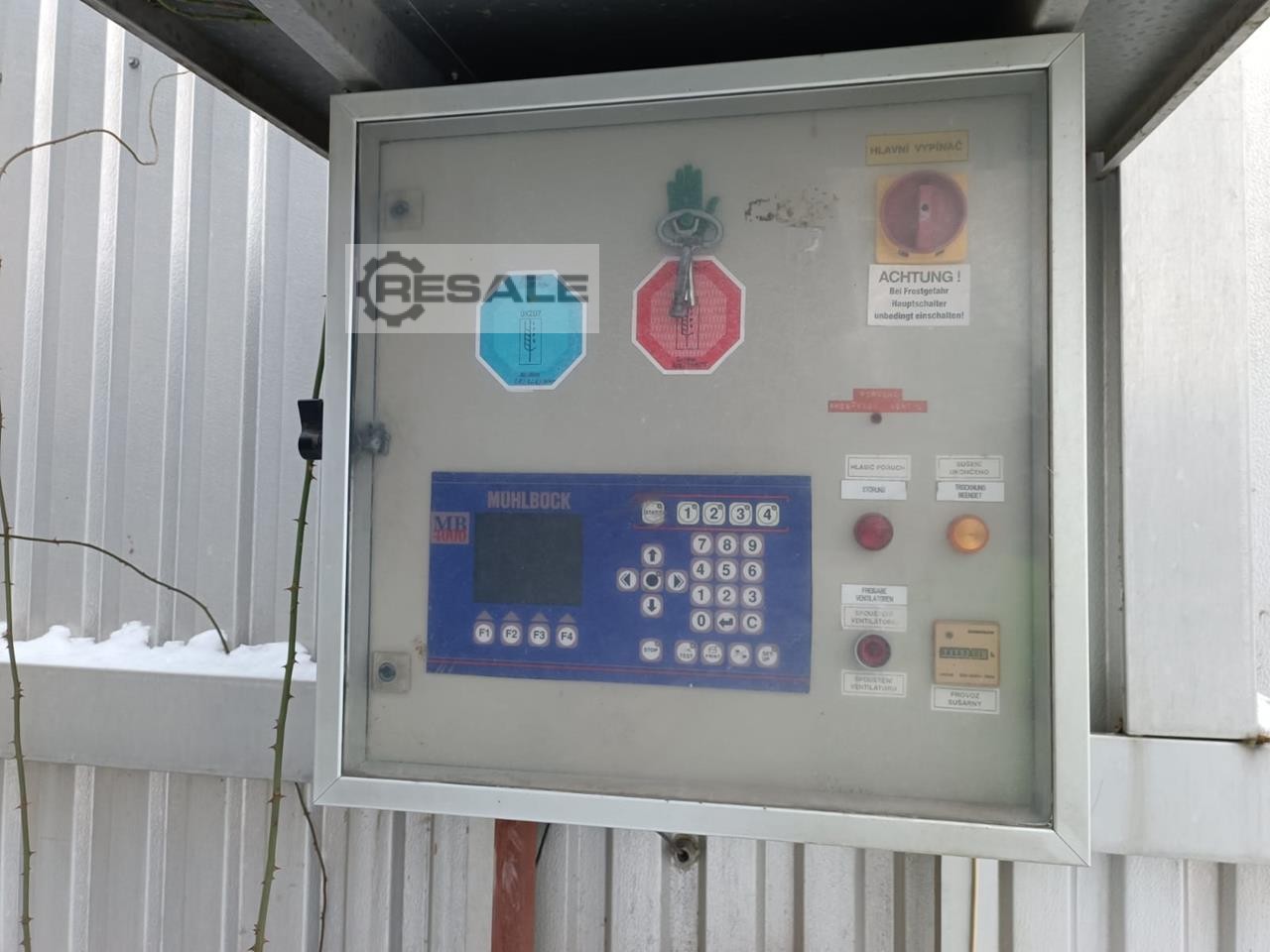

Inv. Num. : 8372 Type: ZLSM-4x1.20-3x1.20-0 Producer: Mühlböck Generated: Parameters: Depth: 5400 mm Height: 4200 mm Length: 6520 mm Capacity: 12 x 8 63 m3 (103 68 m3) Load: 100 kg per 1m2 Number of fans: 4 pieces
Miter punch With table extension With foot lever With table extension Technical features: Double mitres 45º Simple mitres 90° Maximum cutting height 160 mm Maximum cutting width 110 mm Weight approx. 50 kg
Dry Extraction Wall Spänex TAW compact 215 Paint mist extraction wall with dry separator Complete supply air system Hot water heating coil Spray chamber control with touchscreen 2 x 2.0 kW drive power 6000 m³/h volume flow Year of construction: 2011 From joinery liquidation / retirement in GOOD - CONDITION from the carpentry workshop
LECAB automatic stacking line, Consisting of:, - Outfeed system, - Cross chain transport, - Automatic stacker with 6 stacking sticks units, - Cross chain transport for outfeed, - Roller conveyor for wood packages
JONAB automation for planing line, Consisting of:, - Tilt hoist, - Cross chain with transport belt, - Cross chain with separation, - Infeed roller conveyor

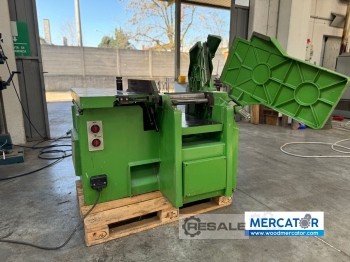

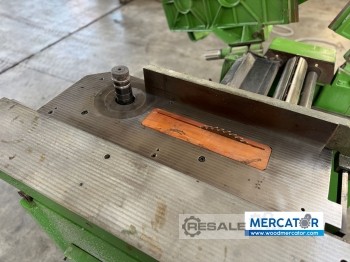

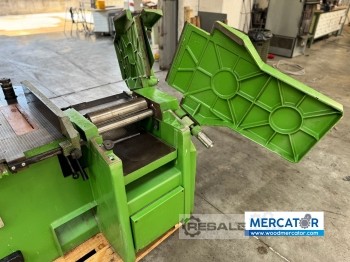

COMPOSITION: Surface planing machine: Table width: 350 mm 3-Knife Roller -------- Thickness planing machine: Machinable height: max. 240 mm Machinable width: max. 350 mm -------- Spindle milling machine: Spindle: Ø 35 mm -------- Circular saw: Length of the slide: 1100 mm Saw blade: Ø 300 mm -------- Mortising machine: Device
Horizontal chipper Horacle / machine no.: H2156/62HO - Feed width: 620mm - Max. feed height: 140mm - Vibrating trough length: 5m - Power: 28 kW - Rated voltage: 400V - Rated current: 55A - Control voltage: 230V - Fuse : 63A - Frequency: 50Hz
Consisting of: Finger jointing shaper ProfiJoint, manual transfer station and one-channel press Infeed lenght 150-700 mm Timber width 40-150 mm timber thickness 20-50 mm
A Schuko filter unit with a Nestro centrifugal fan is sold. Schuko STA filter system Filter area 90sqm Number of filters 90 Filter length 2000mm Dimensions approx. H= 3.9m Length = 3m Depth 1.15m Nestro 7.5kw/380V Volume flow 7650 m3/h Machine can and should be inspected and tried out on site, as warranty or guarantee is excluded.
Homag Profi KAL 310/8/A3 with Power TVL 100/15/LQ/S and Profi KAR 330/7/A3/WZ – built in 2013, For sale is a high-qualityHomag edge banding machine Profi KAL 310/8/A3, built in 2013, combined withPower TVL 100/15/LQ/S and Profi KAR 330/7/A3/WZ,, State: Very good, well-maintained condition, power: Efficient and precise processing for the highest quality standards, Equipment:, ✔ Fully automatic edge processing, ✔ High flexibility for different materials, ✔ Integrated feedback for optimized production processes, ✔ Robust and reliable technology from Homag, Ideal for professional use in wood processing!, Please contact us for further details or to arrange a viewing., Subject to prior sale, changes and errors!
