CIT MECCANICA V 25 / KS sharpening and setting machine

ItalyID 168816144

ItalyID 168816144

usedVerified seller
Net price
1.800 €
Send inquiry Directly to the seller
CIT MECCANICA V 25 / KS sharpening and setting machine
1 / 8

Technical data

· ID 168816144
Source: seller information

Used machinery

Net price
1.800 € netto
Condition
used
Location
22063 Cantù - COMO

Identifikation

ManufacturerCIT MECCANICA
ModelV 25 / KS
Item numberCode: 0311

Technik

Quantity1

Description

Code: 0311
Brand: CIT MECCANICA
Model: V 25 / KS

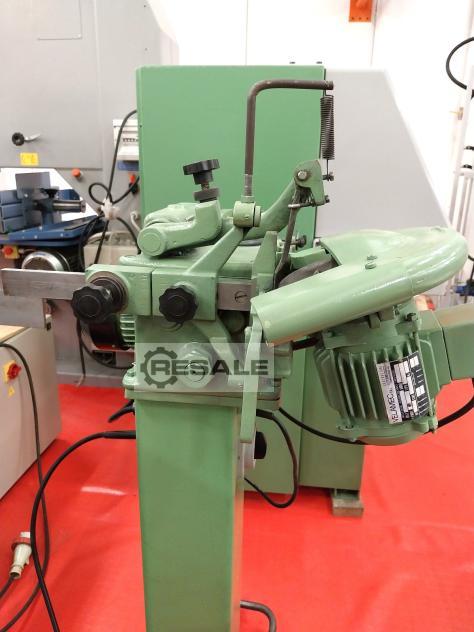

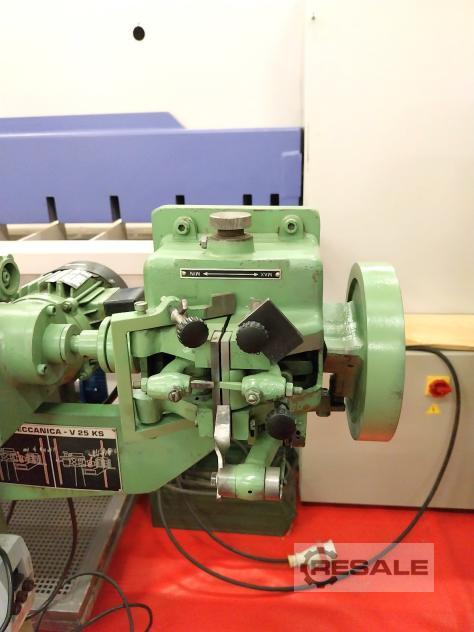

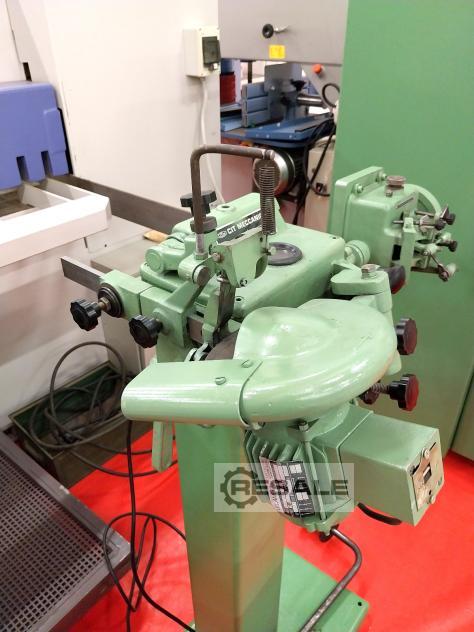

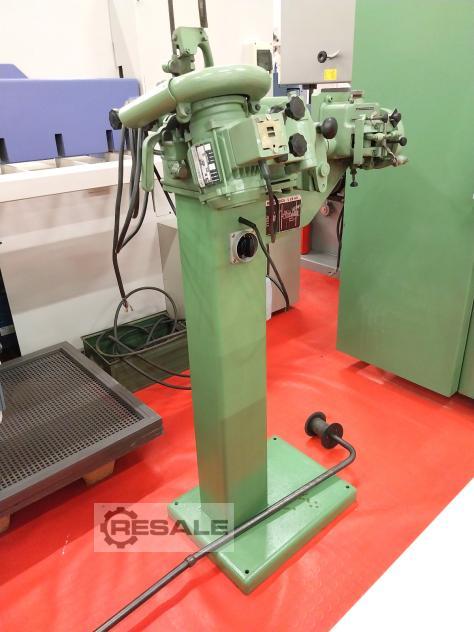

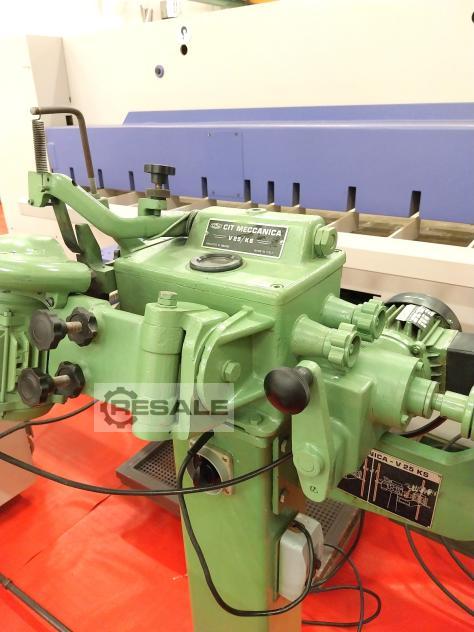

Fully automatic and very precise sharpening and setting machine for band saw blades (normal and spaced teeth) and for sharpening for circular saw blades

Technical features
Minimum pitch of saw teeth 2 mm
Maximum pitch of saw teeth 20 mm
Maximum width of bandsaw blades 50 mm
Minimum diameter of circular blades 110 mm
Maximum diameter of circular blades 600 mm
Grinding motor 0,12 Kw
Main motor 0,20/0,25 Kw
Teeth sharpened per min 35 and 70
Diameter of emery wheels 175 mm
Speed of grinding wheel 3000 rpm
Gear-box oil SAE 30 1,5 Kg
Overall dimensions mm 900 x 650 x 1400 h
Weight 115 kg
