HOMAG used machine for sale

Key data: 4200 mm

Power Control PC85, Woodwop, ATC 12-fold, A lot of accessories, Gluing unit, ... 2 retractable and extendable changing tables, two-part clamping table with 2 processing stations for pendulum assignment, edge height max. 65 mm, chip and offcut disposal, drill head 17 spindles, main spindle 14.5 KW, speed 24000 1/min Incl. many accessories Condition: dismantled

Inv. Num. : 8343 Type: HPP 300 profiLine Producer: HOMAG Created: 2017 Parameters: Cutting length: 3200 mm Maximum format size: 3200 x 3100 mm Equipment: NC control

Specifications - Press pressure (fixed): - Vertical: max. 15 kN - Horizontal: max. 15 kN - Positioning speed: - Rapid traverse: 50 mm/s - Creep trajectory: 25 mm/s - Working height: 300 mm - Weight: approx. 2.2 t - Pneumatics: none - Transport interface: no -Floor space: - Length: 4,000 mm - Depth: 750 mm - Height: 2,300 mm - Required room height: 2,500 mm Body dimensions: - Length: 250...2,500 mm - Depth: 250 to 700 mm - Height: 150...1,400 mm Power supply - Operating voltage: 380-480 V, 50/60 Hz - Control voltage: 24 V DC according to VDE - Connected load: approx. 4 kW - Not suitable for connection to an RCD. - Prescribed ambient temperature: +5 ... +35 degrees Celsius Flooring requirements - Concrete quality C16/20 XC1 - Tensile / compressive strength - Minimum thickness: 150 mm Certification Machine with CE mark in accordance with EC Machinery  ...

for the production of furniture parts made of wood or wood-like materials WORKPIECE DIMENSIONS Length: min. 20 mm max. 1,250 mm Width: min. 20 mm max. 800 mm Note: The workpiece width should always be larger in proportion to the workpiece thickness. Thickness: max. 80 mm, min. 10 mm Active center stop: length max. 600 mm PLACEMENT - 1 vertical drilling gear with 3 individually retrievable spindles, spindle base: 32 mm Adjustment range in Y-direction: 0 - 50 mm (with a drill diameter of 20 mm) Max. drill diameter: 35 mm - 1 horizontal drilling gearbox with 3 individually retrievable spindles, spindle base: 32 mm Adjustment range in Z-direction: -5 - 65 mm - 1 dowel unit (at a distance of 32 mm from the drilling spindle) - 1 glue unit with adjustable glue quantity - Glue flow monitoring - Cleaning device for glue nozzle - Standard dowel dimensions: 8x30 mm / 8x35 mm  ...

Joint milling Kappsaegen Buendingfraesen Corner rounding Scraper Profile Glue Scraper Blades Wobble The machine still works at the customer's site

Key data: 6 , 250 mm, 160 mm

SPECIFICATIONS Model 6 Spindles Workpiece length min. (without gap) mm 300 Workpiece length min. (with gap) mm 800 Workpiece width mm 10 – 250 Workpiece thickness mm 10 – 160 | 5 – 160 Spindle speed 1st spindle 1/min 4,000 – 6,000 (var) Spindle speed from 2nd spindle 1/min 4,000 – 8,000 (var) Spindle diameter mm / inch 40 mm | 50 mm | 1-1/2 inch | 1-13/16 inches Power spindle motor kW 5.5 | 7.5 | 11 | 15 | 18,5 Radial Spindle Positioning, Target/Actual Display and Hand Crank | automatic Axial Spindle Positioning, Target/Actual Display and Hand Crank | automatic

Thickness of parts: 8 to 50 mm Edge thickness: 0.4 to 8 mm Programmable control with group indexing Feed 11 m/min Composition: Edge insertion device Milling unit (straightening) Pre-fusion device Singing store End Cut Aggregate Milling unit (flush filling) Shape milling unit Surface scraping unit Polishing brushes Suction inlets: 1 x ⌀ 120 mm / 3 x ⌀ 60 mm / 1 x ⌀ 100 mm 6 bar pneumatic system Compact and complete machine

Max workpiece length: 5200 mm – for tool Ø 25: 5375 mm Max. workpiece width: 1400 mm – for tools Ø 25 mm: 1550 mm Workpiece thickness max. 300 mm up to 60 mm with standard clamping device Console table: consoles with front stop 8 units Rear gauge (fixed) 4 units Lift Rails Console length 1340 mm Side stops left 2 units – right 2 units Suction cups 160 x 115 x 100 mm 16 units Suction cups 125 x 75 x 100 mm 8 units Vacuum pump 140 m3/h Modern control system from a WINDOWS computer WINDOWS XP operating system Industrial PC 17-inch flat screen Connecting to the Ethernet network WOODWOP Program Voltage 400 V 50/60 HZ Additional vacuum pump 100 m3/h Chip conveyor belt 13-pin drill head 9 verticals 6 X-Drilling Spindles 4 Y-Drill Spindles 4 horizontal pins 2 X-pins 2 Y-pins Main spindle 11kW HSK F63 Liquid cooling 1000/24000 rpm Tool Ø 1 ...

Double-end profiler Homag type FLO22 Specifications: • Workpiece width: min. approx. 190 mm - max. 2600 mm • Workpiece thickness (mm): 8 - 90 • Workpiece protrusion adjustable (mm): 10 - 120 • Working height from the ground (mm): 905 • Feed rate infinitely variable (m/min.): 5 - 25 • Magnetic braking of the feed motor • Max. adjustment speed (m/min.): 3 • Transport chain with cams: cam spacing 900 mm, cam height adjustable up to 20 mm 3 motors per side: • 1st scorer: 1.5 kW controlled • 2nd flaker: 4.5 kW, swivel 15° • 3rd milling motor: 4.5 kW, electro-pneumatic control for case milling, swivel range 90° • Free space: for setting up a standard milling unit

Sales on behalf of a customer, further data on request

Key data: 20 mm, 60 mm, 8365 mm

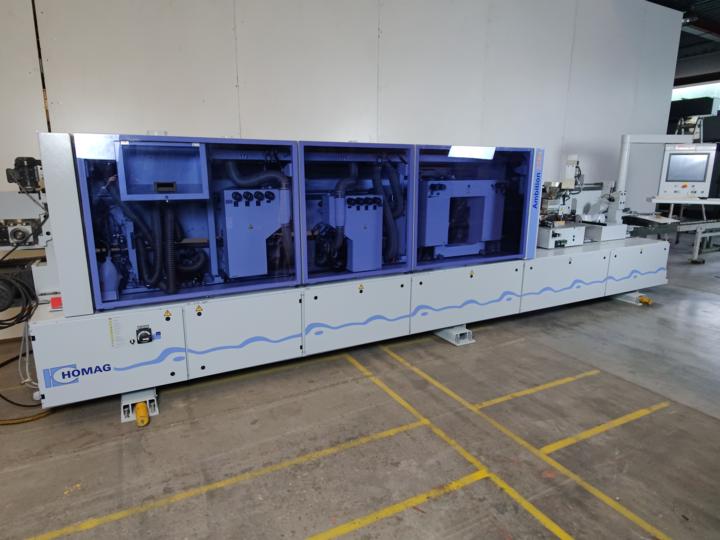

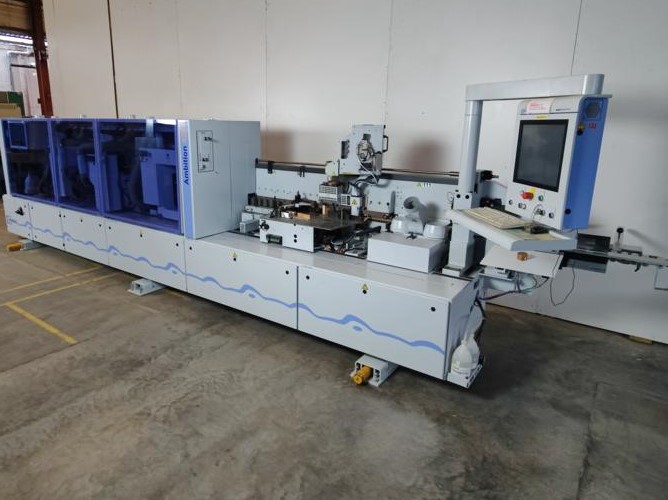

I am selling a fully equipped edge banding machine HOMAG EDGETEQ S-500 KAL370 Ambition 2484, built in 2019: Configuration: Input stop servo-motor adjustable Manually adjustable joint milling Edge banding with preheating tanks 2 pcs. Material pressure zone can be adjusted by servo motor Pneumatically adjustable cross-cut saws Heavy milling top + bottom pneumatically adjustable Round unit 4-motor servo motor adjustable R2 / second set R1 included Swivel groove saw unit Radius scraper blade Multiradius servo motor adjustable Scraper blade surface can be pneumatically adjusted Polishing brushes Separator injection at the front Clean injection at the rear Working height adjustable by servo motor Material height 8-60mm Edge material thickness 0.4-12 (20)mm Feed speed 16 to 25m/min. Overall length including feed plate 8365mm Mileage status 833,000 meters. Input appar ...

Single-sided edge banding machine for machining of straight workpiece edges and for banding and post-processing of various edge materials in longitudinal and transverse passing. Automatic conversion from radius to chamfer and different edge and workpiece thicknesses. Control Power Control PC 22 OVERVIEW OF UNIT ASSEMBLY: – RELEASE AGENT SPRAYING UNIT – JOINING MILLING UNIT – GLUING PART A20 WITH 2 ROLLS Application unit PU 65 (Teflon-coated for PU gluing) – CROSS-CUT UNIT HL84 – PRE-MILLING UNIT – FK11 SHAPE MILLING UNIT – FREE SPACE UNI MILLING UNIT UF10 – PROFILE SCRAPER PN10 – FINISHING UNIT (with detergent information) – Feed rate 20 m/min – Total length 8635 mm 2. WORKPIECE AND EDGE PARAMETERS: – Workpiece width min: – For workpiece thickness 12-22 mm ¦ 60 mm – For workpiece thickness 23-40 mm ¦ 105 mm – Workpiece protrusio ...

Key data: 4175 mm, 1875 mm, 300 mm

Console table with LED suction cup position indicator, 8 manually movable brackets (length 1340mm) each with 3 vacuum cups, 6 support rails Workpiece clamping via vacuum pump 100/140m³/h LED system for vacuum clamps, Z-laser (ceiling laser) for contour display Working area X 4175 mm Working range Y up to 1875 mm (milling with 25mm drm), 1600mm all units Working range Z 300 mm Drill head MPU (with C-axis): 30 spindles: 20 of them vertical ; 10 horizontal drilling spindles, Groove saw max. 200mm drm Main spindle 15 kW, liquid-cooled, with vibration sensor and C-axis 360 grd. , Interface for Flex-5+ unit 18-fold tool changer (plate) at the bottom and 10-fold WZW at the top Adapter unit included: – Flex 5+ sawing, drilling, milling unit Control Power-Control PC 85 with Woodwop 5.0, also for AV station incl. cooling unit in SS Tool transfer station Some of the tools shown,  ...

Fixed stop side on the left. Brief description of the equipment: - Fixed stop side left - Workpiece transport device - Upper pressure - Control Power Control PC22 - Release agent spraying unit - Joining milling unit, 2 x 3 kW - Gluing part A20 Basic for rolls up to 3 mm and strip goods up to 20 mm, with melting unit with granulate container and quick-clamping system - Cross-cut unit, 2 x 0.8 kW, with pneum. Dissimulation - Lubricant spray agggregat - Pre-milled aggreagt 1.5 kW, pneum. adjustable - Mould milling unit FK13, 2 x 0.4 kW - Universal milling unit 4 kW, controlled, with infinitely variable axis - Multi-plastering device MN21 autom. - Finishing unit FA11, with finishing device, detergent application and buffing unit, pneum. adjustable -Noise protection - Free space for additional processing units Further equipment information: - Machine stand throughout f ...

I am selling a stacking system HOMAG BARGSTEDT TBH22/D/25/12, built in 2001. Destacking system One-sided guide Spout also suitable for pallets. Postural head vacuum shoe system. Vacuum system (with pump) Automatic loading. Entry table motorized roller system Exit table on the floor with lifting mechanism motorized roller system Exit table front roller system Enters feed roller stazion for quilted material. Security fences fully complete ! Working capacity Approx. 8 cycles / min Available right away. Ready for use, possible to test. With CE certificate and full documentation.

I sell a center saw with continuous HOMAG FPL620/06/15/P S/LQ. Year of construction 2007. Working width 204 - 1304mm Element height 12 - 60mm Cutting width 100mm Blank length 300mm Feed speed 10 - 40 m/min. Configuration: 1 + 1 pcs. cutting units top + bottom 1 pcs. cutting unit flexible top/bottom 1 pcs. cutting unit flexible top/bottom 1 pcs. grooving unit with stop and softforming function Material pressure tape with conveying from above. Continuous machine. Condition Very good. Available same.

Homag saw unit Brand: Homag Type: 000W04206041 Year of construction: 2000 M-No.: 4-02078 000W04206041 Nmax: 9,900 rpm

1 Quickmelt incl. evaluation device level. Interchangeable heads used, good condition 16 pcs. Interchangeable heads FK 11/13 devices, exchangeable at the top below.

Interchangeable heads used, good condition 16 pcs. Interchangeable heads FK 11/13 devices, exchangeable at the top below. 1 Quickmelt incl. evaluation device level.

Overview of equipment: - Workpiece support scissor design with roller support, 1000 mm extendable - Infeed ruler automatically adjustable - Fixed stop side left - Inlet interlock pneumatically controlled - Upper pressure via driven composite V-belt - Height adjustment electric - Workpiece transport device via transport chain with rubber support - Release agent spray unit top/bottom - Joint milling unit 2 x 3 kW - Gluing part A20 with 2 rollers, consisting of workpiece preheating, Quickmelt application unit with quick clamping system, 2-roll magazine, pressure zone C (auto-adjustable, with 1 pre-press roll and 6 repress rollers) - Cross-cut unit HL84 0.8 kW, with autom. Adjustment chamfer/straight as well as pneum. Adjustment flush/protrusion caps - Pre-milling unit 1.5 kW, pneum. Adjustment of bündi/protrusion milling machines - Mould milling unit FK11 with autom. Adjustme ...

I sell radius copy milling unit for edges suitable for CNC machining center machines with edge banding HOMAG, WEEKE, BIESSE, SCM, MORBIDELLI, HOLZ-HER, IMA, FELDER, MASTERWOOD, BUSELLATO, etc. n 12,000 rpm. Radius R2mm. HSK63 posture. Available the same.

Overview of the assembly: - Release agent spray unit top & bottom - Joining milling unit 2 x 4 kW - Glued part with workpiece preheating, 2 rolls, pressure zone C and QA34 application unit for PU with quick clamping system - autom. Adjustment pressure zone - Preparation for Lasertec activation unit - Hl84 cross-cut unit 0.8 KW - pneum. Adjustment pre-milling unit - Pre-milling unit Bf10 1.5 kW - Mould milling unit Fk11 Manual - Autom. Adjustment of chamfer to radius milling machines - Rolling side probe FK - Pneumatic adjustment FA11 for lateral displacement from the working area - Multi-drawing blade MN 21 autom. for a maximum of 5 different profiles. - Finishing unit (glue joint drawing blade and swabbing ridge) - Detergent spray unit top & bottom - powerControl PC22 Workpiece and edge parameters: - Workpiece width without edge min: - For workpiece thickness  ...

Aggregate for 4-Achs CNC to the extension for the 5-th axis

Workpiece thickness: 12 - 60 mm Feed speed: 18 - 24 m/min Edge thickness: 0.4 - 6 mm for roll edges, 0.4 - 20 mm for strips Equipment: manual fence at the infeed workpiece preheating Bonding unit: QA34 / A20 edge magazine Pressure zone with 1 driven, 6 non-driven rollers, automatic adjustment from the control Hood unit HL83, automatic adjustment phase/straight, 2 motors 0.4 kW Pre-milling unit: 2 x 1.5 KW Milling unit, with sensing, tiltable, 0.4 kW Mold milling unit FF 12, 4-way tool changer, 4 motors 0.4 kW universal milling unit profile sanding unit edge sanding unit Control: HOMATIC NC21

Fixed side at the left Panel thickness min/max: 16/45 mm Min. panel width: 150 mm Lateral panel support for panel width up to 900 mm Min/max. panel length: 700 / 3100 mm Max. laminate overhang: 110 mm Max. laminate thickness: 0,8 mm Radius min/max: 6 / 22 mm (depends the laminate) Feedspeed max. 18 m/min Top pressure by belt Equipment: Infeed fence, adjustable, defines the panel overhang 2 x trimming unit 0,4 kW, HSK 25 toolholder 1 x PVAc glue application 5 x glue nozzle, adjustable 1 x hot air blower 3 x IR heating on top (55 cm length), 3 x bottom (90 cm length) Postforming zone 1,8 m. length Various pre-installed profiling sets 1 x top trimmer 0,4 kW

Fixed side at the left Feedspeed 18 - 25 m/min Working width min 60mm for panel thickness 22mm, 105mm for panel thickness 40mm Panel overhang 30mm Panel thickness 8 - 60 mm in stead of 12 - 40 mm (with limitations) Coil edge thickness: 0,3 - 3 mm, strips 0,4 - 20 mm Coil diameter 830 mm Equipment: Sprayers release agent Squaring device with 2 motors each 3 kW Edge heating Edge magazine for 2 coils, guillotine for edges up to 3 mm Glueing part A20 with quickmelt application Lateral pressure zone K, 1 driven and 6 after pressing rollers End trims HL84, 2 motors each 0,8kW Rough trimming, 2 motors 1,5kW Contour trimming, 2 exchange units Profile scraping PN10 Flat scrapers FA11 Sprayers cleaning agent Buffing Automation package straight/chamfer: -Automatic adjustment infeed fence -Automatic setting of pressure rollers -Pneumatic setting of end trims -Pneumatic setting of rough trims -Automa ...

Workpiece thickness: 8 - 90 mm, electronically adjustable Feed rate: 18-32 m/min frequency controlled Edge thickness: 0.3 - 3 mm for roll edges, strips up to 20 mm Equipment: Inlet guide automatically adjustable via the control, extension 500 mm Joint milling unit: 2 x 3.0 KW workpiece preheating Gluing unit A34 edging magazine for roll Pressure zone with 1 driven, 6 non-driven rollers, automatic adjustment from the control Cutting unit WK14, straight, 2 motors 0.8 kW Pre-milling unit: 2 x 1.5 KW, pneumatic adjustment Form milling unit FF 12 automatic, 2 motors 0.4 kW radius/phase milling unit FF12 automatic 4 motors 0.4 KW universal milling aggregate controlled UF11, 4 kW Profile scrapers PN20 Glue scrapers Nozzles for detergent and anti-stick Polishing unit Control: Power Control PC22

Fixed side at the left Feedspeed 18 - 25 m/min Working width min 60mm for panel thickness 22mm, 105mm for panel thickness 40mm Panel overhang 30mm Panel thickness 8 - 60 mm in stead of 12 - 40 mm (with limitations) Coil edge thickness: 0,3 - 3 mm, strips 0,4 - 20 mm Coil diameter 830 mm Equipment: Sprayers release agent Squaring device with 2 motors each 3 kW Edge heating Edge magazine for 2 coils, guillotine for edges up to 3 mm Glueing part A20 with quickmelt application Lateral pressure zone K, 1 driven and 6 after pressing rollers End trims HL84, 2 motors each 0,8kW Rough trimming, 2 motors 1,5kW Contour trimming, 2 exchange units Profile scraping PN10 Flat scrapers FA11 Sprayers cleaning agent Buffing Automation package straight/chamfer: -Automatic adjustment infeed fence -Automatic setting of pressure rollers -Pneumatic setting of end trims -Pneumatic setting of rough trims -Automa ...

machine 1: Fixed side at the left, working width 220 mm to 2500 mm Workpiece overhang max. 110 mm Electronic width adjustment Panel thickness 8 - 90 mm Top pressure by belts Rolling chain with automatic lubrication, automatic pop-up dogs every 1000 mm Feed speed 10 - 40 m/min Chain infeed taking 1,62 m. panels in front of the dogs Panel alignment at the infeed Middle support NC 30 controlls Equipment left and right: 1+1 Jump universal shaper 6 kW 1+1 Twin hogging unit, motors 6,6 kW (2 motors) 1+1 Universal shaper 6 kW 1+1 Jump universal shaper 6 kW panel turning device HOMAG TD 31/30/13 Year 1989 machine 2: Fixed side at the left, working width 220 mm to 3000 mm Workpiece overhang max. 110 mm Electronic width adjustment Panel thickness 8 - 90 mm Top pressure by belts Rolling chain with automatic lubrication, automatic pop-up dogs every 1000 mm Feed speed 8 - 40 m/min Chain infeed taking ...

4-side squaring and edge banding line Machine 1: Fixed side right, moving side left Rolling chain, feed 10 - 40 m/min Controlls NC 21 Panel thickness 8 - 60 mm Max. panel width 1500 mm Edges: coil 0,3 - 3 mm, strips 0,4 - 20 mm Entry fence for veneered panels Equipment: 1+1 Compact-twin hogger, 2 motors 6,6 kW 1+1 Compact hot melt unit A20 with panel edge pre-heating, glue roller Q34, twin coil magazine, lateral pressure rollers C including anti-stick application 1+1 Free space for solid wood edges up to 2,54 m length 1+1 Rough trimming, 2 x 1,5 kW 1+1 Fine- or radius trimming, 2 x 0,4 kW (edges up to 6 mm) 1+1 Universal shaper 8,1 kW 1+1 Universal shaper 8,1 kW 1+1 Edge sander KS 10 1+1 Disc sander DS 40 1+1 Disc sander DS 40 Angular transfer to the right, TWR 24/30/12/S Panel sizes: width 250 - 1200 mm, length 250 - 3000 mm, thickness 8 - 45 mm Machine 2 Machine II + infeed magazine TW ...
