Key data: 45 °, 2800 mm, 1000 mm
gebr. Sliding table saw ALTENDORF F45 Built in 1987 Motor power: 5.5 kW 45° swivel Height and swivel adjustment: hydraulic Sliding carriage length: 2.80 m Cutting width rip fence: 1.00 m Max. saw blade diameter: 450 mm Max. cutting height: 155 mm 4 speeds: 3.0 / 4.0 / 5.0 / 6,000 rpm. Auto. Star triangular circuit incl. mitre ruler Suction nozzle: 120 + 80 mm Transport dimensions (approx. dimensions): L: 286 cm W: 170 cm H: 143 cm Weight: approx. 1,000 kg The saw comes from a 1-man operation.
Swivelling sliding table saw Altendorf F45 with ELMO IV-plus package with 2-axis scorer, 3m table and Control-Plus control Sliding table length 3000mm Saw blade swivel from 0 to 45 degrees 3000, 4000, 5000 and 6000 rpm speeds with electric speed display Drive motor 5.5kW with automatic motor brake Control panel at eye level with Control-Plus control 4-axis CNC-controlled Cutting of chain dimensions and grooves on the rip fence and length stop Cutting width correction at the rip fence and length stop when the saw blade is swivelled 600 editing programs Calculator function with result transfer to the corresponding axis. Tool management Saw blade diameter up to 450mm Cutting height max. 150mm Cutting width up to 1040mm electrically adjustable Swivel angle and height adjustment electrically adjustable Cut-to-length stop ruler electrically adjustable up to approx. 3210mm ...
Key data: 90 °, 2800 mm, 800 mm
Sliding table saw Altendorf Type: F 90 Machine No. 81-10-79 Built in 1981 Sliding carriage length 2800 mm Motor power 5.5 kW Extraction hood from above Cutting width to the right of the saw blade 800 mm max. saw blade diameter without splitting wedge 500 mm Cutting height maximum 165 mm Maximum saw blade diameter with splitting wedge 400 mm Information on the cutting height for saw blade diameter Saw blade diameter 250 mm Cutting height 0 - 55 mm Saw blade diameter 300 mm Cutting height 0 - 80 mm Saw blade diameter 350 mm Cutting height 25 - 105 mm Saw blade diameter 400 mm Cutting height 50 - 130 mm Saw blade bore 30 mm Saw blade cannot be swivelled Extraction connection diameter 120 mm + 80 mm Weight approx. 950 kg
Key data: 45 °, 3200 mm, 1050 mm
gebr. Sliding table saw ALTENDORF F45 YOC 1994 Motor power: 5.5 kW (rated current: 13.5 A) 4 speeds: 3.0 / 4.0 / 5.0 / 6,000 rpm. Auto. Star triangular circuit Scoring unit (0.75 kW) 45° swivel Height and swivel adjustment: electric Sliding carriage length: 3.20 m Cutting width rip fence: 1.05 m Cutting ruler: up to 325 cm Max. saw blade diameter: 400 mm Max. cutting height: 125 mm Control panel swivels at the top Digital display for angle and speed incl. mitre ruler Extraction hood narrow (new) + wide Suction nozzle: 120 + 80 mm Transport dimensions (approx. dimensions) L:326 cm W:170 cm H:174 cm Weight: approx. 1,100 kg Manufacturer
Key data: 450 mm, 30 mm, 130 mm
Altendorf TK45 Brand: Altendorf Type: TK45 M-No.: 90-3-351 Year of Make: 1990 Cutting height: e 130mm Max. saw blade: ø450 Saw shaft: ø30 Motor 5.5 kW Speed 3000/4000/5000 rpm Panning: 0-45° Cutting width: 1100mm
Key data: 45 °, 1350 mm, 850 mm
Altendorf TKR45 Brand: Altendorf Type: TKR45 M-No.: 79-11-204 Year of Make: 1979 Cutting length 1350mm Surface-mounted table Yes Cutting width 850mm Cutting height (max) 155mm Saw blade (max): ø450 Main saw shaft ø30 Saw blade inclination: 0-45° Motor 5.5 kW Speed 3000/4000/5000 omw/m Weight 910KG
Sliding table saw Altendorf WA 80 Digital display angle and cutting height Motor power 5.5 kW Scoring 0.75 kW Carriage length 3200 mm Saw blade diameter max. 500 mm, can be lowered below table height Cutting height max. 125 mm, at 45° max. 87 mm Cutting width at the rip fence 1350 mm Height adjustment electromotive Swivel angle adjustment electromotive 0 – 45° Angle stop, cutting to length up to 3200 mm Table extension 840 mm Machine weight approx. 1100 kg Work table height 910 mm Top condition
Sliding table saw Altendorf WA 80 Digital display angle and cutting height Motor power 5.5 kW Scoring 0.75 kW Carriage length 3200 mm Saw blade diameter max. 500 mm, can be lowered below table height Cutting height max. 125 mm, at 45° max. 87 mm Cutting width at the rip fence 1350 mm Height adjustment electromotive Swivel angle adjustment electromotive 0 – 45° Angle stop, cutting to length up to 3200 mm Table extension 840 mm Machine weight approx. 1100 kg Work table height 910 mm Top condition
Key data: 45 °, 2800 mm, 1050 mm
Format saw Altendorf Type: F 45 Year of Make: 1989 Sliding carriage length 2800 mm Saw blade swivel 45° With scoring Extraction hood above the saw blade including wide extraction hood for 45° cuts and narrow hood for 90° cuts Angle stop on the sliding carriage Motor power 5.5 kW Scoring motor 0.75 kW Cutting width to the right of the saw blade 1050 mm With table extension With table extension Saw blade diameter maximum with scorer 350 mm max. saw blade diameter 400 mm without scorer Cutting height at 90° maximum 130 mm Cutting height at 45° maximum 90 mm Saw shaft speed 3000/4000/5000/6000 rpm. Extraction connection via saw blade diameter 80 mm Suction connection bottom diameter 120 mm Length stop with magnifying glass with roller support Weight: approx. 1200 kg
Altendorf F45 elmo sliding table saw, full motor skills stroller 340cm tilt and up and down of the disc motorically adjustable Culaga on the right side motorically adjustable up to 1300mm Culaga on a wheelchair with motor adjustment 0.75KW scorer, electrically adjustable 2-axis 7.5KW motor 4 rotation speeds max discs 450mm Used machine, good condition, holds angles and fully fulfills its functions
Sliding table saw with carriage Altendorf F45 no undercutter stroller length 340cm Tilt 0-45 electrically adjustable with readout electrically adjustable saw with readout Culaga on the right side manually adjustable to 1300mm 5.5KW main motor 3 cutting speeds max discs 400mm Branded machine, technically in good condition

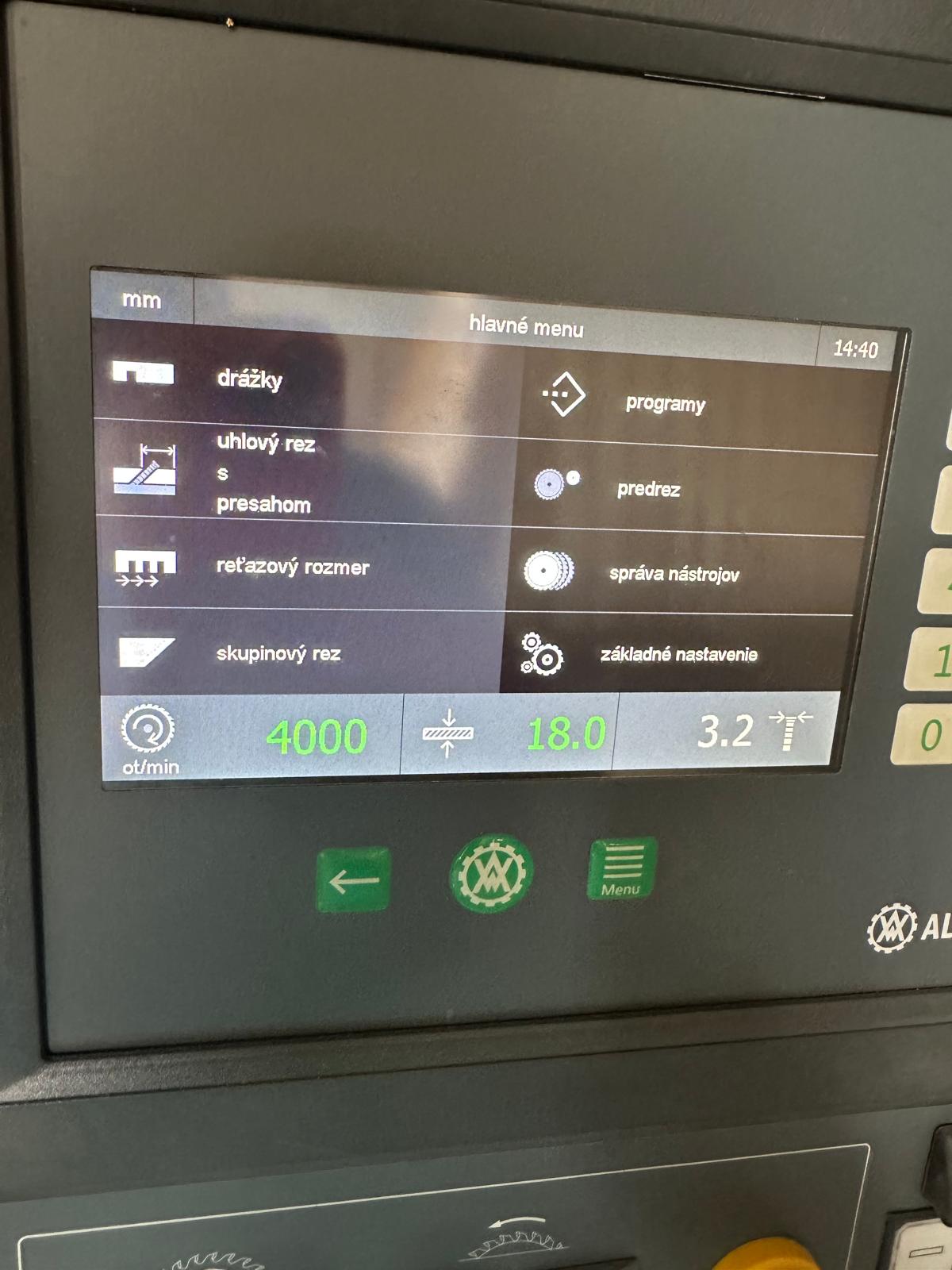

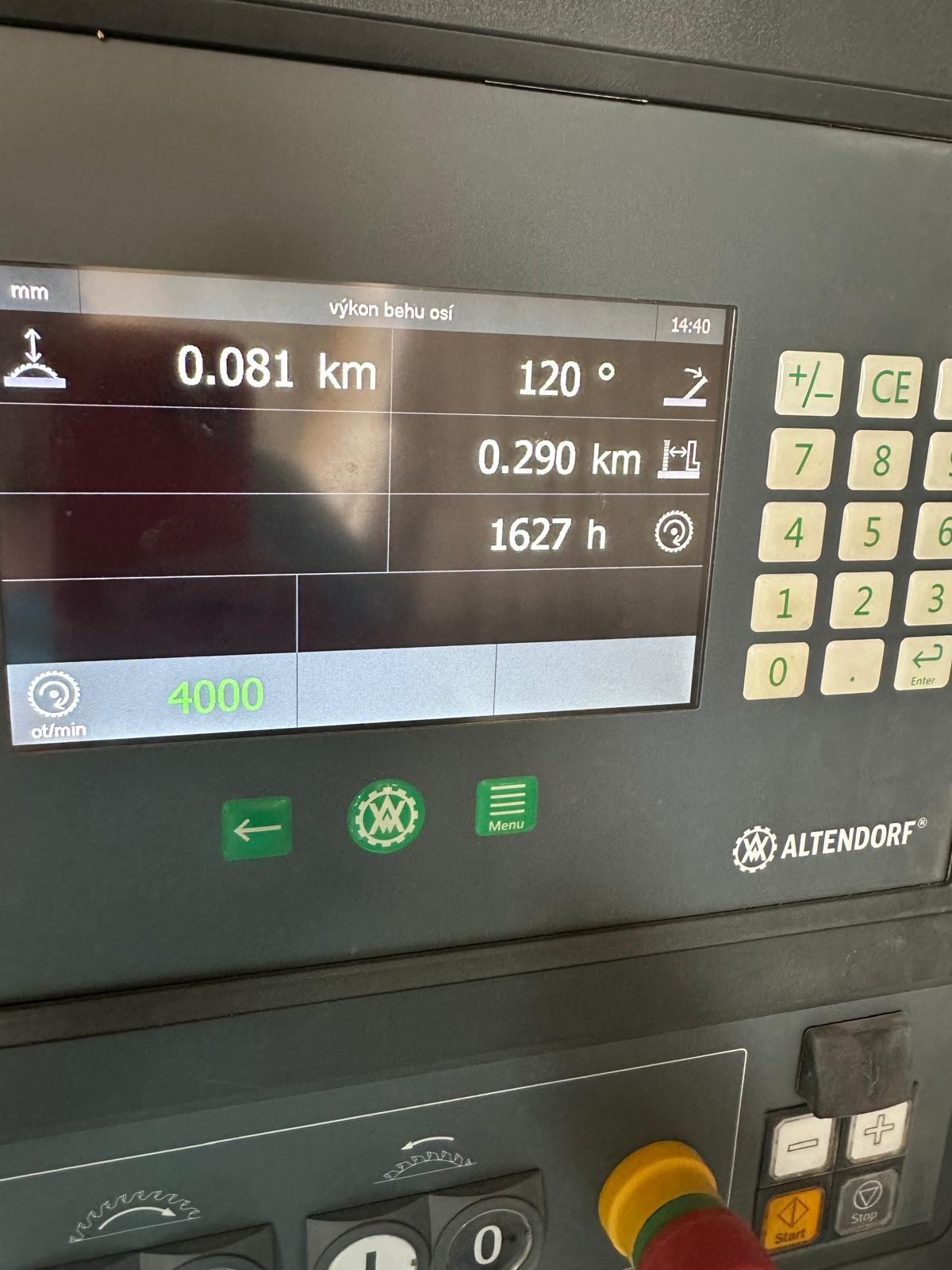

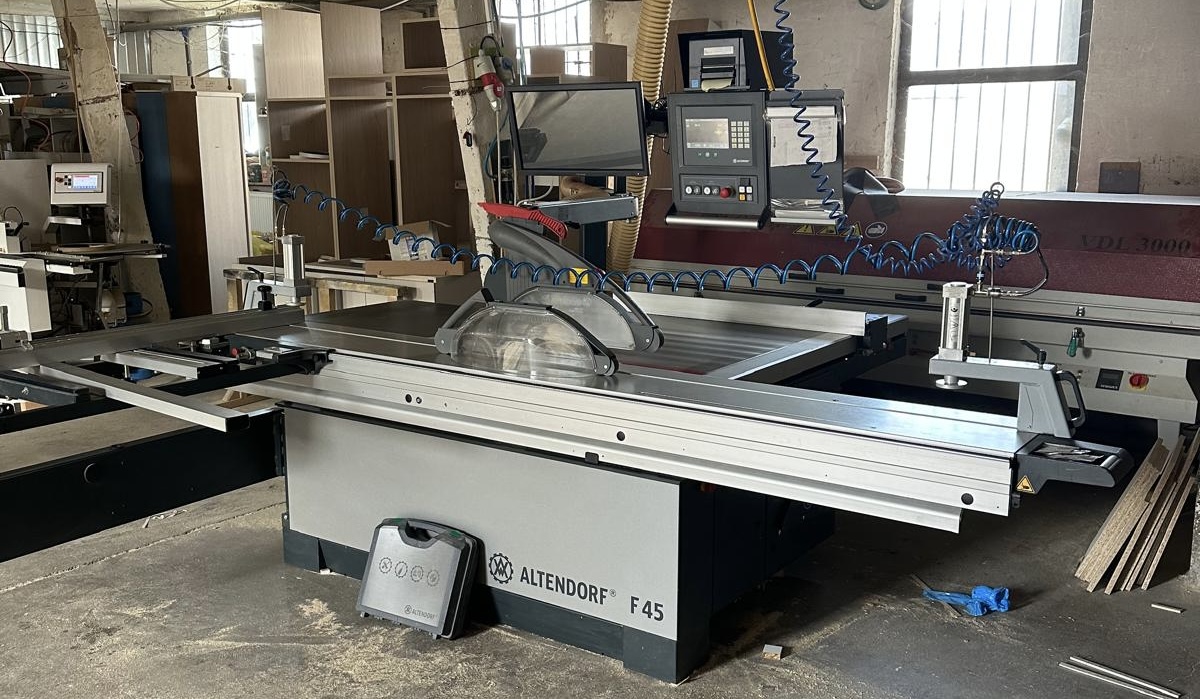

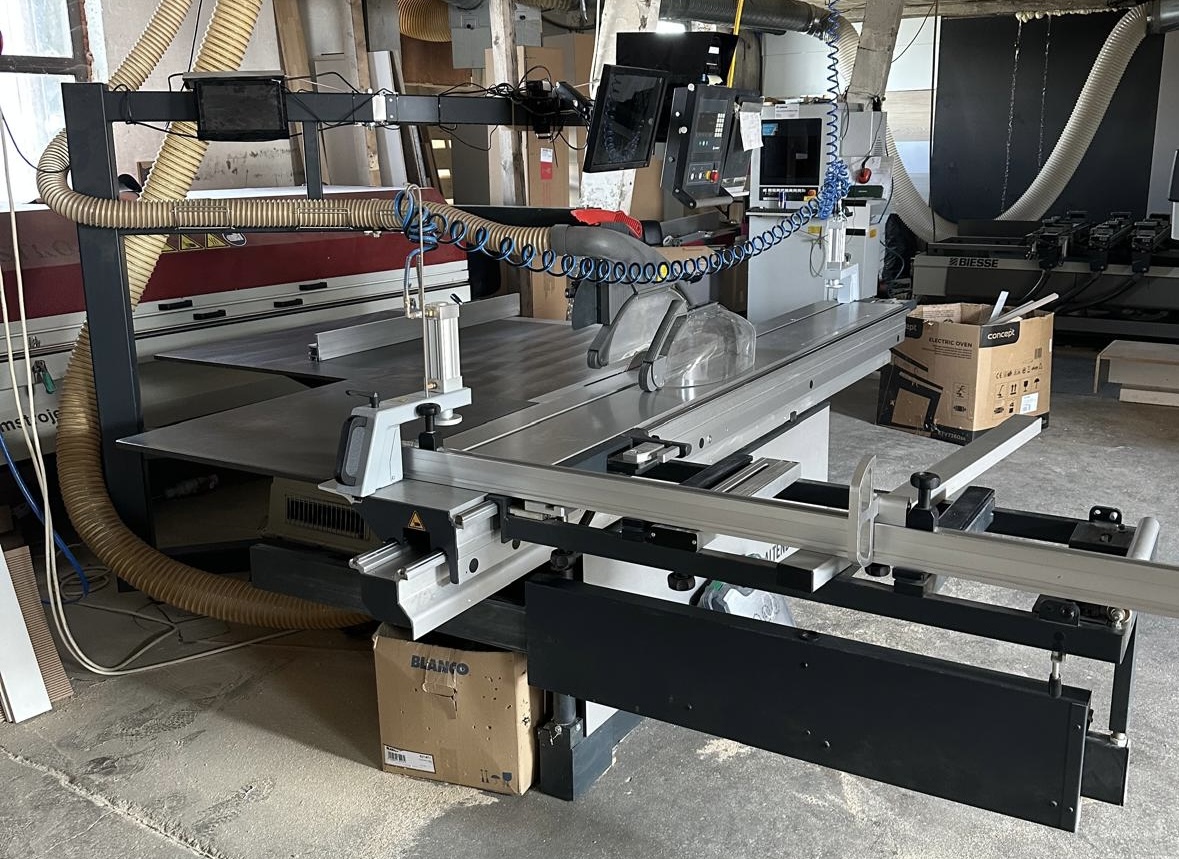

F 45 EvoDrive: The new F 45 is a masterpiece in terms of technology and design. The one from the ground up on newly designed machine stands exceeds all previous values in the points torsional stiffness and low vibration. The smooth front and the legroom on the ground let you get closer to the sliding table saw and stand on the workpiece. The design-adapted, legendary smooth-running double trolleys is still the measure of all Things when it comes to precision cuts and zero maintenance. In addition comes the control at eye level, with which you can adjust the height and swivel of the saw blade plus, depending on the choice of the control package, the speed and more functions. The new, clear industrial design marks the exceptional position of the Altendorf brand: With this sliding table saw characterful design meets timeless aesthetics. 7" touchscreen with separate keyboard Au ...
Sliding table saw with carriage Altendorf F45 0.75KW scorer, electrically adjustable stroller length 300cm Tilt 0-45 electrically adjustable with readout electrically adjustable saw with readout Culaga on the right side manually adjustable to 1300mm with electronic readout 4KW main motor 3 cutting speeds max discs 350mm Branded machine, technically in very good condition
Sliding table saw with Altendorf carriage no undercutter stroller length 300cm Tilt 0-45 electrically adjustable with readout electrically adjustable saw with readout Culaga on the right side manually adjustable to 1300mm with electronic readout 4KW main motor max discs 315mm Branded machine, technically in very good condition
Sliding table saw Altendorf Type F90 Machine No. 66-9-135 Sliding carriage length 2200 mm Cutting width 800 mm Motor power 5.5 kW Flat belt drive, 2 speeds Cutting width to the right of the saw blade 800 mm max. saw blade diameter without splitting wedge 500 mm Cutting height maximum 165 mm Maximum saw blade diameter with splitting wedge 400 mm Information on the cutting height for saw blade diameter Saw blade diameter 250 mm Cutting height 0 - 55 mm Saw blade diameter 300 mm Cutting height 0 - 80 mm Saw blade diameter 350 mm Cutting height 25 - 105 mm Saw blade diameter 400 mm Cutting height 50 - 130 mm Saw blade bore 30 mm Saw blade cannot be swivelled Extraction connection diameter 120 mm + 80 mm Packaging dimensions approx. 2200 mm x 1400 mm x H 1500 mm Weight approx. 855 kg
Key data: 45 °, 2800 mm
Sliding Table Saw Main motor 5.5 KW Scoring saw
trolley length 3200mm Undercutter Hydraulically adjustable cutting angle and height setting Longitudinal fence with micro-adjustment scoring motor power 0.75 KW main motor power 5.5 kW rotation speed of the main disc 3, 4, 5, 6 thousand. Rev. per minute cutting width 1350 mm manually adjustable fence guiding the trolley on textolite leaves length of the longitudinal fence 1200 mm Scorer diameter 120 mm maximum blade diameter 350 mm approximate weight 1000 kg dimensions of the machine 310x335x165 cm Machine year 1994
CIRCULAR SAW model ALTENDORF F45 with 2 axes by CNC second hand machine in excellent working condiiton CE mark . with Use and Maintenance Booklet and Declaration of Conformity 2 CNC controlled axes: 1st axis: blade lifting 2nd axis: blade inclination digital display inclination blade digital display blade height digital display rpm blade double front / rear ignition control electric movements of scoring unit , from the control panel technical data : anodized aluminum carriage mm. 3000 max.diam. blade ( with scoring blade ) mm.350 max.diam. blade ( without scoring blade ) mm. 450 blade rotation speed g/min.3000/4000/5000/6000 with scoring unit : Yes blade group inclinable at 45° cutting width on the parallel guide mm.1350 main saw blade . motor power 7.5 Hp scoring unit motor power Hp 1 machine equipment: aluminum telescopic rod n.01 DIGIT L digital disp ...
Table saw Altendorf TKR 45 (Ref. No. 183-2712) with spec. Stroke, digital display/operation max. saw blade diameter 450 mm Built in 1990 The machine is in good condition, ready for operation. Subject to changes, errors, prior sale ! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system+technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Phone: 0041 62 966 18 32 Fax 0041 62 966 21 12
Sliding table saw Altendorf TRK 45 Year of construction: 1986 S/N 86-9-209 checked in our workshop for normal operating condition Carriage length: 1350 mm Height and swivel adjustment manually with handwheel Motor power: 5.5kW Cutting width: 1250 mm 4 speeds 3/4/5/6000 rpm, Blade diameter max mm: 450 ( without scoring machine ) with scoring Automatic engine brake Weight approx. 1100 kg Technical specification subject to change + 2 additional saw blades
CATALOGUE NO. 7015 TECHNICAL SPECIFICATIONS - max diameter of the main disc with undercutter 350mm - max cutting height 100mm - main dial adjustable up / down - spindle diameter 30mm - spindle locking - with format trolley - cutting length on the trolley 2800mm - cutting width at the guide 1030mm - with sidecar - with undercutting machine - max diameter of the scoring machine 100mm - spindle diameter 22mm - scoring motor 0,75kW - main motor 5,5kW - 4 types of rotation speeds 3000, 4000, 5000, 6000, rpm - diameter of extraction connection 120mm, 60mm - table top dimensions 1220x730mm - table top dimension with widening 1220x1150mm - shield cover - dimensions length / width / height 2880x2800x1100mm, - weight 961kg – German production – unpainted – used saw, very good condition Net price: 16900 PLN Net price: 3798 EUR depending on the price 4.45 EU ...
SPECIFICATIONS: Sliding table saw with 45° swiveling saw blade Diameter saw blade mm: 400 Diameter of the scorer mm: 120 Length of carriage mm: 3800 cutting width mm: 1600 Motor power KW: 5,5 Motor with brake Complete with: - 01 pneumatic presser - Digital control panel - Duplex continuous inclined cutter 0°-90°
Operating voltage: 400 volts, power: 4 kW, speed: maximum 6,000 rpm, saw blade diameter maximum: 400 mm, work table with 2 T-slots width: 2500 mm, adjustable with depth stop: 0 - 800 mm, with suction device Errors excepted!
Altendorf WA6 Format circular saw new Format sliding table: 2600mm Engine power: 400V 4 KW (5.5 hp) Saw blade: 315mm swivel: 90°-45° Pre-scoring unit: with engine 0.37 KW (0.5 HP) For wood, plastic and non-ferrous metal G&AL-WA6-2600 ASSEMBLED CHECKED AND MEASURED! SPECIAL PRICE Format sliding table:also in 1600mm SPECIAL PRICE Accessories: Saw blade pendulum protection (upper protection) for saw blade 350mm
additional pad at the trimming table for Altendorf F45 (2 pieces available)
CIRCULAR SAW Mod ALTENDORF F45 second hand machine CE mark . with Use and Maintenance Booklet and Declaration of Conformity digital display inclination blade digital display blade height digital display rpm blade double front / rear ignition control Technical data : anodized aluminum carriage mm. 3000 max. blade mm.400 blade group inclinable at 45° saw blade self-braking power motor Hp 7.5 telescopic aluminum pole suspended "bridge" protection on the blade cutting width on the parallel rail mm.1300 n.02 additional aluminum frames fixed table dimensions mm.1200x750 blade rotation speed g / min.3000 / 4000/5000/6000 net weight kgs. 1000 Volt. 380/50
Carriage 3m40 Main motor: 5.5 kW Speeds: 3000, 4000, 5000, 6000rpm Sawblade tilting: -45 ? / 90 ? motorized automatic Sawblade rise, fall and tilt motorised Motorized automatic right stopper 1m35 Cross fence for cutting up to 3m20 automatic motorized Max sawblade 450mm
Saw carriage 3m40 Main saw: 5.5 kW Adjustable speed: 3000, 4000, 5000, 6000 rpm Saw blade angle adjustment: -45? / 90? Controlled height and angle adjustment of the saw blade Controlled parallel guide adjustable Altendorf duplex Rollers on carriage
sliding table length: 1500 mm; cutting width at the fence: 700 mm; cutting width at the cross cut: 2200 mm; cutting depth: 100 mm; scoring unit: no; adjustment sawblade height: manuell / Kurbel; adjustment sawblade tilting: manuell / Kurbel; adjustment fence: manuell; read out sawblade tilting: Digital; read out cutting height: -; read out fence: Scala; read out crosscut: Scala; saw blade diameter: 315 mm; number of speeds: 1; motorpower: 4 kW; motor brake: ja - automatisch; suction connection: 80 mm und 120 mm; machine length: 3000 mm; machine width: 1700 mm; weight: 900 kg;
