pressure:200 tdistance between columns:1050 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:450 mmtable surface area:1000 x 1200 mmtable height over floor:850 mmside window:500 mmram surface:1050 x 870 mmspeed down:300 mm/sspeed up:300 mm/sworking speed:18 - 36 mm/spower requirement:37,0 kWweight:16,0 tdimensions (WxDxH):4,0 x 3,6 x 3,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulisch cutting impact cushioning:hydraulisch foundation pit:nicht erforderlich
pressure:100 tthroat:315 mmstroke:30 - 160 mmno. of strokes:40 /mindistance table/ram, max. stroke up, adjustment up:460 mmtable surface area:910 x 680 mmHole in the table:400 mmtable height over floor:800 mmpassage to the back:400 mmram surface:630 x 400 mmram adjustment:80 mmpower requirement:7,5 kWweight:7,5 tdimensions (WxDxH):1,7 x 2,0 x 3,0 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:080 tthroat:300 mmstroke:8 - 112 mmno. of strokes:60 /mindistance table/ram, max. stroke up, adjustment up:467 mmtable surface area:710 x 560 mmhole in the table:240 x 115 mmtable height over floor:800 mmram surface:400 x 315 mmram adjustment:80 mmpower requirement:7,5 kWweight:5,1 tdimensions (WxDxH):1,4 x 1,9 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical
pressure:060 tthroat:220 mmstroke:6 - 94 mmno. of strokes:115 /mindistance table/ram, max. stroke up, adjustment up:340 mmtable surface area:680 x 400 mmhole in the table:120 x 70 mmtable height over floor:750 mmpassage to the back:290 mmram surface:240 x 240 mmram adjustment:57 mmpower requirement:3,7 kWweight:2,8 tdimensions (WxDxH):1,5 x 1,5 x 2,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic
pressure:100 tdistance between columns:1180 mmstroke:1 - 120 mmno. of strokes:90 /mindistance table/ram, stroke up:470 mmtable surface area:1100 x 700 mmtable height over floor:800 mmside window:400 mmram surface:740 x 350 mmram adjustment:100 mmpower requirement:37,0 kWweight:11,0 tdimensions (WxDxH):2,3 x 2,0 x 3,5 mknuckle-joint press:hydraulisch angetrieben T-slots in table and ram acc. to specification:auf Anfrage foundation pit:nicht erforderlich
Pressure:630 tdistance between columns:1600 mmstroke:fix 250 mmno. of strokes:20 /mindistance table/ram, max. stroke up, adjustment up:900 mmtable surface area:1550 x 1200 mmtable height over floor:800 mmside window:620 mmram surface:1360 x 1200 mmram adjustment:160 mmheight over floor:5,9 mheight beneath floor:0,6 mpower requirement:32,0 kWweight:59,0 tdimensions (WxDxH):3,0 x 2,2 x 6,5 mclutch:pneumatisch overload protection in ram:hydraulisch ram adjustment:motorisch ram counterbalance:pneumatisch
pressure:500 tdistance between columns:3400 mmstroke:850 mmno. of strokes:9 - 18 /mindistance table/ram, max. stroke up, adjustment up:2050 mmtable surface area:3100 x 1900 mmtable height over floor:400 mmside window:1550 mmram surface:3100 x 1900 mmram adjustment:350 mmpressure of drawing cushion in ram:70 tpressure of drawing cushion in table:140 tstroke of drawing cushion in table:0 - 250 mmstroke of drawing cushion in ram:150 mmheight beneath floor:6,0 mheight over floor:8,3 mweight:155,0 tdimensions (WxDxH):5,1 x 4,5 x 12,3 mKind of drive:link drive tool changing unit:2 x
pressure:500 tdistance between columns:3400 mmstroke:850 mmno. of strokes:9 - 18 /mindistance table/ram, max. stroke up, adjustment up:2050 mmtable surface area:3100 x 1900 mmtable height over floor:400 mmside window:1550 mmram surface:3100 x 1900 mmram adjustment:350 mmpressure of drawing cushion in ram:70 tpressure of drawing cushion in table:140 tstroke of drawing cushion in table:0 - 250 mmstroke of drawing cushion in ram:150 mmheight beneath floor:6,0 mheight over floor:8,3 mweight:155,0 tdimensions (WxDxH):5,1 x 4,5 x 12,3 mKind of drive:link drive tool changing unit:2 x
pressure:500 tdistance between columns:3400 mmstroke:850 mmno. of strokes:9 - 18 /mindistance table/ram, max. stroke up, adjustment up:2050 mmtable surface area:3100 x 1900 mmtable height over floor:400 mmside window:1550 mmram surface:3100 x 1900 mmram adjustment:350 mmpressure of drawing cushion in ram:70 tpressure of drawing cushion in table:140 tstroke of drawing cushion in table:0 - 250 mmstroke of drawing cushion in ram:150 mmheight beneath floor:6,0 mheight over floor:8,3 mweight:155,0 tdimensions (WxDxH):5,1 x 4,5 x 12,3 mKind of drive:link drive tool changing unit:2 x
pressure:500 tdistance between columns:3400 mmstroke:850 mmno. of strokes:9 - 18 /mindistance table/ram, max. stroke up, adjustment up:2050 mmtable surface area:3100 x 1900 mmtable height over floor:400 mmside window:1550 mmram surface:3100 x 1900 mmram adjustment:350 mmpressure of drawing cushion in ram:70 tpressure of drawing cushion in table:140 tstroke of drawing cushion in table:0 - 250 mmstroke of drawing cushion in ram:150 mmheight beneath floor:6,0 mheight over floor:8,3 mweight:155,0 tdimensions (WxDxH):5,1 x 4,5 x 12,3 mKind of drive:link drive overload protection in ram:hydraulic ram adjustment:motoric tool changing unit:2 x
pressure:063 tthroat:280 mmstroke:8 - 100 mmno. of strokes:65 /mindistance table/ram, max. stroke up, adjustment up:415 mmtable surface area:620 x 500 mmhole in the table:230 mmtable height over floor:800 mmram surface:310 x 255 mmram adjustment:63 mmpower requirement:5,5 kWweight:3,95 tdimensions (WxDxH):1,2 x 1,8 x 2,4 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical
pressure:15 tthroat:250 mmstroke:95 mmno. of strokes:0 - 60 /mindistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:440 x 300 mmhole in the table:45 mmtable height over floor:780 mmtable adjustable:100 mmram surface:100 mmweight:1,1 tdimensions (WxDxH):0,7 x 1,2 x 1,7 m
pressure:5 tthroat:150 mmstroke:40 mmno. of strokes:0 - 80 /mindistance table/ram, max. stroke up, adjustment up:260 mmtable surface area:340 x 270 mmhole in the table:45 mmtable height over floor:780 mmtable adjustable:120 mmram surface:60 mmweight:0,3 tdimensions (WxDxH):0,4 x 0,8 x 1,4 m
Pressure:080 tthroat:300 mmstroke:8 - 100 mmno. of strokes:60 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:720 x 600 mmhole in the table:300 x 175 mmtable height over floor:860 mmram surface:400 x 270 mmram adjustment:60 mmpower requirement:7,5 kWweight:6,0 tdimensions (WxDxH):1,3 x 2,2 x 3,05 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:hydraulic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic
pressure:160 tdistance between columns:1380 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1250 x 850 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:150 mmdie cushion area:450 x 450 mmtable height over floor:900 mmside window:250 x 400 mmram surface:1350 x 850 mmspeed down:400 mm/sspeed up:350 mm/sworking speed:50 mm/soil volume:1850 lpower requirement:58,0 + 11,0 kWweight:24,1 tdimensions (WxDxH):2,85 x 2,15 x 4,6 mGerman Safety: permitted for manual loading:CE-sign die cushion / ejector in table:hydraulic depth stop:motoric adjustable
pressure:075 tthroat:230 mmstroke:6 - 100 mmno. of strokes:105 /mindistance table/ram, max. stroke up, adjustment up:354 mmtable surface area:700 x 420 mmhole in the table:250 mmtable height over floor:800 mmpassage to the back:310 mmram surface:264 x 270 mmram adjustment:60 mmpower requirement:5,5 kWweight:3,6 tdimensions (WxDxH):1,2 x 1,6 x 2,3 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1
: neu : ca. 4 Monate ab Auftragse : Italien : 19500 €: 374.4 €: 70 to: fix : 500 mm: 700 mm: 900 mm: 20 mm/s: 2 mm/s: 1700 mm: 1000 mm: 2400 mm: 980 kg2 speedscontrol by handwheel and push button (2-hand)adjustable max. pressuremanometeraccording to CE regulations user manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:150 tthroat:350 mmstroke:6 - 122 mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:820 x 600 mmhole in the table:330 mmtable height over floor:820 mmram surface:500 x 350 mmram adjustment:75 mmpower requirement:10,0 kWweight:7,3 tdimensions (WxDxH):1,6 x 2,2 x 2,9 m
pressure:150 tthroat:350 mmstroke:6 - 122 mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:820 x 600 mmhole in the table:350 mmtable height over floor:800 mmram surface:500 x 350 mmram adjustment:75 mmpower requirement:10,0 kWweight:7,1 tdimensions (WxDxH):1,5 x 2,1 x 2,9 m
pressure:40 tdistance between columns:495 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:490 x 400 mmhole in the table:50 mmtable height over floor:950 mmside window:155 mmram surface:150 mmspeed down:480 mm/sspeed up:480 mm/sworking speed:20 mm/soil volume:115 lpower requirement:7,5 kWweight:2,2 tdimensions (WxDxH):1,35 x 1,1 x 2,2 mdepth stop:mechanisch foundation pit:nicht erforderlich
Pressure:200 tdistance between columns:1910 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:1900 x 1150 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:300 mmdie cushion area:1500 x 950 mmtable height over floor:800 mmside window:1000 mmram surface:1900 x 1100 mmreturn capacity:36 tspeed down:400 mm/sspeed up:170 mm/sworking speed:30,5 mm/soil volume:1500 lheight over floor:4,85 mheight beneath floor:2,6 mpower requirement:45,0 kWweight:38,0 tdimensions (WxDxH):3,05 x 2,8 x 5,55 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic
pressure:300 tdistance between columns:1220 mmstroke:1000 mmdistance table/ram, max. stroke up, adjustment up:1200 mmtable surface area:1200 x 1000 mmpressure of drawing cushion in table:115 tstroke of drawing cushion in table:400 mmdie cushion area:1100 x 860 mmtable height over floor:900 mmside window:550 x 1000 mmram surface:1200 x 1030 mmspeed down:400 mm/sspeed up:350 mm/sworking speed:12 - 31 mm/soil volume:1080 lpower requirement:36,0 + 19,0 kWweight:22,0 tdimensions (WxDxH):2,5 x 2,5 x 6,3 mheight over floor:5,4 mheight beneath floor:0,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick hydraulic safety block and pump:Fabrikat Rexroth
: neu : ca. 6-8 Wochen ab Auftrag : Italien : 5000 €: 117.73 €: 40 to: fix : 900 mm: 900 mm: 1600 mm: 700 mm: 2050 (PSS: 2250) mmThe table can be lifted with a chainHydraulic unit with motor and pumpAdjustable maximum pressureManometerEquipment compliant with CE regulations. Operating instructions in German and English.MODEL VERSIONS:PSS 40 TL: 1 speed 4 mm/s, single-hand control with lever € 5.000,00 PSS 40 L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 5.800,00 PSS 40 NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 6.100,00 PSS 40: same as PSS 40 NC but with stroke 500 mm € 7.000,00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure:100 tthroat:375 mmstroke:20 - 125 mmno. of strokes:30 - 80 /mindistance table/ram, max. stroke up, adjustment up:515 mmtable surface area:900 x 635 mmhole in the table:280 mmtable height over floor:800 mmpassage to the back:570 mmram surface:700 x 450 mmram adjustment:80 mmpower requirement:15,0 kWweight:8,0 tdimensions (WxDxH):1,5 x 2,4 x 3,5 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic
pressure:400 tthroat:520 mmstroke:20 - 200 mmno. of strokes:30 /mindistance table/ram, max. stroke up, adjustment up:680 mmtable surface area:1600 x 1000 mmtable height over floor:715 mmpassage to the back:1000 mmram surface:1300 x 800 mmram adjustment:130 mmpower requirement:38,0 kWweight:41,0 tdimensions (WxDxH):2,1 x 2,6 x 4,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic
pressure:25 tthroat:400 mmstroke:1000 mmdistance table/ram, max. stroke up, adjustment up:1100 mmtable surface area:620 x 620 mmHole in the table:80 mmtable height over floor:650 mmram surface:110 mmspeed down:300 mm/sspeed up:500 mm/sworking speed:14 - 85 mm/soil volume:400 lpower requirement:6,0 kWweight:3,8 tdimensions (WxDxH):1,5 x 2,1 x 3,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2
pressure:40 tdistance between columns:500 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:480 x 400 mmhole in the table:50 mmtable height over floor:950 mmside window:150 mmram surface:150 mmspeed down:480 mm/sspeed up:480 mm/sworking speed:20 mm/soil volume:160 lpower requirement:7,5 kWweight:2,6 tdimensions (WxDxH):1,1 x 1,4 x 2,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick depth stop:mechanical foundation pit:not necessary
pressure:400 tstroke:280 mmno. of strokes:56 Hub/mindistance table/ram, max. stroke up, adjustment up:680 mmtable surface area:560 x 750 mmallowed max. force:600 tblow die to die:800 tspindle diameter:200 mmram surface:560 x 560 mmheight over floor:4,1 mpower requirement:37,0 kWweight:12,0 tdimensions (WxDxH):2,2 x 2,0 x 4,25 m
pressure:150 tthroat:520 mmstroke:30 - 200 mmno. of strokes:15 - 60 /mindistance table/ram, max. stroke up, adjustment up:650 mmtable surface area:1600 x 1000 mmhole in the table:1040 x 140 mmtable height over floor:1000 mmpassage to the back:1000 mmram surface:1400 x 800 mmram adjustment:120 mmpower requirement:20,0 kWweight:27,5 tdimensions (WxDxH):2,3 x 2,75 x 4,5 mclutch-/ brake combination:pneumatic; Ortlinghaus overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:semi-automatic Option: NEW electrical controls:Siemens S7-1500 F

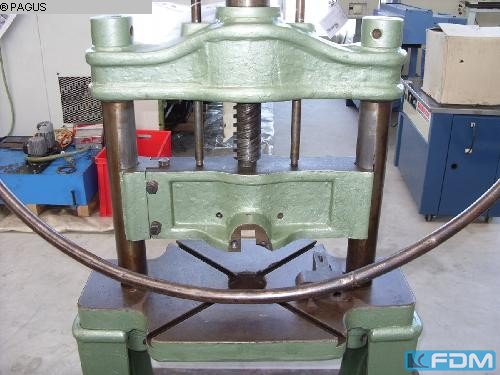

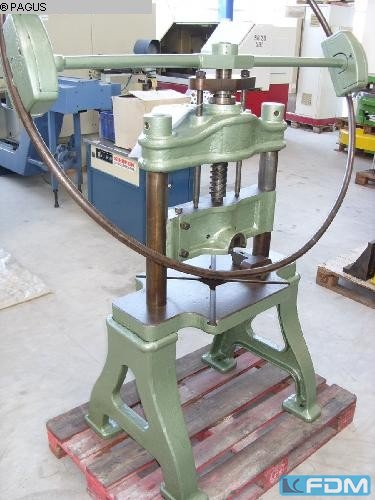

pressure:2 tdayligth:80 mmCenter of spindle to wall or column:100 mmweight of the machine ca.:0,5 tdimensions of the machine ca.:0,8 x 0,6 x 2,0 mHand operated fly press, with center turning device appr. 100 x 400 mm length- Handwheel diameter 600 mm
