Inv. Num. : 8131 Type: HPD-S 63 Producer: Hydrap Created: 1997 Parameters: Compressive force: 63 t Stroke: 1000 mm Maximum lifting speed: 410 mm/s Machine height: 2200 mm Machine length: 1200 mm Machine width: 500 mm Machine weight: 13000 kg

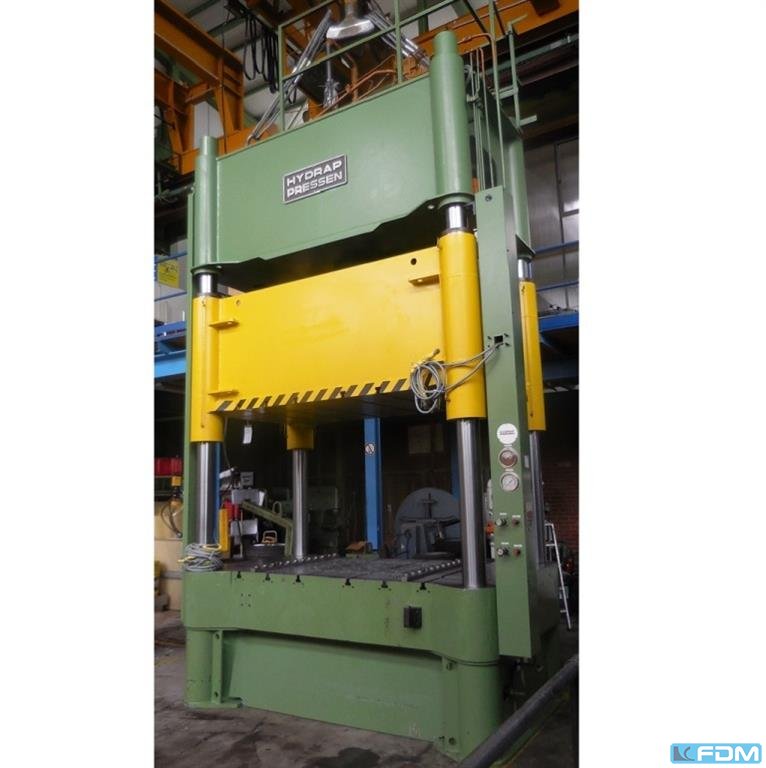

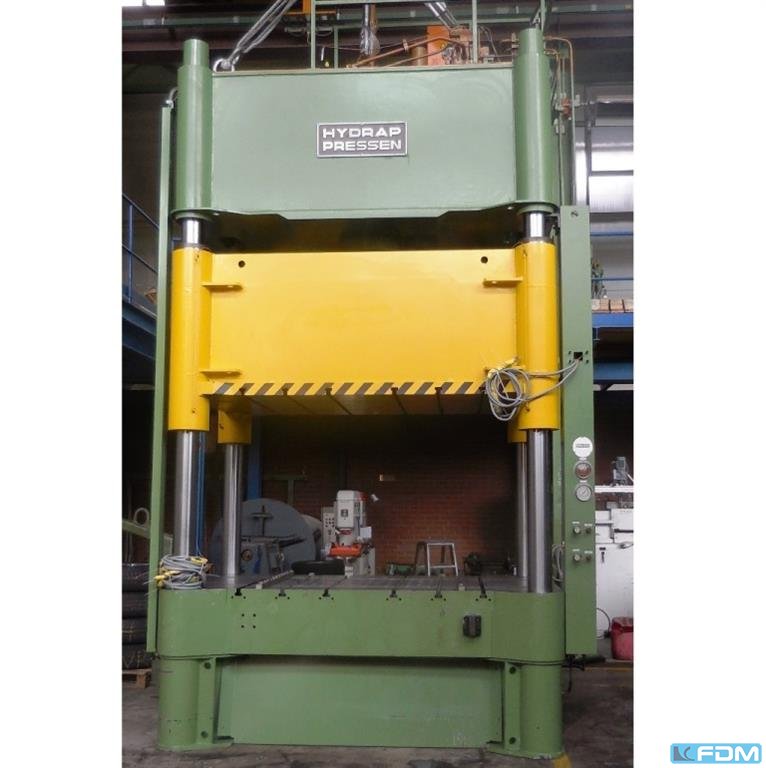

pressure:125 t distance between columns:2100 mm stroke:1000 mm Distance table/ram, max. stroke up, adjustment up:1300 mm Table area:2230 x 1300 mm die cushion pressure in table:63 t die cushion stroke in table:60 mm surface of drawing cushion:1000 x 900 mm table height above floor:1050 mm side window:1000 mm ram surface:2100 x 1000 mm speed down:50 mm/s speed up:50 mm/s working speed:10 mm/s oil volume:410 l height above floor:5,95 mm power requirement:22,0 kW Weight:31,0 t Dimensions (WxDxH):3,1 x 1,7 x 5,95 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic foundation pit:not necessary

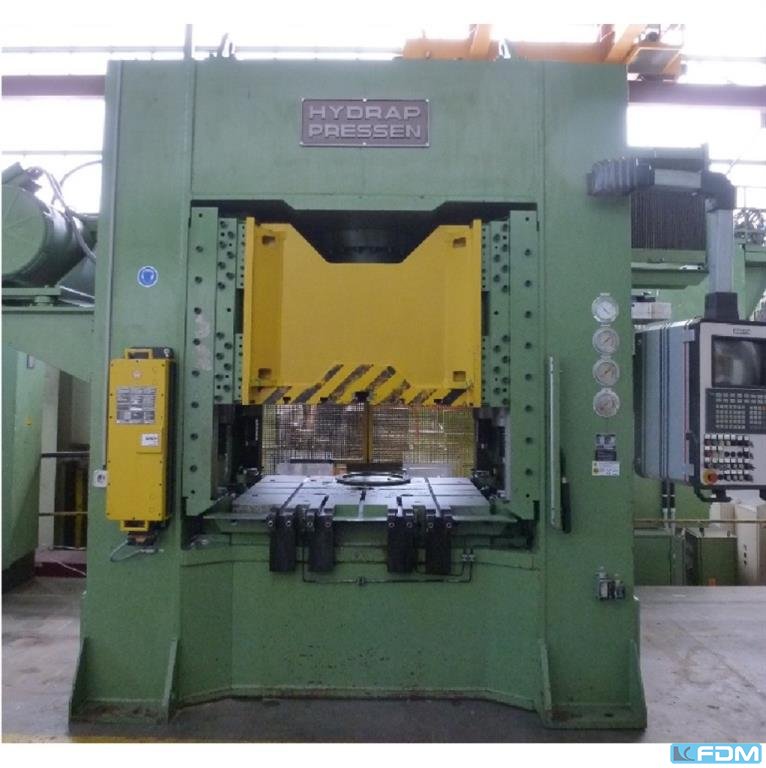

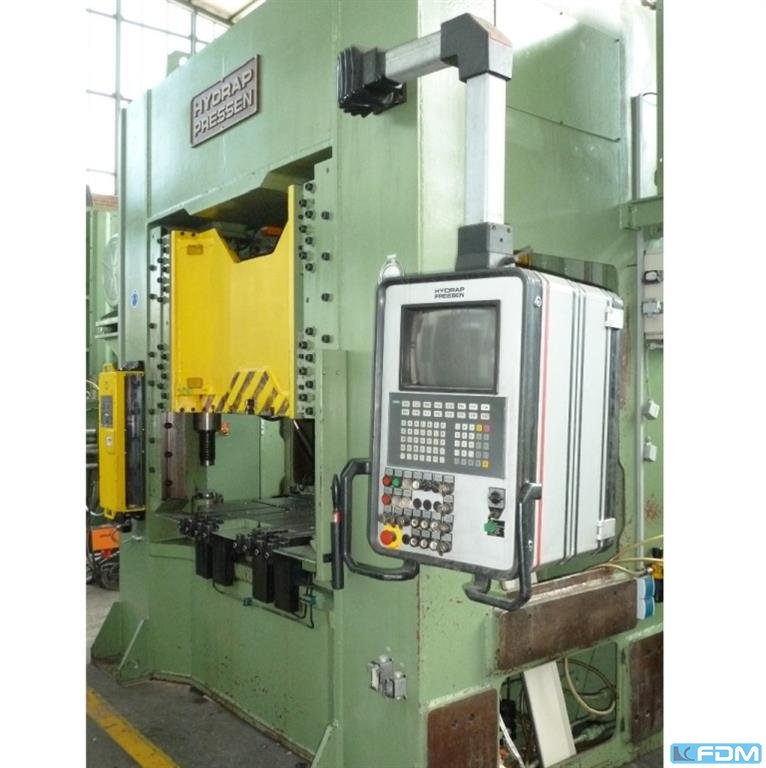

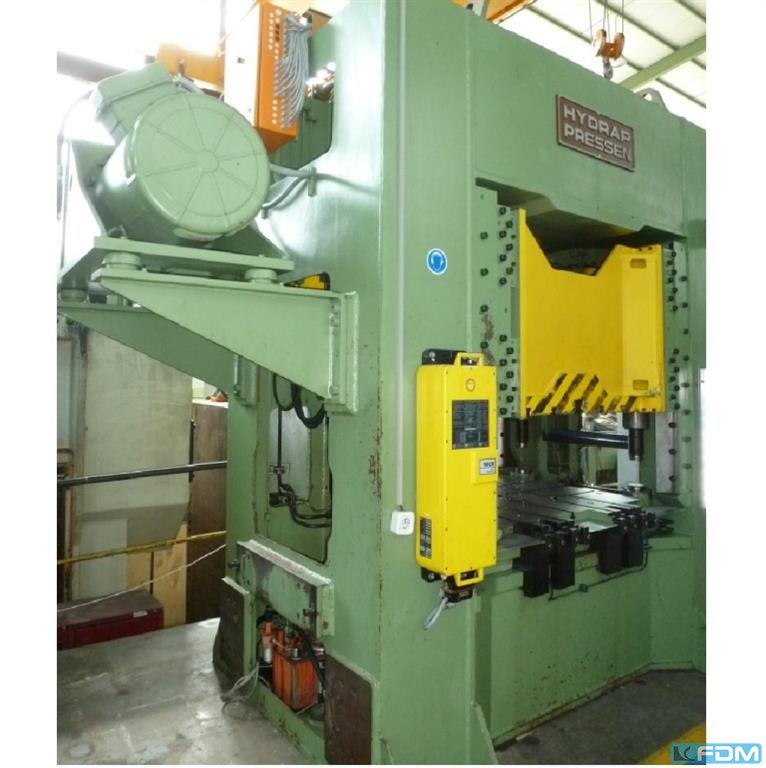

pressure:200 t distance between columns:1400 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:1300 x 1100 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:150 mm die cushion area:700 x 700 mm capacity of ejector in ram:10 t ejector stroke in ram:50 mm table height over floor:930 mm side window:770 mm ram surface:1300 x 1100 mm speed down:400 mm/s speed up:410 mm/s working speed:20 - 50 mm/s return capacity:30 t oil volume:1350 l power requirement:70,0 kW weight:23,0 t dimensions (WxDxH):4,5 x 3,0 x 3,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic ejector in ram:hydraulic foundation pit:not necessary

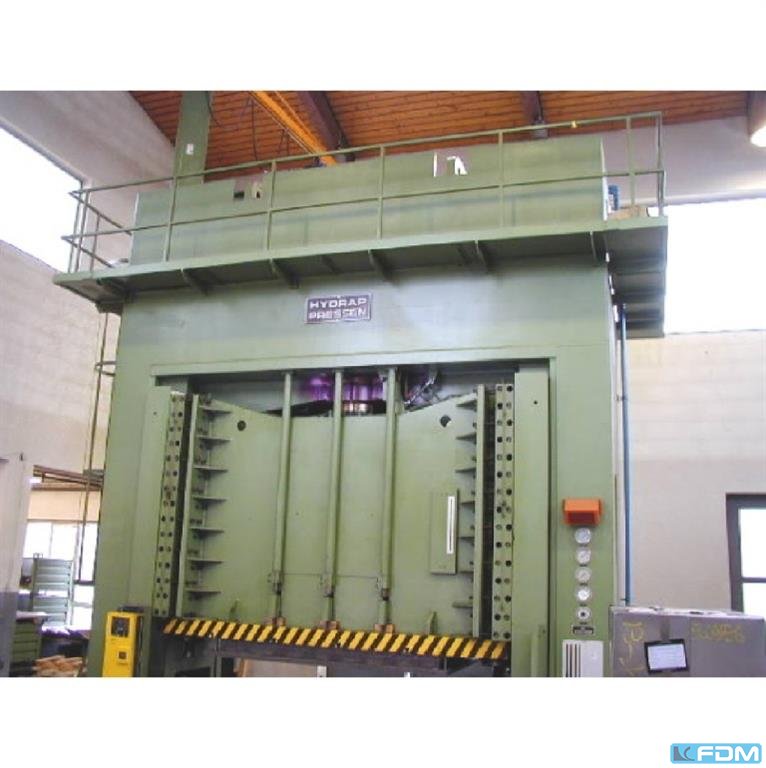

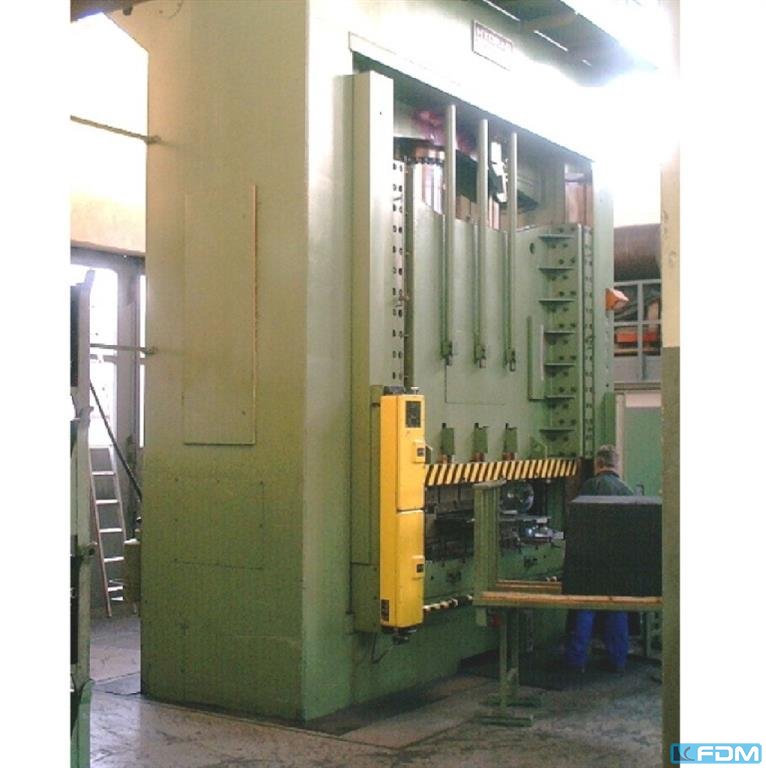

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic
PRESS DESIGN drive system: hydraulic frame design: C-frame, single sided PRESS FORCES total force (nominal): 12 to SLIDE stroke: 200 mm ELECTRICAL SPECIFICATIONS mains voltage: 380 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS total weight approx.: 1000 kg Hour counter: 30'181 h last safety check: 27.07.2023, overrun time 38 ms, overrun distance 60 mm
pressure: 500 t passage width: 750 mm stroke: 120 mm total power requirement: 57 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 63 t passage width: 1350 mm stroke: 300 mm total power requirement: 16 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 2,0 x 1,8 x 3,4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 500 t passage width: 750 mm stroke: 120 mm total power requirement: 57 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Manufacturer: HYDRAP Model: HPDZB 160 Year of Manufacture: 1986 Type of Machine: Hydraulic Press Nominal Force: 178 kN Stroke Length: 500 mm Voltage: 380 V Frequency : 50 Hz Nominal Power: 17.5 kW Current : Alternating Current (A) Weight: 7.5 tons Oil Viscosity : Unknown Maximum Load : 178 kN Safety Distance): Not provided Oil Quantity: 125 liters Weight : 23.000 kg Find more here - / Contact us at -
pressure: 250 t distance between columns: 1100 mm stroke: 400 mm dayligth: 600 mm table surface area: 1000x800 mm ram surface: 1000x800 mm table height: 950 mm total power requirement: 65 kW weight of the machine ca.: 25 t dimensions of the machine ca.: BxTxH 0000x0000x3900mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
: 000 Dimensions (HxWxD): 800x800x1200 mm weight: 150 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 400 t stroke: 300 mm table surface area: 1200 x 700 mm ram surface: 1200 x 700 mm dayligth: 500 mm adjustment of stroke: 300 mm return capacity: 348 kN capacity of ejector: 100 kN ejector stroke: 100 mm total power requirement: 65 kW weight of the machine ca.: 28 t dimensions of machine L x W x H: 4,4 x 2,75 x 4,0 m = Frame press Accessories: tool changing table - next safety inspection according to stamp 05/2021 - - with cutting shock absorption damping force 4000 kN damping stroke 5 mm spindle adjustment 200 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
