EXNER EXSBDZR 400/100FT
Presses For Special Applica
GUILLEM 3RPE-125 REN Eccentric Presses
used
1 / 5
Technical data
· ID 170214448Eccentric Presses
- Net price
- 20.500 € VB netto
- Condition
- used
- Year of manufacture
- 1995
- Location
- 25250 Bellpuig
Identifikation
ManufacturerGUILLEM
Model3RPE-125 REN
Technik
Quantity1
Description

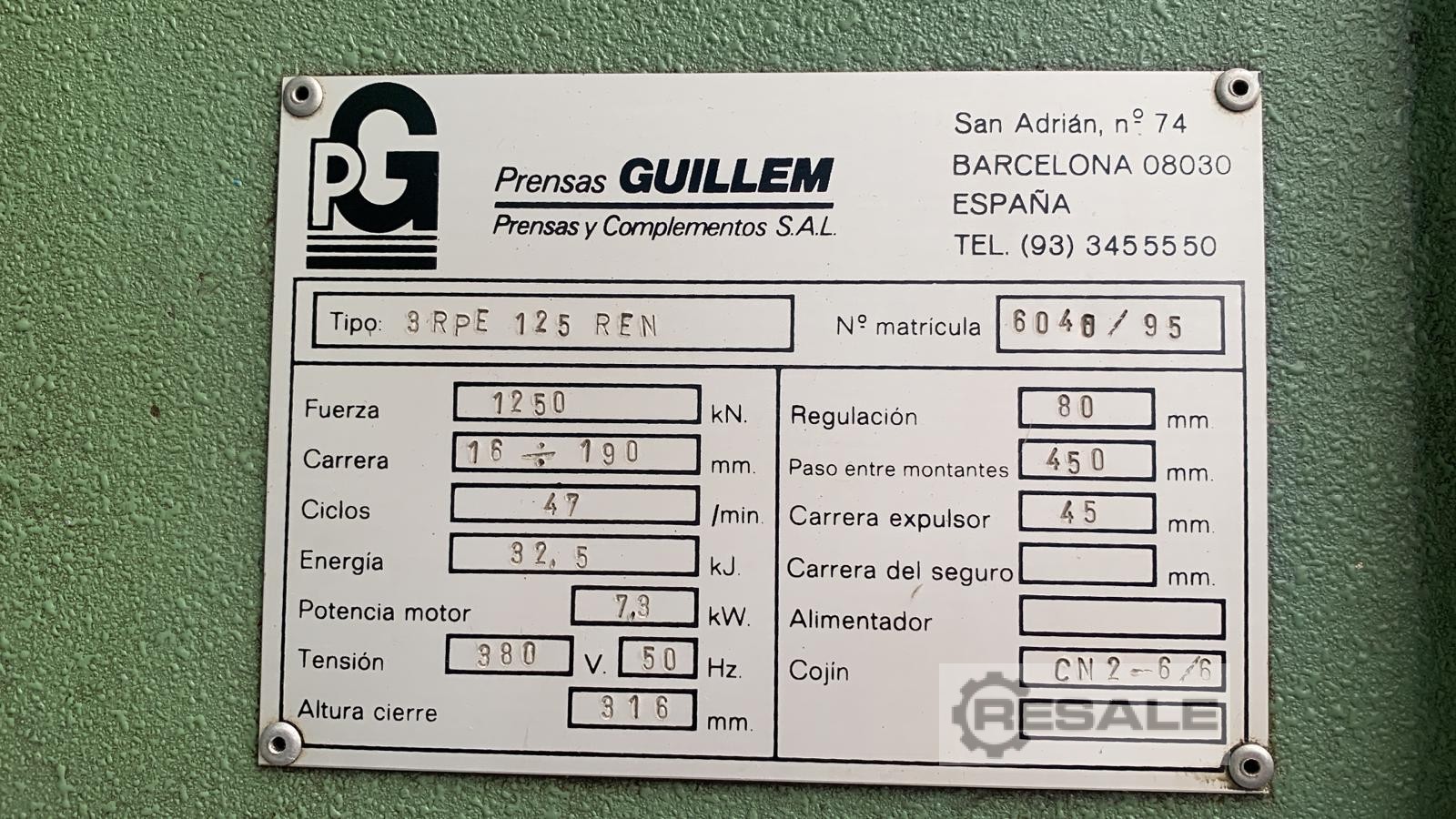

GUILLEM ECCENTRIC PRESS mod. 3RPE 125 USED REN
DESCRIPTION

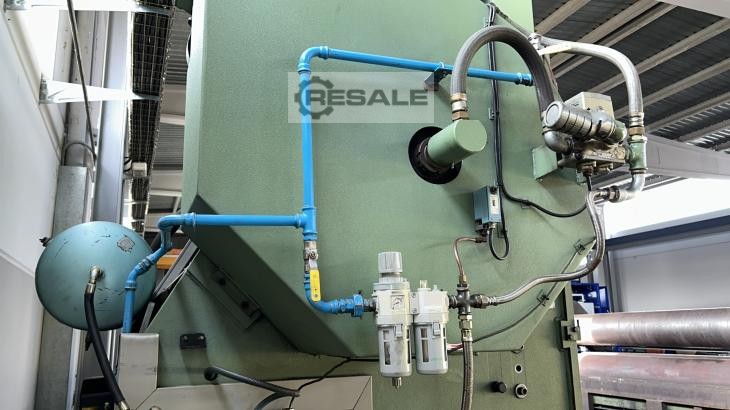

Highly robust NECK eccentric press with pneumatic clutch and cushion.
Includes acrylic front safety doors with magnetic sensor to ensure safety in use.
FEATURES
Maximum force (pressing): 125 Ton.
Maximum number of strokes per variable minute: 47 g/min
Stroke variation: 16 / 190 mm
Crank adjustment: 80 mm
Pitch between uprights: 450 mm
Vertical span: 510 mm
Pneumatic cushion: 12 tn
Cushion stroke: 45 mm
Central drill lower table: 275 mm
Sliding drill diameter: 60 mm
Sliding top table: 370 x 600 mm
Bottom table: 760 x 1000 mm
Main motor power: 7.3 kw
Dimensions: L 1800 W 2000 H 3100 MM
Machine weight approx.: 8000 kg
Year of manufacture: 1995
DESCRIPTION
Highly robust NECK eccentric press with pneumatic clutch and cushion.
Includes acrylic front safety doors with magnetic sensor to ensure safety in use.
FEATURES
Maximum force (pressing): 125 Ton.
Maximum number of strokes per variable minute: 47 g/min
Stroke variation: 16 / 190 mm
Crank adjustment: 80 mm
Pitch between uprights: 450 mm
Vertical span: 510 mm
Pneumatic cushion: 12 tn
Cushion stroke: 45 mm
Central drill lower table: 275 mm
Sliding drill diameter: 60 mm
Sliding top table: 370 x 600 mm
Bottom table: 760 x 1000 mm
Main motor power: 7.3 kw
Dimensions: L 1800 W 2000 H 3100 MM
Machine weight approx.: 8000 kg
Year of manufacture: 1995
